SRP4030 - Remote control PHILIPS - Free user manual and instructions

Product Type	Universal Remote Control
Brand	Philips
Model	SRP4030
Dimensions (H x W x D)	Approx. 200 x 50 x 25 mm
Weight	Approx. 100 g (including batteries)
Power Source	2 x AAA batteries (not included)
Battery Life	Up to 6 months (depending on usage)
Supported Devices	TV, DVD, Blu-ray, Satellite, Cable, Audio systems, Streaming devices
Control Type	IR (Infrared)
Range	Up to 10 m (33 ft)
Number of Keys	40+ (including number pad, volume, channel, menu, navigation, source, etc.)
Programming Method	Automatic code search or manual code entry
Code Database	Preloaded codes for major brands
Learning Function	No (not a learning remote)
Indicator Light	LED (blinks during programming, confirms transmission)
Maintenance	Clean with a dry, soft cloth. Avoid solvents.
Safety Precautions	Keep away from liquids, extreme temperatures, and direct sunlight.
Spare Parts / Accessories	Batteries (AAA); no other spare parts available.
Repairability	Not user-serviceable; no replaceable parts except batteries.
General Information	Designed for easy setup and daily use. Compatible with thousands of devices.

Frequently Asked Questions - SRP4030 PHILIPS

How do I set up the Philips SRP4030 remote control?

Insert two AAA batteries, then power on your device. Press and hold the SETUP key until the LED blinks, then enter the 5-digit code for your brand using the number pad. If the code is accepted, the LED turns off. Test the power/volume buttons.

What devices are compatible with the SRP4030?

The remote works with most TVs, DVD/Blu-ray players, satellite/cable boxes, audio systems, and streaming devices. It has a built-in code database covering thousands of brands.

How do I find the correct code for my TV?

You can use the automatic code search: press SETUP until LED blinks, then press the POWER button repeatedly until the device turns off. Then press SETUP to lock the code. Alternatively, refer to the code list in the manual.

The remote is not working. What should I check?

First, ensure batteries are fresh and inserted correctly. Check if the LED blinks when pressing a button. If not, replace batteries. Verify the remote is pointed at the device and within range (10 m). Try reprogramming the device code.

How do I reset the remote to factory settings?

Remove the batteries, then press any key for 2 seconds to discharge residual power. Reinsert batteries. The remote will revert to default; you will need to reprogram your devices.

Can I use the SRP4030 to control multiple devices?

Yes, the remote can control up to 4 devices (TV, DVD, AUX, and one additional). You need to set it up for each device separately using the appropriate device keys (TV, DVD, AUX, etc.).

What does the LED blinking pattern mean?

A steady blink during programming indicates it's waiting for input. Fast blinking means an invalid code. A long blink followed by off means code accepted. If LED is off, remote is idle or battery low.

How do I clean the remote control?

Use a soft, dry cloth to wipe the surface. Do not use water, cleaning agents, or abrasive materials. Avoid getting moisture into the battery compartment.

Does the remote have a backlight?

No, the Philips SRP4030 does not have a backlit keypad. Buttons are tactile and designed for use in normal lighting conditions.

Where can I find the complete code list?

A list of codes for various brands is included in the user manual that comes with the remote. You can also download the PDF manual from the Philips website or use the automatic code search function.

USER MANUAL SRP4030 PHILIPS

User manual

Register your product and get support at

www.philips.com/support

Contents

1 Your universal remote 2

Introduction 2

2 Get started 3

Insert batteries (not included) 3

Set up the universal remote 4

3 Use your universal remote control 6

Learning 6

4 Notice 7

Disposal of your old product and battery 7

5 Service and support 8

Frequently asked questions 8

Need help? 8

1 Your universal remote

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

Introduction

With the universal remote, you can operate up to 3 different devices.

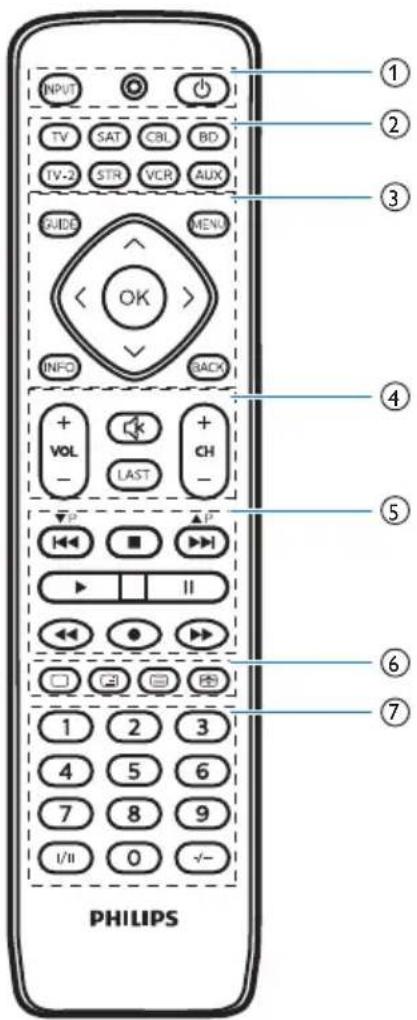

Overview of the universal remote

① INPUT: select available source inputs (antenna, cable, etc.).

● : LED indicator

(●): power on or off.

② Device selection buttons.

③ GUIDE: displays the program guide.

INFO: displays on-screen channel information.

MENU: menu on or off.

BACK: exit from the menu.

OK: confirm your selection.

^ / ∨ / <: up/down/left/right.

④ VOL+/-: adjust the volume.

CH+/-: go to the next/previous channel.

: mute

LAST: return to the previous tuned channel.

⑤ I: previous track

: stop

▶▶: next track

▶ : play

II: pause

◀: rewind

●: record

▶: fast forward

⑥ / / ☐ teletext off/teletext mix/

teletext on/teletext hold.

⑦ Digit buttons

I/II : select the audio channel.

-/-- : select between one and two-figure channel numbers.

Supported devices

Device name Description

TV/TV-2 TV, DTV

SAT/CBL Cable box, satellite receiver, IPTV, DVR, HDTV decoder and TiVo

BD DVD player/recorder, Blu-ray player

STR Streaming devices, Apple TV, Roku, Sony, WD TV, Netgear

VCR Video cassette player/recorder

AUX Auxiliary equipment, media center PC, others

2 Get started

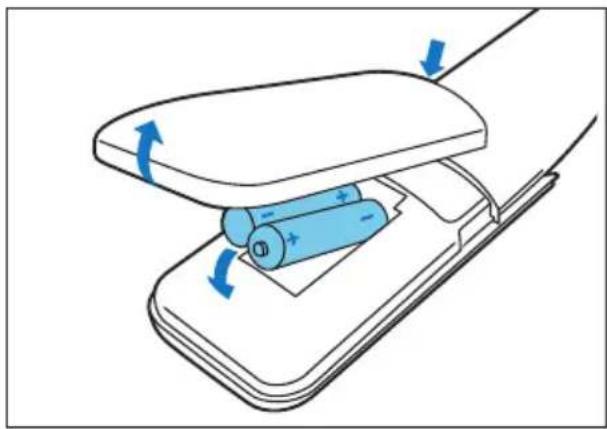

Insert batteries (not included)

Diagram of a battery being placed on an electronic device, showing charge movement (no text or symbols)

Warning

- Check the battery polarity when inserting in the battery compartment. Incorrect polarity may damage the product.

Caution

- Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire. - Risk of decreased battery life! Never mix different brands or types of batteries.

Note

- When you replace the batteries, all user settings will be retained in the memory of the universal remote for 5 minutes.

Set up the universal remote

You must first set up the universal remote before operating your devices.

Set up by code selection

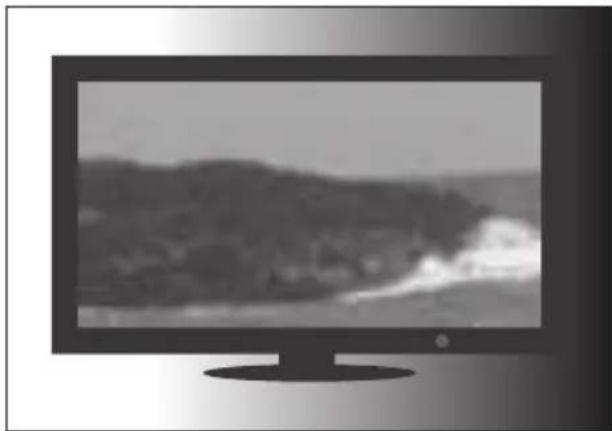

1 Switch on your device.

Black-and-white photo of a flat-screen television displaying a coastal landscape with waves and hills (no text or symbols visible)

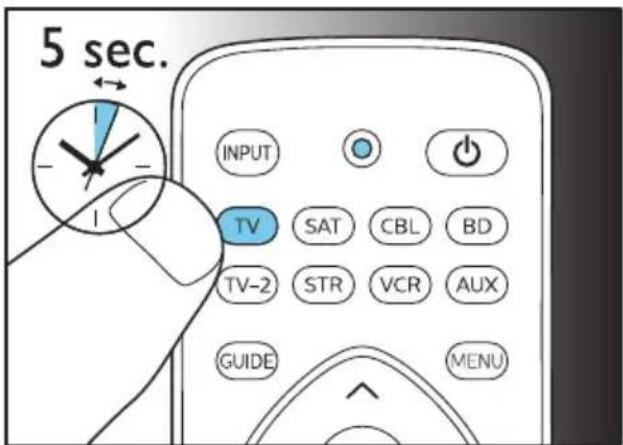

2 Press and hold the device selection button (e.g. TV) for 5 seconds until the red LED is on.

3 Look up the 5-digit code for your brand in the code list. Codes are listed by the device type and brand name. The most popular code is listed first

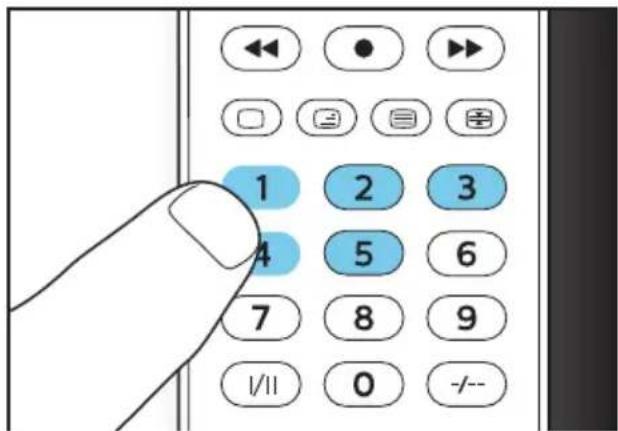

4 Enter the first 5-digit code using the digit buttons.

5 If the light is off, a valid code is saved. Otherwise, the light will flash six times, and then remains on for code re-entry.

6 Operate the device with the universal remote. If your device responds correctly, it means you have entered the right code. Otherwise, repeat from Step 2, and enter the second code on the list.

Note

• It is possible sometimes that your device only responds to some of the buttons. In such case, set up with the next code in the code list, and try operating your device again. If there spill problem on code or key, you can try to learn a key by learning faction if the remote support learning function.
  • Each device button can be used to set up any device. E.g. you may setup a TV using the SAT device button.
• Before you enter any digit in Step 4, you can press device buttem to exit from setup mode.

Auto registration

1 Switch on your device.

Black-and-white photo of a flat-screen monitor displaying a coastal landscape with waves and hills (no text or symbols visible)

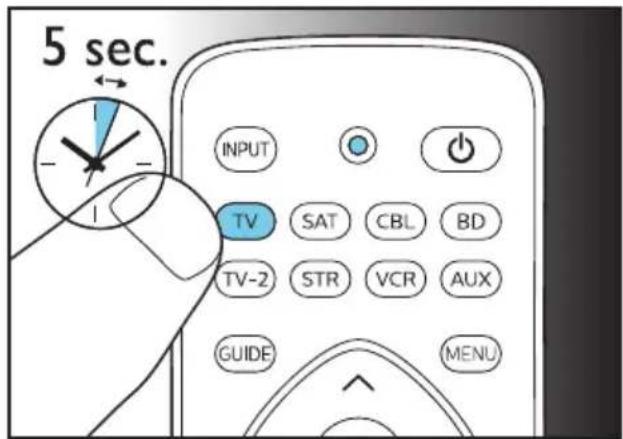

2 Press and hold the device selection button (e.g. TV) for 5 seconds until the red LED is on.

3 Point at your device with the universal remote. Then press and release to start searching the code for your brand. A different infrared signal is sent every 2

seconds as the universal remote searches, indicated by a blue flash.

4 When the device is off, immediately press and release OK to save the code. The blue LED indicator will turn off.

5 Operate the device with the universal remote. If your device responds correctly, it means you have saved the right code.

Note

• Auto registration can be reversed, by pressing and releasing once more during the auto registration process. This is helpful if you missed out the chance to press OK within 2 seconds. Make sure that the device is first powered on again.
• It is possible sometimes that your device only responds to some of the buttons. In such case, set up with the next code in the code list, and try operating your device again.

3 Use your universal remote control

Learning

You must have an original remote for the Universal Remote Control (URC) to learn code from it.

Learn commands

1 Press and hold the device selection button (e.g. TV) for 5 seconds until the red LED is on.
2 Enter the learning code 99900. The red LED will flash once and then remain on.
3 Place the universal remote control and the remote control of your device on a flat surface, aiming at each other at a distance of 3 to 5 cm apart.
4 Press and release the desired key on the universal remote control which you want the command to be learned. The LED indicator will flash twice then remains on.
5 Press and hold the target key on the remote control of your device for a few seconds.
6 If the LED indicator light flashes once and then remains on, the command has been learned successfully. You can release the key on the remote control of your device. If the LED indicator light flashes six times quickly, it means there's an error in the learning process. Adjust the position of both remote controls and repeat from Step 4 again.

7 Repeat from step 3 to learn other key functions, or press and hold any key for 3 seconds to terminate the learning mode, the LED indicator will go out immediately.

Note

• On Step 4, if no key is selected for more than 15 seconds, the LED indicator will flash six times and the learning mode will exit automatically.
• On Step 5, if no other remote signal is received for more than 30 seconds, the LED indicator will flash six times and then remains on. You will need to select a desired key again for learning as in Step 4 on your universal remote control.
  • Each function key will hold only one command, a new command to be learned will automatically replace the previous one.

Clear learned commands

Clear all codes learned for a particular device

1 Press and hold the device selection button (e.g.TV) for 5 seconds until the red LED light is on.
2 Enter the learning code 99910. The red LED light will flash once and then turns off.

All codes learned for the device will be cleared.

Clear all codes learned for the universal remote control

1 Press and hold the device selection button (e.g.TV) for 5 seconds until the red LED light is on.
2 Enter the learning code 99910. The red LED light will remain on briefly, flash twice and then turns off.

All codes learned for the universal remote control will be cleared.

4 Notice

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains batteries covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste. Correct disposal of old products and batteries helps prevent negative consequences for the environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see section 'Insert batteries'.

When this logo is attached to a product, it means a financial contribution has been paid to the associated national recovery and recycling system.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

5 Service and support

You will find our contact details at the end of this user manual. For online support, visit www.philips.com/support

Frequently asked questions

My universal remote does not work at all.

• Check if you have correctly setup the device with the right code. Check if you have pressed the corresponding device key for your device.
• Check if the batteries are inserted properly. If the battery level is low, replace the batteries.
• Check if your device is powered on.

If several device codes are listed under the brand of my device, how can I select the correct device code?

To seek the correct device code, test the codes one by one. The codes are sorted by popularity, and the most popular code is listed first.

My device responds only to some of the commands.

You have set a code for which only some commands work properly but some do not. Try other codes until most keys work properly.

Need help?

We advise you to first read this user manual carefully. It helps you set up and use the universal remote.

If, however, you require extra information or have additional questions about setup, usage, warranty, etc of the SRP2018, you can always contact us.

When calling our helpline, make sure to have the SRP2018 at hand when you call, so that our operators can help you determine whether SRP2018 is working properly.

Specifications are subject to change without notice. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited or one of its affiliates, and MMD Hong Kong Holding Limited is the warrantor in relation to this product.
