KIN52MOD1XC - Basket BERTAZZONI - Free user manual and instructions

Product type	Range hood
Brand	Bertazzoni
Model	KIN52MOD1XC
Width (estimate)	52 cm
Minimum distance between cooktop and hood	650 mm
Exhaust duct diameter	120 mm minimum
Power supply	220-240 V, 50/60 Hz (estimate)
Insulation class	Class I (grounding required)
Number of motor speeds	4 (T1, T2, T3, Intensive)
Intensive function	Yes, duration 6 minutes
Lighting	LED, adjustable brightness
Remote control	Yes, included
Metal grease filter	Dishwasher safe (every 2 months)
Activated carbon filter	Replace every 4 months (not washable)
Filter saturation alarm	Yes, for both types of filters
Exterior material	Stainless steel (estimate)
Comfort Panel	Yes, removable and hand washable
Usage	Domestic, kitchen odor extraction
Evacuation mode	Extraction with duct (recommended) or recirculation with carbon filter
Child safety	Supervision required for children under 8 years old

Frequently Asked Questions - KIN52MOD1XC BERTAZZONI

What is the minimum distance between the cooktop and the hood?

The minimum safety distance is 650 mm. Check the instructions of your cooktop: if a higher distance is specified, that takes precedence.

How to clean the grease filters?

The metal grease filters must be cleaned every 2 months. They can be washed in the dishwasher or by hand with a neutral detergent.

When should the activated carbon filter be replaced?

The activated carbon filter must be replaced every 4 months, or more frequently with heavy use. It is neither washable nor regeneratable.

How to reset the filter saturation alarm?

To reset the alarm, press and hold the T3 key (all loads off) until the LED S1 flashes 3 times. The metal filter alarm triggers after 100 hours of operation, the carbon filter alarm after 200 hours.

Can I use the hood without an external exhaust duct?

Yes, in recirculation mode with an activated carbon filter. Ensure the room is properly ventilated, especially if using gas appliances.

What to do in case of LED lighting failure?

The LED lighting must be replaced by a qualified technician. Contact the Bertazzoni after-sales service to obtain replacement lamps.

How to activate or deactivate the remote control?

Press and hold the T4 key (all loads off). The LED flashes 2 times for activation, 1 time for deactivation.

What is the electrical power of the hood?

The power is not specified in the manual, but for a hood of this size, it is generally between 150 and 300 W. Connect to a grounded outlet.

Can the Comfort Panel go in the dishwasher?

No, the Comfort Panel should never be washed in the dishwasher. Clean it with a damp cloth and a neutral liquid detergent.

What to do if the hood does not start?

Check the power supply (outlet, fuse). Make sure the remote control is activated (see previous question). If the problem persists, contact the after-sales service.

USER MANUAL KIN52MOD1XC BERTAZZONI

PERTAZZION ITALIA

IT LIBRETTO DI USO
DE GEBRAUCHSANLEITUNG
EN USER MANUAL
FR MANUEL D'UTILISATION
NL GEBRUIKSAANWIJZING
ES MANUAL DE USO
DA BRUGSVEJLEDNING
FI KÄYTTÖOHJEET
NO BRUKSVEILEDNING
SV ANVÄNDNINGSHANDBOK
PL INSTRUKCJA UŻYTKOWANIA
AR المستخدم دليل

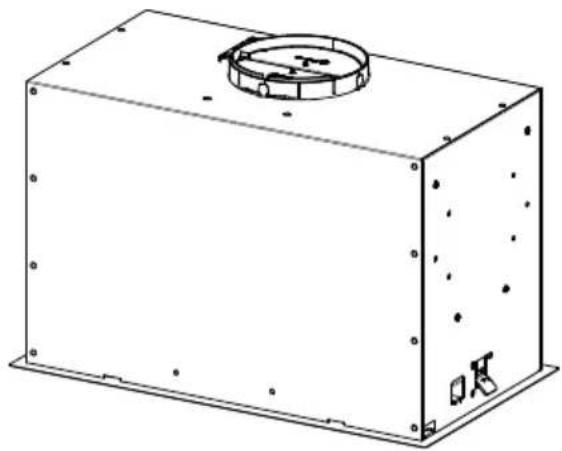

Technical line drawing of a rectangular industrial enclosure with a circular top fixture and mounting holes (no text or symbols)

IT 3
DE 9
EN 13
FR 18
NL 23
ES 28
DA 33
FI 38
NO 43
SV 47
PL 52
AR 56

IT

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Pulizia Comfort Panel

Diagram illustrating a hand pressing a button on a cardboard box, with an inset showing the interior view of a device.

Illustration of a hand holding a tablet device with an arrow indicating the touch point (no text or symbols present)

Diagram illustrating a hand pressing down an airbag with a circular valve, showing the process from left to right.

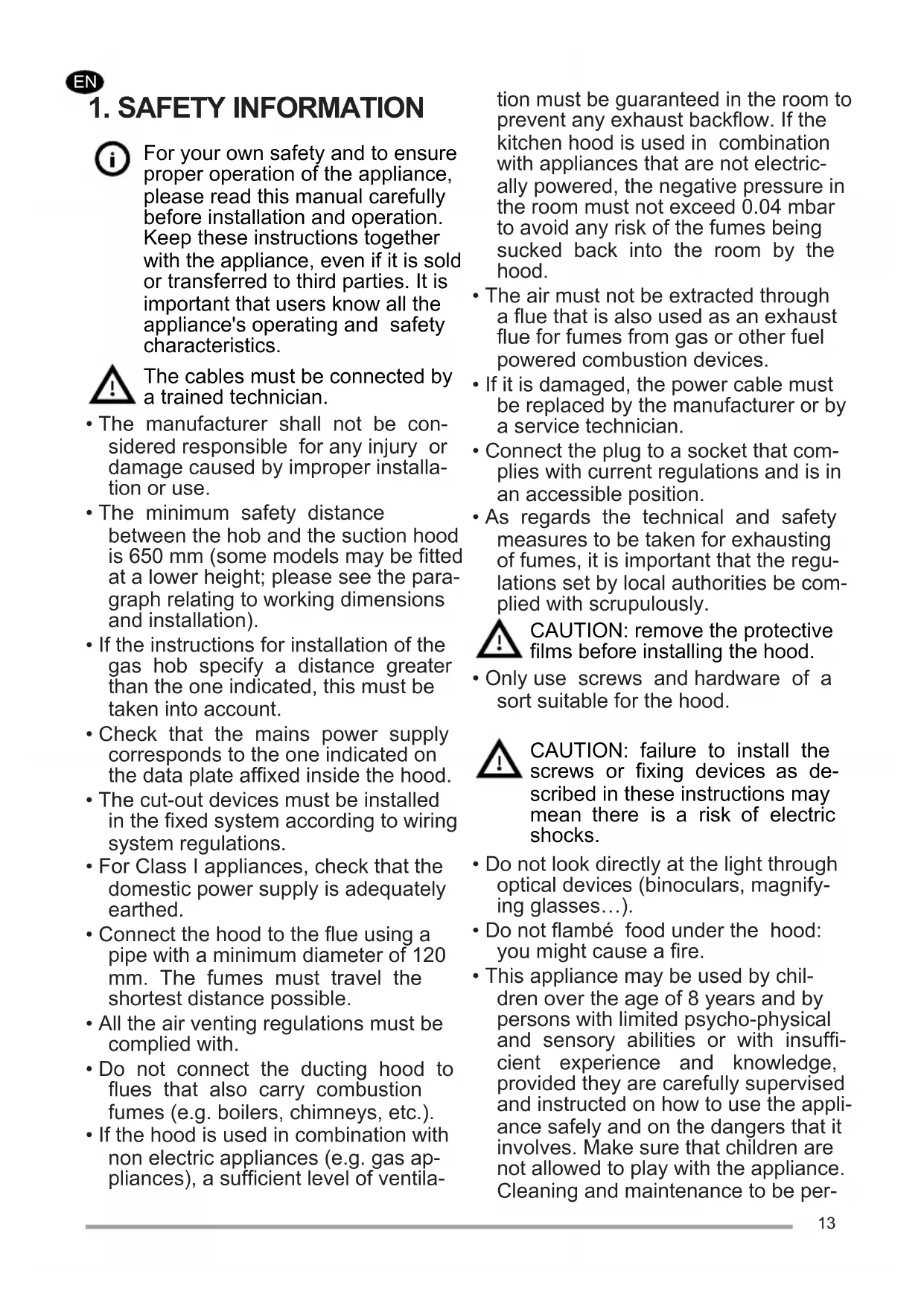

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.
• The cut-out devices must be installed in the fixed system according to wiring system regulations.
• For Class I appliances, check that the domestic power supply is adequately earthed.
• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventila-

tion must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.

• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.
• As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be per-

formed by the user must not be carried out by children, unless they are under supervision.

• Supervise children, to make sure they do not play with the appliance.
• The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

• Clean and/or replace the filters after the period of time indicated (danger of fire). See the paragraph on Maintenance and cleaning.
• The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol ☐ on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist recycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed information on how to recycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor,

the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

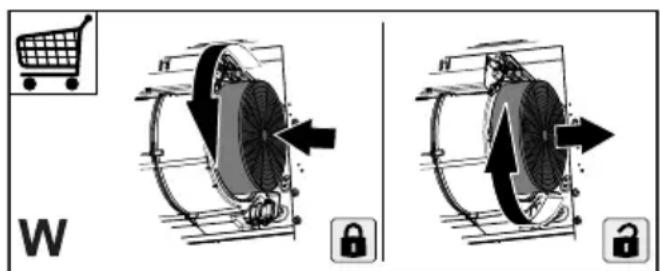

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

W

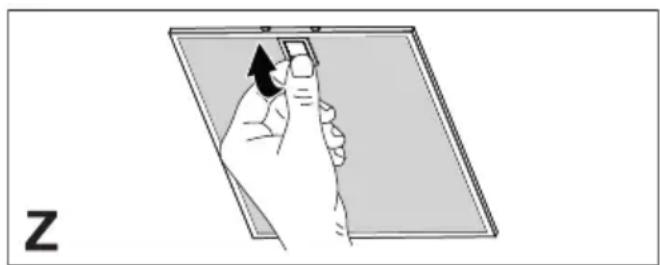

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Illustration of a hand holding a small object with an arrow indicating motion (no text or symbols)

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

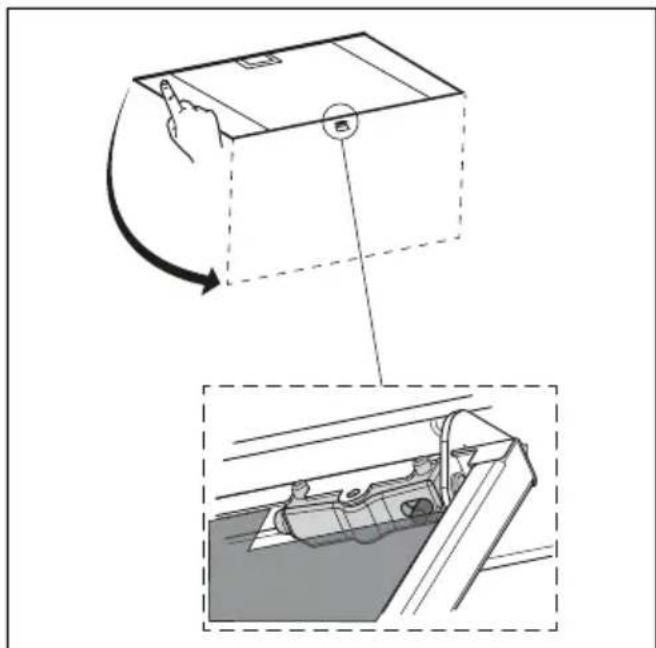

Comfort Panel Cleaning

Diagram illustrating a hand pressing a button on a box, with an arrow indicating clockwise motion and a close-up of the interior panel showing internal components.

• Open the Comfort Panel by pulling it.
• Detach the panel from the hood body by sliding the dedicated lever of the fixing pin.
  • The comfort panel must never be washed in the dishwasher.
• Clean it externally with a damp cloth and neutral liquid detergent.
• Also clean it internally using a damp cloth and neutral detergent; do not use wet cloths, sponges or jets of water; do not use abrasive substances.
• When the operation is completed, reattach the panel to the hood body and close it again.

4. CONTROLS

						[S1]
Key Key	press Function		LED
L	Short Switches the lights on/off at maximum intensity. -
T1	Short Turns the motor on/off at the first speed. Fixed
T2	Short Turns the motor on at the second speed. Fixed
	Long press with all loads off (motor and lights)	Activates/Deactivates the Activated Carbon Filters alarm.This function is activated/deactivated when the key is released.				LED flashes twice:alarm activated.LED flashes once:alarm deactivated.
T3	Short Turns the motor on at the third speed. Fixed
	Long press with all loads off (motor and lights)	The Filter saturation alarm is reset.This function is activated/deactivated when the key is released.				LED S1 flashes 3 times.
T4	Short	Turns the motor on at the Intensive speed.This speed is timed for 6 minutes. At the end of this time, the system automatically returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode.It is deactivated by pressing the same key or by switching off the motor.				Fixed
	Long Activates/Dea	activates the remote control.This function is activated/deactivated when the key is released.				The LED flashes twice:remote control activated.The LED flashes once:remote control deactivated.
S1	-	Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation.				Fixed
	-	Signals the Activated Charcoal Odour Filter saturation alarm.The alarm is activated after 200 hours of effective hood operation.				Flashing

5. REMOTE CONTROL (OPTIONAL)

exempt from risk group under IEC/EN62471 at a distance of 30cm.

901575

6. LIGHTING

• Please contact the Service Department to change it ("Please contact the service department to purchase it").
  • Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in

FERTAZZO ITALIA

Bertazzoni is committed to providing the highest quality service to our customers. In the unlikely event that your product should have a manufacturing defect, please contact our service team at:

https://uk.bertazzoni.com/more/care-service

You will be requested to provide product information, proof of purchase, a photo of the silver data label and a description of the issue. Please have this information ready.
