USER MANUAL PMF 1800 E BOSCH

OBJ_BUCH-2516-002.book Page 2 Friday, November 13, 2015 9:25 AM| 3 Bosch Power Tools 1 609 92A 1PU | (13.11.15)

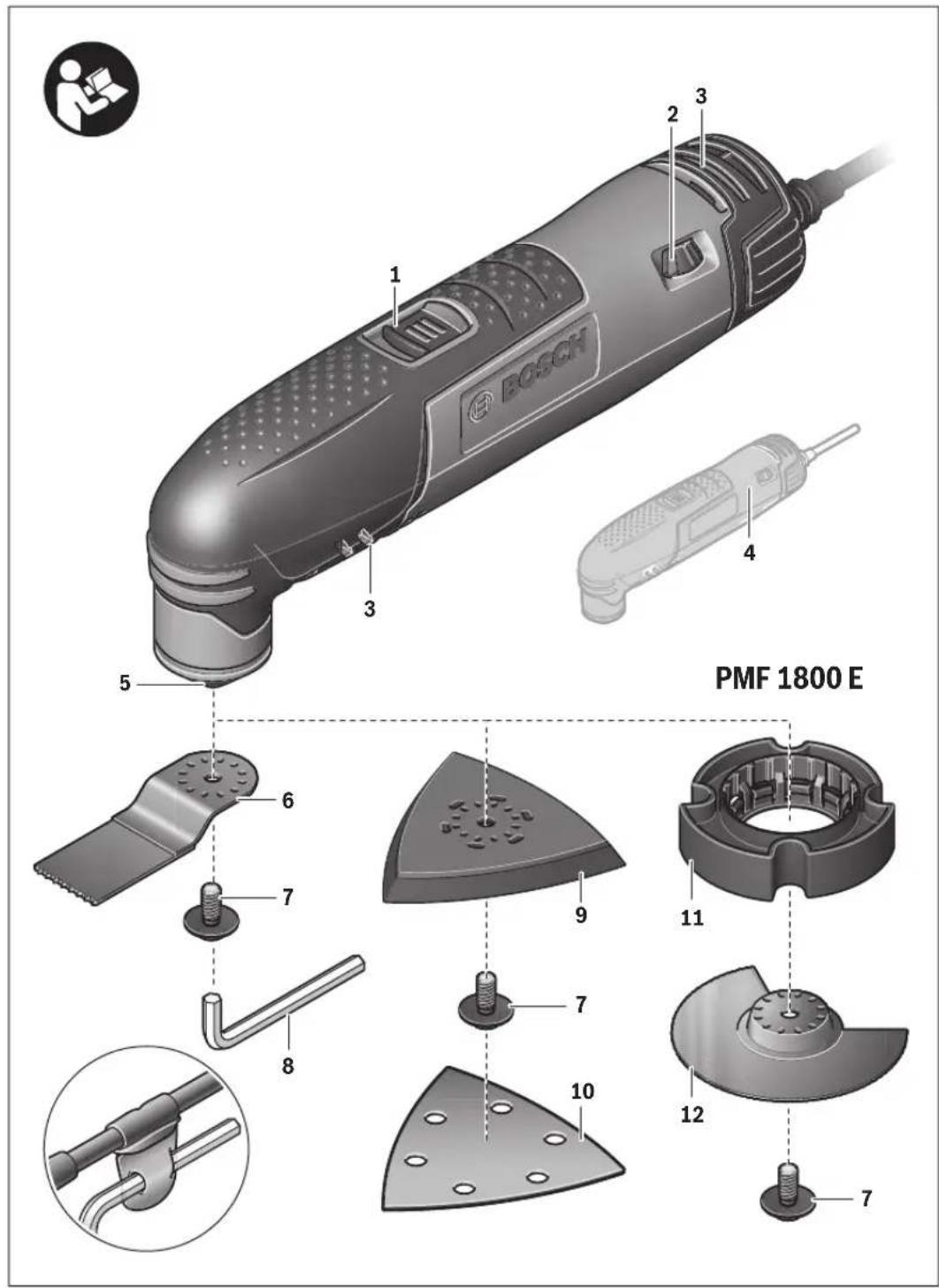

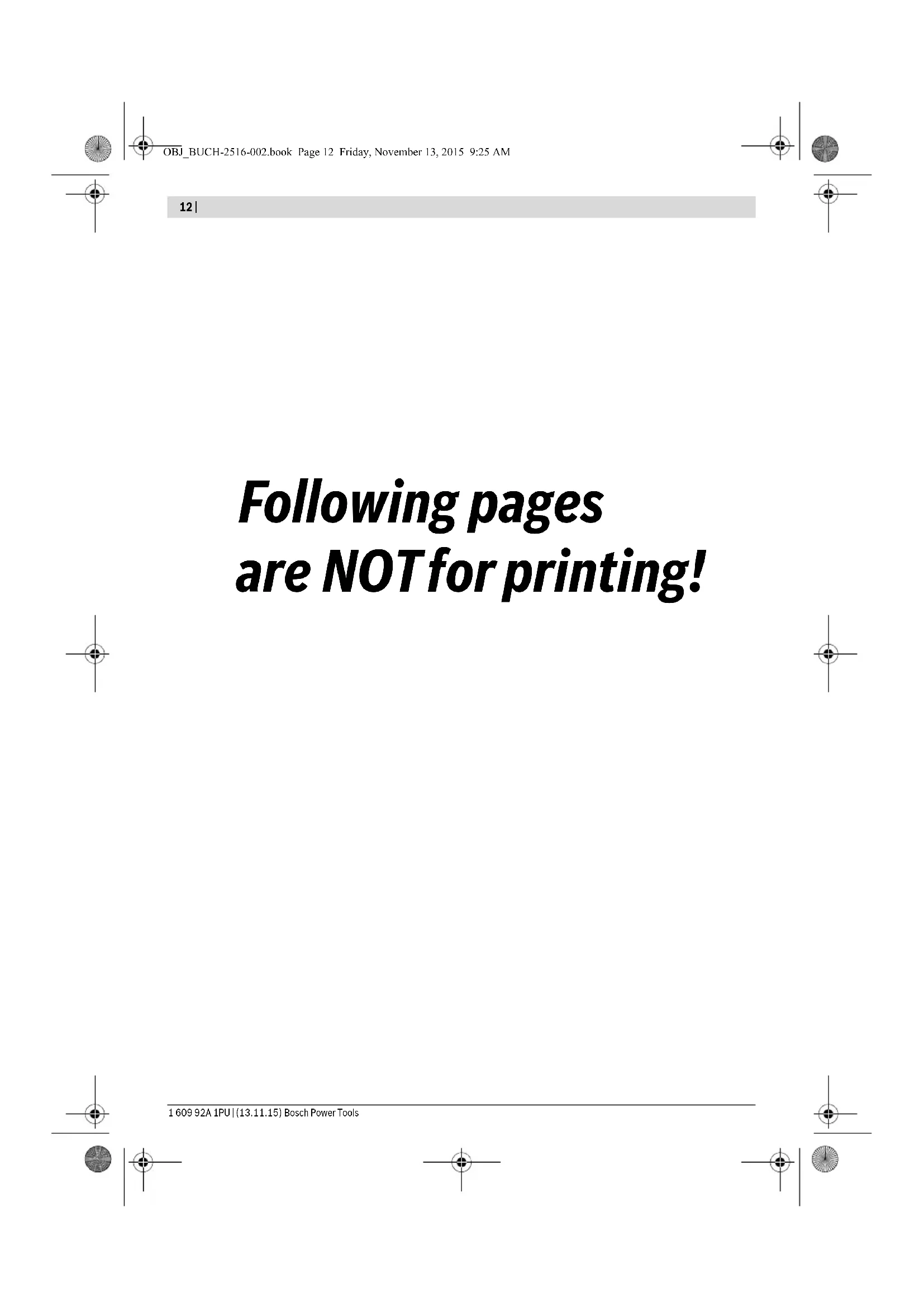

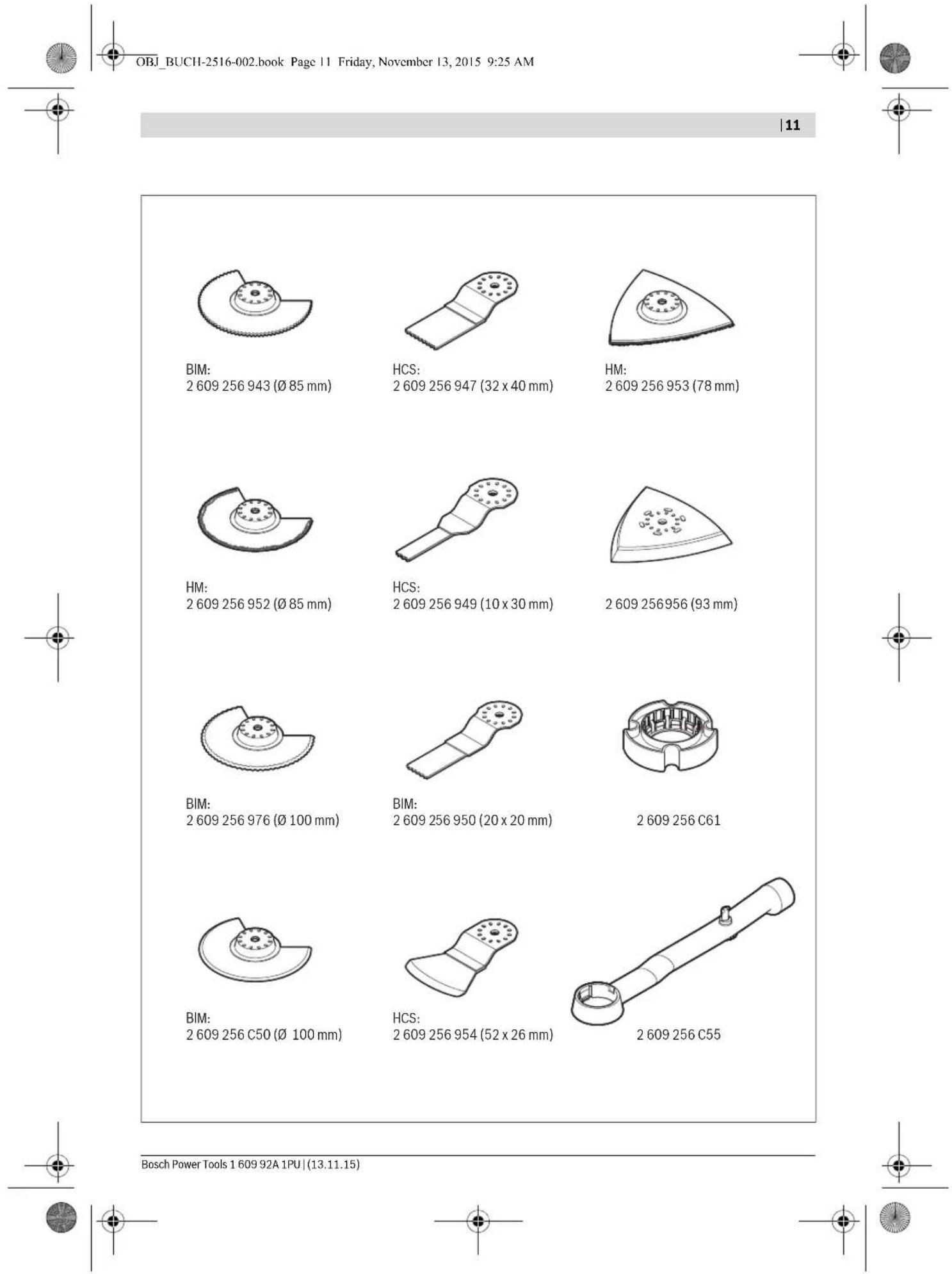

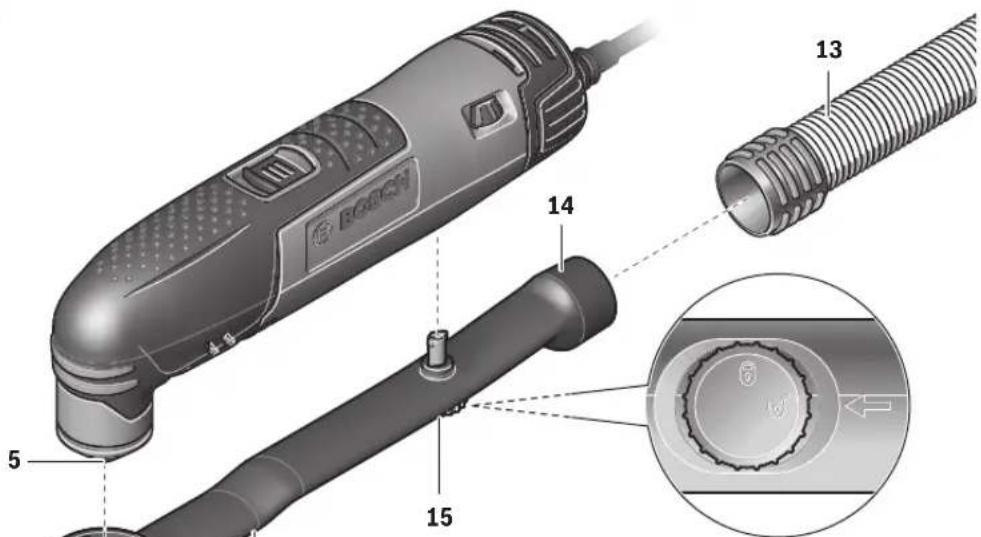

956 (93 mm) OBJ_BUCH-2516-002.book Page 11 Friday, November 13, 2015 9:25 AM12 | 1 609 92A 1PU | (13.11.15) Bosch Power Tools Following pages are NOT for printing! OBJ_BUCH-2516-002.book Page 12 Friday, November 13, 2015 9:25 AMEnglish | 13 Bosch Power Tools 1 609 92A 1PU | (13.11.15) English Safety Notes General Power Tool Safety Warnings Read all safety warnings and all instruc- tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. Work area safety Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoid- able, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while op- erating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a ro- tating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewel- lery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or bind- ing of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Service Have your power tool serviced by a qualified repair per- son using only identical replacement parts. This will en- sure that the safety of the power tool is maintained. WARNING OBJ_BUCH-2516-002.book Page 13 Friday, November 13, 2015 9:25 AM14 | English 1 609 92A 1PU | (13.11.15) Bosch Power Tools Safety Warnings for Multi-function Tools Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting ac- cessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. Use the machine only for dry sanding. Penetration of wa- ter into the machine increases the risk of an electric shock. Caution, fire hazard! Avoid overheating the object be- ing sanded as well as the sander. Always empty the dust collector before taking breaks. In unfavourable conditions, e. g., when sparks emit from sanding metals, sanding debris in the dust bag, micro filter or paper sack (or in the filter sack or filter of the vacuum cleaner) can self-ignite. Particularly when mixed with remainders of var- nish, polyurethane or other chemical materials and when the sanding debris is hot after long periods of working. Keep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can lead to injuries. Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explo- sion. Penetrating a water line causes property damage or may cause an electric shock. When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands. Secure the workpiece. A workpiece clamped with clamp- ing devices or in a vice is held more secure than by hand. Wear protective gloves when changing application tools/accessories. Application tools/accessories become hot after prolonged usage. Do not scrape wetted materials (e.g. wallpaper) or on moist surfaces. Penetration of water into the machine in- creases the risk of an electric shock. Do not treat the surface to be worked with solvent-con- taining fluids. Materials being warmed up by the scraping can cause toxic vapours to develop. Use extreme caution when handling blades and scrap- ers. The application tools are very sharp. Danger of injury. Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less. Product Description and Specifications Read all safety warnings and all instruc- tions. Failure to follow the warnings and in- structions may result in electric shock, fire and/or serious injury. Intended Use The machine is intended for sawing and cutting wooden mate- rials, plastic, gypsum, non-ferrous metals and fastening ele- ments (e. g., unhardened nails, staples). It is also suitable for working soft wall tiles, as well as for dry sanding and scraping of small surfaces. It is especially suitable for working close to edges and for flush cutting. Operate the power tool exclusive- ly with Bosch accessories. Product Features The numbering of the product features refers to the illustra- tion of the machine on the graphics page. 1 On/Off switch 2 Thumbwheel for orbit frequency preselection 3 Venting slots 4 Handle (insulated gripping surface) 5 Tool holder 6 Plunge saw blade 7 Clamping bolt with washer 8 Hex key 9 Sanding plate 10 Sanding sheet 11 Depth stop 12 Segment saw blade 13 Vacuum hose* 14 Vacuum connection* 15 Fastening screw of the dust extraction* 16 Dust extraction* 17 Felt ring of the dust extraction* *Accessories shown or described are not part of the standard de- livery scope of the product. A complete overview of accessories can be found in our accessories program. Technical Data Multi-function tool PMF 1800 E Article number 3 603 A00 5.. Preselection of orbital stroke rate

15000–21000 Oscillation angle, left/right °1.4 Weight according to EPTA-Procedure 01:2014 kg 1.2 Protection class /II The values given are valid for a nominal voltage [U] of 230 V. For differ- ent voltages and models for specific countries, these values can vary. OBJ_BUCH-2516-002.book Page 14 Friday, November 13, 2015 9:25 AMEnglish | 15 Bosch Power Tools 1 609 92A 1PU | (13.11.15) Noise/Vibration Information Sound emission values determined according to EN 60745-2-4. Typically the A-weighted noise levels of the product are: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K =3 dB. Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN 60745-2-4: Sanding: a

Sawing with plunge cut saw blade: a

Sawing with segment saw blade: a

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work pat- terns. Declaration of Conformity We declare under our sole responsibility that the product de- scribed under “Technical Data” is in conformity with all rele- vant provisions of the directives 2011/65/EU, until 19 April 2016: 2004/108/EC, from 20 April 2016 on: 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-4, EN 50581. Technical file (2006/42/EC) at: Robert Bosch Power Tools GmbH, PT/ETM9, 70538 Stuttgart, GERMANY Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017 Assembly Changing the Tool Before any work on the machine itself, pull the mains plug. Wear protective gloves when changing application tools/accessories. Contact with the application tool/ac- cessory can lead to injuries. Selecting the Application Tool/Accessory The following table shows examples for application tools. Further application tools can be found in the extensive Bosch acces- sories program. Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9 Accessory Material Application BIM segment saw blade Wooden materials, plastic, non-ferrous metals Separating and plunge cuts; also for sawing close to edg- es, in corners and hard to reach areas; example: shortening already installed bottom rails or door hinges, plunge cuts for adjusting floor panels Base plate for sand- ing, series Delta 93 mm Depends on sanding sheet Sanding surfaces close to edges, in corners or hard to reach areas; depending on the sanding sheet for, e.g., sanding wood, paint, varnish, stone HCS plunge cut saw blade, wood Wooden materials, soft plastics Separating and deep plunge cuts; also for sawing close to edges, in corners and hard to reach areas; example: narrow plunge cut in solid wood for installing a ventilation grid HCS plunge cut saw blades, wood Wooden materials, soft plastics Smaller separating and plunge cuts; example: cut-outs in furniture for cable connections OBJ_BUCH-2516-002.book Page 15 Friday, November 13, 2015 9:25 AM16 | English 1 609 92A 1PU | (13.11.15) Bosch Power Tools Mounting/Replacing the Application Tool/Accessory If required, remove an already mounted application tool/ac- cessory. For removing the application tool/accessory loosen the screw 7 with the hex key 8 and remove the tool. Mount the application tool/accessory (e.g. plunge cut saw blade 6) in such a way on the tool holder 5 that the openings of the tool engage into the cams of the tool holder. For a safe and fatigue-free working position it is possible to position the application tools/accessories in any snap-in posi- tions on the tool holder. Position the tool in such a way that the depressed centre points downwards (marking on the tool is readable from above, see figure on the graphics page). Use the screw 7 to fasten the application tool/accessory. Tightly fasten the screw 7 with the hex key 8. Check the tight seating of the application tool/accesso- ry. Incorrect or not securely fastened application tools/ accessories can come loose during operation and pose a hazard. Mounting and Adjusting the Depth Stop The depth stop 11 can be used when working with segment saw blades, Riff-segment saw blades and segment blades. If required, remove an already mounted application tool/ac- cessory. Slide the depth stop 11 over and beyond the tool holder 5 to the stop onto the gear head of the power tool with the labelled side facing upward. The depth stop is intended for the following cutting depths: – With segment saw blades ACZ 85 .. with a diameter of 85 mm: 8 mm, 10 mm, 12 mm and 14 mm cutting depths (see indication on the depth stop in large font and not in brackets). – With segment saw blades ACZ 100 .. with a diameter of 100 mm: 14 mm, 16 mm, 18 mm and 20 mm cutting depths (see indication on the depth stop in smaller font and brackets). Insert the appropriate segment saw blade for the desired cut- ting depth. Slide the depth stop 11 from the tool holder 5 in the direction of the application tool until you can rotate it free- ly. Rotate the depth stop 11 so that the desired cutting depth is above the section of the saw blade, which will be used to saw. Slide the depth stop 11 once again to the stop onto the gear head of the application tool. For all other cutting depths and when working with other appli- cation tools, remove the depth stop 11. For this, remove the application tool and pull the depth stop from the gear head. Mounting/Replacing a Sanding Sheet on the Sanding Plate The sanding plate 9 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion. Before attaching the sanding sheet 10, free the Velcro back- ing of the sanding plate 9 from any debris by tapping against it in order to enable optimum adhesion. Position the sanding sheet 10 flush alongside one edge of the sanding plate 9, then lay the sanding sheet onto the sanding plate and press firmly. To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate. To remove the sanding sheet 10, grasp it at one of the tips and pull it off from the sanding plate 9. You can use all sanding sheets, fleece pads/polishing cloth pads of the Delta 93 mm series of Bosch accessory program. Sanding accessories, such as fleece pads/polishing cloth pads, are attached to the sanding plate in the same manner. BIM plunge cut saw blades, metal Metal (e. g. unhardened nails, screws, smaller profiles), non-ferrous metals Smaller separating and plunge cuts; example: shortening narrow profiles, cutting fastening elements such as staples HM-Riff segment saw blade Grouting joints, soft wall tiles, glass-fibre reinforces plastic and other abrasive materials Cutting and separating close to edges, in corners or hard to reach areas; example: removing grouting joints between wall tiles for repair work, cutting openings in tiles, gypsum boards or plastic HM-Riff delta plate Mortar, concrete remainders, wood, abrasive materials Rasping and sanding on hard surfaces; example: removing mortar or tile adhesive (e.g. when replacing damaged tiles) Scraper, rigid Carpets, coverings Scraping on hard surfaces; example: removing carpet and tile adhesive BIM serrated seg- ment saw blade Insulation material, insulation panels, floor panels, sound in- sulation panels, cardboard, carpet, rubber, leather Cutting soft materials Accessory Material Application OBJ_BUCH-2516-002.book Page 16 Friday, November 13, 2015 9:25 AMEnglish | 17 Bosch Power Tools 1 609 92A 1PU | (13.11.15) Selecting the Sanding Sheet Depending on the material to be worked and the required rate of material removal, different sanding sheets are available: Dust/Chip Extraction Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treat- ment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. – As far as possible, use a dust extraction system suitable for the material. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. Prevent dust accumulation at the workplace. Dusts can easily ignite. Connecting the Dust Extraction (see figure A) The dust extraction 16 is intended only when working with the sanding plate 9; it is not of use in combination with other ap- plication tools. For sanding, always connect the dust extraction. To mount the dust extraction 16 (accessory), remove the ap- plication tool and the depth stop 11. Slide the dust extraction 16 over and beyond the tool holder 5 to the stop onto the gear head of the power tool. Insert fas- tening screw 15 into the corresponding recess on the hous- ing. To lock the screw, turn it to the position. Pay attention that the felt ring 17 is undamaged and faces tightly against the sanding plate 9. Replace a damage felt ring immediately. Place a vacuum hose 13 (accessory) onto the vacuum con- nection 14. Connect the vacuum hose 13 with a vacuum cleaner (accessory). An overview for connecting to various vacuum cleaners can be found on the graphics page. The vacuum cleaner must be suitable for the material being worked. When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner. To remove the dust extraction 16, turn fastening screw 15 to the position and pull the dust extraction from the gear head of the power tool. Operation Starting Operation Observe the mains voltage! The voltage of the power source must correspond with the data on the type plate of the machine. Switching On and Off To start the machine, push the On/Off switch 1 forward so that the “I” is indicated on the switch. To switch off the machine, push the On/Off switch 1 toward the rear so that the “0” is indicated on the switch. To save energy, only switch the power tool on when using it. Preselecting the Orbital Stroke Rate With the thumbwheel for preselection of the orbital stroke rate 2, you can preselect the required orbital stroke rate, even during operation. The required stroke rate depends on the material and the working conditions and can be determined through practical testing. When sawing, cutting and sanding harder materials, e.g., wood or metal, it is recommended to work with orbital stroke rate “6”; for softer materials, such as plastic, orbital stroke rate “4” is recommended. Sanding disc Material Application Grain size Red quality – All wooden materials (e. g., hardwood, soft- wood, chipboard, build- ing board) – Metal materials For coarse-sanding, e. g. of rough, unplaned beams and boards coarse 40

For face sanding and planing small irregularities medium 80

For finish and fine sanding of wood fine 180

White quality –Paint –Varnish – Filling compound – Filler For sanding off paint coarse 40

For sanding primer (e. g., for removing brush dashes, drops of paint and paint run) medium 80

For final sanding of primers before coating fine 180

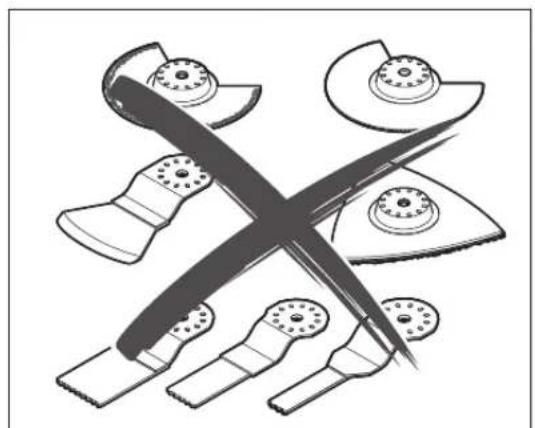

OBJ_BUCH-2516-002.book Page 17 Friday, November 13, 2015 9:25 AM18 | English 1 609 92A 1PU | (13.11.15) Bosch Power Tools Working Advice Wait until the machine has come to a standstill before placing it down. Before any work on the machine itself, pull the mains plug. Note: Do not cover off the venting slots 3 of the machine while working, as this reduces the working life of the machine. While working with HCS tools make sure that the covering of the tools is undamaged. Operating Principle Due to the oscillating drive the application tool/accessory oscillates up to 21000 times per minute at 2,8°. This allows for precise work in narrow spaces. Work with low and uniform application pressure, otherwise, the working perfor- mance will decline and the application tool can become blocked. While working, move the machine back and forth, so that the application tool does not heat up excessively and become blocked. Sawing Use only undamaged saw blades that are in perfect con- dition. Bent or dull saw blades can break, negatively influ- ence the cut, or lead to kickback. When sawing light building materials, observe the stat- utory provisions and the recommendations of the ma- terial suppliers. Plunge cuts may only be applied to soft materials, such as wood, gypsum plaster boards, etc.! Before sawing with HCS saw blades in wood, particle board, building materials, etc., check these for foreign objects such as nails, screws, or similar. If required, remove foreign ob- jects or use BIM saw blades. Separating Note: When separating wall tiles take into consideration that the application tools/accessories wear heavily when used for longer periods of time. Sanding The removal rate and the sanding pattern are primarily deter- mined by the choice of sanding sheet, the preset oscillation rate and the applied pressure. Only flawless sanding sheets achieve good sanding capacity and extend the service life of the machine. Pay attention to apply uniform sanding pressure; this increas- es the working life of the sanding sheets. Intensifiying the sanding pressure does not lead to an in- crease of the sanding capacity, but to increased wear of the machine and the sanding sheet. For precise on-the-spot sanding of edges, corners and hard to reach areas, it is also possible to work only with the tip or an edge of the sanding plate. When selectively sanding on the spot, the sanding sheet can heat up considerably. Reduce the orbital stroke rate and the sanding pressure, and allow the sanding sheet to cool down regularly. A sanding sheet that has been used for metal should not be used for other materials. Use only original Bosch sanding accessories. For sanding, always connect the dust extraction. Scraping For scraping, select a high oscillation rate. Work on a soft surface (e.g. wood) at a flat ange, and apply only light pressure. Otherwise the scraper can cut into the surface. Maintenance and Service Maintenance and Cleaning Before any work on the machine itself, pull the mains plug. For safe and proper working, always keep the machine and ventilation slots clean. Clean Riff application tools (accessory) regularly with a wire brush. If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in or- der to avoid a safety hazard. After-sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can al- so be found under: www.bosch-pt.com Bosch’s application service team will gladly answer questions concerning our products and their accessories. In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: [phone] E-Mail: [e-mail] OBJ_BUCH-2516-002.book Page 18 Friday, November 13, 2015 9:25 AMEnglish | 19 Bosch Power Tools 1 609 92A 1PU | (13.11.15) Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: [phone] Fax: [phone] Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: [phone] Fax: [phone] Inside New Zealand: Phone: [phone] Fax: [phone] Outside AU and NZ: Phone: [phone] www.bosch.com.au Republic of South Africa Customer service Hotline: [phone] Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: [phone] Fax: [phone] E-Mail: [e-mail] KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: [phone] Fax: [phone] E-Mail: [e-mail] Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: [phone] Fax: [phone] E-Mail: [e-mail] Bosch Headquarters Midrand, Gauteng Tel.: [phone] Fax: [phone] E-Mail: [e-mail] Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of power tools into household waste! Only for EC countries: According to the European Guideline 2012/19/EU for Waste Electrical and Elec- tronic Equipment and its implementation in- to national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally cor- rect manner. Subject to change without notice. OBJ_BUCH-2516-002.book Page 19 Friday, November 13, 2015 9:25 AM
