RE365 - Wifi repeater TP-LINK - Free user manual and instructions

Product type	Wi-Fi Repeater
Brand	TP-Link
Model	RE365
Dimensions (approx.)	100 x 60 x 30 mm
Weight (approx.)	100 g
Power supply	100-240 V AC via wall plug
Wi-Fi standards	802.11 b/g/n, 2.4 GHz
Maximum speed	300 Mbps (theoretical)
Ethernet port	1 RJ45 10/100 Mbps port
WPS button	Yes
Reset button	Yes
Main functions	Wi-Fi network extension, Wi-Fi client mode via Ethernet, universal repeater
Configuration	Via web interface http://tplinkrepeater.net or 192.168.0.254
Wi-Fi security	WEP, WPA, WPA2, WPA3 (depending on router)
Maintenance and cleaning	Unplug before cleaning, use a dry, soft cloth
Safety instructions	Do not expose to water, fire, or humidity; do not disassemble; use only in permitted areas
Operating temperature	0 °C to 40 °C
Warranty	3 years (limited)

Frequently Asked Questions - RE365 TP-LINK

How to set up the TP-Link RE365 repeater?

Plug the repeater near your router, connect your computer to the repeater's Wi-Fi network (e.g., TP-Link_Extender), open a browser and go to http://tplinkrepeater.net or 192.168.0.254. Create an administrator password and follow the instructions.

Why can't I access the configuration page?

Make sure your computer is connected to the repeater (via Wi-Fi or Ethernet) and that it obtains an IP address automatically. Try the IP address 192.168.0.254. If the repeater is connected to the router, check the router's DHCP list for its address. As a last resort, reset the repeater.

How to reset the RE365 repeater?

Press and hold the RESET button (located on the device) for about 10 seconds until all LEDs briefly turn off, then release. The device will restart with factory settings.

What is the default Wi-Fi password of the repeater?

The repeater has no default Wi-Fi password. During setup, you choose a network name (SSID) and a password. If you forgot, reset the repeater to start over.

Can the repeater be used as a Wi-Fi client for a wired device?

Yes, the RE365 has an Ethernet port. Connect the repeater to the router via Wi-Fi, then plug a device (TV, console, etc.) into the repeater's Ethernet port. It will act as a Wi-Fi adapter.

Where to place the repeater for better coverage?

Place the repeater at mid-distance between your router and the area to cover, in a spot where the router signal is still good. Avoid metal obstacles and thick walls.

Is the repeater compatible with all routers?

Yes, the RE365 is a universal repeater compatible with any standard 802.11 b/g/n 2.4 GHz Wi-Fi router. It works with internet boxes and routers of all brands.

How to change the network name (SSID) of the repeater?

Log into the repeater's web interface (http://tplinkrepeater.net), go to wireless settings and change the SSID. You can copy it from the router for better compatibility.

What to do if the Wi-Fi connection is unstable after installation?

Try moving the repeater closer to the router, check for interference (other 2.4 GHz devices) and make sure the repeater receives a good signal from the router. You can also change the Wi-Fi channel.

How to update the firmware of the RE365?

Download the latest firmware version from the TP-Link website (model RE365). Log into the web interface, go to 'System Tools' > 'Firmware Update' and select the downloaded file. Do not cut off power during the update.

USER MANUAL RE365 TP-LINK

TP-Link Technologies Co., Ltd.

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd,

Nanshan,Shenzhen,China

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Italia S.r.l.

TP-Link Netherlands B.V.

Archimedesbaan 18,3439 ME Nieuwgein

TP-Link (Nordic) AB

Forumvagen 14, Plan 13, 131 53, Nacka, Sweden

TP-Link Hellas Ltd.

Marathonodromou 77, Marousi 151 24, Greece

NWS.TP-Link Portugal, Unipessoal, Lda.

Specifications are subject to change without notice. is a registered trademark of

TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from

TP-Link Technologies Co., Ltd. Copyright © 2017 TP-Link Technologies Co., Ltd. All rights reserved.

www.tp-link.com

Quick Installation Guide

Wi-Fi Range Extender

7106507483 REV2.1.0

Contents

Deutsch 1
English- 4
Espanol- 7
Eλληνικά 10
Francais- 13
Italiano 16
Portugues 19
Suomi 22
Nederlands 25
Svenska 28
Norsk- 31
Dansk 34
Türkce- 37

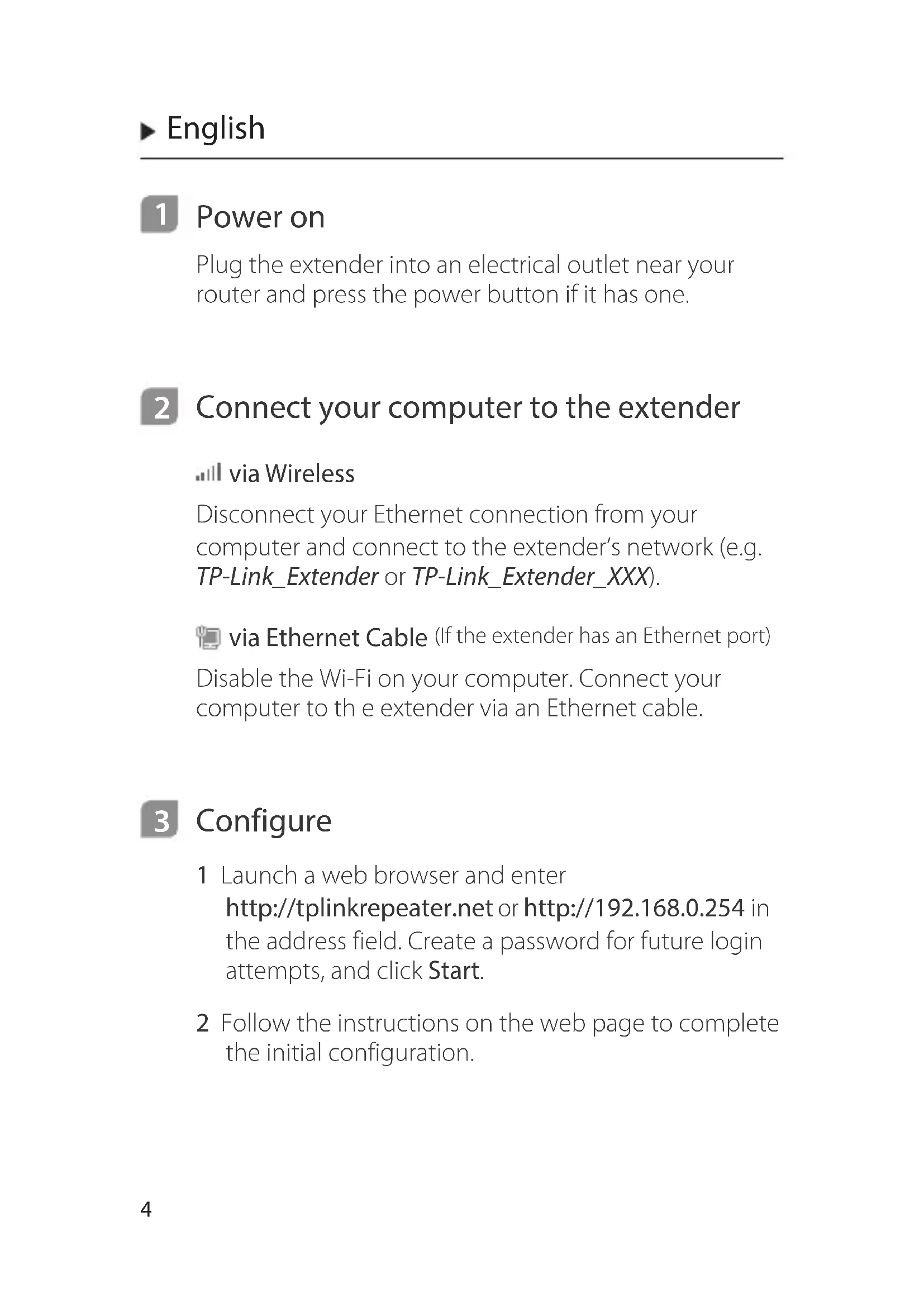

1 Einsatzalen

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXX).

via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

1 Launch a web browser and enter http://tplinkrepeater.net or http://192.168.0.254 in the address field. Create a password for future login attempts, and click Start.

2 Follow the instructions on the web page to complete the initial configuration.

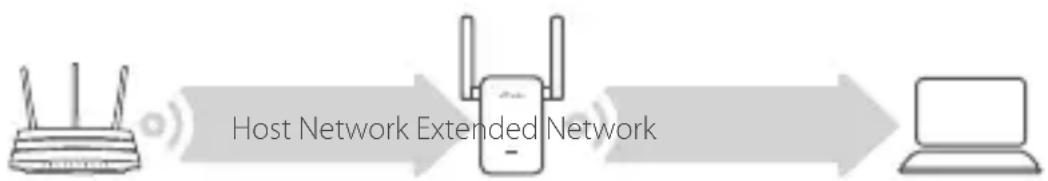

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Router Extender Clients

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

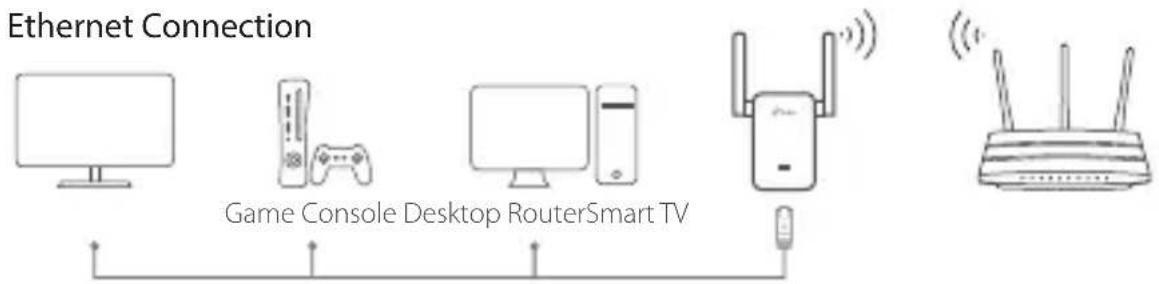

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
