USER MANUAL Twist DXFH02 DUUX

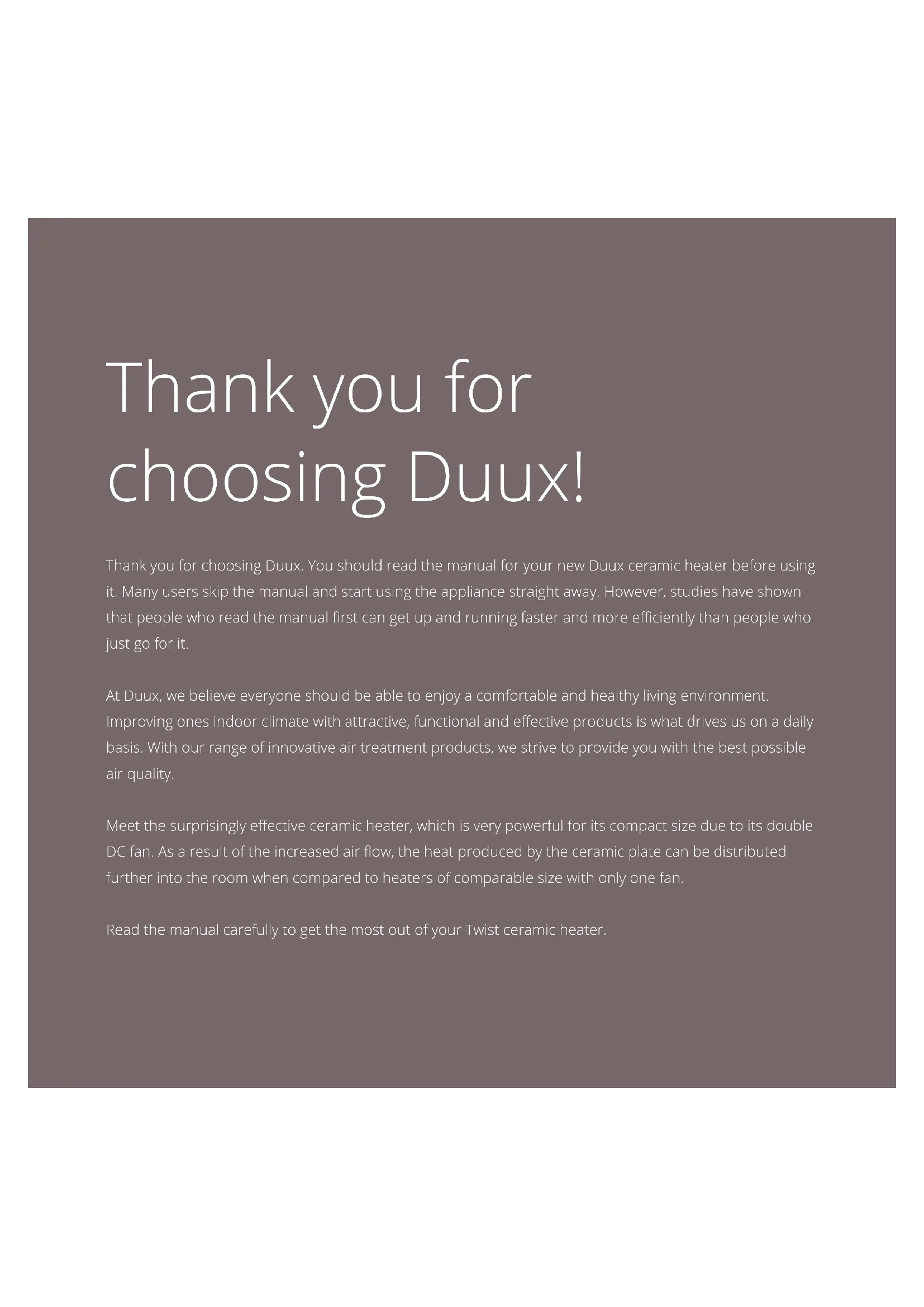

Thank you for choosing Duux!

Thank you for choosing Duux. You should read the manual for your new Duux ceramic heater before using it. Many users skip the manual and start using the appliance straight away. However, studies have shown that people who read the manual first can get up and running faster and more efficiently than people who just go for it.

At Duux, we believe everyone should be able to enjoy a comfortable and healthy living environment. Improving ones indoor climate with attractive, functional and effective products is what drives us on a daily basis. With our range of innovative air treatment products, we strive to provide you with the best possible air quality.

Meet the surprisingly effective ceramic heater, which is very powerful for its compact size due to its double DC fan. As a result of the increased air flow, the heat produced by the ceramic plate can be distributed further into the room when compared to heaters of comparable size with only one fan.

Read the manual carefully to get the most out of your Twist ceramic heater.

Table of contents

1. Important safety instructions 4
   2.Product overview 6
   3.Installation 7
2. Disposal instructions 9
3. Technical specifications 10
4. Frequently asked questions 11

1. Important safety instructions

When using electronic equipment, the standard safety warnings must be taken into consideration at all times, including the following safety instructions:

To become familiar with the controls, safety features and use of the ceramic heater, we recommend you carefully read all the instructions before using it.
2 Do not insert any objects into the air inlet or air outlet.
3 Provide careful supervision when this appliance is used in the presence of children, incapacitated persons or pets. Do not allow children to play with the appliance. This appliance is not suitable for use by children or persons with physical, sensory or mental impairments or by persons without knowledge of, or experience with, this appliance.
4 Cleaning and user maintenance must not be carried out by children without supervision.

Switch off the ceramic heater via the control panel, then wait for the fan heater to cool down; switch off the appliance using the on/off button at the back, and then remove the plug from the wall socket before carrying out the following operations:

Clean the ceramic heater.
- Carry out maintenance on the ceramic heater.
- Move the ceramic heater.

Unwind the power cable completely before plugging the power cable into the wall socket, and make sure the cable does not come into contact with the fan heater or become exposed to heat. Do not route the cable under carpet, do not cover it with mats, runners or suchlike, and lay the cable in such a way that it does not constitute a trip hazard. Ensure the cable cannot be stepped on and that no furniture is put on it. Do not route the cable around sharp corners, and do not wind it up too tightly after use.

To prevent overheating, the heater must never be covered.
8 Do not use the ceramic heater outdoors.

9 Please do not extend the power cable yourself. The use of an extension cable is not recommended; this may cause overheating and/or fire. If the use of an extension cable is unavoidable, ensure it is an undamaged and approved extension cable with a minimum diameter of 3 × 2.5 ~mm^2 and an authorised power rating of at least 2,000 Watt/10 Amp. Always unwind the cable completely to prevent overheating.
10 Remove the plug from the wall socket by pulling it by the plug. Never pull on the cable to remove the plug from the wall socket.
If the power cable gets damaged, it must be replaced by certified personnel.
12 Do not use the heater in places that are not used or visited for long periods of time.
13 Do not use accessories on the fan heater that have not been recommended by DUUX.
14 Loose connections between the heater plug and the electrical outlet can cause the plug to overheat.
15 To avoid overload and burnt-out fuses, do not connect other appliances to the same wall socket.

16 The ceramic heater is only intended for indoor use. Only use the appliance for supplementary heating.
17 The heater should not be placed directly under, near, or directed towards, a wall socket.
This heater is not suitable for use in wet or damp areas such as bathrooms, washrooms, etc. Do not place it near a tap, bath, shower, swimming pool, fountain or suchlike. Make sure the appliance can never fall into water and prevent water from entering the heater. Should the heater come into contact with water, take the plug out of the wall socket first. A heater with wet internal parts can no longer be used; the appliance must be sent for repair first. Never immerse the heater, cable or plug in water or other liquids, and never touch the heater with wet hands.

2. Product overview

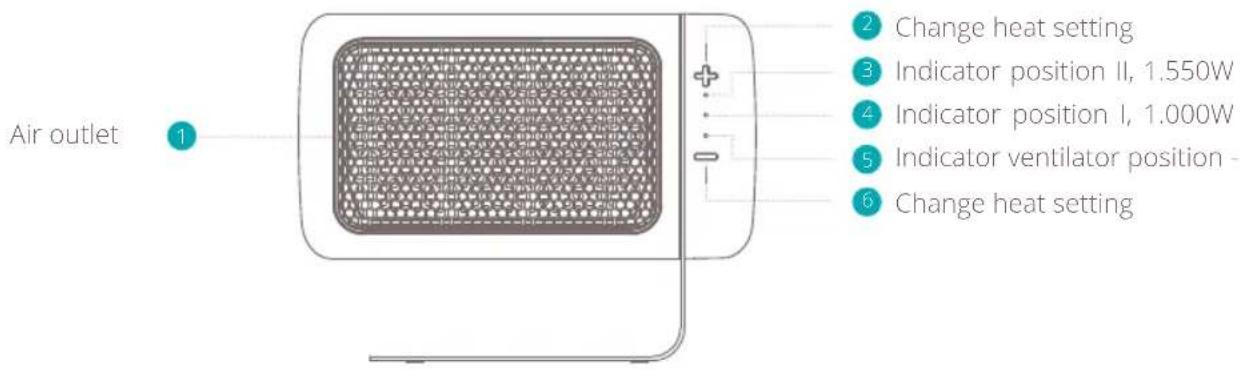

Front

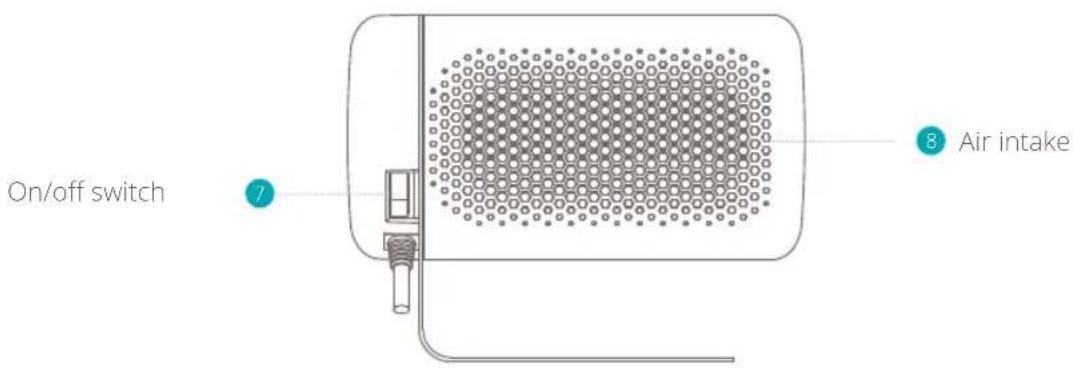

Back

3. Installation

Note: Carefully read the instructions below and the enclosed warning sheet before using the product.

Installation

1 Do not position the appliance in a place where the heated air can come into contact with curtains, furniture, plants or doors. This can cause stains or damage.
Place the product on a stable, horizontal surface.
3 Do not install the appliance within the reach of children. This can lead to accidents or cause the appliance to break down if it is knocked over or climbed on.
4 Do not position the appliance in a place where things may fall on it from above. This can cause the appliance to break down or experience a fault.
Do not place the appliance near other appliances that are not suitable for exposure to hot air, such as PCs or smartphones. This can cause the appliance to break down or experience a fault.

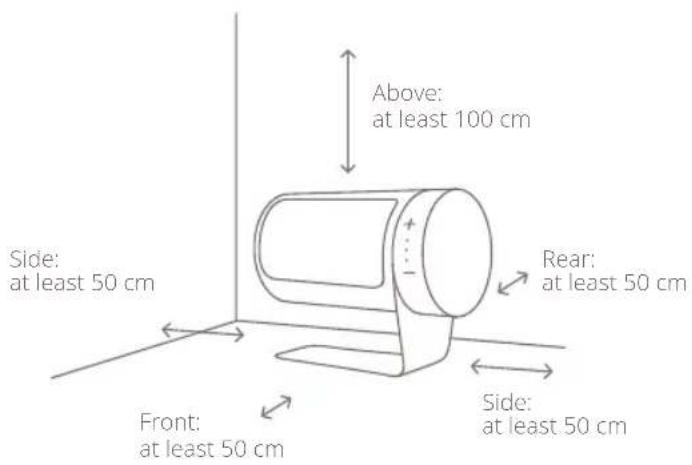

Positioning:

Note: Do not place the appliance near walls, windows or furniture.

Note: Even if the appliance is placed at an appropriate distance from walls and furniture, dust may gather over time. We recommend regular dusting to maintain the appliance.

Getting started

Note: See Chapter 2 for the product

overview and references

Insert the plug into the wall socket.
Position the heater on a hard flat surface at least 50cm away from the wall or any other objects.
3 Turn the on/off switch on the back of the appliance to the "on position", the fan heater is now in stand-by mode
Press the "+" button" to turn on the appliance. The fan will turn on and the position I indicator will illuminate. The product does not produce heat in this position.
Pressing the "+" button again will set the fan heater to the lowest setting. The position II indicator will illuminate.
6 Pressing the "+" button again activates the highest heat setting, and the position III indicator will illuminate.
7 Pressing the "- button" will reset the heat setting.

To switch off the appliance, the " button" must be pressed up to 3 times (depending on the starting position) until no indicators are illuminated.
9 After switching off the heating setting, the fan will remain on for ± 10 seconds to cool down the heating element. After this, the appliance automatically returns to the stand-by mode.
The air flow can be manually adjusted to the desired angle. The appliance is tiltable by up to 50 degrees. Turn the appliance by grasping both sides and turning the appliance through the left side. Do not touch the safety grid, otherwise you may get burned.
11 If the appliance is not to be used for a long period of time, we advise to switch the on/off switch to position 0 and remove the plug from the wall socket.

4. Disposal instructions

The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), states that old electrical household appliances must not be disposed of in the normal municipal, unsorted waste stream. Old appliances must be collected separately in order to optimise recycling and reuse of the materials they contain and to mitigate any

consequences to the environment and public health. The symbol with the crossed-out wheelie bin on the product reminds you of your obligation to ensure the appliance is collected separately for disposal. Consumers must contact their local authority or vendor for information regarding proper disposal of their old appliance.

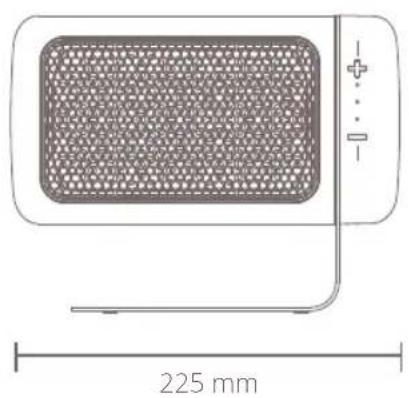

5. Technical specifications

Weight:

1.380 g

Supply voltage:

220 - 240 Volt / 50Hz

Max. power:

1.550 Watt

Model nr.:

DXFH01/DXFH02

6. Frequently asked questions

Q. The appliance does not switch on.

A. Make sure the on/off switch on the back of the product is "on".

Q. Can the appliance be used in the bathroom?

A. The appliance is not suitable for wet rooms and cannot be used in a bathroom.

Q. What happens when the appliance is knocked over?

A. Should the appliance be knocked while in use, a safety mechanism will be operated, and the appliance will switch itself off automatically. If the appliance is put back on its feet, it can be switched on again by means of the " ^+ button".

Q. What surface area is the appliance suitable for?

A. The appliance can be used in rooms up to 20m2

Q. Can I connect multiple appliances to the same wall socket?

A. Due to the power required being in excess of 1.550 watts, it is not advisable to connect several appliances to the same wall socket.

Q. When the appliance is switched off, the fan continues to run for a while. Is this correct?

A. This is correct. In order to cool the ceramic heating element, the fan remains on for approximately 10 seconds before the appliance goes into stand-by mode.

Q. Can I use an extension cable?

A. Use of an extension cable is not recommended. If necessary, only make use of an approved extension cable with a minimum cross-section of 3 × 2.5 ~mm^2 and an authorised power rating of at least 2.000 Watt/10Amp.

Q. The appliance is emitting a strong odour.

A. A strong odour may be released when the appliance is used for the first time. This will disappear quickly and will no longer be apparent.

Designed in The Netherlands bij Duux International BV. Made in P.R.C. Duux International BV, P.O. Box 145, 5400 AC Uden Netherlands, www.duux.com

2018 Duux. All rights reserved. DUUX® is a trademark of Duux International BV, registered in the EU and other countries.

The brand cited belongs exclusively to the respective owners.

Specifications are subject to modification without notice.
