USER MANUAL KM 1808 Krüger&Matz

Before Use Thank you for purchasing this system. Please read these operating instructions before operating the unit. The operating instructions should be retained for future reference. For your safety Before operating this system, check thevoltage of this system to see if it is identicalwith the voltage of your local power supply.When you disconnect the power cord,always pull the plug, never the cable.Protect the power cord from being walkedon or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.Never place the product and accessoriesnear naked ames or other heat sources,including direct sunlight.To avoid electric shock, do not open thecabinet. Refer all servicing to qualiedservice personnel.Never expose the product and accessoriesto rain or water. Never place liquid containers, such as vases, near the product.This symbol indicates that dangerous voltageconstituting a risk of electric shock is presentwithin this unit.This symbol indicates that there are importantoperating and maintenance instructions in theliterature accompanying this unit.Don’t obstruct the ventilation openings ofthe equipment with items such as newspa-per, table-cloths,curtains, etc.. Overheatingwill cause damage and shorten the life ofthe equipment.NEVER let anyone especially childrenpush anything into holes, slots or anyother opening in the case - this couldresult in a fatal electrical shock;Never hitting the product use the sharpobjects. Laser Product This product is equipped with low power laser equipment. For your own safety do not remove any covers or take the product apart. Repair work must be carried out by qualied personnel.

CLASS 1 LASER PRODUCT

Caution:This product is equipped with low power laser equipment inside, for your safety, don’t open the laser ra-diation protective equipment. Don’t look at the laser radiation district when the equipment is operating.

TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS APPLIANCE TO

DRIPPING OR SPLASHING. CAUTION:

INSIDE, REFER SERVICING TO

Hearing safety Listen at a moderate volume.

• Sound can be deceiving. Over time your hearing “comfort level”adapts to higher volumes of sound. So after prolonged listening, what sounds “normal”can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there. To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion. Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally “safe”levels, can also cause hearing lose.

• Be sure to use your equipment reasonably and take appropriate breaks.

1. Clean with soft, slightly damp cloth only.

2. Use only original accesories.

3. Unplug the device during lightning storms or when unused for long periods of

4. Dierent types of batteries or new and used batteries are not to be mixed.

5. When inserting batteries, please note the correct polarity.

6. This appliance may be used by children who are above 8 years old and by persons

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

7. Fixed power cable may only be replaced in an authorized service point.

8. Do not move the unit during playback

9. To avoid danger of suocation, keep the bag away from babies and children.

This bag is not a toy.29 Owner’s manual

4. Next Button / Previous Button

2. SOURCE (Select source)

(Select shue play mode) / A-B (Repeat a specic section within a track/chapter)

5. TITLE (Access title menu)

6. SUBTITLE (Select a subtitle language during

7. SLEEP (Set the sleep timer) / TIMER (In

standby mode, press and hold to set the alarm timer)

8. CLOCK (In standby mode, press and hold to

previous/next preset station; Rotate a picture)

11. STOP button (Press to stop playback; In FM

mode, press and hold this button to erase radio stations memory)

12. Skip to previous/next title, chapter or track.

15. Open / close (disc compartment)

16. SLOW (During video play, select a slow

currently playing disc)

20. ANGLE (Select a camera angle to view

disc; Navigate left/right; Tune radio station; Rotate picture

29. PROG (Program sound tracks; Presets

radio stations; Press and hold to scan for radio stations)31 Owner’s manual

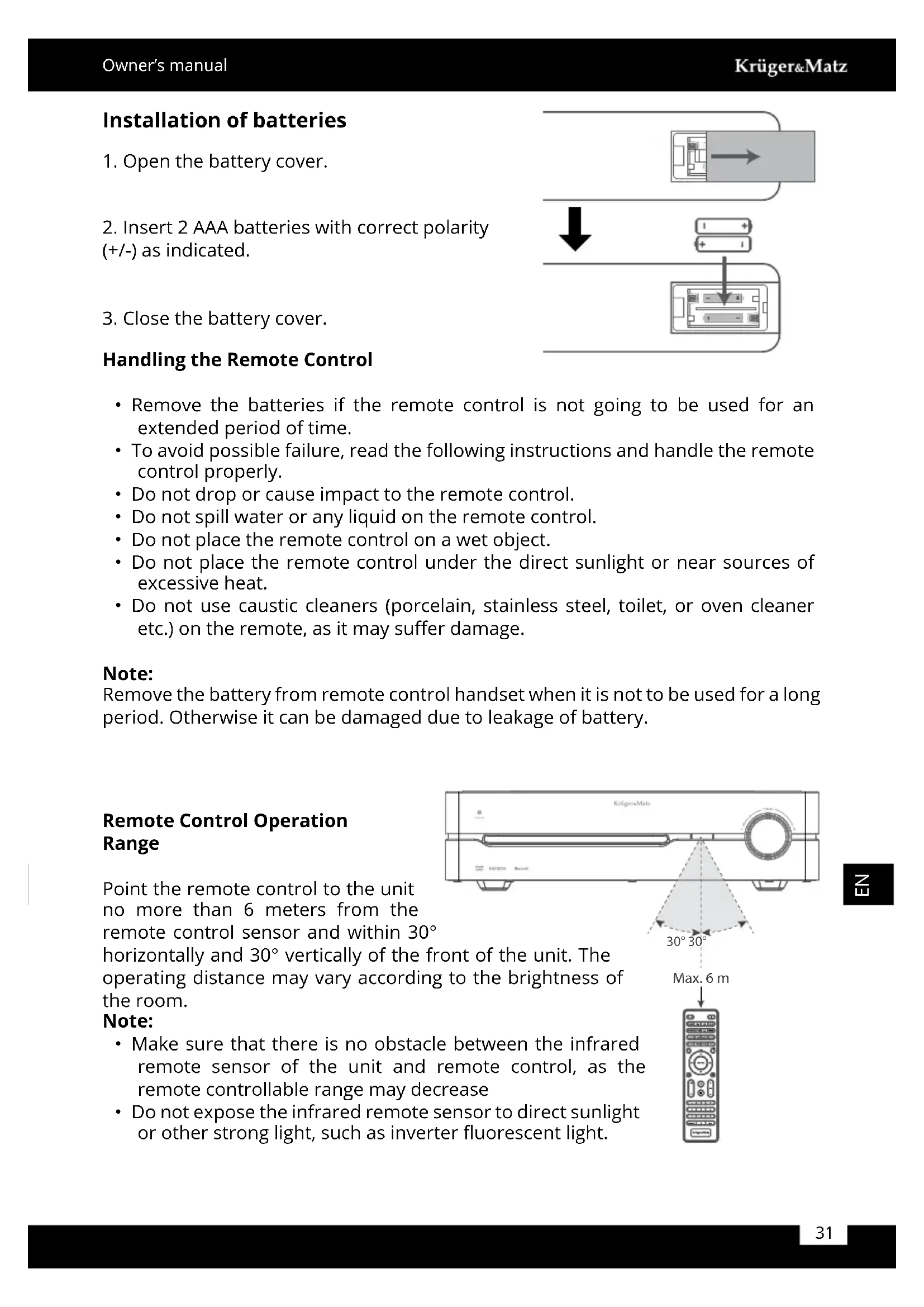

• Remove the batteries if the remote control is not going to be used for an extended period of time.

• To avoid possible failure, read the following instructions and handle the remote control properly.

• Do not drop or cause impact to the remote control.

• Do not spill water or any liquid on the remote control.

• Do not place the remote control on a wet object.

• Do not place the remote control under the direct sunlight or near sources of excessive heat.

• Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner etc.) on the remote, as it may suer damage. Note: Remove the battery from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to leakage of battery. Installation of batteries

1. Open the battery cover.

2. Insert 2 AAA batteries with correct polarity

3. Close the battery cover.

Remote Control Operation Range Point the remote control to the unit no more than 6 meters from the remote control sensor and within 30° horizontally and 30° vertically of the front of the unit. The operating distance may vary according to the brightness of the room. Note:

• Make sure that there is no obstacle between the infrared remote sensor of the unit and remote control, as the remote controllable range may decrease

• Do not expose the infrared remote sensor to direct sunlight or other strong light, such as inverter uorescent light. Max. 6 m 30° 30°32 Owner’s manual

CONNECTIONS Caution: Make all connections before plugging the unit into the AC Power outlet. Connecting the FM/DAB Antenna Connect the supplied FM/DAB Antenna to the ANT socket on the rear of the unit by turning the Antenna screw cap (as indicated). Note: Do not overtighten, this could damage the Antenna. Caution: To avoid noise, keep Antenna away from the unit, the connecting cable and the AC power cable. Connecting the Speakers Connect the speaker cords between the terminals as shown below. Connect the cable with a sliver head to the (-) terminals and cable with a gold head to the (+) terminals. Note:

• For optimal sound, use the supplied speakers only.

• Connect only speakers with impedance that is the same or higher than the supplied speakers How to connect:

1. Turn the terminal cap counterclockwise to loosen it. The speaker terminal caps

cannot be fully removed from the base.

2. Insert the wire into the terminal fully.

3. Turn the terminal cap clockwise

to securely connect it.33 Owner’s manual

Connecting to the composite video socket

• Connect the composite video (YELLOW) cable to the VIDEO socket on this unit and the video input socket on the TV.

• Then Connect audio cables (RED/WHITE) to the AUDIO OUT R / L sockets on this unit and the audio input sockets on TV. AUDIO IN R LVIDEO Connecting HDMI Use a HDMI cable (not included) to connect the HDMI ARC socket on the unit and to the HDMI ARC socket on the TV. Tips:

• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On. OPTICAL Socket OPTICAL Connect an OPTICAL cable (not included) to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.34 Owner’s manual

COAxIAL Socket Use the COAXIAL (not included) cable to connect the TV's COAXIAL OUT socket and COAXIAL socket on the unit. AUx Socket Use a RCA to RCA audio cable (not included) to connect the TV’s audio output sockets to the AUX (R L) socket on the unit.

Use a RCA to 3.5mm audio cable (included) to connect the audio player’s headphone socket to the AUX (R L) socket on the unit.35 Owner’s manual

• Press the STANDBY button to switch the unit on.

• Press the STANDBY button to switch the unit back to standby mode. Disconnect the mains plug from the mains socket if you want to switch the unit o completely. If there is no signal input under the DISC, USB, BT (Bluetooth), ARC, COAXIAL, OPTICAL or AUX mode, the unit will automatically switch o within 15 minutes. Connecting the AC Power Cable Insert the AC Power cable into a wall outlet, then your unit is ready to use. Caution:

• Be sure to unplug the power plug from the outlet when the unit is not in use for an extended period of time.

• Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.

Synchronization of the Clock Note: by default, time is synchronized with RDS.

1. When in STANDBY mode, press and hold the MENU button on the remote

control to synchronise the clock.

2. Press the / buttons on the remote to switch the clock synchronization modes:

• RDS Only synchronize with the RDS radio station.

• OFF Turn o the clock synchronization function, only adjust the clock manually.

Manual setting of the clock

1. In STANDBY mode, press and hold CLOCK until “CLOCK SET” scrolls on the

ashing, then press the CLOCK or ENTER button on the remote control to conrm, then the minute digits will ash.

3. Press the / buttons on the remote control to adjust the minute digits while

ashing, then press the CLOCK or ENTER button on the remote control to conrm. Note:

• Press the button on the unit or the button on the remote control to select 12/24 hour format.

• Each activated state will be cleared if any buttons are not pressed within 15 seconds.

SELECT THE CORRECT TV SYSTEM

Change this setting if the video is not displayed correctly. By default, this setting matches the most common setting for TVs.

1. Press the SETUP button to access or exit system setup menu.

• [PAL] - For TV with PAL color system.

• [AUTO] - For TV that is compatible with both PAL and NTSC.

• [NTSC] - For TV with NTSC color system. SELECT MODES Press the button on the unit or the SOURCE button on the remote control repeatedly to select DISC, USB, OPTICAL, FM, DAB, Bluetooth, AUX, COAXIAL, ARC mode. The selected mode will show on the display. Adjusting the Volume To increase or decrease the volume, rotate the VOLUME control knob on the unit or press the VOL+/VOL- buttons on the remote control. Mute sound During play, press the MUTE button to mute. Press the MUTE button again or rotate the volume knob to unmute.37 Owner’s manual

Presetting Equalizer You can adjust the sound reproduced simply by choosing from 5 preset equalizers. Press the EQ button repeatedly to scroll through the following options: FLAT > POP > CLASSIC > ROCK > JAZZ (looped) Changing the Front Panel Darkness To dim or brighten the display, press the DIMMER button repeatedly on the remote control to the desired brightness. PLAY FOR ExTERNAL AUDIO DEVICES

1. Ensure that the unit is connected to the TV or audio device.

2. While in ON mode, press the

button on the unit or the SOURCE button on the remote control repeatedly to select the OPTICAL, AUX, COAXIAL / HDMI ARC mode.

3. Operate your audio device directly for playback features.

4. Press the VOL +/– buttons to adjust the volume to your desired level.

In the OPTICAL, AUX, COAXIAL / ARC mode, if there is no sound output, ensure the audio setting of the input source is set to PCM mode.

• Make sure that you have correctly connected and fully extended the antenna.

• You can program a maximum of 20 DAB radio stations. To listen to the tuned stations press the / buttons. Each time you press the / buttons, you will skip to the previous or next stored station (including primary and secondary station). The unit will display the station name.

button on the unit or the SOURCE button on the remote control repeatedly to select DAB radio.

2. Press the MENU button on the remote control to display the DAB menu. Press the /

buttons to select Full scan. Press the ENTER button to conrm. Auto Scan The auto scan will search for all DAB Band III channels. After the scan has nished, the rst alphanumerically found station will be automatically selected.

1. Press the MENU button on the remote control to enter the DAB menu. Then

press the / buttons to select the “FULL SCAN”. Press the button on the remote control to conrm. The display will show “SCAN…”that indicates the progress of the scan and the amount of stations that have been found so far.

perform a full scan.

2. Once the scan has nished, the unit will display the total number of stations

have been found and a list of the found stations. All the stations that have been found will be stored automatically. To explore the found stations, press the / buttons to the selected station.

• Full auto scan will not replace the DAB stations in memory. If you want to remove all the previously scanned stations, system reset is required. Presetting Stations Manually You can store up to 20 of your favourite DAB stations to the memory. This will enable you to access your favourite stations quickly and easily.

1. To store a preset, you must rst be listening to the station that you would like

and the preset number will ash.

3. Press the / buttons on the remote control to select your desired station

4. Press the PROG button to conrm your station, the display will show “STORE”.

Recalling a Preset Station

1. Once you have saved a station to one of the preset buttons, you can recall it by

pressing the / buttons on the remote control to select your desired preset number.

2. Preset number and station name will show on the display to indicate the preset

station you are listening to.

• The stored stations will be saved into the memory and power o will not erase it. Storing a new station in a preset location will erase the previously stored station in that location. DAB Information Display You can view the DAB service information in the following modes. Depending on the DAB radio station you are tuning to, some information modes may be unavailable. Repeatedly press the INFO button on the remote control to view the following information.

• DLS Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. The message usually includes information, such as programme details etc. Note: DAB – unlike normal radio, groups together several radio stations and transmits them on one frequency.

• Singal strength The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

• Ensemble name A multiplex is a collection of radio stations that are bundled and transmitted39 Owner’s manual

on one frequency. There are national and local multiplexes. Local ones contain stations that are specic to that area.

• Error in signal A number showing the error rate. If the number is 0, it means the signal received is error free and the signal strength is strong. If the error rate is high, it is recommended to reorient the radio aerial or reposition the unit.

• Before operating the radio, please check that the antenna is correctly connected and adjusted for length and direction.

• You can program a maximum of 20 FM radio stations Auto Scan and Save Preset Station

1. Press the button on the unit or the SOURCE button on the remote control

repeatedly to select TUNER mode.

2. Press and hold the PROG button on the remote control to activate automatic

programming. All available stations are programmed in the order of waveband reception strength.

• The rst programmed radio station is played automatically.

• Tune to a Preset Radio Station

• Press the PRESET / buttons to select a preset number that you want. Tuning in a Station

• Tune in radio stations automatically

• Press and hold the , buttons on the unit, the frequency changes down or up automatically until a station is found.

• The search may not stop at a station with a very weak signal.

• Tune in radio stations manually

• Press the , buttons repeatedly until you nd the station you want.

• If reception is still poor, try to adjust the position of the aerial or try to move the radio to another location. Presetting Stations Manually You can preset up to 20 FM stations.

1. Tune in the desired station, then press the PROG button.40

3. Press the PROG button to store the station.

4. Repeat above steps 1 to 3 for each station you want to store in memory with a

preset number. RDS RECEPTION FM Display Modes Every time you press the OSD button, the display will cycle through the following display modes: Station Name, Programme Type, Radio Text, Frequency , CLOCK INFO. Note:

• RDS information will be displayed only if available

• When automatic programming is used, RDS stations are

• programmed rst. DISC OPERATION

1. While in ON mode, press the button on the unit or the SOURCE button on

the remote control repeatedly to select DISC mode.

2. Press the button to open the disc door and place the disc on the disc tray (with

the printed side up).

3. Press the button to close the disc door, the unit will read the disc and play it

button on the unit to select the USB source.

3. Playback starts automatically. If the playback does not start automatically, select

• Always insert the USB device in the correct direction. Failure to do so may result in damage to the USB device and this unit.

• Do not remove the USB device while it is being accessed.

• Electrical interference and electrostatic discharges may cause the USB device to malfunction and suer damage, resulting in data loss. It is strongly recommended that any important data is backed up on a PC to protect against corruption, data loss or device malfunction. Please note that our company shall not accept any liability for damage or loss of stored data. Note: USB connection may not compatible with all hard drive models. Play Control

• To stop play, press the button on the remote control.

• To pause or resume play, press the button on the unit or the , button on the remote control.

• To skip to the previous/next track, press the / buttons on the unit or / buttons on the remote control.

• Press and hold the , buttons on the remote control to perform fast forward/ reverse playback. Press the button to resume normal playback.

• Press the OSD button on the remote control to display the current play information. Slow backward/forward play

1. During video play, press SLOW button to select a slow backward speed.

2. To resume play at normal speed, press the or button.

Random Playback During play, press the SHUFFLE button, unit will randomly play the song. Select Repeat Play Options During play, press the REPEAT button repeatedly to select a repeat option play42 Owner’s manual

mode. The selected mode will show on the display: RPT ONE - Repeat current track. RPT ALL - Repeat all tracks. RPT OFF - Repeat turned o. Repeat A-B (DVD/VCD/CD/MP3/WMA)

1. During music or video play, press the A-B button at the start point.

2. Press the A-B button at the end point.

• The selected section starts to play repeatedly.

• To cancel repeat play, press the A-B button again. Note: The section A and B can be set only within the same track/title. Select an Audio Language During disc play, press the AUDIO button to select an audio language on video DVDs.

• The language options appear. If the selected audio channels is unavailable, the default audio channel is used.

• For some DVDs, the language can only be changed from the disc menu. Press the MENU button to access that menu. Display Menu In DVD play mode, press the TITLE button to go back to the title menu during PBC playback. Select a Subtitle Language

• During playing, press the SUBTITLE button to select a subtitle language on DVDs.

• For some DVDs, the language can only be changed from the disc menu. Press the MENU button to access that menu. Select a Camera Angle During play, press ANGLE button repeatedly to select a camera angle.

• This feature is only available for DVDs recorded with multiple camera angles. Zoom in/out image During video/picture play, press the ZOOM button to zoom in/out the image.

• For VCD with PlayBack Control (PBC) feature (version 2.0 only): The PBC feature allows you to play VCD interactively according to the menu screen.43 Owner’s manual

During playing, press the MENU button to enable/disable PBC.

• When PBC is enabled, the menu screen is displayed.

• When PBC is disabled, normal play is resumed. Search by Time or Chapter/Track Number

1. During the DVD/VCD playback, press the GOTO button to access quick menu:

• For the Track/Title/Chapter eld, enter the track/title/chapter number.

• For the Disc time/Track time/Title time/ Chapter time, enter the play position in hours, minutes and seconds.

2. Use numerical (0~9) buttons to input title/chapter/ track number and disc/track time.

3. Press ENTER button to conrm a selection. Play starts automatically at your

selected point. Programme Play You can programme up to 20 tracks to play in any desired order. The player must be in STOP mode only with a Disc inserted.

1. Insert a disc and press the STOP button when it starts playing.

the desired track number.

4. Press the PROG button to conrm the track number to be stored.

5. Repeat steps 3-4 to select and store all desired tracks.

6. Press the button to start programme play.

7. Press the button twice or open the disc compartment to clear programme.

Pairing bluetooth-enabled devices To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs to be done only once.

button on the unit or the SOURCE button on the remote control repeatedly to select BT (Bluetooth) mode. “NO BT” will show on the display if the unit is not paired to any Bluetooth device.

2. The system has entered pairing mode.

• press the "PAIR" button on the remote control or press and hold the button on the unit to be searchable. The display will show “PAIR”.

3. Turn on the Bluetooth function on your device.

4. Search for other Bluetooth device with your device.

5. Select “KM1808” in the pairing list.

6. Enter default password “0000” if necessary.

7. Start music play on your Bluetooth device, you can use this unit’s remote to

control the function to your Bluetooth device.44 Owner’s manual

• The device will also be disconnected when the device is moved beyond the operation range.

• If you want to reconnect the device to the unit, place it within the operational range.

• The operational range between this unit and a Bluetooth device is up to 8 meters.

• Compatibility with all Bluetooth devices is not guaranteed.

• Any obstacle between this unit and a Bluetooth device can reduce the operational range.

• Keep this unit away from any other electronic device that may cause interference

• If a connection exist, press the "PAIR" button on the remote control or press and hold the button on the unit to re-activate the pairing mode, the connection will be interrupted.

• If no other Bluetooth device pairs with this player within two minutes, the player will recover its previous connection.

• When connected to an external device, the display shows "BT".

• If the connected Bluetooth device supports Advanced Audio Distribution Prole (A2DP), you can listen to the music stored on the device through the player.

• If the external device supports Audio Video Remote Control Prole (AVRCP), you can use the player’s remote control to play music stored on the device.

This unit can switch to standby mode automatically after a set period. When the unit is turned on, press SLEEP button repeatedly to select a preset period (in minutes): 120 > 90 > 60 > 45 > 30 > 15 > 00

• Press the SLEEP button to view the remaing time before switch o.

• To deactivate the sleep timer, press SLEEP button repeatedly until [SLEEP 00] is displayed.

This unit can be used as an alarm clock. You can select DISC, USB, DAB or TUNER as alarm source.

2. Press / button on the remote control to adjust the hour digits, and then press

the TIMER button on the remote control to conrm, the minute digits will ash on the display.

3. Press the / buttons on the remote control to adjust the minute digits, and

then press the TIMER button on the remote control to conrm.

4. Press the / buttons on the remote control to select:

• TUNER (to wake to your selected FM Radio Station)

• DAB (to wake to your selected DAB Radio Station)45 Owner’s manual

• DISC (to wake to your Disc music)

• USB (to wake to your USB music) Press the TIMER button on the remote control to conrm, the display will show the volume level.

5. Press the / buttons on the remote control to adjust the volume, and then

press the TIMER/SLEEP button on the remote control to conrm. “TMR ON / TMR OFF” will ash on the display.

6. Press the / buttons to select “TMR ON” or “TMR OFF” to enable the timer or to

disable the time, and then press the TIMER/SLEEP button on the remote control to conrm. Press the TIMER/SLEEP button on the remote control to view the alarm settings or activate the alarm. Note:

• Each enabled state will be cleared if a button is not pressed within 15 seconds.

• When the alarm rings, press the button on the remote control or on the unit. The alarm stops but the alarm settings remain. SETTING ADJUSTMENTS Most settings and adjustments are required to be set when you rst use the unit. Settings adjustment is available after connecting this device to TV set via HDMI cable. Press the SETUP button to access or exit system setup menu. Press the / , / buttons and press the ENTER button conrm selection TV SYSTEM AUTO: For TV that is compatible with both PAL and NTSC. NTSC: For TV with NTSC color system. PAL: For TV with PAL color system. POWER RESUME ON: Select this to make last memory function available for DISC. OFF: Select this to make last memory function invalid.

SCREEN SAVER ON: The screen saver starts up if nothing is played back and no operations are performed for 4 minutes. OFF: The screen saver does not start up. HD Resolution The resolution options include AUTO, 480i/576i, 480p/576p,720p, 1080i, 1080p. Note: If no display appears on the TV screen due to unsupported resolution, reconnect any available interlace video output to your isplay and re-adjust the resolution settings to 480p/576p. Aspect Ratio To avoid distortion on older televisions, you may need to change the way in which the image is displayed. Televisions use a 4:3 aspect ratio; high-denition televisions use 16:9 aspect ratio (as do movies).

• Some discs do not allow the aspect ratio to be changed and you will therefore have to change the aspect ratio on the TV. [4:3PS]: This mode is used with 4:3 televisions. 4:3 images are displayed normally. When showing 16:9 programmes, the full height of the screen is displayed, and the left and right part of the image are cut

[4:3LB]: This mode is used with 4:3 televisions. 4:3 images are displayed normally. 16:9 images are visible at their full width, but there are blank area at the top and bottom of the screen. [16:9]: Use with a 16:9 wide television.

• Some wide-screen discs that do not permit the Pan Scan mode playback are automatically played in Letter Box mode.

• Depending on the DVD, 4:3 Letter Box may be selected automatically instead of 4:3 Pan Scan and vice versa.

• If 16:9 (Wide) is selected and a normal TV is connected, 16:9 content will appear distorted during playback (objects look thin). PASSWORD You can set a new password for parental control. RATING Playback of some DVD discs can be limited depending on the age of the users. The parental control system allows the playback limitation level to be set by the parent.

• The lower the level, the stricter the limitation.

• If the rating of the loaded DVD disc is higher than the level you set, the system will require a password. Enter your password and press the ENTER button to start playback. DEFAULT All the items in the Setup menu (except for the password and parental control) will be reset to the default settings. OSD Language Select the desired language for on screen menus of the unit. Audio Subtitle DVD Menu You can select a preferred language for audio, subtitle and disc menu.

• When you select a preferred language that is not recorded on the DVD, one of the recorded languages is automatically selected.

• You can override the Audio setting in the Setup menu by pressing the AUDIO button on the remote control unit while a DVD disc is playing.

• You can override the Subtitle setting in the Setup menu by pressing the SUBTITLE button on the remote control while a DVD disc is playing.47 Owner’s manual

HDMI CEC You can use one single remote control to control all HDMI CEC devices that connected via HDMIconnection. ON: Enable HDMI-CEC feature. OFF: Disable HDMI-CEC feature. HDMI AUDIO AUTO: Detect and select the best supported audio format automatically. PCM: Multi-channel audio format will be down-mixed to two channel sound.

• To keep the disc clean, please don’t touch the disc’s surface when you are holding it. You should hold the edge.

• If the disc is dirty, it will aect the sound quality. Please use the clean and soft cloth to wipe the disc from inside to outside. Don’t wipe the disc in circular motion.

• Don’t stick paper on the disc.

• After you have nished with the disc, please place it back in its original case. To avoid warping or damage, do not stack discs.

• Don’t play the disc which has aw or deformation, in case of damaging this player.

• Clean your discs using only a soft dry cloth. Do not use any chemicals such as benzine, thinner, antistatic or record sprays as these can damage the disc surface.

If you are having a problem with your system, check this list for a possible solution before calling for service. If you can not solve the problem from the hints give here, or the system has been physically damaged, call a qualied person, such as your dealer, for service. TROUBLESHOOTING No power No disc detected

• Ensure that the AC adaptor plug of the unit is connected properly.

• Ensure that there is power at the AC outlet.

• Check if the disc is inserted with the print side facing inward.

• Wait until the moisture condensation at the lens has cleared.

• Increase the distance between the unit and your TV or VCR.

• Fully extend and adjust the FM antenna. USB device not supported The USB device is incompatible with the unit. Try another one. No sound Adjust the volume. CannotdisplaysomeleinUSB device

• The number of folders or les in the USB device has exceeded a certain limit. This phenomenon is not a malfunction.

• The formats of these les are not supported. Timer does not work

• Set the clock correctly.

• Switch on the timer. Remote control does not work

• Before pressing any function button, rst select the correct source with the remote control instead of the main unit.

• Reduce the distance between the remote control and the unit.

• Insert the battery with its polarities (+/– signs) aligned as indicated.

• Replace the batteries.

• Aim the remote control directly at the sensor on the front of the unit.49 Owner’s manual

DVD player Bluetooth 3.0 NFC FM radio DAB+ digital radio Max. output power: 2x 50 W Frequency response: 45 Hz – 20 kHz Impedance: 6 Ω I/O: HDMI ARC output USB port Coaxial input Optical input AUX input (2x RCA) Audio output (2x RCA) video output (1x RCA) Remote Control Power consumption: 40 W Power consumption in standby mode: < 0,5 W Power supply: 220-240 V; 50/60 Hz SPECIFICATIONS English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL, Miętne, 1 Garwolińska Street, 08-400 Garwolin. Specications are subject to change without prior notice. “The Lechpol company declares that product KM1808 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu” LEARN MORE For more information on this product, go to www.krugermatz.com. Visit www.krugermatz.com website for more products and accessories. In case of any doubts or questions reach out to our Frequently Asked Questions section.50 Mode d’emploi

2. SOURCE (bouton mode)

video] -> [TV SYSTEM]

video] -> [TV SYSTEM]

CLASS 1 LASER PRODUCT
