Garden Pressure Sprayer

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The product is used for spraying liquids in the home, garden and greenhouses. The spraying of solvents or solvent-containing liquids or oil is a particular example of improper use of the product. This product is intended for private use only.

The pressure spraying device is used only for spraying the following fluids in the house, garden or in greenhouses.

Water,
- Mild, PH-neutral cleaning agents

The sprayed agent may only be sprayed in the concentration specified by the manufacturer of the agent. If in doubt, consult the manufacturer of the agent. The pressure spraying device is designed for private use only. Incorrect use includes, in particular, the spraying of the following:

• Pesticides
• Weed sprays

• Disinfectants

• Fertilisers

• Solvents or liquids containing solvents
  -Oil
• Easily flammable fluids
• Corrosive fluids such as acids or lye.

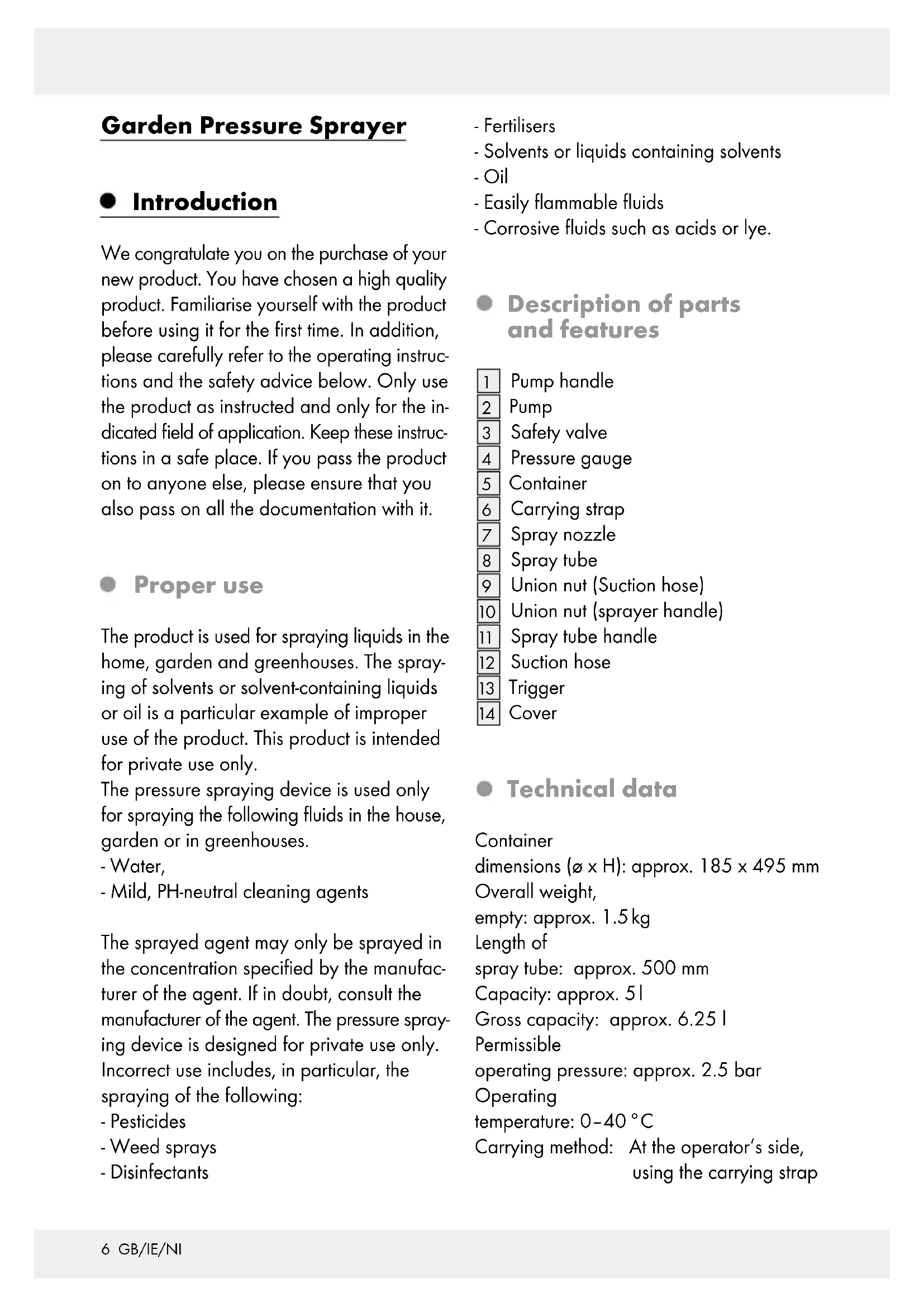

Description of parts and features

1 Pump handle
2 Pump
3 Safety valve
Pressure gauge
5 Container
6 Carrying strap
Spray nozzle
Spray tube
9 Union nut (Suction hose)
10 Union nut (sprayer handle)
Spray tube handle
12 Suction hose
13 Trigger
14 Cover

- Technical data

Container

dimensions ( × H) : approx. 185× 495mm

Overall weight,

empty: approx. 1.5kg

Length of

spray tube: approx. 500mm

Capacity: approx. 51

Gross capacity: approx. 6.25 I

Permissible

operating pressure: approx. 2.5 bar

Operating

temperature: 0 - 40^

Carrying method: At the operator's side, using the carrying strap

Volume flow: Jet stream: max. 0.75 l/min

Misty spray: max. 0.70 l / min

Waterfall stream: max.

1.75 l/min

Saturating stream: max.

1.0 l/min

- Included items

1 Garden Pressure Sprayer
1 Spray tube
1 Carrying strap
1 Hose
1 Operating instructions

Safety advice

- General safety advice

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.

WARNING! RISK OF INJURY!

There is a risk of injury to the skin resulting from contact with the spray product. Always wear suitable protective clothing, gloves and breathing protection when spraying.

AWARNING! Do not carry out any repairs or modifications to the pressure sprayer. Do not change or repair any components.
- Wash your hands and face after each spraying session.

CAUTION! RISK OF

EXPLOSION! Do not place

the device (empty or full) in

direct sunlight!

Always read and observe the information provided by the chemical manufacturer when working with or mixing spray solutions.
- Release the residual pressure in the container by pulling the safety valve upwards before you open the container (Fig. C).
Never spray into wind, water, or drinking water source.
Release the residual pressure after each use.
Do not unscrew or remove the safety valve.

Explanation of the symbols used:

5-1 pressure sprayer

Max. filled capacity:
Approx. 5 litres or 1.32 gal
Volume container: approx.
6.25 litres or 1.65 gal

Permissible operating pressure: Max. approx. 2.5 bar

Not for use with corrosive substances!

Do not spray on electrical devices, electrical cables or wires.

Do not spray on people!

Do not spray on animals!

Spray on plants only!

Do not use the product for drinks!

Do not leave the pressurized spraying device standing in the sun. There is a risk of explosion!

Keep away from naked flames and heat sources. Seal containers securely. Store in a fireproof way! Do not use easily flammable fluids!

Jet stream: Flow rate up to 0.75 l/min. at max. 2.5 bar!

Misty spray: Flow rate up to 0.70 l/min. at max. 2.5 bar!

Waterfall stream: Flow rate up to 1.75 l/min. at max. 2.5 bar!

Saturating stream:

Flow rate up to 1.0 l/min. at max. 2.5 bar!

Protect from frost and store away from frost.

Store at 0^ - 40^ in a dry, dust-free location.

When pumping, always watch the manometer to check the operating pressure.

Wear suitable protective coating, glove or mask.

Before using for the first time, pls read the instruction carefully.

Before use

CAUTION! Check that the device is functioning properly! Check the pressure sprayer before each use to ensure that it is free of visible damage and is functioning safely. To do this, carry out the following tests and inspections:

Check the tank 5, the suction hose 12 and the carry strap 6 for visible damage.
Check that the hose connections are fitted tightly.
Check that the pipe connections are fitted tightly.
Pump the empty pressure sprayer to approx. 1 bar. The pressure must not fall more than approx. 0.5 bar in a space of 30 minutes.
Pump the pressure sprayer to approx. 2 bar.
Pull the safety valve 3 up to the stop. You must be able to hear the pressure escaping.

Bringing into use

- Attaching the spray tube (Fig. B-D)

Turn the union nut 10 anticlockwise to release it from the handle 11. Push the spray tube 8 into the handle 11 as far as it will go.

□ Attach the nozzle7 to the spray pipe 8.

Tighten the union nut 10 in a clockwise direction.

Connect the hose 12 by fastening the union nut 9 on the container 5 and the spray pipe handle 11.

- Filling the pressure sprayer tank (Fig. D)

Note: Before using the product, check to see that it is in good condition and free of defects.

Press the pump handle 1 downwards and turn it anticlockwise.

Note:Before you open the tank, pull the safety valve 3 upwards to release any residual pressure still present in the container 5
Draw the pump 2 out of the container 5.
Now fill the tank.

Note: Fill the tank with only the amount of liquid that you actually need for that particular spraying session (not more than 5 l).

Place the pump 2 back into the container 5 and turn the pump handle 1 clockwise as far as it will go.

Building up the operating pressure

Move the pump handle 1 up and down until the pressure sprayer has been pumped up to a pressure not exceeding the maximum permissible operating pressure of 2.5 bar. To ensure this value is not exceeded, monitor the pressure gauge 4 during the pumping process.

Note: If the pressure of the air in the container 5 exceeds 2.5 bar, the pressure is automatically released through the safety valve 3.

Press the pump handle 1 downwards into the recesses.
Now take the spray tube out of the holder.

Spraying

Hang the pressure sprayer over your shoulder by the carrying strap 6
Note: Ensure that the pressure sprayer is always kept upright. Only when held in this orientation will the sprayer work properly.
Hold the spray tube firmly by the handle [11] and direct the adjustable spray nozzle [7] e.g. at a plant.
Press the trigger 13 to start the spraying process.
Release the trigger 13 to stop the spraying process.

Note: When the pressure in the container 5 is no longer sufficient to spray, pump the container 5 to increase the pressure again up to but not exceeding the maximum permissible operating pressure of 2.5 bar. You can check the operating pressure using the pressure

gauge 4 (see "Building up the operating pressure").

Pull the safety valve 3 upwards as far as it will go to release the residual pressure in the container 5.

- Cleaning and care

If the nozzle seems to be blocked, do not try to blow it free with your mouth.

Note: Clean the pressure sprayer after each use! Empty the bottle after each use.

Clean the pressure sprayer

Unscrew the spray nozzle 7

Clean the spray nozzle 7 under running water.

If the spray nozzle 7 is clogged, clean it by pushing a needle through it.

Flush through the pressure sprayer, pipes and tubes with water.

Clean the surfaces of the product with a moist cloth.

- Cleaning the suction hose and riser pipe

To clean the parts, follow these steps:

Loosen the union nut on the suction hose 12 on the handle 11 and on the hose connection on the cover 14

Open the screw connection on the cover 14 and pull out the riser pipe.

Clean the suction hose 12 and the riser pipe under running water.

After cleaning, reinsert the riser pipe into the opening provided for this purpose on the cover and screw this back onto the tank 5.

Fasten the suction hose 12 onto the hose connection on the cover 14 and the handle 11 of the spray pipe once more.

Tighten the union nut securely.

- Store the pressure sprayer

Release any residual pressure still present in the container after use. To do this, pull the safety valve button upwards until you can no longer hear the hiss of escaping air.
Thoroughly clean the device and allow it to dry before you put it away for the winter. This will avoid frost damage.
Clean the pressure sprayer before storing it away.
Remove any leftover spray product from the tank and the pipes.
Store the pressure sprayer in a dry, dust-free place.

- Troubleshooting

If the measures listed below are not successful, contact the manufacturer.

= Fault
= Potential causes
O = Remedies

No pressure is established in the tank.

The pump is not firmly screwed into place.
Screw the pump firmly into place.
The sealing ring of the pump has not been greased.
Grease the sealing ring of the pump.

Spray nozzle does not spray.

No pressure present.
Generate pressure using the pump.
The spray nozzle is blocked.
Clean the spray nozzle.
No spray in the tank.
Fill with spray.
Filter is blocked.
Clean the filter.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is

required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
