DE903 - Weather Station Ea2 LABS - Free user manual and instructions

Product type	Weather station
Brand	Ea2 LABS
Model	DE903
Main unit dimensions	158 x 80 x 19 mm
Outdoor sensor dimensions	84 x 65 x 18 mm
Weight	Not specified
Main unit power supply	3 AAA batteries
Outdoor sensor power supply	2 AAA batteries
Transmission frequency	433 MHz
Transmission range	30 m in open space
Indoor temperature range	0°C to 50°C (32°F to 122°F)
Outdoor temperature range	-20°C to 50°C (-4°F to 122°F)
Indoor humidity range	20% to 99%
Weather forecast functions	5 icons: sunny, partly cloudy, cloudy, rainy, snowy
Time display	Radio-controlled (DCF) with manual setting
Calendar	Perpetual until 2099
Alarm	Daily alarm with snooze function
12/24 h display	Selectable
Dual time zone	Yes
Weekday languages	8 languages: German, English, Russian, Danish, Dutch, Italian, Spanish, French
Max/Min value memory	For temperature and humidity
Backlight	5 seconds on key press
Care and cleaning	Do not use abrasive or corrosive products
Safety	Use a pointed object for reset; do not expose to direct sunlight or excessive heat/cold/humidity
Repairability	Not specified

Frequently Asked Questions - DE903 Ea2 LABS

How to set the time manually?

Press and hold the Mode / Setting button (B6) for 3 seconds to enter setting mode. Use the + (B7) and - (B4) buttons to adjust values (hours, minutes, year, month, day, time zone, weekday language). Confirm with the Mode / Setting button to move to the next setting.

How to activate the backlight?

Press the Alarm recall / Light button (B2). The backlight turns on for 5 seconds.

What to do if the main unit does not display the outdoor temperature?

Check that the batteries of the outdoor sensor are correctly inserted. If after 3 minutes the signal is not received, press the Channel button (B8) for 3 seconds to force reception. The RF icon will flash during the search.

How to change the temperature display to °C or °F?

Press the °C/°F button (B4) to switch between Celsius and Fahrenheit units.

How to view the maximum and minimum temperatures?

Press the Max/Min button (B3) to display the maximum values. Press again to see the minimum values. To clear the records, press and hold the Max/Min button for 3 seconds.

How to set the alarm?

Press the Mode / Setting button (B6) until the alarm icon appears. Press and hold the same button for 3 seconds, then set the time with + or -. Confirm with Mode / Setting. Activate or deactivate the alarm with the Alarm On/Off button (B1).

How to interpret the weather forecasts?

The station displays 5 icons: sunny, partly cloudy, cloudy, rainy and snowy. The forecasts are based on barometric pressure. They may not be accurate in case of altitude change. For better accuracy, enter the current conditions after installation.

How to install the outdoor sensor?

Install the sensor on a flat and safe surface, protected from direct sunlight and rain. Do not immerse it. Use the wall drilling (D2) to mount it or the stand (D6) to place it. Ensure the distance from the main unit does not exceed 30 m in open space.

What does the low battery icon mean?

If the low battery icon appears on a specific channel, it indicates that the batteries of the corresponding temperature sensor are low and need to be replaced.

How to reset the main unit?

Use a pointed object (such as a paperclip) to press the Reset button (B9) located on the back. This can resolve abnormal operation issues.

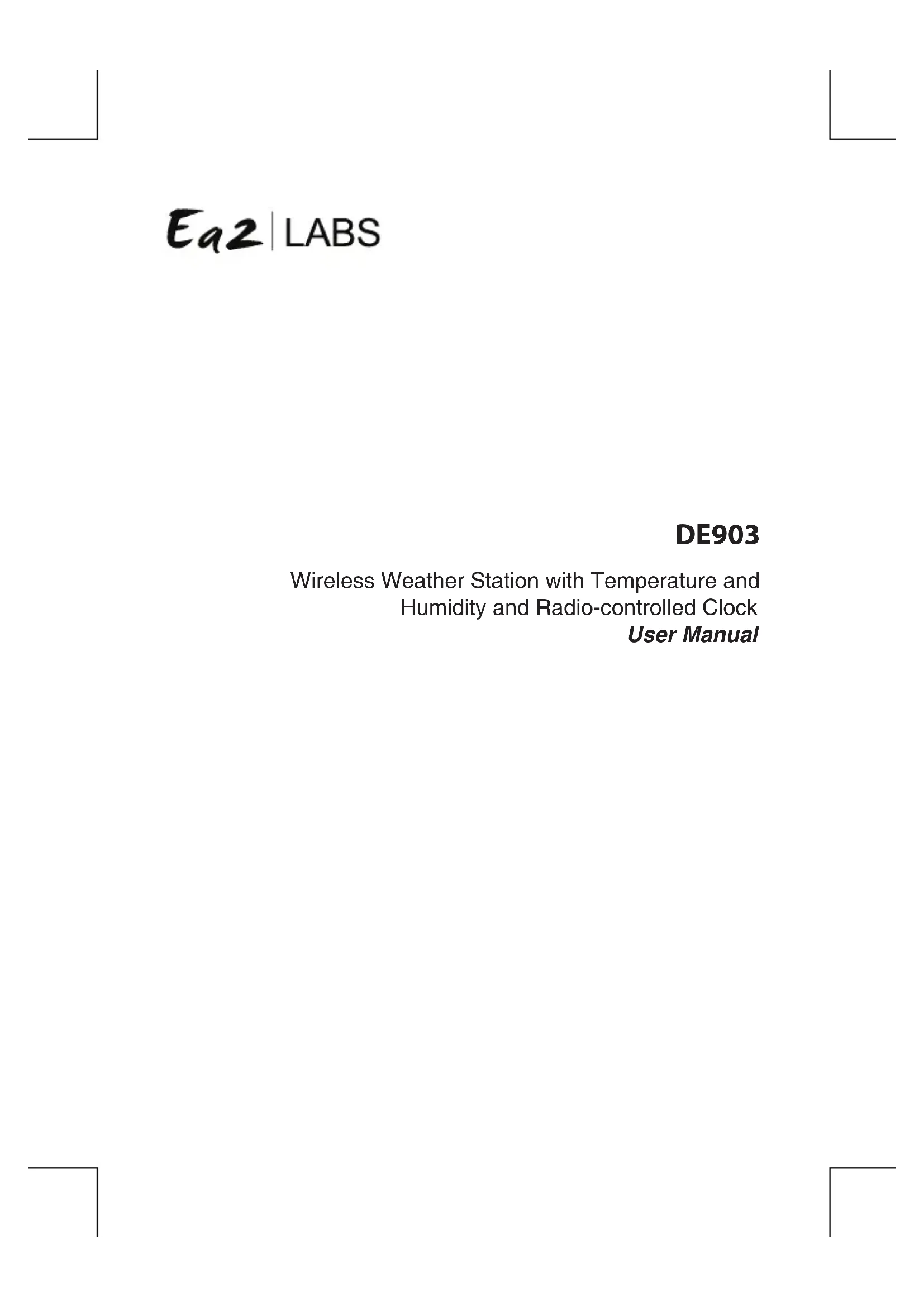

USER MANUAL DE903 Ea2 LABS

Wireless Weather Station with Temperature and

Humidity and Radio-controlled Clock

User Manual

Thank you for choosing Ea2 I LABS Product and it is our pleasure to let you "living better".

DE903 Wireless Weather Station with Temperature and Humidity and Radio-controlled Clock

USERMANUAL

Page

Index 1

1. Features

1.1 Weather Forecast 2
1.2 Time
1.3 Humidity 2
1.4 Temperature 2
1.5 Wireless Outdoor Sensor 2

1. Main Unit Appearance

2.1 Part A - Display 3
2.2 Part B-Buttons 3
2.3 Part C - Structure 3

1. Outdoor Sensor Appearance 41

2. Getting Started

4.1 Main Unit 4
4.2 Outdoor Thermo Sensor 4
5. Installation
5.1 Main Unit 4
5.2Outdoor Thermo Sensor 4

1. Weather Forecast Function

6.1Operation 5
6.2 Weather Conditions 5
6.3 Barometric Trend 6

1. Thermometer

7.1 RF Transmission Procedure 6
7.2 Temperature & Humidity

8.Time/Alarm Setting 7

8.1 Radio Controlled Clock (DCF) 7
8.2 Manual Time Setting 8
8.3 12/24 Hour Selection 8
8.4 Daily Snooze Alarm Setting 9
8.5 Dual Time Setting 9

1. Low Battery Indication 9

10.Backlight 9

11.Precautions 10
12. Specifications 10

1. Features

1.1 Weather Forecast - Sunny, Slightly Cloudy, Cloudy, Rainy and Snow animation

1.2 Time Radio controlled time with Manual Time setting option

• Dual Time setting
• 12/24 hour user selectable
• Daily Snooze Alarm function
  Perpetual Calendar Up to Year 2099
  Day of week in 8 languages user selectable

1.3 Humidity - Measurable range: 20 - 99%

Max/Min Memory

1.4 Temperature - Indoor measurable range: 0 50^ [32-122°F]

• Measures ^ C/^ F user selectable

Outdoor measurable range: -20 ~ 50°C [-4 ~ 122°F]

Max/Min Memory [indoor & outdoor]

1.5 Wireless Outdoor Sensor - Low-battery indicator for Outdoor Thermo Sensor - Wall Mount or Table Stand

• One Wireless Thermo Sensor Included
• 433MHz RF transmitting frequency
• 30 meter [100 feet] transmission range in an

open area

2. Main Unit Appearance

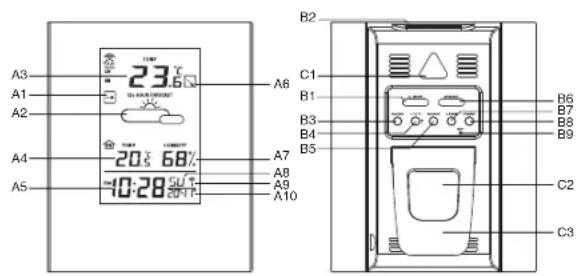

2.1 Part A-LCD

A1: Barometer Pressure Trend
A2: Weather Forecast
A3: Outdoor Temperature
A4: Indoor Temperature
A5:Time Display
A6: Outdoor Temperature Trend
A7: Indoor Humidity
A8:Day of Week
A9: Radio Control Icon
A10: Date

B3:"MAX/MIN" button
B4:"-(C/F)/" button
B5:"WEATHER" button
B6:"MODE/SET" button
B7: ^+ (12/24)" button
B8:"CHANNEL" button
B9:"RESET" button

2.3 Part C-Structure

C1: Wall Mount Hole
C2: Battery Cover
C3: Stand

3. Outdoor Thermo Sensor

D1: Transmission Indication LED

D2: Wall Mount Hole

D3: Channel Select Switch

4. Getting Started:

D4:"RESET" button

D5: Battery Compartment

D6: Stand

4.1 Main Unit:

• Slide open main unit battery compartment cover [C2]
• Insert 3 x AAA batteries observing polarity [ "+" and "-" marks]
• Replace main unit battery compartment cover [C2]
• Use a pin to press the RESET [B9] button on the rear of the main unit, the main unit is now ready for use

4.2 Outdoor Thermo Sensor

• Batteries compartment (D5) of thermo sensor is locating behind the back cover, unscrews the batteries cover to open.

• Insert 2 x AAA batteries observing polarity [^+^n and ^* = marks]

5. Installation

5.1 Main Unit

The main unit can be placed onto any flat surface (C3), or wall mounted by the hanging hole (C1) at the back of the unit.

5.2 Outdoor Thermo sensor

The remote sensor should be securely mounted onto a horizontal surface.

Note: Transmissions between receiver and transmitter can reach up to 30m in open area. Open Area: there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.

6. Weather Forecast Function

6.1 Operation

• After Batteries inserted, or holding "WEATHER" button (B5) for 3 seconds, weather icon flash (A2) on the LCD. Enter the current weather pressing "+” (B4) or "+" (B7) button. Press "WEATHER" (B5) button to confirm the setting. The weather forecast may not be accurate if the current weather entered is not correct.

• The current weather status should be entered again if the altitude of the Main Unit is changed. (Barometric pressure is lower at higher altitude location. Therefore, altitude change will affect the weather forecast). The weather station will start the first forecast at 6 hours later after the current weather status is entered.

6.2 Weather Conditions

There are totally 5 different weather status animations in the weather forecast.

Note:

Freezing or Snow " is shown if the weather forecast is Rainy and outdoor Temperature (any channel) under 0^ .

• If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. We will not hold responsible for any trouble that may come up due to wrong forecasting from this unit.

6.3 Barometric Trend Pointer (A1)

The trend pointer displayed on the LCD (A1) indicates the trend of the Barometric pressure.

7. Thermometer

7.1 RF Transmission Procedure:

• The main unit automatically starts receiving transmission from outdoor thermo sensor for outdoor temperature after batteries are inserted.
• The thermo sensor unit will automatically transmit temperature signal to the main unit after batteries inserted.
• For having more than one external transmitter (Maximum3), select the Channel, CH1, CH2 or CH3 to ensure each sensor is transmitting difference channel before inserting batteries. The channel select switch (D3) is at the back of the thermo sensor.
• If main unit failed to receive transmission from outdoor thermo sensor in first 3 minutes after the batteries inserted ('--' - display on the LCD), hold "Channel" button (B8) for 3 seconds to receive transmission manually. RF icon " flashes on the LCD

Note: Buttons (except "Channel" & "Light" buttons) will not function while scanning for thermo sensor's signal unless they are well received or stopped manually.

7.2 Temperature & Humidity

(1) Outdoor Temperature--- Channel Selection
- Press "CHANNEL" button (B8) to view the 3 Channel's temperature. The sequence is shown as follow:

• When viewing the record on CHANNEL 1 or 2, or 3, hold "CHANNEL" button (B8) for 3 seconds to cancel the record on this channel manually, and receive the transmission from channels automatically again.

ENGLISH 6 ENGLISH 7

(2) Outdoor Temperature Trend

• The trend pointer (A6) displayed on the LCD indicates the trend of the outdoor temperature.

• Press "C" button (B4) to select Indoor/Outdoor Temperature in Celsius mode or Fahrenheit mode.
• If the temperature is out of the measurable range, LL.L (beyond the minimum temperature) or HH.H (beyond the maximum temperature) will be shown on the LCD.

(4) Maximum / Minimum Temperature & Indoor Humidity Recording Function:

Press MAX/Min button (B3) to show the maximum recorded Indoor /Outdoor Temperature and Indoor Humidity. MAX is shown on the LCD
- Press "MAX/MIN" button again to show the minimum recorded Indoor/Outdoor Temperature and Indoor Humidity.
- Hold "MAX/MIN" button (B3) for 3 seconds to clear the recorded maximum and minimum reading.

8. Time and Alarm Setting

8.1 Radio Controlled Clock:

After batteries inserted and main unit finishes receiving the transmissions from outdoor thermo sensor, the clock automatically starts to scan the DCF time signal. Radio Control Icon " 一 ^ (A9) flashes on the LCD.

The clock automatically scans the time signal at 3.00 a.m. every day to maintain accurate timing. If reception fail, scanning stops ( ^ on LCD disappear) and repeats again at 4.00 a.m. 5.00a.m. and 6.00a.m.
- The clock can be set to scan the time signal manually by holding ^ button (B4) for 3 seconds. Each reception takes about 5 minutes. If receptions fail, scanning stops. (^) "On LCD disappear) and repeats again at next hour. E.g. scanning failed at 8:20a.m. It will scan again at 9:00a.m.

• Stop scanning by holding button (B4) for 3 seconds.
• "DST" shown on the LCD if it is in Daylight Saving Time Mode

Note: Buttons (except "LIGHT" button (B2)) will not function while scanning for DCF time signal unless they are well received or stopped manually.

8.2 Manual Time Setting:

• Hold "MODE/SET" button (B6) for 3 seconds to enter Clock/Calendar setting mode.
• Press "F" (B4) or "+" (B7) button to adjust the setting and press "MODE/SET" button
  (B6) to confirm each setting.
  The setting sequence is shown as follow: Hour, Minute, Second, Year, Month, Day,
  Time Zone, Day-of-week language.
  8 languages can be selected in Day-of-week, they are: German, French, Spanish, Italian, Dutch, Denmark, Russian and English.
  The languages and their selected abbreviations for each day of the week are shown in
  the following table

Language Sunday Monday Tuesday				Wednesday	Thursday	Friday Saturday
German, GE SO MO DI		MI	DO FR	SA
English, EN	SU	MO	TU	WE	TH	FR	SA
Russian, RU BC ПН	ВТ			CP 4T	ПТ	СБ
Denmark, DA	SO	MA	TI	ON	TO	FR	LO
Dutch, NE	ZO	MA	DI	WO	DO	VR	ZA
Italian, IT	DO	LU	MA	ME	GI	VE	SA
Spanish, ES	DO	LU	MA	MI	JU	VI	SA
French, FR	DI	LU	MA	ME	JE	VE	SA

• The Time zone is used for the countries where can receive the DCF time signal but the time zone is different from the German time.
• When the country time is faster than the German time for 1 hour, the zone should be set to +1 . Then the clock will automatically set 1 hour faster from the signal time received.

Note.

(1) Second adjusted to zero only.
(2) The Time Setting Mode will automatically exit in 15 seconds without any adjustment.

8.3 12/24 Hour Display mode:

Press (12 / 24) button (B7) to select 12 or 24 hours mode.

8.4 Dally Snooze Alarm Function:

• Press "MODE/SET" button (B6) to select to view:

Time Weekday Algn Time("AL"Shown on the LCD)
- When viewing the Alarm Time, hold "MODE/SET" button (B6) for 3 seconds to enter Alarm Time setting. Press "+" (B4) or "+" (B7) button to adjust the alarm time. Press "MODE/SET" button (B6) to confirm the setting.
- Press "AL ON/OFF" button (B1) to switch alarm on or off. If it is on, " ( ) " shown on the LCD.
- When Alarming, press "SNOOZE / LIGHT" button (B2) to activate the snooze alarm.
(“”(on the LCD). The alarm will snooze for 5 minutes, then it alarms again.
This snooze function can be enabled for maximum 7 times.
- Except "Snoopze" button, press any button to stop the snooze alarm.

8.5 Dual Time Setting Function

• Press 'MODE/SET' button (B6) to select to view:

Time Weekday Alarm Time Dual Time (DT shown on the LCD)

• When viewing the Dual Time, hold "MODE/SET" button (B6) for 3 seconds to enter Dual Time setting. "Hour" & "Min" digits flash. Press "-" (B4) or "+" (B7) button to adjust the "hour", press "MODE/SET" button (B6) to confirm and quit the setting.

9. Low battery indication:

The low battery icon will appear at particular channel indicating that thermosensor unit of the channel is in low battery status. The batteries should be replaced.

10. Backlight

Press "SNOOZE/LIGHT" button (B2), back light states for 5 seconds.

11. Precautions

• Use a pin to press the reset button (B9) if the Unit does not work properly.
  All Setting Modes will automatically exit in 15 seconds without any adjustment.
  The clock loses its time information when the battery is removed.
• Avoid placing the clock near interference sources/metal frames such as computer or TV sets.
• Do not expose it to direct sunlight, heavy heat, cold, high humidity or wet areas
• The outdoor sensor must not be set up and installed under water. Set it up in away direct sunlight and Rain
• Never clean the device using abrasive or corrosive materials or products. Abrasive cleaning agents may scratch plastic parts and corrode electronic circuits
• If there is any inconsistency of weather forecast between Local Weather Station and this unit, the Local Weather Station's forecast should prevail. The manufacturer will not take responsible for incorrect forecasting from this unit

12. Specifications

Indoor Data:
Temperature range:	0 to 50°C [32 to 122°F]
Temperature Units Measured:	°C or °F [switchable]
Humidity Range:	20% to 99%
Weather Forecast:	5 icons [sunny, slightly cloudy, cloudy, rainy & snow]
Outdoor Data:
Transmission distance: (open area)	30m @ 433MHz
Temperature range:	-20 ~ 50°C [-4 ~ 122°F]
Mount:	wall / table
Main Unit Dimensions:	w80 x h158 x d19 mm
Thermo Sensor Dimensions:	w65 x h84 x d18 mm
Battery Requirements:
Base Station [indoor]:	3 x AAA balleries
Sensors [outdoor]:	2 x AAA batteries

7.1 Procedures de transmission RF

m = 311

7.1 Procedures de transmission RF:

(2) Outdoor Temperature Trend

• The trend pointer (A6) displayed on the LCD indicates the trend of the outdoor temperature.

B1: Taste ALARM ON/OFF

B2: Taste "SNOOZE/LIGHT"

B3: Taste ALARM ON/OFF

B4:Taste-[C/F]/

B5: Taste, WEATHER

86: Taste, MODE/SET"

B7:Taste+(12/24)

B8: Taste CHANNEL1

B9: Taste "RESET"

7.1 RF Zendprocedure:

After batteries inserted and main unit finishes receiving the transmissions from outdoor thermo sensor, the clock automatically starts to scan the DCF time signal. Radio

(A9) flashes on the LCD.

（）

icht op. Wat betekent
