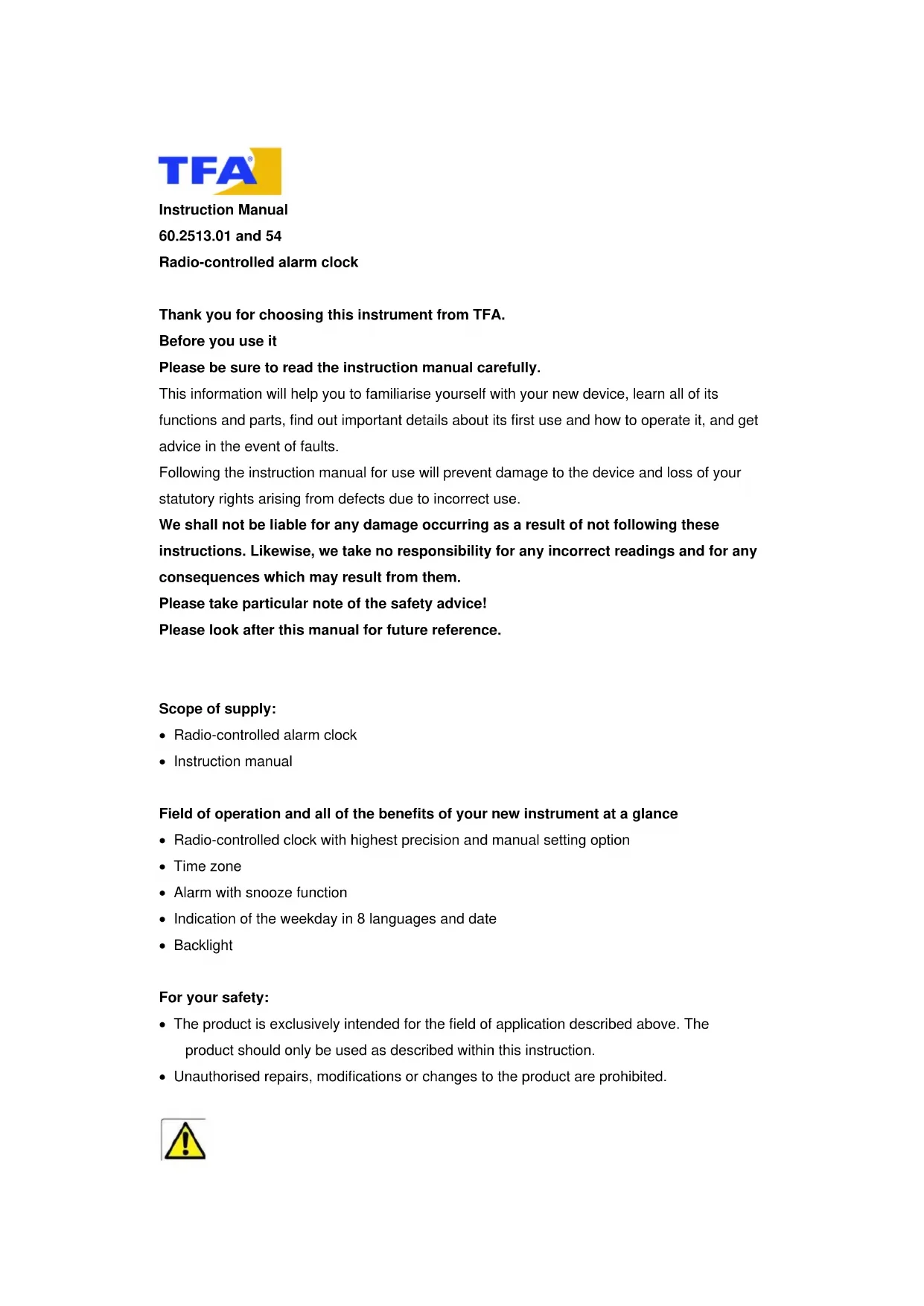

USER MANUAL 60.2513 TFA

Thank you for choosing this instrument from TFA.

Before you use it

Please be sure to read the instruction manual carefully.

This information will help you to familiarise yourself with your new device, learn all of its functions and parts, find out important details about its first use and how to operate it, and get advice in the event of faults.

Following the instruction manual for use will prevent damage to the device and loss of your statutory rights arising from defects due to incorrect use.

We shall not be liable for any damage occurring as a result of not following these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.

Please take particular note of the safety advice!

Please look after this manual for future reference.

Scope of supply:

• Radio-controlled alarm clock
• Instruction manual

Field of operation and all of the benefits of your new instrument at a glance

• Radio-controlled clock with highest precision and manual setting option
  Time zone
• Alarm with snooze function
• Indication of the weekday in 8 languages and date
• Backlight

For your safety:

• The product is exclusively intended for the field of application described above. The product should only be used as described within this instruction.
• Unauthorised repairs, modifications or changes to the product are prohibited.

Caution!

Risk of injury:

• Keep this instrument and the batteries out of reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by a leaking battery.
• Wear chemical-resistant protective gloves and glasses when handling leaked batteries.
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

! Important information on product safety!

• Do not place your device near extreme temperatures, vibrations or shocks.
• Protect it from moisture.

Elements

LCD display

DCF reception symbol

Time

Seconds

Alarm, date with weekday

Buttons

SNOOZE/LIGHT button

MODE button

button

▲ button

Switch ON/OFF

Housing

Battery compartment

Getting started

• Open the battery compartment and insert two new batteries 1,5 V AAA, polarity as illustrated.

• Close the battery compartment again.

• A short beep tone will sound and all LCD segments will light up for a short moment.
• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing. When the time code is received successfully after 3-5 minutes, the radio-controlled time, the date and the DCF symbol are displayed steadily on the display.
• During Daylight Saving Time on the display appears DST.
• If scanning fails, manual initialization can be helpful.
• Press and hold the and buttons simultaneously for 3 seconds.
• A short beep tone will sound and the DCF signal will be flashing.
• Interrupt the receive operation by holding again the and buttons simultaneously for three seconds. The DCF signal symbol disappears. The DCF signal reception will be held twice daily at 2:00 and 3:00 clock in the morning. Is not the reception at 3:00 clock successful, the reception will be repeated until 5:00 o'clock until the reception is successful.
• The manually set time will be overwritten by the DCF time when the signal is received successfully.
• During the reception is a button operation not possible.

There are 3 different reception icons:

flashing - reception is activ
stays - reception is very good
no symbol - no reception
- If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual setting of the clock and the calendar).

Note for radio-controlled time DCF:

• The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Changeover from summer time or winter time is automatic. The quality of the reception depends mainly on the geographic location. Normally there should be no no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

• Recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 metres.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During nighttime, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation below 1 second.

Operation

• Press and hold the or button in the setting mode for fast running.
• The instrument will automatically quit the setting mode if no button is pressed within 15 seconds.

Manual setting of the clock and the calendar

• Press and hold the MODE button for three seconds.
• 24 hr will be flashing on the display.
• Press the or button to choose 12 HR (AM or PM appears on the display after 12h ) or 24 HR system.
• Press the MODE button to make the settings in the following sequence: Hours, minutes, seconds, year, month, day, and time zone (default: 0) and day-of-week language and. Press the or button to adjust the settings.
• Language for the week: German (GE), French (FR), Spanish (SP), Italian (IT), Dutch (NE), Danish (DA), Russian (RU), and English (EN).
• The time zone setting (+12/-12) is needed for countries where the DCF signal can be received but the time zone is different from the German time (e.g. +1=one hour later).
• The manually set time will be overwritten by the DCF time when the signal is received successfully.

Display change time and date

• Press the MODE button.
  The date and the weekday appear in the display.

Setting of the alarm clock

• Press the or button in normal mode.
  The alarm time will be flashing.

• Press the or button to set the time you want.

• To activate the alarm function, move the switch to ON/OFF. The alarm symbol appears on the display.
• When the alarm is reached, it will be activated at this time.
  The alarm symbol will be flashing.
• Press any button and the alarm function will stop working.
• If it is not stopped deliberately, the alarm will automatically turn off after certain minutes and will be reactivated for the same time.
• During the alarm, press the SNOOZE/LIGHT button and the snooze function is activated.
• Once the snooze function is activated, Zz flashes on the display.
  The alarm will be interrupted for 5 minutes.
• The snooze function can be activated up to seven times.
• Move the ON/OFF switch downwards, the alarm function is deactivated.
• The alarm symbol disappears on the display.

Backlight

Press SNOOZE/LIGHT button. The backlight will come on for 5 seconds.

Battery replacement

• Change the baeries when the display becomes weak.
• Open the battery compartment and insert two new batteries 1,5 V AAA, polarity as illustrated.
• Close the battery compartment again.

Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the device for a long period of time.
• Keep the device in a dry place.

Troubleshooting

Problems	Solutions
No display on the device	Ensure batteries polarity are correct Change the batteries
No DCF reception	Choose another place for the device Manual time setting Wait for attempted reception during the night Check if there is any source of interference. Restart the device as per the manual
Incorrect display	Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to appropriate collection sites depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Specifications

Power consumption:	Batteries 2 x 1,5 V AAA (not included)
Housing dimension:	93 x 48 x 60 mm
Weight:	85g (only instrument)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and informaon about your product can be found by entering your product number on our homepage. www.a-dostmann.de www.a-dostmann.de

EU declaraon of conformity

Hereby, TFA Dostmann declares that the radio equipment type 60.2513 is in compliance with Direcve 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

www.a-dostmann.de
