USER MANUAL 60.2530.02 TFA

Radio-controlled alarm clock

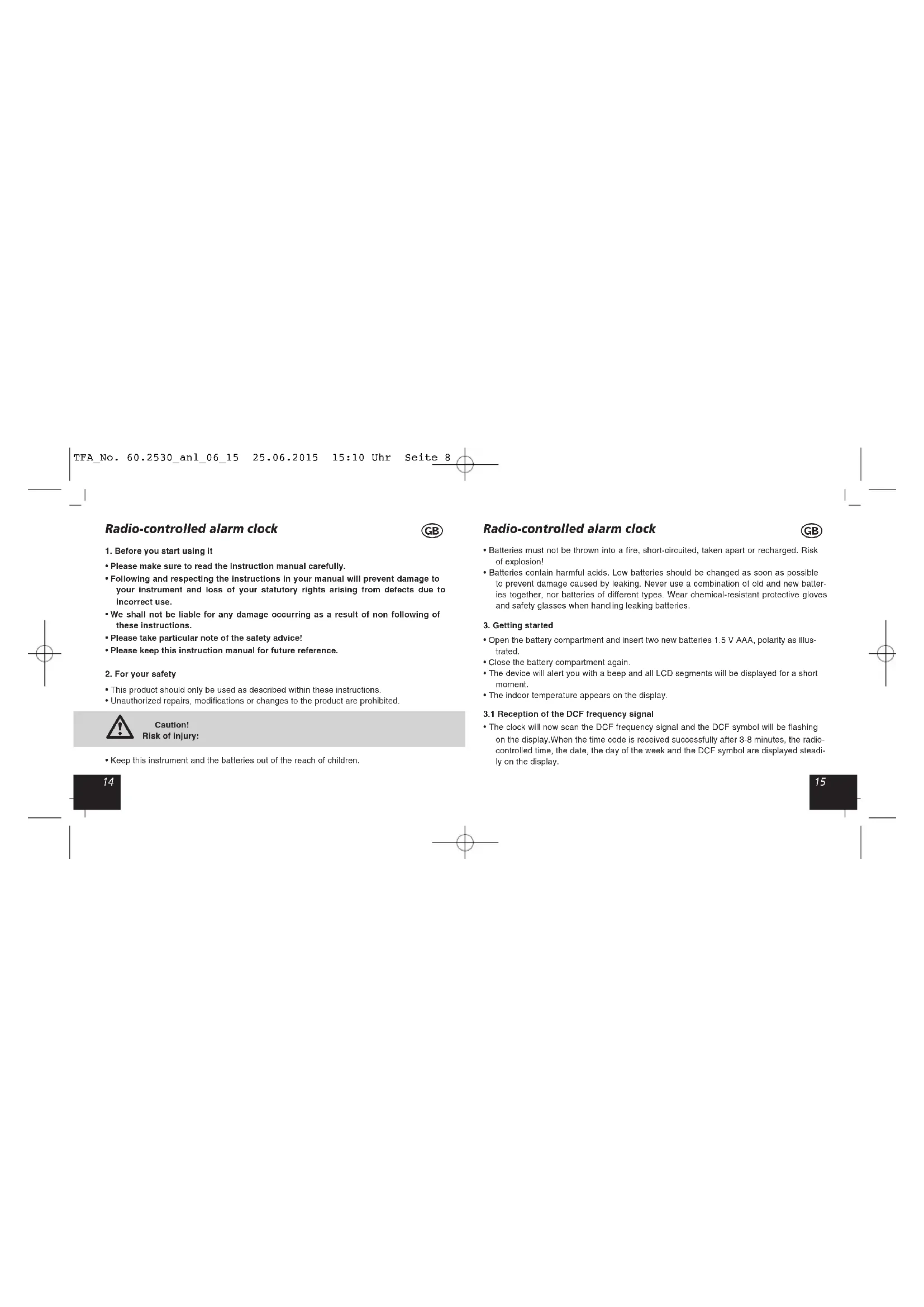

1. Before you start using it

2. Please make sure to read the instruction manual carefully.

3. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
4. We shall not be liable for any damage occurring as a result of non following of these instructions.
5. Please take particular note of the safety advice!

6. Please keep this instruction manual for future reference.

7. For your safety

8. This product should only be used as described within these instructions.

9. Unauthorized repairs, modifications or changes to the product are prohibited.

Caution! sk of injury:

- Keep this instrument and the batteries out of the reach of children.

Radio-controlled alarm clock

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

• Getting started

• Open the battery compartment and insert two new batteries 1.5 V AAA, polarity as illustrated.

• Close the battery compartment again.
• The device will alert you with a beep and all LCD segments will be displayed for a short moment.
  • The indoor temperature appears on the display.

3.1 Reception of the DCF frequency signal

- The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code is received successfully after 3-8 minutes, the radio-controlled time, the date, the day of the week and the DCF symbol are displayed steadily on the display.

Radio-controlled alarm clock

• You can start the initialization manually.
• Press and hold the ▼/FUNK button for three seconds.
• The DCF reception symbol will be flashing. If the reception is not successful, the next reception takes place automatically the next hour.
• Interrupt the reception by pressing the ▼/FUNK button again for three seconds. The DCF symbol disappears.
• The DCF reception always takes place daily at 2:00 and 3:00 or at 4:00 and 5:00 o'clock in the morning. If the reception is not successfully received until 5:00 o'clock, the next receive operation is again at 2:00 o'clock in the morning.
  • There are three different reception symbols:

flashing - reception is active

stays - reception is very good

No symbol – no reception/reception is deactivated/

set time manually

- If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The DCF symbol disappears and the clock will then work as a normal quartz clock. (see: Manual settings).

Radio-controlled alarm clock

3.1.1 Note for radio-controlled time DCF

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. In Daylight Saving Time DST is shown on the display. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

• The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

Radio-controlled alarm clock

4. Operation

4.1 Manual settings

• Press and hold the TIME SET button in normal mode for three seconds.
• RCC appears on the display and ON (default) will be flashing. By default, the DCF reception is activated and after successful reception of the DCF signal no manual adjustment is necessary.
• Press the ▲ or ▼ button if you want to deactivate the DCF reception (OFF).
• Confirm the setting with the TIME SET button.
• Press the TIME SET button to make the settings in the following sequence: The 12 or 24 hours system (24Hr - default), Time zone TZ (0 - default), the hours, the minutes, the year, the month, the day and the language of the day of the week (GER - default), the temperature unit (°C - default). Press the ▲ or ▼ button to adjust it.
• By a successful reception of the DCF signal and if the DCF reception is activated, the manually set time will be overwritten.

4.2 Setting of the 12 and 24 hours display

• Press the ▲ or ▼ button in the setting mode to choose the 12 HR or 24 HR system.
  • In 12 HR system PM appears after 12 h on the display.

Radio-controlled alarm clock

4.3 Setting of the time zone

• In the setting mode you can make the time zone correction (-12/+12).
• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the German time (e.g. +1=one hour later).

4.4 Setting of the day-of-week language

• In the setting mode you can make the setting of the day-of-the-week language: German (GER), English (ENG), French (FRE), Spanish (SPA), Dutch (DUT), Italian (ITA), Polish (POL) and Czech (CZE).

4.5 Setting of the temperature unit

- In the setting mode you can change between ^ (Celsius) or ^ (Fahrenheit) as temperature unit.

4.6 Setting of the alarm times

• Press the AL SET button in normal mode, to enter the alarm mode.
• On the display for the date appears ALM 1 and 7:00 (default) or the last adjusted alarm time will be flashing.

Radio-controlled alarm clock

• On the display for the temperature appear ALM 2 and 7:00 (default) or the last adjusted alarm time.
• Press the ▲ or ▼ button briefly to adjust the desired alarm time.
• Confirm the setting with the AL SET button.
• On the display appear the adjusted alarm time and 7:00 for the second alarm time will be flashing.
• Press the ▲ or ▼ button again to adjust eventually the second alarm time in the same way.
• Press the AL SET button again to return to the current time.

4.7 Activate and deactivate the alarm time

• To activate the corresponding alarm function, move the switch ALARM upwards (ON).
- The alarm time and the corresponding symbol appear on the display.
- When the adjusted alarm time is reached, the alarm will ring.
- Press any button and the alarm will stop.
- If the alarm is not stopped manually, the increasing alarm will automatically turn off after certain minutes and will be reactivated at the same time.
• The alarm symbol remains on the display.

Radio-controlled alarm clock

• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function will be activated.
• Once the snooze function will be activated, the alarm symbol will be flashing on the display.
  • The alarm will be interrupted for 4 minutes.
• The snooze function can be activated up to eight times.
• Slide the ALARM switch downwards (OFF), to deactivate the alarm and the snooze function.
• The alarm symbol disappears on the display.
• On the display appears the date or the temperature.

4.8 Backlight

• Press the SNOOZE/LIGHT button.
  • The backlight turns on for 5 seconds.

5. Care and maintenance

• Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if you do not use the device for a long period of time.
• Keep the device in a dry place.
• Do not place your device near extreme temperatures, vibrations or shocks.

Radio-controlled alarm clock

6. Troubleshooting

Problems Solution

No display on the device → Ensure that the batteries polarity are correct

→ Change the batteries

No DCF reception → Activate (ON) the DCF reception in the setting

mode

→ Press the ▼/FUNK button for 3 seconds and start the initialization manually
→ Wait for attempted reception during the night
→ Choose another place for your product
→ Setting the clock manually
→ Check if there is any source of interference.
→ Restart the device according to the manual

Incorrect indication → Use a pin to press the RESET button

→ Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Radio-controlled alarm clock

7. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Radio-controlled alarm clock

1. Specifications

Power consumption: Batteries 2 x 1,5 V AAA

Measuring range - Temperature -10°C ... +50°C (+14... +122°F) °C/°F-reversible

Indication: LL.L / HH.H Temperature is outside measuring range

Housing dimension: 73 x 45 x 93 mm

Weight: 103 g (instrument only)

Radio-controlled alarm clock

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about your product can be found by entering your product number on our homepage

DECLARATION OF CONFORMITY

Herewith we declare, that this wireless transmission device does comply with the essentials requirements of R&TTE Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is available on request via [e-mail].

www.tfa-dostmann.de 06/2015
