USER MANUAL SBCRU520-00B PHILIPS

Instructions for use

English 4

Mode d'emploi

Français 12

Bedienungsanleitung

Deutsch 20

Gebruiksaanwijzing

Nederlands 28

Vejledning

Dansk 36

Bruksanvisning

Svenska 44

Bruksanvisning

Norsk 52

Käyttoöhje

Suomi 60

Instructions for use

uuiB

Contents

1. Introduction 4
2. Installing the remote control 5-7

Inserting the batteries 5
Testing the remote control 5
Setting the remote control 6
Automatically setting the remote control 7

1. Keys and functions 8
2. Extra possibilities 9-10

Adjusting device selection (Mode selector) 9
Adding a function to the remote control 10
Restoring the original functions of your remote control 10

1. Troubleshooting 11
   6.Need help? 11

Code list of all brands / equipment 68

1. Introduction

Congratulations on your purchase of the Philips SBC RU520 universal remote control. After installing the remote control you can operate a maximum of
2 different appliances with it:TV and VCR/DVD players/recorders.

You can find information about how to prepare this remote control for use in the chapter 'Installing the remote control'.

2. Installing the remote control

Inserting the batteries

1 Press the cover inwards and slide it in the direction of the arrow.
2 Place two R03, UM4 or AAA type batteries into the battery compartment, as shown.
3 Slide the cover back and click it firmly into place.

Testing the remote control

The remote control has been programmed to operate most Philips appliances. Because the RU520 may use different signals for each make and even for different models of the same make, it is advisable to test whether your appliance responds to the RU520.

The example below (TV) instructs you how to do this.

You can repeat the same steps for other appliances

(VCR/DVD players/recorders) which you want to operate using the RU520.

Example of TV:

1 Turn your TV on manually or use the original remote control. Tune to channel 1.
2 Use the RU520's mode selector to select TV. Press the key until the green light under TV in the selector window lights up.

If no green light appears, check whether the batteries are properly inserted (see 'Inserting the batteries').

3 Check whether all the keys are working. For an overview of the keys and their functions see '3. Keys and functions'.
If the TV responds as it should to all of the key commands the RU520 is ready for use.

If the device does not respond at all or not to all of the key commands, follow the instructions under 'Setting the remote control'.

Instructions for use

Setting the remote control

This is only necessary if your appliance does not respond to the RU520. If that is the case, the RU520 does not recognize the brand and/or model of your appliance and you need to program the remote control to do so. The example below (TV) instructs you how to do this. You can repeat the same steps for other appliances (VCR/DVD players/recorders) which you want to operate using the RU520.

Example of TV:

1 Turn on the TV manually or use the original remote control. Tune in to channel 1.
2 Look up the brand of your TV in the code list at the back of this manual. One or more four-figure codes are shown for each brand. Note the first code. Be careful! There are separate tables for TV, VCR and DVD. Make sure you use the codes from the correct table.
3 Select TV with the mode selector. (See 'Testing the remote control').

4 Keep keys '1' and '3' pressed simultaneously for three seconds until the green light under TV in the selector window flashes twice and then remains lit.

5 Then enter the code noted in step 2 using the digital keys.
- The green light in the selector window will now flash twice. If the light flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2.
6 Point the RU520 at the TV and check that it responds as it should.
- If the TV responds to all of the key commands, the RU520 is ready for use. Do not forget to note your code.
If the device does not respond at all, or not to all of the key commands, start again from step 2 and try the next code from the list.

Automatically setting the remote control

If you cannot find the right code for your brand device, the remote control can automatically search for the right code.

Example of TV:

1 Make sure the TV is switched on and select a channel using the original remote control or the keys on the TV (for example channel 1). The RU520 emits the 'switch off TV' signal for all models of TV that are stored in the memory.
If the device is a DVD-player or video recorder, insert a disk or tape and start playback.
2 Then keep keys 1 and 3 on the RU520 pressed simultaneously for three seconds, until the green light under TV in the selector window flashes twice and then remains lit.
3 Press the Standby key of the RU520 briefly.

• The RU520 now starts emitting all known 'TV off' signals, one by one. Each time a code is sent, the green light under TV in the selector window lights up.

4 When your TV switches off (stand-by), you press the Standby key of the RU520 twice within 1 second, to confirm.

The RU520 has now found a code that works on your TV.

5 Check if you can operate all functions on your TV with the RU520.
If this is not the case, you can redo the automatic setting. The RU520 will then search for a code that perhaps works better.
After the RU520 has run through all the known codes, the search will stop automatically and the green light will stop flashing.
Automatic programming of a TV takes a maximum of 5 minutes. For VCR/DVD this time is 2 minutes.

3. Keys and functions

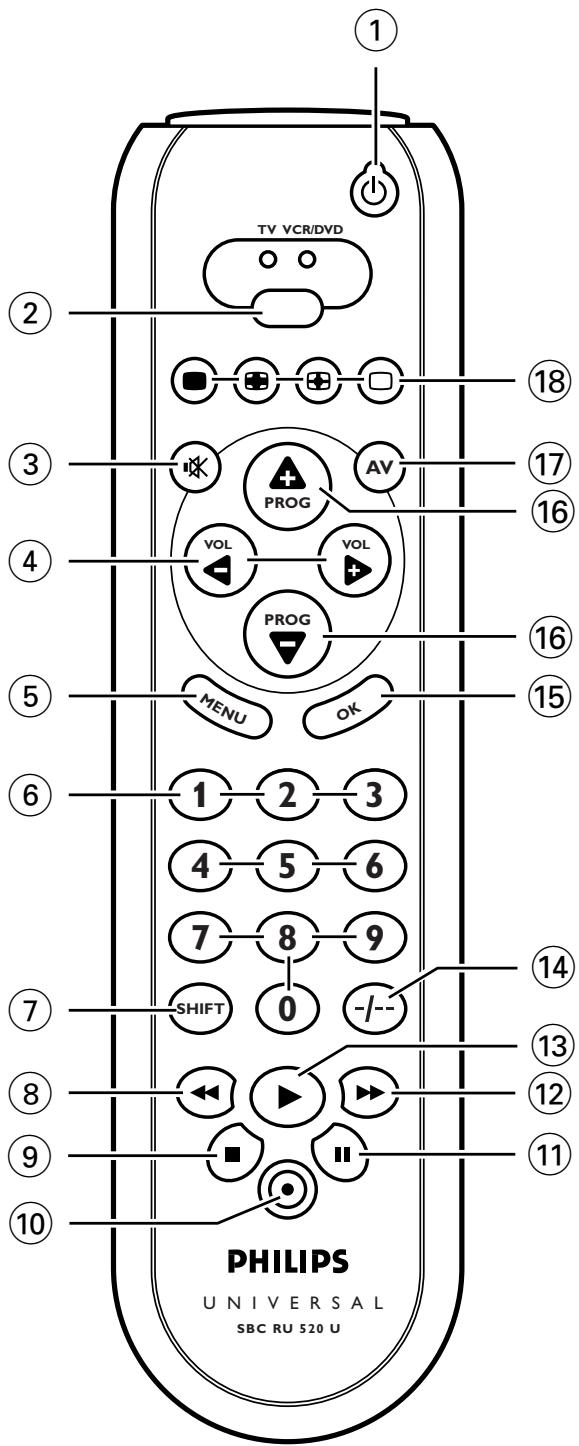

The illustration on page 3 gives an overview of all keys and their functions.

① Standby. switches TV, VCR or DVD mode on or off.
② Mode selector . . . selects the device you want to operate: TV, VCR, or DVD.
(3) mutes the sound of the TV.
(4) -VOL + . adjusts the TV volume.
(5) MENU . turns the menu on and off.
(6) Digital keys....direct choice of channels and other functions.
⑦ SHIFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for extra functions. When pressed at the same time as a second key, the second key will get another function. For example:

SHIFT + PROG+: 'menu up'

SHIFT + PROG::. 'menu down'

SHIFT + VOL+... 'menu right'

SHIFT + VOL: ... 'menu left'

Try out other combinations with the Shift-key on your appliance in order to find out which functions are available.

Only functions featured on the original remote control are available.

8 -red teletext key

• rewind (VCR/DVD)

(9) -green teletext key

• stop (VCR/DVD)

10 . tv: Pprevious channel.

VCR: record

DVD: eject, open/close, subtitle

1. yellow teletext key

2. pause (VCR/DVD)

12 blue teletext key

• wind (VCR/DVD)

13 - white teletext key

• index

• play (VCR/DVD)

14 --- selects between one- and two-figure channel

numbers.

15 OK. confirms your selection.

16 - PROG + . selects a previous or following channel.

⑦ AV. switches between external inputs of your equipment.

18 国国口 .TV: teletext keys

SAT: teletext, Info, Guide, Subtitle

DVD:audio menu,Angle,Subtitle

VCR: timer, Showview

If you use the () 'memory off' key to get to the next teletext page on your Philips TV, you can press the STOP key for this. See also 'Troubleshooting'.

If the device does not respond at all, or not to all of the key commands, follow the instructions under 'Setting the remote control'. It is possible that you must enter another code for the device.

4. Extra possibilities

Adjusting device selection (Mode selector)

The RU520 is default set for operating TV, VCR and DVD. You can select the device you wish to operate with the Mode selector. Each option allows operation of one device only. If desired, you can program the Mode selector to select a different kind of device.

For example, if you want to operate a second TV.

In the following example you will see how to configure the VCR/DVD mode for a second TV.

1 Switch on the second TV.
2 Press the Mode selector to select VCR/DVD.

3 Then keep 1 and 6 on the RU520 pressed simultaneously for three seconds, until the green light under VCR/DVD in the selector window lights up.

4 Press keys 9, 9 and 2, in that order.

5 Press the Mode selector to select TV.

6 Press the 1 key.

The green light under VCR/DVD flashes twice. VCR/DVD will now allow you to operate your second TV.

7 Program the RU520 to operate the second TV. See 'Setting the remote control'.

Instructions for use

Adding a function to the remote control

If you want to add a function to the RU520, you can contact the Philips service line for Universal Remote Control to ask for the 3-figure code for the extra function.

Using the Mode selector, select the device for which you want to add the function.

2 Then keep 1 and 6 on the RU520 pressed simultaneously for three seconds, until the green light under TV in the selector window flashes twice and then remains lit.

3 Press keys 9, 9 and 4, in that order.

4 Enter the 3-figure code which you received from the service line within thirty seconds.
5 Press the key under which you want to store the new function.

The light flashes twice. The extra function has been successfully added to the RU520.

If you want to store the function under Shift in combination with another key, first press the Shift key and then press the required function key.
- For restoring the original function of the key, see 'Restoring the original functions of your remote control'.

Restoring the original functions of your remote control

1 Keep keys 1 and 6 on the RU520 pressed simultaneously for three seconds, until the green light under TV in the selector window flashes twice and then remains lit.

2 Press keys 9, 8 and 1, in that order.

The light flashes twice. All original functions have now been restored and any extra functions have been deleted.

5. Troubleshooting

Problem
Solution

• The device you want to operate does not respond and the green light does not flash when you press a key.
  Replace the old batteries with two new 1.5 Volt, RO3, UM4 or AAA batteries.
• The device you want to operate does not respond but the green light does flash when a key is pressed.
• Point the RU520 at the device and make sure that there are no obstructions between the RU520 and the device.
  The RU520 does not respond properly to commands.
• Maybe you are using the wrong code. Try programming the RU520 again using another code, which is mentioned under the brand of your device, or reset for automatic search to find the right code. If the device still does not respond, call our helpline.
• You cannot get the Teletext pages on your screen, while you are used to use the (◇) button for this.
  Follow the instructions under 'Setting the remote control' and at step 5 press keys 0, 0, 6 and 4. Press the OK-key to get Teletext pages on your screen.
  The Teletext keys do not work.
  Find out whether your TV is equipped with Teletext.
  You cannot switch off Teletext.
• Press the key for subtitling (□) to switch off Teletext.
  You have difficulties operating all of the functions on your device.
• Maybe the RU520 has to be adapted to the model of the device. Call our helpline for details.
• Your brand of device is not in the code list.
  Try to set the RU520 automatically. See 'Automatically setting the remote control'.
• None of the codes works during manual setting of the remote control.
  If that is the case, follow the instructions under 'Automatically setting the remote control'.

6. Need help?

If you have any questions about the RU520, call our special helpline. You will find the telephone number after the code list at the back of this manual.

Read this manual carefully before you make a call. You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device shown in the code list at the back of this manual. This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device. When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SBC RU520/00U.

Date of purchase:

/

(day/month/year)

Mode d'emploi

Sommaire

VCR: timer, Showview

VCR: timer, Showview

Amplivision 0397,0244, .0347,0427

Amstrad. 0064, 0036, 0245, 0204, 0389, 0398, 0543

Anam National. 0677

Anitech.....0064,0036,0103,0309

Ansonic. 0064,0036,0397 0129,0319,0455

Arc En Ciel 0223,0360,0426,0528

Arcam 0243,0244

Aristona. 0064, 0583

Arthur Martin 0264
Asberg. 0103,0129

Asora. 0036

Asuka 0245,0244

Atlantic 0233,0347

AudioTon 0244,0455,0513

Audiosonic 0036,0064,0136,0244 0245,0364,0397,0455,0513

Autovox....0103,0114,0233,0244 0264,0274,0322,0363,0571

BPL 0064,0309

BSR. 0321,0579

BTC 0245

Baird. 0244, 0235, 0099, .0100, 0370, 0584

Bang & Olufsen. 0114, 0302

Barco. 0579

Basic Line. 0064, 0036, 0245

0244,0309,0401,0482

Baur. 0064, 0532, 0037, 0376, 0388, 0539, 0571, 0581

Bazin. 0244

Beko .0064,0397,0455,0513

Beon. 0064, 0445

Best. 0397, 0364, 0448

Bestar. 0064, 0397, 0401

Binatone 0244

Bush. 0064,0036,0245 0244,0063,0235,0299 0309,0321,0376,0388 0398,0401,0514,0579

CCE. 0064

CGE. 0101,0103,0111,0274 0279,0397,0445,0579

CS Electronics.... 0243, 0245, 0274

CTC 0274

Canton. 0245

Carad 0637

Carena 0064,0482

Carnivale 0057

Carrefour. 0063,0064

Cascade. 0036, 0064

Cathay. 0064

Centurion. 0064

Century. 0114, 0240, 0274

Cimline 0036,0245

City. 0036

Clarivox. 0064, 0129

Clatronic 0036,0064 0103,0129,0244,0245 0274,0347,0397,0398

Condor. 0036, 0064, 0129, 0274, 0309, 0347, 0397

Contec. 0036, 0243, 0063

Continental Edison....0136,0223 0264,0314,0360 0426,0514,0528

Cosmel 0064,0364

Crezar 0240

Crosley ... 0101, 0103, 0111, 0114, 0240, 0274, 0374, 0579

Crown. 0036,0064,0103, 0235,0366,0386, 0397,0445,0448,0513

Crystal 0458

Curtis Mathes 0120

Cybertron 0245

Daewoo. 0036,0064,0244 0245,0401,0526

Dainichi .0243,0245

Dansai.....0062,0063,0064,0243

Dantax 0513

Dayton 0036

Daytron 0401

De Graaf. 0235, 0575

Decca. 0064,0099,0102 0244,0299,0543

Denver. 0064

Desmet. 0036, 0064

Diamant. 0064

Dixi. 0036, 0064

Dual. 0064,0244,0286 0363,0379,0571,0579

Dual Tec. 0244

Dumont. 0097,0114,0129 0240,0322,0374

Elbe. 0244,0265,0286, .0319,0462,0543

Elin 0036,0064,0131 0332,0376,0388,0575

Elite. 0245,0347

Elman. 0129

Elta. 0036, 0458

Emco 0274

Emerson 0064,0097,0114 0206,0240,0274 0309,0347,0388,0398

Emperor 0309

Envision. 0057

Erres. 0064

Euromann. 0064, 0448

Europa. 0064

Europhon..0129,0240,0244,0543

Expert. 0233,0332

Exquisit. 0064

FNR 0129

Fenner. 0036, 0401

Ferguson... 0064, 0136, 0100, 0256, .0265, 0314, 0362, 0370

Fidelity. 0190, 0243, 0256, 0378, 0388, 0398, 0539, 0571

Filsai. 0244

Finlandia 0099,0190,0235 0373,0386,0575

Finlux .0064,0097,0099,0114 0129,0131,0132,0206,0244 0322,0373,0374,0543,0579

Firstline. 0036, 0064, 0099, 0243, .0244, 0265, 0274, 0321, .0348, 0401, 0571, 0579

Fisher .0063,0099,0114 0131,0235,0244 0397,0571,0579,0582

Flint. 0064,0099 0245,0482,0637

Formenti. 0064, 0114, 0240, .0243, 0347, 0374, 0579

Fraba 0064,0397 Friac. 0036,0129,0397,0526

Frontech. 0036, 0190, .0244, 0274, 0458

Fujitsu .009,0129,0233,0244

Funai. 0206, 0321

GBC..0036, 0240, 0245, 0401, 0579

GEC. 0064, 0070, 0099, 0190, .0244, 0388, 0543, 0584

GPM 0245

Galaxi. 0064, 0129

Galaxis 0064,0397

Geloso 0036,0240, 0374,0401,0579

General Technic 0036

Genexxa. 0036, 0190, 0245

Germanvox. 0240

Gibraltar. 0057

GoldStar 0057,0064,0136 0190,0243,0244 0274,0317,0388,0458

Goldline 0364

Gooding. 0514

Goodmans 0036,0062,0063,0064 0099,0206,0244,0245 0262,0344,0362,0370,0398 .0401,0507,0514,0526,0543

Gorenje 0397,0448

Gradient. 0080,0197
Graetz. 0190,0374,0388,0584

Granada....0064,0253,0244,0135 0235,0099,0102,0366 0378,0383,0386,0500,0543

Grandin ... 0036, 0064, 0190, 0309, .0347, 0401, 0482, 0637

Grundig. 0064,0583,0036, 0097,0103,0218, 0264,0514,0581,0614

Grunpy 0206
HCM 0036, 0064, 0244, 0245, 0309, 0445

HMV 0114

Halifax. 0244

Hampton 0243,0244

Hanimex. 0321

Hanseatic. 0036, 0064,

#

.0244,0309,0347,0388 0455,0458,0583,0571

Hantarex 0064,0240,0543

Hantor 0064

Harley Davidson. 0070, 0206

Harwood. 0036, 0064, 0344

Havermy 0120

Hema. 0036, 0244

Hemmermann 0571

Hifivox 0223,0426,0528

Hikona. 0245

Hinari 0036,0063,0064 0206,0245,0262,0514

Hisawa. 0245, 0309, 0427, 0482, 0637

Hit 0114

Hitachi 0063,0064,0070,0071 0099,0132,0136,0190 0223,0240,0244,0252 0374,0376,0383,0500,0519 0526,0543,0575,0579,0584

Hornyphone 0064

Huanyu. 0243, 0401

Hyper. 0036, 0243, 0244, 0274

Hypersonic. 0388

Hypson.....0064,0309,0427,0482

ICE... 0243, 0244, 0245, 0398, 0583

ICeS 0243,0245

IR. 0037,0038,0062,0063

0103, 0114, 0120, 0128

.0129,0131,0132,0135,0136

0190,0218,0223,0233,0240

0243, 0244, 0252, 0253, 0262,

0264, 0265, 0270, 0274, 0279

0314,0316,0317,0318,0319

0321,0322,0332,0344,0347

0350, 0354, 0370, 0376, 0378

0383,0384,0386,0388,0397

0401,0528,0532,0539,0543

0579,0580,0581,0583,0584

ITC. 0579

ITS. 0243,0398

ITT..0190,0235,0206,0366,0373

0374, 0376, 0378, 0388, 0500

0507,0571,0575,0584,0637

ITV. 0064

Iberia 0064

Imperial....0101,0103,0111,0274

0279,0397,0445,0579

Indesit 0240,0264

Indiana. 0064

Ingelen. 0190, 0584

Ingersol. 0036

Inno Hit 0036,0099

0244,0317,0543

Interbuy 0064

Interfunk. 0064, 0114, 0190,

0274,0302,0354

0388,0528,0539,0584

Internal. 0064

Intervention. 0064, 0129, 0244,

0245, 0274, 0309

0458,0482,0513,0514

Irradio. 0245, 0274, 0317, 0398

Isukai.....0064,0245,0309,0482

JVC. 0063, 0080, 0121, 0245

0398,0445,0633,0680

KB Aristocrat 0190

KTV 0057,0244

Kaisui. 0064, 0036, 0243

0244,0245,0309,0482

Kamp. 0243

Kapsch 0131,0190

0233,0388,0584

Karcher....0129,0309,0448,0637

Kasui 0309

Kathrein. 0583

Kendo. 0064, 0129, 0262,

0274,0389,0455,0637

Kennedy ... 0233, 0240, 0462, 0579

Kenwood. 0057

Kingsley. 0243

Kneissel 0064,0265,0286

0319,0401,0462,0637

Kolster 0064

Konka. 0245, 0398

Korpel 0064

Korting. 0114, 0347, 0448

Kosmos. 0064

Koyoda. 0036

Kraking. 0265

Kyoto. 0190

La Sat. 0513

Lenco 0131

Leyco. 0064, 0099, 0321

Liesenk & Tter 0064

Liesenkotter 0064,0354

Lifetec. 0064, 0245, 0401

Loewe. 0064, 0102, 0114,

0316,0319,0539

Logik. 0038, 0256

Luma 0233,0286,0332,0389

Lumatron. 0244

Luxor 0190,0235,0264,0317

0376,0383,0384,0388,0575

M Electronic..... 0036, 0064, 0131,

0132, 0136, 0190, 0243

0244,0274,0314,0373

0401,0507,0519,0539

MGA. 0057

MTC. 0376, 0397, 0539

MTEC. 0299

Magnadyne. 0114, 0129, 0274, .0374, 0543, 0571, 0579

Magnafon. 0100, 0103, 0129, .0240, 0243, 0543

Magnavox 0063, 0206

Magnum 0064
Manesth. 0062,0064,0244, .0262,0321,0347

Marantz. 0064, 0583, 0057
Marelli. 0114

Mark 0064
Matsui. 0036,0038,0062,0063, 0064,0099,0190,0204, 0218,0235,0244,0262, 0299,0321,0362,0398, 0482,0514,0543,0571

Matsushita 0677

McMichael 0070

Mediator. 0064

Medion. 0064

Megas 0637

Melvox. 0427

Memorex. 0036

Memphis 0364

Metz 0064,0114,0240 0266,0302,0394,0581

Minerva. 0097, 0264, 0514, 0581

Minoka 0386

Mitsubishi 0064,0063,0135 0114,0256,0264,0539

Mivar. 0243,0317,0318 0319,0397,0543,0636

Monaco. 0036

Motion 0103

Motorola 0120

Multitech..0036,0102,0103,0129 0243,0244,0274,0513

Murphy 0099,0190,0243

Myryad 0583 NEC 0057,0197,0347

NEI 0064,0364,0398,0458

Naiko. 0633

Nakimura 0064,0401

Nakio 0507

National. 0264, 0267

Neckermann. 0064, 0114, 0218, .0240, 0274, 0347, 0354, 0376, .0397, 0445, 0532, 0581, 0583

Nesco. 0206, 0274

Network. 0364

Neufunk. 0064, 0583

New Tech 0244,0370

Nicam. 0571

Nikkai. 0036, 0062, 0063, 0064, 0099, 0243, 0244, 0245, 0364

Nobliko....0097,0103,0129,0243

Nogamatic. 0223, 0360, 0528

Nokia. 0190, 0235, 0206, 0347, 0366, 0373, 0374, 0376, 0378, 0386, 0388, 0401, 0500, 0507, 0575, 0584, 0633, 0637, 0658

Nordmende. 0136, 0223, 0240, 0314, 0370, 0426, 0528

Novatronic. 0064, 0132

Oceanic .0190,0235 0374,0388,0575

Okano. 0036, 0064, 0397

Onwa 0129,0245,0398

Optimus. 0677

Orion 0064,0204,0206, 0262,0321,0344, 0347,0348,0543,0571

Online. 0064, 0245

Orsowe. 0543

Osaki. 0064,0099,0244 0245,0299,0401

Osio. 0064

Oso. 0245

Osume.....0063,0064,0099,0245

Otake 0344

Otto Versand....0037,0063,0064 0136,0253,0120,0218,0240 0244,0262,0274,0321,0347 0370,0374,0376,0388,0532 0539,0571,0579,0581,0583

Pael 0243

Palladium 0397,0445

Panama. 0244, 0274

Panasonic.0064,0153,0190,0253 0240,0264,0267,0367 0374,0388,0394,0543 .0575,0584,0677

Panavision. 0064

Pathe Cinema....0190,0243,0240 0265,0347,0579

Pathe Marconi. 0223, 0264, .0360, 0426, 0528

Pausa 0036

Perdio. 0064,0190,0347

Philco 0064,0101,0103 0111,0114,0240 0274,0397,0445,0579

Philex. 0378

Philips. 0064,0070,0114 0256,0350,0359,0370 0401,0581,0583,0632

Phoenix 0243,0114 0347,0513,0579

Phonola. 0064, 0114, 0243

Pilot. .0057

Pioneer 0064,0136,0190 0314,0388,0455,0513

Plantron. 0036

Playsonic. 0244

Portland 0401

Prandoni Prince.. 0240, 0388, 0543

Precision. 0244

Prinz 0571

Profex. 0036, 0103

0190,0388,0458

Profi. 0036

Profitronic. 0064, 0129

Proline. 0099, 0348

Prosonic. 0064

Protech....0036,0064,0129,0244

0274,0364,0445,0458,0579

Pye... 0064, 0114, 0256, 0581, 0583

Quasar 0274

Quelle.....0037,0038,0064,0097

.0101, 0111, 0131, 0240,

0279,0322,0354,0355,0388

0.0532, 0.0539, 0.0571, 0.0579, 0.0581

Questa 0063

R-Line 0064

RBM. 0097

RFT. 0099,0114,0455

RTF 0114

Radialva....0064,0245,0364,0458

RadioShack. 0057, 0064

Radiola. 0064, 0244, 0350

Radiomarelli. 0064, 0114,

0274,0543

Radiotone. 0036, 0064, 0322, 0455

Rank Arena 0063

Realistic. 0057

Recor 0064

Rediffusion. 0378, 0388, 0575

Redstar 0064

Reflex 0064

Revox 0064

Rex. 0190, 0233, 0286, 0332

Roadstar.... 0036, 0064, 0245, 0445

Robotron. 0114

SBR. 0064, 0070

SEG. 0064, 0036, 0063, 0103

0129,0244,0389,0579

SEI. 0037, 0114, 0129

0204,0233,0240,0321

0374,0543,0571,0579

SEI-Sinudyne 0064, 0240

Saba. 0102, 0114, 0136, 0190

0223,0240,0314,0362

0370,0374,0388,0426

0528, 0543, 0575, 0584

Saccs. 0265

Sagem. 0482, 0637

Saisho. 0036, 0038, 0204, 0244

0262,0458,0543,0571

Salora. 0190, 0317, 0376, 0383,

0386,0388,0543,0575,0579

Sambers....0103,0129,0240,0543

Sampo 0057

Samsung. 0036, 0064, 0099

0235,0243,0244,0317

0397,0583,0614,0671

Sandra 0243,0244

Sansui 0064

Sanyo. 0038, 0063, 0099, 0131

0135,0235,0240,0243

0244,0366,0397,0571,0582

Schaub Lorenz ... 0374, 0388, 0584

Schneider 0064,0244,0245

.0274,0286,0350,0363

.0379,0388,0398,0571,0583

Scotland. 0190

Sears. 0206

Seleco. 0190, 0233, 0286,

.0332,0374,0389

Sencora. 0036

Sentra. 0062, 0245

Serino. 0243, 0482, 0637

Sharp. 0063, 0120, 0321, 0543

Shintoshi 0064

Shorai. 0206,0321

Siarem. 0114, 0129, 0240

.0374, 0543, 0579

Siemens. 0064, 0218, 0240,

0354,0355,0374,0581

Silva. 0243

Silver. 0063, 0206, 0388

Singer 0114,0129

Sinu. 0129

Sinudyne... 0037, 0114, 0129, 0204,

0233,0240,0262,0321

0374,0543,0571,0579

Skantic. 0383, 0384

Solavox. 0190, 0099

0378, 0388, 0575

Sonitron. 0235, 0366, 0397

Sonoko. 0036, 0064, 0309

Sonolor. 0190, 0235, 0388

Sontec. 0064, 0036, 0397, 0321

Sony. 0037, 0038, 0063,

0129,0256,0532

Sound & Vision. 0129, 0401

Soundesign. 0206

Soundwave. 0064, 0347, 0445

Sangyong 0036

Standard 0036,0064,0244

Starlite. 0579

Stenway 0245,0309

Stern. 0190, 0233, 0286, 0332

Strato 0064

Stylandia. 0244

Sunkai.....0321,0348,0482,0637

Sunstar. 0036, 0064, 0398

Sunwood 0064

SuperTech. 0036, 0064, 0243

Superla 0543

Supra 0036

Susumu. 0245

Sysline 0064

Sytong 0243

TMK 0204

TVTEXT 95 0583

Tactus. 0299

Tandberg. 0316, 0322, 0394

Tandy. 0099, 0120,

0190,0244,0245

Tashiko. 0063, 0070, 0190,

.0243,0244,0386

Tatung. 0038, 0064, 0099

.0244,0299,0543

Teac 0064

Tec. 0036, 0244, 0274,

0286,0364,0498,0579

Technema 0347

Technics 0677

Technol Ace. 0206

Teleavia 0223,0360,0370

.0426,0517,0528

Telefunken. 0064, 0100, 0101,

0111, 0128, 0136, 0223

0240,0279,0362,0370

0498,0513,0528,0593

Telegazi 0064

Tensai.....0036,0064,0131,0132

0244, 0245, 0274, 0321,

0344,0347,0398,0401

Tenson. 0347

Texet 0036,0245,0243,0401

Thomson..0064,0136,0223,0264

0314,0360,0362,0370,0376

0426, 0498, 0517, 0528, 0652

Thorn. 0064, 0062, 0099, 0100

0101,0111,0131,0256,0265

0299,0362,0370,0386,0388

0401,0526,0532,0539,0580

Tokai. 0036, 0064, 0190, 0364

Tokyo 0062

Tomashi 0309

Toshiba....0062,0063,0097,0136

0129,0270,0517,0580

Towada. 0579

Trans Continens. 0244

Trident 0543

Tristar 0245

Triumph 0204, 0270,

.0373,0543,0583

Tsoschi. 0309

Uher. 0064,0233,0347

.0401,0445,0513

Ultravox ... 0064, 0114, 0129, 0240,

0243,0274,0378,0579

Unic Line. 0064, 0500

United 0064

Universum. 0036, 0037, 0038,

0063, 0064, 0097,

0101,0103,0131,0132

0197,0204,0240,0244,0274

.0279,0317,0321,0322,0354

0364,0373,0388,0389,0397

0445,0448,0507,0519,0528

0532, 0539, 0571, 0579, 0581

Univox 0064,0114

0190,0265,0364

Vestel. 0064, 0244, 0579

Vibrant. 0299

Videologic 0243,0245

Videosat. 0274

Videotechnic. 0244, 0347

Videoton 0383,0458

Vision 0244,0347

Vistar. 0233

Voxson. 0114, 0190, 0445

Waltham. 0064, 0136, 0244,

0383,0445,0458,0517

Wards 0206

Watson. 0036, 0064,

0245,0240,0347

Watt Radio 0129, 0240,

.0243,0571,0579

Wega. 0063, 0064, 0114

Wegavox. 0036

Weltblick 0347

White Westinghouse... 0064, 0243

0347,0364

Windstar 0309

Xrypton. 0064

Yamishi 0244,0309,0482

Yokan. 0064

Yoko. 0036, 0064, 0244, 0245,

0332,0366,0448,0458

Zanussi. 0233, 0244, 0332

Zenor. 0366

SETUP CODES FOR VCR

ASA 0064,0108

AVP. 0379

Adelsound. 0031

Adventura 0027

Adyson. 0099

Aiwa. 0027, 0064, 0236,

0334,0375,0379

Akai. 0047, 0068, 0080, 0133, 0342

Akiba 0099

Akitan. 0322

Akura 0099

Alba. 0027, 0047, 0099, 0236, 0305, 0322, 0342, 0375, 0379

Allstar. 0108,0349

Ambassador. 0047

Amstrad. 0027, 0099

Anitech 0099,0349

Ansonic. 0031

Aristona. 0108

Asha. 0267

Asuka 0064

AudioTon. 0047

Audiosonic. 0305

Baird. 0027, 0068, 0131, 0134

Basic Line. 0047, 0099, 0305

Beaumark. 0267

Bestar. 0305

Blaupunkt.0061,0108,0181,0189 0222,0253,0254,0430

Bondstec 0047,0099

Bosch. 0181

Brandt. 0068, 0233, .0347, 0348, 0520

Brandt Electronic 0068

Broksonic 0236,0322

Bush. 0099,0236,0305 0342,0375,0379

CGE 0027

Calix 0064

Carena 0236

Carrefour 0072

Cathay. 0305

Catron 0047

Cimline 0099

Cineral. 0305

Citizen 0064,0305

Clatronic 0047

Colt 0099

Combitech. 0379

Condor. 0047,0305

Craig. 0064, 0074, 0099

Crown. 0047, 0099, 0305, 0349

Curtis Mathes 0189

Cybernex 0267

Cyrus. 0108

Daewoo. 0047, 0305,

Dansai. 0099, 0305,

De Graaf. 0069, 0073, 0075, .0108, 0131, 0193

Decca. 0035, 0094, 0108, 0236

Denon 0069

Diamant. 0064

Domland. 0236

Dual. 0068,0108,0305

Dumont. 0027, 0108, 0131

ESC. 0047,0267,0305

Elbe 0305

Elcatech 0099

Electrohome 0064

Electrophonic. 0064

Elin 0267

Elsay. 0099

Elta. 0099,0305

Emerex. 0059

Emerson...0027,0063,0064,0070 0072,0099,0235,0236,0305

Europhon. 0047

Ferguson. 0027, 0068, 0080, 0134, 0347, 0348, 0520

Fidelity 0027,0099

Finlandia. 0027,0069,0075 0108,0131,0193

Finlux 0027,0069,0108,0131

Firstline. 0064,0070,0072 0099,0115,0236,0375

Fisher 0047,0073 0074,0081,0131

Flint. 0236

Frontech. 0047, 0349

Funai 0027

GE. 0267

GEC. 0108

Galaxis 0305

General 0047

General Technic 0375

Genexxa. 0131

GoldHand. 0099

GoldStar 0064

Goodmans. 0027, 0047, 0064, 0099, 0108, 0305, 0430

Gradient. 0035

Graetz. 0068, 0131, 0267

Granada.... 0027, 0064, 0069, 0073,

0075,0108,0253,0267,0131

Grandin .... 0027,0064,0099,0305

Grundig....0034,0099,0108,0222 0253,0347,0374,0376,0430

HCM 0099,0349

HI-Q 0074

Hanimex. 0322,0379

Hanseatic. 0064, 0236

Hantor. 0047

Harley Davidson. 0027

Harwood. 0099

Headquarter. 0073

Hinari. 0031, 0068, 0099, 0115

0235,0267,0305,0379,0349

Hisawa. 0379

Hischito 0072

Hitachi 0027,0031,0068

0069,0108,0193,0267

Hornyphone. 0108

Hypson 0099,0236,0305

IR.....0031,0047,0068,0069,0072

0074,0080,0099,0108,0131

.0133,0134,0181,0235,0236

0253,0267,0322,0349,0375

ITT. 0068, 0073, 0131

.0133,0267,0411

ITV. 0047,0064,0305

Imperial 0027

Ingersol .0031, 0236, 0267

Inno Hit. 0099, 0267

Interfunk. 0108, 0131

Intervention. 0027, 0064, 0236, 0305

Irradio. 0099, 0108

JVC..0035,0068,0094,0233,0411

KLH. 0099

Kaisui 0099

Kendo .0099,0133,0236,0342

Kenwood... 0068, 0073, 0094, 0411

Kimari 0074

Kneissel. 0379

Kodak. 0064

Korpel 0099

Kuba Electronic. 0074

Kyoto. 0099

Lenco 0305

Leyco 0099

Lloyd's 0027

Loewe 0031,0064

0108,0189,0481

Logik. 0133,0267,0031,0236

Luxor 0075,0133,0070

0131,0099,0073,0074

M Electronic. 0027, 0064

MGA. 0267

Magnavox 0108, 0027

Magnin. 0267

Manesth.... 0108, 0072, 0099, 0236

Marantz .... 0108, 0173, 0236, 0322

Marquant. 0349

Matsui 0027,0031,0063

0115,0235,0236

0267,0322,0375,0379

Medion. 0375

Memorex. 0027, 0064, 0073,

.0075,0131,0189,0267

Memphis. 0099

Metz. 0064, 0108, 0189

0222, 0254, 0374, 0481

Minerva. 0222

Minolta. 0069

Mitsubishi 0070,0094,0108

Motorola 0075

Multitech 0027,0047,0099

Murphy. 0027

Myryad. 0108

NEC. 0094,0068

Neckermann. 0108

Nesco. 0099

Nikkai. .0047, 0099, 0305

Nokia. 0068, 0073, 0075,

0131,0133,0267,0305

Nordmende. 0068, 0347,

.0348,0411,0521

Oceanic 0027,0068,0073

0075,0108,0131,0133

Okano. 0099, 0375, 0342

Olympus 0253

Optimus. 0064, 0075

Orion..... 0031,0063,0115,0235

0236,0322,0375,0379

Osaki. 0027, 0064, 0099

Otake 0236

Otto Versand 0108

Palladium. 0031, 0064, 0068

0099,0236,0267

Panasonic..0189,0253,0254,0481

Pathe Cinema.... 0031, 0063, 0070

Pathe Marconi. 0068

Penney.....0064,0069,0081,0267

Pentax 0069

Perdio. 0027, 0236

Philco 0099,0236

Philips. 0108, 0173

0411,0430,0494

Phonola. 0108

Pioneer 0069,0094,0108

Portland. 0047, 0305

Prinz 0115

Pro Vision. 0305

Profex. 0349

Profitronic. 0108, 0267

Proline 0027

Prosonic. 0305

Protec 0099

Pye 0108

Quarter 0073

Quartz 0073

Quasar. 0189, 0305

Quelle 0108

RCA. .0069, 0267

RFT. 0099,0430

Radialva. 0064, 0075

Radiola 0108

Radix 0064

Randex 0064

Realistic....0027,0075,0064,0131

Rex 0068,0411

Roadstar.... 0064, 0099, 0267, 0305

Royal. 0349

SBR. 0108, 0173

SEG. 0099, 0267, 0305, 0349

SEI 0031,0108

Saba 0068,0233,0347

0348,0411,0521

Saisho. 0031, 0063, 0115,

.0235,0236,0375

Salora. 0070, 0073, 0131, 0133

Samsung. 0267,0459

Sanky 0075

Sansui 0027,0068,0094,0133

Sanwa 0031

Sanyo 0073,0074

0075, 0267, 0131,

Saville 0267,0305,0379

Schaub Lorenz 0027,0068

.0131,0133

Schneider. 0027, 0064, 0069, 0099

0108, 0173, 0267, 0305

Scott. 0070

Sears. 0027, 0064, 0069

0073,0074,0081,0131

Seleco 0047,0064,0068,0411

Semp. 0072

Sentra. 0047, 0099

Sharp 0075

Shintom 0099,0131

Shivaki 0064

Shogun 0267

Shorai. 0031, 0115

Siemens....0034,0064,0081,0108

0131,0173,0222,0374

Siera. 0108

Silva. 0064

Singer 0072,0099

Sinudyne 0031,0108,0236

Solavox. 0047

Sonneclair. 0099

Sonolor 0073

Sontec. 0064, 0305

Sony. 0027, 0038, 0059

0061,0133,1059

Soundwave. 0064, 0236

Sangyong. 0099

Stern. 0305

Sunkai. 0236, 0322, 0375

Sunstar. 0027

Suntronic 0027

Sunwood 0099

Supra 0064

Symphonic. 0027

TMK 0063,0235,0267

Taisho. 0031, 0115, 0236

Tandberg. 0305

Tashiko 0027,0064

0075,0108,0267

Tatung 0027,0068,0070

0075,0080,0108,0236

Teac 0027,0068

Tec 0047,0099,0305

Tech Line. 0099

Technics. 0189, 0253

Teleavia 0068, 0520

Thomson..0068,0094,0305,0347

0348, 0411, 0520, 0521

Thorn.....0063,0064 0068,0131

Tokai 0099

Toshiba. 0068, 0070,

0072,0108,0411

Totevision 0267

Towada. 0349

Triumph 0235

Uher 0267

Ultravox. 0305

Unitech 0267

Universum. 0027, 0064, 0108

0133,0222,0267,0349,0375

Vector 0072

Video Concepts. 0072

Videomagic 0064

Villain. 0027

Wards 0075

Watson. 0108

XR-1000. 0027,0099

Yamaha. 0068

Yamishi. 0099, 0305

Yokan. 0099

Yoko 0047,0267

Zenith 0027,0061

SETUP CODES FOR DIGITAL VERSATILE DISC (DVD)

Bush. 0717
Denon 0517
DiViDo. 0732
Enterprise. 0618
Grundig. 0566, 0722, 0732
JMB 0722
JVC. 0585
Kenwood. 0517, 0561
LG. 0618
Leccson. 0723
Magnavox. 0530
Mitsubishi 0548
Onkyo 0639
Oritron. 0678
Panasonic. 0517
Philco. 0717
Philips. 0530, 0566, 0673
Pioneer 0552,0598
REC 0716
Revoy 0726
Roadstar 0716
SM Electronic. 0717
Samsung 0600
Sharp 0657
Sony. 0560
Technics 0517
Thomson 0578
Toshiba. 0530
Umax. 0717
Universum. 0618
Wesder 0726
Wharfedale 0723
Yamakawa. 0692
Zenith 0530

Guarantee certificate Certificate de garantie Garantiebewijs Zaručni list
