Product Type	Water Flosser (interdental water jet cleaner)
Brand	Waterpik
Model	Ultra WP112E1
Power Supply	Mains, 220-240 V, 50/60 Hz
Water Pressure	10 adjustable levels (rotary knob on base)
Reservoir Capacity	About 600 ml
Included Tips	Classic jet tip, orthodontic tip, toothbrush tip, Plaque Seeker®, tongue scraper
Pause Function	Pause button on handle to interrupt water flow
Power Cord Length	About 1.2 m
Dimensions (W x D x H)	20 x 15 x 15 cm (estimated)
Weight	About 0.8 kg
Material	ABS plastic, transparent reservoir
Warranty	2 years limited
Maintenance	Clean with soft non-abrasive cloth; dishwasher-safe reservoir (top rack, remove valve)
Descaling	Use 2 tablespoons of white vinegar in warm water reservoir, then rinse thoroughly with clean water
Safety	Unplug after use; do not immerse; do not use in bath
Spare Parts	Tips, hose, handle available through local distributor (www.waterpik.com/intl)
Repairability	No user-serviceable parts; contact distributor
Recommended Use	Interdental cleaning, gum care, orthodontic appliances, bridges, implants, crowns
Origin	Designed in USA, made in China
Certifications	Waterpik® is a registered trademark

Frequently Asked Questions - Ultra WP112E1 Waterpik

How to use the Waterpik Ultra WP112E1 water flosser?

Plug in the device, fill the reservoir with warm water, insert the tip, adjust the pressure (start at level 1), lean over the sink, place the tip in your mouth at a 90-degree angle to the gumline, close your lips slightly and turn it on. Guide the tip along the gumline, pausing between teeth.

How to adjust the water pressure?

Turn the pressure control knob on the base. It offers 10 settings: start at level 1 (lowest) and gradually increase to a comfortable level, or follow your dentist's advice.

Which tips are included and what are their uses?

The included tips are: Classic Jet Tip (general use), Orthodontic Tip (for braces), Toothbrush Tip (brushing with water), Plaque Seeker® Tip (for implants and bridges), and Tongue Scraper (fresh breath). Each tip has a specific indication described in the manual.

How to clean and descale the water flosser?

For routine cleaning, use a soft cloth and non-abrasive cleaner. The reservoir can be washed in the dishwasher (top rack), after removing the rubber valve. For descaling, mix 2 tablespoons of white vinegar in the warm water reservoir, run the device at maximum pressure, then rinse with clean water.

Is the reservoir dishwasher safe?

Yes, the reservoir is removable and compatible with the top rack of the dishwasher. Before placing it, remove the rubber valve to avoid damage.

Can I use mouthwash in the reservoir?

Yes, you can use mouthwash or an antibacterial solution. After use, rinse the device by running warm water through it to avoid clogs.

What to do in case of water leakage?

If the leak is from the hose, contact your distributor for a replacement hose. If from the reservoir, check that the valve is correctly positioned or replace it. Do not attempt to repair yourself.

Is the device covered by warranty?

Yes, the Waterpik Ultra water flosser comes with a limited two-year warranty from the date of purchase, covering defects in material and workmanship. Keep your receipt. Tips and accessories are not covered.

How often should I replace the tips?

The Classic Jet, Orthodontic, Toothbrush, and Plaque Seeker tips should be replaced every 3 to 6 months, or sooner if worn. The tongue scraper should be replaced every 6 months.

Can the device be used by children?

Yes, under adult supervision. Children aged 8 and older can use it if they have received clear instructions on safe use.

USER MANUAL Ultra WP112E1 Waterpik

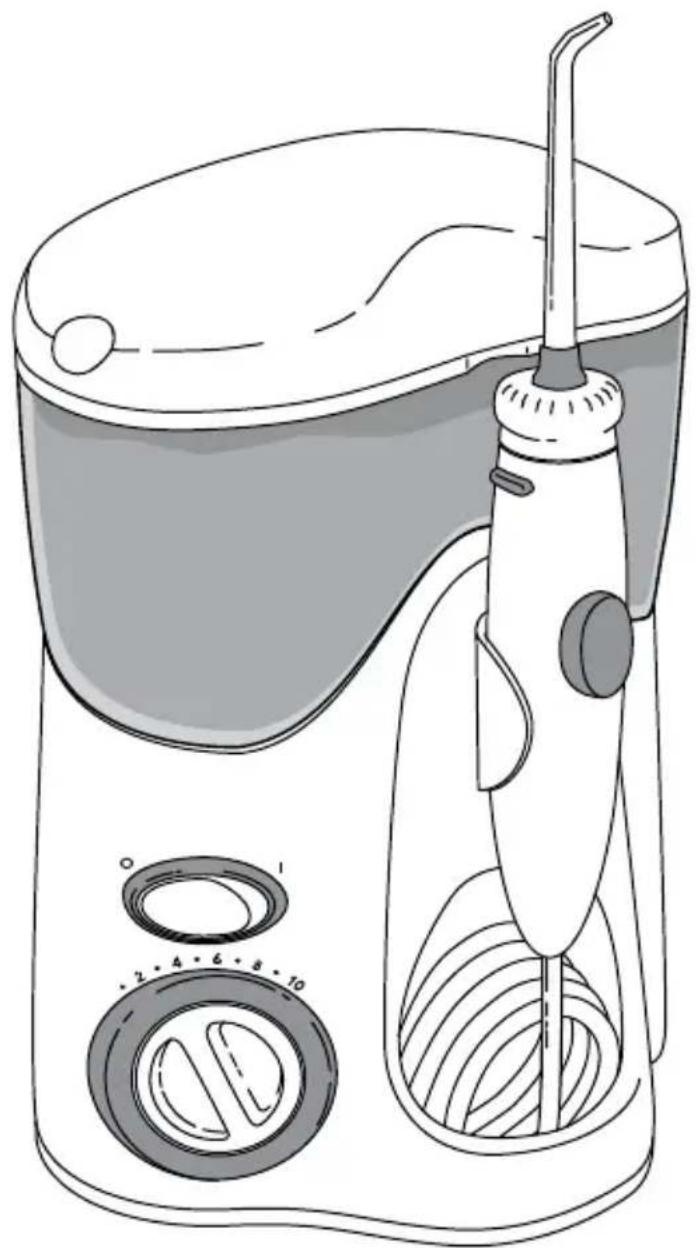

Waterpik® Water Flosser Model WP-100

Waterpik® Munddusche Modell WP-100

Important Safeguards 3

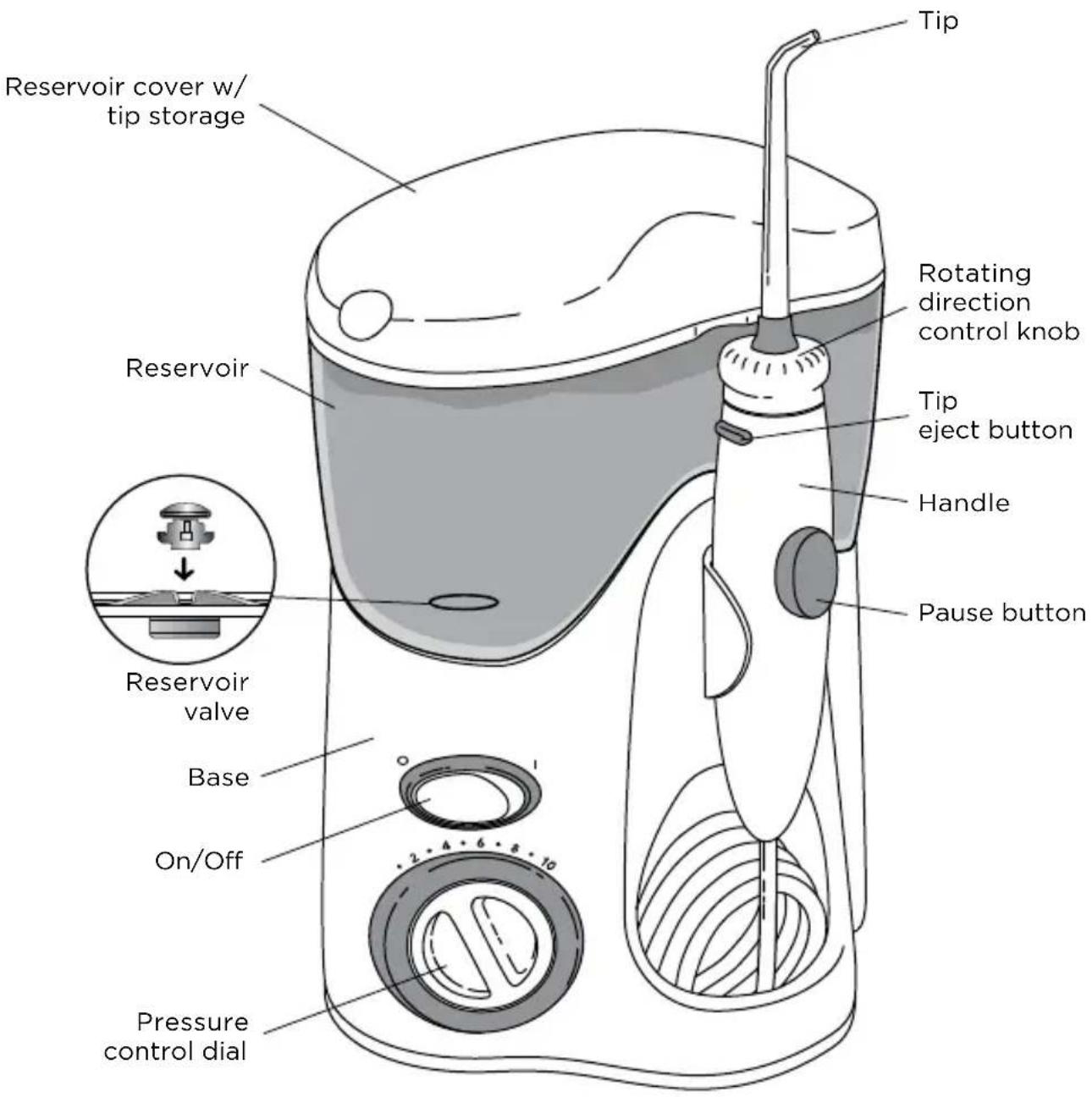

Product Description 5

Getting Started 6

Cleaning and Troubleshooting Your Waterpik® Water Flosser 9

Limited Two-Year Warranty 9

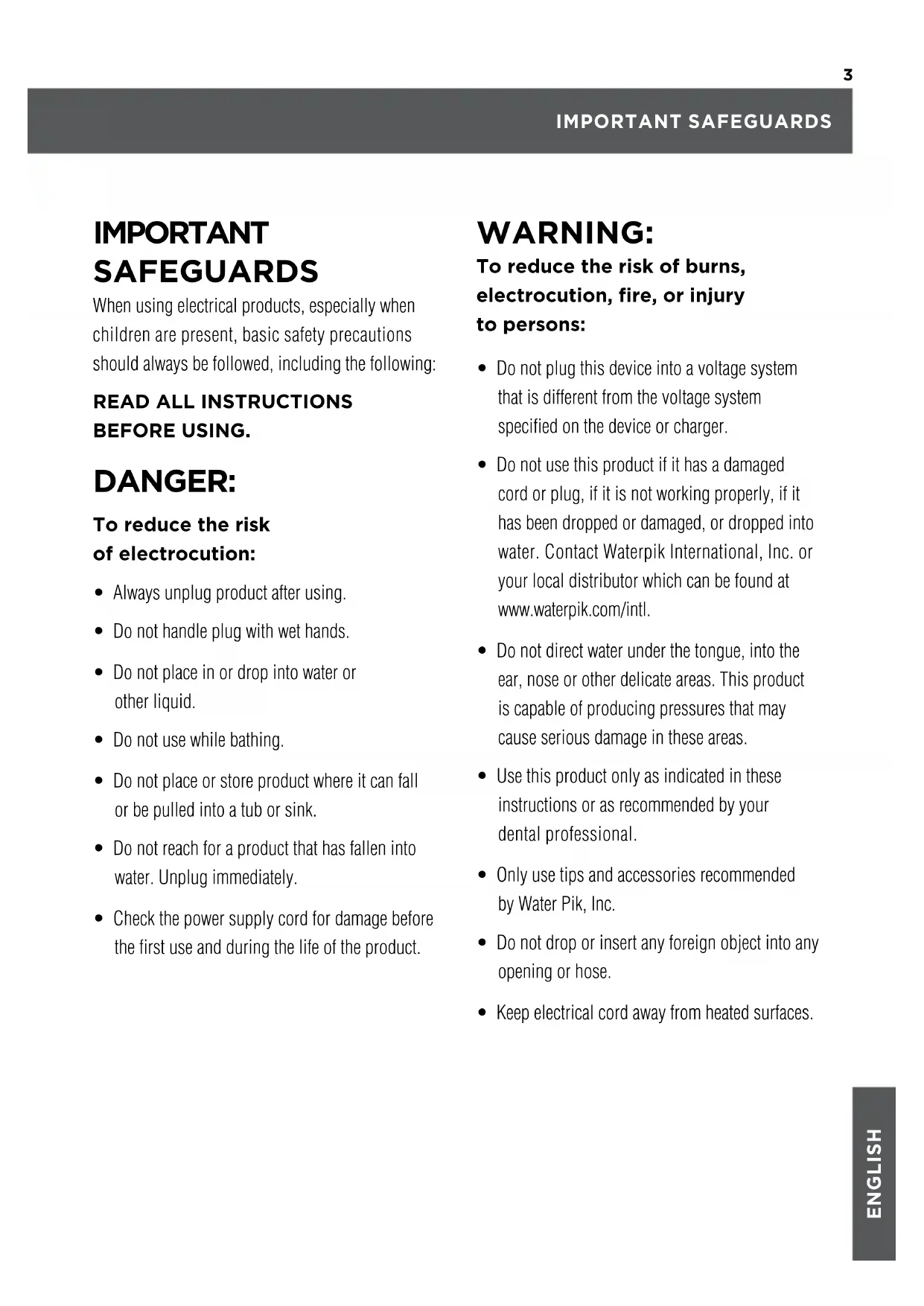

IMPORTANT SAFEGUARDS

When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING.

DANGER:

To reduce the risk of electrocution:

Always unplug product after using.
- Do not handle plug with wet hands.
- Do not place in or drop into water or other liquid.
- Do not use while bathing.
- Do not place or store product where it can fall or be pulled into a tub or sink.
- Do not reach for a product that has fallen into water. Unplug immediately.
- Check the power supply cord for damage before the first use and during the life of the product.

WARNING:

To reduce the risk of burns, electrocution, fire, or injury to persons:

• Do not plug this device into a voltage system that is different from the voltage system specified on the device or charger.
• Do not use this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Waterpik International, Inc. or your local distributor which can be found at www.waterpik.com/intl.
• Do not direct water under the tongue, into the ear, nose or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
• Use this product only as indicated in these instructions or as recommended by your dental professional.
• Only use tips and accessories recommended by Water Pik, Inc.
• Do not drop or insert any foreign object into any opening or hose.

• Keep electrical cord away from heated surfaces.

• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

• Do not use iodine, bleach, or water insoluble concentrated essential oils in this product. Use of these can reduce product performance and will shorten the life of the product.
• Remove any oral jewelry prior to use of this product.
• Do not use if you have an open wound on your tongue or in your mouth.
• If your physician or cardiologist has advised you to receive antibiotic premedication before dental procedures, you should consult your dentist before using this instrument or any other oral hygiene aid.
• If the Pik Pocket tip (not included in all models) separates from the shaft for any reason, discard tip and shaft and replace with new Pik Pocket tip.

• Do not use this product for more than 5 minutes in each two-hour period.

• Closely instruct and supervise children 8 years and above and individuals with special needs in the proper use of this product.

• Children should be supervised to ensure that they do not play with the appliance.
• There are no consumer serviceable parts in this appliance and it does not require maintenance.
• Fill reservoir with warm water or other dental professional recommended solution only.

SAVE THESE INSTRUCTIONS

Replace Every 3 Months
	BEST FOROrthodontic
	Braces General Use
® Tip	BEST FORPik Pocket
	Periodontal Pockets Furcations
Plaque Seeker® Tip	BEST FOR
	Implants Crowns Bridges General Use
Toothbrush Tip	BEST FOR
	General Use

Replace Every 6 Months
Tip Classic Jet Tip	BEST FOR
	General Use
Tongue Cleaner BEST FOR
	Fresher Breath

NOTE: All tips not included in all models.

Replacement tips can be purchased from your local distributor, which can be found at www.waterpik.com/intl.

Powering the Unit

Plug the cord into an electrical outlet. If the outlet is controlled by a wall switch, be sure it is turned on.

Preparing the Reservoir

Remove reservoir and cover from base. Fill the reservoir with lukewarm water. Replace the reservoir over the base and press down firmly.

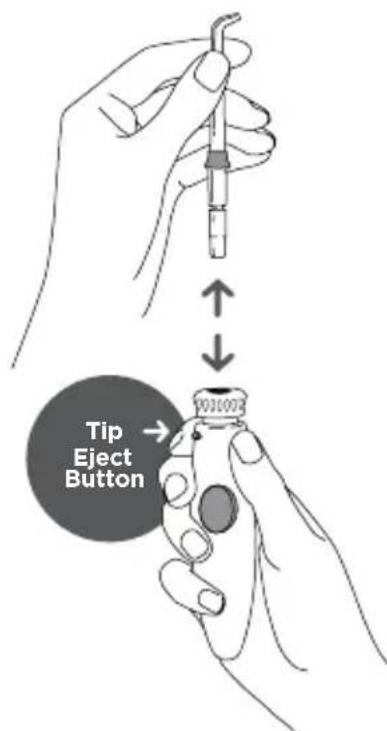

Inserting and Removing Tips

Insert tip into the center of the knob at the top of the Water Flosser handle. The colored ring will be flush with the end of the knob if the tip is correctly locked into place.

To remove tip from the handle, press the tip eject button and pull tip from handle.

Prime Unit (First Time Use Only)

Set pressure control dial on base to high (pressure setting No. 10), point the handle and tip into sink. Turn unit ON (I) until water flows from the tip. Turn unit OFF (O).

Adjusting the Pressure Setting

Turn the pressure control dial on the base of the unit to the lowest setting (pressure setting No. 1) for first-time use. Gradually increase pressure over time to the setting you prefer - or as instructed by your dental professional.

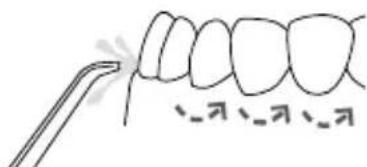

Recommended Technique

For best results, start with the back teeth and work toward the front teeth. Glide tip along gumline and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.

Lean over sink.

Direct the stream at a 90-degree angle to your gumline with

tip in mouth. Slightly close lips to avoid splashing, but allow water to flow freely from mouth. Set pressure at desired setting and turn the unit ON (I). Begin cle

Pause Control

You can temporarily stop the flow any time by pressing the pause button on the handle.

When Finished

Turn the unit OFF (0). Empty any liquid left in the reservoir. Unplug the unit.

NOTE: If you used mouthwash or other solution besides water, see "Using Mouthwash or Other Solutions" section.

TIP USAGE

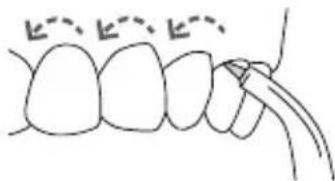

Pik Pocket® Tip

The Pik Pocket tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets.

To use the Pik Pocket

tip, set the unit to the lowest pressure

setting. Place the soft tip against a tooth at a 45-degree angle and gently place the tip under the gumline, into the pocket. Turn the unit on and continue tracing along the gumline.

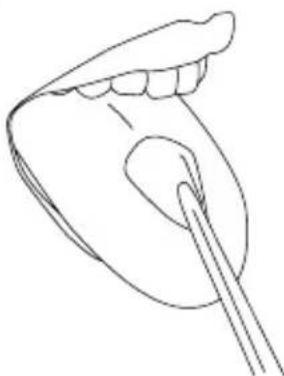

Tongue Cleaner Tip

To use the tongue cleaner tip, set to lowest pressure setting, place tip in the center/middle of your tongue about half way back and start the Water Flosser. Pull forward with light pressure. Increase pressure as you prefer.

Orthodontic Tip

To use the orthodontic tip, gently glide tip along gumline, pausing briefly to lightly brush

area between teeth and all around orthodontic bracket, before proceeding to the next tooth.

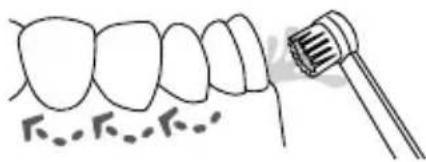

Toothbrush Tip

Place the toothbrush tip in mouth with the brush head

on the tooth at the gum line. The toothbrush tip can be used with or without toothpaste. Turn the Water Flosser on so water flows through the tip. Using a light pressure (bristles should not bend) massage the brush back and forth with very short strokes - much like you would with a manual toothbrush.

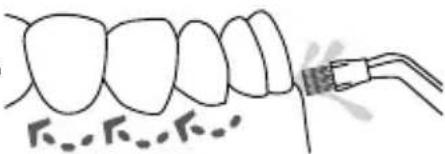

Plaque Seeker® Tip

To use the Plaque Seeker tip, place the tip close to the

teeth so that the bristles are gently touching the teeth. Gently glide tip along gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.

Using Mouthwash and Other Solutions

Your Waterpik Water Flosser can be used to deliver mouthwash and antibacterial solutions. After using any special solution, rinse unit to prevent clogging by partially filling reservoir with warm water and running unit with tip pointed into sink until unit is empty.

Cleaning

Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a soft cloth and mild non-abrasive cleanser.

The water reservoir is removable for easy cleaning and is top rack dishwasher safe.

NOTE: Remove reservoir valve before placing reservoir in dishwasher.

Remove Replace

Removing Hard Water Deposits

Add 2 tablespoons of white vinegar to a full reservoir of warm water. Set pressure control dial to high, point the handle and tip into sink. Turn unit ON (I) and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.

Leakage

If leaking due to a damaged hose, replacement hoses and handles can be purchased from your local distributor, which can be found at www.waterpik.com/intl.

If leakage occurs from the reservoir, ensure the valve is right side up or contact your local distributor for a replacement valve.

Service Maintenance

Waterpik® Water Flossers have no consumer-serviceable electrical items and do not require routine service maintenance. For all your service needs go to www.waterpik.com/intl to find your local distributor. Please do not ship product to Waterpik International, Inc. offices, this will delay service.

Refer to the serial and model numbers in all correspondence. These numbers are located on the bottom of your unit.

Still have questions? Go to www.waterpik.com/intl to find your local distributor.

Water Pik, Inc. warrants to the original purchaser/ owner of this product that it is free from defects in materials and workmanship for two years from date of purchase. Save your receipt as your proof of purchase date. Water Pik, Inc. reserves the right to request the product to be returned for analysis to confirm the claim falls within our warranty policy. We will replace any part of the product, which in our opinion is defective, provided the product has not been abused, misused, altered or damaged after purchase and was used according to these instructions. Repair or replacement services provided for by the guarantee will be carried out by the local distributor, whose details may be found on [www.waterpik.com/intl]. Upon request of the consumer, a copy of the guarantee complete with the local distributor's information will be provided by email or mail. This limited warranty excludes accessories or consumable parts such as tips, etc.

This warranty gives you specific legal rights. You may also have other rights that vary depending on the law in your place of residence.

To locate your local distributor, go to www.waterpik.com/intl.

INHALTSVERZEICHNIS

Technique recommende

Embout Plaque Seeker

Beccuccio Plaque Seeker

1730 East Prospect Road

Fort Collins, CO 80553-0001 USA

www.waterpik.com

Waterpik, International, Inc.

Castle Court, 41 London Road

Reigate, Surrey RH2 9RJ, United

Kingdom

Waterpik is a trademark of Water Pik, Inc. registered in Argentina, Australia, Benelux, Brazil, Canada, Chile, China, Czech Republic, Denmark, EU, Finland, France, Germany, Hong Kong, Hungary, India, Italy, Japan, Korea, Mexico, New Zealand, Norway, Pakistan, Poland, Russian Federation, Singapore, South Africa, Spain, Sweden, Switzerland, Taiwan, Turkey, Ukraine, United Kingdom, and the United States.

Waterpik (stylized) is a trademark of Water Pik, Inc. registered in Australia, Brazil, Canada, China, EU, Hong Kong, Japan, Mexico, Korea, Russian Federation, Switzerland, Trinidad & Tobago, and the United States.

Pik Pocket® is a trademark of Water Pik, Inc. registered in Canada and the United States.

Plaque Seeker is a trademark of Water Pik, Inc. registered in Canada, China, EU, and the United States.

Designed in USA. Made in China
