USER MANUAL WP-270 Waterpik

waterpik® treat yourself better™

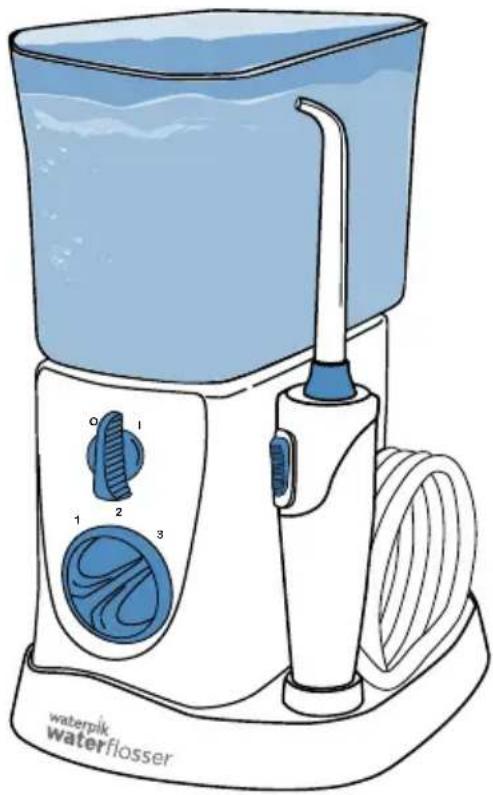

Illustration of a waterflosser with labeled components and a toothbrush (no text or symbols on the device itself)

Waterpik® Water Flosser Models WP-250/260/270/300

Congratulations! By selecting the Waterpik® Water Flosser you are now on your way to better gum health, and a healthier smile!

With a clinically proven combination of water pressure and pulsations, the Waterpik® Water Flosser removes harmful bacteria deep between teeth and below the gumline – where brushing alone won't reach.

We are so convinced that you will be happy with your new Waterpik® Water Flosser, that we back it up with a 14-day guarantee. If you aren't satisfied that your gums are healthier after using the Waterpik® Water Flosser for 14 consecutive days, feel free to return it to us for a full refund.

Thank you for choosing the Waterpik ^® Water Flosser.

Traditional Oral Care

Line drawing of a hand holding a small object over a curved surface (no text or symbols)

Traditional brushing can't easily reach hidden food debris and harmful bacteria.

Simple line drawing of a human head and neck with no text or symbols

Flossing has limited access below the gumline.

Oral Care With The Waterpik® Water Flosser

Illustration of a dental tool interacting with a tooth (no text or symbols present)

The Waterpik® Water Flosser removes trapped food debris and harmful bacteria.

TABLE OF CONTENTS

Important Safeguards 5

Product Description 7

Getting Started 9

Care of Your Waterpik® Water Flosser 14

Troubleshooting Guide 16

Limited Two-Year Warranty 17

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS

When using electrical products, especially when children are present, the basic safety precautions below should always be followed.

READ ALL INSTRUCTIONS BEFORE USING.

DANGER:

To reduce the risk of electrocution:

• Always unplug product after using.
- Do not handle plug with wet hands.
- Do not immerse in water or other liquid.
- Do not use while bathing.
- Do not place or store product where it can fall or be pulled into a tub, shower stall or sink.
- Do not reach for a product that has fallen into any liquid. Unplug immediately.
- Check the power supply cord for damage before the first use and during the life of the product.

WARNING:

To reduce the risk of burns, electric shock, fire, serious injury or damage to tissue:

• Do not plug this device into a voltage system that is different from the voltage system specified on the device or charger.
• Do not use this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into any liquid. Contact Water Pik, Inc. or your local distributor which can be found at www.waterpik.com.
• Do not direct water under the tongue, into the ear, nose or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas. See operating instructions for correct usage.
• Use this product only as indicated in these instructions or as recommended by your dental professional.
• Only use tips and accessories recommended by Water Pik, Inc.

• Do not drop or insert any foreign object into any opening or hose.

• Keep electrical cord away from heated surfaces.

• Do not operate where oxygen or aerosol sprays are being used.
• Do not use iodine, bleach, or water insoluble concentrated essential oils in this product. Use of these can reduce product performance and will shorten the life of the product.
• Fill reservoir with water or other dental professional recommended solution only.
• Do not use while wearing any oral jewelry. Remove jewelry prior to use.
• Do not use if you have an open wound on your tongue or in your mouth.
• If your physician or cardiologist has advised you to receive antibiotic premedication before dental procedures, you should consult your dentist before using this instrument or any other oral hygiene aid.
• For household use only. Do not use outdoors.

• Closely instruct and supervise children and individuals with special needs in the proper use of this product.

• Do not remove the Pik Pocket™ flexible tip from the clear shaft. If it separates for any reason, discard both the tip and shaft and replace with a new Pik Pocket™ Tip. Pik Pocket™ Tip not included in all models.

• Do not use this product for more than 5 minutes in each two-hour period. Longer usage can overheat the motor and cause product failure as well as void the warranty.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SAVE THESE INSTRUCTIONS.

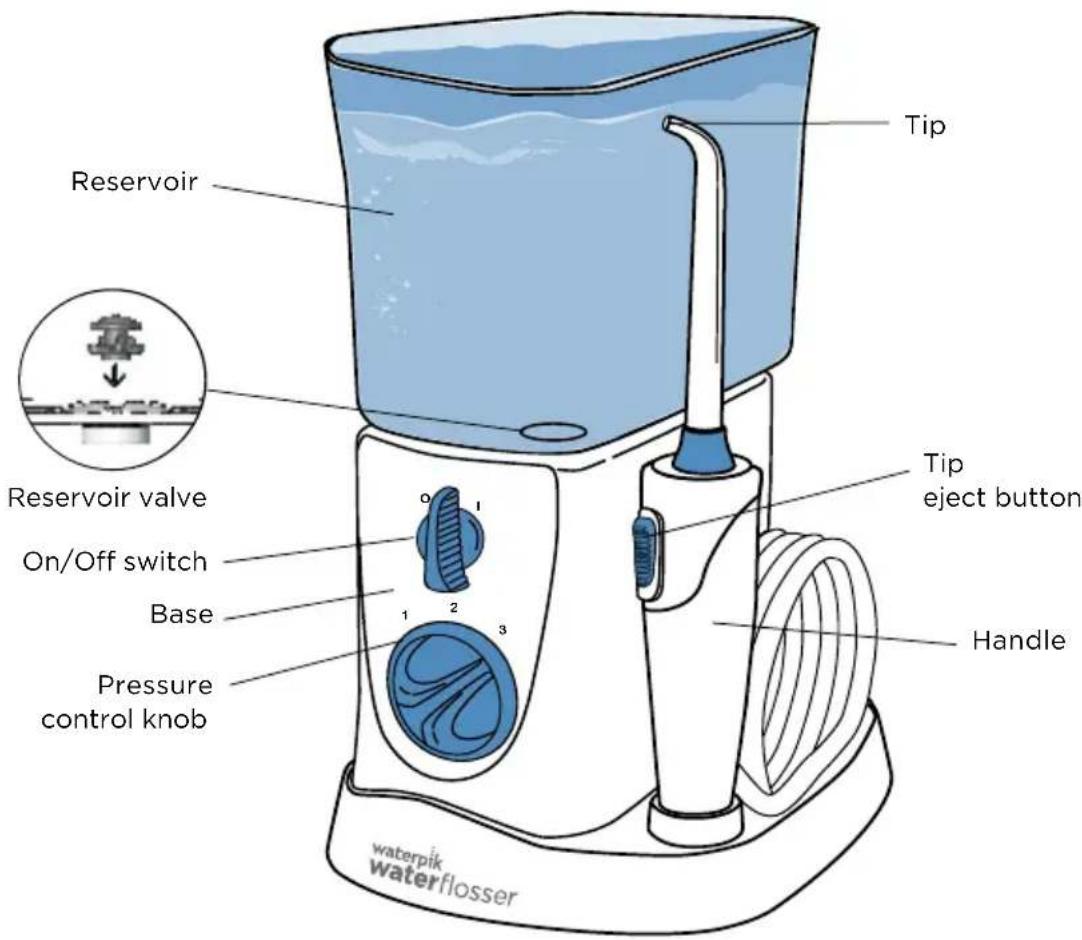

PRODUCT DESCRIPTION

Reservoir Tip Reservoir valve On/Off switch Base Pressure control knob Tip eject button Handle waterpik waterflosser

NOTE: all tips not included in all models.

GETTING STARTED

Plug the cord into an electrical outlet. If the outlet is controlled by a wall switch, be sure it is turned on.

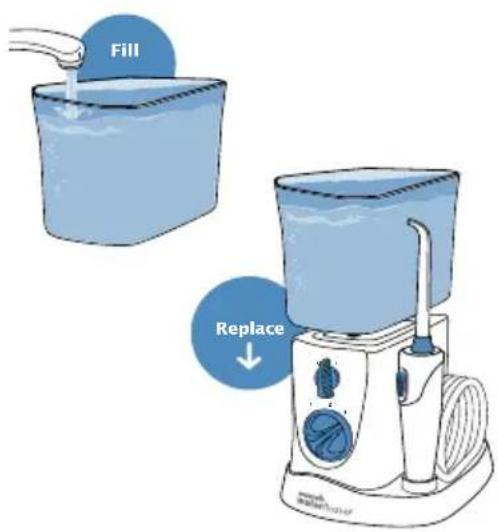

Preparing the Reservoir

Fill the reservoir with lukewarm water. Replace the reservoir over the base and press down firmly.

Fill Replace

Inserting and Removing Tips

Insert tip into the center of the Water Flosser handle. The colored ring will be flush with the top of the handle if the tip is correctly locked into place. Gently pull on tip to confirm it is seated properly and locked in place.

To remove tip from the handle slide the tip eject button up towards the top of the handle and lift tip from handle.

Tip Insertion

Insert NO Gap

Tip Removal

Slide Button Up Eject

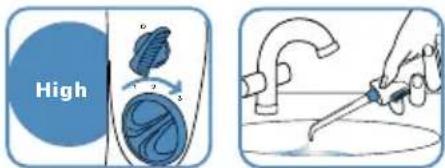

Prime Unit (First Time Use Only)

Prior to Very First Use of Unit, Prime Unit: Set pressure control dial on base to high, point the handle and tip into sink. Turn unit ON until water flows from the tip. Turn unit OFF.

High

Adjusting the Pressure Setting

Turn the pressure control dial on the base of the unit to the lowest setting (pressure setting No. 1) for first-time use.

Gradually increase pressure over time to the setting you prefer – or as instructed by your dental professional.

Low

Placement in Mouth

Lean low over sink and place the tip in mouth. Aim the tip toward teeth.

Set pressure at desired setting. With your free hand, turn the unit on.

ON

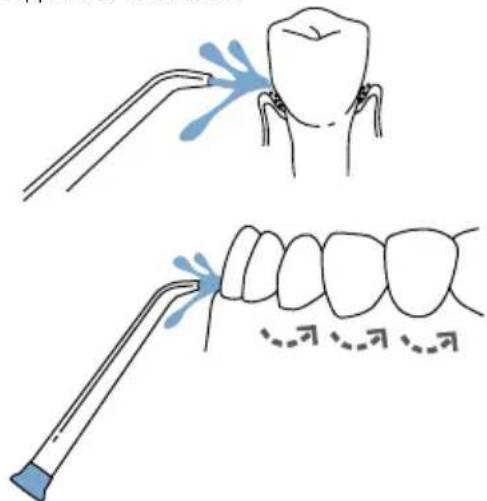

Recommended Technique

Direct the stream at a 90-degree angle to your gumline. Slightly close lips to avoid splashing but allow water to flow freely from mouth into the sink. For best results, start in the molar area (back teeth) working toward the front teeth. Glide tip along gumline and pause briefly between teeth. Continue process until you have cleaned the inside and outside of both the upper and lower teeth.

Diagram illustrating dental procedure steps with labeled tool tips and tooth positioning

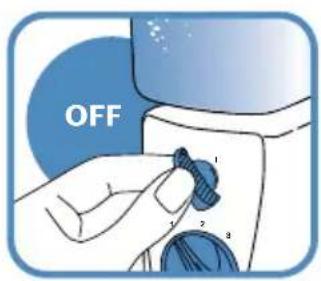

When Finished

Turn the unit off. Empty any liquid left in the reservoir. Unplug the unit.

1 2 3 4

OFF 1 2 3

TIP USAGE

Pik Pocket™ Tip

The Pik Pocket™ Tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets. It is not intended for general use.

Simple line drawing of a tooth with a surgical instrument inserted (no text or symbols)

To use the Pik Pocket™ Tip, set the unit to the lowest pressure setting. Lean low over your sink and place the soft tip

Simple line drawing of human teeth with a finger pointing to a tooth (no text or symbols)

against a tooth at a 45-degree angle and gently place the tip under the gum line, into the pocket. Turn the unit on and continue tracing along the gum line until all periodontal pockets are treated.

NOTE: This tip must be used only with the Pressure Control set to 1. Use on a higher setting will shorten life of tip and power handle.

Tongue Cleaner Tip

To use the tongue cleaner tip, set the unit to the lowest pressure setting. Gently place the tongue cleaner in the center/midline of your tongue, about halfway back and start the Water Flosser. With light pressure pull forward. You can increase pressure as you prefer.

Line drawing of a human mouth with a brush applying product to the lower lip (no text or symbols)

Orthodontic Tip

The special Orthodontic Tip is uniquely designed to simultaneously brush and rinse hard-to-reach areas around braces and other dental work.

Diagram of dental braces with a finger insertion, showing alignment and color (no text or symbols)

Start on the last molar (back tooth). Aim water stream at 90 degrees to the tooth at the gumline. Gently glide tip along gumline, pausing briefly to lightly brush area between teeth and all around orthodontic bracket, before proceeding to the next tooth. Continue process until you have cleaned the inside and outside of both the upper and lower teeth.

Toothbrush Tip

Place the toothbrush tip in mouth with the brush head on the tooth at the gum line. The toothbrush tip can be used with or without toothpaste. Turn the Water Flosser on so water flows through the tip. Using a light pressure (bristles should not bend) massage the brush back and forth with very short strokes – much like you would with a manual toothbrush. Repeat on adjacent teeth. Water will flow through the brush, to help simultaneously clean and rinse the tooth surface.

Illustration of two dental procedure steps showing tooth removal and tool application (no text or symbols)

Plaque Seeker® Tip

Direct the jet stream at a 90-degree angle to your gumline. Close lips slightly to avoid splashing but allow water to flow freely from mouth into sink. Start in the molar (back teeth) area working toward the front teeth. Place the tip close to the teeth so that the bristles are gently touching the teeth.

Gently glide tip along gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth. Continue until all areas around and between the teeth both inside and outside, top and bottom have been cleaned.

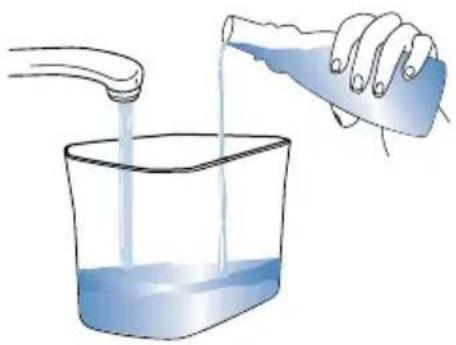

Using Mouthwash and Other Solutions

Your Waterpik® Water Flosser can be used to deliver mouthwash and antibacterial solutions. Ask your dental professional to recommend the appropriate solution for you. Note: use of some antibacterial solutions could shorten the life of your Waterpik® Water Flosser, see warnings section for details.

Illustration of a hand pouring liquid from a bottle into a beaker with liquid, no text or symbols present

CARE OF YOUR WATERPIK® WATER FLOSSER

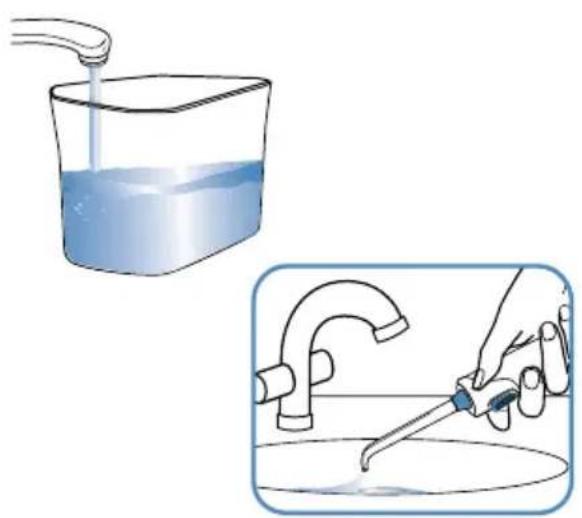

After using any special solution in the reservoir, take a moment after every use to rinse the unit. Partially fill the reservoir with warm tap water. Aim the jet tip into your sink. Turn on the unit and let it run until empty. This will help keep the tip from clogging and help your unit to last longer.

Illustration showing a beaker with liquid being inverted and a hand holding a syringe inside a basin (no text or symbols)

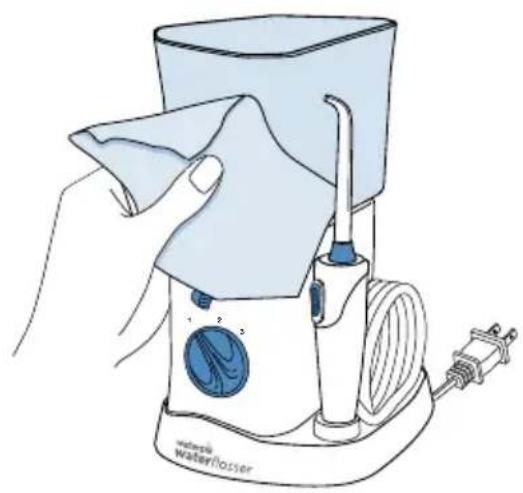

Cleaning Your Waterpik® Water Flosser

Clean the product when necessary by using a soft cloth and mild non-abrasive cleanser.

Illustration of a waterflosser machine with cleaning tool and attached tubing (no text or symbols)

Before cleaning, unplug from the electrical outlet.

Before exposing the Water Flosser to freezing temperatures, remove the reservoir and run the unit until completely empty.

Service Maintenance

Waterpik® Water Flossers have no consumer-serviceable electrical items and do not require routine service maintenance. For all accessories go to www.waterpik.com.

You may also call our toll-free customer service number at 1-800-525-2774 (USA) or 1-888-226-3042 (Canada).

RECOMMENDED TIP REPLACEMENT INTERVALS

Refer to the serial and model numbers in all correspondence. These numbers are located on the bottom of your unit.

Replacement tips/attachments may be purchased directly from Water Pik, Inc. Call 1-800-525-2774 (USA) or 1-888-226-3042 (Canada) or visit our web site at www.waterpik.com.

Replace Every 3 Months Orthodontic Tip PikPocket™ Tip Toothbrush Tip Plaque Seeker® Tip 0 3 6 Replace Every 6 Months Classic Jet Tip Tongue Cleaner Tip

TROUBLESHOOTING GUIDE

PROBLEM	CAUSE	CORRECTIVE ACTION
TipsLeakage between the tip and handle knob.	1) Tip not fully engaged.	1) Remove tip and reinstall.
Pik PocketTM TipTear in soft tip.	1) Tip is worn.2) Tip is split.	1) Replace with new tip.2) Replace with new tip and use ONLY on lowest pressure.
Water Flosser BaseHose to the handle leaks.	1) Damage to the hose.	1) Visit www.waterpik.com or contact Water Pik, Inc. customer service for a self service repair kit.
Reservoir leaks.	1) Missing black reservoir valve.2) Black reservoir valve is upside down.	1) Replace reservoir valve. Contact Water Pik, Inc. customer service for a replacement valve.2) Ensure valve is right-side up (see image to right).
Inadequate pressure.	1) Reservoir not positioned properly.2) Tip is clogged with debris.3) Black reservoir valve is clogged.4) Hard water deposits.	1) Re-position reservoir. Press down firmly on the reservoir.2) Flush tip under faucet or replace tip.3) Remove reservoir valve and clean by massaging the valve under warm running water and place back into reservoir.Ensure the valve is right-side up (see above image).4) Add 2 tablespoons of white vinegar to a full reservoir of warm water. Set pressure control dial to high, point the handle and tip into sink. Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.
Unit doesn't start.	1) Motor not running.	1) Be sure outlet is functioning; test with another appliance(check electrical reset button and/or wall switch).

Still have questions? Go to www.waterpik.com or call Water Pik, Inc. Customer Service.
Toll -Free Number: 1-800-525-2774 (U.S.A.) 1-888-226-3042 (Canada).

LIMITED TWO-YEAR WARRANTY

Water Pik, Inc. warrants to the original purchaser/owner of this new product that it is free from defects in materials and workmanship for two years from date of purchase. Save your receipt as your proof of purchase date. Water Pik, Inc. reserves the right to request the product to be returned, at the owners expense, for analysis to confirm the claim falls within our warranty policy. We will replace any part of the product, which in our opinion is defective, provided the product has not been abused, misused, altered or damaged after purchase and was used according to these instructions. This limited warranty excludes accessories or consumable parts such as tips, etc.

This warranty gives you specific legal rights. You may also have other rights that vary depending on the law in your place of residence.

BIENVENUE

Line drawing of a hand holding a small object over a seated figure (no text or symbols)

Simple line drawing of a pelvic region with no text or symbols

Simple line drawing of a tooth being injected with a tool, showing tooth and surrounding bone structure (no text or symbols)

Diagram illustrating dental procedure steps with labeled tool tips and tooth positioning

ARRÊT 1 2 3

UTILISATION DE LA CANULE

Canule Pik Pocket ^MC

Simple line drawing of a tooth with a surgical instrument inserted (no text or symbols)

Line drawing of a dental procedure showing teeth and jaw with no text or symbols

Canule gratte-langue

Illustration of a hand pouring liquid from a bottle into a beaker of liquid (no text or symbols)

Illustration showing a beaker with liquid being inverted and a hand holding a pipette inside a basin (no text or symbols)

Illustration of a water filterer with cleaning tool and power plug (no text or symbols)

Line drawing of a hand holding a small object over a seated figure (no text or symbols)

Simple line drawing of a human pelvic anatomy (no text or labels)

Illustration of a dental procedure showing a tooth being injected with a tool (no text or symbols present)

Diagram illustrating dental procedure steps with labeled tool tips and tooth positioning

Al acabar

Simple line drawing of a dental procedure with a tool inserted (no text or symbols)

Line drawing of a dental procedure showing teeth and jaw with no text or symbols

Line drawing of a tooth with a brush applying material to the mouth (no text or symbols)

Diagram of dental braces with a connecting rod and clamped components (no text or labels)

Illustration of two dental procedure steps: first showing tooth removal with a tool, second showing dissection with a tool (no text or symbols)

Cabezal Plaque Seeker®

Illustration of a hand pouring liquid from a bottle into a beaker (no text or symbols)

CUIDADO DE SU IRRIGADOR BUCAL WATERPIK®

Illustration showing a beaker with liquid being inverted and a hand holding a syringe inside a basin (no text or symbols)

Illustration of a water purifier with cleaning tool and attached plug (no text or symbols)

1730 East Prospect Road

Fort Collins, CO 80553-0001 USA

www.waterpik.com

Waterpik ^® is a trademark of Water Pik, Inc. registered in Argentina, Australia, Benelux, Canada, Chile, China, Hong Kong, India, Japan, Korea, Mexico, New Zealand, Norway, Pakistan, Russian Federation, Singapore, South Africa, Switzerland, Taiwan, Ukraine, and the United States.

Waterpik® (stylized) is a trademark of Water Pik, Inc. registered in Australia, Brazil, Canada, China, EU, Hong Kong, Japan, Mexico, Korea, Russian Federation, Switzerland, Trinidad & Tobago, and the United States.

Treat yourself better™ and Pik Pocket™ are trademarks of Water Pik, Inc.

Plaque Seeker ^® is a trademark of Water Pik, Inc. registered in Canada, China, EU, and the United States.

Designed in USA. Made in CHINA.

Form No. 20015628-F AC

©2011 Water Pik, Inc.
