USER MANUAL KDK911423M AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not 󰘰nd on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website to: Receive advice, download our brochures, solve any anomaly and 󰘰nd information on technical support: www.aeg.com Register your product and receive a better service: www.aeg.com/productregistration Purchase accessories, consumables and original spare parts for your appliance: www.aeg.com/shop

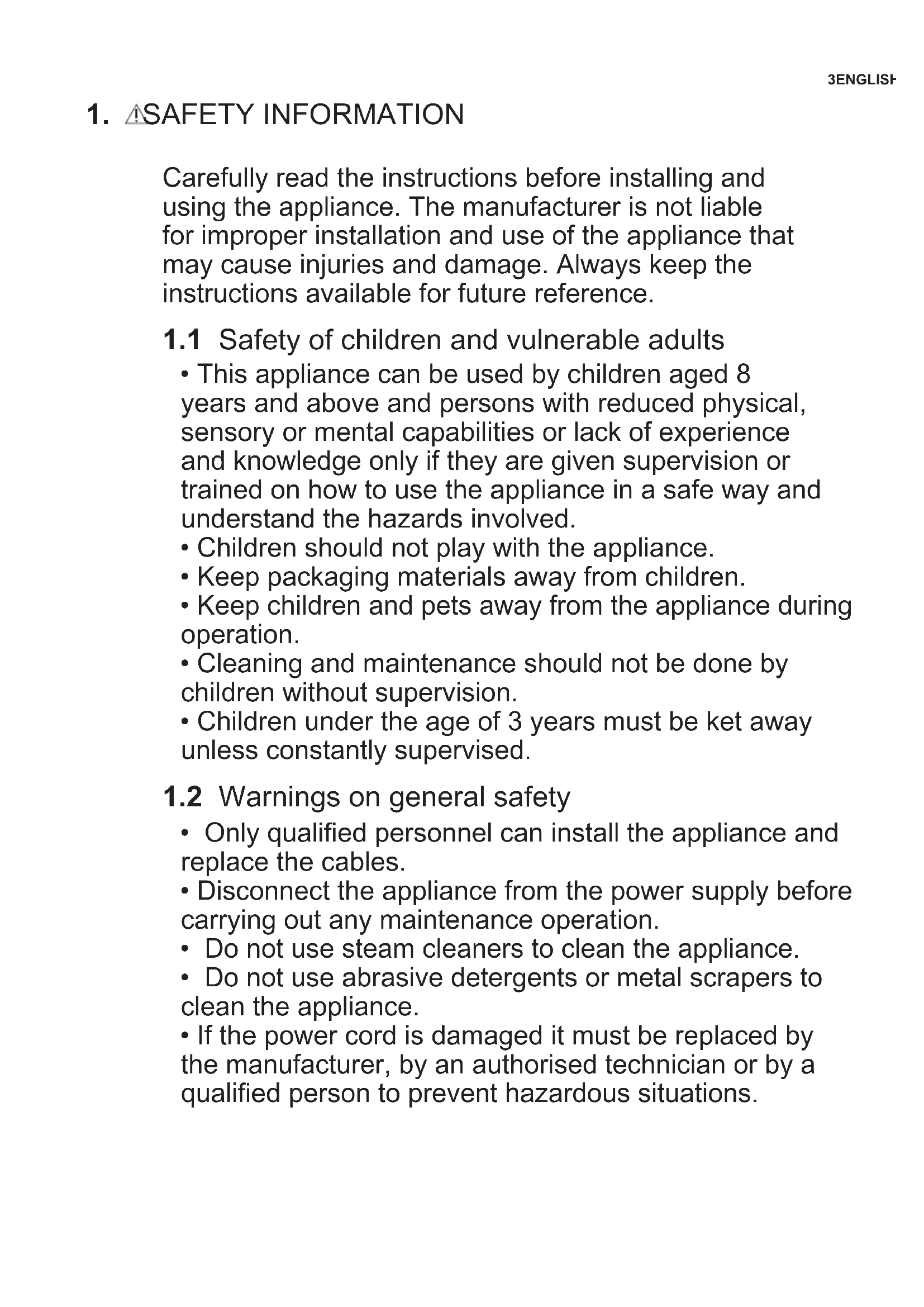

Carefully read the instructions before installing and using the appliance. The manufacturer is not liable for improper installation and use of the appliance that may cause injuries and damage. Always keep the instructions available for future reference.

1.1 Safety of children and vulnerable adults

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are given supervision or trained on how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance.

• Keep packaging materials away from children.

• Keep children and pets away from the appliance during operation.

• Cleaning and maintenance should not be done by children without supervision.

• Children under the age of 3 years must be ket away unless constantly supervised.

1.2 Warnings on general safety

• Only quali󰘰ed personnel can install the appliance and replace the cables.

• Disconnect the appliance from the power supply before carrying out any maintenance operation.

• Do not use steam cleaners to clean the appliance.

• Do not use abrasive detergents or metal scrapers to clean the appliance.

• If the power cord is damaged it must be replaced by the manufacturer, by an authorised technician or by a quali󰘰ed person to prevent hazardous situations.4 www.aeg.com

CAUTION! The appliance must be installed by quali󰘰ed personnel only.

• Remove the packaging material.

• Do not install or use the appliance if damaged.

• Comply with the instructions supplied with the appliance.

• Always pay attention when moving the appliance. Always wear safety gloves.

• Do not turn the appliance upside down or tilt it! This may cause oil to leak from the pump and damage the equipment.

• Respect the minimum distance from other appliances.

• Make sure the appliance is installed and secured to a 󰘰xed structure.

• The sides of the appliance must be adjacent to other equipment or units having the same height.

2.2 Electrical connection

CAUTION! Risk of 󰘰re and electric shock.

• All the electrical connections must be made by a quali󰘰ed electrician.

• The appliance must be earthed.

• Make sure that all the electrical data shown on the data plate correspond to those of the system. Otherwise, contact an electrician.

• Always use an electrical outlet with a correctly installed protective contact.

• Do not use multi-plug adapters or extension cables.

• Make sure not to damage the mains plug and the mains cable. If the power cable must be replaced, this should be carried out by our Assistance Centre.

• Shock protection devices must be fastened in such a way that they cannot be removed without tools.

• Connect the mains plug to the mains socket only once installation has been completed.

• Do not connect the mains plug if the mains socket is loose.

• Do not pull the mains cable to disconnect the appliance. Pull only the mains plug.

• Use only suitable isolation devices: circuit breakers, fuses (screw type fuses must be removed from the fuse holder), earth fault current releases and relays.

• The electric system must be equipped with an isolation device that allows you to disconnect the appliance from the mains at every pole. The isolation device must have a contact opening width of a minimum 3 mm.

• This appliance complies with the EEC directives.5ENGLISH

CAUTION! Risk of injury, burns, electric shock or explosion.

• Do not touch the sealing bar after use. Residual heat can cause burns.

• Use this appliance only in a household environment.

• Do not modify the speci󰘰cations of this appliance.

• Do not leave the appliance unattended during operation.

• Turn the appliance o󰘯 after use.

• Do not use the appliance with wet hands or when it could come into contact with water.

• Do not apply pressure on the drawer.

• Do not use the appliance as a work surface or as a support surface.

• Avoid the presence of sparks or open 󰘱ames near the appliance when you open the drawer. Do not place or keep 󰘱ammable liquids, materials or objects on the appliance, or inside or close to it. CAUTION! You may damage the appliance.

• Pay attention when you remove or insert the accessories.

• Do not force the cover open during the work cycle.

• Do not force the cover open during the work cycle in the case of a power cut.

• Do not place any weight on the cover.

• Prevent any object from falling on the cover! This can compromise the integrity, causing cracks or damage.

2.4 Cleaning and maintenance

CAUTION! There is a risk of injury, 󰘰re or damage.

• Before carrying out any maintenance operation, turn the appliance o󰘯 and disconnect the plug from the mains socket.

• Check that the appliance is cold.

2.5 Disposing of the appliance

CAUTION! Risk of injury and choking.

• Disconnect the plug from the power supply.

• Remove the mains cable and dispose of it.

2.6 Technical Assistance

• Contact the authorised Assistance Centre to repair the appliance.

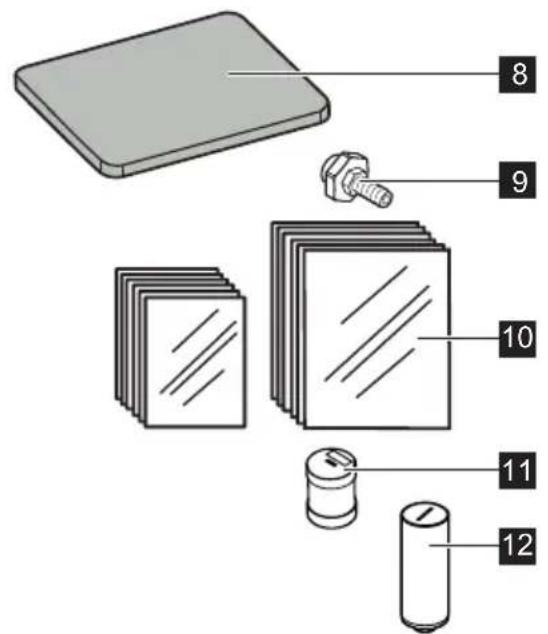

Fitting for external vacuum

Pouches for freezing, cooking and storage 25 pouches 20x30 cm 25 pouches 25x35 cm

CAUTION! Refer to the chapters on safety. CAUTION! The plastic cap

removed during installation must be put aside and installed again for future machine handling (e.g. relocated) to prevent oil leaks.

5.1 Cleaning for the 󰘰rst time

• Refer to the “CLEANING AND MAINTENANCE” chapter.

• Wipe all parts with a damp cloth before the 󰘰rst use.

Turn the appliance on while holding down the button. Proceed with the RECONDITIONING CYCLE before use as described below:

• Hold down the button until all the buttons 󰘱ash.

• Close the cover with light pressure.

• Press the button. The and buttons 󰘱ash while the program runs.

• At the end of the cycle (15 minutes) the button will stop 󰘱ashing and the appliance will be ready for use.

This product is ideal for:

• Vacuum food packaging for “SousVide” low temperature cooking.

• Vacuum packaging for food preservation.

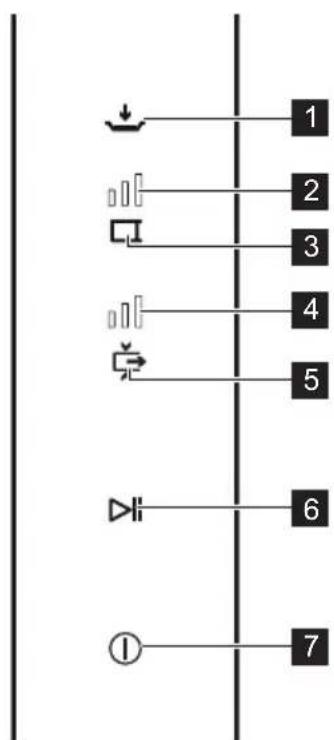

• Food marinade/infusion.8 www.aeg.com Button Description Function ON/OFF button Turning the appliance on/o󰘯. START/STOP button To start/stop the packaging cycle. VACUUM button Set one of the 4 vacuum levels available. The preset value is MAX. only sealing MIN. MED. MAX. Button SEALING Set the sealing time according to the thickness of the pouch

The appliance is preset to 2.5 s, which is the ideal time for the pouches provided. disabled

The thicker the pouch, the longer the set time.

• Open the drawer completely.

• Turn the appliance on while holding down the button.

• If necessary, modify the vacuum level and the sealing time.

• Lift the cover and place the pouch containing the food to be packed inside the tank, leaving at least 2 cm beyond the sealing bar.

• It is important not to soil the pouch in the sealing area so as to guarantee a perfect seal. For this reason it is advisable to fold the inner side of the pouch outwards by 4-5 cm. Once the food is inserted, fold the pouch again in its initial condition.

• For small products, use the supplied 󰘰ller plate, as it helps position the pouch in the correct position with respect to the sealing bar.

• Close the cover with light pressure and press the button which begins to 󰘱ash. The packaging cycle will then start.

• The button stops 󰘱ashing at the end of this cycle.

• Open the cover and remove the pouch. Do not touch the sealing bar after use. Residual heat can cause burns.

• Turn the appliance o󰘯 while holding down the button. If the appliance is not used for 60 minutes it switches o󰘯 automatically.9ENGLISH Liquid food If the button is pressed during operation, the cycle stops and the pouch is immediately sealed. This procedure must be used for packing liquid products, which may boil during the vacuum cycle. Note: Periodically, the appliance automatically performs a reconditioning cycle (see Chap. 6.5) during which the and buttons 󰘱ash. Allow the cycle to run without intervening on the appliance until the 2 buttons will stop 󰘱ashing. Depending on the food to be packed, it is advisable to set the vacuum level as shown in the table: Vacuum level Use Package and divide into portions without creating vacuum.

Package and divide into portions of particularly delicate food (salad, tomatoes, etc.) with the minimum vacuum level (MIN). - Package and divide delicate food into portions (cooked vegetables, fruit, tender meat, pasta) and liquid food (soup, cream, sauce). - Marinate in the pouch. - Vacuum cook (SousVide) delicate food (e.g. 󰘰sh) with the medium vacuum level (MED). - Package and divide solid food into portions (raw vegetables, hard cheese, cold cuts). - Vacuum cook (SousVide) solid food (e.g. meat, potatoes, carrots, etc.) with the maximum vacuum level (MAX).

The pouches provided are ideal for freezing, storage and cooking vacuum packed food at low temperatures. Pouches order code: 902979704 50 pouches for freezing, vacuum cooking and storage (25 pieces, dimensions: 20x30 cm + 25 pieces, dimensions: 25x35 cm) Pouches order code: 9029794014 50 pouches for vacuum cooking and storage (25 pieces, dimensions: 20x30 cm + 25 pieces, dimensions: 25x35 cm) It is recommended to use original pouches. www.aeg.com/shop

6.2 Vacuum food packaging

for “SousVide” low temperature cooking With this method, the food sealed in the vacuum pouch is then cooked slowly at low temperature. The bene󰄈ts provided are many:

• The 󰘱avour and texture of the remains unaltered.

• Both 󰘱avour and aromas are preserved, as the cooking process does not disperse them.

• The reduced loss of liquid makes the food softer and less dry.

• Nutrients like minerals and vitamins are preserved.

• You don’t need to add oils or fats for cooking.

6.3 Vacuum packaging for food

preservation Vacuum packing extends food preservation. If you wish to vacuum pack freshly cooked food, it must 󰘰rst be chilled, possibly using a blast chiller.

6.4 Marinades/infusion

• Turn the appliance on while holding down the button.

• Place the food with the marinade in the pan.

• Lift the cover and place the pan in the tank.

• Press the button, which will start to 󰘱ash.

• Close the cover with light pressure.

• Press the button to start the marinade cycle. This button will start to 󰘱ash.

• This button will stop 󰘱ashing once the marinating cycle is completed.

• The cover can then be opened and the pan removed. The marinating and infusion cycle has a preset time of 8 minutes. Increase the infusion and repeat the cycle. This infusion can be deactivated at any time by pressing the button. You can marinate food directly in the pouch. In this case, set the relevant vacuum level.11ENGLISH

6.5 Additional functions

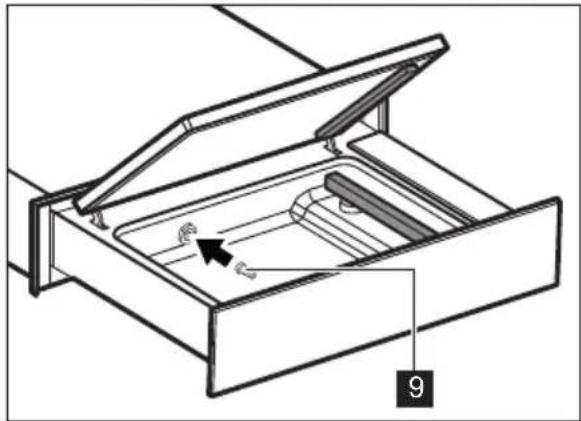

“External vacuum” It is to be used to eliminate the air inside special air-tight containers (not supplied with this appliance).

• For the external vacuum, tighten the 󰘰tting

provided, inside the tank.

• Connect the container pipe to the 󰘰tting

• Set the maximum vacuum level and disable the sealing .

• With the appliance cover open press the button to start the packaging cycle. This button will start to 󰘱ash.

• The button stops 󰘱ashing at the end of this cycle. “Reconditioning cycle” This function is used in the following situations:

• Before using the appliance for the 󰘰rst time.

• After extensive downtime.

• After having sealed products with high humidity content (e.g. soups).

• When you notice a decrease in appliance performance (e.g. more time to vacuum or it does not vacuum at all). This program lasts about 15 minutes and guarantees the complete cleaning of the pump, removing any liquid emulsion that might be found in the oil. Do not seal any product while this program is running. Proceed as follows:

• Hold down the button until all the buttons 󰘱ash.

• Close the cover with light pressure.

• Press the button. The and buttons 󰘱ash while the program runs.

• At the end of the cycle (15 minutes) the button will stop 󰘱ashing and the appliance will be ready for use.12 www.aeg.com

7. CLEANING AND MAINTENANCE

CAUTION! Refer to the chapters on safety.

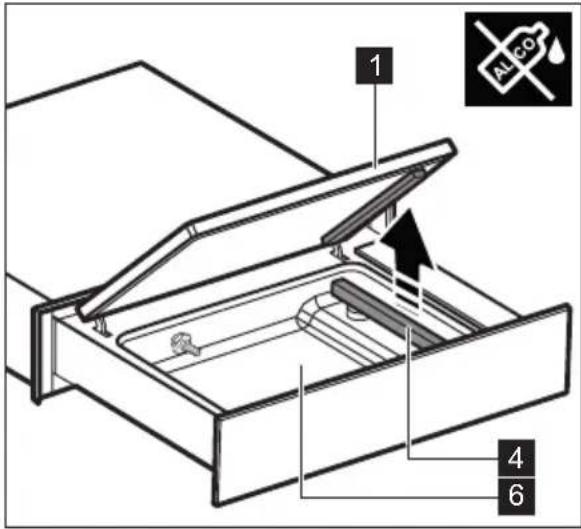

• Clean the appliance after each use with a damp and soft cloth.

• Clean the Plexiglas cover

inside and out using only neutral detergents (water and soap).

• Do not use abrasive products, alcohol- based detergents, abrasive sponges, solvents or metal objects.

• Follow the safety instructions indicated on the packaging when using products to clean the steel tank

, especially in the case of residue liquid, it is advisable to remove the sealing bar

• Clean the sealing bar

with a dry cloth. Remove any residue that deposits on the bar.

• Clean the metal surfaces using normal detergents suitable for stainless steel.13ENGLISH

CAUTION! Refer to the chapters on safety.

Problem Possible cause Solution The pouch is not sealed correctly. The sealing time is not correct. Change the sealing time. The cover gasket is dirty or worn. Clean or replace the cover gasket (contact the Technical Assistance Service for a replacement). The pouch is not placed correctly on the sealing bar. Position the pouch correctly. The sealing bar is worn (the Te󰘱on coating is burnt). Replace the sealing bar (contact the Technical Assistance Service for a replacement). The blade placed under the Te󰘱on of the sealing bar is broken. Replace the blade (contact the Technical Assistance Service for a replacement). Final vacuum is poor. The set vacuum level is not correct. Change the vacuum level. The cover gasket is dirty or worn. Clean or replace the cover gasket (contact the Technical Assistance Service for a replacement). The cover is not closed correctly. Close the cover correctly. Make sure that objects or dirt are not found between the cover and tank. The cover does not open. No power supply. Wait until the power supply is restored. The cover is cracked or broken. Damaged cover. Replace the cover (contact the Technical Assistance Service for a replacement). The and buttons 󰘱ash. “Reconditioning cycle” in progress. Wait for the end of the “reconditioning cycle” (15 minutes).14 www.aeg.com The vacuum cycle is stopped within a few seconds and the button 󰘱ashes. The cover gasket is dirty or worn. Clean or replace the gasket of the cover and check that it is closed properly. Alarm messages Alarm Possible cause Solution The button will 󰘱ash continuously. The electrical board is faulty. Contact the Technical Assistance Service. The button will 󰘱ash continuously. The vacuum is not produced. Clean or replace the cover gasket (contact the Technical Assistance Service to replace it). Make sure the cover closes correctly. Press the button to reset the alarm. The and buttons 󰘱ash continuously. The pump oil must be replaced. Contact the Technical Assistance Service. The button 󰘱ashes continuously. The packaging cycle is terminated in advance because a wet product is being packaged. Press the button to reset the alarm.

If it is not possible to 󰘰nd a solution to the problem, contact the authorised Assistance Centre. The information required for the Assistance Centre is found on the data plate on the left side of the appliance. Do not remove the data plate.

9. ENVIRONMENTAL CONSIDERATIONS

Recycle materials that carry this symbol . Dispose of the packaging in special containers for recycling. Help protect the environment and human health and recycle waste deriving from electric and electronic devices. Do not dispose of appliances that carry this symbol together with domestic waste. Return the product to your local recycling facility or contact your municipal o󰘲ce.15ENGLISH16 www.aeg.com
