USER MANUAL 2171056 RUSSELL HOBBS

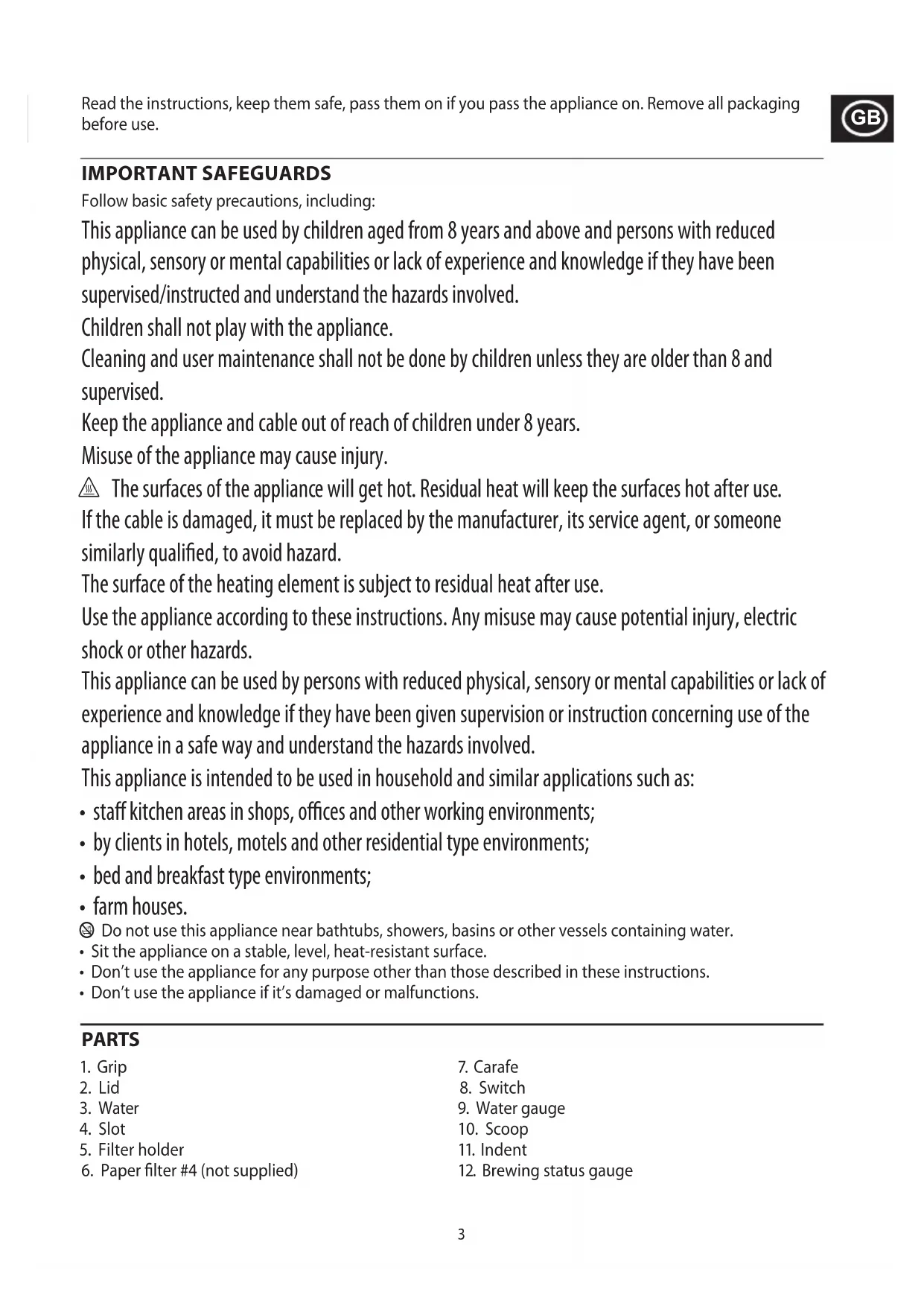

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• farm houses.
  Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• Sit the appliance on a stable, level, heat-resistant surface.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

PARTS

1. Grip
2. Lid
3. Water
4. Slot
5. Filter holder

6. Paper filter #4 (not supplied)

7. Carafe

8. Switch
9. Water gauge
10. Scoop
11. Indent
12. Brewing status gauge

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

CARAFE

1. To close the carafe lid, turn it fully clockwise. The indent will be aligned with A.
2. It should be in this position while the carafe is sitting on the rest, or being carried.
3. To pour, remove the carafe from the rest and turn the lid 90^ to align the indent with the spout. Close the lid after pouring.
4. Rinse the carafe with hot water, to prewarm it, so it doesn't take heat from the coffee.

FILLING

1. Remove the carafe from the hotplate.
2. Use the grip to open the lid, and expose the reservoir.
3. Fill with at least 2 cups of water, but not above the max mark.
4. Open up a #4 paper filter, and put it into the filter holder.
5. Put 1 scoop of filter-ground coffee into the filter for each cup.
6. Close the lid.
7. Replace the carafe on the hotplate.

SWITCH ON

CAUTION: DO NOT open the lid during brewing as there is the potential risk of scalding.

1. Put the plug into the power socket.
2. Move the switch to I. The light will come on.
3. Shortly afterwards, coffee will start to drip into the carafe.
4. When it's done, the hotplate will keep the carafe warm. After 40 minutes, the hotplate and appliance will shut down.
5. Move the switch to O.
6. Unplug, and let the appliance and carafe cool down fully before cleaning, or for about 10 minutes before refilling.
7. For the best flavour, drink the coffee within 40 minutes of brewing.

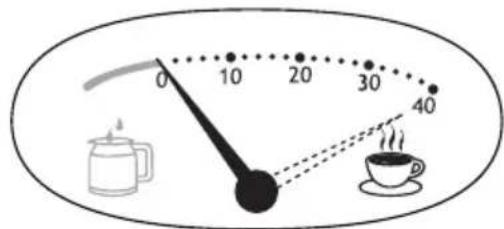

BREWING STATUS GAUGE

The gauge shows the status of your coffee machine.

• The pointer will first show the brewing stage as your coffee is being made. The pointer will move slowly clockwise within the first (long) segment during brewing.

• Once brewing has finished, the pointer will move to the 0 marking. It will then show, in minutes, how long the coffee has been kept warm by the hot plate (0 to 40 mins). After about 40 minutes, chemical changes will affect the taste of the coffee.

• When the appliance shuts down, the pointer will move to the rest position.

A QUICK CUP

You can remove the carafe at any time. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Clean the outside surfaces of the appliance with a damp cloth.
4. Hand wash the carafe and filter holder.

Descale regularly, (at least monthly).

Descale the appliance at least monthly with a proprietary descaler. Follow the instructions on the package of descaler.

Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

BEHANDLING OG VEDLIKEHOLD

1. Koble fra apparatet og la det kjole seg.
2. Tørk av alle overflater med en ren fuktig klut.
3. Vask kannen og filterholderen for hand, ell er i overste hylle i oppvaskmaskinen.

Avkalk regelmessig

VALMISTUSTILAN MITTARI

BAKHBIE MEPbI IPEIOCTOPOXHOCTN

CneyuTe OCHOBHbIM HNCTpyKcIyam No 6e3OnacHOCTn, BkIIOyAra CneyuOuIe:

IcnoJIb3OBAHne daHHoro yCTpoiCTBa DeTbMn CTapWe 8 let, IuIaMn COrpaHnueHHbIMN n3UeCKmN, ceHCOPHBIMN NII YMCtBeHHbIMN CNoC6HOCTaMn, HeoCTaTKOM ObIta NII 3HaHni DOynyckaetc npu ycIOBNI KOHTPOJ NII INHCTpyKtaJa N OCo3HaHnR CBa3aHHbIX pNcKOB. DeTAM 3anpeSeHo nIgPaTB c yCTpoiCTBOM. OuNCTky N ObClyXnBaHne yCTpoiCTBa MOryt BblOpHnTb DeTn CTapWe 8 let npu ycIOBNI Ha6IIODeHnR B3PoCSbIMN. XpaHnte yCTpoiCTBO n Ka6eJIb B HeoctyHnom dIra deTei Do 8 let MeCTe.

HeppaBnIbHoe nCIOJIb3OBAHne np6opa moKet npuBeCTN K TpaBMe.

Iobepxnoctn np6opa harpebaotc.3a cuet octatoohoro tenla nobepxhoctn 6ydyT OCTaBaTbCra ropaHmN noCne nCNoB30BaHnA.

Ecn Ka6eBn NobpeKdEn, OH DoJKeH 6bITb 3aMeHeH npOn3BOOnTeJeM, cepBnchblm areHTOM nIIM dpYHM KBaINΦuNpOBaHHbIM Nlucom DnI ppeOToBpaUeHnONaCHOCTN.

Iobepxhoctb hargpeBaTeBnHO 3JIeMeHt a OCTaetcra ropaye eue B TeueHne HeKOToPOro BpeMeHN
noCle nCNoJb30BaHn np6opa.

IcnoJIb3yIte np6Op B COOTBeTCTBnC npVBedeHHbIMN INHCTpyKzmaMn. HenpaBnIbHoe IcnoJIb3OBAHne np6Opa MoXe TnpVBecTN K TpaBMe, nopaxHeNIO 3JIeKTPnuYeCKm TOkOM N BO3HnKHOBEHnIO Dpynx ONaChbIX CNTyaucn.

YdaIaIteHaKInbpeyIapHo

IcnoIb3yIte fInpMeHHe cpeCTBO Iy ydaJeHnHaKuHn. CneIyTe HNCTpyKzIaM nO IcNoIb3OBaHnIO cpeCTBa Iy ydaJeHn HaKuHn.

ToBapb, Bo3BpaueHHbIe nO rapaHTn C nOJOMKaMn BCJeCTBHe HaKInn, 6ydyT nOJIexKaTb PlaTHOMy peMOHTy.

IOBTOPHA IPEPEPABOTKA

Bo n36exaHne BO3dECTBnBpeHbIX BeIeCTB Ha OKpykaIOU cypeN i 3DopOBBe np60bpHn 6bTaepn Ondopa3OBOrO nn MHOropa3OBOrO nCIOJIb3OBAHn, NOMEueHHbIe ODHNm 3Tnx CnMBOJOB, Heo6xOIMNO yTNIN3npOBaTB oTJeNbHO OT HecOpTnPOBaHHbIX 6bITOBbIX OTXoIDOB. O6raTeJIbHO yTNIN3npyIte 3NeKTPnueckne n 3NeKTPoHHbIe n3DeJIa, a TaKKe (ecnn 3TO npImeHMo) 6bTaepn Ondopa3OBOrO nn MHOropa3OBOrO nCIOJIb3OBAHn B COOTBEcTByIOuNX OfNUaJIbHbIX pYHKTax NOBtOPHO nepepa6OTKn / c6opa OTXoIDOB.
