Please read these instructions carefully before installing and operating the oven.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENT

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.....1
SPECIFICATIONS 2
BEFORE YOU CALL FOR SERVICE 2
INSTALLATION 2
GROUNDING INSTRUCTIONS 3
RADIO INTERFERENCE 3
IMPORTANT SAFETY INSTRUCTIONS 3
MICROWAVE COOKING PRINCIPLES 4
UTENSILSGUIDE 5
PART NAMES 5
CONTROL PANEL. 6
HOW TO SET THE OVEN CONTROLS 7

Setting Digital Clock 7
Microwave Cooking 7
Quick Start. 7
Preset Function 7
Grill Cooking 7
Microwave ^+ Grill 8
Weight Defrost 8
Child Lock 8
Auto Cook 9

CLEANING AND CARE 10

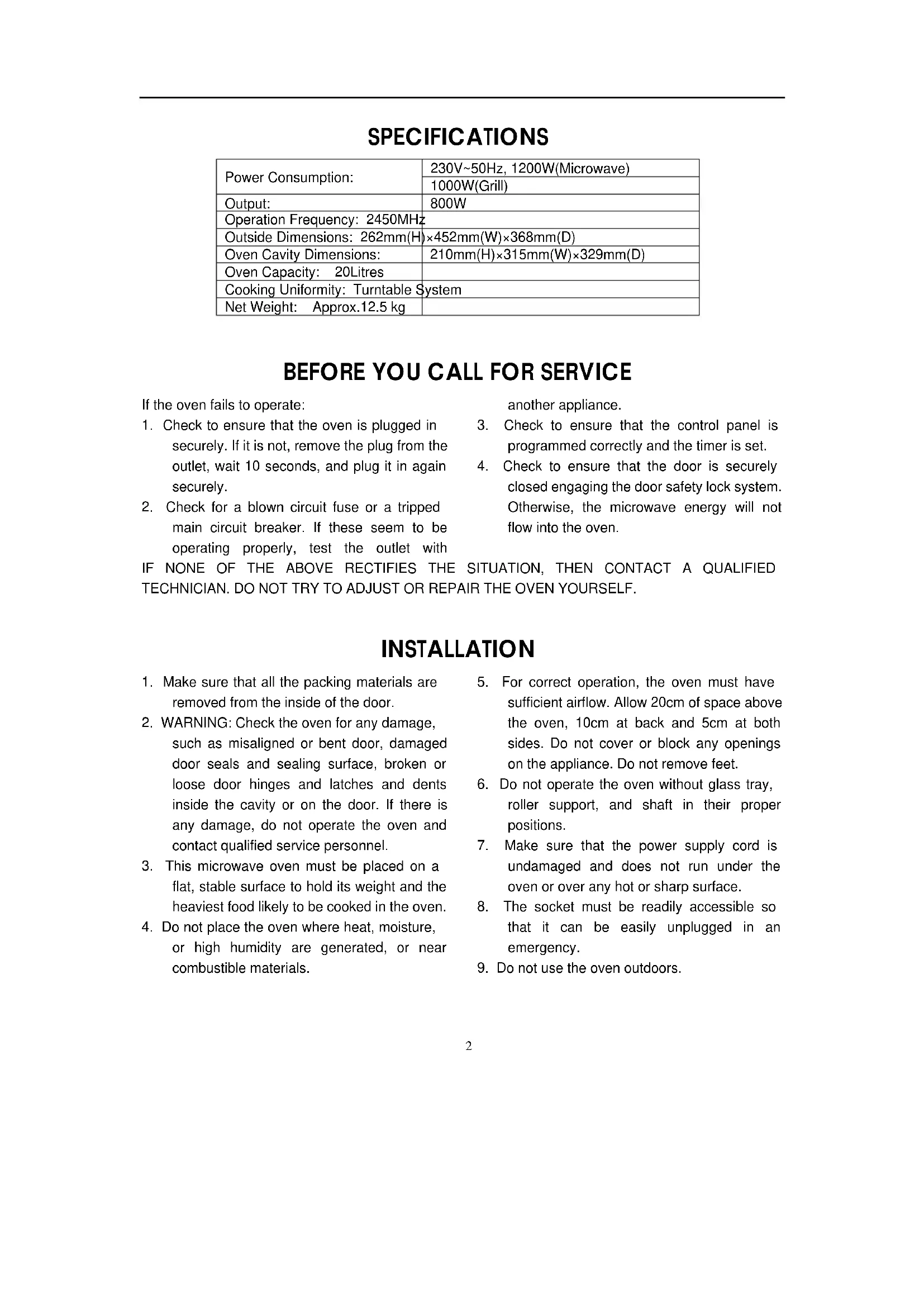

SPECIFICATIONS

Power Consumption:	230V~50Hz, 1200W(Microwave)
	1000W(Grill)
Output:	800W
Operation Frequency: 2450MHz
Outside Dimensions: 262mm(H)×452mm(W)×368mm(D)
Oven Cavity Dimensions:	210mm(H)×315mm(W)×329mm(D)
Oven Capacity: 20Litres
Cooking Uniformity: Turntable System
Net Weight: Approx.12.5 kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with

another appliance.

1. Check to ensure that the control panel is programmed correctly and the timer is set.
2. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or

television.

1. Relocate the microwave oven with respect to the receiver.
2. Move the microwave oven away from the receiver.
3. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not

designed for industrial or laboratory use.

1. Do not operate the oven when empty.
2. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

3. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

4. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

5. To reduce the risk of fire in the oven cavity:
   When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
   Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
   Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
6. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
7. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
8. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
9. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
10. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
11. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before

serving in order to avoid burns.

1. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
2. Utensils should be checked to ensure that they are suitable for use in microwave oven.
3. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
4. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause

sparks and/or fires.

1. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
2. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave		Gill
Heat-Resistant Glass Yes Yes Yes	Yes
Non Heat-Resistant Glass No No	No
Heat-Resistant Ceramics Yes Yes	Yes
Microwave-Safe Plastic Dish	Yes	No No
Kitchen Paper	Yes No No
Metal Tray	No Yes No
Metal Rack	No Yes No
Aluminum Foil & Foil Container	No	Yes	No

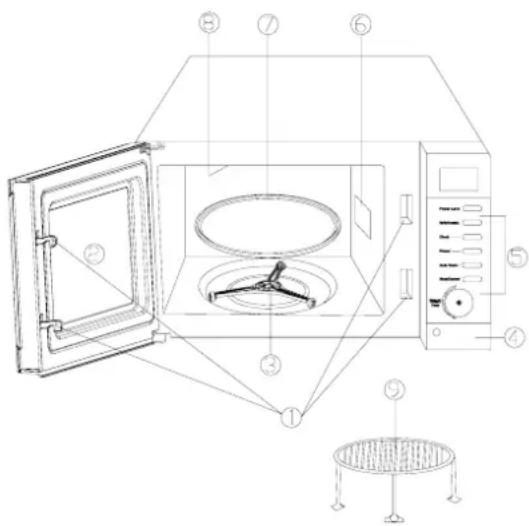

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Turntable Roller
4. Door Release Button
5. Control Panel
6. Wave Guide
7. Glass Turntable
8. Grill Heater
9. Metal Rack

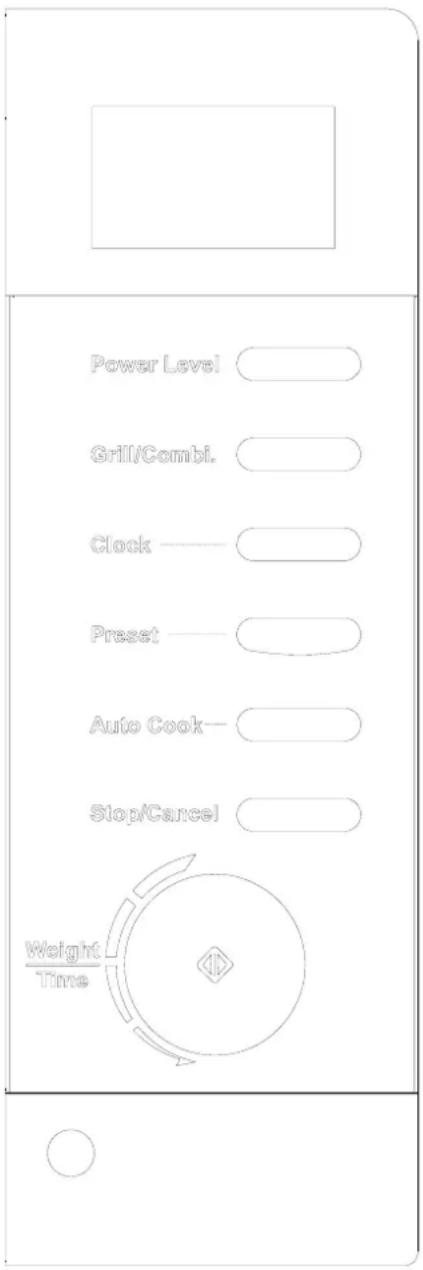

CONTROL PANEL

MENU ACTION SCREEN

× Cooking time, power, action indicators, and clock time are displayed.

POWER LEVEL

• Touch this button a number of times to set microwave cooking power level.

CLOCK

• Touch this button to set the oven clock.

GRILL/COMBI.

× Press to set a grill or combination cooking program.

AUTO COOK

Touch to set auto cooking.

PRESET

• Touch to preset a cooking program start at an appoint time automatically.

STOP/CANCEL

• Press to cancel setting or reset the oven before setting a cooking program.
• Press once to temporarily stop cooking, or twice to cancel cooking altogether.
  It is also used for setting child lock.

WEIGHT/TIME (DIAL)

• Turn the dial to set the oven clock time or input cooking time.
  Turn the dial to set food weight.

START/QUICK START (THE DIAL)

× Press the dial to start cooking program or set quick start cooking program.

HOW TO SET THE OVEN CONTROLS

Each time a button is touched, a beep will sound to acknowledge the touch.

SETTING DIGITAL CLOCK

For example: Suppose you want to set the oven clock time to 8:30.

1. Press the CLOCK button once or twice to set clock in 12-hour cycle or in 24-hour cycle.
2. Turn WEIGHT/TIME dial to indicate the hour digits 8.
3. Press CLOCK button once.
4. Turn WEIGHT/TIME to indicate the minute digit 30.
5. Press CLOCK button once to confirm the setting.

Note: during cooking, press CLOCK to check present time.

MICROWAVE COOKING

To cook with microwave power alone, press the POWER LEVEL button a number of times to select a cooking power level, and then use the WEIGHT/TIME dial to set a desired cooking time. The longest cooking time is 95 minutes.

Select power level by pressing the POWER LEVEL button:

Press POWER LEVEL button	Cooking power	Display
Once	100%	100
Twice	80%	80
3 times 60%	60
4 times 40%	40
5 times 20%	20
6 times 0%	00

For example: Suppose you want to cook for 5 minute at 60% of microwave power.

1. Press POWER LEVEL button 3 times.
2. Turn WEIGHT/TIME to 5:00.
3. Press START/QUICK START to start.

QUICK START

This feature allows you to start the oven quickly.

Press the START/QUICK START button a number of times to set the cooking time, the oven starts work at full power level immediately. The longest cooking time is 10 minutes.

PRESET FUNCTION

This function allows you to preset a cooking program, which can start at an appoint time automatically.

For example: suppose the present time is 8:00, and you want the oven to cook at 11:30 for 30 minutes with 80% power level.

1. Enter your desired microwave cooking program. (just like the setting of microwave cooking)
2. Press PRESET button once.
3. Turn the WEIGHT/TIME dial to set the hour digit 11:00.
4. Press PRESET button once to confirm.
5. Turn the WEIGHT/TIME dial to enter the minute digit 11:30.
6. Press PRESET button to confirm.

Note:

After setting of preset success, you can only check the present preset time by pressing PRESET button.
Quick start, Weight defrost can not be used in conjunction with preset function.

GRILL COOKING

Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. The longest cooking time is 95 minutes.

For example: Suppose you want to program grill cooking for 12 minutes.

1. Press GRILL/COMBI. button once.
2. Turn WEIGHT/TIME until desired time is

displayed.

1. Press START/QUICK START button.

MICROWAVE+GRILL

The longest cooking time in both combination 1 and 2 is 95 minutes.

COMBINATION 1

30% time for microwave cooking, 70% for grill cooking. Use for fish and au gratin.

For example: Suppose you want to set combination 1 cooking for 25 minutes.

1. Press STOP/CANCEL button.
2. Press GRILL/COMBI. button twice.
3. Turn WEIGHT/TIME to 25:00.
4. Press START/QUICK START button.

COMBINATION 2

55% time for microwave cooking, 45% for grill cooking. Use for pudding, omelets, baked potatoes and poultry.

For example: Suppose you want to set combination 2 cooking for 12 minutes.

1. Press STOP/CANCEL button.
2. Press GRILL/COMBI. button for 3 times.
3. Turn WEIGHT/TIME to 12:00.
4. Press START/QUICK START button.

WEIGHT DEFROST

The oven allows the defrosting of meat, poultry,

and seafood. The time and the defrosting power are adjusted automatically once the weight is programmed. The range weight of frozen foods varies between 100g and 1800g.

For example: Suppose you want to defrost shrimp.

1. Place the shrimp to be defrosted into the oven.
2. Turn WEIGHT/TIME dial anti-clockwise once to defrosting mode, when 100, g, display.
3. Turn WEIGHT/TIME dial to choose food weight.
4. Press START/QUICK START button.

Note: During defrosting program, the system will pause and sound beeps to remind user to turn over the food, then close door and press START/QUICK START to resume the defrosting.

CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set.

To set the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds, a beep will sound and lock indicator light will turn on.

To cancel the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds until lock indicator light on the display goes off.

AUTO COOK

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food. In order to do this, press the AUTO COOK button to select a category of food/cooking mode, rotate the WEIGHT/TIME to indicate weight of food to be cooked. The oven begins cooking once the START button is engaged.

For example: to cook 400g of fish.

1. Press AUTO COOK button to select food to be cooked, when the menu code display.
2. Rotate the WEIGHT/TIME to indicate the weight of 400g.
3. Press START/QUICK START button.

Auto Cook Menu

Menu code	Menus	Note
01	Milk/Coffee(200ml/cup)	1. Turn WEIGHT/TIME dial to indicate weight or amount of food.2. The result of auto cooking depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.3. For Spaghetti, add boiled water before cooking.4. For chicken, beef/mutton, skewered meat, oven pauses and sound beeps in the middle of cooking time to remind the user to turn over food for uniform cooking.
02	Rice (g)
03	Spaghetti (g)
04	Potato (each 230g)
05 Auto Reheat (g)
06	Fish (g)
07	Chicken (g)
08	Beef/Mutton (g)
09 Skewered Meat (g)

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the

glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

1. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
2. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
3. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
4. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
5. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
