USER MANUAL IMO25L40W Ices

Please read these instructions carefully before installing and operating the oven.1

1. Do not attempt to operate this oven with the door open since open door operation

can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

2. Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven

door close properly and that there is no damage to the a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except properly qualified

service personnel. CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY --------------------------------------------------------------------------------------------------------- 1 SPECIFICATIONS --------------------------------------------------------------------------------------------- 2

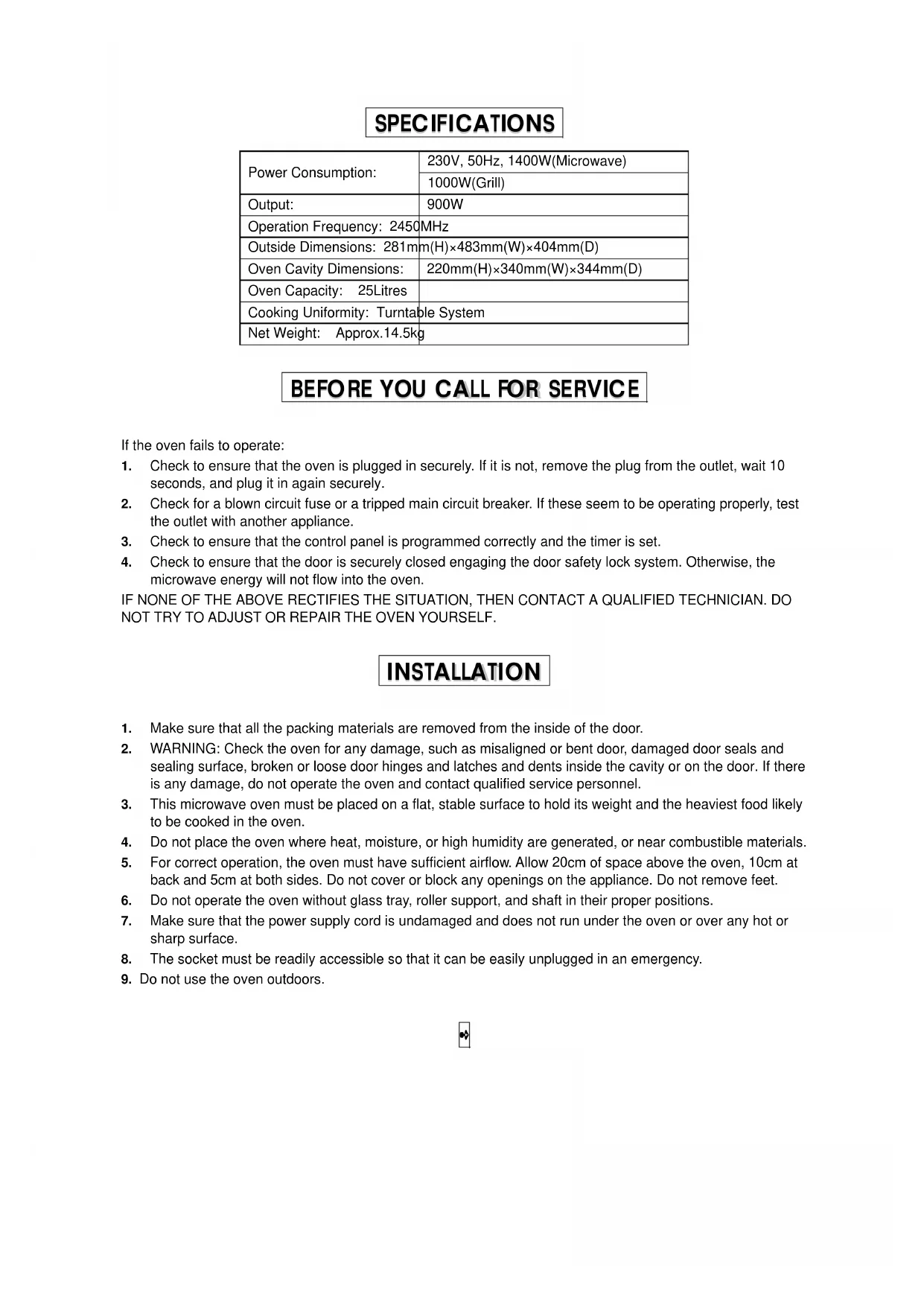

Power Consumption: 230V, 50Hz, 1400W(Microwave) 1000W(Grill) Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 281mm(H)×483mm(W)×404mm(D) Oven Cavity Dimensions: 220mm(H)×340mm(W)×344mm(D) Oven Capacity: 25Litres Cooking Uniformity: Turntable System Net Weight: Approx.14.5kg If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10

seconds, and plug it in again securely.

2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test

the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly and the timer is set.

4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the

microwave energy will not flow into the oven. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

1. Make sure that all the packing materials are removed from the inside of the door.

2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and

sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely

to be cooked in the oven.

4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at

back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or

8. The socket must be readily accessible so that it can be easily unplugged in an emergency.

9. Do not use the oven outdoors.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING Improper use of the grounding plug can result in a risk of electric shock. Note

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury

resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.

5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch

circuits. When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or

vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been

damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. Warning: When the appliance is operated in the combination mode, children should only use the oven

under adult supervision due to the temperatures generated.

6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been

given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequently to the possibility of ignition. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

9. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when

handle the container.

10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may

explode even after microwave heating has ended.

12. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be

checked before serving in order to avoid burns.

14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be

needed to handle the utensil.

15. Utensils should be checked to ensure that they are suitable for use in microwave oven.

16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair

operation which involves the removal of any cover which gives protection against exposure to microwave energy.

17. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM

(Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

18. This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

19. Children should be supervised to ensure that they do not play with the appliance.

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food

severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers.

Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center

of the dish to the outside.

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the

container and heat the food.

2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments

which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t

use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. The list below is a general guide to help you select the correct utensils.

COOKWARE MICROWAVE GRILL COMBINATION

Heat–Resistant Glass Yes Yes Yes Non Heat–Resistant Glass No No No Heat–Resistant Ceramics Yes Yes Yes Microwave–Safe Plastic Dish Yes No No Kitchen Paper Yes No No Metal Tray No Yes No Metal Rack No Yes No Aluminum Foil & Foil Containers No Yes No

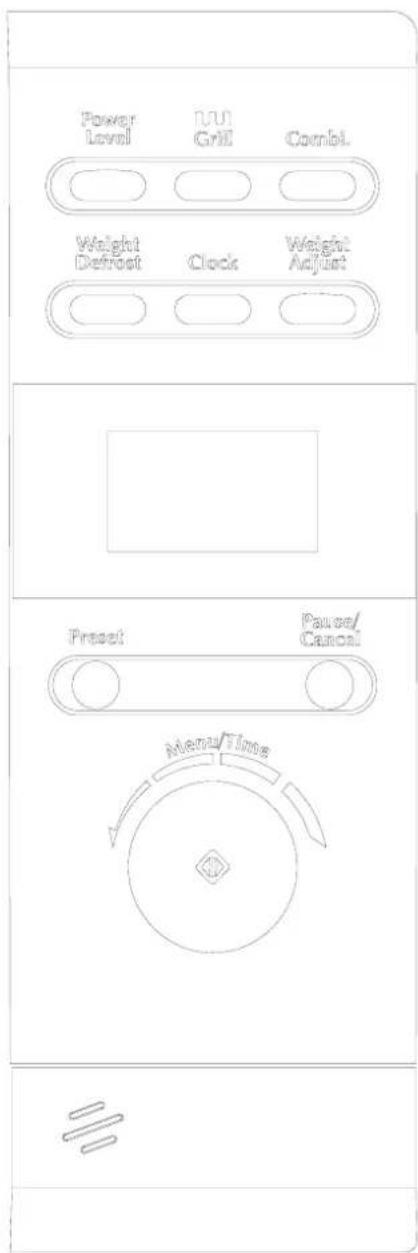

Cooking time, power, action indicators, and clock time are displayed. Q POWER LEVEL Ù Touch this button a number of times to set microwave cooking power level. Q GRILL Ù Press this button to set a grill-cooking program. Q COMBI. Ù Cooking with combined microwave and grill power. Q WEIGHT DEFROST Ù Touch to defrost food based on the weight you entered. Q CLOCK Ù Touch this button to start setting the oven clock and ending by touching it again. Q WEIGHT ADJUST Ù After choosing an auto-cooking menu, use it to specify food weights or number of servings. Q PRESET Ù Touch to set the preset feature. Q PAUSE/CANCEL Ù Press to cancel setting or reset the oven before setting a cooking program. Ù Press once to temporarily stop cooking, or twice to cancel cooking altogether. Ù It is also used for setting child lock. Q MENU/TIME (DIAL) Ù Turn the dial to set the oven clock time and input cooking time. Ù Turn the dial to select an auto cook menu. Q START/QUICK START (MENU/TIME BUTTON) Ù Touch to start a cooking program. Ù Simply touch it a number of times to set cooking time and cook immediately at full power level.

Each time a button is touched, a beep will sound to acknowledge the touch.

The clock works in 12- or 24-hour cycle, just press the CLOCK button to select. Suppose you want to set the oven clock time to 8:30.

1. In standby mode, press CLOCK button

once or twice to set the clock in 12- or 24-hour cycle.

5. Press CLOCK to confirm the setting.

Note: You can check the clock time during cooking by pressing CLOCK button. MICROWAVE COOKING For microwave cooking, the longest cooking time is 95 minutes. You can select power level by pressing the POWER LEVEL button. Press POWER LEVEL Cooking Power once 100% twice 80% 3 times 60% 4 times 40% 5 times 20% 6 times 00% For example, suppose you want to cook for 1 minute at 60% of microwave power.

2. Press POWER LEVEL repeatedly to

select cooking power.

Note：You can check the cooking power during cooking by pressing POWER LEVEL. GRILL The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

COMBINATION 1 The longest cooking time is 95 minutes. 30% time for microwave cooking, 70% for grill cooking. Use for fish or au gratin. Suppose you want to set combination 1 cooking for 25 minutes.

COMBINATION 2 The longest cooking time is 95 minutes. 55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes and poultry. Suppose you want to set combination 2 cooking for 12 minutes.

AUTO COOK For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs. Steps:

3. Press WEIGHT ADJUST button a number of times to indicate food weight.

1. The result of auto cook depends on factors such as the shape

and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.

2. For milk/coffee and potato, parameters on display are not

weight but number of servings.

3. For chicken, beef/mutton and steaks, the oven pauses and

beeps during cooking to remind you to turn food over for uniform cooking, after that, press START/QUICK START to resume. 2 Rice (g) 3 Spaghetti (g) 4 Potato (each 230g) 5 Auto Reheat (g) 6 Fish (g) 7 Chicken (g) 8 Beef/Mutton (g) 9 Skewered Meat (g) WEIGHT DEFROST The oven can be used to defrost food based on the weight you entered. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to1800g. Suppose you want to defrost 600g of shrimp.

Note: The oven will pause and signal during defrosting process to remind user to turn over food, after that, press START/QUICK START to resume defrosting. PRESET Preset function allows the oven to start up in a later time. Suppose now the clock running at 11:10 and you want the oven to start cooking at 11:30.

1. In standby mode, set a cooking

4. Touch PRESET button again.

Note: Quick Start and Weight Defrost can not be preset. QUICK START The oven will operate at 100% power output9

for Quick Start program. The longest cooking time is 10 minutes. In standby mode, press the START/QUICK START button a number of times to set cooking time, the oven starts working automatically at full power. You can extend the cooking time during cooking by pressing START/QUICK START. CHILD LOCK Use to prevent unsupervised operation of the oven by little children. The child lock indicator will show up on display screen, and the oven can not be operated while the Child Lock is set. To set: In standby mode, press and hold the PAUSE/CANCEL button for 3 seconds, a beep sounds and lock indicator lights. To cancel: Press and hold the PAUSE/CANCEL button for 3 seconds until lock indicator on display goes off.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls,

wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating

parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a

damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the

control panel, leave oven door open to prevent oven from accidentally turning on.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This

may occur when the microwave oven is operated under high humidity condition. And it is normal.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy

water or in a dishwasher.

8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe

the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon

in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

10. When it becomes necessary to replace the oven light, please consult a dealer to have it

11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the

oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the

particular disposal center provided by the municipalities.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
