USER MANUAL IMO20L50W Ices

Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven.P

Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the Door (bent), Hinges and latches (broken or loosened), Door seals and sealing surfaces. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ----------- 1

When using electrical appliance basic safety precautions should be followed, including the following:

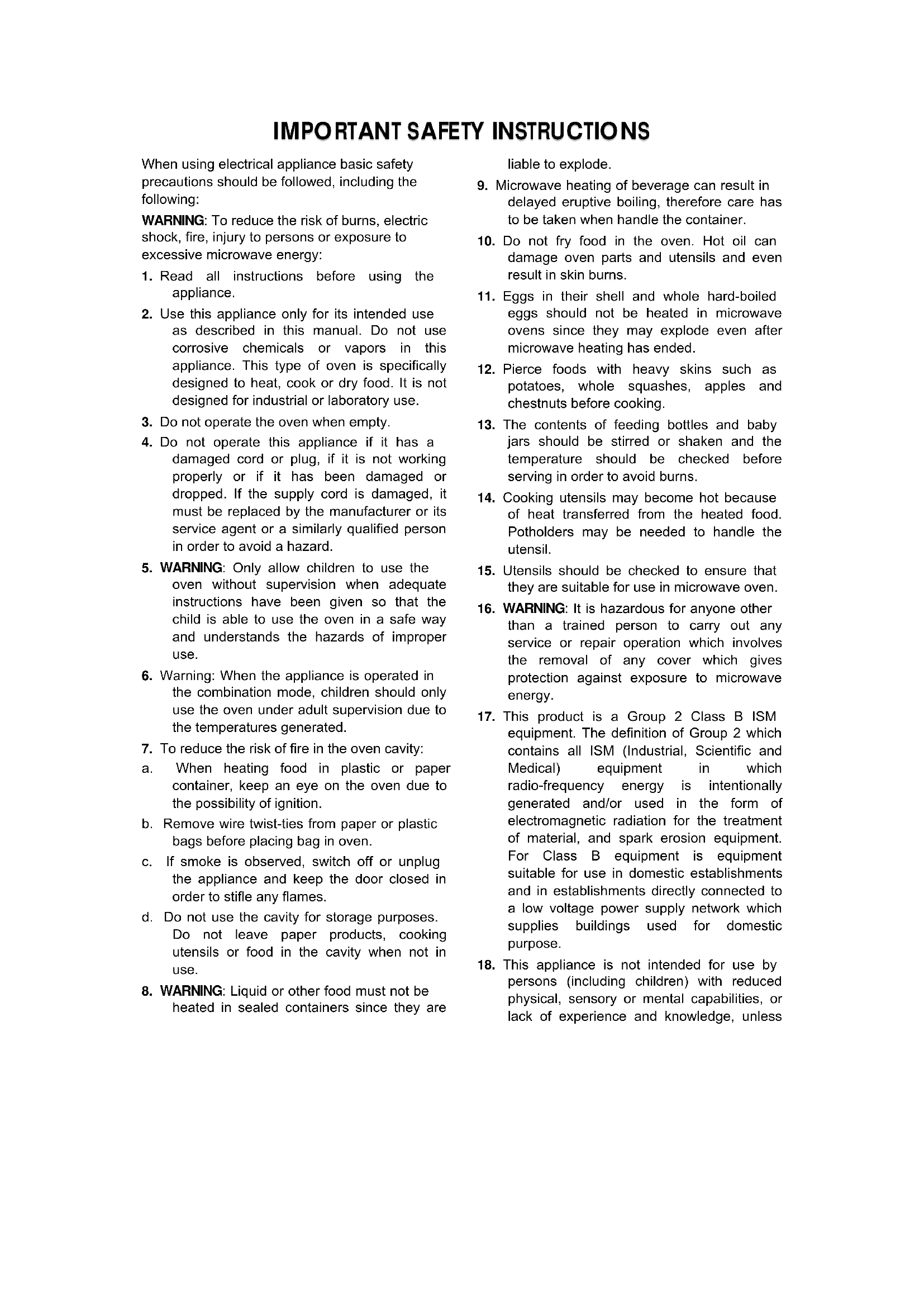

WARNING: To reduce the risk of burns, electric

shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the

2. Use this appliance only for its intended use

as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not operate this appliance if it has a

damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5. WARNING: Only allow children to use the

oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. Warning: When the appliance is operated in

the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

7. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

8. WARNING: Liquid or other food must not be

heated in sealed containers since they are liable to explode.

9. Microwave heating of beverage can result in

delayed eruptive boiling, therefore care has to be taken when handle the container.

10. Do not fry food in the oven. Hot oil can

damage oven parts and utensils and even result in skin burns.

11. Eggs in their shell and whole hard-boiled

eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

12. Pierce foods with heavy skins such as

potatoes, whole squashes, apples and chestnuts before cooking.

13. The contents of feeding bottles and baby

jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

14. Cooking utensils may become hot because

of heat transferred from the heated food. Potholders may be needed to handle the utensil.

15. Utensils should be checked to ensure that

they are suitable for use in microwave oven.

16. WARNING: It is hazardous for anyone other

than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

17. This product is a Group 2 Class B ISM

equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

18. This appliance is not intended for use by

persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unlessthey have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

19. Children should be supervised to ensure

that they do not play with the appliance.

Power Consumption: 230~240V/50Hz, 1200W(Microwave) 1350W (Grill) 1350W (Convection) Rated Microwave Power Output: 800W Operation Frequency: 2450MHz Outside Dimensions: 262mm(H)×452mm(W)×370mm(D) Oven Cavity Dimensions: 210mm(H)×315mm(W)×314mm(D) Oven Capacity: 20Litres Cooking Uniformity: Turntable System Net Weight: Approx.12.5kg

1. Make sure that all the packing materials are

removed from the inside of the door.

2. WARNING: Check the oven for any damage,

such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a

flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture,

or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have

sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray,

roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is

undamaged and does not run under the oven or over any hot or sharp surface.

8. The socket must be readily accessible so

that it can be easily unplugged in an emergency.

1. Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

2. When there is interference, it may be reduced or eliminated by taking the following measures:

3. Clean door and sealing surface of the oven.

4. Reorient the receiving antenna of radio or television.

5. Relocate the microwave oven with respect to the receiver.

6. Move the microwave oven away from the receiver.

7. Plug the microwave oven into a different outlet so that microwave oven and receiver are on

different branch circuits.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING Improper use of the grounding plug can result in a risk of electric shock. Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified

electrician or service person.

2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal

injury resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed.

Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken and

hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the

center of the dish to the outside.B

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet,

wait 10 seconds, and plug it in again securely.

2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating

properly, test the outlet with another appliance.

3. Check to ensure that the control panel is programmed correctly and the timer is set.

4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise,

the microwave energy will not flow into the oven.

5. IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass

through the container and heat the food.

2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be

3. Do not use recycled paper products when microwave cooking, as they may contain small metal

fragments which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be

careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.The list below is a general guide to help you select the correct utensils. Cookware Microwave Grill Convection Combination* Heat–Resistant Glass Yes Yes Yes Yes Non Heat–Resistant Glass No No No No Heat–Resistant Ceramics Yes Yes Yes Yes Microwave–Safe Plastic Dish Yes No No No Kitchen Paper Yes No No No Metal Tray No Yes Yes No Metal Rack No Yes Yes No Aluminum Foil & Foil Container No Yes Yes No

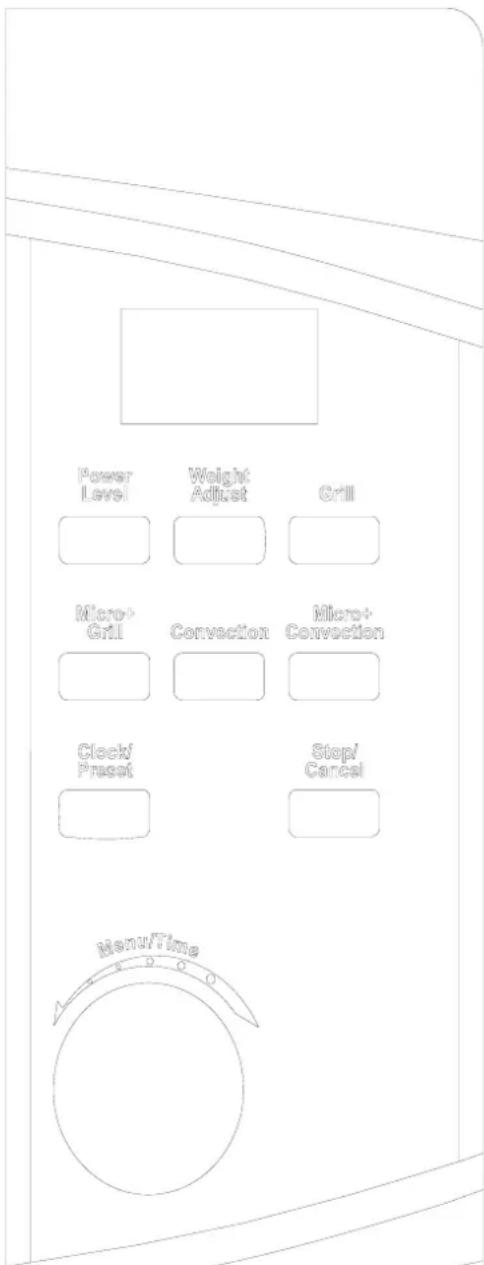

• Combination: applicable for both "microwave + grill", and "microwave + convection" cooking.

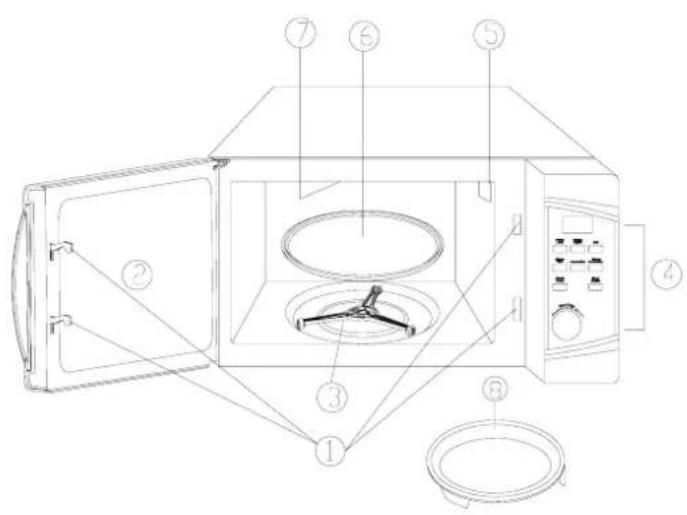

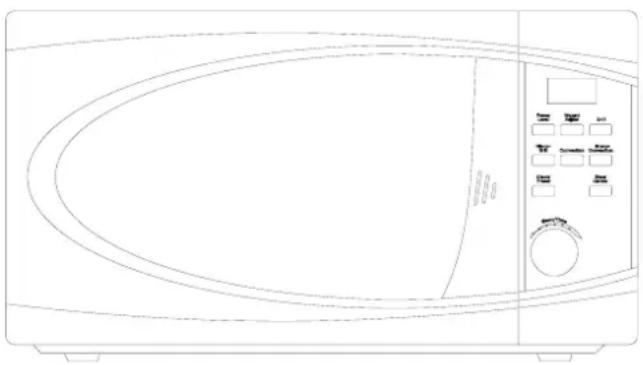

DISPLAYED. POWER LEVEL Press this button a number of times to set microwave cooking power level. WEIGHT ADJUST Press a number of times to specify weight or number of serving. CLOCK/PRESET In standby mode, press to set the clock or to set preset function after a cooking program has been input. . CONVECTION Press to set a convection cooking program. MICRO.+CONVECTION Press to set a microwave and convection combination cooking program. GRILL Press to set grill cooking program. MICRO.+GRILL Press to set microwave and grill combination cooking program. START/QUICK START(THE DIAL) Press to start a cooking program. Simply press it a number of times to set cooking time and the oven will cook immediately at full power level. STOP/CANCEL Press to cancel setting or reset the oven before setting a cooking program. Press once to temporarily stop cooking, or twice to cancel cooking altogether. It is also used for setting child lock. MENU/TIME(DIAL) Turn the dial to input cooking time or select auto cook menus.H

Each time a button is pressed, a beep will sound to acknowledge the press. After a cooking program has finished, beeps will sound and End appears on display. Press Stop/Cancel button or open door to clear END before starting another cooking function. Setting digital clock With the oven ready for input, press the Clock/Preset button once to set the digital clock in 24-hour cycle. FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

the setting. Note: During cooking, press Clock/Preset button to check the clock time. Microwave cooking To cook with microwave, time and power level should be set. The longest cooking time to be set is 95 min. Suppose you want to cook for 5 minutes at 60% of microwave power.

1. Press Power Level button to choose

2. Use the Menu/Time to set cooking time

Note: during cooking, press Power Level to show power level.

Press POWER LEVEL button to select cooking power ower Level howing 100% P100 90% P-90 80% P-80 70% P-70 60% P-60 50% P-50 40% P-40 30% P-30 20% P-20 10% P-10 P-00 Grill cooking The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

Combination cooking Combination1: The longest cooking time is 95 minutes. Use for fish or au gratin. FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.

Combination2: The longest cooking time is 95 minutes. Use for puddings omelettes, baked potatoes and poultry. FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.

1. Press Micro. + Grill button twice.

2. Turn Menu/Time to 12:00.

3. Press Start/Quick Start button.

Convection cooking During convection cooking, hot air is circulated throughout the oven cavity to brown and make crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures. They are: 110℃→200℃ To Cook with Convection Press Convection button to set convection temperature. Suppose you want to cook at 170℃ for 40 minutes(H:40).

1. Press Convection button to select

cooking temperature.

2. Rotate the Menu/Time dial until the

correct cooking time is displayed.

1. The maximum convection cooking time

is 9 hours 30 minutes (9H:30).

2. You can check the convection

temperature while cooking is in progress by pressing the Convection button. To Preheat and Cook with Convection Your oven can be programmed to combine preheating and convection cooking operations. Suppose you want to preheat to 150℃ and then cook 30 minutes.

1. Press Convection button to select

preheating temperature.

2. Press Start/Quick Start. When the oven

reaches the programmed temperature, one beep will sound every 5 seconds.

3. Open the door and place container of

food at the center of the turntable.

4. Rotate the Menu/Time dial to program

Note: When the temperature reaches the preheat temperature, the countdown stop with sound DE- every 5 seconds and keep the state for 30 minutes. If don’t open the oven door within the 30 minutes, the system will stop automatically with END in display. Quick Start This feature allows you to start the oven quickly with full power level. Press the Start/Quick Start button a number of times to set the cooking time (maximum 10 min.), the oven starts work at full power level immediately. Microwave+Convection This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. Press Micro. + Convection button to select convection temperature:

Oven temperature(℃) COMB1 110COMB2 140 COMB3 170 COMB4 200 Suppose you want to bake a cake for 24 minutes on COMB3.

1. Press Micro. + Convection button to

select cooking temperature.

2. Rotate the Menu/Time dial to program

NOTE: The maximum cooking time is 9 hours 30 minutes (9H:30). You can check the temperature while cooking is in progress by pressing the Micro. + Convection button. Speed Defrost The oven can quickly defrost food according to the set time you entered. FOR EXAMPLE: Suppose you want to defrost shrimp.

1. Place the shrimp to be defrosted into

select cooking code A-9 for speed defrost.

3. Press Weight Adjust once.

4. Rotate the Menu/Time dial to program

Note: The maximum defrosting time you can enter is 95 minutes. During defrosting, beeps will sound to remind user to turn food over for uniform defrosting. Then press Start/ Quick Start to continue the next defrosting stage. Multi-Stage Cooking Your oven can be programmed for up to 3 automatic cooking sequences. Suppose you want to set the following cooking program. Microwave cooking Convection cooking (without preheating)

1. Press Power Level button to set power

2. Rotate the Menu/Time dial to program

3. Press Convection button to set

convection temperature.

4. Rotate the Menu/Time dial to program

Preset function This function allow the oven to start a cooking at a appoint time automatically. For example: Suppose the present time is 9:00, and you want to cook with microwave begins at 11:30.

1. Set a microwave cooking program as

Note: Press Clock/Preset, then press Stop/Cancel button during the preset time showing to cancel preset function. Auto Cook For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food. You may need to turn food over at the middle of cooking time to obtain uniform cooking. For example, to cook 3 cups of coffee.1. In standby mode, turn MENU/TIME anti-clockwise once and then continue turn the dial to select cooking code of coffee A-2.

2. Press WEIGHT ADJUST to indicate shares you want to cook.

Auto Cook Menu Code Food/cooking mode NOTE A-1 Baked potato(230g/each) 1. As you press Clock/Weight button once or repeatedly, number of servings or weight parameters will appear on screen, select the one equal to the weight of food you have placed in the oven.

2. For Chicken, oven will stop during cooking to let you to turn

food over and then close the door, press the START/QUICK START to resume cooking.

3. For reheating, please use microwave special utensil or film to

4. For cooking potato about 230g/a whole, please use microwave

special cooking bag to keep food fresh.

5. For cooking cake, you’d better to put cake in oven to cook after

has been preheated for 5 minutes. A-2 Coffee (200ml/cup) A-3 Popcorn(99g) A-4 Auto reheat(g) A-5 Spaghetti(g) A-6 Pizza(g) A-7 Chicken(g) A-8 Cake(475g) The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly. Child Lock Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven cannot be operated while the CHILD LOCK is set. To set the CHILD LOCK: Press and hold the Stop/Cancel button for 3 seconds, a beep sounds and LOCK indicator lights. To cancel the CHILD LOCK: Press and hold the Stop/Cancel button for 3 seconds until lock indicator on display goes off.

AUTOMATIC PROTECTION MECHANISM

Anytime in the operation of the oven, when the oven cavity temperature reaches a phenomenon of 300°C, the oven automatically enters into self protection mode with the screen displaying error code E01 and beeps can be heard. As soon as this malfunction disappears by pressing Stop/Cancel, the oven will back to normal. Error may also occur to the system sensor, which will make the oven enter into protection mode with the screen displaying E03, and beeps can be heard. As soon as this malfunction disappears by pressing Stop/Cancel, the oven will back to normal. COOLING FEATURE——The controlling system of the microwave oven has the feature of cooling. As for any cooking mode which cooking time above 2 minutes, after finishing cooking, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven.C

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe

with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating

parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp

cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the

control panel, leave oven door open to prevent oven from accidentally turning on.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This

may occur when the microwave oven is operated under high humidity condition. And it is normal.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy

water or in a dishwasher.

8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe

the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in

a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven

in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the

particular disposal center provided by the municipalities.

13. When the microwave oven with grill function is first used, it may produce slight smoke and smell.

This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.Modèle : IMO-20L50W

Microwave Oven Owner's Manual
