HA7616 - Kettle UFESA - Free user manual and instructions

Features	Details
Product type	Electric kettle
Capacity	1.7 liters
Power	2200 watts
Material	Stainless steel
Safety system	Automatic shut-off
Water level indicator	Yes
Anti-scale filter	Removable and washable
Base	360-degree swivel
Handle	Ergonomic and insulated
Maintenance	Cleaning with hot water and vinegar
Warranty	2 years

Frequently Asked Questions - HA7616 UFESA

How do I descale my UFESA HA7616 kettle?

To descale your UFESA HA7616 kettle, mix a solution of 1 part white vinegar to 1 part water. Fill the kettle with this mixture, heat until boiling, then let it sit for 30 minutes before rinsing several times with clean water.

The kettle won\u0027t turn on, what should I do?

Check that the kettle is properly plugged into a working outlet. Also make sure the lid is securely closed, as some kettles won\u0027t start if the lid is open.

How do I clean the outside of the kettle?

To clean the outside of the kettle, use a soft, damp cloth with a little mild soap. Avoid abrasive products that could scratch the surface.

The kettle makes noise during use, is this normal?

A slight bubbling noise is normal when the water is heating. However, if you hear unusual or loud noises, this could indicate a problem. In that case, please contact customer service.

Can I use the kettle to heat liquids other than water?

It is recommended to use the kettle only to heat water. Heating other liquids may damage the appliance and void the warranty.

What is the capacity of the UFESA HA7616 kettle?

The UFESA HA7616 kettle has a capacity of 1.7 liters, which is enough to prepare several cups of tea or coffee.

How do I know if the water is boiling?

The UFESA HA7616 kettle is equipped with a light indicator that turns off when the water has reached boiling temperature.

The kettle has an unpleasant smell, what should I do?

If the kettle has an unpleasant smell, try cleaning it by filling it with a mixture of vinegar and water, then heating it. Rinse well after cleaning. If the smell persists, contact customer service.

Does the kettle have an automatic shut-off function?

Yes, the UFESA HA7616 kettle has an automatic shut-off function that activates when the water reaches boiling temperature.

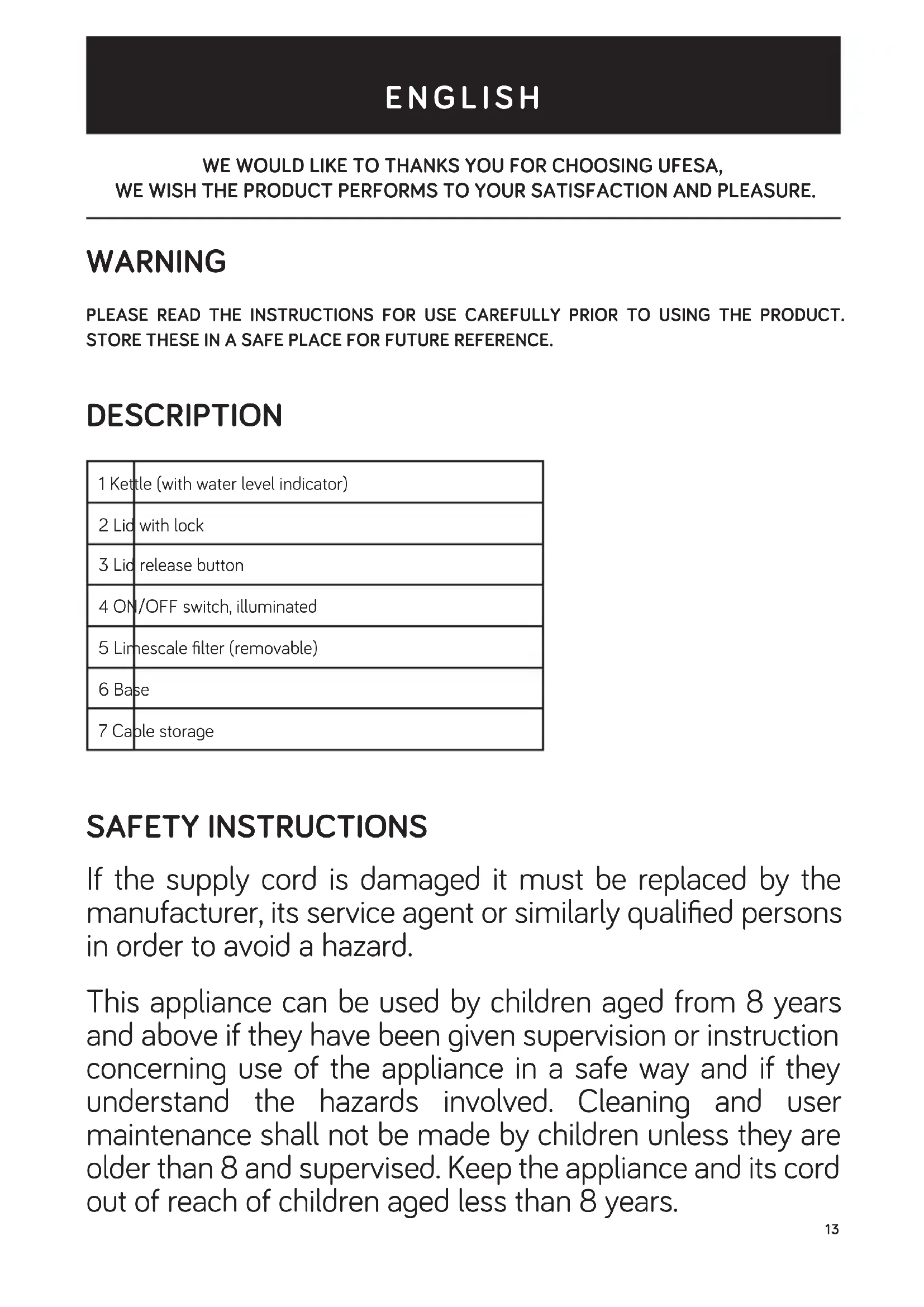

USER MANUAL HA7616 UFESA

MANUTENÇÂO E LIMPEZA

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1 Kettle (with water level indicator)

2 Lid with lock

3 Lid release button

4 ON/OFF switch, illuminated

5 Limescale filter (removable)

6 Base

7 Cable storage

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

This appliance is intended to be used in household. It is not intended to be use in applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
  -by clients in hotels, motels and other residential type environments;
  -bed and breakfast type environments.

Never immerse the appliance in water or any other liquid.

If the kettle is overfilled, boiling water may be ejected.

Appliance is only to be used with the stand provided

Warning: avoid spillage on the connector

Warning: potential injury from misuse!

Heating element surface is subject to residual heat after use.

Allow the kettle to cool completely before cleaning.

Always remove the plug from the mains before cleaning the kettle.

Do not use any abrasive cleaning agents - such as emulsions, creams, pastes, etc. - for cleaning the kettle.

IMPORTANT WARNINGS

Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle

Only fill the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate the kettle without water and do not over fill it; observe the min and max markings. If the kettle is too full, the water will boil over!

Do not put the jug on a stove or in a microwave for re-heating of water.

Always place the kettle on a stable, smooth, flat surface; the power cord must not hang loosely off the edge of a table (or any other work surface) or touch a heated surface.

Do not use the kettle with the lid open.

Do not remove the lid when the water is boiling.

If the internal electrical elements are flooded with water, make sure the kettle is completely dry before plugging in.

Do not move while the kettle is switched on.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observation of these warnings.

INSTRUCTIONS FOR USE

BEFORE USE

Make sure that all the product's packaging has been removed.

Before heating water for the first time, we recommend using the kettle twice, in order to clean the system.

BOILING WATER

Fill the kettle with fresh water through the open lid (press lid release button)

Read the quantity on the water level indicator. Do not fill less than the minimum and maximum marks indicated.

Close the lid until it locks and place the kettle on the base.

Press down the switch, the switch lights up. The water is heated.

The kettle switches off automatically once the water is boiled.

The appliance can also be switched off at any time by pulling up the ON/OFF switch.

WARNING: If you remove the kettle from the base and replace it before the heating process is over, the kettle will continue to heat the water.

Only operate the kettle with the lid closed and the limescale filter inserted.

After boiling, let the kettle cool down for 5 minutes before refilling it with water.

Do not turn on the appliance if the kettle is empty, otherwise the overheat control will engage and the appliance will switch itself off automatically.

MAINTENANCE AND CLEANING

1. Do not forget to remove the plug from the socket before cleaning the appliance.
2. Wipe outside with soft dry cloth when the kettle is wet, never use metal polish.
3. Remove the limescale filter soak it in a little vinegar, then rinse clean with clear water
4. Never use a dishwasher to clean any parts from the machine.
5. Rinse the kettle and the limescale filter with clear water
6. Put the water kettle in a dry and not very hot place.

DESCALING

Regular descending makes your kettle last longer, ensures proper function and saves energy.

Descale the kettle with vinegar or a commercial descaling agent.

Fill the kettle with water up to the max mark and bring to a boil. Next add a small amount of white vinegar and let it sit for a couple of hours. You can also use a commercial descaling product and follow the manufacturer's instruction.

Rinse the kettle with clear water.

If you use the kettle daily, descale more frequently.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS TENONS À VOUS REMERCIER D'AVoir CHOISI UFESA. NOUS ESPÉRONS QUE VOUS SEREZ PLEINEMENT SATISFAIT DE CE PRODUIT ET QU'IL REPONDRA À VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÜR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

ÉLIMINATION DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under

this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.
