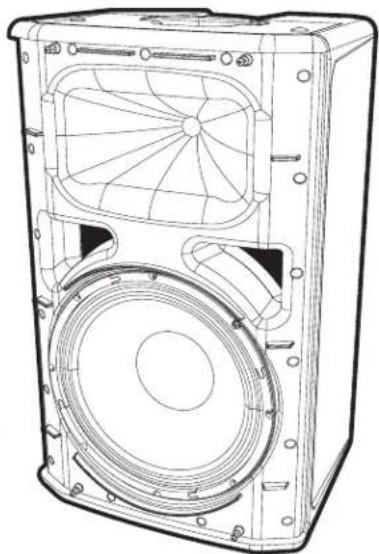

• Dual purpose full-range and wedge monitor enclosure

• Bluetooth™ connection for streaming audio to the system

• Built-in 3-channel mixer with input settings for line and mic sources

• Activity and Clip indicators on all channels with a Limit indicator on the Master channel

• Main input/output for connecting two or more NX loudspeakers together as well as other applications

• 48V phantom power available on channels 1 and 2

• Selectablehigh-passltersonchannels1and2

• SelectableSubhigh-passlterforconnectingwithasubwoofer

• Live, Club, and Monitor system modes which tailor the sound of the system for the intended application Channel Features

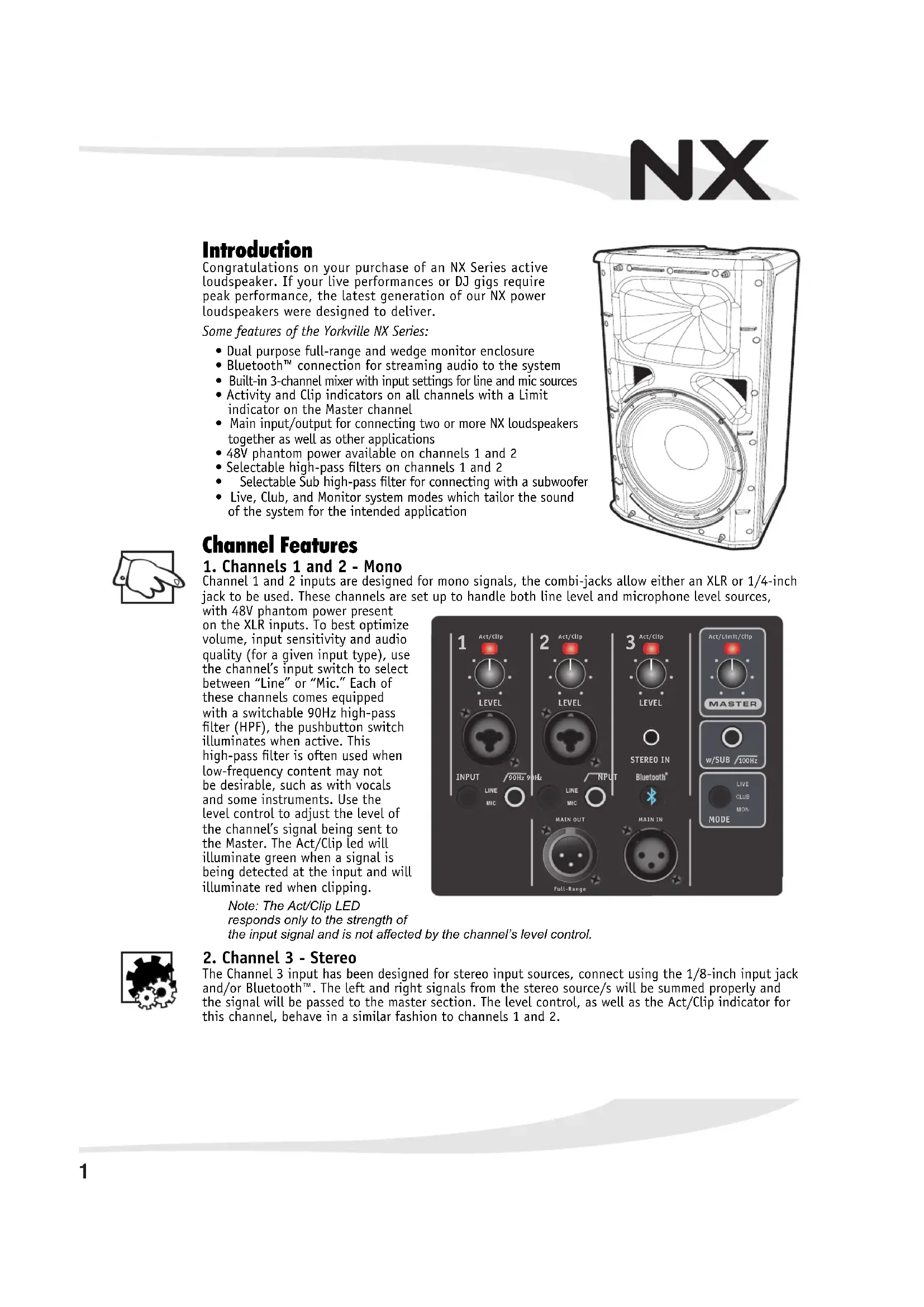

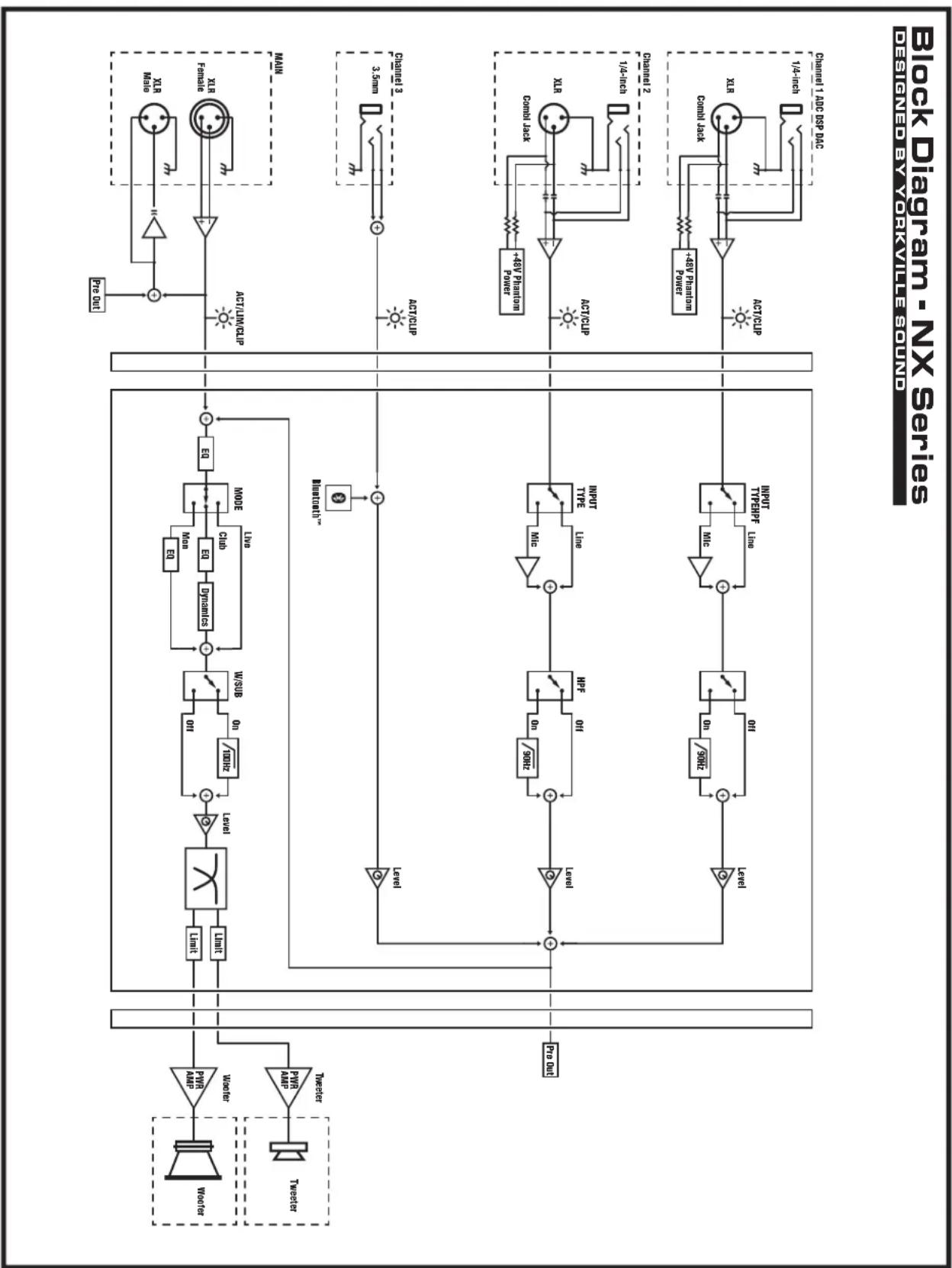

1. Channels 1 and 2 - Mono

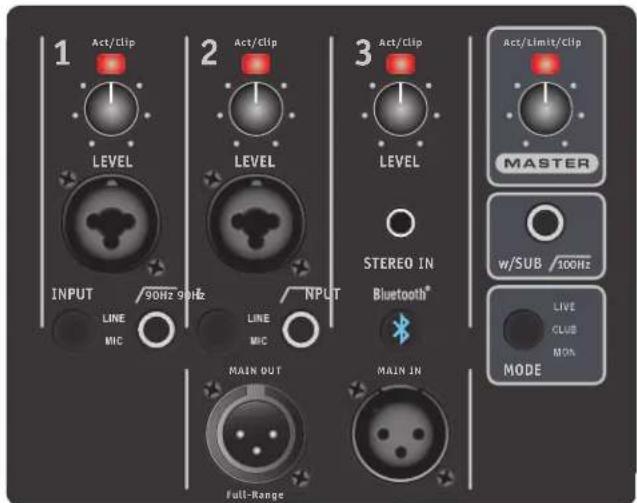

Channel 1 and 2 inputs are designed for mono signals, the combi-jacks allow either an XLR or 1/4-inch jack to be used. These channels are set up to handle both line level and microphone level sources, with 48V phantom power present on the XLR inputs. To best optimize volume, input sensitivity and audio quality (for a given input type), use the channel’s input switch to select between “Line” or “Mic.” Each of these channels comes equipped with a switchable 90Hz high-pass lter(HPF),thepushbuttonswitch illuminates when active. This high-passlterisoftenusedwhen low-frequency content may not be desirable, such as with vocals and some instruments. Use the level control to adjust the level of the channel’s signal being sent to the Master. The Act/Clip led will illuminate green when a signal is being detected at the input and will illuminate red when clipping. Note: The Act/Clip LED responds only to the strength of the input signal and is not aected by the channel’s level control.

2. Channel 3 - Stereo

The Channel 3 input has been designed for stereo input sources, connect using the 1/8-inch input jack and/or Bluetooth™. The left and right signals from the stereo source/s will be summed properly and the signal will be passed to the master section. The level control, as well as the Act/Clip indicator for this channel, behave in a similar fashion to channels 1 and 2. LEVEL Act/ClipLEVEL

INPUTINPUTSTEREO IN Act/ClipFull-RangeLEVEL Act/Clipw/SUB MODE Act/Limit/Clip 90Hz 90Hz100Hz2 Bluetooth™ These new Yorkville NX Series loudspeakers are capable of Bluetooth™ audio streaming from devices suchassmartphones,tabletsandlaptops.PairingyourdevicewithanNXSeriesloudspeakerissimple and gives you the freedom to play your music wirelessly. Bluetooth™ Operation When the NX Series cabinet is powered on, Bluetooth™ will be disabled by default. To enable it and connect to your device, simply tap the Bluetooth™ button. If a device was previously connected to the NX Series cabinet, it will attempt to automatically reconnect. Similarly, if a wireless stereo connection was previously established, both NX Series cabinets used will attempt to automatically re-establish the wireless stereo connection(inthesamePrimaryorSecondaryroletheypreviouslyperformed).

To pair your device to an NX Series cabinet, simply press the Bluetooth™ button down and hold for 4 seconds, then release the button.

The blue status indicator alerts let you know the current status of the Bluetooth™ connection as described in this chart:

The streamed music’s volume can be changed via the connected Bluetooth™ device as well as the Channel3LevelcontrolontheNXSeriescabinet.Foroptimalaudioquality,trytokeepthevolume control of the Bluetooth™ device above 50% and use the Channel 3 level control on the NX Series cabinet to achieve the desired output volume.

The NX Series supports wireless stereo playback between two NX Series cabinets, for an enhanced listeningexperience.OnecabinetwillactasthePrimaryunit,whiletheotheractsasaSecondaryunit. ThePrimaryunitwillplaytheleftaudiochannelofstreamedmusic,andalsomaintaintheBluetooth™ connection with your device, while the Secondary unit will play the right audio channel. Your device onlyconnectstothePrimaryunit,nottheSecondary. To enable Stereo Mode, simply double tap the Bluetooth™ button on the NX Series cabinet that should act asthePrimaryunit(leftchannel),thendoubletaptheBluetooth™buttonontheotherNXSeriescabinet(right channel).Theordermatters,astherstunitdoubletappedwillbecomethePrimaryunit(leftchannel).BothNX Series cabinets will automatically attempt to re-establish the Stereo Mode connection the next time they are poweredonandenabled,withthesamePrimaryandSecondaryrolespreviouslyused. YoucanstillpairnewdevicestoanNXSeriesPrimarycabinetifitisinStereoMode.Pairingadevice to an NX Series cabinet that is in Secondary mode will end the stereo wireless connection.

The NX’s Bluetooth™ operating range is rated for 10 meters (33 feet) line of sight. The quality of thelinkcanbeaffectedbyanexcessoftrafcinthe2.4GHzbandwidthorstructuresbetweenthe Bluetooth™ unit and the streaming device. Note: When connected with Bluetooth™, ALL audio is streamed from your device. If you don’t want your streaming music to be interrupted, turn o ‘notications’ on your device. Mode Linked Link-Back Standby Pairing Stereo Grouping Grouped StandaloneON ON, blinks 1x every 2 seconds.Flashes 1x every 2 secondsFlashes 2x per secondN/AStereo Primary N/AON, blinks 1x every 2 seconds.Flashes 2x every 2 secondsFlashes 3x per secondDouble flashONStereo Secondary N/AN/A N/AN/A Double flashSlow flash3 Master Section

The Master Control is used to set the overall level of the NX system. Like with the mixer channels, the master section contains an LED to show when activity is detected at the input of the channel (green), and if there is clipping detected (red). In addition to these two indicators, the master LED will glow orangeifthesystemisinlimiting.Foroptimalperformance,thelevelofthe system should be set such that the Activity/Limit/Clip indicator is primarily green during use. Occasional indications of limiting (orange) is okay, but the unit should not be operated into clipping. Note: When two systems are linked together, the Master Control only aects the level of the unit on which it is located.

Thesubswitchprovidesasystem-level100Hzhigh-passlterthatshouldbe enabled when the system is linked with an external subwoofer. The switch will illuminate when active. Note: While the NX Series loudspeakers can use Bluetooth™ to connect to each other, the use of a subwoofer requires a cable attached from the MAIN OUT and the w/SUB pushbutton must be enabled.

3. Performance Modes

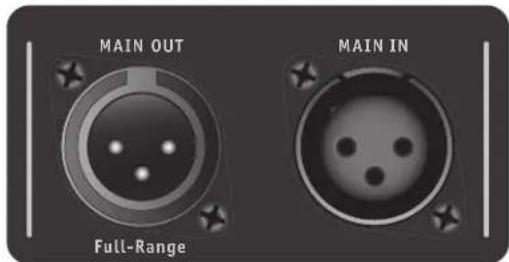

The NX Series contains 3 system performance modes which alter the unit’s EQ and dynamicstobestsuititsintendeduseandapplication.Formusicplayback,Club modeshouldbeselected.Forliveperformance,Livemodeshouldbeselected. When used as a wedge monitor, the Mon mode should be selected. Main Input/Output Section In situations where additional bass or input channels are needed, the Link jacks can be used to connect multiple NX systems and/or a subwoofer. Main Input and Output Jacks The Main Input should be used with line-level signals, goes directly to the master section, and is only affected by controls within the master section. The main output provides a full-range, line-level output signal, which contains a sum of all signals from the mixer section, as well as any signal present on the main input. w/SUB MODE Act/Limit/Clip 100Hz

uration - LF 8-inch 12-inch

ression Driver 1-inch Exit Com

ression Driver Channel 1 In

ack Channel 1 Controls Level, In

ack Channel 2 Controls Level, In

1/8-inch TRS Stereo Jack, Bluetooth™1/8-inch TRS Stereo Jack, Bluetooth™ Channel 3 Controls Level Level Master Controls Master Level, With Sub, Mode Master Level, With Sub, Mode Main In/Out

LED Indicators Channel Activity/Clip, Channel Input Type, Channel High-Pass Filter, Master Activity/Limit/Clip, With Sub, Master Mode, Bluetooth™ Status Channel Activity/Clip, Channel Input Type, Channel High-Pass Filter, Master Activity/Limit/Clip, With Sub, Master Mode, Bluetooth™ Status Flying Hardware 2 x Top, 1 x Pullback M8 Threadin

lene Cabinet Grille Powdered Coated Perforated Steel Powdered Coated Perforated Steel Dimensions

28.3L x 30.9W x 46.7H 32.2L x 38.6W x 64.2H Weight (kg’s / lbs)

ack Commandes Canal 1 Level, In

ack Commandes Canal 2 Level, In

Yorkville plastic speaker cabinets are equipped with flying hardware for overhead suspension applications. Depending on the model, two or more internal fly points have been provided for rigging purposes. IMPORTANT!! THE RIGGING OF LOUDSPEAKER SYSTEMS IS AN EXTREMELY SERIOUS MATTER. OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, INCLUDING (BUT NOT LIMITED TO) CALCULATING WORKING LOAD LIMITS, HARDWARE INSTALLATION, AND PERIODIC SAFETY INSPECTION OF ALL HARDWARE AND CABINETRY. IF YOU LACK THESE QUALIFICATIONS, DO NOT ATTEMPT THE INSTALLATION YOURSELF, BUT INSTEAD USE A PROFESSIONAL STRUCTURAL RIGGER. IMPROPER INSTALLATION CAN RESULT IN BODILY INJURY OR DEATH. CONSULT A STRUCTURAL ENGINEER TO CALCULATE ADDED LOADS FOR A BUILDING. STRUCTURAL REINFORCEMENT MAY BE NECESSARY TO INSURE A SAFE INSTALLATION.

No.2 Drive Philips Screwdriver Thread lock adhesive (Removable Type)

3. EYEBOLT INSTALLATION

a) Using a No.2 Drive Philips Screwdriver, remove the plastic cover screw from the top or bottom of the speaker enclosure to expose the tapped holes as shown below. Be sure to keep these handy to cover up the hole once the eyebolts are removed. IMPORTANT!! USE ONLY LOAD RATED FORGED EYEBOLTS. b) Place a drop of thread-lock adhesive on the threads of the eyebolt and insert one into exposed hole. Tighten each eyebolt by hand until its fits snugly against the cabinet. Further tighten each eyebolt by rotating it another half turn. Be sure to insert eyebolts in the threaded hole directly in-line with the suspension cable. Always follow the eyebolt manufacturers installation and use instructions. c) Suspend each cabinet according to working load calculations and practices recommended by the rigging hardware manufacturer. IMPORTANT!! YORKVILLE SOUND MAKES NO CLAIMS AS TO THE SAFETY OF THE ENCLOSURES OR RESULTANT INSTALLATION IF RECOMMENDED LOAD LIMITS AND HARDWARE INSTALLATION ARE NOT STRICTLY ADHERED TO .
