Features	Details
Device type	Vacuum packaging device
Dimensions	Compact, suitable for home use
Weight	Lightweight, easy to handle
Power	Optimized energy consumption
Vacuum capacity	Ideal for small and medium volumes
Usage	Easy to use with intuitive controls
Maintenance	Simple cleaning, removable parts
Safety	Overheat protection system
Included accessories	Filters and vacuum bags
Warranty	Manufacturer warranty

Frequently Asked Questions - SBP 30 RGV

How to use the RGV SBP 30 device for vacuum packaging?

To use the RGV SBP 30 device, start by placing the food in a special vacuum bag. Insert the open end of the bag into the device chamber, close the lid, and press the start button. The device will remove the air and seal the bag.

What to do if the device does not start?

Check that the device is properly plugged in and that the outlet is working. Also make sure the lid is properly closed, as the device will not start if the lid is not locked.

Why does the bag not seal properly?

Poor sealing may be due to a damaged bag or excessive moisture. Make sure the bag is clean and dry before placing it in the device. Also check that the device seal is clean.

The device makes noise but does not remove air, what to do?

This may indicate a problem with the vacuum pump. Check if debris is blocking the air intake. If the problem persists, contact customer service for assistance.

Can I use bags not compatible with the RGV SBP 30 device?

It is recommended to use only bags designed for vacuum devices. Using incompatible bags may cause air leaks and ineffective sealing.

How to clean the device after use?

Unplug the device before cleaning. Wipe the exterior with a damp cloth and clean the interior with a soft cloth. Avoid using abrasive products or immersing the device in water.

What is the lifespan of vacuum bags?

Vacuum bags can generally preserve food up to 3 to 5 times longer than traditional storage methods, depending on the type of food. Always check the condition of the food before consumption.

Can the device work with liquids?

The RGV SBP 30 device is not designed to package liquids. It is better to use vacuum containers for liquids to avoid leaks and spills.

What to do if the device overheats?

If the device overheats, turn it off immediately and let it cool for at least 30 minutes before restarting. Make sure the vents are not blocked.

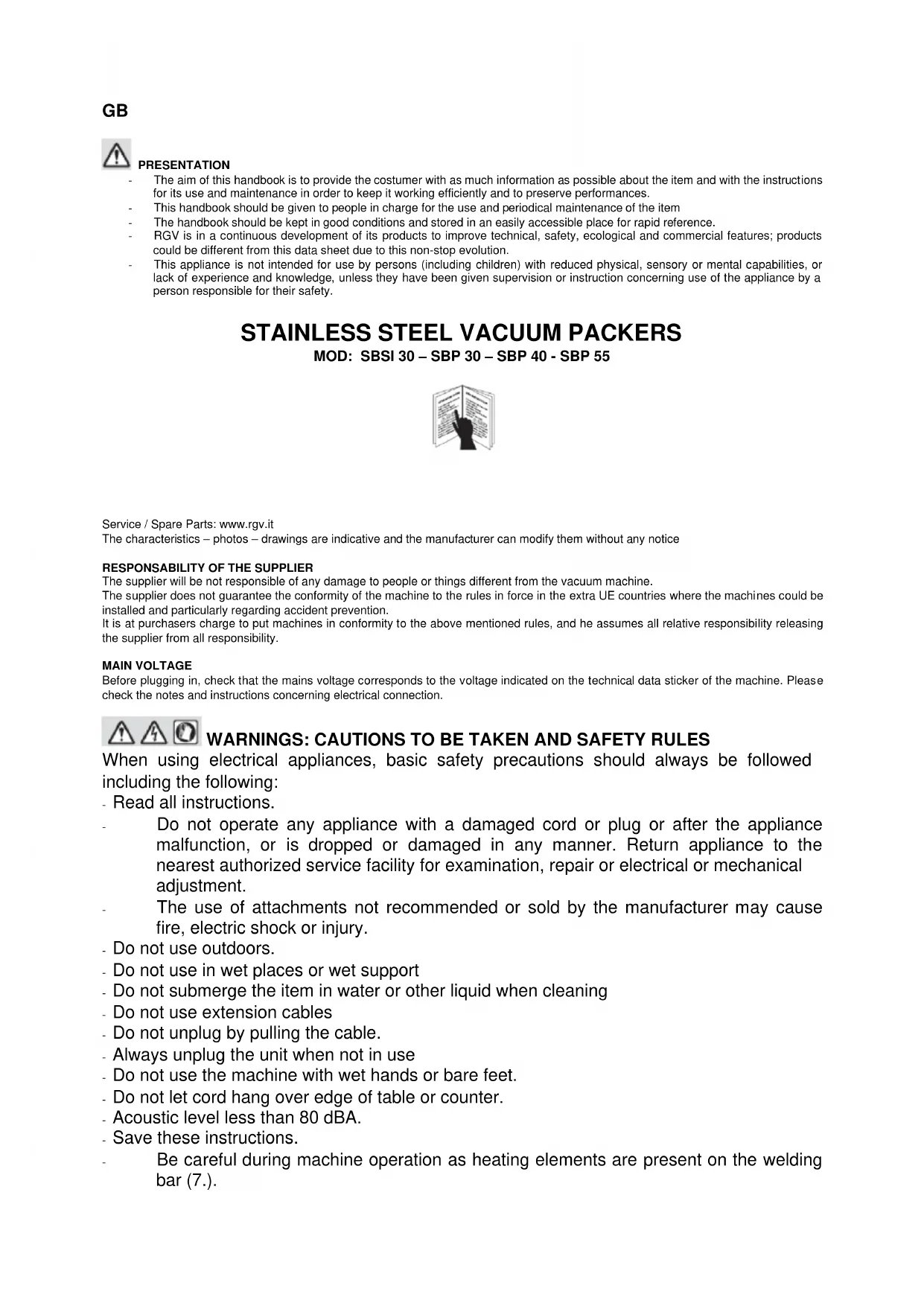

USER MANUAL SBP 30 RGV

Read all instructions and save for future reference

NOTICE D'UTILISATION ET ENTRETIEN - INSTRUCTIONS D'ORIGINE

The aim of this handbook is to provide the costumer with as much information as possible about the item and with the instructions for its use and maintenance in order to keep it working efficiently and to preserve performances.
This handbook should be given to people in charge for the use and periodical maintenance of the item
The handbook should be kept in good conditions and stored in an easily accessible place for rapid reference.
- RGV is in a continuous development of its products to improve technical, safety, ecological and commercial features; products could be different from this data sheet due to this non-stop evolution.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

STAINLESS STEEL VACUUM PACKERS

MOD: SBSI 30 - SBP 30 - SBP 40 - SBP 55

Service / Spare Parts: www.rgv.it

The characteristics - photos - drawings are indicative and the manufacturer can modify them without any notice

RESPONSABILITY OF THE SUPPLIER

The supplier will be not responsible of any damage to people or things different from the vacuum machine.

The supplier does not guarantee the conformity of the machine to the rules in force in the extra UE countries where the machines could be installed and particularly regarding accident prevention.

It is at purchasers charge to put machines in conformity to the above mentioned rules, and he assumes all relative responsibility releasing the supplier from all responsibility.

MAIN VOLTAGE

Before plugging in, check that the mains voltage corresponds to the voltage indicated on the technical data sticker of the machine. Please check the notes and instructions concerning electrical connection.

WARNING: CAUTIONS TO BE TAKEN AND SAFETY RULES

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunction, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
  The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.

• Do not use outdoors.
• Do not use in wet places or wet support
• Do not submerge the item in water or other liquid when cleaning
• Do not use extension cables
• Do not unplug by pulling the cable.
  Always unplug the unit when not in use
• Do not use the machine with wet hands or bare feet.
• Do not let cord hang over edge of table or counter.
• Acoustic level less than 80 dBA.

• Save these instructions.

• Be careful during machine operation as heating elements are present on the welding bar (7.).

Only use embossed bags for food preservation in vacuum conditions, of the same type as those supplied with the unit.

Do not plunge the unit into water and do not use it if the plug or supply cord are wet to avoid risks of fire or electric shock.

Do not overfill the bags to avoid risks to damage the aspiration circuit or to short-circuit the vacuum pump.

Carry out any operations on the unit (cleaning included) with plug disconnected from the socket to avoid risks of electric shock, in such a way that an operator located near the machine can check that the plug remains removed.

Vacuum packaging does not replace other preservation methods but it can be combined with them.

Perishable food requires cooling or freezing to prevent deterioration. Vacuum packaging prolongs preservation times and helps the organoleptic qualities to be kept unaltered.

In any case pre-packaged products shall be used within the date indicated on packing.

A higher vacuum level corresponds to a lower oxygen quantity with resulting possibilities of better preservation.

Liquids shall be refrigerated before vacuum-packaging in bags to prevent them from leaking out and being sucked into the vacuum chamber. - Clean the vacuum chamber in case of aspiration of liquid or powder with normal cleaner for plastic material, be careful to let the vacuum chamber dry after cleaning.

Do not change the plug in any way.

Close supervision is required when this product is used near children.

Products in powder or grains shall be covered with a cloth or protected by a first bag before being vacuum-packaged, so that they are not sucked into the vacuum chamber and do not obstruct the valve.

Containers unsuitable for vacuum packaging can implode through the effect of air pressure and cause damages and injuries. In case of storage in freezers, only special containers in toughened glass shall be used.

The air pump and the welding system are equipped with thermal protection: in case of overheating the unit stops automatically and can resume work after some minutes.

Experience and practice will enable you to obtain the best results with each product.

Wrinkles and creases on the bag surface can prevent the package from reaching a satisfactory vacuum level as a small air quantity can be sucked through them. To avoid such inconveniences, place the bag in spread conditions within the vacuum chamber.

Adjustments related to automatic operation are carried out in the factory in order to offer the best performances, both as for safety and reliability. Should different performances be required in particular cases, operate the unit manually.

If you have not waited for the minimum time prescribed between connection to network and cycle starting, act as follows: unplug, plug again and wait as long as required.

When containers are used particular attention should be paid to welding bar heating (7.) to prevent burns.

For safety reasons, we recommend to operate manually when containers are used and the vacuum gauge pointer (3.) reaches the limit of the yellow area.

Check the supply cord periodically, if damaged replace it with a supply cord of the same type as the one provided; its replacement must be done by qualified technician in order to avoid a hazard

The appliance is protected by a fuse placed in a tray under the connection socket of the machine; in case of problem, a spare fuse is placed in the same tray. Take off the tray and change the fuse. The fuse is not cover by warranty.

TECHNICAL CHARACTERISTICS

Code	115504	115503	115505
Model	SBP 40	SBP 30	SBP 55
Body	Stainless Steel	Inox	Stainless Steel
Pump	Twin cylinder Energy saving	Twin cylinder Energy saving	Twin cylinder Energy saving
Max. Power Absorbed	345 W	280 W	355 W
Max vacuum level	-900 mbar	-900 mbar	-900 mbar
Aspiration	40 lt/min	40 lt/min	40 lt/min
Vacuometer	YES	YES	YES
Filter for EMC	YES	YES	YES
Fuse 6A	YES	YES	YES
Spare Fuse 6A	YES	YES	YES
Code	115502
Model	SBSI 30
Body	Inox
Pump	One cylinder Energy saving
Max. Power Absorbed	200 W
Max vacuum level	-850 mbar
Aspiration	18 lt/min
Vacuometer	YES
Filter for EMC	YES
Fuse 6A	YES
Spare Fuse 6A	YES
Led	2

Packaging contains: 20 Bags cm. 20x30

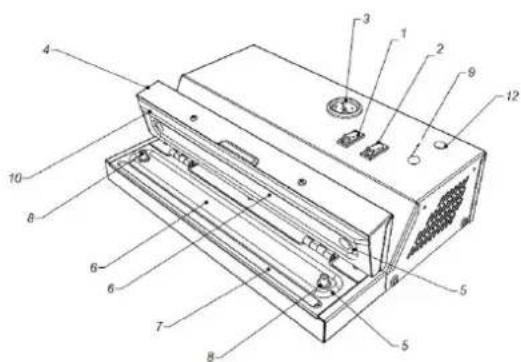

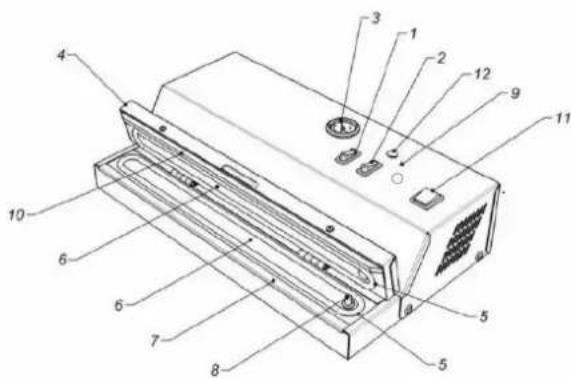

Legend

1. Start cycle switch

2. Welding bar

3. Seal Switch

4. Air outlet

5. Vacuum gauge

6. LED

7. Cover

8. Welding bar gasket

9. Vacuum Chamber Gasket

10. Main power switch

11. Vacuum chamber

12. Led

IMPORTANCE OF THE HANDBOOK

The handbook is integral part of the machine. It includes important information regarding safety and warnings pointed with those symbols

The information included, will allow you to use the machine in perfect safety conditions and to preserve performances

WARRANTY

The appliance is prepared for use RGV embossed bags of the same type as furnished with the machine, if used with different or other label bags the machine could not have same performances.

This appliance is not intended for use with high grade humidity food; liquids suction may damage the appliance (Pump, El. Card and vacuum chamber Gasket) and this is considered inappropriate use and out of warranty cover. Domestic use: European warranty cover the machine for 24 months from the purchasing date.

Professional use: The supplier restricts himself to repair or replace all components should have constructions faults in the first 12 months from the date of installation and however not later than 18 months from the shipment date.

Components subjected to normal consumption such as Fuses, Welding bar gasket, Welding bar resistance, Welding bar cover or Vacuum Chamber Gasket are excluded from warranty. The costumer must indicate to the supplier, in order du benefit from the warranty, the faults pointing out, the serial number of the machine, the purchase date (from invoice), and furthermore he will have to send the faulty part at his charges for reparation or replacement. The supplier fulfils completely his warranty obligations by the reparation or replacement of the faulty piece. If reparation is requested where the machine is installed, all charges regarding, labor, trip and hotel fees of the technicians will be entirely at the purchaser charges. The damage due to an inappropriate use, missed maintenance, tampering are not included in the warranty.

WARNING AND RULES

Read carefully all instructions before using the machine, taking particular care of the paragraphs with the safety and danger symbols. Remove the plug before all maintenance and cleaning operations

WARNING FOR USE

The manufacturer declines all responsibility in case of improper use of the machine

• Check the supply cord periodically, if damaged replace it with a supply cord of the same type as the one provided; its replacement must be done by qualified technician in order to avoid a hazard.
• Do not immerse the machine in water or other liquids for cleaning
• Do not remove the plug from the socket gripping the power cord
• Do not use extension cables
• Do not use the machine with wet hands or bare feet
• Disconnect the plug from the socket when not in use and before cleaning or maintenance in such a way that an operator located near the machine can check that the plug remains removed

TRANSPORT-HANDLING-STORAGE

The machine is pace in a cardboard box with protection plugs.

The package is proper to travel by all means of transport.

Stacking cartons is suggested for a maximum of 5 pieces.

The package must be stored in a dry and no dust place. When on pallets, handling by lifters is suggested.

UNPACKING

Open the cardboard box, take off the machine and place on a flat support.

DIRECTIVE 2002/96/CEE

At the end of his working life the product must not be disposed as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

INSTALLATION

The surface where the machine has to be installed must take into consideration the support dimensions. Furthermore, it must be smooth, dry, strong and with an height from the ground of about 80~cm and with around the necessary space for use and maintenance. Environmental conditions:

Minimum temperature +10^ - Max. temperature +30^

Minimum moisture 30% - Max. moisture 80%

ELECTRICAL CONNECTION

Preliminary controls

Before connecting the machine to a socket, take care:

• Make sure the socket is provided with a ground protection
• Make sure that the voltage and frequency of supply correspond to those indicated on the data plate of the machine

Make sure about the way on how to connect the power cable to avoid the possibility of sliding and tripping

It is user responsibility that the connection of the machine to the electric system is in compliance with the rules in force in the country where the machine is installed, and it has been made by a qualified technician.

Once all preliminary controls have been correctly done, use the main power switch to start your machine

USE OF THE MACHINE

This machine is equipped with an innovative technology suitable to reach high performances with energy saving (up to 50% less compared to other machines with same performances).

The electronic card supplies the welding bar with the correct power, changing automatically the welding time, depending on the network voltage; the seal control is a balance between electronic (automatic) and user (manual) setting.

Once connected, the machine is ready for use by pressing the main power switch (11) if present. Correct vacuum packaging extends food storage time.

The appliance is intended to be used with RGV embossed bags of the same type as furnished with the machine, if used with different or other label bags the machine may not have same performances.

This appliance is not intended for use with high grade humidity food; liquids suction may damage the appliance (pump, el. card and vacuum chamber gasket) and this is considered inappropriate use and out of warranty cover.

Correct storage:

Bags and appliance must be stored in a dry and no dust place with temperature between +10^ to +30^ .

VACUUM PACKAGING IN BAGS AUTOMATIC USE

Prepare the food which is to be vacuum preserved taking off every thorns or spikes could pierce the bag, in an embossed bag of adequate size, leaving about 5cm from the edge of the bag and the food.
- Lift the cover up (4).
- Place the open side of vacuum bag in the vacuum chamber (6), between the gaskets (5). Close the cover and press pump switch (1). This will start vacuum operation.
As soon as vacuum pump starting, slightly press with both hands the cover so as it sticks to the surface of the bag. After a few seconds the depression created by the pump will permit to release the cover, while the machine will keep on suction.
- Seal will start automatically and the machine will automatically stop at the end of the cycle.

USER INTERVENTION

• Every operation will stop when pressing pump switch (1).
  It is possible to start sealing cycle when a correct vacuum level is attended (between the two black lines on green space of the manometer), by pressing welding switch (2). Low vacuum level could affect welding efficiency, if cover (4) doesn't exert a minimum power on the welding bar.
  BE CAREFUL: pressing the welding switch (2) after the start of automatic welding will end welding operation.

USE OF ROLLs - welding without vacuum

• Lift the cover (4) and place the roll (in well spread conditions) on the welding bar. Make sure that the open side of the roll is NOT inside the vacuum chamber (6).
• Start the air pump by pressing switch (1). Slightly press your hands on the cover (6) to close the vacuum chamber.

• When the vacuum level is reached, welding starts automatically. -

• After welding the unit stops. Cut the roll and use like a bag.

ELECTRONIC SETTINGS

Default set:

1- Minimum electronic power of sealing of 2 units time/power, suitable for 95/105 microns bags furnished.
2- Seal power setting via switches is allowed.
3-4- The machine is set by automatic cycle vacuum/seal,
5- It is possible to set to manual cycle by programming the electronic card.
6- The machine is set by 10 secs. delay from reaching vacuum level before welding start (to reach more vacuum); this delay time can be set by programming the electronic card.
7- The machine is set by a waiting time at the end of welding to obtain a best quality seal; this waiting time can be stopped by press the start switch (1) when the Led (12) is off, showing the end of welding operation.

8- The first three operating cycles are designed to deliver 20% more welding power to improve welding in the case of a cold machine; after each cycle of use, the appliance must be disconnected from the network to restore this function.

INFO

Welding time could be different using different kind of bags even if thickness is the same; we suggest to test welding after changing welding time. Less seal power = faster cycle.

IMPORTANT

If the machine is not used for a long period and/or in the case of non-adequate or low temperatures, it is recommendable, before using the machine, to try it once without using the bag and keep the machine working in automatic cycle for one/two cycles.

WELDING POWER SETTING

To change welding power on appliances not equipped with potentiometer:

1- Connect appliance to power supply.

2- Push 10 times in 10 seconds the seal switch (2), green led will light on fast to indicate you are in setting mode.
3- If green led do not light fast, re-start from point 1.
4- Push the pump switch (1) once per each unit of time/power you need (default is 5 units), green led will light once per each time you push.
5- If pushing on pump switch (1) starts the pump, it means you didn't reach setting mode; re-start from point 1.
6- Wait 10 seconds before starting normal operation with new seal power set;
7- New set will be permanent up to a new setting or reset to default.

SETTING THE MACHINE TO MANUAL/AUTOMATIC USE

To set the machine to manual use, proceed as described below:

• Unplug the machine from electric power or switch off main power switch (11) if present.
• Press and keep pump switch (1).
• Switch on the power switch (11) or connect the plug to power supply.
• Wait for at least 5 seconds.
• Release switch (1).

To set the machine to automatic use, proceed as described below:

• Unplug the machine from electric power or switch off main power switch (11) if present.
• Press and keep seal switch (2).
• Switch on the power switch (11) or connect the plug to power supply.
• Wait for at least 5 seconds.

Release switch (2).

(Settings will be permanent, until a new setting operation)

DEFAULT SETTING

To return to default setting:

• Unplug the machine from electric power or switch off main power switch (11) if present.
• Press and keep both pump and seal switches (1) and (2).
• Switch on the power switch (11) or connect the plug to power supply.
• Wait for at least 5 seconds.
• Release switches (1) and (2).

END OF OPERATION

At the end of vacuum/welding operation unplug the machine.

VACUUM LEVEL

The vacuum gauge is provided with 3 differently colored areas showing the vacuum level. The yellow area corresponds to operation start, when the air quantity in the circuit is still high. In the green area the vacuum level is already sufficient for a correct food preservation for a short or medium time, when the indicator lies between the two black lines. When the indicator reaches the red area, the maximum vacuum level has been obtained.

There are also products (such as fish, tomatoes, etc.) containing liquids which, in case of compression, leak out and can be sucked by the machine with resulting damages to the same. Other products are not very compact and an excessive vacuum level can damage or crush them. We recommend to check the adherence of the bag and weld before the product is crushed.

MAINTENANCE AND CLEANING

Disconnect the plug from the socket before cleaning or maintenance. In such a way that an operator located near the machine can check that the plug remains removed.

Do not use water splash for cleaning. Do not use brushes that can deteriorate the surface of the machine.

Use a soft cloth moistened with normal neutral detergent to avoid deteriorate the surface of the machine.

Do not wash the machine and do not put in water or liquids to clean. Contact immediately the supplier in case of malfunctioning or damaged parts.

QUESTIONS / ANSWERS

In case of doubts about the correct functioning of the appliance, some test can be done by the user to verify the performances of the machine.

Internal functioning:

1- Open the cover (4) and start the cycle once introduced the adapter hose into the air suction plugs (8) and lock the adapter on a plane surface to make vacuum.
2- If the manometer arrives on red and the seal starts automatically, the machine is OK.
3- If the manometer arrives on red but the seal do not start automatically, set the unit on automatic cycle and re-test.
4- If the manometer does not arrive on red, the machine must be repaired (air loss or pump damaged).

Cover and vacuum gasket functioning:

1- Close the cover (4) (without bag) and press pump switch (1) to start the cycle, slightly press with both hands the cover.
2- If the manometer arrives on red and the seal starts automatically, the machine is OK.
3- If the manometer arrives on red but the seal does not start automatically, set the unit to automatic cycle and re-test;

4- If the manometer does not arrive on red, check the vacuum chamber gasket, clean or replace and re-test;

Bag test:

1- Open the cover (4)
2- Place the open side of an empty vacuum bag in the vacuum chamber (6), between the gaskets (5).
3- Close the cover and press pump switch (1). This will start vacuum operation.
As soon as vacuum pump starting, slightly press with both hands the cover so as it sticks to the surface of the bag. After a few seconds the depression created by the pump will permit to release the cover, while the machine will keep on suction.
5- If the manometer arrives on red and the welding starts automatically, the machine is OK.
6- If the manometer arrives on red but the seal does not start automatically, set the unit on automatic cycle and re-test.

With the above 3 tests you can check the correct functioning of the appliance and the correct placing of the bag in the vacuum chamber.

The unit does not start:

1- Check if the IEC plug is well connected.
2- Check if the power switch (11) is on (green light on).
3- Check the fuse in the IEC socket on the rear part of the machine and change it, if necessary, with the spare fuse you find in the IEC of the machine.

The bag is not well sealed / Air come in the bag:

1- In winter season, the sealing bar can be charged in humidity, at first use start a complete vacuum/seal cycle with cover closed and no bag. To avoid problems, the unit must be stored in a dry and no dust place at +10^ - +30^
2- Bags outside is in nylon (PA), nylon is a hygroscopic material, to avoid seal problems due to humidity, store bags in a dry and no dust place at +10^ - +30^
3- You can have a good vacuum only if there is enough empty free space between the food and the machine to avoid the creation of wrinkles and folds, which may reduce the vacuum reached inside the bag. Without wrinkles and folds you can have a correct cover closing and the vacuum/seal cycle can be done without problems. Good seal can be done only if the cover press correctly the sealing bar and cover can press correctly only if a good vacuum level is reached
4- Check if the open part of the bag is clean; placing food inside the bag can leave some food residuals: the part of the bag to be sealed, must be properly clean for an effective sealing.
5- Check if the food which is to be vacuum preserved is free of every thorns or spikes could pierce the bag.
6- Humidity of the food can damage the seal: check if food is correctly dried or use a double bag. Place food in a first bag, bend repeatedly the open part of the bag (Image 8) and put the first bag in a second one with the upper part to the bottom of the second. You can have same vacuum but the humidity will remain in the first bag
7- Using rolls, the first seal must be done placing the open part of the roll on seal bar only avoiding to put in the vacuum chamber; the appliance can correctly seal only if there is a correct vacuum level and the cover 4 press correctly on the sealing bar.
8- Only seal cycle: place the open part of the bag on the sealing bar only and not in the vacuum chamber and make a complete automatic vacuum/seal cycle to have a good seal
9. If the air comes into the bag in seal cycle, and after a correct vacuum cycle, the bag is damaged and must be changed.

No vacuum in the bag:

1- Check the open part of the bag is correctly placed in the vacuum chamber and between the black gasket.
2- Perform the tests "Internal functioning", "Cover and vacuum gasket" and "Bag test" to check the appliance.
3- Suction of liquids can damage the gasket of vacuum chamber reducing the vacuum possibility of the machine, check the gasket and change if necessary.
4- The appliance is prepared for use RGV embossed bags of the same type as furnished with the machine, if used with different or other label bags the machine could not have same performances.
5- In Summer period, when ambient temperature become high, or in case of continuous and intensive use, the residual heat of the sealing bar could pre-seal the bag and prevents vacuum. Use potentiometer or electronic setting to reduce seal power, wait some minutes and re-start working with new settings.

The unit does not seal with automatic cycle:

1- Perform the tests "Internal functioning", "Cover and vacuum gaskets" and "Bag test" to check the appliance.
2- Start vacuum cycle and seal manually to verify the welding bar efficiency.
3- Set the appliance to "Automatic use" as described above;
4- You can have a good vacuum only if there is enough empty free space between the food and the machine to avoid the creation of wrinkles and folds can limit the vacuum reached inside the bag. Without wrinkles and folds you can have a correct cover closing and the vacuum/seal cycle can be done automatically. Automatic seal can be done only if the cover press correctly the sealing bar and cover can press correctly only if a good vacuum level is reached.

The unit does not reach a good vacuum level in the bag:

1- Check if the open part of the bas is correctly placed and a there is correct free space between food and machine.
2- Perform the tests "Internal functioning", "Cover and vacuum gasket" and "Bag test" to check the appliance.
3- Check if the food which is to be vacuum preserved is free of every thorns or spikes could pierce the bag.
4- The appliance is prepared for use RGV embossed bags of the same type as furnished with the machine, if used with different or other label bags the machine may not have same performances.

FR

PRESENTATION

IMPORTANCE DU MANUEL

FONCTIONNEMENT MANUEL

QUESTIONS / REPONSES
