USER MANUAL Fresh Quality Led RGV

Exterior view of a black and white electronic device with blue control panel (no visible text or symbols)

(Translation of original instructions)

EN

A. General informations...... Page 18
B. Package contents ...... Page 19
C. Parts and Functions...... Page 20
D. Operating instructions.... Page 23
E. Cord storage ...... Page 27
F. Cleaning and Maintenance....Page 27
G. Specifications...... Page 28
H. Troubleshooting Page 29
I. Disposal of device ...... Page 30
L. Conventional warranty conditions ...... Page 31

4. Marinare (Marinate)

A. GENERAL INFORMATIONS

When using this electrical appliance, safety precautions should always be observed, including the following:

CAREFULLY READ

1. Carefully read all of the instructions before using this appliance and save for future reference.
2. Before plugging cord into wall outlet, or disconnecting, make sure that the cover of the machine is in unlocked condition, and unplug from outlet when not in use or before cleaning.

3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance operations should not be made by children. Always unplug the machine after using or leaving without surveillance. Use only bags suggested by the manufacturer.

4. Stop using the machine immediately if the cord is damaged and have it replaced by a professional.

5. Keep away from moving parts.

6. Be careful not to touch the welding bar to avoid burning, it is a heating part of the machine.

7. Maintenance and reparation should be made by manufacturer, its service agent or authorized service centre in order to avoid a hazard.

8. Don't use this device in case the cord or the body is damaged.

9. Don't pull or carry the device using the cord, and be careful not to damage the cord. Don't use the device if it is wet, or the cord or the plug are wet.

10. Keep away from hot gas, heated oven, electric burner or any other hot surfaces. Do not use this appliance on wet or hot surface or near a heat source.

11. It's better not to use an extension cord with this unit. However, if one is used, it must have a rating equal to or exceeding the fating of this appliance.

12. When disconnect, to avoid any injury, please unplug by grasp the plug, not the cord.
13. Before plugging the appliance in or operating, make sure your hands are dry and safe to do the actions.
14. Use the device only on a stable, dry and safe surface.
15. There's no need to use any lubricant, such as lubricating or cooling oil or water, on this appliance.
16. Do not immerse any part of this appliance, power cord or plug in water or any other liquid.
17. Do not use this appliance outdoors or on a wet surface, it's recommended for household indoor use only.
18. Children should be supervised to ensure that they do not play with the appliance.

ATTENTION:

THIS DEVICE IS ONLY INTENDED FOR HOUSEHOLD USE. RECOMMENDED FUNCTION IS ONE AU- TOMATIC CYCLE (VACUUM/WELDING) IN 1 MINUTE

B. PACKAGE CONTENTS

1. Device
2. Instruction manual
3. Flexible rubber hose with fittings for container
4. 28 x 500 cm embossed bags scroll

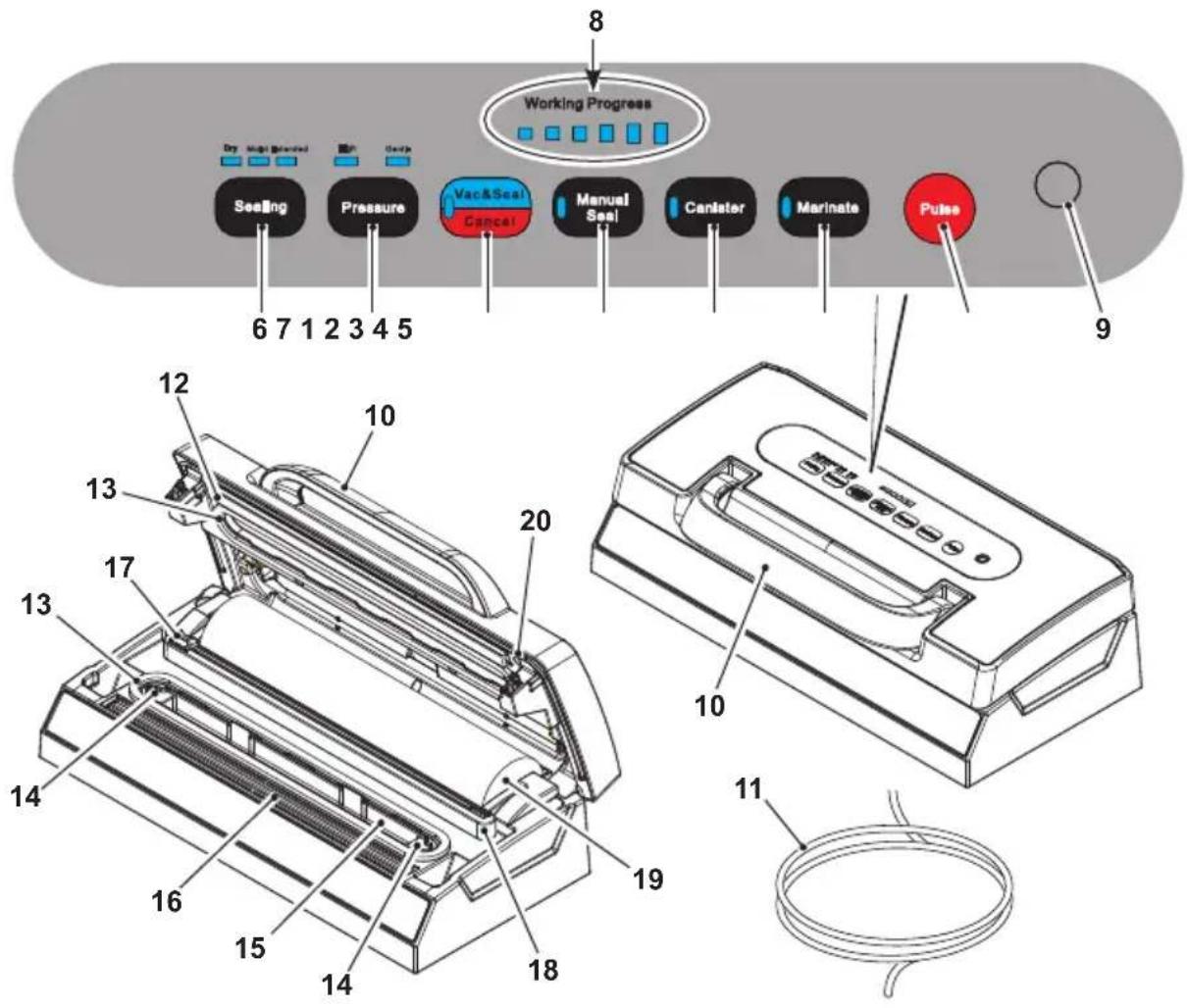

C. PARTS AND FUNCTIONS

8 Working Progress Dry Single Panelled Seeling Pressure Vac&Seal Cancel Manual Seal Canister Marinate Pulse 9 6 7 1 2 3 4 5 10 12 13 17 13 14 16 15 14 18 19 20 10 11

1. Vac&Seal - Cancel:

This button has two functions depending on the machine status:

At stand-by condition, it starts the automatic operation of vacuuming the bag and then automatically seals the bag when vacuum is complete; At working (vacuuming or sealing operations) condition, it stops the machine.

2. Manual Seal:

Immediate start of welding operation.

3. Canister:

To start vacuuming for canisters, jar lids, wine stoppers or other accessories through a hose.

4. Marinate

Press the button to marinate for foods using an appropriate container.

5. Pulse:

Pulse vacuum function. Use this function to obtain customized vacuum, in case of fragile products that could be crushed by automatic function. When desired vacuum is reached, manual welding can be operated with "2. Seal" switch.

BE CAREFUL: VACUUM LEVEL COULD BE LOWER THAN NECESSARY TO GUARANTEE CORRECT FOOD PRESERVATION. PRESERVATION TIME COULD BE LOWER THAN EXPECTED.

6. Sealing

Used for choosing the best bag seal time:

- Dry LED: for dry bags and items without moisture, with a shorter heat sealing time;

- Moist LED: for wet bags or foods with moisture, with an extended heat sealing time.

- Extended LED: used for larger vacuum bags, to extend the pump/vacuum length longer.

Default setting is Dry sealing time.

7. Pressure

For choice of different vacuum pressure:

- High LED

For regular items storage in normal vacuum pressure;

- Gentle LED

For some soft & crushable items storage where less vacuum pressure is desired.

Default setting is High.

8. Cycle LED

- Indicates the status of vacuum or seal process.

- Indicates that the device is on and the cover is closed.

When the LED flashes, wait for it to stop in order to proceed with the next setting.

9. Hose Port:

To insert the hose for canister and wine stopper.

10. Handle:

Press the handle to lock the cover into the base very easily. When handle is unlocked, functions of switches are inactivated.

11. Canisters hose

(Flexible rubber hose with fittings for container):

Use this hose adaptor to connect with vacuum canister and machine for vacuuming purpose. Canisters are not included in the packaging.

12. Welding bar gasket:

Place the bag to be sealed below this strip. Clean and dry or replace it when distorted or broken.

13. Vacuum chamber gaskets:

Keep air away by forming vacuum chamber. Clean and dry or replace it when it is distorted or broken.

14. Air intake:

Air intake connects with vacuum chamber and pump. Do not cover this intake when placing bag for vacuum & Seal operations.

15. Liquid tank:

Position the open end of the bag inside the chamber, draws air out of bag and catches any liquid overflow from the bag. Can be take out for cleaning after use.

BE CAREFUL: PROTECTION IS GUARANTEED ONLY FOR SMALL LIQUID QUANTITY OR HUMIDITY. BIG QUANTITY COULD ANYWAY DAMAGE THE DEVICE.

16. Sealing bar:

Teflon-coated heating element which gets hot to seal the bag.

BE CAREFUL: THIS ITEM COULD BE VERY HOT AND BURNING DURING FUNCTION.

17. Cutter

18. Cutter support

19. Compartment roll/bag for vacuum

20. LED bar

It lights up once the cover is closed with lowered handle. It switches off after a few seconds when the cover is lifted.

D. OPERATING INSTRUCTIONS

I. Making a bag with bag roll

1. Plug the unit into a power source;
2. Open the top cover.
3. Make sure the bag cutter is on one end of the cutter rack, Put vacuum bag underneath cutter rack
4. Pull out the bag material to the suitable length you want
5. Put down on the cutter rack and make sure it is on the right place of the bags, then slide the cutter from one end to the other end to cut the bag.
6. Put one end of the bag on top of the sealing strip, but not enter the vacuum chamber.
7. Close the cover and press handle to lock the cover.
8. Press "Manual Seal" to start welding. The lighting up of the yellow LEDs (8) indicates that welding operation has started.
9. Welding is complete when the blue LED (8) lights up, lift the handle and remove the bag, which is ready for use.

N.B.: to improve welding operation, it is possible to operate "Pulse" function before starting welding operation.

II. Vacuum packaging with a bag

1. 1. Put the items inside the bag. For best result leave 4/5 cm. free space on top of the bag.
2. Clean and straighten the open end of the bag, make sure no dust, wrinkle or ripples.
3. Place the open end of the bag within the vacuum chamber area. Make sure the air intake is not covered by the bag.
4. Put the cover down and press handle to lock the cover.
5. Press buttons (6. and 7.) to set welding time between "Dry", "Moist" and "Extended" and pressure level between "High" and "Gentle"; the corresponding indicators light up.

6. Press switch (1.) "Vac&Seal - Cancel" to start automatic vac/welding operation.

7. Wait for the blue LED (8.) to light up for completion of the operation. Then operate the handle to unlock the cover and remove bag.

N.B.: You can operate at any time, during vac/welding operation:

- Stop any operation by switching (1.) "Vac&Seal - Cancel".

- Start welding by switching (2.) "Manual Seal"

N.B.: Constantly check the status of food in the bag to avoid that they crush excessively during packing operations.

Once the desired vacuum level is obtained, it is possible to proceed with welding of the bag by pressing the button “Manual Welding” (2.).

ATTENTION:

- Wipe out any excess liquid or food residue in the vacuum chamber or bag before each vacuum operation.

- Clean liquid container (15.) after each vacuum operation.

- This device will not provide vacuum with smooth bags. Embossed bags must be used.

III. Pulse/Vacuum function

1. This function is preferred for vacuum packing, when you want a slight vacuum effect such as e.g. tomatoes, chips or similar. Or, if you have moist raw materials or a sauce, where you just want to drain air from the bag and then stop the appliance before the liquid is compressed.

2. Press the "Pulse Vacuum button" (5.) several times until you get the wanted result.

3. As desired vacuum level is reached proceed with bag sealing by pressing (2.) "Seal".

ATTENTION:

• Take maximum care to avoid liquid suction, that could damage the device.

IV. Vacuum package in a Canister & Vacuum Bowl

1. Be careful to use proper canisters and covers suitable for vacuum packaging, strong and resistant, in steel, plastic or tempered glass.
2. Be sure to have a proper canister attachment, for the covers and valves used.
3. Fill canister leaving 4/5 cm free space from top.
4. Insert one end of the hose (11.) into the air intake (9.). Insert the other end in the canister valve or specific canister attachment; this attachment is specific for every kind of cover/canister, so it may be bought as spare part.
5. Press the button "Vacuum" (7.) until setting vacuum pressure to "High"; the corresponding LED switches on.
6. Press switch (3.) "Canister" to start vacuum operation. Device will automatically stop as the maximum vacuum level is obtained.
7. Immediately remove hose end (11.) and canister attachment; lock canister valve (if necessary, depending on the kind of cover/canister used). Don't delay this operation, to prevent air leakage inside the canister.

V. Marinate meat with the canister

1. Be careful to use proper canisters and covers suitable for vacuum packaging, strong and resistant, in steel, plastic or tempered glass.
2. Be sure to have a proper canister attachment, for the covers and valves used.
3. Fill canister leaving 4/5 cm free space from top.
4. Insert one end of the hose (11.) into the air intake (9.). Insert the other end in the canister valve or specific canister attachment; this attachment is specific for every kind of cover/canister, so it may be bought as spare part.
5. Press the button "Vacuum" (7.) until setting vacuum pressure to "High"; corresponding LED switches on.
6. Press the button "Marinate" (4.) to start the marinating operation. The appliance will automatically release air after completing the vacuum cycle, then it will repeat the cycle 5 times. The total duration of the cycle is approximately 6 minutes.
7. Immediately remove hose end (11.) and canister attachment; lock canister valve (if necessary, depending on the kind of cover/canister used). Don't delay this operation, to prevent air leakage inside the canister.

N.B.:

• At the beginning of the vacuum packaging in a canister, slightly press down the canister cover or on the hose adaptor to ensure no loose of the hose and to avoid air leaking through the gap between the cover and the canister top rim for a few seconds.
• To verify vacuum, simply tug on the cover. It shall not move;
• Do not press any button to interfere with the whole process.

E. CORD STORAGE

Put the power cord into the storage area in the bottom of the machine when not in use. Do not wrap the cord around the appliance in order to avoid damages.

F. CLEANING AND MAINTENANCE

1. Always unplug the unit before cleaning.
2. Do not immerse in water or any other liquid.
3. Avoid using abrasive products or material to clean the unit, for they will scratch the surface.
4. Use a mild dishwashing soap and a warm, damp cloth to wipe away food residue or around components.
5. Dry thoroughly before using again.

N.B.: Gaskets can be removed for cleaning; just use water for cleaning and dry carefully before reassembling, to avoid air leakage during vacuum operation.

1. Store the device in a dry place, not expsed to light, out of children's reach.

N.B.: When the device is not in use, DON'T LOCK THE COVER WITH THE HANDLE, to avoid gaskets damaging.

I. Vacuum bags

1. Wash bags in warm water with a mild dishwashing soap. Rinse and dry thoroughly.
2. When wash bags in dishwasher, turn bags inside out and spread them over top rack of dishwasher, so entire surface is exposed to the washing water.
3. Dry thoroughly before reusing.

ATTENTION:

• To avoid possible illness, do not reuse bags after storing raw meats, raw fish or greasy foods. Do not reuse bags that have been heated in a microwave or boiled.
- When storing this vacuum sealer, do not lock lid handle down, this could cause damage to the vacuum sealer gasket.

II. Accessories

Washing all vacuum accessories in warm water with a mild dish washing soap, But do not immerse cover in water.

1. Ensure the accessories are dried thoroughly before reusing.
2. Do not use canisters in microwave or freezer.

G. SPECIFICATIONS

• 220-240V / 50Hz - 135W
• Suction capacity: 20 L/min.
• Vacuum level: -900 mbar max
- Seal: 2.5 ~mm × 30 ~cm .
- Dimensions (with lowered handle): 405 x 190 x h125 mm

Trouble Solutions
Vacuuming but seal function is not good	Check if the edge of the bags has liquid, oil stain or any chippings.
	Check if heating element is damaged.In case of damages it must be replaced by technical service.
	Check teflon sealing strip.In case of damages it must be replaced or covered.
	Check if the bag has enough free space from the top.4/5 cm of free space are required for best result of vac/seal operation.
Seal function is good but can not vacuuming	Check gaskets are not damaged and well applied.This could cause air leakage; change or replace gaskets.
	Check open side of the bag lays between the gaskets.
	Check products inside the bag has no edges or sharp sides.Edges or sharp side must be protected with paper or plastic.
	Check air intakes are free.
Bag inflation after vacuuming	Check if the good is belong to easy corrosion foods?All the easy corrosion goods are need to be frozen or refrigerated after vacuuming so that it can prolong it's shelf life. But vacuuming doesn't guarantee the foods will never spoil.Check if you packed the fresh vegetables or fruit and seed food?All fresh vegetables or fruit and seed are not suitable to storage under room temperature after vacuumed, they have photosynthesis and respiration. Suggest to storage them in refrigerated.
Bags can't hold vacuum	Check sealed are is clean, without wrinkles.In case of wrinkles vac/welding operation is to be made again.

I. DISPOSAL OF DEVICE

PROTECTION OF THE ENVIRONMENT

The crossed-out wheeled bin symbol placed on the product and on the accompanying documentation indicates that the product itself is subject to Directive 2012/19/EU which regulates the collection, the management, he processing and the disposal of electrical and electronic equipment waste (WEEE).

When the product reaches the end of its lifetime must therefore not be disposed of as a common mixed urban waste but it must be subject to sorted collection at authorized collection centers.

Responsible disposal of electrical and electronic equipment waste helps to ease the material resources sustainable recycling and reuse, as well as to avoid possible damages to the environment and to human health caused by uncontrolled waste disposal.

The municipalities organize sorted collection centers specialized for WEEE. For more detailed information regarding the WEEE collection and pick-up systems, it is possible to refer to your own municipality or to the local household waste disposal service.

Moreover, at the time of purchase of a new equivalent equipment intended to be used in a household environment, the customer has the right to freely lend, at the rate of one on one, the used equipment to the distributor which will provide for its disposal as required by law.

Professional purchasers are exhorted to contact their own supplier to check the terms and conditions of the purchase contract.

L. CONVENTIONAL WARRANTY CONDITIONS

This Warranty does not affect your statutory rights under D. Lgs. 02/022002, n. 24. With this guarantee, the manufacturer suggests the Purchaser to address directly a Point of Sale which to comply with the restoration in a fast, safe and unquestionable quality.

This Warranty is effective regardless of the evidence that the defect - resulting from manufacturing defects present at the time of purchase of the device, except as provided in paragraph “d” of this text.

a) Warranty duration: 24 months from date of purchase.

After the first 12 months of warranty, the warranty on the unit will be managed by the Stores within 12 months of legal guarantee in strict application of the provisions of Legislative Decree 02/022002, n. 24.

b) The warranty is effective: In case of a request for assistance, the warranty is valid only if you show the warranty certificate together with a document, valid receipt, showing the identification details of the seller, the product and the date on which the purchase was made.

c) Warranty extension: Repair DOES NOT stop nor change the duration of the warranty which will expire on its legal deadline.

d) Limitations of Warranty:

The warranty does not cover any damage resulting from:

- negligence, incompetence, recklessness and carelessness in use (failure to comply with the rules in this manual);

- maintenance not covered in this booklet or performed by unauthorized personnel;

- tampering or interventions to increase the power or efficacy of the product;

- incorrect installation (power supply with a voltage other than that listed on the nameplate and in this booklet);

- improper use of the appliance;

- damage due to normal wear and tear of the components, impacts, falls, transport damage.

- the guarantee does not cover the repair / replacement of parts subject to wear during normal use of the product (hooks, kneading, blades, belts, connectors ...).

e) Costs: In cases not covered by the warranty, the manufacturer reserves the right to charge

the customer the cost of repair or replacement of the appliance.

f) Manufacturer's responsibility: The manufacturer is not liable for any damage that may directly

or indirectly affect persons, property or pets as a consequence of failure to comply with all the requirements set out in this “Instructions for Use” booklet and concerning especially the warnings regarding installation, use and maintenance.

How to contact technical support

• Tel. [phone]

• Fax [phone]

[e-mail]

www.rgv.it

A. INFORMATIONS GÉNÉRALES

1. Conteneur (Canister):

L. CONDITIONS DE GARANTIE CONVENTIONNELLE

Fresh Quality Led - Art. Code: 111250

Cognome

Surname

Nom

Nome

Name

Prénom

Via

Street

Rue

Città

City

Ville

Nazione

Country

Nation

R.G.V.

Fabbricato da / Manufactured by / Fabriqué par:

R.G.V. srl

Via Giovanni XXIII, 11

22072 Cermenate (CO) - Italia

Tel. [phone]

fax [phone]

e-mail: [e-mail]

www.rgv.it

Ed.: 03/2021

Made in P.R.C.
