WSED3067M - Built-in oven LG - Free user manual and instructions

Features	Details
Product type	Oven
Capacity	Not specified
Dimensions (W x H x D)	Not specified
Power	Not specified
Cooking functions	Not specified
Energy type	Electric
Cleaning system	Not specified
Energy consumption	Not specified
Included accessories	Not specified
Warranty	Not specified
Safety standards	Not specified
Additional information	Not specified

Frequently Asked Questions - WSED3067M LG

How to preheat the LG WSED3067M oven?

To preheat the oven, turn the temperature selector to the desired temperature and press the start button. The preheating indicator will light up until the oven reaches the desired temperature.

The oven does not heat up, what should I do?

Check that the oven is properly plugged in and that the outlet is working. Also make sure the temperature is set correctly. If the problem persists, contact after-sales service.

How to clean the inside of the oven?

Use a suitable oven cleaner and a soft cloth. Avoid abrasive sponges that could scratch the surface. For deep cleaning, use the automatic cleaning function if available.

How to use the steam cooking function?

To use steam cooking, fill the water tank according to the instructions in the user manual, select the steam mode, then set the desired time and temperature.

The oven makes a strange noise during operation, what should I do?

A slight noise may be normal, but if the noise is loud or unusual, turn off the oven and unplug it. Check if something is blocking the fan or heating elements. If the problem persists, contact after-sales service.

How to set the timer on the LG WSED3067M oven?

To set the timer, press the 'Timer' button, use the '+' and '-' buttons to adjust the time, then press 'Timer' again to confirm.

The oven indicators do not light up, what should I check?

Check that the oven is plugged in and that the circuit breaker has not tripped. If everything seems fine and the indicators still do not light up, it is advisable to call a technician.

How to change the oven bulb?

To change the bulb, unplug the oven, remove the bulb cover by turning it, then replace the bulb with a new one of the same type. Replace the cover and plug the oven back in.

The oven does not respond to commands, what should I do?

Try unplugging the oven for a few minutes, then plug it back in. If the problem persists, a full reset of the settings may be necessary.

How to adjust the cooking temperature?

To adjust the temperature, turn the temperature selector to the desired value before starting cooking. You can also consult the manual for advice on recipe-specific adjustments.

Where to find the user manual for the LG WSED3067M?

The user manual is usually provided with the product. You can also download it from the official LG website by searching for your oven model.

USER MANUAL WSED3067M LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

ENGLISH

WSED3067M

48 MAINTENANCE

48 Cleaning

48 Interior
48 Exterior
49 EasyClean
50 Cleaning the Water Tank
51 Using Dscaling Function
51 Using Draining Function
52 Using Drying Function

52 Periodic Maintenance

52 Changing the Oven Light

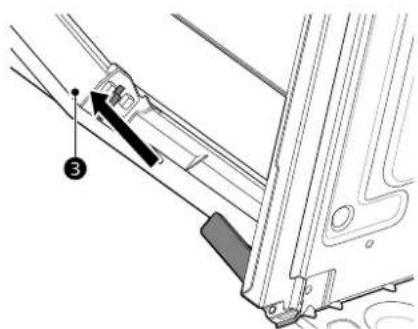

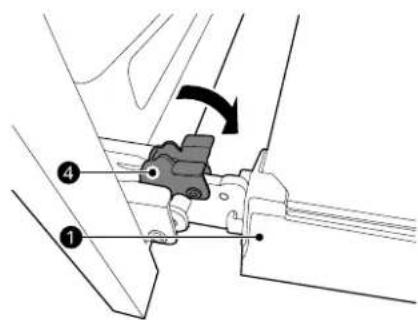

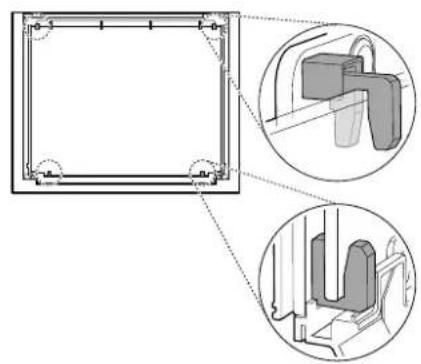

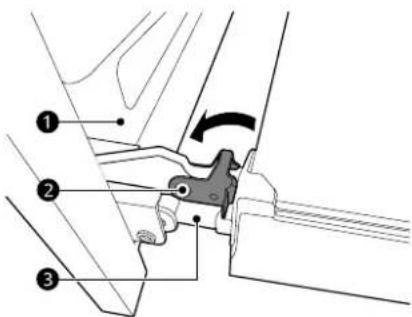

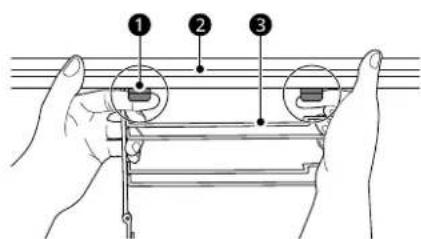

52 Removing, Assembling and Dismantling the Oven Door

55 TROUBLESHOOTING

55 FAQs

55 Frequently Asked Questions

57 Before Calling for Service

57 Cooking
59 Parts & Features
59 Noises
59Wi-Fi

61 LIMITED WARRANTY

61 USA

61 TERMS AND CONDITIONS
61 THIS LIMITED WARRANTY DOES NOT COVER
62 PROCEDURE FOR RESOLVING DISPUTES

64 CANADA

64 TERMS AND CONDITIONS
65 THIS LIMITED WARRANTY DOES NOT COVER
66 PROCEDURE FOR RESOLVING DISPUTES

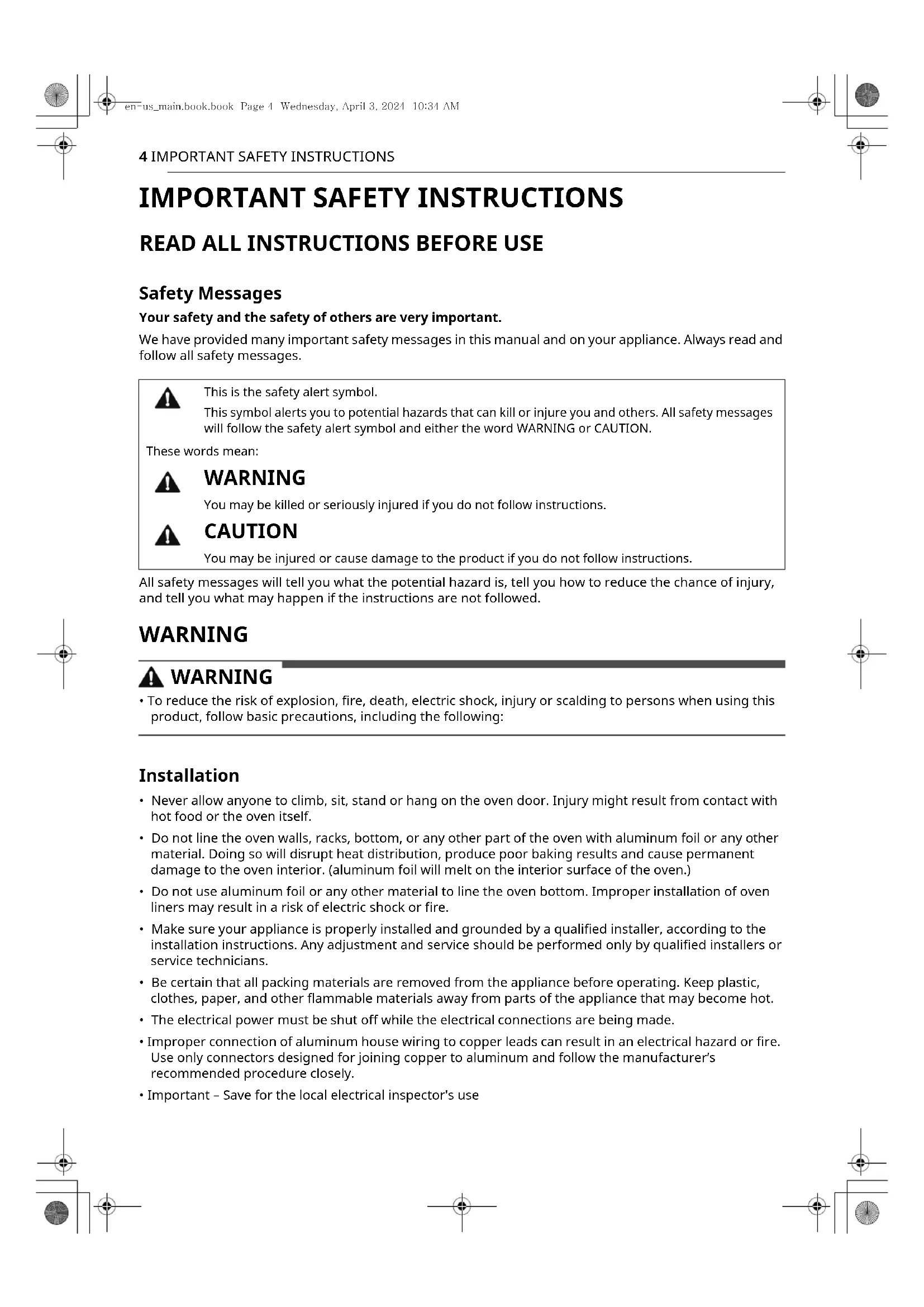

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Safety Messages

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.

These words mean:

WARNING

You may be killed or seriously injured if you do not follow instructions.

CAUTION

You may be injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

WARNING

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Installation

• Never allow anyone to climb, sit, stand or hang on the oven door. Injury might result from contact with hot food or the oven itself.
• Do not line the oven walls, racks, bottom, or any other part of the oven with aluminum foil or any other material. Doing so will disrupt heat distribution, produce poor baking results and cause permanent damage to the oven interior. (aluminum foil will melt on the interior surface of the oven.)
• Do not use aluminum foil or any other material to line the oven bottom. Improper installation of oven liners may result in a risk of electric shock or fire.
• Make sure your appliance is properly installed and grounded by a qualified installer, according to the installation instructions. Any adjustment and service should be performed only by qualified installers or service technicians.
• Be certain that all packing materials are removed from the appliance before operating. Keep plastic, clothes, paper, and other flammable materials away from parts of the appliance that may become hot.
• The electrical power must be shut off while the electrical connections are being made.
• Improper connection of aluminum house wiring to copper leads can result in an electrical hazard or fire. Use only connectors designed for joining copper to aluminum and follow the manufacturer's recommended procedure closely.
• Important - Save for the local electrical inspector's use

Operation

• DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces, such as oven vent openings and surfaces near these openings, oven doors, and windows of oven doors, also get hot and may cause burns if not allowed to cool.
• Use care when opening door. The hot air and steam that escape can cause burns to hands, face and eyes. Let hot air or steam escape from the oven before removing or replacing food in the oven.
• Do not use plastic to cover food. Use foil or oven-safe lids only.
• Never attempt to dry a pet in the oven.
• Never use your appliance for warming or heating the room.
• Always use pot holders or oven mitts when removing food from an oven or cooktop. Cookware will be hot. Use only dry pot holders. Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let the pot holder touch hot heating elements. Do not use a towel or other bulky cloth to remove food.
• Do not heat unopened food containers. Pressure in the containers may cause them to burst which may result in injury.
• Do not allow aluminum foil or the temperature probe to contact heating elements.
• Do not touch the oven racks while they are hot.
• Only arrange oven racks when the oven is cool. If a rack must be moved while the oven is hot, do not let the pot holder contact the hot heating element in the oven.
• Pull the oven rack to the stop-lock position when loading and unloading food from the oven. This helps prevent burns caused by touching hot surfaces of the door and oven walls.
• Do not use the oven if a heating element develops a glowing spot during use or shows other signs of damage. A glowing spot indicates the heating element may fail and present a potential burn, fire, or shock hazard. Turn the oven off immediately and have the heating element replaced by a qualified service technician.
• Do not leave children alone or unsupervised near the appliance when it is in use or is still hot. Children should never be allowed to sit or stand on any part of the appliance as they could be injured or burned.
• DO NOT block the oven vent during operation. This can damage the electric parts of the oven. Air must be able to move freely. The bottom vent trim should be properly assembled on the front bottom of oven before installing the oven door.
• Do not put large, heavy items such as whole turkeys on the open oven door.
  Take care when the door is open to avoid injury.
• If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• Do not allow children to crawl into the oven.
• Do not put your hand under the controller or between the door and bottom vent trim during operation. The outside of the oven can become very hot to the touch.

Maintenance

• Do not store items of interest to children on the back guard or in cabinets above a cooking appliance. Children climbing on the oven to reach items could be seriously injured.
• Let hot cookware and utensils cool in a safe place, out of reach of small children.
• If the door glass, surface, or oven heating unit of the appliance are damaged, discontinue use of the appliance and call for service.
• Always disconnect power from the appliance before servicing.

• Before replacing the oven light, switch off the electrical power to the oven at the main fuse or circuit breaker panel.
• Never pour cold water over a hot oven for cleaning purposes.
• Oversized food or oversized metal cookware should not be inserted in a microwave/toaster oven as they may create a fire or risk of electric shock.
• Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts causing a risk of electric shock.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the oven.
  If your oven is dropped or damaged, have it thoroughly checked by a qualified service technician before using it.

Risk of Fire and Flammable Materials

• Do not store or use flammable material in or near the oven. Flammable materials include paper, plastic, pot holders, linens, wall coverings, curtains, and gasoline or other flammable vapors and liquids such as grease or cooking oil. These materials can be ignited when the oven is in use.
• Use extreme caution when moving or disposing of hot grease.
• Wear proper apparel. Do not wear loose-fitting or hanging garments, which may ignite if they contact hot surfaces, and cause severe burns.
• Do not use the oven for drying clothes. Only use the oven for its intended purpose.
• If cabinet storage is provided directly above the oven, use it to store items that are not frequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for volatile items such as flammable liquids, cleaners or aerosol sprays.
• Do not use water on grease fires. Should an oven fire occur, leave the oven door closed and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher. Do not put water or flour on the fire. Flour may be explosive and water can spread a grease fire and cause personal injury.

CAUTION

CAUTION

• To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Operation

• Always heat fat slowly, and watch as it heats.
• If frying combinations of oils and fats, stir them together before heating.
• Use a deep fat thermometer, if possible, to prevent overheating fat beyond the smoking point.
• Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the pan with too much fat can cause spillovers when food is added.
• Accessible parts may become hot when the grill is in use.
• Do not place food or cookware on the bottom of the oven cavity. Doing so will cause permanent damage to the oven bottom finish.
• When using cooking or roasting bags in the oven, follow the manufacturer's directions.
• To protect against food-borne illnesses, cook meat and poultry thoroughly. The USDA has indicated the following as safe minimum internal temperatures for consumption:

Ground beef: 160^ (71^)

• Poultry: 165^ F (74°C)
• Beef, veal, pork, or lamb: 145^ (68^)

• Fish/seafood: 145^ (68°C)

• Do not use this oven for commercial purposes. It is made for household use only.

• The door or the outer surface may get hot when the appliance is operating.
• Do not use this oven for purposes other than cooking.
• Use caution if opening the door when the oven is operating. Hot surfaces can cause serious burns.
• Place oven racks in the desired location before turning on the oven to avoid burns.

Maintenance

• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be performed by a qualified technician.
• Do not use harsh, etching, abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface. Scratches may cause the glass to shatter.
• Make sure oven lights are cool before cleaning.
• Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.
• Do not rinse trays and racks by placing them in water just after cooking. This may cause breakage or damage.
• The oven should be cleaned regularly and any food deposits should be removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could shorten the life of the appliance and possibly result in a hazardous situation.
• Do not clean the oven door gasket. The oven door gasket is made of a woven material that is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.
• Do not use oven cleaners. Commercial oven cleaner or oven liner protective coating of any kind should not be used in or around any part of the oven.

SAVE THESE INSTRUCTIONS

8 PRODUCT OVERVIEW

PRODUCT OVERVIEW

Product Features

The appearance and specifications listed in this manual may vary due to constant product improvements.

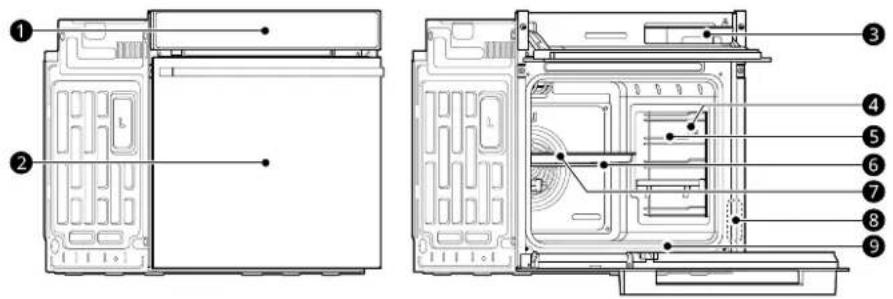

Exterior/Interior

1	Oven Controller	6	Standard Rack (2 ea)
2	Oven Door	7	Perforated Tray
3	Water Tank	8	Model and Serial Number
4	Meat Probe Socket	9	Gasket
5	Rack Guide (2 ea) -

10 OPERATION

OPERATION

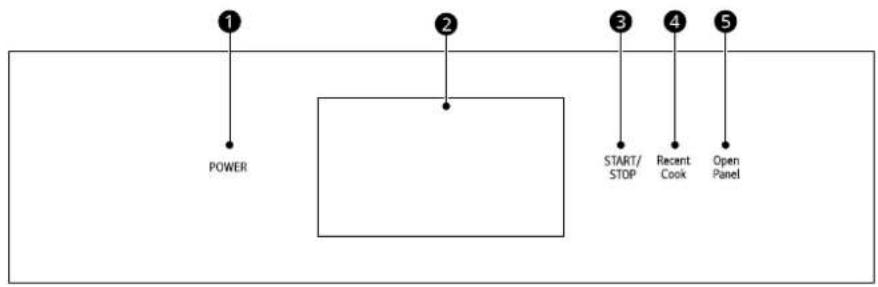

Operating Control Panel

Control Panel Features

1 POWER
2LCD Touchscreen
START/STOP
Recent Cook
Open Panel

Display Icons

Icons appear in display when activated.

ENGLISH

# =	① Oven Cooling Appears during or after oven operation to indicate cooling fan is running in the oven.
#	② Probe Appears when probe is connected.
DEMO	③ Demo Appears when Demo mode is active.
#	④ Wi-Fi • Appears when oven is connected to Wi-Fi. • Appears when oven is not connected to Wi-Fi.
#	⑤ Remote Start Appears when Remote Start is active.
#	⑥ Lock Appears when Control Lock is activated.

7	Manual Cook
8	Steam Cook
9	Recipe Cook
10	My Recipes
11	Cleaning
12	Settings

Energy Saving Tips

• Multiple-rack cooking saves time and energy. Whenever possible, cook foods requiring the same cooking temperature together in one oven.
• For optimal performance and energy savings, follow the guides for proper rack and pan placement.

• Reduce energy use by cleaning light oven soil with the EasyClean feature.

• Avoid opening the oven door more than necessary during use. This helps the oven maintain temperature, prevents unnecessary heat loss, and saves on energy use.

Changing Settings

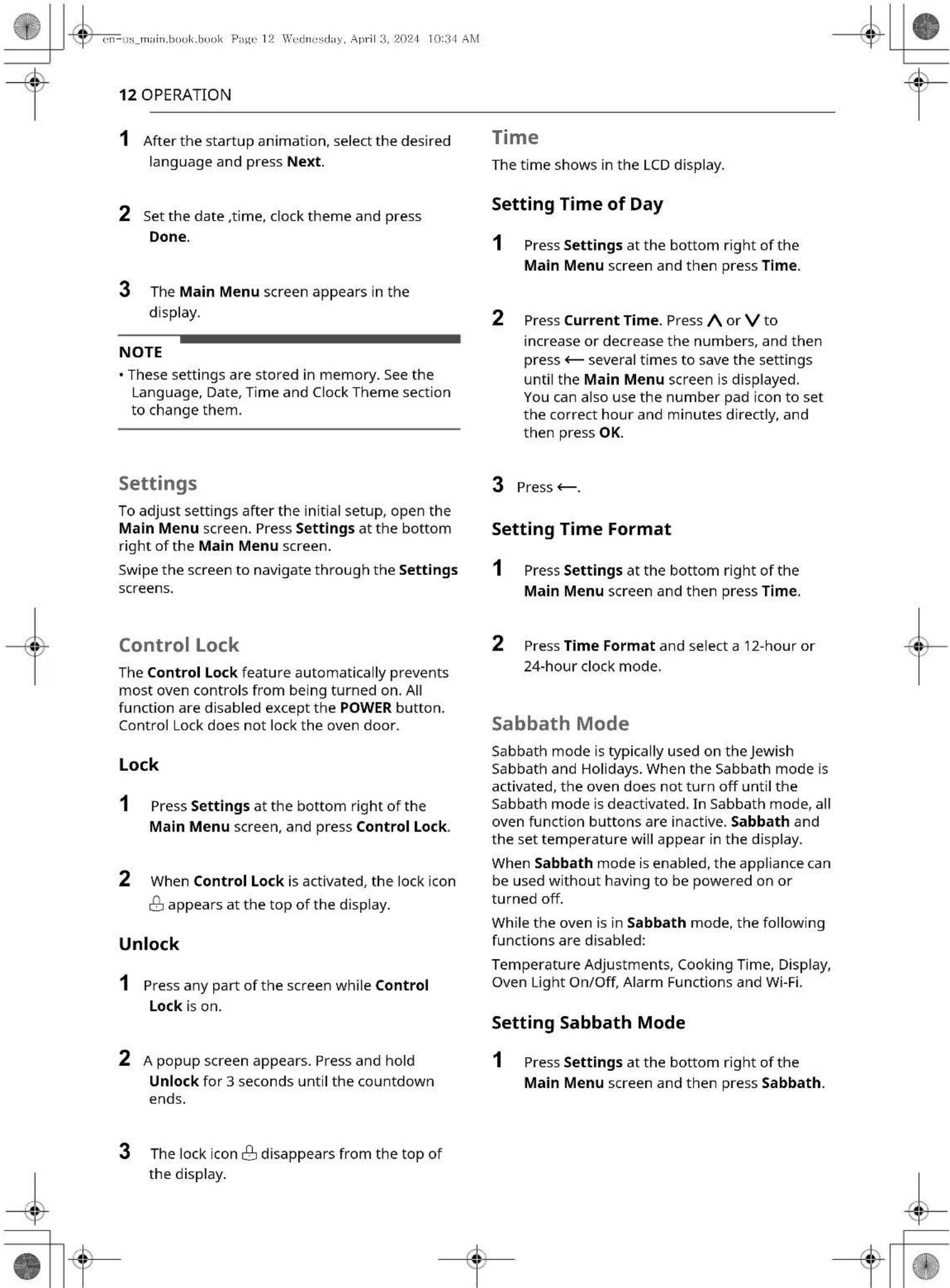

Getting Started

After turning on the oven for the first time, adjust the settings to suit your preferences.

2 Press Temperature to set the desired temperature. Press or to increase or decrease the temperature and then press to save the settings. You can also use the number pad icon to set the temperature directly and then press OK.
3 If desired, press Cook Time to set the cook time. Press or to select the desired time and press to save the settings. You can also use the number pad icon to set the cook time directly and then press OK.
4 Press START.
5 To stop the Sabbath mode, press the POWER button on the control panel.

NOTE

• If a cook time is set, the oven turns off automatically at the end of the cook time, without chiming. The oven remains in Sabbath mode, but is turned off.
• If no cook time is set, the oven will not automatically turn off.
  After a power failure, the display will turn back on in Sabbath mode, but the oven will be off.
  Always close the oven door before engaging Sabbath Mode.

Wi-Fi

Connect the appliance to a home Wi-Fi network to use Remote Start and other smart functions. See the Smart Functions section for more details.

Setting Up Wi-Fi

1 Press Settings at the bottom right of the Main Menu screen and then press Wi-Fi.
2 Press Set Up Wi-Fi.
3 Follow the instructions in the Wi-Fi Guide in the display.

Resetting Wi-Fi

1 Press Settings at the bottom right of the Main Menu screen and then press Wi-Fi.
2 Press Reset Wi-Fi.
3 Follow the instructions in the Wi-Fi Guide in the display.

Remote Start

This feature can be used with the Manual Cook modes to remotely start or stop the cooking operation. The appliance must be connected to a home Wi-Fi network to use Remote Start.

Setting Remote Start

1 Press Settings at the bottom right of the Main Menu screen and then press Remote Start.
2 Select on or Off.
3 If On is selected, the Remote Start icon appears at the top of the display. "Remote Start is on. Check the LG ThinQ app to use Remote Start." appears in the display when Remote Start is activated.
4 Follow the instructions in the LG ThinQ app for using the Remote Start function.

Start Screen

There are five different screen themes available.

Setting Start Screen

1 Press Settings at the bottom right of the Main Menu screen and then press Start Screen.
2 Select the desired start screen theme.

14 OPERATION

Brightness

Adjust the brightness of the LCD display from Min (20%) to Max (100%) in increments of 20%.

Setting Display Brightness

1 Press Settings at the bottom right of the Main Menu screen, swipe the Settings screen, and then press Brightness.
2 Adjust the display brightness by pressing and dragging the dot across the bar, by tapping anywhere on the bar, or by pressing + or -.

①

Level 1

3 Press

Display

Set the length of time before the display sleeps. There are three options you can select.

• ON: Always on
  OFF: Automatically turns off if idle for 30 minutes.
  Night Mode: Turns off from 10:00 PM to 5:00 AM.

Setting Display Option

1 Press Settings at the bottom right of the Main Menu screen and then press Display.
2 Select the desired option.

Convection Auto Conversion

When Convection Bake and Convection Roast are selected, Convection Auto Conversion automatically converts the standard recipe temperature entered to a convection temperature by subtracting 25^ / 14^ . This auto converted temperature shows on the display. For example,

select Convection Bake, enter 350^, and 325^ shows on the display after preheat.

Convection Auto Conversion is enabled by default. To change the setting, follow these instructions.

Setting Convection Auto Conversion

1 Press Settings at the bottom right of the Main Menu screen and then press Convection Auto Conversion.
2 Select on or Off.

Language Selection

Set the display language to English, Spanish, or French.

Selecting a Language

1 Press Settings at the bottom right of the Main Menu screen, swipe the Settings screen, and then press Language.
2 Select the desired language.

Volume

Adjust the volume of the following features: oven start, button operation, end of cooking, preheating complete.

Setting the Volume

1 Press Settings at the bottom right of the Main Menu screen, swipe the Settings screen, and then press Volume.
2 Select Mute, Low, or High.
3 Press

Preheat Alarm Light

When the oven reaches its set-temperature, the preheat alarm light flashes 5 times or until the oven door is opened.

You can turn the preheat alarm light on or off.

Setting the Preheat Alarm Light

1 Press Settings at the bottom right of the Main Menu screen, swipe the screen, and then press Preheat Alarm Light.

2 Select On or Off.

Temperature Adjustment

Your new oven may cook differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it before changing the temperature settings. If after familiarizing yourself with the new oven, you still think that it is too hot or too cold, you can adjust the oven temperature yourself.

NOTE

To begin, either raise or lower the thermostat 35 ^ F (19°C). Try the oven with the new setting. If the oven still needs adjustment, raise or lower the thermostat again, using the first adjustment as a gauge. For example, if the adjustment was too much, raise or lower the thermostat 10°F (5 °C). If the adjustment was not enough, raise or lower the thermostat 20°F (12°C). Proceed in this way until the oven is adjusted to your satisfaction.

Adjusting the Temperature

1 Press Settings at the bottom right of the Main Menu screen, swipe the screen, and then press Temperature Adjustment.

2 Press or to increase or decrease the temperature in 1-degree increments. Press and hold or to scroll up or down the scale.

① Temperature Adjustment

3 When the desired change appears above the range, press

Temperature Unit

Set the oven temperature display to show either Fahrenheit (^) or Celsius (^) units. The oven defaults to Fahrenheit unless changed by the user.

Selecting Fahrenheit or Celsius

1 Press Settings at the bottom right of the Main Menu screen, swipe the Settings screen, and then press Temperature Unit.
2 Select the desired Temperature Unit.

Minimum & Maximum Default Settings

All of the features listed have a minimum and a maximum time or temperature setting that may be entered into the control. An entry acceptance beep sounds each time a control button is pressed.

An entry error tone (two short tones) sounds if the entry of the temperature or time is below the minimum or above the maximum setting for the feature.

Feature Min. Temp.	Max. Temp. Default
Convection Bake / Convection Roast	170 °F / 76 °C	500 °F / 260 °C	350 °F (325 °F)†/ 12 hr.
Bake	170 °F / 76 °C	500 °F / 260 °C	350 °F / 12 hr.
Broil Lo Hi			Hi 3 hr.

Feature Min. Temp. Max. Temp. Default
Warm	Lo140 °F	HI200 °F	Medium170 °F3 hr.
Air Fry	300 °F /148 °C	500 °F /260 °C	400 °F /205 °C12 hr.
Frozen Meal	300 °F /148 °C	500 °F /260 °C	400 °F /205 °C12 hr.
Steam	180 °F /80 °C	210 °F /99 °C	180 °F /80 °C4 hr.
Steam Bake	210 °F /98 °C	450 °F /232 °C	350 °F /175 °C4 hr.
Sous-vide	130 °F /50 °C	200 °F /95 °C	140 °F /60 °C4 hr.

† Using auto conversion

NOTE

• Default cook mode times are without setting a cook time.

Smart Diagnosis™

Smart DiagnosisTM can be run through the LG ThinQ smartphone application or by calling for support. Place your smartphone's mouthpiece near the top left corner of the screen. See "Smart Diagnosis Function" in the Smart Functions section for detailed instructions.

1 Press Settings at the bottom right of the Main Menu screen, swipe the screen, and then press Smart DiagnosisTM.
2 Press START to start the diagnostic tone.

Factory Data Reset

This function returns all settings to the factory defaults.

CAUTION

• All stored data will be deleted.

1 Press Settings at the bottom right of the Main Menu screen, swipe the screen, and then press Factory Data Reset.
2 If you want to reset data to the factory defaults, press RESET. A popup will appear in the display. Then then press RESET.

Demo Mode

Demo Mode is for showroom use only. The oven will not heat up.

1 Press Settings at the bottom right of the Main Menu screen, swipe the screen, and then press Volume.
2 Tap the upper right corner of the screen 15 times to enable or disable demo mode.
- DEMO is displayed in the right corner of the Main Menu screen.

e

①	Volume
②	High

①	Timer
②	START

3 To deactivate the mode, repeat steps 1 and 2 again.

NOTE

• When Demo Mode is on, the appliance will not heat up.
• The Demo Mode icon appears in the display if the Demo Mode is on.

3 The time remaining appears next to the clock icon in the display. A chime sounds when the set time runs out and Timer Ended appears in the display. The chime sounds every 15 seconds until OK is pressed.

Adjusting or Cancelling the Timer

Oven Cooling

The oven cooling icon 念 appears in the display if the temperature inside the oven is high during or after operation.

The oven cooling icon 品 disappears if the oven temperature is low.

Timer

The oven timer doesn't affect oven operation or cooking time. Use it as an extra kitchen timer. Once the time runs out, the oven chimes and Timer Ended appears in the display.

Setting the Timer

1 Press the clock icon at the center top of the display.
2 Scroll through the numbers in the popup to set the desired time. Then press START.

2 To cancel the timer, press STOP in the display.
3 To adjust the time, scroll through the numbers in the popup to set the desired time. Then press START.
4 The remaining time in the display is adjusted.

Operating the Oven

Before Using the Oven

NOTE

• Because the oven temperature cycles, an oven thermometer placed in the oven cavity may not show the same temperature that is set on the oven.
• If the door is left open for longer than 30 seconds during baking, the heater turns off. The heater turns back on automatically once the door is closed.

1	Rack Guide
2	Telescopic Runner

ENGLISH

Telescopic Runner Clip
2Telescopic Runner
Rack Guide

3 Hook both the telescopic runner clips onto the upper rail at the desired rack position.
4 Pull the telescopic runner forward until the lower parts of the clips snaps onto the lower rail on the rack guide.
5 Repeat steps 1-4 for the other telescopic runner to install it in the same position on the other side.

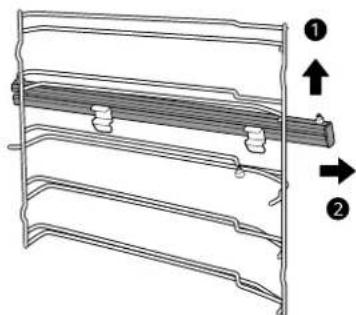

Removing the Telescopic Runners

WARNING

• Allow the oven to cool before installing or removing the telescopic runners to prevent burns.

NOTE

• Place a soft cloth on the floor to avoid damaging the parts.

1 Pull the telescopic runner clips away from the rack guide.

2 Lift up the whole telescopic runner and pull forward to detach it from the rack guide.

Using the Telescopic Runners

The telescopic runners slide in and out on a frame. This keeps heavy cookware level and prevents it from sliding forward when the telescopic runner is completely extended.

20 OPERATION

Using Standard Oven Racks

The racks have a turned-up back edge that prevents them from being pulled out of the oven cavity.

CAUTION

• Reposition oven racks before turning the oven on to prevent burns.
• Do not cover the racks with aluminum foil, or any other material, or place anything on the bottom of the oven. Doing so will result in poor baking and may damage the oven bottom.
• Only arrange oven racks when the oven is cool.
• Do not place objects heavier than 33 lb (15 kg) on the racks. Do not place heavy objects on the corners of the racks. Doing so can damage the racks.

Removing Racks

1 Pull the rack straight out until it stops.
2 Lift up the front of the rack and pull it out.

Replacing Racks

1 Place the end of the rack on the support.
2 Tilt the front end up and push the rack in.

Instaview

Knock twice on the center of the glass panel to reveal the contents of the oven without opening the door.

CAUTION

• Do not hit the glass door panel with excessive force. Do not allow hard objects like cookware or glass bottles to hit the glass door panel. The

glass could break, resulting in a risk of personal injury.

NOTE

• Knocking twice on the glass panel turns the interior light on or off.
• The InstaView function is disabled when the oven door is opened and for one second after closing the door.
• The InstaView function is disabled during Control Lock, Sabbath Mode and initial power input.
• Tapping the edges of the glass panel may not activate the InstaView function.
• The taps on the glass panel must be hard enough to be audible.
• Loud noises near the oven may activate the InstaView function.

Setting InstaView

1 Press Settings at the right bottom of the Main Menu screen, then press InstaView.
2 "When turned ON, you can turn the oven lights on or off by knocking twice on the center of the door glass." appears in the display when the InstaView feature is activated. Press OK.

Manual Cook

Read the below guide and select the desired cooking mode to meet your specific cooking needs.

Available / X: Not available

Function	Temperature Range	Default Temperature	Option	Description
			Probe #
Bake	170-500 °F (76-260 °C)	350 °F (175 °C) ●		In Bake mode, the upper and concealed lower heating elements are used. This operating mode is suitable for baking cakes, baking for a short time, and sensitive doughs.
Convection Bake	170-500 °F (76-260 °C)	350 °F (175 °C) ●		Convection Bake mode uses only the heating element in the back wall and the convection fan. It is also possible to bake on multiple racks in Convection Bake mode. This means that it is suitable for fruit cakes and stirred cake or yeast doughs such as a bread plait.
ConvectionRoast	170-500 °F (76-260 °C)	350 °F (175 °C) ●		In Convection Roast mode, the upper heating elements and the convection fan are on. This function is suitable for large pieces of meat or poultry, such as rolled roast or turkey.
Broil	High / Medium / Low	High X		Broil mode uses the entire grill heating element. No specific temperature can be set. You can choose between three settings. Broil is suitable for cooking steaks, cutlets, fish or making toast, and for browning when cooking larger dishes with a gratin topping. The preset level is high. Always broil with the door closed.
Air Fry	300-500 °F (148-260 °C)	400 °F (205 °C)	X	Air Fry function is specially designed for oil-free frying.
Warm	High / Medium / Low	Med X		In Warm mode, the heating element at the top and concealed element at the bottom of the oven cavity are activated. You can use this function for keeping food warm until ready to serve. The temperature can be set to High, Medium, or Low.

ENGLISH

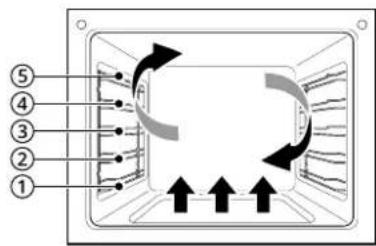

Convection Bake and Roast Mode

The convection system uses a fan to circulate the heat evenly within the oven. Improved heat distribution allows for even cooking and excellent results while cooking with single or multiple racks.

The Convection Roast feature is designed to give optimum roasting performance. Convection Roast combines cooking with the convection fan to roast meats and poultry. The heated air circulates around the food from all sides, sealing in juices and flavors. Foods are crispy brown on the outside while staying moist on the inside. Convection roasting is especially good for large tender cuts of meat, uncovered.

The oven can be programmed to bake at any temperature from 170^ (76^) to 500^ (260^) . The default temperature is 350^ (175^) .

Setting the Convection Function

1 Press Manual Cook in the Main Menu screen.
2 Select Convection Bake or Convection Roast in the cooking mode screen.

3 Press Temp. to set the desired cooking temperature. Press or to increase or decrease the temperature and then press to save the settings. You can also use the number pad icon to set the cooking temperature directly and then press OK.
4 If desired, press Time and press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to increase or decrease the time and then press to save the settings. You can also use the number pad icon to set the cooking time directly and then press OK.
5 Press the START/STOP button on the control panel. The oven starts to preheat.
6 If the cook time is set, the remaining time appears in the display. If a cooking start time is set, the start time appears in the display.
7 A chime sounds once preheating is complete.
A chime sounds at the end of the set cook time and a notification appears in the display. Open the oven door and remove the food.

NOTE

• If no cook time is set, the oven turns off automatically after 12 hours.
• The heating elements and fan turn off if the door is opened. They turn on again after the door is closed.
• Press Stop in the display to cancel Convection Bake and Convection Roast at any time.
• The oven fan runs while convection baking and convection roasting. The fan stops when the door is opened. In some cases, the fan may shut off during a convection bake cycle.

Changing the Cook Settings

1 Press Edit to bring up the Cook Settings screen.

2 Adjust the settings using the number pad or scroll function.
3 Press the START/STOP button on the control panel.

To Stop Cooking

1 Press the START/STOP button on the control panel and then press Stop in the display.

Tips for Convection Baking

• Use Convection Bake for faster and more even multiple-rack cooking of pastries, cookies, muffins, biscuits, and breads of all kinds.
• Bake cookies and biscuits on pans with no sides or very low sides to allow heated air to circulate around the food. Food baked on pans with a dark finish will cook faster.
• When using Convection Bake with a single rack, place the rack in position ③. If cooking on multiple racks, place the oven racks in positions ② and ④.
• Multiple oven rack cooking may slightly increase cook times for some foods.

Tips for Convection Roasting

• For better roasting results, baste joints and poultry with their own juices a number of times during the roasting process.
• Use heat resistant dishes when roasting (follow manufacturer's instructions).
• Stainless steel roasting pans are only of limited use, as they reflect the heat to a very large extent.
• When using dishes with plastic handles, ensure that the handles are heat resistant (follow manufacturer's instructions).
  Large items for roasting or a number of items can be placed directly on the oven rack above the deep pan (or baking tray) (e.g. turkey, goose, 3 or 4 chickens, 3 or 4 knuckles of veal).
• Lean meat should be roasted in a roasting tray with a lid (e.g. veal, braised beef, deep frozen meat). This keeps the juices in the meat.
• For cooking crispy crusts or bacon, use a casserole dish without the lid (e.g. pork, minced meat, lamb, mutton, duck, knuckle of veal, chicken, poultry meat, roast beef, fillet of beef, game birds).

Results of Baking Possible	Cause Solution
Cake collapses (turns lumpy, soggy)	Oven temperature too high Set the	temperature slightly lower.
	Baking time too short	Set a longer baking time. The baking time cannot be reduced by setting a higher temperature.
	Mixture contains too much liquid	Use less liquid. Follow instructions for dough mixing times, especially when using kitchen appliances.
Cakes are too dry	Oven temperature too low	Next time set a slightly higher temperature.
	Baking time too long Set a slightly shorter baking time.
Cakes are browned unevenly	Baking temperature too high and baking time too short	Set a slightly lower baking temperature and a slightly longer baking time.
	Mixture unevenly distributed	Distribute the mixture evenly over the baking tray/tin.
Baking time too long Temperature too low		Next time set a slightly higher temperature.

ENGLISH

Recommended Baking Guide

Rack and Pan Placement

Baking results will be better if baking pans are centered in the oven as much as possible.

Multiple-rack cooking saves time and energy. Whenever possible, cook foods requiring the same cooking temperature together in one oven.

Baking Rack Guide

Type of Food	Rack Position
Angel food cake,frozen pies	②
Bundt or pound cakes	②
Biscuits,muffins,brownies,cookies,cupcakes,layer cakes,pies	③
Casseroles	③

Type of Food	Rack Position
Turkey, roasts, or ham	①
Frozen pizza	③
Roast chicken	②

NOTE

• When baking cakes and cookies on multiple racks, use the Convection Bake mode and place racks in positions ② and ④.
• Always count rack position from the bottom up.

Broil Mode

Setting the Oven to Broil

Broiling uses an intense, radiant heat to cook food. Both the inner and outer broil elements heat during full broiling. Only the inner broil element heats during center broiling. The element(s) cycle on and off at intervals to maintain the oven temperature. The meat probe cannot be used with this mode.

Keep the oven door closed while broiling. Let the oven preheat for approximately 5 minutes before cooking food.

26 OPERATION

CAUTION

• Do not cover the oven rack with aluminum foil. Doing so will cause a fire.
• Should an oven fire occur, leave the oven door closed and turn the oven off. If the fire continues, throw baking soda on the fire or use a fire extinguisher.
  DO NOT put water or flour on the fire. Flour may be explosive and water can cause a grease fire to spread and cause personal injury.

• When using your broiler, the temperature inside the oven will be extremely high. Take care to avoid possible burns by:

• Keeping the door closed when broiling

• Always wearing oven mitts when inserting or removing food items

NOTE

• This appliance is designed for closed-door broiling. Close the door to set the Broil function. If the door is open, the Broil function cannot be set and Close the door to start cooking appears on the display. Close the door and reset the Broil function. If the door is opened during broiling, the broil burner turns off after five seconds. The broiler turns back on automatically once the door is closed.
  1 Press Manual Cook in the Main Menu screen.
  2 Press Broil.
  3 Select the desired temperature: Low, Medium, or High.
  4 If desired, press Time and press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to increase or decrease the time and then press to save the settings. You can also use the number pad icon to set the cooking time directly and then press OK.
  5 Press the START/STOP button on the control panel.

6 Let the oven preheat for approximately 5 minutes before cooking the food.
7 If the cook time is set, the remaining time appears in the display. If a cooking start time is set, the start time appears in the display.
8 Press the START/STOP button on the control panel to cancel at any time or when cooking is complete.

NOTE

• If the cook time is not set, the oven automatically turns off after 3 hours.
• The heating elements and fan turn off if the door is opened. They turn on again after the door is closed.

Changing the Broil Settings

1 Press Edit in the display to bring up the Cook Settings screen.
2 Adjust the settings using the number pad on scroll function.
3 Press the START/STOP button on the control panel.

To Stop Cooking

Press the START/STOP button on the control panel and then press Stop in the display.

Tips for Reducing Smoke

Due to the intense heat associated with broiling, it is normal to experience smoke during the cooking process. This smoke is a natural byproduct of searing and should not cause you to worry. If you are experiencing more smoke than you are comfortable with, use the following tips to reduce the amount of smoke in your oven.

• Always use a broiler pan. Do not use saute pans or regular baking sheets for safety reasons.

• The broiler pan should always be thoroughly cleaned and at room temperature at the beginning of cooking.
  Always run your cooktop ventilation system or vent hood during broiling.

• Keep the interior of your oven as clean as possible. Leftover debris from prior meals can burn or catch fire.

• Avoid fatty marinades and sugary glazes. Both of these will increase the amount of smoke you experience. If you would like to use a glaze, apply it at the very end of cooking.
  If you are experiencing significant smoke with any food item, consider:

• Lowering the broiler to the Low setting.

• Lowering the rack position to cook the food farther away from the broiler.

Using the High broil setting to achieve the level of searing you desire, and then either switching to the Low broil setting, or switching to the Medium broil setting.

• As a rule, fattier cuts of meat and fish will produce more smoke than leaner items.
  Adhere to the guidelines in the Recommended Broiling Guide section whenever possible.

Recommended Broiling Guide

Recommended Broiling Guide

The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times.

This guide is based on meats at refrigerator temperature. For best results when broiling, use a pan designed for broiling.

Standard Rack

Food	Quantity and/or Thickness		Rack Position	First Side Time (min.)	Second Side Time (min.)	Comments
Ground Beef	1 lb (9 patties) 1/2 to 3/4" thick		⑤	3-5 3-5		Space evenly. Up to 9 patties may be broiled at once.
Beef Steaks	1" thick 1 to \( {1}^{1}/{}_{2}\mathrm{\;{lb}} \) .	Rare	⑤	5-8 3-7		Steaks less than 1" thick cook through before browning. Pan frying is recommended.Slash fat.
		Medium	⑤	6-12 5-10
		Well done	⑤	13-18 10-15
	\( {1}^{1}/{}_{2}{}^{\prime \prime } \) thick 2 to \( {2}^{1}/{}_{2}\mathrm{\;{lb}} \) .	Rare	⑤	9-11 8-10
		Medium	⑤	12-14 10-12
		Well done	⑤	14-18 12-16

28 OPERATION

Food	Quantity and/or Thickness		Rack Position	First Side Time (min.)	Second Side Time (min.)	Comments
Chicken	1 whole, 2 to \(2^{1/2}\)lb. split lengthwise		④	12-16 10-	14	Broil skin-side-down first.
	2 Breasts		④	5-8 5-8
Lobster Tails	2-4 10 to 12 oz each		④	10-20	Do not turn over.	Cut through back of shell. Spread open. Brush with melted butter before broiling and after half of broiling time.
Fish Fillets	\(1/4\)to \(1/2"\)thick		⑤	3-5 3-5		Handle and turn very carefully. Brush with lemon butter before and during cooking, if desired.
Ham Slices (precooked)	\(1/2"\)thick		⑤	2-3 2-3		Increase time 5 to 10 minutes per side for 1 1/2" thick or home-cured ham.
Pork Chops Well done	\(2(1/2"\)thick)		④	8-10 7-9		Slash fat.
	2 (1" thick) about 1lb.		④	10-12 9-1	1
Lamb Chops	2 (1" thick) about 10 to 12 oz	Medium	④	5-8 4-6		Slash fat.
		Well done	④	1-10 5-8
	2 (1 \(1/2"\)thick) about 1lb.	Medium	④	8-10 7-9
		Well done	④	10-12 9-1	1
Salmon Steaks	2 (1" thick)		⑤	4-6 3-5		Grease pan. Brush steaks with melted butter.
	4 (1" thick) about 1 lb.		⑤	5-8 4-7

• This guide is only for reference. Adjust cook time according to your preference.

NOTE

• The USDA advises that consuming raw or undercooked fish, meat, or poultry can increase your risk of food-borne illness.
• The USDA has indicated the following as safe minimum internal temperatures for consumption:

Ground beef: 160^ F (71.1 °C)
- Poultry: 165°F (73.9°C)
- Beef, veal, pork, or lamb: 145^ F (62.8 °C)
- Fish / Seafood: 145^ (62.8°C)

Tips for Broiling

Beef

• Steaks and chops should always be allowed to rest for five minutes before being cut into and eaten. This allows the heat to distribute evenly

through the food and creates a more tender and juicy result.

• Pieces of meat that are thicker than two inches should be removed from the refrigerator 30 minutes prior to cooking. This will help them cook more quickly and evenly, and will produce less smoke when broiling. Cooking times will likely be shorter than the times indicated in the Broiling Chart.
• For bone-in steaks or chops that have been frenched (all meat removed from around the bone), wrap the exposed sections of bone in foil to reduce burning.

Seafood

• When broiling skin-on fish, always use the Lo broil setting and always broil the skin side last.
• Seafood is best consumed immediately after cooking. Allowing seafood to rest after cooking can cause the food to dry out.
• It is a good idea to rub a thin coating of oil on the surface of the broiling pan before cooking to reduce sticking, especially with fish and seafood. You can also use a light coating of non-stick pan spray.

Vegetables

Toss your vegetables lightly in oil before cooking to improve browning.

Frozen Meal

The Frozen Meal function is specially designed for cooking frozen prepared meals. It heats from both the top and bottom to brown food more evenly.

This system is designed to give the optimum cooking performance by automatically selecting a combination of the broil and bake heating systems. No preheating is required when using the Frozen Meal mode. For best results with frozen pizza, cook food on a single rack placed in position 4 at 400^ .

Setting the Frozen Meal Function

1 Press Manual Cook in the Main Menu Screen.
2 Select Frozen Meal in the cooking mode screen.

3 Press Temp. to set the desired cooking temperature. Press or to increase or decrease the temperature and then press to save the settings.

You can also use the number pad icon to set the cooking temperature directly and then press OK.

4 If desired, press Time and press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to increase or decrease the time and then press to save the settings.
You can also use the number pad icon to set the cooking time directly and then press OK.
5 Press the START/STOP button on the control panel.

Changing the Frozen Meal Settings

1 Press Edit in the display to bring up the Cook Settings screen.
2 Adjust the settings using the number pad on scroll function.
3 Press the START/STOP button on the control panel.

To Stop Cooking

Press START/STOP button on the control panel and then press Stop in the display.

Warm Mode

This function will maintain an oven temperature of less than 200^ (93^) . It will keep cooked food warm for serving up to 3 hours after cooking has finished.

Setting the Warm Mode

1 Press Manual Cook in the Main Menu screen.
2 Select Warm in the cooking mode screen.

30 OPERATION

3 Select the desired temperature: Low, Medium, or High.
4 If desired, press Time and press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to increase or decrease the time and then press to save the settings. You can also use the number pad icon to set the cooking time directly and then press OK.
5 Press the START/STOP button on the control panel.

Changing the Warm Settings

1 Press Edit in the display to bring up the Cook Settings screen.
2 Adjust the settings using the number pad or scroll function.
3 Press the START/STOP button on the control panel.

To Stop Cooking

Press START/STOP button on the control panel and then press Stop in the display.

NOTE

• The Warm function is intended to keep food warm. Do not use it to cool food down.

Proof Mode

This feature maintains a warm oven for rising yeast-leavened products before baking.

Setting the Proof Mode

1 Press Manual Cook in the Main Menu screen.
2 Select Proof in the cooking mode screen.

3 If desired, press Time and press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to increase or decrease the time and then press to save the settings. You can also use the number pad icon to set the cooking time directly and then press OK.
4 Press the START/STOP button on the control panel.

NOTE

• If the proofing time is not set, the oven automatically turns off after 12 hours.

To Stop Cooking

Press START/STOP button on the control panel and then press Stop in the display.

NOTE

• To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily. Check bread products early to avoid over proofing.
• Do not use the Proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to keep foods at safe temperatures. Use the Warm feature to keep food warm. Proofing does not operate when the oven is above 150^ . Oven is too hot. shows in the display.
  The proof feature automatically provides the optimum temperature for the proofing process, and therefore does not have a temperature adjustment.
• For best results, cover the dough with a cloth or with plastic wrap. (The plastic may need to be anchored underneath the container so the oven fan does not blow it off.)
• If using Proof after cooking, wait for the oven to cool first.
  The Proof mode can only be set as a single stage, not as part of multi-stage cooking.

Air Fry

This feature automatically increases the entered temperature by 45^ for optimal performance when using Air Fry.

The Air Fry mode can be programmed to cook at any temperature from 300^ (148^) to 500^ (260 ^ C) . The default temperature is 400^ (205^) .

The Air Fry function is specially designed for oil-free frying.

Setting the Air Fry Mode

1 Press Manual Cook in the Main Menu screen.
2 Select Air Fry in the cooking mode screen.
3 Press Temp. to set the desired cooking temperature. Press or to increase or decrease the temperature and then press to save the settings. You can also use the number pad icon to set the cooking temperature directly and then press OK.
4 If desired, press Time and press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to increase or decrease the time and then press to save the settings. You can also use the number pad icon to set the cooking time directly and then press OK.
5 Press the START/STOP button on the control panel.
6 If the cook time is set, the remaining time appears in the display. If a cooking start time is set, the start time appears in the display.
7 A chime sounds at the end of the set cook time and a notification appears in the display. Open the oven door and remove the food.

To Stop Cooking

Press the START/STOP button on the control panel and then press Stop in the display.

NOTE

• No preheating is required when using the Air Fry mode.

• If cooking multiple batches, the later batches may take less time to cook.

• Wet batters and coatings will not crisp or set when using the Air Fry mode.

Tips for Air Fry

• For best results, cook food on a single rack placed in the positions suggested in the chart in this manual.
• Spread the food out evenly in a single layer.
• Use either the air fry tray or a dark baking tray with no sides or short sides that does not cover the entire rack. This allows for better air circulation.
• If desired, spray the baking tray or air fry tray with a pan spray. Use an oil that can be heated to a high temperature before smoking, such as avocado, grapeseed, peanut or sunflower oil.
• Place a foil-lined baking tray on a rack in position ① to catch the oil falling from the food. For high-fat foods like chicken wings, add a few sheets of parchment paper to absorb the fat.
• Check food often and shake it or turn it over for crisper results.
• Prepared frozen foods may cook faster with the Air Fry mode than stated on the package. Reduce the cooking time by about 20 percent, check food early, and adjust cooking time as needed.
• Use a food thermometer to make sure food has reached a safe temperature for consumption. Eating undercooked meats can increase your risk of food-borne illness.
• For the crispiest results, dredge fresh chicken wings or tenders in seasoned flour. Use 1/3 cup flour for 2 pounds of chicken.

Recommendations When Air Frying High-Fat Foods

Foods high in fat will smoke when using the Air Fry mode. For best results, follow these recommendations when air frying foods that are high in fat, such as chicken wings, bacon, sausage, hot dogs, turkey legs, lamb chops, ribs, pork loin, duck breasts, or some plant-based proteins.

CAUTION

• Never cover slots, holes, or passages in the oven bottom or cover entire racks with materials such as aluminum foil. Doing so blocks airflow through the oven and can result in carbon monoxide poisoning. Aluminum foil can also trap heat, causing a fire hazard or poor oven performance.

32 OPERATION

• Turn on your exhaust hood at a high fan setting before you start Air Fry and leave it on for 15 minutes after you're done.
• Open a window or sliding glass door, if possible, to make sure the kitchen is well-ventilated.
• Keep the oven free from grease buildup. Wipe down the interior of the oven before and after air frying (once the oven has cooled).

• Run oven cleaning cycles (Easy Clean) regularly, depending on how often and what types of food you Air Fry.

• Avoid opening the oven door more than necessary to help maintain the oven temperature, prevent heat loss, and save energy.

• Air-frying fresh chicken pieces such as wings or drumsticks with the skin left on can produce smoke as the fat renders at high temperatures. If the smoke is excessive, use the Convection Roast mode instead of Air Fry.

Recommended Air Frying Guide

• Arrange food evenly in a single layer. Space food out and do not fill the entire tray. For best results in 24" ovens, arrange food in the middle of the tray and leave the sides of the tray open for better air circulation.
• Put a foil-lined baking pan on a rack in position ① to catch drips. If needed, add parchment paper to absorb oil and reduce smoking.
• Flip food over during cooking to avoid burning it.
• Suggested cook settings are only a guide. Results may vary depending on the brand or quantity of food. Adjust the settings as needed to achieve the desired results.

† High-fat items may produce more smoke when cooked using Air Fry. For less smoke, cook using Convection Roast mode.

Recommended Items	Quantity (oz)	Temp. (°F)	Rack Position	Time Guide
POTATOES-Frozen
Frozen French Fries (Shoestring)	16 425		3	15-25 -
Frozen French Fries (Crinkle cut, 10x10 mm)	16 400		3	18-28 -
Frozen Sweet Potato Fries	16 400		3	15-25 -
Frozen Tater Tots 20 425			3	18-28 -
Frozen Hash Browns 14 425			3	18-28 -
POTATOES-Fresh/Homemade
Homemade French Fries (10x10 mm)	16 425		3	20-30 Cut the potatoes and soak for 30 minutes in hot tap water. Drain and pat dry. Brush or lightly spray with 3 tbsp. of oil. Add salt and pepper to taste.
CHICKEN-Frozen
Frozen Chicken Nuggets, Crispy	30 400		3	15-25 -
Frozen Chicken Strips 16 400			3	15-25 -
Frozen Hot Wings, Bone-in	20 400		③	25-30 -
CHICKEN-Fresh, Skin on
Fresh Chicken Wings†	24 450		③	25-30 Brush or lightly spray with 1 tbsp. of oil. Add salt and pepper to taste.
OTHER
Frozen Onion Rings, Breaded	14 400		③	18-22 -

ENGLISH

Probe Mode

The probe accurately measures the internal temperature of meat, poultry and casseroles. Always unplug and remove the probe from the oven before removing food. Before using, insert the probe into the center of the thickest part of meat or into the inner thigh or breast of poultry, away from fat or bone. Place food in the oven and connect the meat probe to the jack. Keep the probe as far away from heat sources as possible.

• The probe can be used in the Convection Bake, Convection Roast and Bake modes.
• For thin cuts of meat, insert the probe in thickest side of the meat.

Using the Meat Probe Feature

CAUTION

Always use an oven mitt to remove the temperature probe. Do NOT touch the grilling element. Failure to follow this warning can result in severe personal injury.
- To avoid damage to the meat probe, do not use tongs to pull on the probe when removing it.
- Do not store the meat probe in the oven.

1 Insert the probe into the food.

2 Open the flap upwards and connect the probe to the jack in the oven. Probe connected appears in the display and the probe icon appears at the top of the display.

Probe icon

3 Select a desired cooking mode. The probe can be used with Convection Bake, Bake and Convection Roast modes.
4 Press Temp. to set the desired cooking temperature. Press or to increase or decrease the temperature and then press to save the settings. You can also use the number pad icon to set the cooking temperature directly, then press OK.
The default probe temperature is 150^ (65 ^ C) but can be changed to any temperature between 80^ 27oC and 210^ 100oC.

Number pad icon

5 If desired, press Time to set the cooking start time.
Press or to adjust the time and then press to save the settings. You can also use the number pad icon to set the cooking time directly and then press OK.
6 Press the START/STOP button on the control panel. If a cooking start time is set, the start time appears in the display.

34 OPERATION

7 When the set probe temperature is reached, the oven shuts off automatically.

Changing the Probe Temperature while Cooking

1 Press Edit in the display to bring up the Cook Settings screen.
2 Adjust the settings as desired.

3 Press the START/STOP button on the control panel.

To Stop Cooking

Press the START/STOP button on the control panel and then press Stop in the display.

NOTE

• To avoid breaking the probe, make sure food is completely defrosted before inserting the probe.
• See the Recommended Probe Temperature Chart to set the probe temperature.

Recommended Probe Guide

Recommended Probe Placement Chart

Category Examples of	Food Probe Placement
Ground Meat & Meat Mixtures	Meatloaf	Insert in the thickest part
	Meatballs
Fresh Beef, Veal, Lamb Steaks, Roasts, Chops, Chops	Insert in the thickest part, away from bone, fat and gristle
Poultry	Whole Chicken or Turkey	Insert in the thickest part of thigh, avoiding bone
	Poultry Breasts or Roasts
	Duck, Goose, Pheasant
	Stuffing (Alone or in Bird)	Insert in the thickest part of the dish
Pork & Ham	Fresh Pork	Insert in the thickest part, away from bone, fat and gristle
	Fresh Ham (Raw)
	Precooked Ham (Reheat & Serve)
Leftovers & Casseroles	Leftovers	Insert in the thickest part of the dish
	Casseroles
Seafood	Whole Fish	Insert in the thickest part of the fish
	Fish Fillet (Side of Fish)
	Fish Steaks or Portions

Recommended Probe Temperature Chart

Category Examples	Examples of Food	Safe Internal Temp.	Desired Doneness
Ground Meat & Meat Mixtures	Meatloaf	160 °F (71 °C)	-
	Meatballs	165 °F (74 °C)
Fresh Beef, Veal, Lamb	Roasts	145 °F (63 °C)	Rare: 120 °F (49 °C) Medium rare: 135 °F (57 °C) Medium: 140 °F (60 °C) Medium well: 150 °F (66 °C) Well done: 160 °F (71 °C)
Poultry	Whole Chicken or Turkey	165 °F (74 °C)	-
	Poultry Breasts or Roasts
	Duck, Goose, Pheasant
	Stuffing (Alone or in Bird)
Pork & Ham	Fresh Pork	145 °F (63 °C)	Well done: 160 °F (71 °C)
	Fresh Ham (Raw)		Well done: 165 °F (74 °C)
	Precooked Ham (Reheat & Serve)	140 °F (60 °C)	-
Leftovers & Casseroles	Leftovers	165 °F (74 °C)	-
	Casseroles
Seafood Whole Fish		145 °F (62.8 °C)	-
	Fish Fillet (Side of Fish)
	Fish Steaks or Portions

ENGLISH

Recipe Cook Mode

The Recipe Cook function provides guidance for cooking foods or dishes that may be unfamiliar. It contains preset programs for cooking many popular food items, with information on recommended preheating, accessories, and rack position for optimal results.

• Follow the recommendations in the display regarding accessories and rack position.

5 Press
6 Press the START/STOP button on the display.

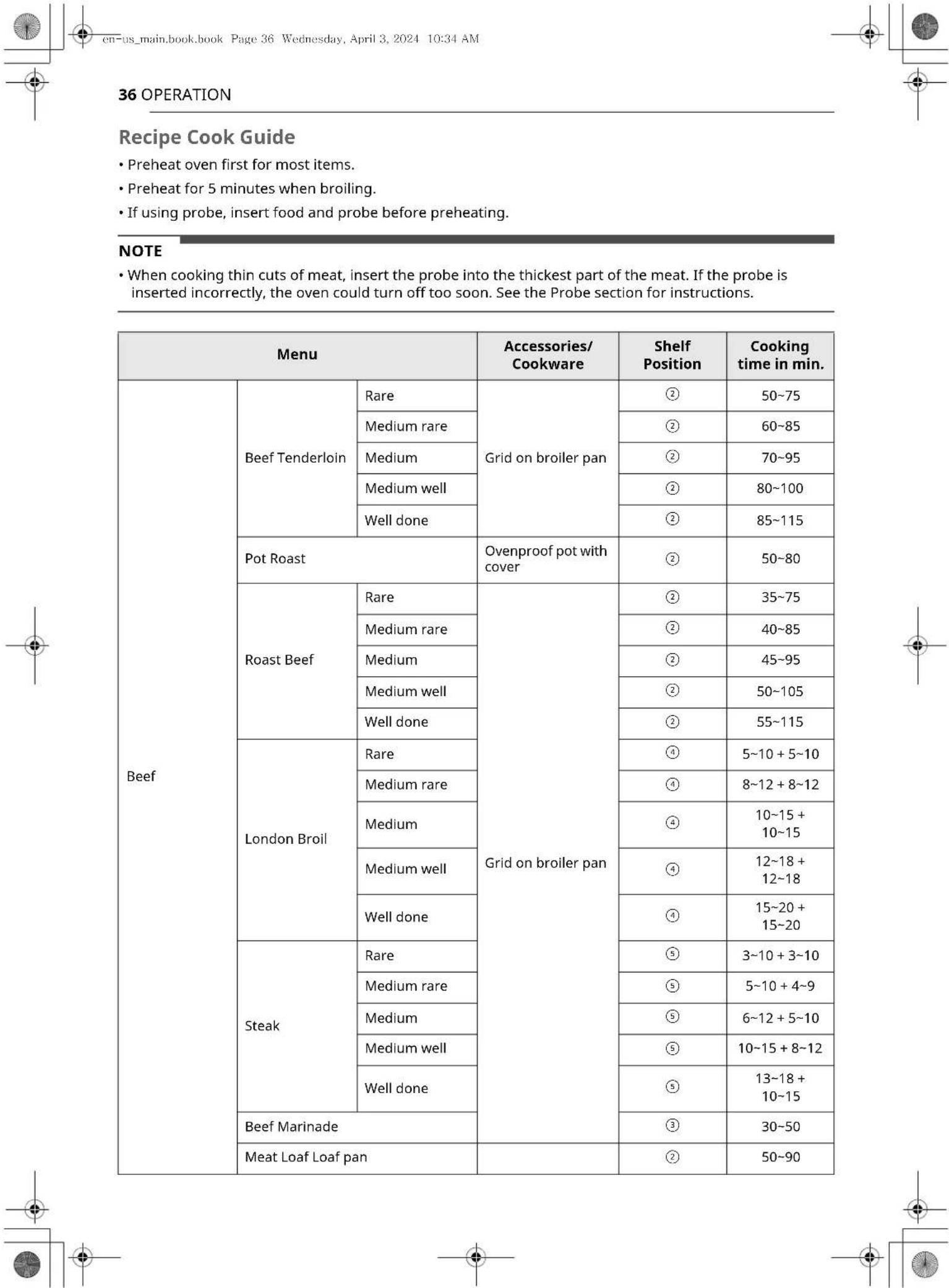

Setting Recipe Cook Mode

1 Press Recipe Cook in the Main Menu screen.
2 Press a category to filter the options.
3 Scroll through or tap the letters to find and select an item.
4 Press Info. to see the recommended recipe.

The recommendations may differ depending on the category and weight of your food.

Menu			Accessories/ Cookware	Shelf Position	Cooking time in min.
Pork	Pork Butt Casserole dish			②	75~100
	Pork Chops		Grid on broiler pan	④	30~50
	Pork Loin			②	40~80
	Pork Tenderloin			②	35~70
Lamb	Rack			②	20~40
	Bone-in Leg of Lamb			④	60~90
Veal	Veal Top Sirloin			②	50~95
	Veal Chops			⑤	3~10 + 3~8
	Veal Rolled Roast			②	40~120
	Veal Rib Roast			②	70~200
	Veal Tenderloin			②	60~90
Fish	Fish Fillet		Baking dish	④	20~30
	Whole			④	25~50
	Shrimp		Grid on broiler pan	⑤	5~15
	Lobster Tails			④	10~20
	Salmon Steak	Rare	Baking dish	④	5~8
		Medium rare		④	8~15
		Well done		④	15~25
Poultry	Chicken	Legs & Thighs		④	20~40
		Wings (Fresh)	Grid on broiler pan	⑤	8~20
		Wings (Frozen)		④	20~35
		Breasts Baking dish		④	15~30
		Cutlet Casserole dish		④	15~30
		Whole	Grid on broiler pan	②	30~80
	Whole Turkey			①	180~220
Casserole Lasagna	(Fresh) Baking dish			③	50~70

ENGLISH

Menu			Accessories/ Cookware	Shelf Position	Cooking time in min.
Pizza	Frozen Thin Crust		Directly on rack	③	10~30
			On pizza pan	③	10~30
			On pizza stone	③	10~30
	Frozen Rising Crust		Directly on rack	③	12~30
			On pizza pan	③	12~30
			On pizza stone	③	12~30
	From Scratch/Homemade		Directly on rack	③	12~25
			On pizza pan	③	12~25
			On pizza stone	③	12~25
Desserts	Brownies Baking dish			③	30~50
	Cheesecake Cake pan			③	50~90
	Fruit pie	Whole Pie	Pie pan	③	50~70
		Parbake Bottom Crust Only		③	30~50
	Fruit tart Tart pan			③	20~40
	Cakes	Layer Cake	Cake pan	③	25~40
		Angel Food Cake		②	20~40
	Muffins/Cupcakes Muffin pan			③	15~35
	Puff Pastry		Baking sheet	③	10~20
	Cookies	Single Tray		③	15~40
		Multiple Tray		②+④	25~55
	Biscuits/Scones			③	20~40
	Souffle Souffle dish			②	50~70
Miscellaneous	Proof		Ovenproof bowl with cover	③	30~90
	Drying/Dehydrating (Fruits or Vegetables)		Baking sheet	③	240~480
	Slow Roasting Grid on broiler pan			②	120~240
Bread (Steam)	White Bread	Homemade	Loaf pan	③	30~60
		Frozen		③	15~30
		Parbaked		③	12~30
	Baguette	Homemade	Perforated baguette pan	②	25~35
		Frozen		③	10~30
		Parbaked		③	5~25
	Cinnamon Raisin Bread Loaf pan			③	30~45
	Walnut Bread		Loaf pan or perforated tray	③	35~60
	Whole Grain Bread	Homemade	Loaf pan	②	20~40
		Frozen		③	10~30
		Parbaked		③	8~25
	Banana Bread Homemade			③	30~45

ENGLISH

Steam Function

Steam cooking uses the moist heat of steam to cook food. This is an ideal cooking method for delicate food items such as seafood, which can lose nutrients when boiled.

The oven provides 3 methods of steam cooking: Steam, Steam Bake and Sous Vide.

CAUTION

Take care when opening the oven door during or after steam cooking. Hot steam can cause scalding.
After any steam cooking cycle, the drying function will run automatically. It is normal to hear the steam pump running during the drying function.

Using the Water Tank

The water tank is located behind the control panel.

1 Press the Open Panel button on the control panel.

• The control panel automatically fully opens.

2 Remove the water tank and place it on a flat surface.
3 Remove the water tank cover or flip open the fill lid at the front of the water tank cover.
4 Fill the water tank to the Max line.

display. The oven continues to cook without steam.

• Remember to drain the water tank after use.
• When the temperature rises in the oven, steam may not be visible.
• It is normal to hear the sound of boiling water from the steam generator while running the steam functions.

To Stop Steam Cooking

Press the START/STOP button on the control panel, then press Stop in the display.

Tips for Steam Cooking

• To get the full benefit of steam cooking, don't overcrowd the oven rack or the steam pan.
• Preheating is not necessary when using steam modes.
• Food should retain its juiciness while achieving the correct coloring at the end of the cook time.
• Steam cooking may result in shorter cook times.
• Steamed foods can retain a higher level of moisture and nutrients and be full of flavor.
• Carefully monitor the cooking process because coloring can develop quickly with steam cooking.

Steam Cooking Guide

Recommended Items	Suggested Quantity (ounces)	Steam Setting & Set Temp (°F)	Rack Position	Cook Time (minutes)	Guide
Chicken Breasts 18 oz		Steam 210 °F	3 30-35
Shrimp 16 oz		Steam 210 °F	3 09-10		Use the steam pan.
Diced Carrots 20 oz		Steam 210 °F	3 40-45		Use the steam pan and make sure to cut the carrots to a uniform size.
Broccoli Florets 18 oz		Steam 210 °F	3 17-22
Diced Potatoes 18 oz		Steam 210 °F	3 25-30

Recommended Items		Steam Setting & Set Temp (°F)	Rack Position	Cook Time (minutes)	Guide
Sandwich Bread	Homema de	Steam Bake Use a loaf thin or 350°F	2	25-30
	Frozen 20				place bread directly on the rack.
	Par Baked			10
Italian Bread Or French Bread	Homema de	Steam Bake 18 Use a Big Nile sheet 450°F	2	25-30
	Frozen 15				or place bread directly on the rack.
	Par Baked			12-15

Recommended Items		Steam Setting & Set Temp (°F)	Rack Position	Cook Time (minutes)	Guide
Baguette	Homemade	Steam Bake Use a cookstove 450 °F	2	25-30
	Frozen 15				or place bread directly on the rack.
	Par Baked			08-10

Sous-Vide

Sous-Vide cooking uses steam to cook foods "low and slow." Use it to cook meat, fish, seafood, poultry or vegetables. Food must be vacuum packed in pouches.

It is not necessary to preheat the oven when using Sous-Vide.

Refer to the cooking guide for recommended Sous-Vide settings.

Benefits of Sous-Vide

The lower temperatures and long cooking times used in Sous-Vide cooking provide many benefits.

Healthier

Compared to other cooking methods, Sous-Vide retains most of the original nutrients in food.

- Safe and Convenient

The long cooking times used in Sous-Vide cooking allow food to be pasteurized. Because food is vacuum packed before cooking, the unopened pouches can be quickly chilled then easily stored after cooking.

- Crisp and Moist Results

The fine temperature control of Sous-Vide cooking is an excellent way to achieve the perfect texture when cooking meat and poultry. The low temperatures used retain more of the moisture in food than conventional cooking methods. After cooking, a final sear in a frying pan adds the perfect crisp finish.

Setting Sous-Vide Mode

1 Fill the tank to the Max line. Use softened, filtered water, if possible. Hard water may clog the steam generator more quickly with scale buildup.

2 Place the oven rack on rack position ③ and place the sealed food bag on it.

3 Press Steam Cook in the Main Menu screen.
4 Press Sous-Vide.
5 Press Temp. to set the desired cooking temperature. Press or to raise or lower the numbers, then press to save the settings.

You can also use the number pad icon to set the cooking temperature directly, then press OK.

6 If desired, press Time.

And press Cook Time or Cooking starts at to set the cook time or cooking start time. Press or to raise or lower the numbers, then press to save the settings.

You can also use the number pad icon to set the cooking time directly, then press OK.

7 Press the START/STOP button on the control panel.
8 Once cooking is finished, allow the oven to cool completely. Then wipe up any water left on the oven interior.

Changing the Sous-Vide Settings

1 Press Edit in the display to bring up the Cook Settings screen.
2 Adjust the settings using scroll function.
3 Press the START/STOP button on the control panel.

To Stop Cooking

Press the START/STOP button on the control panel, then press Stop in the display

NOTE

• As the temperature in the oven rises, steam may not be visible.

Tips for Sous-Vide

• Preheating is not necessary with sous-vide.
• When placing or removing food items in the oven, use a good pair of sturdy tongs.
• Adding a flavorful oil, like extra virgin olive oil, to the vacuum sealed bag can enhance your finished food item. The additional fat acts as an insulator to keep leaner cuts of protein moist or could be used as part of the sauce for the food item.
• As a general rule, fish, shellfish, and leaner cuts of meat and poultry take less time to cook. Tougher cuts will take longer. The size and number of items being cooked will also affect the time and temperature required to cook the food.

• The texture of food cooked with sous-vide may be unfamiliar. This texture isn't wrong, just different. The food will be consistently more juicy and tender than when cooked using conventional methods.

• Cooking the food in plastic vacuum-sealed bags is safe. The bags do not contain any harmful BPA that can leach into the food inside.

• Food items cooked in the anaerobic environment of vacuum sealed bags is just as safe as food cooked using conventional methods. As long as food does not stay in the USDA "danger zone" (40°F to 140°F) for a prolonged period of time and is cooked to a safe internal temperature for consumption, the food should be safe to eat. One of the main causes of food borne illness is when food is improperly stored for leftovers. Do not use the refrigerator to cool down hot food, as bacteria can be reintroduced in this way. Allow the food to come to room temperature, then store leftovers in smaller, shallower containers so it will cool down faster to below 40°F when placed in the refrigerator. Food that is still vacuum sealed can be placed in ice water to cool quickly, and then stored in the refrigerator or freezer.
• Don't try to vacuum seal hot, frozen, or really wet food, as the bags will not seal properly.
• Sealing food in portion sizes and in a single layer will improve your results when using the sousvide cooking method. The food will cook faster and be less likely to stay too long in the USDA danger zone.
• Don't crowd the oven rack. For best results, leave plenty of space between the food and the walls of the oven.

Sous-Vide Cooking Guide

The size, weight, thickness, starting temperature, and your personal preferences will affect operating times. This guide is only for reference. Adjust the cook time according to your preference.

Food	Quantity (oz)	Temp. (°F)	Rack Position	Time
				Min Target Max
Beef Steak (Medium rare)	1" thick 10.6-17.6 oz	136.4 2 - 2.5 hr. 3 hr.
Chicken breast	3.5-7.1 oz 152.6 2 - 2 hr. 3 hr.
Salmon 1" thick 3.5-7.1 oz	140 2 - 2 hr. 2.5 hr.
Asparagus	0.5-0.7 oz	185	2	20 min.	30 min.	45 min.

Cook 30 mins, or 1 hour more if you use meats thicker than 1".
- If you use larger cuts of meat, cut to match the recommended weight. Be careful not to put pieces of meat too close together.

44 OPERATION

Remote Start Mode

If the appliance is connected to a home Wi-Fi network, the preheating function of the oven can be started or stopped using the LG ThinQ smartphone app.

Preparing the Oven for a Remote Start

1 Press Settings at the bottom right of the Main Menu screen and then press Remote Start.
2 Select On or Off.
3 If On is selected, the Remote Start appears at the top of the display. "Remote Start is on. Check the LG ThinQ app to use Remote Start." appears in the display when Remote Start is activated.
4 Follow the instructions in the LG ThinQ app for using the Remote Start function.

NOTE

• Remote Start is disconnected in the following situations:
  Remote Start is never set up in the smartphone app.
• The Remote Start status is "ready".
  Remote Start experiences a problem during operation.
• The Wi-Fi icon on the display shows the status of the appliance's network connection. If the Wi-Fi icon is not lit, use the smartphone app to select the Wi-Fi network or connect the product again.
• A faulty Wi-Fi connection could delay the Remote Start function.
• Disconnect the probe if attached.

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

My Recipes

• Download new and special cooking recipes that are not included in the standard cooking mode on the appliance. Once My Recipes download is completed in the appliance, the appliance keeps the recipes. You can only create, edit or delete the recipes in the LG ThinQ application.

- Scan to Cook (USA Only)

• Scan the barcode on a ready-made meal using the LG ThinQ application and send the recommended or customized cooking instructions straight to your oven. Remote Start must be activated on the oven to use Scan to Cook.

Monitoring

• This function helps you check the current status, remaining time, cook settings and end time in one place.

Product Notifications

• Turn on the Push Alerts to receive appliance status notifications. The notifications are triggered even if the LG ThinQ application is not open.

- Timer

• You can set the timer from the application.

- Settings

• Allows you to set various options on the oven and in the application.

- Smart Diagnosis™

• This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

- Firmware Update

• Keep the appliance updated.

NOTE

• If you change your wireless router, Internet service provider, or password, delete the connected appliance from the LG ThinQ application and connect it again.

This information is current at the time of publication. The application is subject to change for product improvement purposes without notice to users.

Installing LG ThinQ Application and Connecting an LG Appliance

Models with QR Code

Scan the QR code attached to the product using the camera or a QR code reader application on your smartphone.

NOTE

To verify the Wi-Fi connection, check that the icon on the control panel is lit.
- The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
- LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
- The surrounding wireless environment can make the wireless network service run slowly.
- If the distance between the appliance and the wireless router is too far, the signal becomes weak. It may take a long time to connect or fail to install the application.
- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
- The network connection may not work properly depending on the Internet service provider.
- The Wi-Fi may not connect or the connection may be interrupted because of the home network environment.
- If the appliance cannot be connected due to problems with the wireless signal transmission, unplug the appliance and wait about a minute before trying again.

NOTE

• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, network setup may fail. Change the security protocol (WPA2 is recommended), and connect the product again.
  To reconnect the appliance or add another user, press and hold the Wi-Fi button for 3 seconds. Run the LG ThinQ application and follow the instructions in the application to connect the appliance.

RF Module Specifications

Type	Frequency Range	Output Power (Max.)
Wi-Fi	2412 - 2462 MHz	<30 dBm
Bluetooth	2402 - 2480 MHz	<30 dBm

• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with a minimum distance of 20cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20cm (7.8 inches) between the antenna and your body.

NOTE

• THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Open Source Software Notice Information

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents, please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Smart Diagnosis™ Feature

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press Settings at the bottom right of the Main Menu screen, swipe the screen and then press Smart Diagnosis.

• If the display has been locked, you must deactivate the lock and then reactivate it.

2 Place your phone's mouthpiece near the top left corner of the screen.

3 Keep the phone in place until the tone transmission has finished. The display will count down the time. Once the countdown is over and the tones have stopped, the diagnosis will be displayed in the application.

NOTE

• For best results, do not move the phone while the tones are being transmitted.

48 MAINTENANCE

MAINTENANCE

Cleaning

Interior

Do not use oven cleaners to clean the oven cavity. Use the product's EasyClean function regularly to clean light soil. For stubborn soil, clean manually using the following tips.

• A plastic spatula can be used as a scraper to scrape off any chunks or debris before and during oven cleaning.
• Using the rough side of a non-scratch scouring pad may help to take off burnt-on stains better than a soft sponge or towel.
• Certain non-scratch scrubbing sponges, such as those made of melamine foam, available at local stores, can also help improve cleaning.

CAUTION

• Do not use oven cleaners, harsh chemical cleaners, bleach, vinegar, steel scouring pads, or abrasive pads or cleansers to clean the oven, as they can permanently damage the oven surface.
• Do not clean the gasket.
• Do not clean the interior with the oven light on.
• To prevent burns, wait until the oven has cooled down before touching any of its parts.

Exterior

Painted and Decorative Trim

For general cleaning, use a cloth with hot soapy water. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave it on for 30 to 60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners.

Stainless Steel Surfaces

WARNING

• To avoid scratches, do not use steel wool pads.

1 Place a small amount of stainless steel appliance cleaner or polish on a damp cloth or paper towel.

2 Clean a small area, rubbing with the grain of the stainless steel if applicable.
3 Dry and buff with a clean, dry paper towel or soft cloth.
4 Repeat as necessary.

NOTE

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish.
Always wipe in the direction of the metal surface finish.
- Stainless steel appliance cleaner or polish can be purchased online or from most retailers of appliances or home goods.

Oven Cavity

DO NOT use oven cleaners.

NEVER wipe a warm or hot porcelain surface with a damp sponge; it may cause chipping or crazing (tiny hairlike cracks). Food spills should be cleaned when the oven cools. At high temperature, foods react with porcelain and a permanent dull spot can result. When cleaning a spot, use only non-abrasive cleaners or scrubbers.

Oven Door

CAUTION

• Do not use harsh cleaners or harsh abrasive cleaning materials on the outside of the oven door. Doing so can cause damage.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass, since they can scratch the surface, which may result in shattering of the glass.

• Do not use oven cleaners, cleaning powders, or harsh abrasive cleaning materials on the outside of the oven door.

• Use soapy water to thoroughly clean the oven door. Rinse well. Do not immerse the door in water.

• You may use a glass cleaner on the outside glass of the oven door. Do not spray water or glass cleaner on the door vents.

• Do not use oven cleaners, cleaning powders, or harsh abrasive cleaning materials on the outside of the oven door.
• Do not clean the oven door gasket. The oven door gasket is made of a woven material that is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.

Don't hand clean oven door gasket
Do hand clean door

Oven Racks

Remove the oven racks before operating EasyClean.

1 Clean with a mild, abrasive cleaner.

• Food spilled into the tracks could cause the racks to become stuck.

2 Rinse with clean water and dry.

Accessories

• Clean the racks, baking tray, and other accessories with a soft cloth and hot, soapy water.
• Do not clean the accessories in the dishwasher.

EasyClean

LG's EasyClean enamel technology provides two cleaning options for the inside of the oven. The EasyClean feature takes advantage of LG's new enamel to help lift soils without harsh chemicals, and it runs using ONLY WATER for just 10 minutes in low temperatures to help loosen LIGHT soils before hand cleaning.

Your LG oven gives you the option of cleaning with LESS HEAT, LESS TIME, and virtually NO SMOKE OR FUMES. You can reduce energy use by cleaning light oven soils with the EasyClean feature.

Benefits of EasyClean

• Helps loosen light soils before hand-cleaning

• EasyClean only uses water; no chemical cleaners

• Minimizes smoke and odors

When to Use EasyClean

Example of oven soiling

Case 1

• Soil pattern: Small drops or spots
• Types of soils: Cheese or other ingredients
• Common food items that can soil your oven: Pizza

Case 2

• Soil pattern: Light splatter
• Types of soils: Fat/grease
• Common food items that can soil your oven: Steaks, broiled / Fish, broiled / Meat roasted at low temperatures

EasyClean Instruction Guide

NOTE

• Allow the oven to cool to room temperature before using the EasyClean cycle. If your oven cavity is above 150^ (65°C), the EasyClean cycle will not be activated until the oven cavity cools down.
• The oven should be level to ensure that the bottom surface of the oven cavity is entirely covered by water at the beginning of the EasyClean cycle.
• For best results, use distilled or filtered water. Tap water may leave mineral deposits on the oven bottom.
• Soil baked on through several cooking cycles will be more difficult to remove with the EasyClean cycle.
• Do not open the oven door during the EasyClean cycle. Water will not get hot enough if the door is opened during the cycle.

NOTE

After using the steam function, the water tank should be drained. To avoid bacteria or odors, clean and dry the water tank after every use.
- Do not clean in a dishwasher.
- If the water tank does not slide in as smoothly as it should, clean the bottom of the tank.

Hard Water Scale

If hard water is used in the water tank, the steam generator may become clogged with hard water scale. In areas with hard water, run the Descaling function frequently or use softened water.

Using Descaling Function

To remove mineral deposits that remain on the oven bottom after using the steam mode, use a cloth or sponge soaked in vinegar or a weak citric acid solution. For more stubborn or extensive scaling, use the Descaling function.

NOTE

• Use the Descaling function after every 2-3 uses of steam mode.

Dscaling

Use this function to remove the white deposits that form after the steam generator is used for a long period.

The Descaling function runs for 1 hour 43 minutes. Water will come out of the steam generator while it is being cleaned.

For instructions on removing and filling the water tank, see "Using the Water Tank."

Setting Dscaling

1 Fill the water tank with a 50:1 mixture of water and citric acid. For example, use 4 tsp of citric acid in 4 1/4 cups water (20 g citric acid in 1000 ml water).
2 Carefully insert the water tank into the correct position in the control panel, making sure to keep the tank level while carrying it. If the tank is not kept level, water will drain out of the tubes in the back.
3 Press Cleaning in the Main Menu screen. Press Steam Maintenance, then press Descaling.
4 After 1 hour 32 minutes of descending, a popup will appear in the display. Following the instructions, drain the tank and fill it with clean water.
5 Insert the tank and start the Rinsing function. Rinsing takes about 11 minutes.
6 Once the Rinsing function is complete, dry the inside of the oven with a soft cloth. Leave the oven door open and allow the oven to dry completely.

NOTE

• The Rinsing function must be completed even if the Descaling function is canceled.
• If water remains on the oven bottom after descaling, it can leave a residue after the oven is used.
  After running the Descaling function, clean the water tank.

Using Draining Function

The Draining function removes residual water inside the steam generator. The function takes a little over 1 minute and runs automatically after any steam cooking cycle. The Draining function can also be started manually, if needed.

52 MAINTENANCE

Setting Draining

1 Make sure that the water tank is empty.
2 Press Cleaning in the Main Menu screen. Press Steam Maintenance, then press Draining.
3 Press the Start/Stop button on the display to begin Draining. The remaining time appears in the display.

Using Drying Function

Use the Drying function to dry the oven cavity after a steam cooking cycle. Drying runs for 20 minutes.

Setting Drying

1 Press Cleaning in the Main Menu screen. Press Steam Maintenance, then press Drying.
2 Press the Start/Stop button on the display to begin Drying. The remaining time appears in the display.

Periodic Maintenance

Changing the Oven Light

The oven light is a standard LED lamp. If the LED lamp does not turn on, please contact LG Electronics Customer Service. Do not attempt to replace or remove the LED lamp.

Removing, Assembling and Dismantling the Oven Door

Removing and dismantling the oven door may be needed to achieve better cleaning performance. The oven door contains glass that can break. Care should be taken when removing, assembling and dismantling the oven door.

CAUTION

• To prevent burns, wait until the oven has cooled down before touching any of its parts.

• The door is very heavy. Be careful when removing, lifting and replacing the door.

• Do not lift the door by its handle. The handle is not designed to support the weight of the door, doing so can result in serious damage to the door of the appliance.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may weaken its structure, causing an increased risk of breakage at a later time.
• Do not close the oven door until all the oven racks are fully in place.
• Wear gloves when handling glass panels to avoid injury if the glass breaks.

Removing the Oven Door

CAUTION

• Open and close the clamp completely in order to prevent damaging the oven cavity.
  1 Fully open the door.
  2 Lift up the door clamp 2 and flip it towards the oven 1 completely. Repeat on the other side.

3 Firmly grasp both sides of the door at the top.
4 Partially close the door to approximately 70 degrees. If the position is correct, the hinges will move freely.

5 Lift and pull the door towards you until the hinge latches are completely loosened.

Assembling the Oven Door

1 Firmly grasp both sides of the door 1 near the top.

2 Fully insert the hinges into the slots 3.

3 Slowly open the door fully. Make sure that the hinges 2 are properly engaged in the slots 3.

4 Lift up the door clamp 4 and flip it towards the oven door 1 until it clicks into position. Repeat on the other side.

5 Close the door.

Dismantling the Oven Door

The oven door contains three layers of glass panels. Remove the oven door from the oven before dismantling the oven door.

1 Remove the oven door from the oven and place it on a soft, flat surface to prevent breakage and scratching with the door handle facing the floor.

2 Remove the 2 screws on both sides of the door top cover and pull forwards to remove it.

3 Wearing safety gloves, grab and lift the glass panel slightly with both hands and pull it forward to remove it from the oven door. Set the glass aside on a protected surface. Set aside the gaskets (4 ea) inserted into the glass.

Repeat to remove all three layers of glass panels, keeping track of the order removed.

Assembling the Glass Panel

Assemble the glass panels in the reverse sequence of their removal.

1 Slide the bottom glass panel 2 and the second glass panel 1 into the oven door.

• Place the side of the panel printed with "LG" toward the oven door handle.

3 Slide in the top glass panel on top of the second glass panel in the oven door.

• If the glass is correctly assembled, you will see "TOP" printed on the bottom of the glass panel to indicate the correct orientation of the panels.

4 Assemble the door top cover 4 and the 2 screws 5.

• Make sure the cover clicks into place.

2 Assemble the 4 packings on the second glass panel as shown.

• The packings hold the glass in place, reducing noise and vibration in the door.

TROUBLESHOOTING

FAQs

Frequently Asked Questions

Q: My new oven doesn't cook like my old one. Is there something wrong with the temperature settings?

A: No. Your oven has been factory tested and calibrated. For the first few uses, follow your recipe times and temperatures carefully. If you still think your new oven is too hot or too cold, you can adjust the oven temperature yourself to meet your specific cooking needs. Refer to the Changing Settings section in this manual for easy instructions on how to adjust your thermostat.
Q: Is it normal to hear a clicking noise coming from the back of my oven when I am using it?
A: Your new appliance is designed to maintain a tighter control over your oven's temperature. You may hear your oven's heating elements click on and off more frequently on your new oven. This is normal.

Q: During convection cooking the fan stops when I open the door. Is that normal?

A: Yes, this is normal. When the door is opened, the convection fan will stop until the door is closed.
Q: Can I use aluminum foil to catch drippings in my oven cavity?
A: Never use aluminum foil to line the bottom or sides of the oven. The foil will melt and stick to the bottom surface of the oven and will not be removable. Use a foil-lined sheet pan placed on a lower oven rack to catch drippings instead. (If foil has already melted onto the bottom of the oven, it will not interfere with the oven's performance.)

Q: Can I use aluminum foil on the racks?

A: Do not cover racks with aluminum foil. Covering entire racks with foil restricts air flow, leading to poor cooking results. Use a sheet pan lined with foil under fruit pies or other acidic or sugary foods to prevent spillovers from damaging the oven finish.

CAUTION

• Foil may be used to wrap food in the oven, but do not allow the foil to come into contact with the exposed heating/broiling elements in the oven. The foil could melt or ignite, causing smoke, fire, or injury.

Q: What should I do if my racks are sticky and have become hard to slide in and out?
A: Over time, the racks may become hard to slide in and out. Apply a small amount of olive oil to the sides of the racks. This will work as a lubricant for easier gliding.
Q: Should I broil with the door open or closed?
A: Your oven isn't designed for open door broiling. If you broil with the oven door open, it can damage the display.
Q: Why aren't the function buttons working?
A: Make sure that the appliance is not in Control Lock mode. The lock icon will show in the display if Control Lock is activated. To deactivate Control Lock, refer to the Control Lock section.
Q: My appliance is still dirty after running the EasyClean cycle. What else should I do?
A: The EasyClean cycle only helps to loosen light soils in your appliance to assist in hand-cleaning of your oven. It does not automatically remove all soils after the cycle. Some scrubbing of your appliance is required after running the EasyClean cycle.

Q: I tried scrubbing my oven after running EasyClean, but some soils still remain. What can I do?

A: The EasyClean feature works best when the soils are fully soaked and submerged in water before running the cycle and during hand-cleaning. If soils are not sufficiently soaked in water, it can negatively affect the cleaning performance. Repeat the EasyClean process using sufficient water. Sugar-based and certain greasy soils are especially hard to clean.

Q: Will EasyClean get all of the soils and stains out completely?

A: It depends on the soil type. Sugar-based and certain grease stains are especially hard to clean. Also, if stains are not sufficiently soaked in water, this can negatively affect cleaning performance.

Q: Are there any tricks to getting some of the stubborn soils out?

A: Scraping the soils with a plastic scraper before and during hand-cleaning is recommended. Fully saturating soils with water is also recommended. However, certain types of soils are harder to clean than others.

Q: Is it safe for my convection fan or heater element to get wet during EasyClean?

A: Yes. The convection fan or heater element may get a little wet during cleaning.

Q: I see smoke coming out of my appliance's vents during EasyClean. Is this normal?

A: This is normal. This is not smoke. It is actually water vapor (steam) from the water in the oven cavity. As the oven heats briefly during EasyClean, the water in the cavity evaporates and escapes through the oven vents.

Q: How often should I use EasyClean?

A: EasyClean can be performed as often as you wish. EasyClean works best when your oven is LIGHTLY soiled from such things as LIGHT grease splatter and small drops of cheese. Please refer to the EasyClean section in your owner's manual for more information.

Before Calling for Service

Review this section before calling for service; doing so will save you both time and money.

Cooking

Problem Possible	Cause & Solution
Oven will not work Plug	on appliance is not completely inserted in the electrical outlet. • Make sure electrical plug is plugged into a live, properly grounded outlet.
	A fuse in your home may be blown or the circuit breaker tripped. • Replace the fuse or reset the circuit breaker.
	Oven controls improperly set. • See the "Operating the Oven" section in the Operation chapter.
	Oven too hot. • Allow the oven to cool to below locking temperature.
Steam is exhausted through the oven vent.	Cooking foods with high moisture produces steam. • This is normal.
Appliance does not operate.	Cord is not plugged in correctly. • Make sure cord is plugged correctly into outlet. Check circuit breakers.
	Service wiring is not complete. • Contact your electrician for assistance.
	Power outage. • Check house lights to be sure. Call your local electric company for service.
Oven smokes excessively during broiling.	Control not set properly. • Follow instructions under Setting Oven Controls.
	Meat too close to the element. • Reposition the rack to provide proper clearance between the meat and the element. Preheat broil element for searing.
	Meat not properly prepared. • Remove excess fat from meat. Cut remaining fatty edges to prevent curling.
	Insert on broiler pan wrong side up and grease not draining. • Always place the grid on the broiler pan with ribs up and slots down to allow grease to drip into the pan.
	Grease has built up on oven surfaces. Old grease or food spatters cause excessive smoking. • Regular cleaning is necessary when broiling frequently.
Food does not bake or roast properly	Oven controls improperly set. • See the "Operating the Oven" section in the Operation chapter.
	Rack position is incorrect or the rack is not level. • See the "Operating the Oven" section in the Operation chapter.
	Incorrect cookware or cookware of improper size being used. • See the "Operating the Oven" section in the Operation chapter.
	Oven sensor needs to be adjusted. • See the "Adjusting the Oven Temperature" section in the Operation chapter.

ENGLISH

Problem Possible	Cause & Solution
Food does not broil properly	Oven controls improperly set. • Make sure you select the Broil mode properly.
	Improper rack position being used. • See the Broiling Guide.
	Cookware not suited for broiling. • Use broiling pan and grid.
	In some areas the power voltage may be low. • Preheat the broil element for 5-7 minutes. See the Broiling Guide.
Oven temperature too hot or too cold	Oven sensor needs to be adjusted. • See the "Temperature Adjustment" section in the Operation chapter.
Burning or oily odor emitting from the vent	This is normal in a new oven. • This will disappear in time.
Moisture collects on oven window or steam comes from oven vent	This happens when cooking foods high in moisture. • This is normal.
	A very wet cloth was used when cleaning the window. • Do not use too much water when cleaning the window.
Warm air venting into kitchen after oven has been turned off.	Warm air exhaust is needed to maintain and cool down oven temperatures. It turns off automatically when the heat cools to a safe temperature. • This is normal.
Oven will not steam cook	Improper assembly • Make sure to slide the tank into the slot until it clicks into place.
	The drain in the water tank may be clogged with hard water scale. • If this happens, the descending function must be run before the steam function can be used.
Water pools in the bottom of the oven during or after steam cooking	During steam cooking, the water in the water tank is transferred to the bottom of the oven. • It is normal for water to fill the bottom of the oven during or after the Steam mode. • If the water leaves mineral deposits on the oven bottom, remove the deposits with a cloth or sponge soaked in vinegar.
White residue appears on the oven bottom after steam cooking	Using hard water in the water tank can result in hard water scale on the oven bottom. • To remove mineral deposits that remain on the oven bottom, use a cloth or sponge soaked in vinegar or a weak citric acid solution.
The sous vide module beeps during operation	This alert sounds when the sous vide module is operated without water in the steam feeder tank. • Fill the steam feeder tank to the recommended level before using.

Parts & Features

Problem Possible	Cause & Solution
Oven control beeps and displays any error code.	Electronic control has detected a fault condition. ·Turn off the oven function you are using to clear the display and stop beeping. Reprogram oven. If fault recurs, record fault number and call for service. [Case 1] -Error code: Heating Error -Cause: Oven not heating [Case 2] -Error Code: Steam Sensor Error -Cause: Steam sensor open, Steam sensor short
Displayed colon in the clock is flashing.	This means that the product has just been plugged in, or that it has experienced a power interruption. ·This is normal. Reset the clock or press any button to stop the flashing.
The lock icon is on in the display when you want to cook.	The oven is locked because of the Control Lock feature. ·Deactivate the Control Lock feature.
Oven light does not work.	It is time to replace the lamp or the lamp is loose. ·Replace or tighten lamp. See Changing the Oven Light section in this Owner's Manual.
Convection fan stops. (During Convection Bake mode)	Convection fan stops during a convection bake cycle. It is done to allow for more even heating during the cycle. ·This is not a failure of the appliance and should be considered normal operation.

ENGLISH

Noises

Problem Possible	Cause & Solution
"Crackling" or "popping" sound	This is the sound of the metal heating and cooling during both the cooking and Easy Clean functions. ·This is normal.
Fan noise A convection	fan may automatically turn on and off. ·This is normal.

Wi-Fi

Problem Possible	Cause & Solution
Trouble connecting appliance and smartphone to Wi-Fi network	The password for the Wi-Fi network was entered incorrectly. • Delete your home Wi-Fi network and begin the connection process again.
	Mobile data for your smartphone is turned on. • Turn off the Mobile data on your smartphone before connecting the appliance.
	The wireless network name (SSID) is set incorrectly. • The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

60 TROUBLESHOOTING

Problem Possible	Cause & Solution
Trouble connecting appliance and smartphone to Wi-Fi network	The router frequency is not 2.4 GHz. • Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The appliance and the router are too far apart. • If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.
	During Wi-Fi setup, the app is requesting a password to connect to the product (on certain phones). • Locate the network name which starts with "LG" under Settings > Networks. Note the last part of the network name. • If the network name looks like LGE_Appliance_XX-XX-XX, enter lge12345. • If the network name looks like LGE_Appliance_XXXX, enter XXX twice as your password. For example, if the network name appears as LGE_Appliance_8b92, then you would enter 8b928b92 as your password. In this instance, the password is case sensitive and the last 4 characters are unique to your appliance.

LIMITED WARRANTY

USA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS ("LG") TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION Titled "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Electric Oven ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product ("You") and applies only when purchased lawfully and used within the United States including U.S. Territories.

Warranty Period Scope of	Warranty HOW SERVICE IS HAND	LED
One (1) year from the date of original retail purchase	Parts and Labor (internal / functional parts only)	LG will provide, free of charge, all labor and in-home service to replace defective part(s).

• Replacement Products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement Products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured.
• Replaced Product or part(s) will be the property of LG.
  Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE LIMITED WARRANTY. UNDER NO CIRCUMSTANCES SHALL LG OR ITS U.S. DISTRIBUTORS/DEalers BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, OR PUNITIVE DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, IMPAIRMENT OF OTHER GOODS, COST OF REMOVAL AND REINSTALLATION OF THE PRODUCT, LOSS OF USE, OR ANY OTHER DAMAGES WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. LG'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

THIS LIMITED WARRANTY DOES NOT COVER

• Service trips to deliver, pick up, or install, educate how to operate, correct wiring, or correct unauthorized repairs.
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service.
• Damage or failure of the Product caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage or failure of the Product resulting from operating the Product in a corrosive atmosphere or contrary to the Product owner's manual.

62 LIMITED WARRANTY

• Damage or failure of the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of nature, or any other causes beyond the control of LG.
• Damage or failure of the Product caused by unauthorized modification or alteration, or if the Product is used for other than the intended purpose, or any water leakage where the Product was not properly installed.
• Damage or failure of the Product caused by incorrect electrical current, voltage, or plumbing codes.
• Damage or failure of the Product caused by transportation, storage, and/or handling, including scratches, dents, chips, and/or other damage to the finish of the Product, unless such damage is reported within one (1) week of delivery.
• Damage or failure of the Product resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes the use of parts not authorized by LG. Improper installation or maintenance includes installation or maintenance contrary to the Product owner's manual.
• Damage or failure of the Product caused by the use of parts, components, accessories, consumable cleaning products, or any other products or services that were not authorized by LG.
• Damage or missing items to any display or open box Product.
  Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or similar disclaimer.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined
  Increases in utility costs and additional utility expenses.
• Any noises associated with normal operation.
• Products used for other than normal and proper household use (e.g., commercial or industrial use) or contrary to the Product owner's manual.
• Costs associated with removal and reinstallation of the Product for repairs, or the removal and reinstallation of the Product if it is installed in an inaccessible location or not installed in accordance with the Product Owner's manual.
• Accessories, removable components, or consumable parts (e.g. Shelves, door bins, drawers, water/air filters, racks, light bulbs, batteries, etc., as applicable), except for internal/functional parts covered under this limited warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by You.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-800-243-0000 and select the appropriate option from the menu.

Or visit our website at http://www.lq.com

Or by mail: LG Electronics Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC

PROCEDURE FOR RESOLVING DISPUTES

ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632 USA. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the

subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed to file a claim for arbitration.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association ("AAA") and will be conducted before a single arbitrator under the AAA's Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the "AAA Rules") and under the procedures set forth in this section. The AAA Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department-Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632 USA. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for 25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the AAA Rules. If your claim exceeds 25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either: (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out" or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/us/support/repair-service/schedule-repair-continued and clicking on "Find My Model & Serial Number").

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

CANADA

TERMS AND CONDITIONS

ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION Titled "PROCEDURE FOR RESOLVING DISPUTES" BELOW.

Should your LG Electric Oven ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, LG Electronics Canada, Inc. ("LGECI") will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase. This limited warranty is valid only to the original retail purchaser of the Product and applies only to a Product distributed, purchased and used within Canada, as determined at the sole discretion of LGECI.

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified, the warranty will begin sixty (60) days from the date of manufacture).
Electric Oven	Extended Component Warranty (Parts Only) (Consumer will be charged for Labor after One (1) year from the date of purchase)
One (1) year from the date of original retail purchase	Ninety (90) days from the date of original retail purchase
Parts and Labor (internal/functional parts only)	Cosmetic warranty (Scratches and dents)

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new, reconditioned, refurbished, or otherwise factory remanufactured, all at the sole discretion of LGECI.
  Proof of original retail purchase specifying the Product model and date of purchase is required to obtain warranty service under this limited warranty.

LGECI'S SOLE LIABILITY IS LIMITED TO THE LIMITED WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LGECI MAKES NO, AND HEREBY DISCLAIMS, ALL OTHER WARRANTYIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LGECI. LGECI DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE WARRANTY PERIOD SET OUT ABOVE. UNDER NO CIRCUMSTANCES SHALL LGECI, THE MANUFACTURER OR DISTRIBUTOR OF THE PRODUCT, BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF GOODWILL, LOST PROFITS, LOSS OF ANTICIPATED PROFITS, LOST REVENUE, LOSS OF USE, OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL BREACH, TORT OR OTHERWISE, OR FROM ANY ACTS OR OMISSIONS. LGECI'S TOTAL LIABILITY, IF ANY, SHALL NOT EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.

This Limited Warranty gives you specific legal rights. You may also have other rights that vary from province to province depending on applicable provincial laws. Any term of this Limited Warranty that

negates or varies any implied condition or warranty under provincial law is severable where it conflicts with such provincial law without affecting the remainder of this warranty's terms.

THIS LIMITED WARRANTY DOES NOT COVER

• Service trips to i) deliver, pick up, or install or; educate on how to operate the Product; ii) correct wiring or plumbing; or iii) correct unauthorized repairs or installations of the Product;
• Damage or failure of the Product to perform during power failures and interrupted or inadequate electrical service:
• Damage or failure resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual;
• Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of LGECI or the manufacturer:
• Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts not authorized or specified by LGECI. Improper installation or maintenance includes installation or maintenance contrary to the Product's owner's manual:
• Damage or failure caused by unauthorized modification or alteration of the Product, or if used for other than the intended household purpose/use of the Product, or damage or failure resulting from any water leakage due to improper installation of the Product;
• Damage or failure caused by incorrect electrical current, voltage or plumbing codes;
• Damage or failure caused by use that is other than normal household use, including, without limitation, commercial or industrial use, including use in commercial offices or recreational facilities, or as otherwise outlined in the Product's owner's manual;
• Damage or failure caused by transportation and handling, including scratches, dents, chips and/or other damage to the finish of the Product, unless such damage results from defects in materials or workmanship and is reported to LGECI within one (1) week of delivery of the Products:
• Damage or missing items to any display, open box, refurbished or discounted Product;
  Refurbished Product or any Product sold "As Is", "Where Is", "With all Faults", or any similar disclaimer;
• Products with original serial numbers that have been removed, altered or cannot be readily determined at the discretion of LGECI;
  Increases in utility costs and additional utility expenses in any way associated with the Product;
• Any noises associated with normal operation of the Product:
• Replacement of light bulbs, filters, fuses or any other consumable parts;
  Replacement of any part that was not originally included with the Product:
  Costs associated with removal and/or reinstallation of the Product for repairs; and
  Shelves, drawers, handle and accessories to the Product, except for internal/functional parts covered under this Limited Warranty.
• Coverage for "in Home" repairs, for products in-warranty, will be provided if the Product is within a 150 km radius from the nearest authorized service center (ASC), as determined by LG Canada. If your Product is located outside a 150 km radius from a ASC, as determined by LG Canada, it will be your responsibility to bring the Product, at your sole expense, to the ASC for in-warranty repair.

The cost of repair or replacement under the above excluded circumstances shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

Call 1-888-542-2623 (7 A.M. to 12 A.M., 365 days a year) and select the appropriate option from the menu.

Or visit our website at http://www/lg.com

66 LIMITED WARRANTY

PROCEDURE FOR RESOLVING DISPUTES

EXCEPT WHERE PROHIBITED AT LAW, ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW, YOU AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.

Definitions. For the purposes of this section, references to "LG" mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest, successors, assigns and suppliers; references to "dispute" or "claim" shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.

Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco Drive, North York, Ontario, Canada M9L 2X6 (the "Notice of Dispute"). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG's receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.

Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG's receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person's or entity's product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG.

Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation. Judgment may be entered on the arbitrator's award in any court of competent jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.

Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attend to the exclusive jurisdiction of the courts of the province or territory of your purchase for the resolution of the claim, action, dispute or controversy between you and LG.

Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than $25,000 in damages, in which case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys' fees and expenses as long as they are reasonable, by

considering factors including, but not limited to, the purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys' fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise provided for, LG waives any rights it may have to seek attorneys' fees and expenses from you if LG prevails in the arbitration.

Hearings and Location. If your claim is for 25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an in-person hearing as established by the applicable arbitration rules. If your claim exceeds 25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.

Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this Limited Warranty.

Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser's purchase of the product by either (i) sending an e-mail to [e-mail], with the subject line: "Arbitration Opt Out," or (ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lq.com/ca_en/support/repair-service/schedule-repair and clicking on "Find My Model & Serial Number").

In the event that you "Opt Out", the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attend to the exclusive jurisdiction of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.

You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all terms and conditions of the arbitration provision described above.

Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement ("EULA") in regards to dispute resolution, the terms of this Limited Warranty shall control and govern the rights and obligations of the parties and shall take precedence over the EULA.

MANUAL DEL PROPIETARIO

HORNO DE PARED

Application LG ThinQ
