USER MANUAL MH6384BACS LG

MICROWAVE OVEN PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING. MFL67710502(optional, please check model specification)MH638 ***You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. These safety interlocks automatically switch off any cooking activity when the door is opened; which in the case of a microwave oven could result in harmful exposure to microwave energy. It is important not to tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow food or cleaner residue to accumulate on sealing surfaces. Do not operate your oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door(bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. Your oven should not be adjusted or repaired by anyone except qualified service personnel. Warning Precautions to avoid possible exposure to excessive microwave energy. Precautions When heating liquids, e.g. soups, sauces and beverages in your microwave oven, delayed eruptive boiling can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken: 1 Avoid using straight sided containers with narrow necks. 2 Do not overheat. 3 Stir the liquid before placing the container in the oven and again halfway through the heating time. 4 After heating, allow to stand in the oven for a short time, stir or shake them(especially the contents of feeding bottles and baby food jars) again carefully and check the temperature of them before consumption to avoid burns (especially, contents of feeding bottles and baby food jars). Be careful when handling the container. Warning Always allow food to stand after being cooked by microwaves and check the temperature of them before consumption. Especially contents of feeding bottles and baby food jars. Please ensure cooking times are correctly set as over cooking may result in the FOOD catching fire and subsequent damage to your oven. 2How the Microwave Oven Works Microwaves are a form of energy similar to radio and television waves and ordinary daylight. Normally, microwaves spread outwards as they travel through the atmosphere and disappear without effect. Microwave ovens, however, have a magnetron which is designed to make use of the energy in microwaves. Electricity, supplied to the magnetron tube, is used to created microwave energy. These microwaves enter the cooking area through openings inside the oven. A turntable or tray is located at the bottom of the oven. Microwaves cannot pass through metal walls of the oven, but they can penetrate such materials as glass, porcelain and paper, the materials out of which microwave-safe cooking dishes are constructed. Microwaves do not heat cookware, though cooking vessels will eventually get hot from the heat generated by the food. A very safe appliance Contents Your microwave oven is one of the safest of all home appliances. When the door is opened, the oven automatically stops producing microwaves. Microwave energy is converted completely to heat when it enters food, leaving no “left over” energy to harm you when you eat your food.

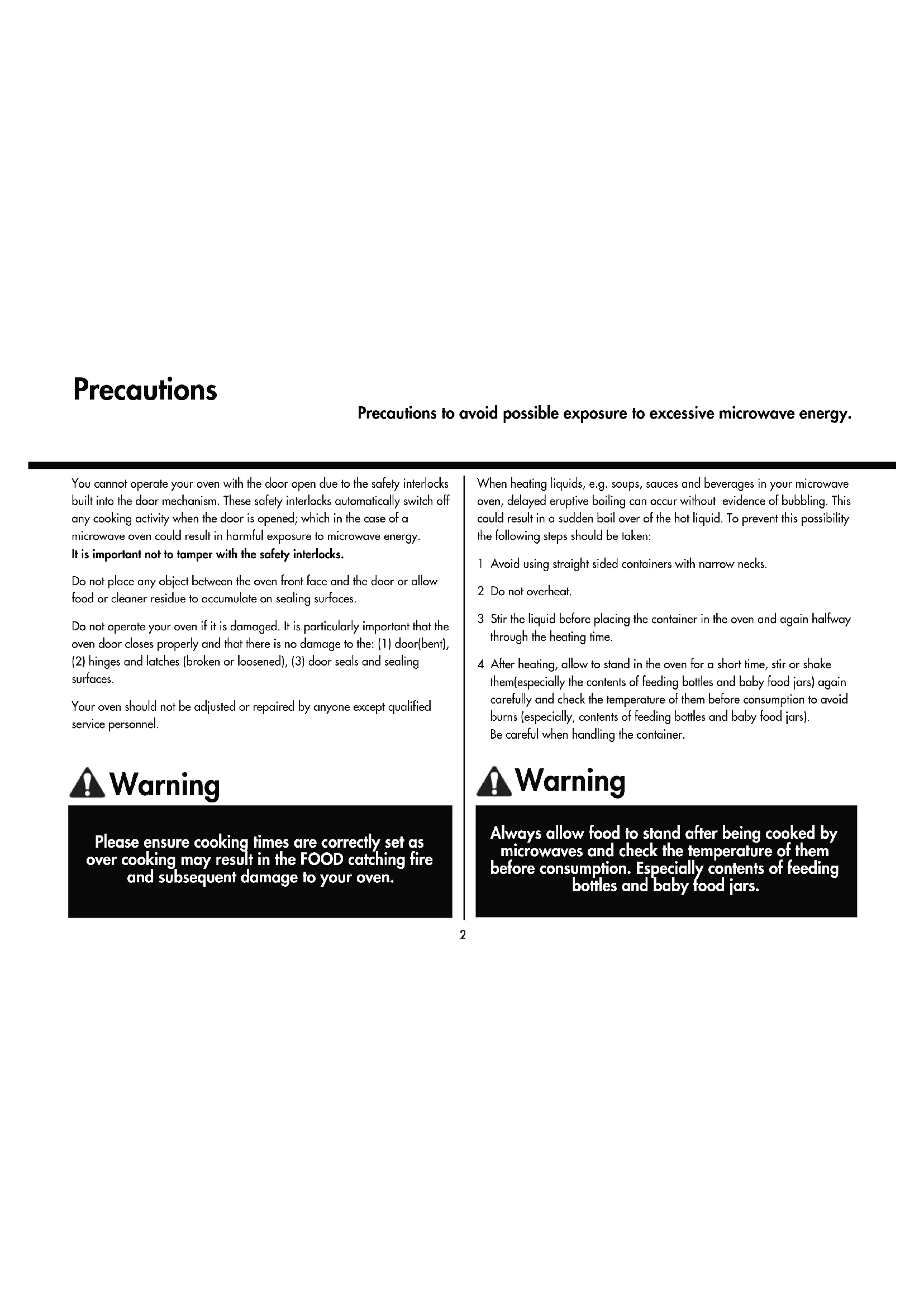

Precautions Contents Unpacking & Installing Setting the Clock Child Micro Power Cooking Micro Power Level Two Stage Cooking Quick Start Grill Cooking Combination Cooking Continental Menu Auto Defrost Quick Defrost Keep Warming Energy Saving Important safety instructions Microwave - safe Utensils Food characteristics & Microwave cooking Questions & Answers Plug Wiring Information/Technical Specifications

European Menu Arabic Menu 22 ~ 25 26 ~ 29 Oriental Menu LockPlace the oven in the level location of your choice with more than 85cm height but make sure there is at least 30cm of space on the top and 10cm at the rear for proper ventilation. The front of the oven should be at least 8cm from the edge of the surface to prevent tipping. An exhaust outlet is located on top or side of the oven. Blocking the outlet can damage the oven. Unpack your oven and place it on a flat level surface. By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your oven make sure you remove all accessories and packing. Check to make sure that your oven has not been damaged during delivery. THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING PURPOSES ROTATING RING Unpacking & Installing GLASS TRAY RACK 4The DISPLAY will count down from 30 seconds When it reaches 0, BEEP sounds. Open the oven door and test the temperature of the water. If your oven is operating the water should be warm. Be careful when removing the container it may be hot.

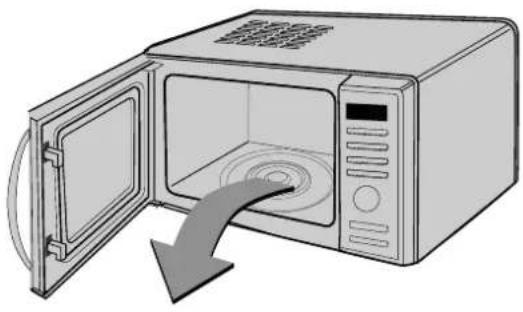

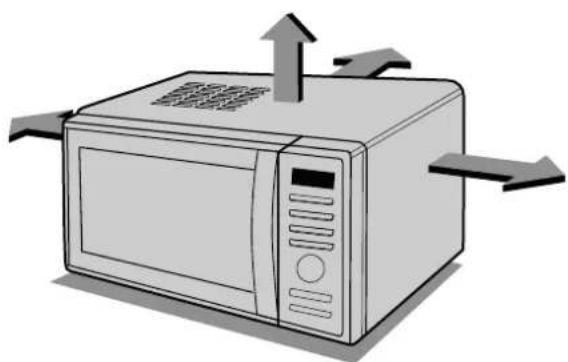

YOUR OVEN IS NOW INSTALLED

Fill a microwave safe container with 300 ml (1/2 pint) of water. Place on the GLASS TRAY and close the oven door. If you have any doubts about what type of container to use please refer to page

Press the START button once to set 30 seconds of cooking time. Open your oven door by pulling the DOOR HANDLE. Place the inside the oven and place the GLASS TRAY on top. Plug your oven into a standard household socket. Make sure your oven is the only appliance connected to the socket. If your oven does not operate properly, unplug it from the electrical socket and then plug it back in. 0,18 726

ROTATING RINGWhen your oven is plugged in for the first time or when power resumes after a power cut, a ‘24H’ will be shown in the display; you can reset the clock. If the clock (or display) shows any strange looking symbols, unplug your oven from the electrical socket and plug it back in and reset the clock. Make sure that you have correctly installed your oven as described earlier in this book. (If you want to use different option,Press KEEP WARMING If you want to change different option after setting clock, you have to unplug and plug it back in.) Plug in your oven for the first time. "24H" appears on the display. You can set either 12 hour clock or 24 hour clock. In the following example I will show you how to set the time for 14:35 when using the 24 clock. Make sure that you have removed all packaging from your oven. Setting the Clock

Turn DIAL until display shows h v Press START for hour confirmation. Turn DIAL until display shows “14:35”. Press STRAT. The clock starts counting.Child Lock Press and hold STOP/CLEAR until “L” appears on the display and BEEP sounds. The CHILD LOCK is now set. The time will disappear on the display if you have set the clock. “L” remains on the display to let you know that CHILD LOCK is set. To cancel CHILD LOCK press and hold STOP/CLEAR until “L” disappears. You will hear BEEP when it’s released. Your oven has a safety feature that prevents accidental running of the oven. Once the child lock is set, you will be unable to use any functions and no cooking can take place. However your child can still open the oven door. Press STOP/CLEAR. 7Micro Power Cooking Make sure that you have correctly installed your oven as described earlier in this book. Press STOP/CLEAR. Press START. In the following example I will show you how to cook some food on 80% power for 5 minutes and 30 seconds. Your oven has five microwave Power settings. POWER HIGH MEDIUM HIGH MEDIUM

100% 80% 60% 40% 20% Power Output 800W 640W 480W 320W 160W Press MICRO twice to select 640 power. “640” appears on the display.

Turn DIAL until display shows “5:30”. COMBI. GRILLMICRO KEEP WARMINGMicro Power Level Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking The table below shows the examples of food and their recommended cooking power levels for use with this microwave oven. POWER LEVEL POWER LEVEL

• Cook tender cuts of meat MEDIUM HIGH * All reheating

• Roast meat and poultry

• Cook mushrooms and shellfish

• Cook foods containing cheese and eggs MEDIUM * Bake cakes and scones

• Melt butter and chocolate

• Cook less tender cuts of meat LOW * Soften butter & cheese 20% 160W

• Raise yeast dough USE

100% 80% 60% 40% 800W 640W 480W 320W 9Two stage Cooking Press STOP/CLEAR. Set the power and the cooking time for stage1. Press MICRO once to select HIGH power. Set the power and the cooking time for stage2. Press MICRO four times to select power. Press START. During two stage cooking the oven door can be opened and food checked. Close the oven door and press START and the cooking stage will continue. At the end of stage1, BEEP sounds and stage 2 commences. Should you wish to clear the programme press STOP/CLEAR twice. In the following example I will show you how to cook some food in two stages. The first stages will cook your food for 11 minutes on HIGH; the second will cook for 35 minutes on .

COMBI. GRILLMICRO KEEP WARMING COMBI. GRILLMICRO KEEP WARMING until display shows “11:00”. DIAL Turn until display shows “35:00”. DIAL TurnQuick Start In the following example I will show you how to set 2 minutes of cooking on high power. Press STOP/CLEAR . Press START four times to select 2 minutes on HIGH power. Your oven will start before you have finished the fourth press. During QUICK START cooking, you can extend the cooking time by repeatedly pressing the START button. The QUICK START feature allows you to set 30 seconds intervals of HIGH power cooking with a touch of the START button. 11Grill Cooking Press STOP/CLEAR. This feature will allow you to brown and crisp food quickly. In the following example I will show you how to use the grill to cook some food for 12 minutes and 30 seconds. Press START. Press GRILL.

Turn DIAL until display shows “12:30”. COMBI. GRILLMICRO KEEP WARMINGPress STOP/CLEAR . Your oven has a combination cooking feature which allows you to cook food with heater and microwave at the same time or alternately. This generally means it takes less time to cook your food. The sheath heater grills the surface of the food while microwave heats inside. Moreover, preheating your oven is not necessary. Combination Cooking Mode CATEGORY MICRO POWER (%) HEATER POWER (%) Co-1 20 80 Co-2 40 60 Co-3 60 40 Press START. Be careful when removing your food because the container will be hot! In the following example I will show you how to programme your oven with combi mode Co-3 for a cooking time of 25 minutes. Combination Cooking Press Combi three times. “Co-3” appears on the display.

Turn DIAL until display shows “0.4”.

QUICK DEFROSTAUTO DEFROSTCONTINENTAL MENU GLOBAL MENU

Continental Menu Turn DIAL until display shows “Cc-2” . Press START. In the fo llowing exa mple I wi ll sh ow y ou how to cook 0.4 kg of Jollof Rice. CONTINENTAL MENU allows you to cook most of your favorite food easily by selecting the food type and entering the weight of the food. CategoryDisplayCc-1Cc-2Cc-3Cc-4 Cc-5 CouscousFufu Chicken Tagine Jollof RicePotato GratinCategory Weight Limit Utensil Food Temp Instructions Couscous 0.1~0.4kg Microwave- safe bowl Room Ingredients Couscous 0.1 kg 0.2 kg 0.3 kg 0.4 kg Water 120 ml 240 ml 360 ml 480 ml butter 1 Tablespoon 2 Tablespoons 3 tablespoons Vegetable mixture

1. Pour water, butter in a large bowl and mix well. cover with plastic

2. Place food in the oven. Choose the menu and press start to cook.

3. After cooking remove bowl from oven and cover, let stand for 15~20

4. With a fork, fluff the couscous and mix the couscous with some of

the vegetable sauce. Vegetable mixture 15 pealed pearl onions or 2 cups sliced onions \ 15oz Can chick peas 2 large boiled potatoes cubed \ 1 sliced carrots 1/2 cup chopped cilantro \ 1/4 cup chopped parsley 2 tablespoons minced garlic \ 1 teaspoon paprika 1/4 teaspoon nutmeg \ 1/2 teaspoon salt \ 1/2 teaspoon black pepper 2 cans tomato sauce \ 1 Chicken broth 1 1/2 cups water \ 2 tablespoons butter

1. Cook onions and butter for 5 minutes until caramelized.

2. Add carrots and garbanzo beans and cook for another 5 minutes,

and add garlic, cilantro, parsley, potatoes and 1/2 tsp salt and mix vegetables.

3. In a large 4 quart sauce pan bring tomato sauce and 1 1/2 cup of

4. Add seasonings and spices to the sauce then add vegetable

mixture to tomato sauce and simmer for 10~12 minutes.

(Cc-1)Category Weight Limit Utensil Food Temp Instructions Jollof Rice 0.1~0.4 kg Microwave- safe bowl Room Ingredients Rice 0.1 kg 0.2 kg 0.3 kg 0.4 kg Stock (meat or vegetable) 150 ml 300 ml 450 ml 600 ml Vegetable oil 1 Tbs 2 Tbs 3 Tbs Onion 1/2 onion 1 onion 2 onion Tomato paste 1 1/2 teaspoon 3 teaspoon 6 teaspoon some green chili, seeded and chopped

1. Cook onion, chili and tomato paste in a lightly oiled frying pan until

2. Place the cooked tomato mixture into a deep and large bowl and

add rice and water. Cover with plastic wrap and vent.

Place food in the oven. Choose the menu and press start to cook. Stir at least twice during cooking. Fufu 0.5~1.0 kg Microwave- safe bowl Room Ingredients Cassava or white yam 0.5 kg 0.75 kg 1.0 kg Water 1 cup 1 cup 2 cup 2 tablespoons of butter Salt and pepper

1. Place the unpeeled yams or cassava in a large bowl, and pour

water. cover with plastic wrap and vent.

2. Place food in the oven. Choose the menu and press start to cook.

3. Drain the yams or cassava and let them cool.

4. Peel the yams or cassava, chop them into large pieces and place

them into a large bowl with the butter, salt and pepper.

5. Mash with a potato masher until very smooth.

6. Place the fufu into a large serving bowl. Wet your hands with water,

form into a large ball and serve. You can also make smaller balls for individual servings.

(Cc-2) (Cc-3)Category Weight Limit Utensil Food Temp Instructions Potato Gratin 2.0 kg Microwave- safe baking dish on the rack Room Ingredients Potato mixture \ 250ml heavy cream 350g grated Gruyere cheese For Potato mixture : 1kg potatoes \ 400ml milk \ 1 1/2 teaspoons salt Pinch ground nutmeg Slice potatoes into 3mm thickness. Combine all ingredients in a saucepan and simmer over medium heat until milk boils and thickness. Keep stirring potatoes and scraping bottom of pan regularly to prevent sticking.

1. Place half of the potato mixture into a greased 25*25cm baking

dish, pour half of heavy cream and sprinkle 100g Gruyere cheese.

2. Add the rest of potato mixture, pour remaining cream and finally

sprinkle top with remaining Gruyere cheese.

3. Place baking dish on the rack. Choose the menu and weight, press start.

Microwave- safe bowl Room Ingredients 2 tablespoons olive oil \ 8 skinless boneless chicken thighs , halved if large \ 150ml water \ 1 onion , chopped \ 2 teaspoons grated fresh root ginger \ pinch saffron or tumeric \ 1 tablespoon honey \ 300g carrots , cut into sticks \ small bunch parsley , roughly chopped \ lemon wedges, to serve

1. Add all ingredients in a deep and large bowl and mix well. Cover

with plastic wrap and vent.

2. Place food in the oven. Choose the menu and press start to cook.

Stir at least twice during cooking.

(Cc-4) (Cc-5)Press STOP/CLEAR. Press Global Menu once. Press START. European Menu Spaghetti Carbonara.In the fo llowing exa mple I wi ll sh ow y ou how to cook 0.4 kg of Turn DIAL until display shows “Sc-2” . EUROPEAN MENU allows you to cook most of your favorite food easily by selecting the food type and entering the weight of the food. Category Spaghetti Bolognese Stuffed Tomato Lasagna Spaghetti Carbonara Apple Pie

Microwave- safe bowl Room Ingredients for bolognaise sauce 1 tablespoon olive oil \ 1 onion, chopped \ 1 garlic clove, crushed 400 g ground beef \ 100 g tomato paste \ 2 chopped tomatoes 1 tablespoon dried greens \ Salt and pepper to taste Ingredients for pasta 150 g pasta, cooked as package direction 1 tablespoon parmesan cheese

1. Add all ingredients of the bolognaise sauce in a deep and large

bowl and mix well. cover with plastic wrap and vent.

2. Place food in the oven. Choose the menu and press start to cook.

Stir at least twice during cooking.

3. After cooking, stir and add bolognaise sauce to cooked pasta and

garnish with parmesan cheese or as desired before serving. Spaghetti carbonara

Microwave- safe bowl Room Ingredients for carbonara sauce 100 g smoked bacon, chopped \ 1 garlic clove, crushed 1/2 cup cream \ 4 egg yolks \ 100 g parmesan cheese Salt and pepper to taste Ingredients for pasta 150 g pasta, cooked as package direction 1 tablespoon parmesan cheese

1. Cook bacon in a lightly oiled frying pan with garlic until lightly

browned and drain away excess fat.

2. Add cooked bacon, cream, egg yolks, parmesan cheese, salt and

pepper in a deep and large bowl and mix well. Cover with plastic wrap and vent.

3. Place food in the oven. Choose the menu and press start to cook.

4. After cooking, stir and add carbonara sauce to cooked pasta and

garnish with parmesan cheese or as desired before serving. (Sc-1) (Sc-2) 19Category Weight Limit Utensil Food Temp Instructions

Microwave- safe dish Room Ingredients 4 medium tomatoes Salt and pepper to taste 400g ground beef 1/2 cup bread crumbs 2 garlic cloves, crushed 1 tablespoon Dijon mustard 1 tablespoon dried greens 1 tablespoon parmesan cheese

1. Cut tops off tomatoes to form hats and remove seeds, taking care

not to pierce flesh or skin. Then sprinkle each tomatoes with salt and pepper.

2. Add the rest of the ingredients in a bowl, mix well.

3. Stuff tomatoes with beef mixture and replace hat.

4. Place stuffed tomatoes on a dish and cover with plastic wrap.

5. Place food in the oven. Choose the menu and press start to cook.

Apple pie 1 21cm Heat- proof glass dish on the rack Room Ingredients baked pastry (baked on 21cm baking dish) 50g apple jam 1 apples (sliced)

1. Put baked pastry on a glass shallow dish.

2. Spread jam and sliced apples on the pastry.

3. Place food on the rack.

4. Place food in the oven. Choose the menu, press start.

(Sc-4) Stuffed Tomato (Sc-3) 20Category Weight Limit Utensil Food Temp Instructions Lasagna 1.2 kg 20x20 kg baking dish Room Ingredients for meat sauce 6 lasagna noodles, cooked as package direction 1kg meat and tomato sauce 40g grated cheese

1. Place 2 lasagna noodles side by side on bottom of a baking dish,

covering bottom. Spread 1/3 of meat and tomato sauce on top.

2. Continue with 2 lasagna noodles and another 1/3 of meat and

tomato sauce then finish with last 2 lasagna noodles and remaining meat and tomato sauce.

3. Sprinkle grated cheese on top.

4. Place food in the oven. Choose the menu, press start.

Meat and tomato sauce 1 celery stalk, chopped 1 onion, chopped 1 clove garlic, crushed 800g well-ripe tomatoes, chopped 1 sprig thyme 1 bay leaf 300g ground beef Salt and pepper to taste

1. Cook celery, onions and garlic in a lightly oiled frying pan until soft.

2. Add tomatoes, thyme, bay leaf, salt and pepper. Stir and simmer

3. Cook ground meat in another lightly oiled frying pan for 5 minutes

while stirring constantly. Pour tomato mixture into meat and cook for 5 minutes. (Sc-5) 21Arabic Menu Press STOP/CLEAR. Press Global Menu twice. Press START.

QUICK DEFROSTAUTO DEFROSTCONTINENTAL MENU GLOBAL MENU

Turn DIAL until display shows “Ac-2” . Press START. Turn DIAL until display shows “0.4”. ARABIC MENU allows you to cook most of your favorite food easily by selecting the food type and entering the weight of the food. Category Grape Leaf Kabsa Kebab Kafta In the fo llowing exa mple I wi ll s how y ou how to cook 0.4 kg of Saffron Rice. Saffron Rice Display Ac-1 Ac-2 Ac-3 Ac-4 Ac-5 22Category Weight Limit Utensil Food Temp Instructions Grape Leaf 1 kg Microwave- safe bowl Room Ingredients 1 pot of grape leaves \ 2 large onions, finely chopped 1/2 cup olive oil \ 1 garlic cloves, crushed \ 1 tomato, chopped 1 cup lemon juice \ 1 tablespoon tomato paste \ Kosher salt Freshly ground black pepper 1 cup white rice \ 1/2 cup water \ 1/4 cup chopped dill

1. Cook onions, garlic, tomato, tomato paste, and lemon juice in a

lightly oiled frying pan until lightly browned.

2. Add cooked rice, vegetable mixture, salt and pepper in a bowl and

3. Place grape leaf on a flat surface and place 1 1/2 spoonfuls of the

rice mixture in the center of the leaf. Wrap rice mixture with leaf.

4. Put all wrapped leaves in rows into a deep and large bowl and add

water. Cover with plastic wrap.

5. Place food in the oven. Choose the menu and press start to cook.

6. After cooking, serve with sour cream or as desired.

Saffron Rice 0.1~0.4 kg Microwave- safe bowl (deep glass pot) Room Rice 0.1 kg 0.2 kg 0.3 kg 0.4 kg Water 250 ml 500 ml 750 ml 1000 ml Oil(liquid) 1 tablespoon 2 tablespoons 3 tablespoons Saffron water 1 teaspoon 2 teaspoons 3 teaspoons Salt To taste

1. Wash rice and drain. Add rice, water, salt, liquid oil and saffron water

into a deep glass bowl and mix them. 2.Do not cover to vaporize whole water. Place food in the oven.

3. When BEEP, stir rice and then cover with lid. Press start to continue

cooking. 4.After cooking, stir and stand covered for 5 minutes. (Ac-1) (Ac-2) 23Category Weight Limit Utensil Food Temp Instructions Kabsa 2.0 kg Microwave- safe bowl Room Ingredients 1/4 cup butter 1.2kg chicken, cut into 8-10 pieces 1 large onion, finely chopped 3 garlic cloves, minced 1/4 cup tomato puree 1 tomato, chopped 2 medium carrots, chopped 1 pinch grated nutmeg 1 pinch ground cumin 1 pinch ground coriander salt & freshly ground black pepper 2 cups hot water 1 chicken stock cube 200g long grain rice (don’t rinse or soak this) 1/4 cup raisins 1/4 cup slivered almond, toasted

1. Cook chicken, carrots, tomato sauce, garlic, onion and butter in a

lightly oiled frying pan until lightly browned.

2. Place the cooked chicken mixture into a deep and large bowl and

add rice, water and spices. Cover with plastic wrap and vent.

3. Place food in the oven. Choose the menu and press start to cook.

Stir at least twice during cooking. (Ac-3) 24Category Weight Limit Utensil Food Temp Instructions Kafta 0.2 ~ 0.4 kg Rack on a drip dish Room Ingredients for marinade 460g beef minced 1 cup parsley, chopped 1 onion, chopped 2 bread, sliced 1/2 teaspoon all-spices 1/4 teaspoon paprika powder 1/4 teaspoon cinnamon powder Salt and pepper as per taste

1. Combine all ingredients in a large bowl and mix well.

2. Divide and shape into small sausages (100g / each one).

3. Place food on the rack. Choose the menu and press start to cook.

4. When beep, turn over the food.

Kebab 0.2 ~ 0.4 kg Rack on a drip dish Room Ingredients for marinade 2 onion juice 3 tablespoons olive oil 2 tablespoons saffron

1. Combine the ingredients of the marinade, cut meats under 1.5 cm

thickness each and marinate the meats for 3-4 hours.

2. Skewer the pieces of vegetable with the skewer.

3. Place skewers on the rack.

4. Choose the menu and weight, press start.

5. When beep, turn over the food.

In the fo llowing exa mple I wi ll sh ow y ou how to cook 0.4 kg of Chicken Tikka. ORIENTAL MENU allows you to cook most of your favorite food easily by selecting the food type and entering the weight of the food. Category Curry Chicken Dolma Veg. Biryani Chicken Tikka Flapjack (Koutaba) Turn DIAL until display shows “ Oc-4” . Press START. Press START. Turn DIAL until display shows “0.4”.

QUICK DEFROSTAUTO DEFROSTCONTINENTAL MENU GLOBAL MENU

Display Oc-1 Oc-2 Oc-3 Oc-4 Oc-5Category Weight Limit Utensil Food Temp Instructions Curry chicken 1.5 kg Microwave- safe bowl Room Ingredients 400 g chicken breasts, cut into chunks \ 1/4 cup olive oil 2 onions, chopped \ 4 garlic cloves, crushed \1 ginger root, peeled 1 cinnamon stick \ 2 dried red chilies \ 1 teaspoon tumeric powder 400 g tomato sauce \ 1/2 cup water or stock \ 1/2 cup plain yogurt 1 tablespoon lemon juice Salt and pepper to taste

1. Add all ingredients in a deep and large bowl and mix well. Cover

with plastic wrap and vent.

2. Place food in the oven. Choose the menu and press start to cook.

Stir at least twice during cooking. Dolma 1.0 kg Microwave- safe bowl Room Ingredients 1 pot of grapes leaves \ 200 g cooked rice 500 g ground beef 1 onion, chopped Salt and pepper to taste 1/2 cup water 1/2 cup sour cream

1. Add cooked rice, ground beef, onion, salt and pepper in a bowl and

2. Place grape leaf on a flat surface and place 1 1/2 spoonfuls of the

rice mixture in the center of the leaf. Wrap rice mixture with leaf.

3. Put all wrapped leaves in rows into a deep and large bowl and add

water. Cover with plastic wrap.

4. Place food in the oven. Choose the menu and press start to cook.

5. After cooking, serve with sour cream or as desired.

(Oc-1) (Oc-2)Category Weight Limit Utensil Food Temp Instructions Veg. Biryani 1.0 kg Microwave- safe bowl Room Ingredients 1 1/2 cups Basmati rice 400 g water 2 cups Chopped onions 1 Tomato, chopped 1 cup Vegetables (carrot, beans, peas, potato), chopped 2 Green chilly, chopped 1 teaspoon Ginger garlic paste 1 1/2 teaspoon Red chilly powder 1 teaspoon Coriander powder 1 teaspoon Cumin powder 1 tablespoon Biryani masala 1 Cinnamon 2 Cardamom 2 Cloves 2 Small bay leaves 1 teaspoon Fennel seeds A bunch of finely chopped coriander leaves (cilantro) and mint leaves 1 tablespoon Oil 2 tablespoons Ghee or clarified butter Salt to taste

1. Cook all vegetables and spices in a lightly oiled frying pan until

2. Place the cooked vegetable mixture into a deep and large bowl and

add rice and water. Cover with plastic wrap and vent.

3. Place food in the oven. Choose the menu and press start to cook.

Stir at least twice during cooking.

(Oc-3)Category Weight Limit Utensil Food Temp Instructions Chicken Tikka 0.2 kg ~ 0.4 kg Microwave- safe bowl Room Ingredients 4 Chicken breasts, cut into Cubes \ 1 cup natural yogurt \ 1 tablespoon ground cumin \ 1 tablespoon garam masala powder \ 1 teaspoon ground coriander \ 1 teaspoon ground turmeric \ 1 tablespoons red chilli powder \ 1 lemon Juice \ 8 cloves garlic, finely chopped \ 1 inch grated ginger, finely chopped \ 1/4 teaspoon red food color \ 1 Lemon

1. Mix the spices, coloring, lemon juice, ginger and garlic up into a

paste with a little water.

2. Stir in well with the yogurt to make a tandoori marinade.

3. Marinate the chicken in the marinade for 2-3 hours.

4. Shake off excess marinade and skewer the pieces of vegetable with

6. Place skewers on the rack.

7. Choose the menu and weight, press start.

8. When beep, turn over the food.

Heat-proof glass dish on the Rack Ingredients 200g butter \ 114g brown sugar \ 4 tablespoons syrup \ 280g porridge oats \ 55g plain flour

1. Melt the margarine, sugar and golden syrup over a low light until

melted and combined.

2. Take off the heat and add the porridge oats and plain flour and mix

3. Pour the mixture into a greased glass baking dish.

4. Place glass baking dish on the rack. Choose the menu and press

5. After cook, cool enough and cut into some pieces.

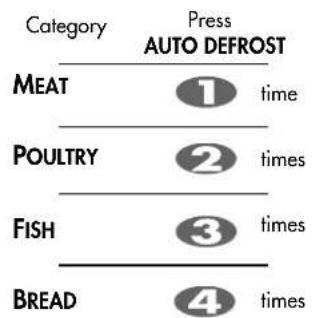

(Oc-4) (Oc-5)Auto Defrost The temperature and density of food varies, I would recommend that the food is checked before cooking commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely thawed before cooking. The BREAD programme is suitable for defrosting small items such as rolls or a small loaf. These will require a standing time to allow the centre to thaw. In the following example I will show you how to defrost 1.4 Kg of frozen poultry. Your oven has four microwave defrost settings:- MEAT, POULTRY, FISH and BREAD; each defrost category has different power settings. Repeated presses of the AUTO DEFROST button will select a different setting. Category MEAT POULTRY FISH BREAD Press time times times times Press START. During defrosting your oven will “BEEP”, at which point open the oven door, turn food over and separate to ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After checking close the oven door and press START to resume defrosting. Your oven will not stop defrosting (even when the beep sounded) unless the door is opened. Press AUTO DEFROST twice to select the POULTRY defrosting programme. Press STOP/CLEAR. Weight the food that you are about to defrost. Be certain to remove any metallic ties or wraps; then place the food in your oven and close the oven door. AUTO DEFROST Turn DIAL until display shows “1.4”.

• Food to be defrosted should be in a suitable microwave proof container and place uncovered on the glass turntable.

• If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil. This will prevent thin areas becoming warm during defrosting. Ensure the foil does not touch the oven walls.

• Separate items like minced meat, chops, sausages and as soon as possible. W hen BEEP, at this piont remove the food fromthe microwave oven,turn the food over and return to the microwave oven. Press start to continue. A t the end of the pr ogr a m, remove the food from the mi cr owa ve oven, cover with foil a nd a llow to sta nd unti l completely tha wed. To thaw completely, for example joints of meat and whole chickens should STAND for a minimum of 1 hour before cooking.

Microwave ware (Flat plate) Meat Minced beef, Fillet steak, Cubes for stew, Sirloin steak, Pot roast, Rump roast, Beef burger Lam chops, Rolled roast, Sausage, Cutlets(.2cm) Turn food over at beep. After defrosting, let stand for 5-15 minutes. Poultry Whole chicken, Legs, Breasts, Turkey breasts(under 2.0kg) Turn food over at beep. After defrosting, let stand for 20-30 minutes. Fish Fillets, Steaks, Whole fish, Sea foods Turn food over at beep. After defrosting, let stand for 10-20 minutes.

Paper towel or flat plate Sliced bread, Buns, Baguette, etc. Separate slices and place between paper towel or flat plate. Turn food over at beep. After defrosting, let stand for 1-2 minutes.

BreadQuick Defrost Use this function to thaw only 0.5kg of Minced meat very quickly. This will require a standing time to allow the center to thaw. In the following example will show you how to defrost 0.5kg of frozen minced meat. Your oven has a microwave quick defrost setting (MEAT). Press STOP/CLEAR. Weight the food that you are about to defrost. Be certain to remove any metallic ties or wraps; then place the food in your oven and close the oven door. Press QUICK DEFROST. The oven will start automatically. During defrosting your oven will “BEEP”, at which point open the oven door, turn food over and separate to ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After checking close the oven door and press START to resume defrosting. Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.

32U UTENSIL INSTRUCTIONS Minced meat Microwave ware Use this function to defrost quickly for minced meat. Remove the meat completely from it's wrapping. Place the mince onto a microwave-safe plate. When BEEP, at this point remove the mince from the microwave oven, turn the mince over and return to the microwave oven . Press start to continue. At the end of the program remove the mince from the microwave oven , cover with foil and allow to stand 5-15 minutes or until completely thawed. Minced meat

AUTO W EIGHT DEFROST GUIDE

CATEGORY WEIGHT 0.5kg (Flat plate) After defrosting, let stand for 5-15 minutes Turn food over at beep 33Keep Warming In the fo llowing exa mple I wi ll sh ow y ou how to u se th e high level in 90 min. function to warm food at Put some food into the micro-wave oven,press

-HoH ”appears on the display.Press “start”.1.Set the required AUTO COOK programme.Press“start”. And after the AUTO COOK programme,it will automatically run Taste saver function when five minutes later after AUTO COOK is over. want to warm your food when the AUTO COOK programme,you can get the warming food by pressing the key.When the food without Auto function needwarming you can set warming at any pointby pressing the key. function has only one timelevel-90 minutes. But the function will stop when you open the door. manually after AUTO COOK 2.When the AUTO COOK is over, you can also press “

again,left time of will appear on the display. ,%6%, ,OWLEVEL (IGHLEVEL

0RESSKEEP WARMINGTIMETIMES$ISPLAY

appears on the display.Press “s start

COMBI. KEEP WARMINGCOMBI. KEEP WARMING

34Energy Saving Press STOP /CLEAR(ECO ON). “0” appears on the display. The ECO ON feature allows you to save energy through display off during stand-by status, or after 5 minutes with door open or closing, display will off automatically. Press STOP /CLEAR(ECO ON)

After 5 minutes with door open or closing, display off. During ECO ON status,if you press any key,display will on. 3512 Before cooking, pierce the skin of potatoes, apples or any such fruit or vegetable. 13 Do not cook eggs in their shell. Pressure will build up inside the egg which will burst. 14 Do not attempt deep fat frying in your oven. 15 Remove the plastic wrapping from food before cooking or defrosting. Note though that in some cases food should be covered with plastic film, for heating or cooking. 16 If the oven door or door seals are damaged, the oven must not be operated until it has been repaired by a qualified service technician. 17 If smoke is observed, switch off or disconnect the oven from the power supply and keep the oven door closed in order to stifle any flames. 18 When food is heated or cooked in disposable containers of plastic, paper or other combustible materials, check the oven frequently due to the possibility of the food container is deteriorating. 19 Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. 20 Liquids or other foods must not be heated in sealed containers since they are liable to explode. 21 Do not operate the oven, if the door seals and adjacent parts of the microwave oven are faulty, until the oven has been repaired by a qualified service technician. 22 Check the utensils are suitable for use in microwave ovens before use. 23 Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, accessories and dishes during grill mode, convection mode and auto cook operations, unless wearing thick oven gloves, as they will become hot. Before clearing make sure they are not hot. 1 Do not attempt to tamper with, or make any adjustments or repairs to the door, control panel, safety interlock switches or any other part of the oven. It is hazardous for anyone to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy. Repairs should only be undertaken by a qualified service technician. 2 Do not operate the oven when empty. It is best to leave a glass of water in the oven when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started. 3 Do not use the oven for the purpose of dehumidification. It can be the cause of serious damage of safety. (ex. Operating the microwave oven with the wet newspapers, clothes, toys, pet or portable electric devices, etc.) 4 Do not cook food wrapped in paper towels, unless your cook book contains instructions, for the food you are cooking. 5 Do not use newspaper in place of paper towels for cooking. 6 Do not use wooden containers. They may heat-up and char. Do not use ceramic containers which have metallic (e.g. gold or silver) inlays. Always remove metal twist ties. Metal objects in the oven may arc, which can cause serious damage. 7 Do not operate the oven with a kitchen towel, a napkin or any other obstruction between the door and the front edges of the oven, which may cause microwave energy leakage. 8 Do not use recycled paper products since they may contain impurities which may cause sparks and/or fires when used in cooking. 9 Do not rinse the turntable by placing it in water just after cooking. This may cause breakage or damage. 10 S mall amounts of food require shorter cooking or heating time. If normal times are allowed they may overheat and burn. 11 Be certain to place the oven so the front of the door is 8 cm or more behind the edge of the surface on which it is placed, to avoid accidental tipping of the appliance. Important safety instructions Read carefully and keep for future reference WARNING Please ensure cooking times are correctly set as over cooking may result in FIRE and subsequent DAMAGE to the OVEN. 3637 This connection may be achieved by having the plug accessible or by incorporation a switch in the fixed wiring in accordance with the wiring rules. 38 Do not use harsh abrasive cleaners or sharp metal scrapers to clean the 39 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. oven door glass since they can scratch the surface, which may result in shattering of the glass. 24 Only use utensils that are suitable for use in microwave ovens. 25 When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. 26 If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 27 Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handing the container. 28 The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 29 Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 30 Details for cleaning door seals, cavities and adjacent parts. 31 The oven should be cleaned regularly and any food deposits removed. 32 Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 33 Only use the temperature probe recommended for this oven (for appliances having a facility to use a temperature-sensing probe). 34 If heating elements are provided, during use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 35 The appliance is not intended for use by young children or infirm persons without supervision. 36 The microwave oven must be operated with the decorative door open. Important safety instructions Read carefully and keep for future reference

WARNING: If the door or door seals are damaged, the oven must not

be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person

to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed

containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision

when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING: Accessible parts may become hot during use. Young

children should be kept away. 37Microwave-safe Utensils Never use metal or metal trimmed utensils in your microwave oven Microwaves cannot penetrate metal. They will bounce off any metal object in the oven and cause arcing, an alarming phenomenon that resembles lightning. Most heat resistant non metallic cooking utensils are safe for use in your microwave oven. However, some may contain materials that render them unsuitable as microwave cookware. If you have any doubts about a particular utensil, there’s a simple way to find out if it can be used in your microwave oven. Place the utensil in question next to a glass bowl filled with water in the microwave oven. Microwave at power HIGH for 1 minute. If the water heats up but the utensil remains cool to the touch, the utensil is microwave~safe. However, if the water does not change temperature but the utensil becomes warm, microwaves are being absorbed by the utensil and it is not safe for use in the microwave oven. You probably have many items on hand in your kitchen right now that can be used as cooking equipment in your microwave oven. Just read through the following checklist. Dinner plates Many kinds of dinner-ware are microwave-safe. If in doubt consult the manufacturer’s literature or perform the microwave test. Glassware Glassware that is heat-resistant is microwave-safe. This would include all brands of oven tempered glass cookware. However, do not use delicate glassware, such as tumblers or wine glasses, as these might shatter as the food warms. Plastic storage containers These can be used to hold foods that are to be quickly reheated. However, they should not be used to hold foods that will need considerable time in the oven as hot foods will eventually warp or melt plastic containers. Paper Paper plates and containers are convenient and safe to use in your microwave oven, provided that the cooking time is short and foods to be cooked are low in fat and moisture. Paper towels are also very useful for wrapping foods and for lining baking trays in which greasy foods such as are cooked. In general, avoid coloured paper products as the colour may run. Some recycled paper products may contain impurities which could cause arcing or fires when used in the microwave oven. Plastic cooking bags Provided they are made specially for cooking, cooking bags are microwave safe. However, be sure to make a slit in the bag so that steam can escape. Never use ordinary plastic bags for cooking in your microwave oven, as they will melt and rupture. Plastic microwave cookware A variety of shapes and sizes of microwave cookware are available. For the most part, you can probably use items you already have on hand rather than investing in new kitchen equipment. Pottery, stoneware and ceramic Containers made of these materials are usually fine for use in your microwave oven, but they should be tested to be sure. CAUTION Some items with high lead or iron content are not suitable for cooking utensils. Utensils should be checked to ensure that they are suitable for use in microwave ovens. Lam

38Keeping an eye on things The recipes in the book have been formulated with great care, but your success in preparing them depends on how much attention you pay to the food as it cooks. Always watch your food while it cooks. Your microwave oven is equipped with a light that turns on automatically when the oven is in operation so that you can see inside and check the progress of your food. Directions given in recipes to elevate, stir, and the like should be thought of as the minimum steps recommended. If the food seems to be cooking unevenly, simply make the necessary adjustments you think appropriate to correct the problem. Factors affecting microwave cooking times Many factors affect cooking times. The temperature of ingredients used in a recipe makes a big difference in cooking times. For example, a cake made with ice-cold butter, milk, and eggs will take considerably longer to bake than one made with ingredients that are at room temperature. All of the recipes in this book give a range of cooking times. In general, you will find that the food remains under-cooked at the lower end of the time range, and you may sometimes want to cook your food beyond the maximum time given, according to personal preference. The governing philosophy of this book is that it is best for a recipe to be conservative in giving cooking times. While overcooked food is ruined for good. Some of the recipes, particularly those for bread, cake, and custards, recommend that food be removed from the oven when they are slightly undercooked. This is not a mistake. When allowed to stand, usually covered, these foods will continue to cook outside of the oven as the heat trapped within the outer portions of the food gradually travels inward. If the food is left in the oven until it is cooked all the way through, the outer portions will become overcooked or even burnt. You will become increasingly skilful in estimating both cooking and standing times for various foods. Density of food Light, porous food such as cakes and breads cook more quickly than heavy, dense foods such as roasts and casseroles. You must take care when microwaving porous food that the outer edges do not become dry and brittle. Height of food The upper portion of tall food, particularly roasts, will cook more quickly than the lower portion. Therefore, it is wise to turn tall food during cooking, sometimes several times. Moisture content of food Since the heat generated from microwaves tends to evaporate moisture, relatively dry food such as roasts and some vegetables should either be sprinkled with water prior to cooking or covered to retain moisture. Bone and fat content of food Bones conduct heat and fat cooks more quickly than meat. Care must be taken when cooking bony or fatty cuts of meat that they do not cook unevenly and do not become overcooked. Quantity of food The number of microwaves in your oven remains constant regardless of how much food is being cooked. Therefore, the more food you place in the oven, the longer the cooking time. Remember to decrease cooking times by at least one third when halving a recipe. Shape of food Microwaves penetrate only about 2.cm into food, the interior portion of thick foods are cooked as the heat generated on the outside travels inward. Only the outer edge of food in cooked by microwave energy; the rest is cooked by conduction. The worst possible shape for a food that is to be microwaved is a thick square. The corners will burn long before the centre is even warm . Round thin foods and ring shaped foods cook successfully in the microwave. Covering A cover traps heat and steam which causes food to cook more quickly. Use a lid or microwave cling film with a corner folded back to prevent splitting. Browning Meats and poultry that are cooked fifteen minutes or longer will brown lightly in their own fat. Foods that are cooked for a shorter period of time may be brushed with a browning sauce such as worcestershire sauce, soy sauce or barbecue sauce to achieve an appetizing colour. Since relatively small amounts of browning sauces are added to food the original flavour of the recipe is not altered. Covering with greaseproof paper Greaseproofing effectively prevents spattering and helps food retain some heat. But because it makes a looser cover than a lid or clingfilm, it allows the food to dry out slightly. Arranging and spacing Individual foods such as baked potatoes, small cakes and hors d’oeuvres will heat more evenly if placed in the oven an equal distance apart, preferably in a circular pattern. Never stack foods on top of one another. Food characteristics & Microwave cooking 39Food characteristics & Microwave cooking Stirring Stirring is one of the most important of all microwaving techniques. In conventional cooking,food is stirred for the purpose of blending. Microwaved food, however, is stirred in order tospread and redistribute heat. Always stir from the outside towards the centre as the outsideof the food heats first. Turning over Large, tall foods such as roasts and whole chickens should be turned so that the top andbottom will cook evenly. It is also a good idea to turn cut up chicken and chops. Placing thicker portions facing outwards Since microwaves are attracted to the outside portion of food, it makes sense to placethicker portions of meat, poultry and fish to the outer edge of the baking dish. This way,thicker portions will receive the most microwave energy and the food will cook evenly. Shielding Strips of aluminium foil (which block microwaves) can be placed over the corners or edgesof square and rectangular foods to prevent those portions from overcooking. Never use toomuch foil and make sure the foil is secured to the dish or it may cause ‘arcing’ in the oven. Elevating Thick or dense foods can be elevated so that microwaves can be absorbed by the undersideand centre of the foods. Piercing Foods enclosed in a shell, skin or membrane are likely to burst in the oven unless they arepierced prior to cooking. Such foods include yolks and whites of eggs, clams and oystersand whole vegetables and fruits. Testing if cooked Food cooks so quickly in a microwave oven, it is necessary to test it frequently. Some foodsare left in the microwave until completely cooked, but most foods, including meats andpoultry, are removed from the oven while still slightly undercooked and allowed to finishcooking during standing time. The internal temperature of foods will rise between 5

C) during standing time. Standing time Foods are often allowed to stand for 3 to 10 minutes after being removed from themicrowave oven. Usually the foods are covered during standing time to retain heat unlessthey are supposed to be dry in texture (some cakes and biscuits, for example). Standingallows foods to finish cooking and also helps flavour blend and develop. To Clean Your Oven 1 Keep the inside of the oven clean Food spatters or spilled liquids stick to oven walls and between seal and door surface. It is best to wipe up spillovers with a damp cloth right away. Crumbs and spillovers will absorb microwave energy and lengthen cooking times. Use a damp cloth to wipe out crumbs that fall between the door and the frame. It is important to keep this area clean to assure a tight seal. Remove greasy spatters with a soapy cloth then rinse and dry. Do not use harsh detergent or abrasive cleaners. The glass tray can be washed by hand or in the dishwasher. 2 Keep the outside of the oven clean Clean the outside of your oven with soap and water then with clean water and dry with a soft cloth or paper towel. To prevent damage to the operating parts inside the oven, the water should not be allowed to seep into the ventilation openings. To clean control panel, open the door to prevent oven from accidentally starting, and wipe a damp cloth followed immediately by a dry cloth. Press STOP/CLEAR after cleaning. 3 If steam accumulates inside or around the outside of the oven door, wipe the panels with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit. 4 The door and door seals should be kept clean. Use only warm, soapy water, rinse then dry thoroughly. DO NOT USE ABRASIVE MATERIALS, SUCH AS CLEANING POWDERS OR STEEL AND PLASTIC PADS. Metal parts will be easier to maintain if wiped frequently with a damp cloth. 5 Do not use any steam cleaner.

4Questions & Answers Q What’s wrong when the oven light will not glow? A There may be several reasons why the oven light will not glow. Light bulb has blown Door is not closed Q Does microwave energy pass through the viewing screen in the door? A No. The holes, or ports, are made to allow light to pass; they do not let microwave energy through. Q Why does the beep tone sound when a pad on the Control Panel is touched? A The beep tone sounds to assure that the setting is being properly entered. Q Will the microwave oven be damaged if it operates empty? A Yes Never run it empty or without the glass tray. Q Why do eggs sometimes pop? A When baking, frying, or poaching eggs, the yolk may pop due to steam build up inside the yolk membrane. To prevent this, simply pierce the yolk before cooking. Never microwave eggs in the shell. Q Why is standing time recommended after microwave cooking is over? A After microwave cooking is finished, food keeps on cooking during standing time. This standing time finishes cooking evenly throughout the food. The amount of standing time depends on the density of the food. Q Is it possible to pop corn in a microwave oven? A Yes, if using one of the two methods described below 1 Popcorn-popping utensils designed specifically for microwave cooking. 2 Prepackaged commercial microwave popcorn that contains specific times and power outputs needed for an acceptable final product. FOLLOW EXACT DIRECTIONS GIVEN BY EACH MANUFACTURER FOR THEIR POPCORN PRODUCT. DO NOT LEAVE THE OVEN UNATTENDED WHILE THE CORN IS BEING POPPED. IF CORN FAILS TO POP AFTER

THE SUGGESTED TIMES, DISCONTINUE COOKING. OVERCOOKING

COULD RESULT IN THE CORN CATCHING FIRE. CAUTION NEVER USE A BROWN PAPER BAG FOR POPPING CORN. NEVER ATTEMPT TO POP LEFTOVER KERNELS. Q Why doesn’t my oven always cook as fast as the cooking guide says? A Check your cooking guide again to make sure you’ve followed directions correctly, and to see what might cause variations in cooking time. Cooking guide times and heat settings are suggestions, chosen to help prevent overcooking, the most common problem in getting used to a microwave oven. Variations in the size, shape, weight and dimensions of the food require longer cooking time. Use your own judgement along with the cooking guide suggestions to test food condition, lust as you would do with a conventional cooker. 41Plug wiring information/ Technical Specifications The wires in this mains lead are colored in accordance with thefollowing codesBLUE ~ NeutralBROWN ~ LiveGREEN & YELLOW ~ EarthAs the colours of the wires in the mains lead of this appliance maynot correspond with the coloured markings identifying the terminalsin your plug proceed as follows:The wire which is colored BLUE must be connected to the terminalwhich is marked with the letter N or Colored BLACK.The wire which is colored BROWN must be connected to theterminal which is marked with the letter L or colored RED.The wire which is colored GREEN & YELLOW or GREEN must beconnected to the terminal which is marked with the letter E or .If the supply cord is damaged, it must be replaced by themanufacturer or its service agent or a similarly qualified person inorder to avoid a hazard; Warning Technical Specification This appliance must be earthed V AC /50Hz 800 W (IEC60705 rating standard) 2,50 MHz 485 mm(W) X 280mm(H) X (D) 1,200 Watts1,000 Watts1,200 WattsPower InputOutputMicrowave FrequencyOutside Dimension

Power ConsumptionMicrowaveGrillCombinationmm

COMBI. KEEP WARMINGCOMBI. KEEP WARMINGﺮﻴﻓﻮﺗ
