305483 - Webcam Aplic - Free user manual and instructions

Product type	Webcam
Connection	USB (Plug&Play)
Maximum resolution	1080p @ 30fps
Microphone	Built-in
Focus	Fixed, focus distance 50 cm
Operating indicator	White LED
Recording light	Built-in, with ON/OFF switch
Mounting	Clip for monitor or tripod thread
Power supply	Via computer USB port
Installation	Automatic (Plug&Play)
Package contents	Webcam, user manual
Features	Switch for recording light
Safety	Do not open, avoid moisture and high temperatures
Disposal	Compliant with WEEE directive (2012/19/EU)
Compatibility	Computers with USB port
Warranty	Void if unauthorized opening or modification

Frequently Asked Questions - 305483 Aplic

How to install the Aplic 305483 webcam?

Connect the USB cable to a free port on your computer. Installation is automatic via Plug&Play.

How to attach the webcam to my monitor?

Open the clip (base) and place the webcam on top of the screen. Make sure the clip is securely attached to prevent it from falling.

Can I use a tripod with this webcam?

Yes, the base has a standard thread to mount the webcam on a tripod.

How to turn on the recording light?

Use the switch on the device: set it to ON to turn on the light, OFF to turn it off.

Does the webcam have a built-in microphone?

Yes, a microphone is built-in to capture audio.

What is the maximum resolution of the webcam?

The maximum resolution is 1080p at 30 frames per second (30fps).

Is the webcam compatible with my operating system?

It works with any computer that has a USB port and supports Plug&Play devices.

How to clean the webcam?

Use a soft, dry cloth. Avoid contact with water or harsh cleaning products.

What to do if the webcam is not detected?

Check the USB connection, try another port. If the problem persists, restart the computer. Make sure the system supports Plug&Play devices.

How to dispose of the webcam at end of life?

Do not throw it in household waste. Take it to a public collection point or return it to the manufacturer in accordance with the WEEE directive.

USER MANUAL 305483 Aplic

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Webcam
• User manual

2. Technical data

Port USB
Resolution maximum 1080p@30fps
Features • built-in microphone	• Fixed focus, focus length 50 cm • Power indicator (white LED) • Scene light

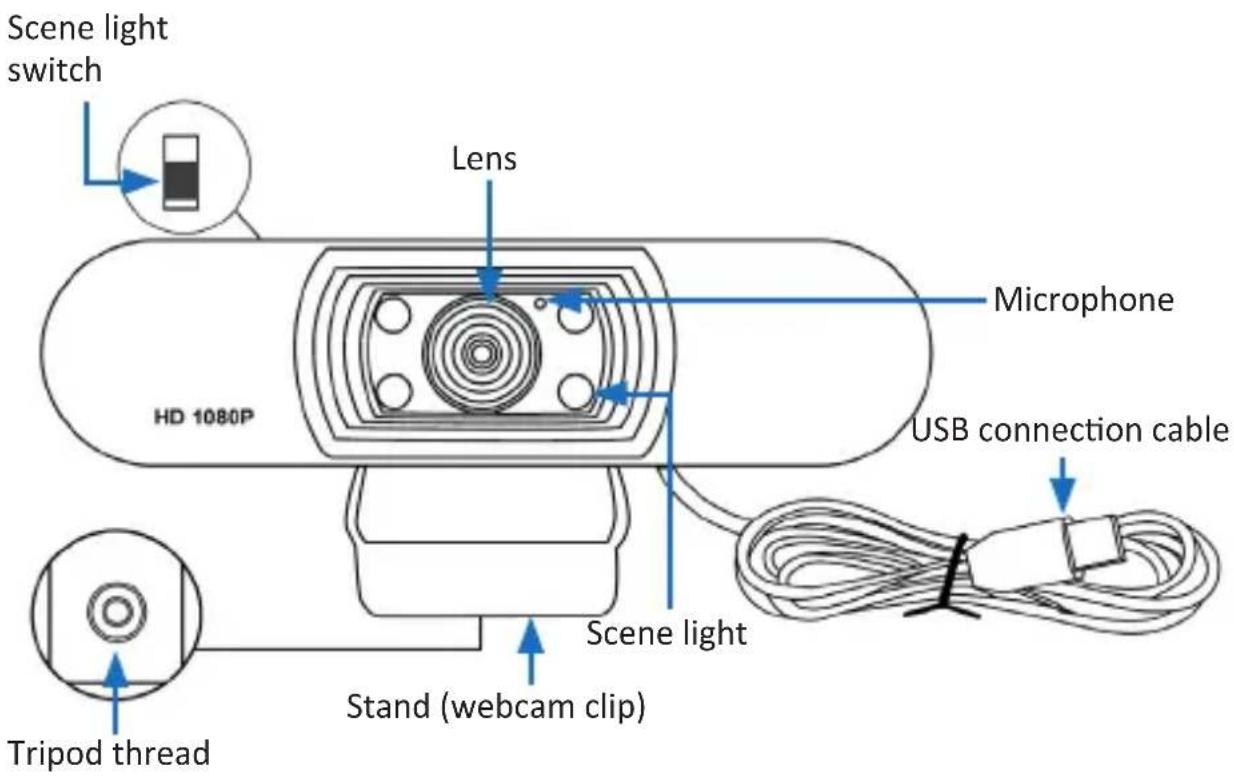

3. Product details

4. Initial use

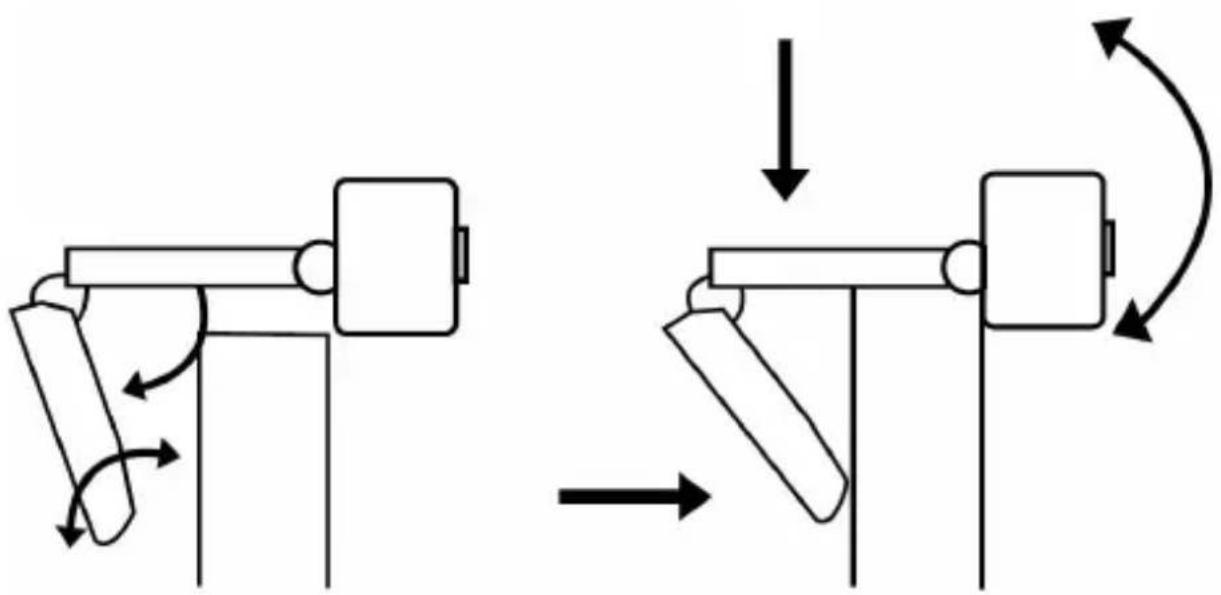

Take the device out of the package and remove all the packaging material. Place the camera at your desired location. You have the option of fixing the camera to your monitor. Open the webcam clip (stand) and follow the method shown in the figure to fix the webcam to the top of the monitor. Make sure that the clip (stand) is firmly attached and that camera cannot fall down.

Optionally, a thread is provided at the bottom of the stand using which the camera can be fixed to a tripod.

Connect the USB connection cable to a free USB port of your computer. The device is automatically installed via Plug&Play and is then ready for use.

Note: A switch is provided at the back to turn on the scene light. You can position the switch to "ON" to turn on the scene light, or to "OFF" to turn it off again.

5. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow.

Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

6. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305483 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
