USER MANUAL 305313 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or partial circle (no text or symbols)

aplic

WEBCAM

Diagram of a mechanical device with motion arrow indicating rotational motion (no text or symbols)

Diagram showing a device with a circular component and an arrow indicating transformation (no text or symbols)

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Webcam
• User manual

2. Technical data

Port USB
Resolution maximum 1080p@30fps
Features • inbuilt stereo microphone	• Auto focus• "Privacy shutter"• Power indicator (blue LED)
Ambient temperature 0-45°C

3. Product details

Lens Microphone Privacy shutter flexible clip

4. Initial use

Take the device out of the package and remove all the packaging material. Place the camera at the desired location. You have the option of fixing the camera to your monitor. Open the webcam clip (stand) and follow the method shown in the figure to fix the webcam to the top of the monitor. Make sure that the clip (stand) is firmly attached and that camera cannot fall down.

Diagram of a mechanical device with motion arrow indicating rotational motion (no text or symbols)

Optionally, a thread is provided at the bottom of the stand using which the camera can be fixed to a tripod.

Connect the USB connection cable to a free USB port of your computer. The device is automatically installed via Plug&Play and is then ready for use.

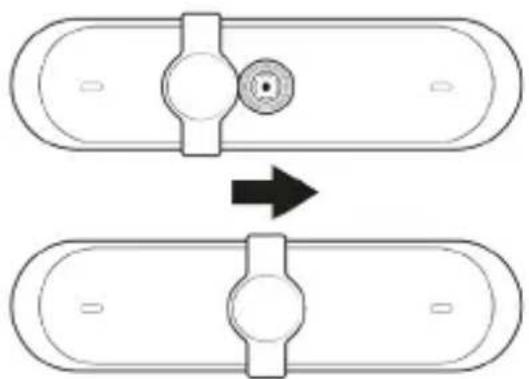

You have the option to open and close the "Privacy Shutter". To do so, simply move the cover over the lens.

Diagram showing a device with a circular component being processed into a larger rounded package (no text or symbols)

5. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow.

Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

6. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305313/20201102SZ290 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
