302691 - TV Antenna Aplic - Free user manual and instructions

Brand	Aplic
Model	302691
Product type	Indoor TV antenna DVB-T/DVB-T2
Color	Black
Dimensions (approx.)	Height 35 cm, base width 15 cm
Weight	Approximately 200 g
Power supply	5 V DC via included power adapter or TV USB port
Power consumption	~20 mA (0.1 W)
Frequency range	470 – 862 MHz (UHF)
Amplification	Up to 30 dB (active)
Connectors	1x IEC (antenna), 1x USB-A, 1x DC barrel jack 3.5 mm
Indicator light	Blue "POWER" LED on the amplifier
Package contents	Antenna, power supply, power cable, user manual
Intended use	Indoor terrestrial digital TV reception (DVB-T/DVB-T2)
Care and cleaning	Clean with a dry cloth; do not use harsh chemicals
Safety	Do not open, do not expose to moisture or excessive heat; indoor use only
Spare parts and repairability	No user-serviceable parts; contact customer service for any issues
Warranty	According to applicable law; any modification voids the warranty
Recycling	Do not dispose of with household waste; comply with WEEE directive (2012/19/EU)
Certification	EU Declaration of Conformity available on request

Frequently Asked Questions - 302691 Aplic

How to install the Aplic 302691 TV antenna?

Remove the antenna from the packaging, connect it to your TV via the IEC cable, then plug the power supply either into the TV's USB port or into the provided power adapter. Turn on the TV and perform a channel scan.

What to do if the POWER LED does not light up?

Check that the power cable is properly connected to the amplifier and that the USB source is delivering power. If using the power adapter, make sure it is plugged into a working wall outlet. The LED should be blue when the antenna is powered on.

Can I use this antenna for FM radio?

No, this antenna is designed exclusively for DVB-T and DVB-T2 reception. FM radio reception is not supported.

How to improve channel reception?

Try changing the orientation and position of the antenna, ideally near a window. Keep it away from other electronic devices that might cause interference. Re-scan for channels after each position change.

Can the antenna be used outdoors?

No, this device is intended for indoor use only. Do not expose it to moisture, rain, or snow.

What types of connectors does the antenna have?

The antenna has an IEC output for the antenna cable to the TV, a USB-A port, and a 3.5 mm DC barrel jack for power.

Is it possible to power the antenna via the TV's USB port?

Yes, you can plug the supplied USB cable directly into a USB port on your TV (if available). This saves energy because the antenna only powers on with the TV.

What to do if no channels are found after installation?

Check that the connection cable is fully inserted, that the antenna is powered on (blue LED), and that you are in an area covered by DVB-T/T2 signal. Consult websites for signal strength in your area. Try moving the antenna.

Is the antenna compatible with TNT in France?

Yes, it is compatible with DVB-T and DVB-T2 standards used in France and many European countries. Check the TNT coverage in your area.

How to recycle the antenna at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE directive (2012/19/EU), return it to a collection point, dealer, or manufacturer. The registration number is DE 94495668.

USER MANUAL 302691 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

aplic

DVB-T Antenna, up to 30dB

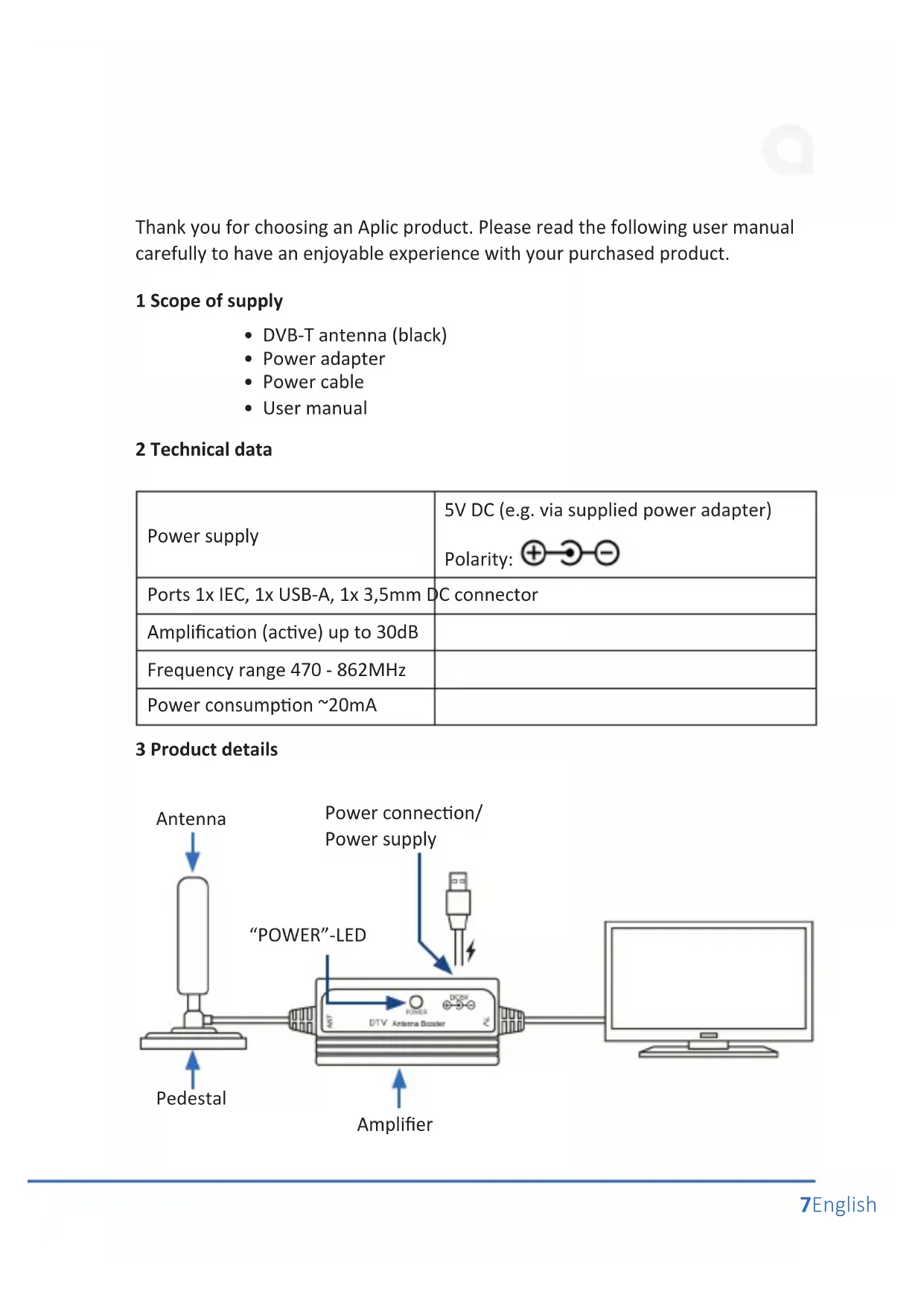

Thank you for choosing an Aplic product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1 Scope of supply

• DVB-T antenna (black)
- Power adapter
- Power cable
- User manual

2 Technical data

Power supply	5V DC (e.g. via supplied power adapter)Polarity:
Ports 1x IEC, 1x USB-A, 1x 3,5mm DC connector
Amplification (active) up to 30dB
Frequency range 470 - 862MHz
Power consumption ~20mA

3 Product details

4 Commissioning

Take the device out of the package and remove all the packaging material. Connect the antenna to your desired device, e.g. a TV set. Then supply the amplifier of the antenna with power by attaching the provided USB of the DC power plug cable to the amplifier. The USB connection of the cable can be connected, for instance, to the USB port of your TV (if available) or with the supplied 5V power adapter.

To ensure that the amplifier or antenna is working, check whether the blue "POWER"-LED on the amplifier lights up.

Note: Alternatively, if you want to supply power to the antenna via USB port of a TV, please make sure that the antenna is switched on only if the TV is powered on as well. This guarantees energy efficiency and reduces power consumption. An additional socket for the power adapter is not required. This way the power consumption of the antenna amounts to 20mA only. Thus a standard USB connection is sufficient.

5 Additional note

If only a few or no stations are found during scanning, then the reason for this lies mostly likely in the installation site of the antenna. Check if the cable is properly connected, change the position of the antenna, and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T / DVB-T2 signal. A location near a window is highly recommended.

On Internet you can find different websites, which indicate the signal strength of the DVB-T / DVB-T2 signal in your region. If you have any further questions, do not hesitate to contact our Customer Service.

Note: This antenna is suitable only for DVB-T and DVB-T2. UKW radio reception is not supported.

6 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302691/20161116NB039 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
