DVB-T Antenna, up to 25 dB

Mod.-Nr.: 303340

Table of contents

1. Deutsch....3
2. English 7
3. Français ....11
4. Italiano.... 15
5. Español 19

Thank you for choosing an Aplic product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of supply

• DVB-T antenna (black)
- Power adapter
- User manual

2. Technical data

Power supply USB Type A, 5V DC 1A
Ports 1x IEC, 1x USB-A
Amplification (active) up to 25dB
Frequency range 470 - 862MHz
Power consumption ~33mA
Ambient temperature 0-40°C

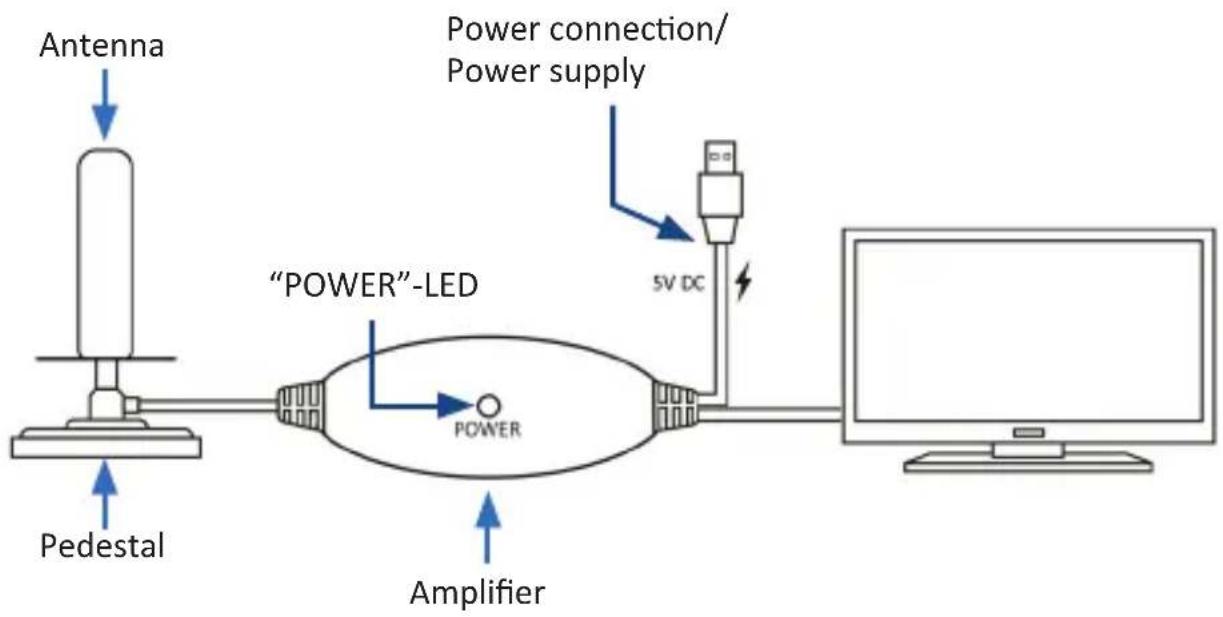

3. Product details

4. Commissioning

Take the device out of the package and remove all the packaging material. Connect the antenna to your desired device, e.g. a TV set. Then please supply the antenna with power by connecting the USB lead of the amplifier with a USB port of your TV or PC or a USB charger. The USB connection of the cable can be connected, for instance, to the USB port of your TV (if available) or with the supplied 5V power adapter.

To ensure that the amplifier or antenna is working, check whether the blue "POWER"-LED on the amplifier lights up.

Important note: In order to be able to operate the antenna correctly, we kindly ask you to use the supplied USB power supply. The current consumption of the antenna is only 33mA. This is sufficient for a standard USB port.

5. Additional note

If only a few or no stations are found during scanning, then the reason for this lies mostly likely in the installation site of the antenna. Check if the cable is properly connected, change the position of the antenna, and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T / DVB-T2 signal. A location near a window is highly recommended.

On Internet you can find different websites, which indicate the signal strength of the DVB-T / DVB-T2 signal in your region. If you have any further questions, do not hesitate to contact our Customer Service.

Note: This antenna is suitable only for DVB-T and DVB-T2. UKW radio reception is not supported.

6. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

7. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303340 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
