302042 - TV Antenna Aplic - Free user manual and instructions

Product Type	Indoor TV Antenna
Brand	Aplic
Model	302042
TV Standards	DVB-T / DVB-T2
Connection	Coaxial plug (F-type)
Support	Magnetic base
Number of pages in instructions	20 pages
Available languages	FR, DE, EN, ES, IT
Recycling	WEEE compliant (Directive 2012/19/EU)
WEEE registration number	94495668
Manufacturer	WD Plus GmbH
Manufacturer address	Wohlenbergstraße 16, 30179 Hanover, Germany
Installation recommendation	Orient the antenna to capture the best signal
Precautions	Do not open, avoid moisture and shocks
Maintenance	Clean with a dry cloth, without solvents
Warranty	Void if unauthorized modification

Frequently Asked Questions - 302042 Aplic

How to install the Aplic 302042 antenna?

Connect the coaxial plug to your TV or DVB-T adapter, place the antenna on a metal surface using the magnetic base, then orient it to capture the best signal. Start a channel search on your TV.

What to do if few channels are detected?

Check the coaxial cable connection, change the antenna orientation, and move it away from devices that may obstruct the DVB-T/T2 signal. Check the DVB-T coverage in your area online.

Can I use the antenna outdoors?

No, this antenna is intended for indoor use only. It is not waterproof and must be protected from moisture, rain, and snow.

How to clean the antenna?

Use a dry, soft cloth. Never use solvents, abrasive products, or water, as this could damage the device.

Is the antenna compatible with French TNT?

Yes, it captures DVB-T and DVB-T2 signals, used for TNT in France. Ensure your TV or adapter is compatible.

What to do if the antenna no longer works?

Check that the cable is not damaged, that the coaxial plug is fully inserted, and that the antenna has not suffered a shock. If the problem persists, contact WD Plus GmbH customer service.

Can I repair the antenna myself?

No, never attempt to open or modify the device. Any unauthorized repair voids the warranty and may present an electrical risk.

How to recycle the antenna at the end of its life?

Do not dispose of the device with household waste. Take it to a WEEE collection point (Waste Electrical and Electronic Equipment) or return it to the retailer.

Where to find the full version of the instructions?

The full instructions (20 pages) are available for free download in PDF format on notice-facile.com in several languages.

Does the antenna work without a power adapter?

Yes, the antenna is passive and does not require electrical power. It connects directly to the antenna input of your TV.

USER MANUAL 302042 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

aplic

DVB-T / DVB-T2 Antenna, up to 6dbi

Thank you for having chosen this Aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• DVB-T / DVB-T2 antenna, black
- User manual

2 Technical specifications

Port Coax-plug
Features Magnetic stand

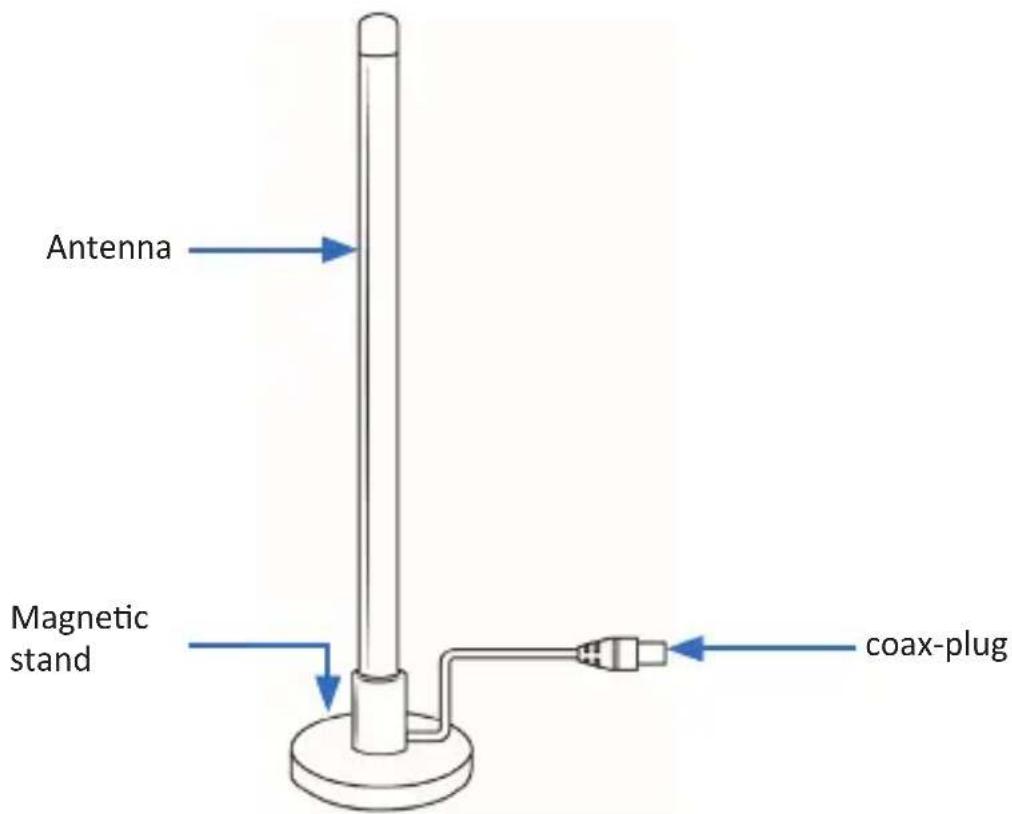

3 Product details

4 Additional notes

If only a few or no stations are found during scanning, then this is mostly likely because of the antenna alignment. Check if the cable is connected correctly, change the position of the antenna and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T / DVB-T2 signal. There are different websites in the internet which could display the signal strength of the DVB-T / DVB-T2 signal in your region. For further information or if you have any questions please do not hesitate to contact us.

5 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The product is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current. Disregard of this warning could lead to contact with the operating voltage, or could generate a short circuit.

Pull out the plug before a lightning storm or if you do not regularly use this product, to prevent a short-circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight. Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage to the electronic part of this unit. Check the product for signs of damage before putting it in operation. In case the device is damaged, it should not be used. Please contact our customer support.

Please observe the relevant national provisions and legal restrictions. Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

6 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment by an incorrect disposal.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return end-of-life electrical and electronic equipment to their manufacturer, point of sale, public collection points or importer of charge. The relevant local laws apply here.

The symbol on the product, in the instructions or on its packing points out these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302042/20170406DG006 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
