USER MANUAL WFL10W ANSMANN

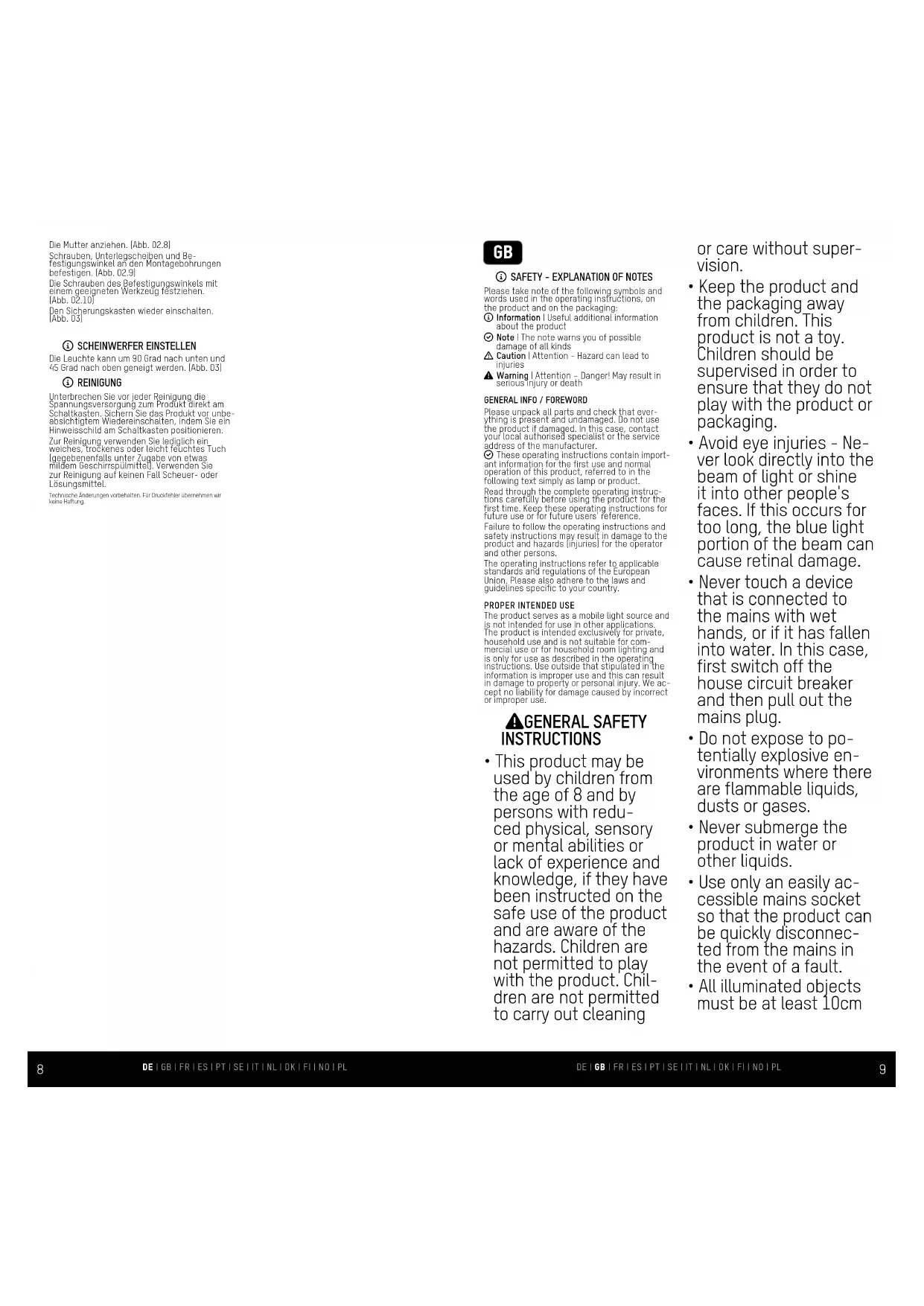

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging:
Information | Useful additional information about the product
Note I the note warns you of possible damage of all kinds
Caution | Attention - Hazard can lead to injuries
警 ^ 念 Attention-Dangor! May result in serious injury or death

GENERAL INFO / FOREWORD

Please unpack all parts and check that everything is present and undamaged. Do not use the product if damaged. In this case, contact your local authorised specialist or the service address of the manufacturer. These operating instructions contain important information for the first use and normal operation of this product, referred to in the following text simply as lamp or product. Read through the complete operating instructions carefully before using the product for the first time. Keep these operating instructions for future use or for 'future users' reference. Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards [injuries] for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

PROPER INTENDED USE

The product serves as a mobile light source and is not intended for use in other applications. The product is intended exclusively for private, household use and is not suitable for commercial use or for household room lighting and is only for use as described in the operating instructions. Use outside that stipulated in the information is improper use and this can result in damage to property or personal injury. We accept no liability for damage caused by incorrect or improper use.

GENERAL SAFETY INSTRUCTIONS

• This product may be used by children from the age of 8 and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they have been instructed on the safe use of the product and are aware of the hazards. Children are not permitted to play with the product. Children are not permitted to carry out cleaning

or care without supervision.

• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product or packaging.
• Avoid eye injuries - Never look directly into the beam of light or shine it into other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage.
• Never touch a device that is connected to the mains with wet hands, or if it has fallen into water. In this case, first switch off the house circuit breaker and then pull out the mains plug.
• Do not expose to potentially explosive environments where there are flammable liquids, dusts or gases.
• Never submerge the product in water or other liquids.
• Use only an easily accessible mains socket so that the product can be quickly disconnected from the mains in the event of a fault.
• All illuminated objects must be at least 10cm

away from the lamp.

• Use the product exclusively with the accessories included with it.
• Do not short-circuit connection terminals or batteries.

ADANGER OF FIRE AND EXPLOSION

• Do not use while still in the packaging.
• Do not cover the product - risk of fire.
• Never expose the product to extreme conditions, such as extreme heat/cold etc.
• Do not use in the rain or in damp areas.

GENERAL INFORMATION

• Do not throw or drop
  The LED cover cannot be replaced, if the cover is damaged, the product must be disposed of.
• The LED light source cannot be replaced. If the LED has reached the end of its service life, the complete lamp must be replaced.
• Do not open or modify the product/ Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
• Disconnected the device from the power supply only by pulling on the plug or plug housing, never on the cable.
  Information for the light and mains adapter as well as mains voltage on the socket must match with the type plate.
• The lamp shall not be placed face-down or allowed to topple face-down.

ENVIRONMENTAL INFORMATION DISPOSAL

Disposc of packaging after sorting by material type.Cardboard and cardboard to the waste paper, film to the recycling collection.

Dispose of the unusable product in accordance with legal provisions. The waste bin' symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste.

For disposal, pass the product on to a specialist disposal point for old equipment, use the return and collection systems in your area or contact the dealer from whom you purchased the product.

PARTDESCRIPTION

1.LED's
2.Hings (360'tit ablgs)
3. Cable conn
4. Mounting bracket

LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling/use or through disregard of the information contained within these operating instructions.

① INSTALLATION INSTRUCTIONS

Note! Only a VDE-certified waterproof cable H05RN 3x1.0mm2 or H07RN F 3x1.0mm2 or better may be used for the connection. Other light sources (e.g. lanterns) can impair the function of the sensor. Do not install the product within the effective range of other light sources.

③ INSTALLATION

The fixing holes in the bracket have a diameter of 8mm . Select suitable mounting material for this.
The mounting materials are not supplied. As an example, these instructions show installation with two screws and two dowels. Other mounting materials can be used as required. Disconnect the power supply to the cable at the fuse box and secure against reconnection by third parties. [FIG. 01]
Determining the installation location and mark the wall. [Fig. 02.1]
Drill holes at the marked points with an electric drill. [Fig. 02.2]
Insert the dowels into the drilled holes. [Fig. 02.3]
Remove the nut of the quick connector. (Fig. 02.4)
Feed the mains cable through the nut and connect it to the housing. The length of the striping head and the immersion tube is 8mm (Fig. 02.5)
Connect the wires to the respective terminals: Blue wire to N Inutral
Brown cable to L [phase]
Green/yellow cable to PE [earth] (Fig. 02.6)
Tighten the plug. [Fig. 02.7] Tighten the nut. [Fig. 02.8]
Fix the screws, washers and brackets to the mounting holes. [Fig. 02.9]
Tighton the screws of the mounting bracket using a suitable tool. (Fig. 02.10)
Switch the fuse box back on. [Fig. 03]

The lamp can be angled 90 degrees downwards and 45 degrees upwards. [Fig. 03]

① CLEANING

Disconnect the power supply from the product at the switch cabinet before any cleaning. Secure the product to prevent it being unintentionally reactivated by attaching a warning sign at the switch cabinet.
Use only a soft, dry or slightly moist cloth with a little mild washing-up (liquid if required).
Do not use abrasive agents or solvents for cleaning.

Subject to technical changes. We assume no liability for printing errors.

FR

① SÉCURITÉ - EXPLICATION DES SYMBOLES

INDICACOES RELATIVAS AO MEIO AMBIENTE | ELIMINACAO

(1) STILLE INN LYKTER

Lampene kan skrastilles 90 grader nedad og 45 grader oppad. (Fig. 03)

③ RENGJORING

Kobleprodukt fra stremforsyningen for haverengjaringdirekte koblingsboksen. Sikreprodukt mat utilisiktet gijinnkablig ved at du pusisonerer et varselsikt pablingsboksen.

Bruk bare en myk, tarr aller lett fuktek klut lil renjgvalr (eventuelt kan du tilfaye et mildt oppvaskmiddell). Under ingen omstendighet ma du bruke skurepulver ellar lasemiditer lil renjgvalr.

Mad forbesho on tekise endirger. veartarike enevar for tykeil

PL

1 BEZPIECZENSTWO - OBJASNIENIE INFORMACJI

Kundenservice | Customer service:

ANSMANN AG

Industriestrasse 10

97959 Assamstadl

Germany

Support & FAQ: ansmann.de

E-Mail: [e-mail]

Hotline: +49 [0] 6294 / 4204 3400

MA-1600-0632/1600-0627/1600-0628/1600-0629/V0/04-2024
