APC09QC - Air Conditioning HISENSE - Free user manual and instructions

Product type	Portable monoblock air conditioner
Brand	Hisense
Model	APC09QC
Power supply	220-240 V ~ 50 Hz, 16 A, 3-pin plug with earth
Refrigerant	R290 (flammable), maximum charge 0.3 kg
Operating modes	Cooling, Drying, Fan only, Heating (heat pump depending on model)
Fan speeds	Auto, High, Medium, Low
Set temperature range (cooling)	16 °C to 30 °C
Set temperature range (heating)	16 °C to 30 °C
Minimum room area	14.4 m²
Minimum distance from combustible surfaces	100 cm

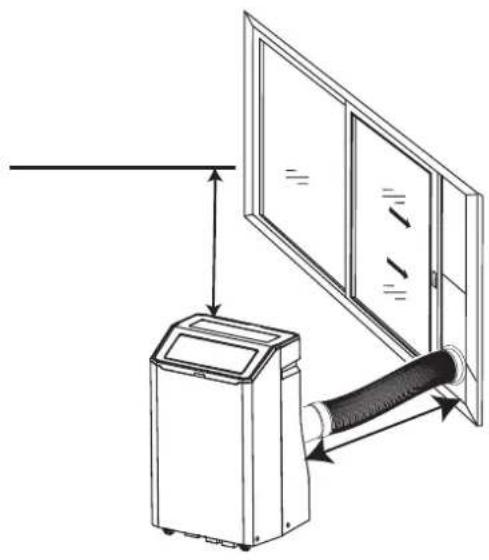

Flexible exhaust hose length	60 to 170 cm
Remote control	Yes, with AAA 1.5 V batteries (2 batteries provided)
Special functions	Smart Mode, Super Mode, Sleep Mode, Timer ON/OFF, Oscillation, Ifeel, Display dimmer
Cleaning	Washable air filter with warm water and mild detergent
Water drainage	Primary drain (plug) and secondary drain (hose for heating models)
Storage	Drain water, run in fan mode for 12 hours, then unplug
Required maintenance	Regular filter cleaning, drain if E5 code displayed
Included accessories	Window slider kit, foam seals, adapter, exhaust hose, remote control, batteries
Safety	Flammable refrigerant R290, respect distances and do not pierce or burn
Weight and dimensions	Not specified in the manual

Frequently Asked Questions - APC09QC HISENSE

How to install the Hisense APC09QC portable air conditioner in a double-hung window?

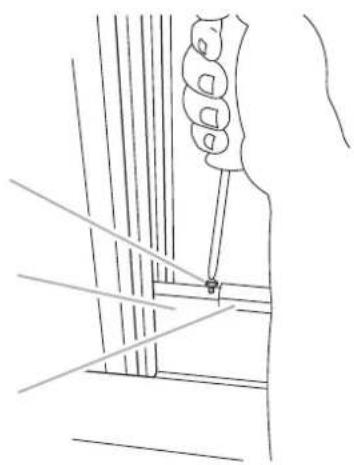

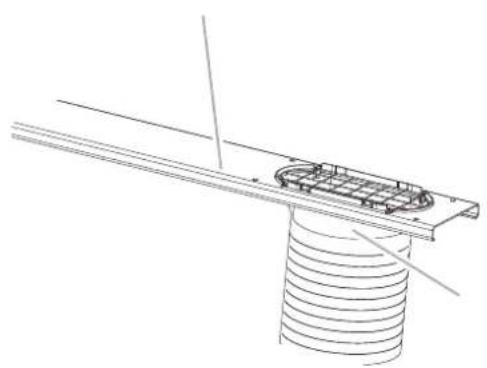

Assemble the window slider kit by adjusting the inner section to the width of the opening. Place the kit in the window, close the window over it, then secure the locking bracket. Connect the exhaust hose to the back of the unit and insert the adapter into the slot of the kit.

What to do if the air conditioner displays error code E5?

The E5 code indicates excess water in the unit. Turn off and unplug the air conditioner, move it to a drainage point, remove the primary drain plug and drain the water completely. Replace the plug and reconnect the unit.

How to clean the air conditioner's air filter?

Turn off and unplug the unit. Open the filter panel door at the back, remove the filter and clean it with a vacuum or warm water with mild detergent. Dry it completely before reinstalling.

What is the function of Smart (SMART) mode?

Smart mode automatically adjusts temperature and fan speed based on ambient temperature. For example, if the room is 21°C or below, it switches to heating; between 23 and 26°C, it dehumidifies; above 26°C, it cools.

Can I use an extension cord with the air conditioner?

No, using an extension cord is strictly prohibited. The air conditioner must be plugged directly into a 3-prong grounded outlet to avoid risk of fire or electric shock.

How to set the timer to turn the unit on or off automatically?

First set the clock using the CLOCK button. For automatic power-on, press TIMER ON, adjust the time with +/- buttons, then confirm. For automatic power-off, use TIMER OFF in the same way.

What are the normal sounds produced by the air conditioner?

You may hear air movement from the fan, clicking sounds related to the thermostat cycle, vibrations if walls or windows are poorly insulated, and a humming from the high-efficiency modern compressor during on/off cycles.

How to use Super mode for fast cooling?

Press the SUPER button on the remote control. The air conditioner sets the fan speed to High and temperature to 16°C. For fast heating, it sets temperature to 30°C. Press any other button to exit this mode.

The air conditioner is not cooling enough, what to check?

Check that the air filter is not dirty or clogged, the air outlet is not blocked, and the set temperature is not too high. Also ensure the room is not too large for the unit's capacity.

What to do in case of refrigerant leak?

The refrigerant R290 is flammable. In case of leak, evacuate the area, do not create any flame or spark, ventilate the room and contact a qualified technician. Do not pierce or burn the unit.

USER MANUAL APC09QC HISENSE

USE AND INSTALLATION INSTRUCTIONS

APC12QB

APH12QB

APC12QC

APH12QC

Caution, risk of fire

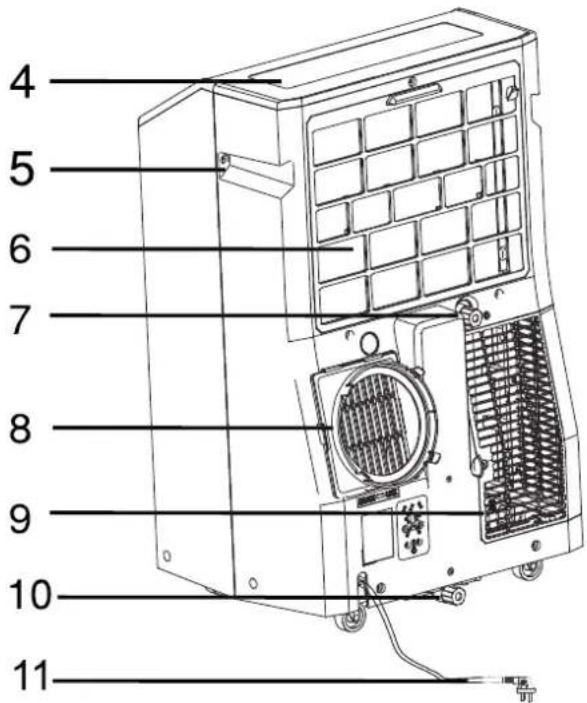

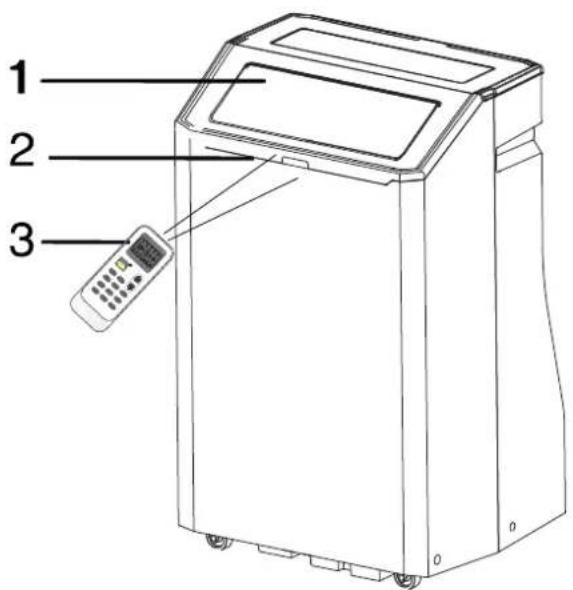

IDENTIFICATION OF PARTS

- Front

Back

Cool air outlet

Signal receptor

Remote control

Control panel

Transport handle

Evaporator air intake

Secondary drain port

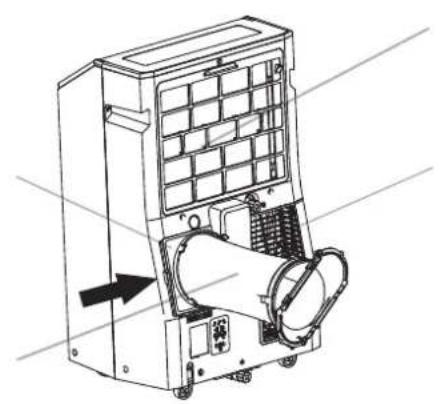

Air outlet hose coupling

Condenser air intake

Primary drain port

Power cord (May differ from the one shown)

Drain hose clip (Heat pump models)

Drain hose (Heat pump models)

The figures in this manual are based on the external view of a standard model.

They may differ from that of the air conditioner you have selected.

A

Before throwing the device, it is necessary to pull back the battery cells and get rid of them safety for recycling reasons.
■When you need to dispose of the unit consult our dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments. please recycle or dispose of the packaging material for product in an environmentally responsible manner.
■ Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor .
The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Phillips screwdriver

Scissors

Pencil

Cordless drill and 18" bit

Parts supplied

The following parts are supplied with the portable Air conditioner.

Part	Description	Quantity
	A. Foam seal	1 pc
	B. Coupling	1 pc

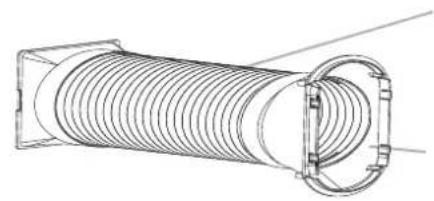

	C. Flexible exhaust hose	1 pc
	D. Window exhaust adapter	1 pc
	E. Rivets	4 pc
	F. Screws	4 pc
	G. Window-lock bracket	2 pc

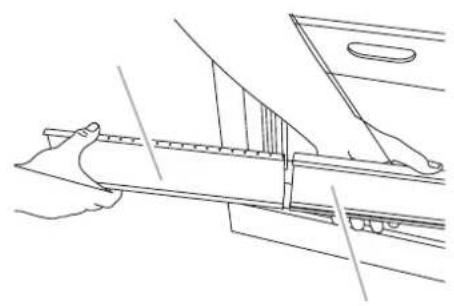

	H. Outer slider section with vent	1 pc
	I. Inner slider section-short	1 pc
	J. inner slider section	1 pc
	K. Outer slider section	1 pc
	L. Foam seal-long	2 pc
	M. Foam seal-short	2 pc
	N. Drain hose (Heat pump models)	1 pc
	O. Drain hose clip (Heat pump models)	1 pc
	P. Remote control	1 pc
	Q. Standard AAA (1.5 volts) batteries	2 pc

Note

MERCURY FREE SUPER HEAVY DUTY R03 UM-4 SIZE AAA 1.5V BEST USED BEFORE DATE CODE (MONTH-YEAR) ON THE BOTTOM

Caution for ingestion

The battery may cause suffocation if swallowed by children

Do Not Mix Old And New Batteries. Do Not Mix Alkaline, Standard (Carbon - Zinc), Or Rechargeable (Nickel - Cadmium) Batteries

Non-rechargeable batteries are not to be recharged

Exhausted batteries are to be removed from the product

DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

If changing modes while the air conditioner is running,

Starting Your Portable Air Conditioner

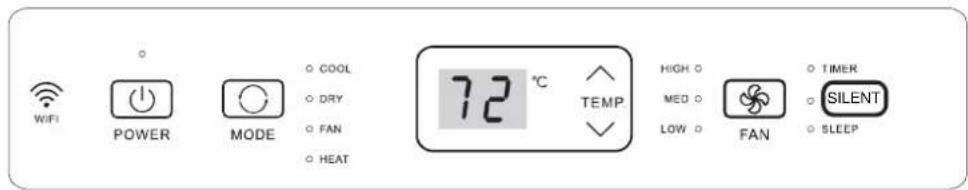

Control panel

NOTE:The symbols may be different from these models, but the functions are similar.

Power On or Off

○ POWER

NOTE: Keep upright at least 2 hours before use to prevent damaging the compressor.

At the first time when the air conditioner is plugged in and turned on after your purchase, it will be set in Cool Mode. When the air conditioner is turned on at all other times, it will run according to the previous setting.

Mode

1. Press and release MODE until you see the symbol for the desired setting.

Operating modes:

1. Choose Cool, Dry, Fan or Heat.

Cool-Cools the room. Press FAN to select High, Mid or Low speeds. Press the Plus or Minus button to adjust the temperature.

Dry-Dries the room. The air conditioner automatically selects the temperature. The fan runs on Low speed only. Dehumidification ranges between 2 to 3 pints per hour, by model.

NOTE: Dry mode should not be used to cool the room.

DRY

Fan Only mode. Press FAN to select High, Mid or Low.

FAN

Heat-heats the room. Press FAN to select high, Mid or Low speeds. Press the PLUS or MINUS button to adjust the temperature.

NOTE: Heating is NOT available for cooling only models.

HEAT (Optional)

WIFI control is available for connected models with this logo on control panel.

WiFi

WiFi (Optional)

Fan Speed

1. Press and release FAN to choose the desired fan speed.

1. Choose High, Mid or Low.

High-for maximum fan speed

HIGH

Mid-for normal fan speed

MED

Low-for minimum fan speed

LOW

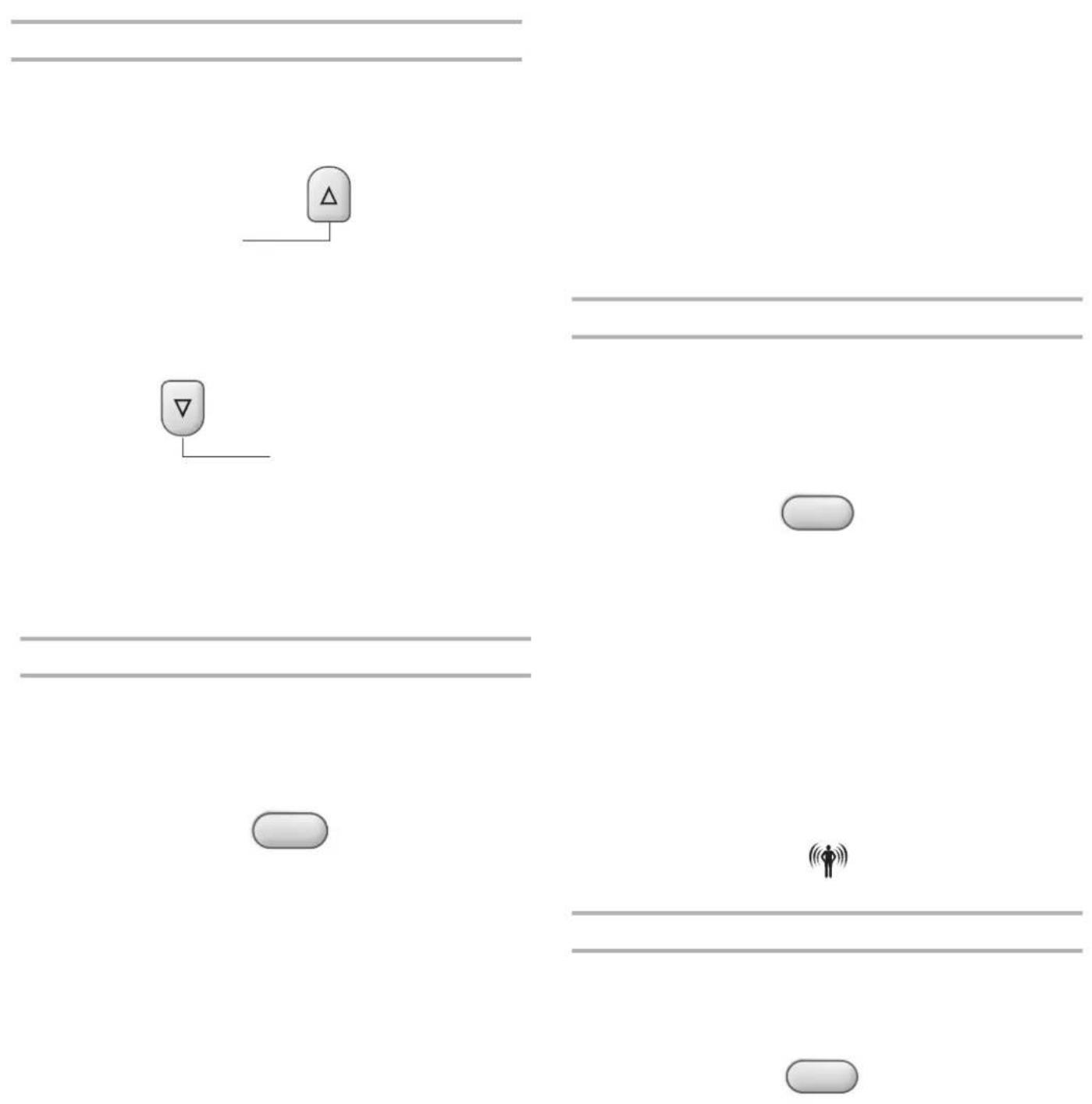

Temperature

Press the button to raise the temperature. Press the button once to increase the set temperature by 1^ ( 1^ ).

Press the button to lower the temperature. Press the button once to decrease the set temperature by 1^ ( 1^ ).

NOTE:

In the Cooling mode, the temperature can be set between 61^ and 86^ (16°C and 30°C).
In Fan Only mode, the temperature can not be set.
The unit LED shows the target temperature for 5 seconds and then displays the room temperature.

Change display between ^ F and ^ C

To change the temperature display between ^ F and ^ C press both the and Adjust buttons at the same time.

八

TEMP

SILENT

Press the SILENTbutton to enter quiet mode.

SILENT

Using the Remote Control

Insert the Batteries

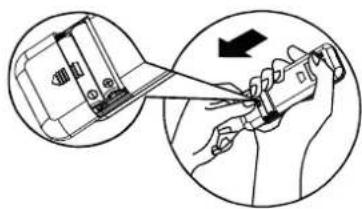

1. Remove the battery cover along the arrowed direction.

1. Insert new batteries making sure that the (+) and (-) of battery are matched correctly.
2. Re-attach the cover by sliding it back into position.

NOTE:

• Use 2 standard AAA(1.5volt) batteries. Do not use rechargeable batteries.
• Replace batteries with new ones of the same type when the display becomes dim, or after 6 months.
• When replacing batteries, always replace both batteries with new batteries. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cd, ni-mh, etc) batteries.
  If the air conditioner will not be used for an extended period of time, remove the batteries from the remote.

CAUTION

• Do not use the remote if the batteries have leaked.
  The chemicals in batteries could cause burns or other health hazards.
  DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

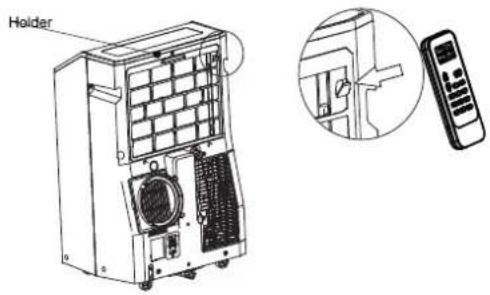

Storage Tip

The holder on the back of the unit can be used to store the remote control.

How to Use

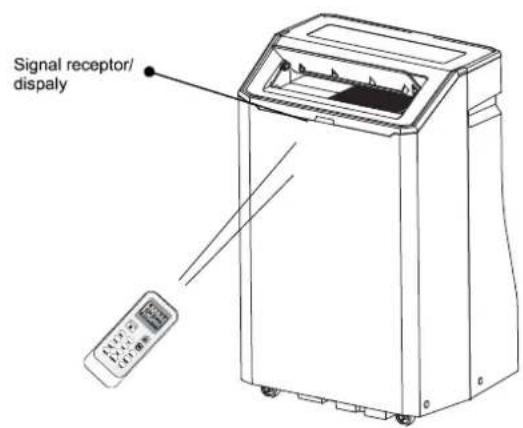

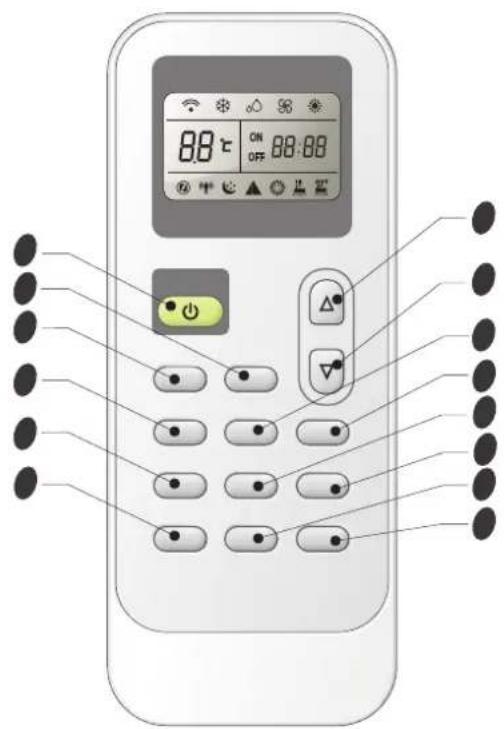

To operate the room air conditioner, aim the remote control at the signal receptor. The remote control will operate the air conditioner at a distance of up to 23^(7m) when pointing at signal receptor of the air conditioner.

1			8
2			9
3			10
4			11
5			12
6			13
7			14

Indication symbols on LCD:

Cooling indicator	Auto fan speed
Dry indicator	High fan speed
Fan only indicator	Medium fan speed
Heating indicator	Low fan speed

▲ Smart indicator	Signal transmit.
Sleep indicator	ON OFF 88:88 Display set timer Display current time
Super indicator	88℃ Display set temperature

Indoor temperature	Operation mode	Target temperature
or below	HEATING
	FAN ONLY
	DRY
Over	COOLING

Indoor temperature	Operation mode	Target temperature
	FAN ONLY
	DRY
Over	COOLING

What you can do in mode
Your feeling
Uncomfortable because of unsuitable air flow volume.
Uncomfortable because of unsuitable flow direction.		Press it once, the louver swings to change airflow direction. Press it again, swings stops.

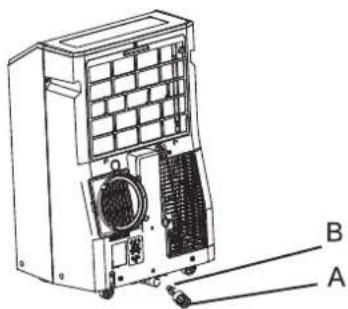

A.Primary drain cover B.Primary drain plug

WARNING

Excessive Weight Hazard

Use two or more people to move and install the air conditioner.

Failure to do so can result in back or other injury.

1. Unplug the air conditioner or disconnect power.
2. Move the air conditioner to a drain location or outside.

NOTE: To avoid leaking water from the unit, move the air conditioner slowly and keep it level.

1. Remove the primary drain cover and plug.

2. Drain water completely through the drain hole.

3. Reinstall the drain plug to the primary drain hole.

4. Reinstall the primary drain cover to the drain hole.
5. Reposition the air conditioner.
6. Plug in the air conditioner or reconnect power.

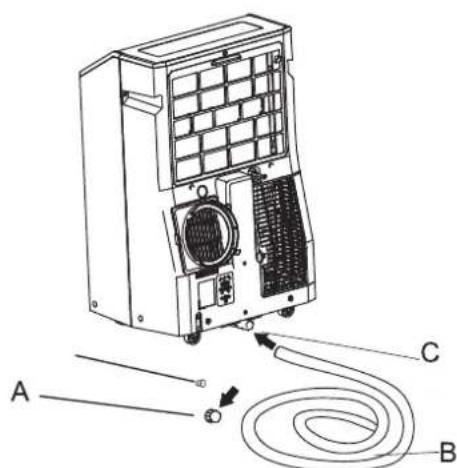

A.Primary drain port
B.Drain hose
C.Primary drain hole

Cleaning the Air Filter

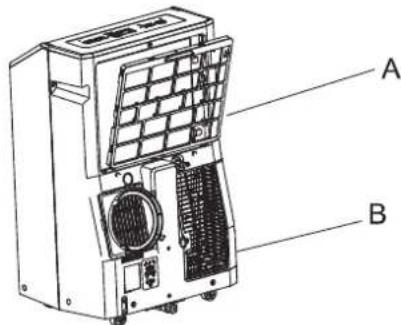

A.Evaporator air intake filter panel door B. Condenser air intake filter panel door

1. Press ON/OFF to turn off the air conditioner.
2. Open the filter panel door on the back of the air conditioner and remove.
3. Remove the tapping screw from the condenser air intake filter panel door and remove.

4. Use a vacuum cleaner to clean the filter. If the filter is very dirty, wash the filter in warm water with a mild detergent.

5. Air dry the filter completely before replacing to ensure maximum efficiency.

6. Reattach the air filter to the filter panel door.
7. Reinstall the filter panel door and tapping screw
8. Press ON/OFF to start the air conditioner.

Storing After Use

1.

1. Run the air conditioner set to Fan Only for approximately 12 hours to dry the air conditioner.
2. Unplug the air conditioner.

Hisense (Guangdong) Air Conditioning Co., Ltd.

No.8 Hisense Road, Advanced Manufacturing Jiangsha Demonstration Park, Jiangmen City, province di Guangdong, R.P.C. Cina
