LÖRBY 103.819.66 - Phone charger IKEA - Free user manual and instructions

Product Type	USB charger with desk clamp
Brand	IKEA
Model	LÖRBY
Item Number	103.819.66
Number of USB Ports	3 USB-A ports
Output Voltage	5 V DC
Max Current per Port	2.4 A
Total Max Current	3.4 A
Total Power	17 W
Power Cable Length	1.9 m
Case Length	9 cm
Case Width	2.5 cm
Case Height	2 cm
Mounting Type	Clamp, magnet, double-sided adhesive, screws
Compatible Desk Thickness (clamp)	1 to 2.5 cm
Automatic Device Detection	Yes
Built-in Protections	Overcurrent, short circuit, overheating
Available Colors	Black, white, red, yellow
Designer	IKEA of Sweden

Frequently Asked Questions - LÖRBY 103.819.66 IKEA

How many devices can be charged simultaneously with the LÖRBY?

The LÖRBY has 3 independent USB-A ports, allowing up to 3 devices to be charged simultaneously. The power is automatically distributed between the ports according to the needs of each connected device.

What is the total power of the IKEA LÖRBY charger?

The total power is 17 W (3.4 A at 5 V DC). Each port individually delivers up to 2.4 A, which covers the standard charging of smartphones and most tablets.

How to attach the LÖRBY to a desk?

The LÖRBY offers four attachment modes:

• Clamp on a surface 1 to 2.5 cm thick
• Magnet on steel surface
• Included double-sided adhesive
• Screws (mounting holes integrated into the casing)

Is the LÖRBY's power cable removable?

No, the cable is integrated and non-detachable. It measures 1.9 m, providing sufficient flexibility for most desk setups.

Is the LÖRBY compatible with all smartphones?

Yes. The integrated automatic detection adjusts the output power to the connected device. It is compatible with any device accepting standard 5 V USB charging: Android smartphones, iPhone, e-readers, Bluetooth speakers, etc.

Does the LÖRBY support fast charging (Quick Charge or USB-PD)?

The charger delivers up to 2.4 A per port at 5 V, corresponding to standard fast charging. It does not support proprietary Qualcomm Quick Charge protocols or USB Power Delivery (USB-PD): QC-compatible devices will charge at normal speed.

My phone is not charging, what should I check?

Try these steps in order:

• Ensure the charger is properly plugged into the wall socket
• Test with another USB cable
• Try another USB port on the device
• Clean the USB connector of your device

If no port works, the charger may be defective. Contact IKEA customer service.

What thickness of desk does the LÖRBY clamp accommodate?

The clamp is designed for surfaces with a thickness between 1 and 2.5 cm. For thicker desks, use the magnet, double-sided adhesive, or screw attachment.

Is the LÖRBY protected against overvoltage and short circuits?

Yes, the charger includes protections against overcurrent, short circuits, and overheating. These safety features protect both the charger and connected devices in the event of an electrical anomaly.

Can a tablet be charged with the LÖRBY?

Yes, each port can deliver up to 2.4 A, sufficient for the vast majority of tablets. Charging will be slower than with a high-power adapter if the tablet requires a USB-PD protocol or more than 2.4 A.

What colors are available for the LÖRBY?

The LÖRBY is available in black, white, red, and yellow to suit the office décor. The reference 103.819.66 corresponds to the black color.

Where can I find after-sales service for the LÖRBY?

Visit the official IKEA Customer Service site for any questions or product returns. The charger comes with a 2-year legal conformity warranty, applicable in IKEA stores or by mail.

USER MANUAL LÖRBY 103.819.66 IKEA

Design and Quality IKEA of Sweden

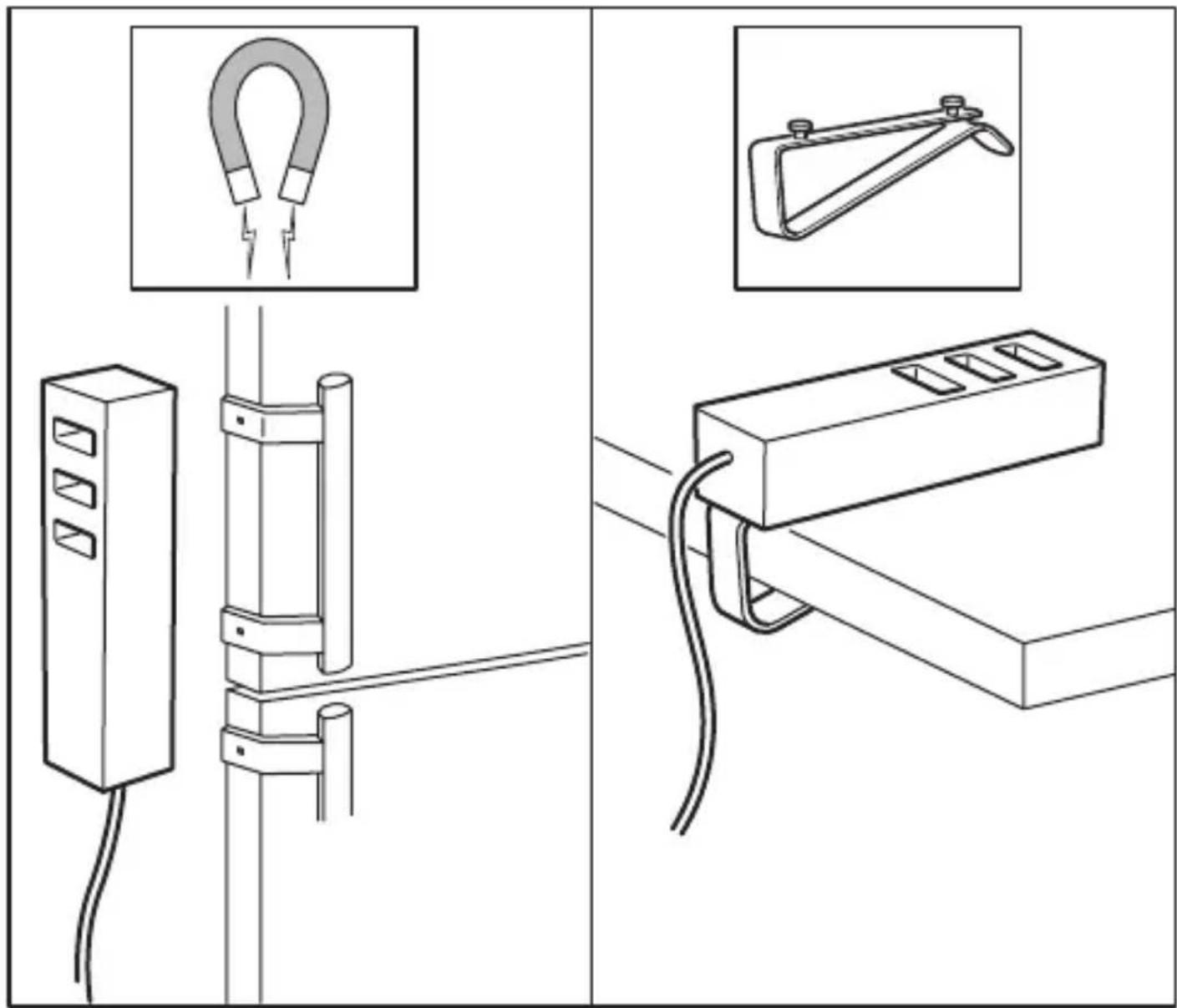

Technical line drawings of electrical components including a U-shaped magnet, cable, and terminal block (no text or symbols)

Diagram showing electrical connections between two devices with labeled components and wiring diagrams

ENGLISH	6	SVENSKA	38
DEUTSCH	10	ČESKY	42
FRANÇAIS	14	ESPAÑOL	46
NEDERLANDS	18	ITALIANO	50
DANSK	22	MAGYAR	54
ÍSLENSKA	26	POLSKI	58
NORSK	30	EESTI	62
SUOMI	34	LATVIEŠU	66

LIETUVIŲ 70 ŮKPAЇНСЬКА 102
PORTUGUÊS 74 SRPSKI 106
ROMÂNA 78 SLOVENŠČINA 110
SLOVENSKY 82 TÜRKÇE 114
БЪЛГАРСКИ 86 عربی 118
HRVATSKI 90
ΕΛΛΗΝΙΚΑ 94
РУССКИЙ 98
118 عربي

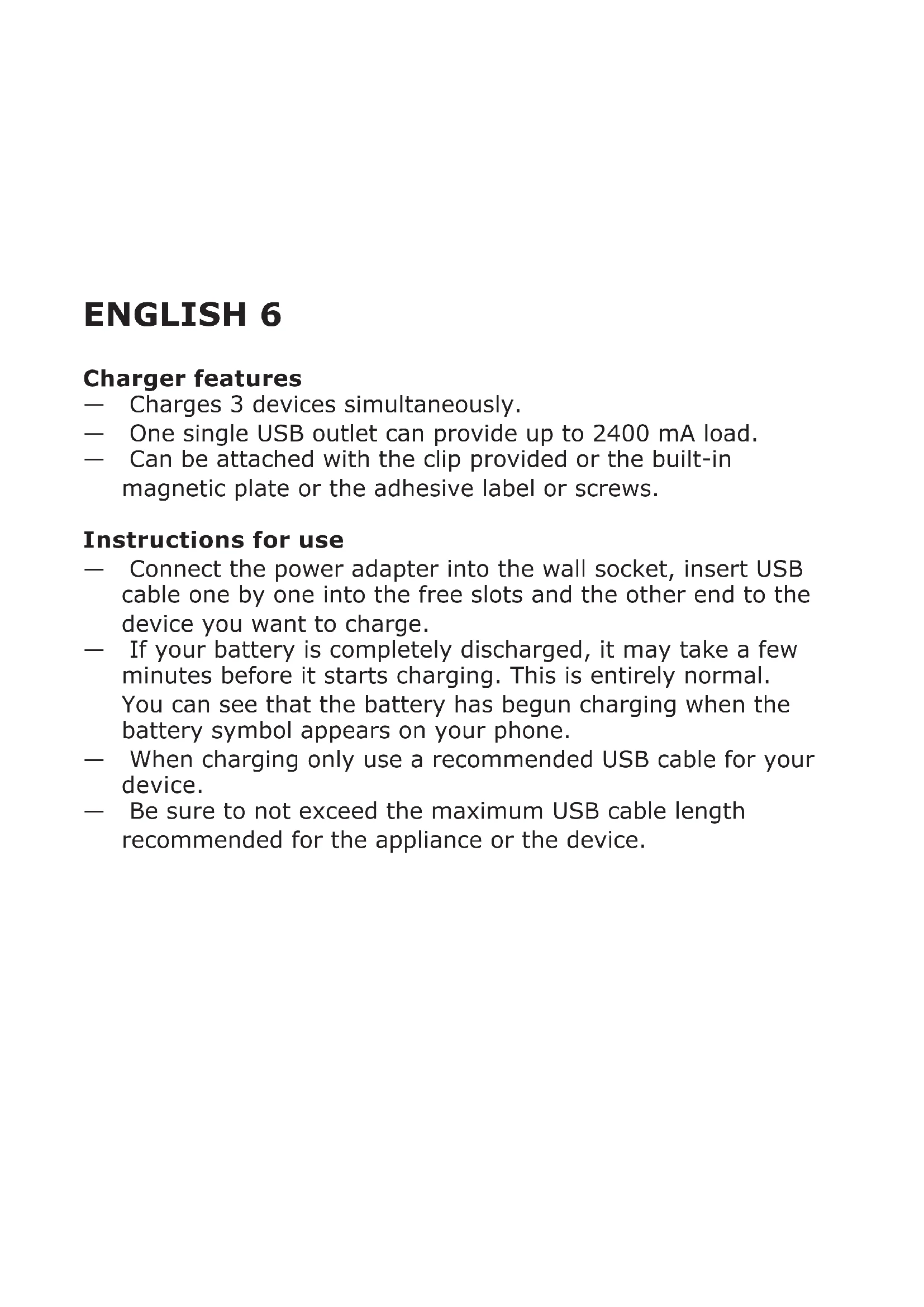

ENGLISH 6

Charger features

— Charges 3 devices simultaneously.
— One single USB outlet can provide up to 2400 mA load.

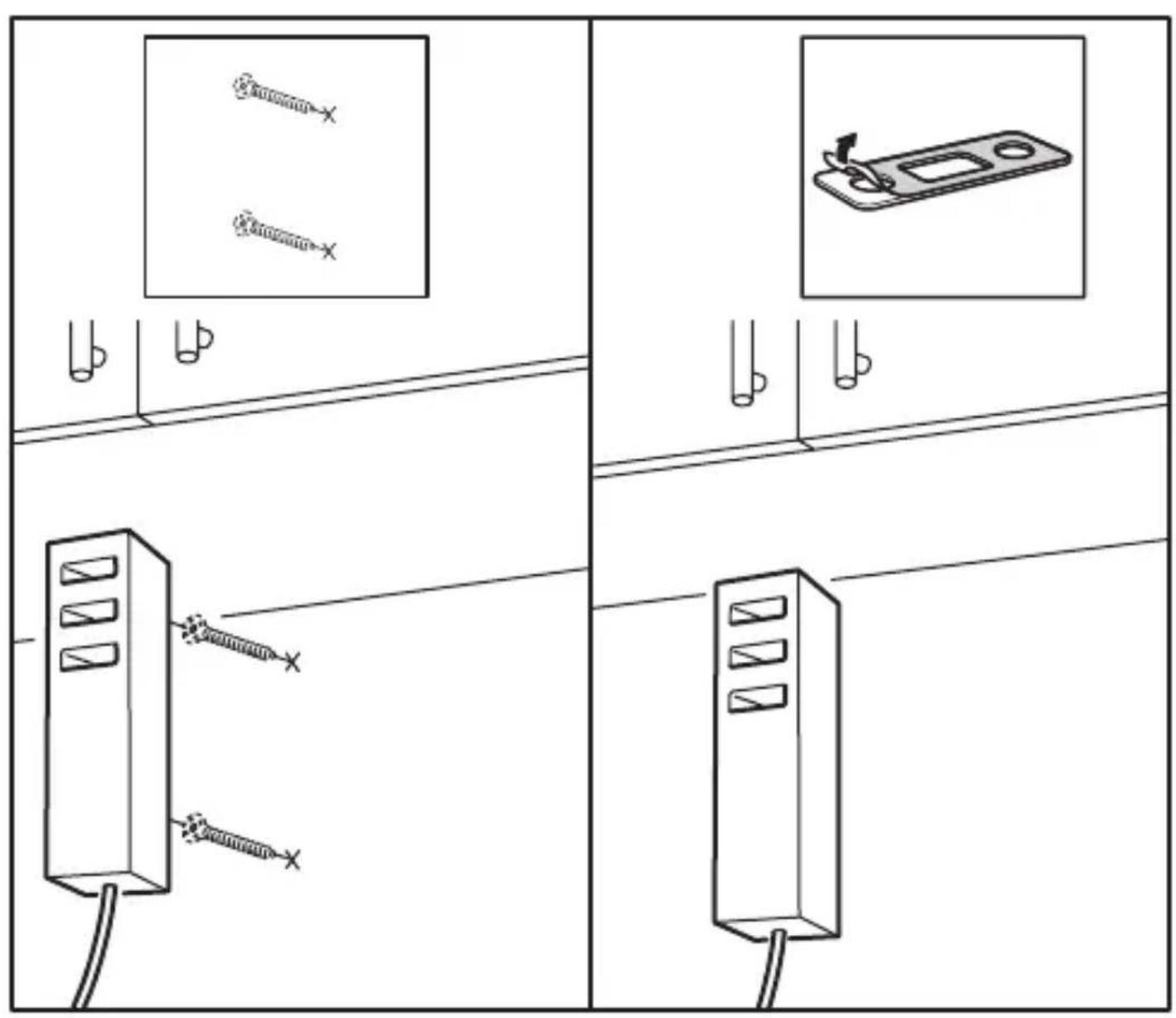

— Can be attached with the clip provided or the built-in magnetic plate or the adhesive label or screws.

Instructions for use

— Connect the power adapter into the wall socket, insert USB cable one by one into the free slots and the other end to the device you want to charge.
— If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.
— When charging only use a recommended USB cable for your device.
— Be sure to not exceed the maximum USB cable length recommended for the appliance or the device.

Good to know

— USB cable length and quality influences charging speed and performance.
— Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
— Charger storage temperature: -20^ to 25^ .
— Charger operating temperature: 0°C to 40°C.

Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth. Never submerge the charger in water.

Recommended precautionary measures and technical data, see the back of the charger.

Save these instructions for future use.

WARNING:

— The wall socket must be located near the equipment and must be easily accessible.
— Only use in dry locations.
— Children should be supervised to ensure they do not play with the product.
— If the cord is damaged the appliance shall be destroyed.
— Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E1605 LÖRBY

Input: 24V DC

Output: 5V DC

Indoor use only

Max total load: 3400 mA

Max load per USB-outlet: 2400 mA

Max USB cable length: 1.5 m/4'11"

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

DEUTSCH 10

Fabricant : IKEA of Sweden AB

Adresse : Box 702, SE-343 81 Älmhult, SUÈDE

Producent: IKEA of Sweden AB

Framleiðandi: IKEA of Sweden AB

Heimilisfang: Box 702, SE-343 81 Älmhult, SWEDEN

Produsent: IKEA of Sweden AB

Adresse: Box 702, 343 81 Älmhult, SWEDEN

Producent: IKEA of Sweden AB

Adres: Box 702, SE-343 81 Älmhult, SZWECJA

Tootja: IKEA of Sweden AB

Aadress: Box 702, SE-343 81 Älmhult, SWEDEN

© Inter IKEA Systems B.V. 2017

AA-2041619-3
