Technical Specifications	BLUEPALM BPPAC9000FW portable air conditioner, cooling capacity of 9000 BTU, energy class A.
Dimensions	Compact dimensions for easy mobility, lightweight.
Noise Level	Operating noise level of 65 dB, silent mode available.
Usage	Easy to install, remote control included for remote operation, multiple operating modes (cooling, dehumidification, ventilation).
Maintenance	Washable filters for easy maintenance, filter cleaning indicator.
Safety	Overheat protection, automatic shut-off when the tank is full.
General Information	Ideal for small rooms, operates on a standard electrical outlet, 2-year manufacturer warranty.

Frequently Asked Questions - BPPAC9000FW BLUEPALM

How do I turn on the BLUEPALM BPPAC9000FW air conditioner?

To turn on the air conditioner, press the power button located on the control panel or use the remote control.

Why is my air conditioner not cooling properly?

Check that the air filters are not clogged and clean them if necessary. Also, make sure that windows and doors are properly closed.

What is the noise level of the BLUEPALM BPPAC9000FW?

The noise level of this model is approximately 52 dB during normal operation.

How do I adjust the temperature on the air conditioner?

Use the '+' and '-' buttons on the control panel or remote control to set the desired temperature.

What should I do if the air conditioner does not start?

Check if the unit is plugged in and if the circuit breaker has not tripped. If the problem persists, contact customer service.

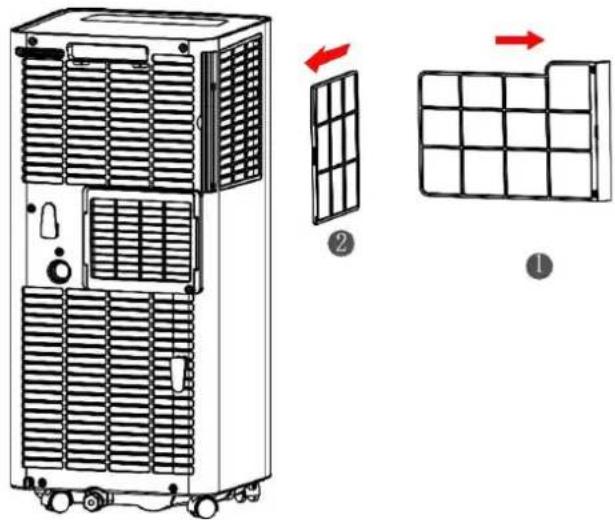

How do I clean the air filters?

Remove the air filters from the air conditioner and wash them with warm water and a mild detergent. Make sure to dry them thoroughly before reinstalling.

The air conditioner emits an unpleasant odor, what should I do?

This may be due to dirty filters or the presence of mold. Clean the filters and check the air ducts.

What is the cooling capacity of the BLUEPALM BPPAC9000FW?

The air conditioner has a cooling capacity of 9000 BTU.

Can I use the air conditioner in heating mode?

No, the BLUEPALM BPPAC9000FW is designed for cooling only.

How do I set the operating mode of the air conditioner?

Use the 'Mode' button on the control panel or remote control to select between cooling, dehumidification, and ventilation modes.

USER MANUAL BPPAC9000FW BLUEPALM

White industrial air purifier with blue brick-patterned panel and 'BLUEPALM' branding (no other text or symbols)

HERZLICHEN GLÜCKWUNSCH! VIELEN DANK, DASS SIE SICH FÜR EIN PRODUKT VON BLUEPALM ENTSCHIEDEN HABEN.

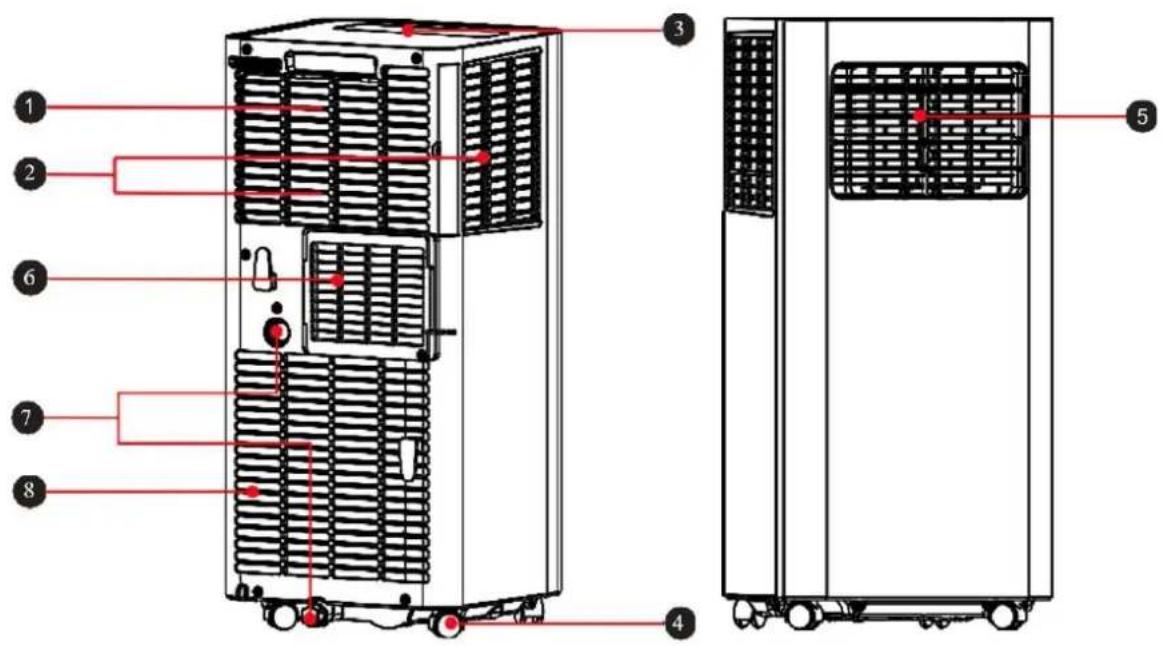

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical line drawing of a mechanical device with internal components and a pipe connection (no text or symbols)

Abb.1

Fensterschiene Montage

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Abb. 3

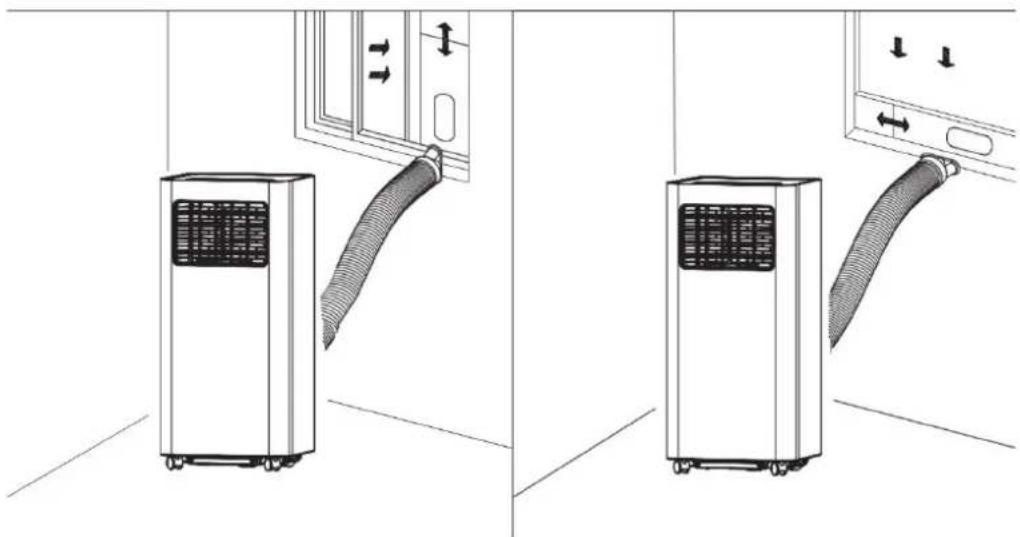

Diagram showing two configurations of a small air conditioner unit with attached tubing, mounted on a wall (no text or symbols present)

Anmerkung:

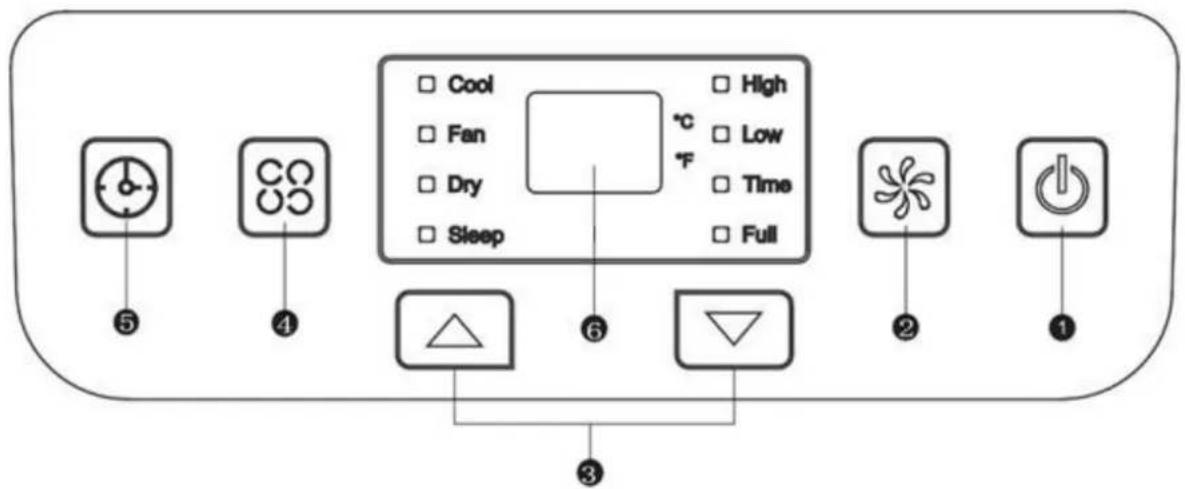

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

1) Ein/Aus-Taste

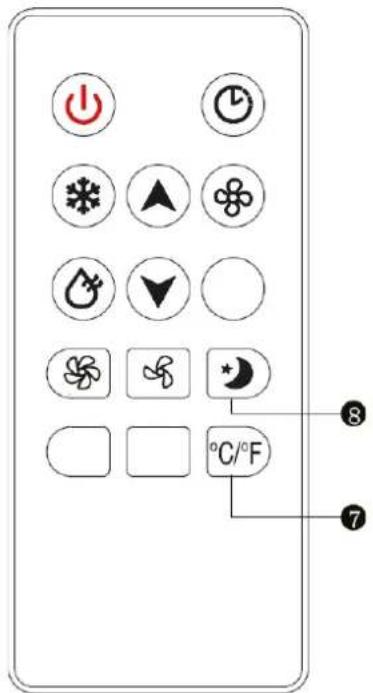

Diagram of a remote control panel with icons for power, clock, weather, and temperature settings

5) Timer-Taste

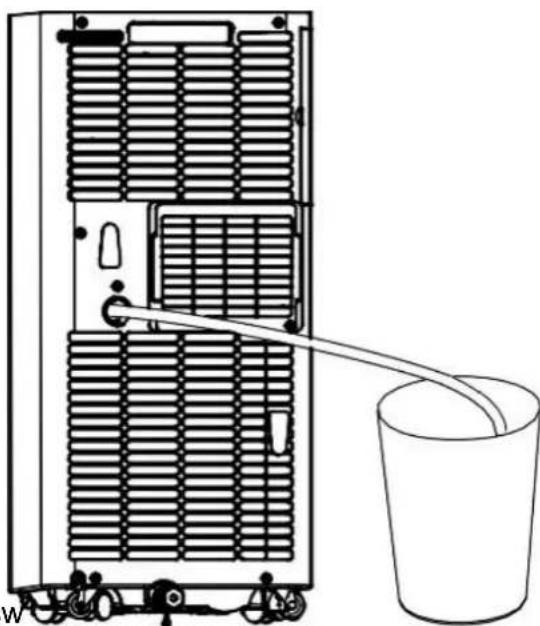

Line drawing of a refrigerator with a bucket inserted, showing internal panel structure and no text or symbols

Timer

Diagram of a mechanical component with a rotating arrow and circular symbols (no text or labels)

Hinweise:

Diagram of a vertical industrial machine with cooling fans and a bucket pouring liquid into it (no text or symbols)

BLUEPALM

Technical diagram showing front and side views of a server rack with labeled components and directional arrows indicating movement.

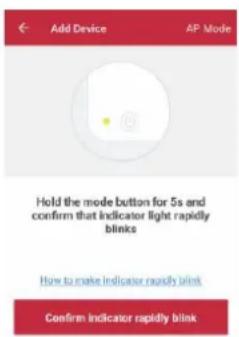

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

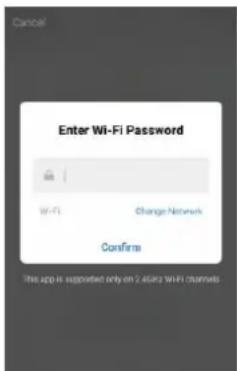

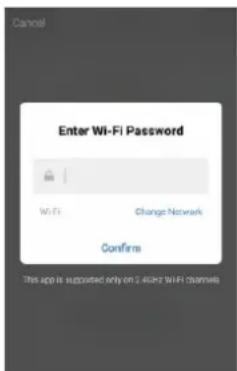

Enter Wi-Fi Password WiFi Change Network Confirms This app is supported only on 2 GHz WiFi channels

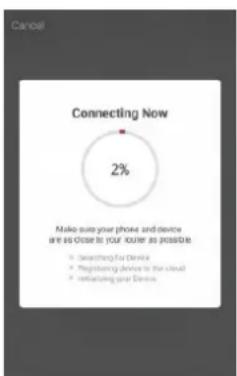

Connecting Now 2% Make sure your phone and device are as closer to your router as possible. ● Selecting the Device ● Requiring device to the drug ● Initiating your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical line drawing of a mechanical device with internal components and a pipe flow indicator (no text or symbols)

Fig.1

Pure diagram of a door with double-headed arrows indicating vertical alignment, no text or symbols present

Fig. 3

Diagram showing two configurations of a small air conditioner unit with airflow direction indicators (no text or symbols)

Remarque :

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

Diagram of a control panel with icons and labels, including power, refresh, and climate symbols.

BLUEPALM

9) Touche °C/°F

Line drawing of a server rack with a bucket inserted, showing internal structure and no text or symbols

Minuterie

Diagram of a mechanical component with a rotating arrow and circular components (no text or symbols)

Notes :

Diagram of a server rack with heat exchangers and a bucket pouring liquid into it (no text or symbols)

BLUEPALM

NETTOYAGE ET ENTRETIEN

Technical diagram showing front and side views of a server rack with labeled components and directional arrows indicating movement.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Cancel Enter Wi-Fi Password WiFi Change Network Confirm This app is supported only on 2.4GHz WIFI channels

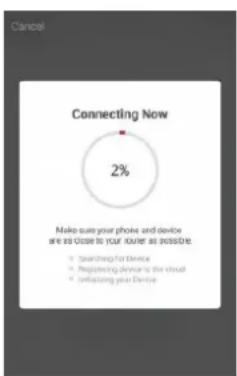

Cancel Connecting Now 2% Make sure your phone and device are as close to your router as possible. • Sparkling for Device • Registering device to the cloud • Inbalizing your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical line drawing of a mechanical device with internal components and a pipe connection (no text or symbols)

Fig.1

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Fig. 3

Diagram showing two views of a small air conditioner unit with attached hose, mounted on a wall (no text or symbols present)

Nota:

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

Diagram of a control panel with icons and temperature/°C labels, showing various function buttons and symbols.

Line drawing of a refrigerator with a bucket and cable inserted, no text or symbols present

Timer

Diagram of a mechanical component with a rotating arrow and base mount (no text or symbols)

Note:

Diagram of a server rack with a bucket being inserted, showing internal ventilation and scroll wheel (no text or labels)

BLUEPALM

Technical diagram showing a rack-mounted air conditioner unit with labeled components and directional arrows indicating assembly or transformation.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blink How to make indicator rapidly blink Confirm Indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confirms This app is supported only on 2.4GHz WiFi Channels

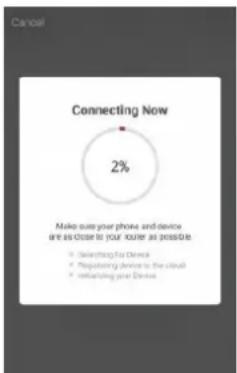

Cancel Connecting Now 2% Make sure your phone and device are as close to your router as possible • Searching for Device • Registering device to the cloud • Initiating your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical line drawing of a mechanical device with internal components and a pipe flow indicator (no text or symbols)

Fig.1

Vensterrail installatie

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Fig. 3

De airconditioner installeren

Diagram showing two configurations of a small air conditioner unit with airflow direction indicators (no text or symbols)

Opmerking:

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

1) Aan/uit-knop

Diagram of a refrigerator control panel with icons and labels, including power, cycle, weather, and temperature settings.

5) Timerknop

Line drawing of a refrigerator with ventilation grilles and a bucket pouring liquid from the side (no text or symbols)

Timer

Diagram of a refrigerator interior with cooling fans and wheels, showing a rotation arrow (no text or symbols)

Opmerkingen:

Diagram of a refrigerator with cooling fans and a bucket pouring liquid into the side panel (no text or symbols)

BLUEPALM

REINIGING EN ONDERHOUD

Technical diagram showing front and side views of a large industrial air conditioner unit with labeled components and directional arrows.

OPSLAG

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confirm This app is supported only on 2.4GHz WiFi channels

Cancel Connecting Now 2% Make sure your phone and device are as close to your router as possible • Searching for Device • Replanting devices to the cloud • Infacing your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical line drawing of a mechanical device with internal components and a pipe flow indicator (no text or symbols)

Bild 1

Pure diagram of a door with double-headed arrows indicating vertical motion, no text or symbols present

Bild 3

Installera luftkonditioneringen

Diagram showing two configurations of a small air conditioner unit with airflow direction indicators (no text or symbols)

Obs!

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

1) På/av-knapp

Diagram of a control panel with icons and labels, including power, clock, and temperature/°F settings

5) Timer-knapp

Line drawing of a server rack with a bucket inserted, showing internal ventilation and connection lines (no text or symbols)

Timer

Diagram of a vehicle cooling system with cooling unit and valve mechanism (no text or labels)

Line drawing of a server rack with a bucket lifting a bucket (no text or symbols)

BLUEPALM

RENGÖRING OCH UNDERHÅLL

Technical diagram showing a rack-mounted air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confirms This app is supported only on 2.4GHz WiFi channels

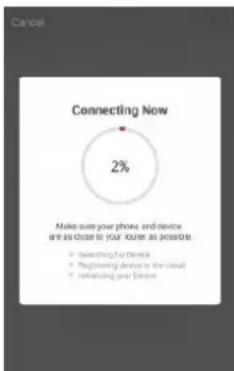

Canal Connecting Now 2% Make sure your phone and device are as close to your router as possible. • Swatching for Device • Printmaking device to the cloud • Reputing your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of an air conditioning unit with numbered components and labeled parts

Technical line drawing of a mechanical device with internal components and a pipe connection (no text or symbols)

Obr.1

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Obr. 3

Diagram showing two configurations of a small air conditioner unit with airflow direction indicators (no text or symbols)

Poznámka:

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

Control panel interface with icons and temperature/°F settings labeled 7 and 8

BLUEPALM

7) Tlačítko SLEEP

Line drawing of a multi-chamber refrigerator with a bucket inserted, showing internal ventilation and handle (no text or symbols)

Časovač

Diagram of a mechanical component with a rotating arrow and circular symbols (no text or labels)

Poznámky:

Line drawing of a server rack with a bucket and cable, no text or symbols present

BLUEPALM

ČIŠTĚNÍ A ÚDRŽBA

Technical diagram showing front and side views of an air conditioner unit with labeled components and directional arrows indicating airflow or movement.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confirms This app is supported only on 2.4GHz WIFI (sumsets)

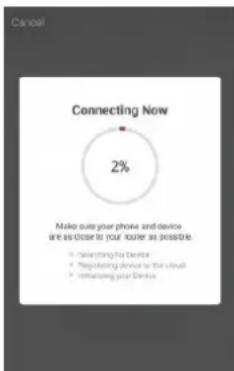

Canal Connecting Now 2% Make sure your phone and device are as close to your router as possible • Searching for Device • Registering device to the cloud • Reusing your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of a server rack with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical device with internal components and a pipe flow indicator (no text or symbols)

Obr.1

Pure diagram of a door with double-headed arrows indicating vertical motion, no text or symbols present

Obr. 3

Diagram showing two configurations of a small air conditioner unit with airflow direction indicators (no text or symbols)

Poznámka:

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

1) Tlačidlo zapnutia/vypnutia

- Zapnutie a vypnutie zariadenia.

Diagram of a refrigerator control panel with icons and temperature/°C/F labels, showing various function buttons.

BLUEPALM

7) Tlačidlo SLEEP

Diagram of a server rack with heat exchangers and a bucket, no text or symbols present

Časovač

Diagram of a vehicle's rear air vent and side-mounted sensors, showing no text or symbols

Poznámky:

Line drawing of a multi-chamber refrigerator with a bucket lifting a cup (no text or symbols)

BLUEPALM

ČISTENIE A ÚDRŽBA

Technical diagram showing front and side views of a large industrial air conditioner unit with labeled components and directional arrows.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confirm This app is supported only on 2 April WiFi channels

Canal Connecting Now 2% Make sure your phone and device are as close to your router as possible • Switching for Device • Registering device to the cloud • Rehabiting your Device

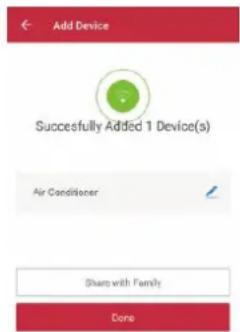

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Technical diagram of a server rack with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical device with internal components and a pipe connection (no text or symbols)

Fig.1

Pure diagram of a door with double-headed arrows indicating direction, no text or symbols present

Fig. 3

Diagram showing two configurations of a small air conditioner unit with airflow direction indicators (no text or symbols)

Notă:

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

Diagram of a remote control panel with icons and temperature/°C/F labels, showing various function buttons.

BLUEPALM

6) Butonul °C/°F

Line drawing of a refrigerator with a bucket inserted, showing internal seating and ventilation slots (no text or symbols)

Cronometru

Diagram of a refrigerator interior with cooling fans and wheels, showing a rotation arrow (no text or symbols)

Note:

Diagram of a server rack with a bucket being inserted, showing internal ventilation and scroll wheel (no text or labels)

BLUEPALM

Technical diagram showing a rack-mounted air conditioner unit with labeled components and directional arrows indicating assembly or installation.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confins This app is supported only on 2 days WiFi credentials

Cannot Connecting Now 2% Make sure your phone and device are as close to your router as possible. • Switching for Device • Registering device to the cloud • Replanting your Device

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

WORKS WITH amazon alexa

works with the Google Assistant

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.schuss-home.at/downloads or scan the QR code shown. Follow the instructions on the website.

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR VOID THE WARRANTY!

IMPORTANT SAFETY INFORMATION, LOCATION AND TO THE ELECTRICAL CONNECTION.

1. Please read all instructions carefully before using the appliance.
2. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
3. This appliance is intended exclusively for the air conditioning of living spaces in households and must not be used for any other purpose.
4. The appliance is not suitable for continuous and precision operation and should not be used for cooling electrical systems (e.g. in server rooms).
5. It is forbidden to adapt or modify the characteristics of this appliance in any way and only use spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).
6. For any repairs to the appliance, mains plug or cable, always and only contact customer service centers authorized by the manufacturer. You can find the customer service centers online at https://schuss-home.at/.
7. Remove the packaging and ensure that the air conditioner is not damaged. If in doubt, do not use the air conditioner and contact the service center or your dealer.
8. Keep children away from packaging material. Choking hazard if swallowed!

BLUEPALM

1. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorized service centre in order to avoid all possible risks.
2. The appliance must be installed in accordance with local installation and operating regulations for electrical systems.
3. The electrical socket into which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed. If in doubt, have your electrical installation checked by a qualified electrician.
4. Before connecting to the mains, you must check that the type of current and mains voltage match the specifications on the appliance rating plate on the back.
5. Avoid using an extension cable, as this could overheat and cause a fire.

6. Do not twist or kink the mains cable.

7. This device may only be used by adults.

8. Children under 8 years of age and persons with reduced physical, mental, sensory or intellectual capabilities or lack of experience and knowledge may only use this appliance if they have been given supervision and instruction concerning use of the appliance in a safe way and if the hazards involved have been clearly explained.
9. Do not allow children to play with the packaging and make sure that children do not play with the appliance.
10. Do not use the air conditioner outdoors.
11. Do not use the appliance with wet hands.
12. Never operate the appliance in rooms where gas, oil or sulphur are present.
13. Do not place the appliance near heat sources (e.g. next to heating systems and gas boilers) and avoid direct sunlight.
14. Keep a minimum distance of at least 50 cm from flammable substances (e.g. alcohol, etc.) or pressurized containers (e.g. spray containers).
15. Do not use the air conditioner near water or high humidity, e.g. in a damp cellar, next to a swimming pool, bathtub or shower. Ensure that no water enters the appliance.
16. Do not place any heavy or hot objects on the appliance and never cover the appliance.
17. Never insert fingers, pens or other objects into the appliance and ensure that the air inlet and outlet are never blocked.
18. Always switch off the appliance before unplugging the mains plug.
19. Do not pull on the mains cable to disconnect the appliance from the mains. Always pull the plug to disconnect the mains cable. Do not touch the plug with wet hands to avoid electric shocks.
20. Unplug the appliance when not in use, before cleaning, maintenance or moving from one place to another.
21. If the appliance is faulty, switch it off using the on/off button on the control panel and contact the customer hotline.
22. Keep the air conditioner in good condition by maintaining and cleaning the appliance.
23. The air filter must be cleaned at least once a week.
24. Store the appliance upright in a safe, dry place that is inaccessible to children when it is not in use. Do not cover the appliance with plastic packaging.

BLUEPALM

1. Store the appliance in a room without any operating ignition sources (e.g. open fire, an operating gas appliance or an electric heater with an open heat source).
2. The air conditioner must be transported in an upright position or slightly on its side. Empty the internal condensation container beforehand. Wait at least one hour after transporting the appliance before switching it on.
3. For any repairs to the appliance, the mains plug or the cable, always and only contact customer service centers authorized by the manufacturer.
4. Do not use any means to accelerate or eliminate the defrosting process, the appliance will do this automatically.
5. If you have any questions about maintenance, you can contact the customer hotline/service center authorized by the manufacturer.

WARNING

The main switch and the On/Off switch should not be used as the sole means of disconnecting the power supply. Always disconnect the mains plug before starting ____ maintenance work or moving the appliance.

To avoid the risk of electric shock, disconnect the plug from the socket when the appliance is not in use and before cleaning.

BLUEPALM

SPECIFIC INFORMATION ON THE REFRIGERANT R290

1. R290 is a refrigerant in accordance with EC environmental regulations.
2. The refrigerant is odorless.
3. The appliance must be installed in a room where there are no sources of ignition during operation (e.g.: open fire, operating gas and electrical appliances with an open heat source)
4. Do not perforate or burn the air conditioner.
5. Ensure that the cooling circuit is not drilled into.
6. Non-ventilated rooms in which the appliance is installed, operated or stored must be constructed in such a way that any refrigerant losses do not accumulate. This prevents the risk of fire or explosion caused by ignition of the refrigerant by electric ovens, stoves or other ignition sources.
7. The device must be stored in such a way that no mechanical damage can occur.
8. The persons who work on a refrigeration circuit or carry out interventions must be in possession of a valid certificate issued by an authorized authority, which certifies their expertise in handling refrigerants by means of an assessment specification recognized by the industry associations.
9. Repairs must be carried out in accordance with the instructions of the appliance manufacturer. Repair and maintenance work that requires the intervention of other specialist personnel must be carried out under the supervision of the specialist responsible for handling flammable refrigerants.

BLUEPALM

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThe "crossed-out dustbin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with current legislation regarding batteries, accumulators, and related waste, the symbol of the crossed-out bin on the battery indicates that it is prohibited to dispose of used batteries in household waste. Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at designated collection points in the municipality or in the appropriate containers. This service is free of charge. In this way, legal requirements are met and the environment is protected.These symbols can be found on batteries:Li = Battery contains lithiumAl = Battery contains alkaliMn = Battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical changes excepted.

BLUEPALM

SCHEMATIC REPRESENTATION

Technical diagram of an air conditioning unit with numbered components and labeled parts

1 Carrying handle
2 Air inlet grille
3 Control panel
4 Castors
5 Adjustable ventilation flaps
6 Exhaust air outlet
7 Water drain
8 Air inlet grille

INSTALLATION AND SETTING

• Caution: Before using the mobile air conditioner for the first time, leave it to stand for at least two hours.
• Only transport and move the device in an upright position.
• Place the air conditioner on a level, flat and dry surface and keep a minimum distance of 50 cm around the device to ensure optimum air circulation.

Installing the exhaust air hose

- Screw the exhaust air hose (with adapter) to the exhaust air outlet at the rear of the appliance (counterclockwise, fig. 1).

BLUEPALM

Technical line drawing of a mechanical device with internal components and a pipe connection (no text or symbols)

Fig.1

Window rail installation

Open the window halfway and attach the window rail to the window frame (see Figures 2 and 3). Installation can be carried out in a horizontal and vertical direction.

- Adjust the window rail to the size of the window by aligning its ends with the window frame and fixing it in place.

Abb. 2

Pure diagram of a door with double-headed arrows indicating vertical alignment, no text or symbols present

Fig. 3

Installing the air conditioner

Place the appliance with the exhaust air hose fitted near the window. Observe the minimum distance of 50 cm between the appliance and adjacent walls or objects (fig. 4).

BLUEPALM

Notes:

• The flat end of the exhaust air hose must be properly engaged.
• The air hose must not be twisted or have large bends (more than 45^ ). Do not place any obstacles near the air inlet or air outlet of the system.

50.0cm 50.0cm

- Pull the ends of the exhaust air hose apart and connect the flat end of the connected exhaust air hose to the oval opening on the window rail.

Fig. 4

Diagram showing two configurations of a small air conditioner unit connected to a wall-mounted door, with no text or symbols present.

Note:

• The exhaust air hose can be extended from 28 cm to 150 cm; its length is designed to fit this product. Do not extend it any further and do not replace it with another hose, as this could negatively affect the function of the air conditioner.
  • Always leave the air outlet free to protect the appliance from overheating.

BLUEPALM

CONTROL PANEL AND REMOTE CONTROL

Control panel & remote control

Cool Fan Dry Sleep High Low Time Full ⑤ ④ ⑥ ③ ② ①

1) On/off button

• To switch the device on and off.

• In cooling or fan mode to select between high and low wind speed.
• The button cannot be used in "Dry" mode as the lowest wind speed is pre-programmed.

3) Up and down buttons

• To adjust the temperature or timer settings (increase/decrease).
• To switch between degrees Celsius and Fahrenheit, press both buttons simultaneously.

4) Operating mode

- To select a mode, press this button, the following modes are available: cool, dry or ventilate.

Control panel interface with icons and temperature/°F labels, showing various function buttons and display settings

5) Timer button

• When the air conditioner is switched on, press the button to activate the switch-off timer switch-off program. If the appliance is in sleep mode, the TIMER button activates the automatic switch-on program.
• After pressing the button, the display flashes; the time is set by pressing the up and down buttons.
• The time setting window is between 1 and 24 hours and the adjustment is made at intervals of 1 hour.

7) °C/°F button

- For adjusting the temperature display between ^ and ^ .

BLUEPALM

8) SLEEP button

- Press this button to select SLEEP mode.

OPERATING INSTRUCTIONS

COOLING

• Press the MODE button until the COOL indicator light lights up on the display.
• Press the UP/DOWN buttons to set the temperature in the range from 16 °C to 30 °C.
• Press the SPEED button to select the desired fan speed (HIGH or LOW).

VENTILATE

• Press the MODE button until the FAN indicator light illuminates.
• You can set the fan speed using the SPEED button. HIGH and LOW are selected cyclically (High> Low> High).
  • The temperature cannot be set.

DRYING

• Press the MODE button until the DRY indicator light illuminates.
• You cannot set the fan speed and temperature in this mode.
• Unscrew the drain cover of the container and open the bottom drain plug.
• Connect one end of the drainage hose to the drain opening
• Place the other end of the hose in a bucket or similar container. container.
• Note: Please remove the exhaust air hose in dry mode, otherwise the performance will be impaired and the water full alarm "FL" will sound.

Line drawing of a refrigerator with ventilation grilles and a bucket pouring liquid into the side (no text or symbols)

Timer

• In sleep mode, you can activate the automatic swing pressing the TIMER button. The TIMER indicator light lights up and the display starts to flash.
• When the air conditioner is switched on, press the TIMER button to activate the automatic switch-off program. The TIMER indicator light lights up and the display flashes.

BLUEPALM

DRAINAGE METHODS

Periodic drainage

• If the appliance stops because the floor pan is full, switch it off and unplug it.
• Note: Move the air conditioner carefully, otherwise the water inside may overflow.
• Place a bucket under the water outlet on the back of the appliance.
• Unscrew the drain cap and pull the floor drain plug so that the water can flow automatically into the container.

Diagram of a vehicle's rear air vent and side-mounted sensors, showing no text or symbols

Notes:

• Keep the container drain cover and the plug within reach.
• You can tilt the appliance slightly backwards.
• If the water tank does not absorb all the water at once, close the floor drain plug early enough to prevent water from flowing onto the floor or carpet.
• When no more water is leaking, insert the floor drain plug and close the container drain cover again.

Note: Do not forget to reinsert the floor drain plug before switching the system back on.

Continuous emptying

• Can only be used in cooling and dehumidifying mode.
• Unscrew the container drain cover and open the floor drain plug.
• Connect one end of the drainage hose to the drain opening
• Place the other end of the hose in a bucket.

Diagram of a server rack with a bucket being inserted, showing internal ventilation and scroll wheel (no text or labels)

BLUEPALM

CLEANING AND MAINTENANCE

Switch off the appliance before cleaning and maintenance work and remove the plug from the socket.

Cleaning

• Wipe the device with a slightly damp, soft cloth. Do not use any chemical solvents such as gas, alcohol or similar.
• If the appliance is very dirty, also use a little neutral detergent.

Maintenance

If the filter frame and filter are dusty, the performance of the air conditioner will be reduced. Clean the filter every two weeks.

• Carefully pull out the filter frames by the handle in the direction of the arrow, as shown in the picture.
• First remove filter unit 1 and then filter unit 2.
• Wash the air filter by carefully soaking it in warm water (approx. 40 °C) with a neutral detergent. Rinse the filter and leave it to dry in a shady place.
• Replace the filter after cleaning.
• Insert filter unit 2 first, and then filter unit 1.

Technical diagram showing front and side views of a large industrial air conditioner unit with labeled components and directional arrows.

STORAGE

• Unscrew the drain cover and open the cap. Drain all the residual water into a basin or swivel the appliance slightly backwards to direct the water into a container.
• Leave the appliance running in FAN mode (ventilate) for half a day in a warm and dry room to prevent mold from forming in the appliance.
• Switch off and unplug the appliance, wrap the power cable around the cable holder and replace the cap and drain cover plate.
  • Dismantle the exhaust air hose and store it.
• Remove the batteries from the remote control.
• Cover the appliance with a plastic film. Store the air conditioner in a clean, dry and dust-free place, out of the reach of children.

BLUEPALM

TROUBLESHOOTING

Problem	Possible cause	Solution
E1 is displayed	Fault in the exhaust air hose system temperature sensor	Check the sensor and the affected circuit
E2 is displayed	Room temperature error Sensor	Check the sensor and the affected circuit
E4 is displayed	Protection against freezing	The ambient temperature must exceed 8°C.
The device does not work	No power	Insert the plug and switch on the device
	Display shows FL	Empty the water tank
It's not cold enough	Direct sunlight	Close the curtains
	Doors and windows are open, the room is full of people or there are other heat sources. sources	Close doors and windows or add another air conditioning unit
	The filters are dirty	Clean or replace the Filter
	Air inlet/air outlet is obstructed stuffs	Remove all Foreign body
The noise level is too high	The cooling unit is uneven po positioned	Set the device on a level surface
The compressor is not working	The overheating protection is active	Allow the appliance to cool down for 3 minutes before you switch it on again

• Do not attempt to disassemble or repair the appliance yourself. Unqualified attempts to repair the appliance may result in serious personal injury or considerable material damage and will invalidate any warranty claims.
• If problems occur that are unknown or the recommended solution does not work, please contact a specialist.

BLUEPALM

Smart Home Wi-Fi connection guide

IMPORTANT

Please note that only 2.4GHz networks are supported!

Transmitting power: max. 100 mW

App installation

Download the "Smart life" app from the Play Store (Android) or the App Store (iOS). The following QR will take you directly to the app download:

Scan QR code

Connect a device to the network:

1. Switch on the device to be connected and press the "SPEED" button on the device for 5 seconds to connect to the network.
2. Open the "Smart Life" app on your cell phone and click on the "+" in the top right-hand corner to connect to a new device.
3. Make sure that the light on the device flashes (2x/second) and confirm in the app that the light is flashing.
4. Then select the Wi-Fi network (2.4 Ghz) and enter the password.
   The app will now connect to the device.

Add Device AP Mode Hold the mode button for 5s and confirm that indicator light rapidly blinks How to make indicator rapidly blink Confirm indicator rapidly blink

Enter Wi-Fi Password WiFi Change Network Confirms This app is supported only on 2.4 GHz WiFi planets

Canola Connecting Now 2% Make sure your phone and device are as close to your router as possible. • Searching for Device • Registering device to the cloud • Rehabiting your Device.

Add Device Successfully Added 1 Device(s) Air Conditioner Share with Family Done

1. The device should now be displayed in your app and is therefore successfully connected.

Note:

• If the device is displayed as "online" in the app, it can be controlled via the app.
• If the device is "offline", it can be switched on via the app.

BLUEPALM

The application also works with Amazon Alexa and Google Assistant

WORKS WITH amazon alexa

works with the Google Assistant

Technical information
Item number	BPPAC9000FW
Cooling capacity	9,000BTU
Max. Power consumption	1000W
Input voltage	220-240V~
Frequency	50Hz
WIFI transmission frequency:	2.4 GHz
Transmitting power:	max. 100 mW
Refrigerant/charge/GWP	R290/0.195kg/3
Energy efficiency EER	2.6
Energy efficiency class	A
Air circulation	330m3/h
Noise level (sound power)	65dB
Weight	25kg
Dimensions	325x295x702mm
Contact addresses for further information	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] - 0Service line: [phone] - 502https://schuss-home.at/FB-No.: 236974 t / FB-Court: Vienna

BLUEPALM

Information requirements for single duct and double duct air conditionier			P
Information to identify the model(s) to which the information relates to:
Description	Symbol	Value	Unit
Rated capacity for cooling	P_rated for cooling	2.569	kW
Rated capacity for heating	P_rated for heating	-	KW
Rated power input for cooling	P_EER	0.963	kW
Rated power input for heating	P_COP	-	kW
Rated Energy efficiency ratio	EER_d	2.67	-
Rated Coefficient of performance	COP_d	-	-
Information to identify the model(s) to which the information relates to:
Description	Symbol	Value	Unit
Power consumption in thermostat-off mode	P_TO	N/A	W
Power consumption in standby P mode	P_SB	0.87	W
Electricity consumption of single/double duct appliances (indicate for cooling and heating separately)	Q_SD	SD: 0.963 (cooling)	kWh/h
Sound power level	L_WA	65	dB(A)
Global warming potential	GWP	3	kgCO2 eq.
Contact details for obtaining more information	Schuss Home Electronic GmbH Scheringgasse 31140 Vienna, AustriaTel.: [phone] - 0https://schuss-home.at/

BLUEPALM

WARRANTY

With this quality product from BLUEPALM, you have made a decision for innovation, durability and reliability.

For this BLUEPALM appliance we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labor) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In the case of air conditioners, please always contact the customer hotline as a first step (see sticker on the appliance or the front page of the operating instructions); in the case of fans, please contact your specialist dealer or us directly. Please note that repair work not carried out by an authorized workshop in Austria will immediately invalidate this warranty.

This guarantee does not cover

• Repair or replacement of parts due to normal wear and tear
• Damage due to non-compliance with the operating instructions
  Devices that are used - even partially - for commercial purposes
  • devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of wear and tear of an aesthetic nature.
  • Devices that have been handled improperly
  • Devices that have not been opened by our authorized service workshop.
  • Damage caused by improperly closed condensation drain valves on air conditioning units or incorrectly inserted water tanks.
• Unfulfilled consumer expectations.
  • Damage caused by force majeure, water, lightning, overvoltage.
• Devices where the type designation and/or serial number on the device has been changed, deleted, made illegible or removed.
• services outside our authorized workshops, the transport costs to an authorized workshop or to us and back, as well as the associated risks.

We would like to emphasize that within the warranty period, a lump sum of € 60,- (indexed based on CPI 2010, June 2015) will be charged for operating errors or if no error was detected.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer and the full name of the appliance) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or underside of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but unrealized savings, consequential damages and damages from third party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy using your BLUEPALM appliance!

ADDRESS

Schuss Home Electronic GmbH

1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over together with the device to the authorized service workshop or the dealer from whom you purchased the device!

BLUEPALM

WICHTIG!

These instructions are only for the BLUEPALM-Service center!

A Service or repairing of the device must only be performed by a qualified technician who is allowed to handle the R290 refrigerant.

Do not attempt to repair or open the case of the air conditioner yourself, this leads to the immediate loss oft he warranty.

INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R290

1 GENERAL INSTRUCTIONS

1.1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system, the following precautions shall be complied with prior to con-ducting work on the system.

1.2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being present while the work is being performed.

1.3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

1.4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak section equipment being used is suitable for use with flammable refrigerants, i.e. non sparking, adequately sealed or intrinsically safe.

1.5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO 2 fire extinguisher adjacent to the charging area.

BLUEPALM

1.6 No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including ecigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

1.7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

1.8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

1.9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include: Those capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system; that there is continuity of earth bonding.

2 REPAIRS TO SEALED COMPONENTS

2.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
2.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected.

This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

BLUEPALM

3 REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4 CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5 DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6 LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7 REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: remove refrigerant; purge the circuit with inert gas; evacuate; purge again with inert gas; open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place.

Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

8 CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
  • Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak Tested on completion of charging but prior to commissioning. A follow up leak test shall be Carried out prior to leaving the site.

9 DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried

BLUEPALM

out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

1. Become familiar with the equipment and its operation.
2. Isolate system electrically.
3. Before attempting the procedure ensure that :mechanical handling equipment is available, if required, for handling refrigerant cylinders; all personal protective equipment is available and being used correctly; the recovery process is supervised at all times by a competent person; recovery equipment and cylinders conform to the appropriate standards.
4. Pump down refrigerant system, if possible.
5. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
6. Make sure that cylinder is situated on the scales before recovery takes place.
7. Start the recovery machine and operate in accordance with manufacturer's instructions.
8. Do not overfill cylinders. (No more than 80 % volume liquid charge).
9. Do not exceed the maximum working pressure of the cylinder, even temporarily.
10. When the cylinders have been filled correctly and the process completed, make sure 11. that the cylinders and the equipment are removed from site promptly and all isolation
11. valves on the equipment are closed off.
12. Recovered refrigerant shall not be charged into another refrigeration system
13. unless it has been cleaned and checked.

10 LABELLING

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11 RECOVERY

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Competence of service personnel

General

Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected.

In many countries, this training is carried out by national training organizations that are accredited to teach the relevant national competency standards that may be set in legislation. The achieved competence should be documented by a certificate.

BLUEPALM

Training

The training should include the substance of the following:

Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care.

Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters.

Information about the different safety concepts:

Unventilated – (see Clause GG.2) Safety of the appliance does not depend on ventilation of the housing. Switching off the appliance or opening of the housing has no significant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and flammable atmosphere will be released when the enclosure is opened.

Ventilated enclosure – (see Clause GG.4) Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure a sufficient ventilation before.

Ventilated room – (see Clause GG.5) Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety. The ventilation of the room shall not be switched off during repair procedures. Information about the concept of sealed components and sealed enclosures according to IEC 60079-15:2010.

Information about the correct working procedures:

1. Commissioning

o Ensure that the floor area is sufficient for the refrigerant charge or that the ventilation duct is assembled in a correct manner.
o Connect the pipes and carry out a leak test before charging with refrigerant.
o Check safety equipment before putting into service.

2. Maintenance

o Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

o Ensure sufficient ventilation at the repair place.

Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
Discharge capacitors in a way that won't cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks.
o Reassemble sealed enclosures accurately. If seals are worn, replace them.
o Check safety equipment before putting into service.

1. Repair o Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

o Ensure sufficient ventilation at the repair place.
o Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
o Discharge capacitors in a way that won't cause any spark.
When brazing is required, the following procedures shall be carried out in the right order:

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.

• Purge the refrigerant circuit with nitrogen for 5 min.

- Evacuate again.

- Remove parts to be replaced by cutting, not by flame.

• Purge the braze point with nitrogen during the brazing procedure.

- Carry out a leak test before charging with refrigerant.

- Reassemble sealed enclosures accurately. If seals are worn, replace them. ☐ Check safety equipment before putting into service.

1. Decommissioning o If the safety is affected when the equipment is put out of service, the refrigerant charge shall be removed before decommissioning.

o Ensure sufficient ventilation at the equipment location.

o Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

BLUEPALM

o Discharge capacitors in a way that won't cause any spark.
Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.
o Evacuate the refrigerant circuit.
o Purge the refrigerant circuit with nitrogen for 5 min.
o Evacuate again.
o Fill with nitrogen up to atmospheric pressure.
o Put a label on the equipment that the refrigerant is removed.

1. Disposal o Ensure sufficient ventilation at the working place.

Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

o Evacuate the refrigerant circuit.

o Purge the refrigerant circuit with nitrogen for 5 min.

o Evacuate again.

o Cut out the compressor and drain the oil.

Transportation, marking and storage for units that employ flammable refrigerants

Transport of equipment containing flammable refrigerants

Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The maximum number of pieces of equipment or the configuration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

Marking of equipment using signs

Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location.

All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs.

The effectiveness of signs should not be diminished by too many signs being placed together. Any pictograms used should be as simple as possible and contain only essential details.

Disposal of equipment using flammable refrigerants See national regulations.

Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

BLUEPALM

EU-DECLARATION OF CONFORMITY

SCHUSS HOME ELECTRONIC

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Wien, AUSTRIA

Declares, that the product

Manufacturer

Hersteller

is conformity with following directives, norms and/or regulations:

DIRECTIVE 2014/53/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCILof 16 April 2014

on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC EU L 153/62 22.5.2014

Article 3.1(a) Safety:

EN 60335-2-40:2003+A11:2004+A12:2005+A1:2006+A2:2009+A13:2012

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN62233: 2008

Article 3.1(a) Health:

EN 50665:2017, EN 62311:2008

Article 3.1(b) EMC:

EN 301 489-1 V2.2.3

EMC Directive (EMC): 2014/30/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility; Official Journal of the EU L96, 29/03/2014, p. 79–106

Low Voltage Directive (LVD):2014/35/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits; Official Journal of the EU L96, 29/03/2014, p. 357–374

Ökodesign-Richtlinie Energy-Related-Products-Directive (ErP)2009/125/EC;

Official Journal EU L285/10-35 (31.10.2009) and associated regulation 2015/1188

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88–110

Reach SVHC(EC)NO. 1907/2006 Schuss Home Electronic GmbH hereby confirms that in the products we supply, there are no substances of very high concern (SVHC) in the candidate list (last ECHA update from June 14, 2023, 235 substances) above 0.1% in accordance with Article 33 of the REACH Regulation (EC) No .1907/2006 are included.

Place and date of issue:

Vienna, 2025-09-04

SCHUSS HOME ELECTRONIC GMBH 1140 Wirk, Solvingasse 3 Tel: [phone] Fax: 0222 www.chuss-home.at Bevollmachteter Vertreter des Herstellers

Bevollmächtigter Vertreter des Herstellers Authorized representative of manufacture

Scharl, Alexander

Senior product and purchasing manager i.V.

Name, Funktion / name, function

Unterschrift / signature

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA
