| Product Type | Milk Frother |
| Brand | CASO |
| Model | Fomini 1662 (MMF-802-V2) |
| Power Supply | 220-240 V ~ 50/60 Hz, 400 W |
| Frothing Capacity | Min. 60 ml, Max. 100 ml |
| Heating Capacity | Min. 60 ml, Max. 200 ml |
| Dimensions | Diameter 10 cm, Height 19.8 cm |
| Net Weight | 0.69 kg |
| Jug Material | Stainless steel |
| Lid Material | Transparent plastic |
| Functions | Cold milk froth, hot milk froth, milk heating |
| Included Accessories | 2 whisks (frothing and heating), lid, base |
| Indicator Light | Yes, lit during operation, flashing 30 s after stop |
| Automatic Shut-off | Yes, after each cycle |
| Safety | Overheat protection, automatic shut-off |
| Cleaning | Jug and lid hand washable, do not immerse base |
| Dishwasher | Not recommended for all parts |
| Warranty | 24 months |
| Use | Domestic only |
| Delivery Contents | Appliance, base, lid, 2 whisks, instruction manual |
Frequently Asked Questions - Fomini 1662 CASO
User questions about Fomini 1662 CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Milk frother in PDF format for free! Find your manual Fomini 1662 - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Fomini 1662 by CASO.
USER MANUAL Fomini 1662 CASO


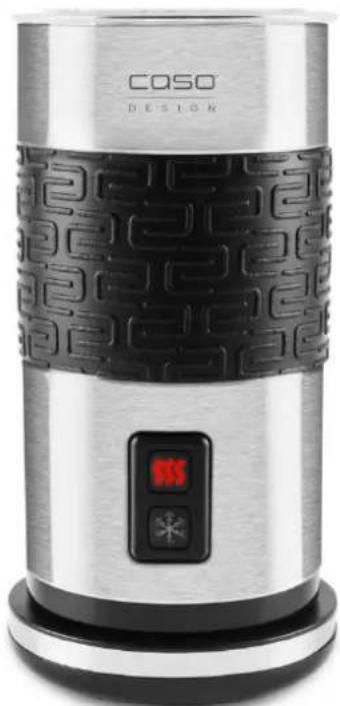

Exterior view of a black and silver Cosu design water heater with a digital display (no text or symbols visible on the device body)
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-germany.de
Internet: www.caso-germany.de
13.1 General 24
13.2 Information on this manual....24
13.3 Warning notices....24
13.4 Limitation of liability 25
13.5 Copyright protection ......25
14 Safety 25
14.1 Intended use....26
14.2 General Safety information 26
14.3 Danger of fire....27
14.4 Danger of burns 27
14.5 Dangers due to electrical power....28
15Commissioning 28
15.1 Safety information ....28
15.2 Delivery scope and transport inspection....28
15.3 Unpacking....29
15.4 Disposal of the packaging....29
15.5 Setup location requirements: 29
15.6 Electrical connection....30
16Function....31
16.1 Overview: 31
16.2 Rating plate 31
17Operation and Handing 31
17.1 Before the first use .... 32
17.2 Operation....32
18Hints and Tips ...... 33
19 Serving suggestions....34
20Cleaning and Maintenance....34
20.1 Safety information ....34
20.2 Cleaning....34
21 Troubleshooting....35
21.1 Security advices....35
21.2 Troubleshooting....35
22 Disposal of the Old Device....35
23 Guarantee .... 36
24Technical Data....36
25Mode d'emploi....38
Instant milky coffee
Original Operating Manual

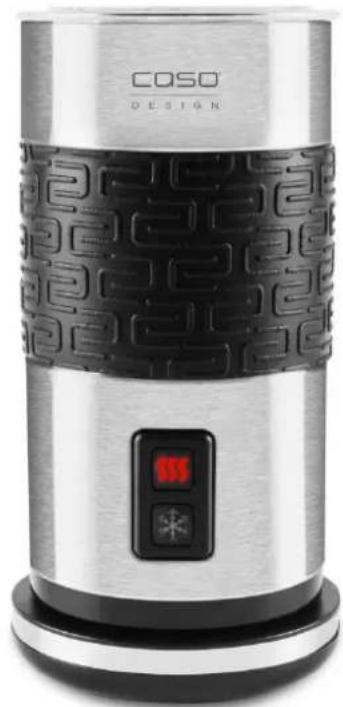

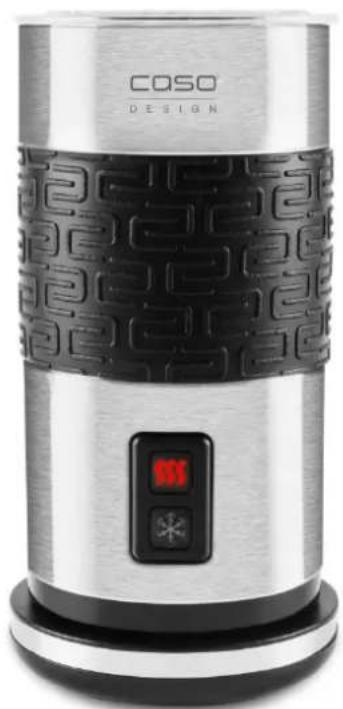

Milkfrother Fomini Crema (1656) Fomini Crema Inox (1662)

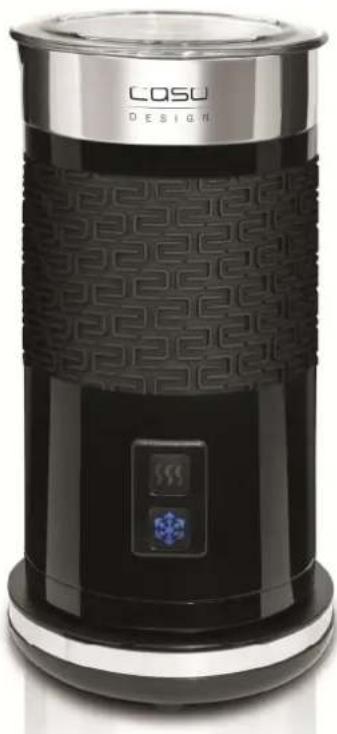

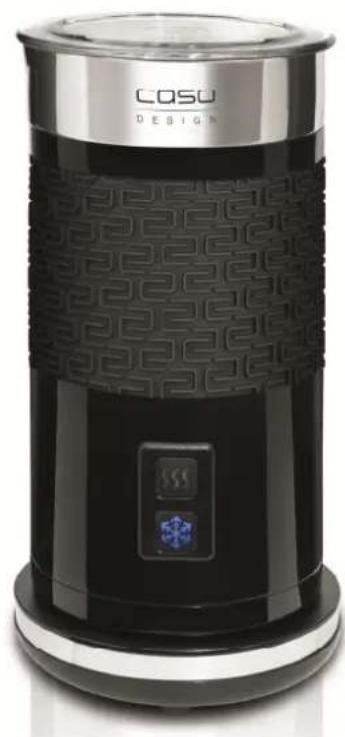

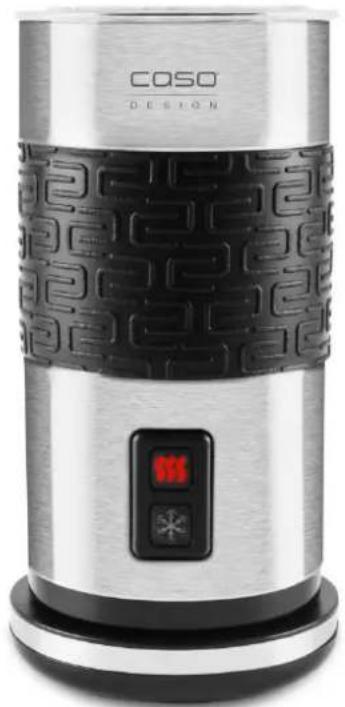

Exterior view of a Cosu Design digital water heater with black and silver casing (no visible text or symbols on body)


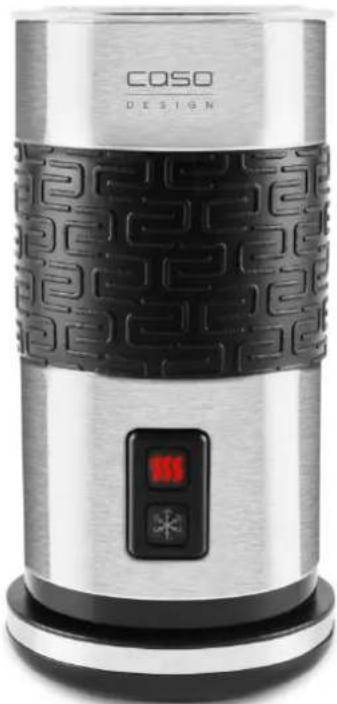

Exterior view of a COSO Design digital device with a black textured cover and control buttons (no readable text beyond branding)

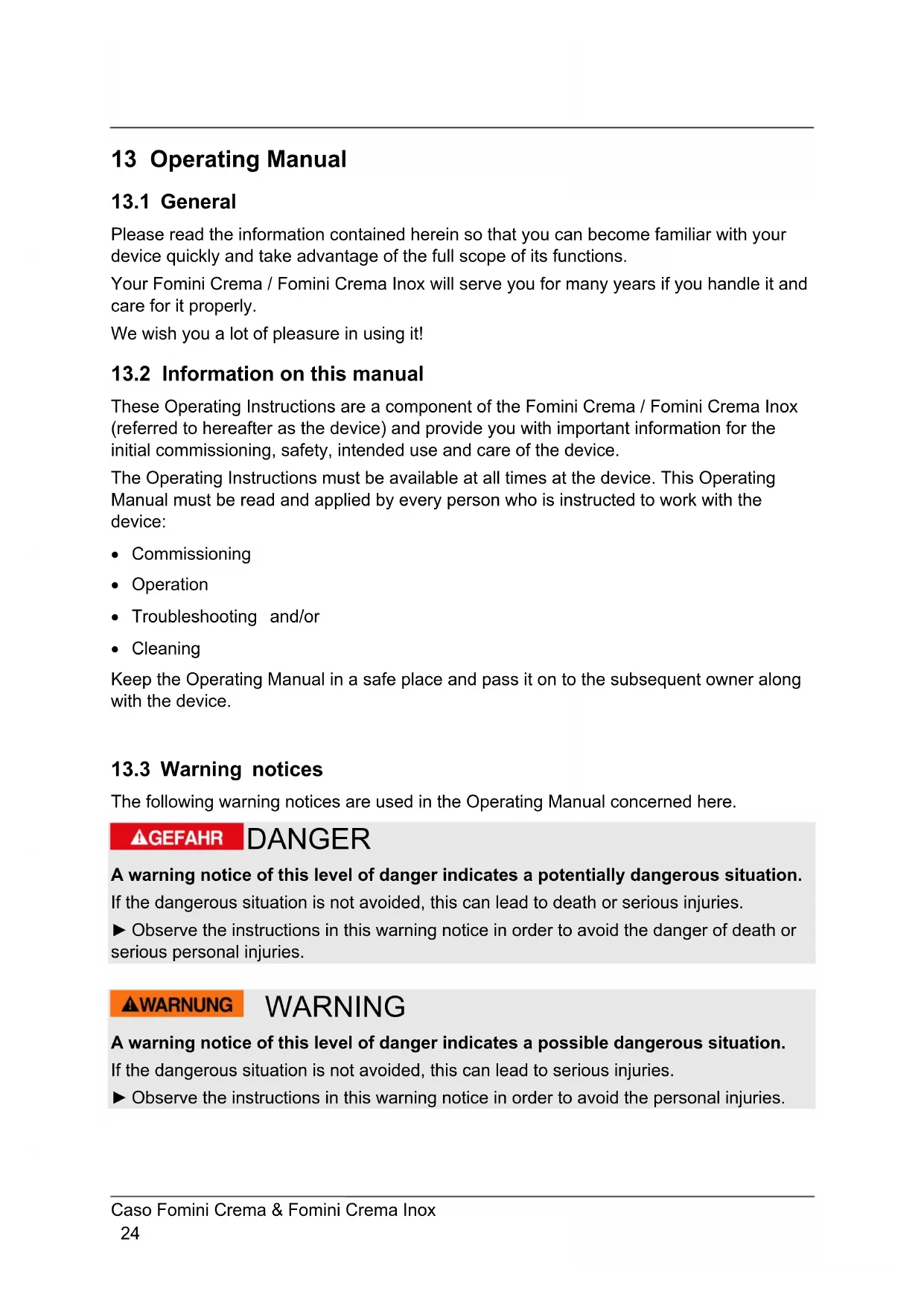

13 Operating Manual
13.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your Fomini Crema / Fomini Crema Inox will serve you for many years if you handle it and care for it properly.
We wish you a lot of pleasure in using it!
13.2 Information on this manual
These Operating Instructions are a component of the Fomini Crema / Fomini Crema Inox (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.
The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning
- Operation
- Troubleshooting and/or
- Cleaning
Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.
13.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
AGEFAHR DANGER
A warning notice of this level of danger indicates a potentially dangerous situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNUNG WARNING
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
13.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual.
The manufacturer does not assume any liability for damages arising as a result of the following:
• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
13.5 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.
Subject to content and technical changes.
14 Safety
This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
14.1 Intended use
This device is only intended for use in households in enclosed spaces for
making milk foam and heating milk
Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
⚠️WARNUNG
WARNING
Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
14.2 General Safety information
HINWEIS
PLEASE NOTE
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Read all these instructions before using the appliance.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ Do not place the device on a polished wood surface, it could damage the wood.
▶ Unplug your appliance as soon as you stop using it or to clean it.
▶ Unplug the device when you change the accessories (whisk 1 or 2).
▶ Allow the device to cool down before cleaning the device or changing the accessories.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Close supervision is necessary when any appliance is used by or near children.
▶ Do not use or store the appliance outdoors.
▶ Do not operate without milk in the jug.
▶ Never touch rotating parts, risk of injury!
▶ By exceeding the filling capacity he jug may overflow.
▶ The device should be used only in conjunction with the basis provided.
HINWEIS
Please note
▶ Never operate appliance on uneven surfaces.
▶ Do not insert any objects and/or fingers in the appliance apertures.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Device is not intended to be operated by means of an external timer or separate remote-control system.
▶ For your own safety, only use manufacturer accessories and spare parts suited to your machine.
14.3 Danger of fire
⚠️WARNUNG
Warning
There is a danger of fire due to the event the device is not used properly.
Observe the following safety notices to avoid dangers of fire:
▶ Do not set up the device near flammable material.
▶ Keep this appliance away from sources of heat (gas, electric, burner, heated oven).
14.4 Danger of burns
⚠️GEFAHR
DANGER
The heated milk in the milk frother and the interior of the jug can get very hot.
Observe the following safety instructions and be careful not to burn or scald yourself or others:
▶ When the milk is heated, the interior of the jug gets very hot!
▶ Always check the temperature of the milk, before drinking it.
▶ When you are heating the milk, keep the lid closed.
▶ Do not touch hot surfaces.
▶ Do not touch the metal parts, or the housing of the device when the device is in use, as this may cause burning or scalding.
▶ Do not remove the lid during operation, as this could cause scalding.
14.5 Dangers due to electrical power
AGEFAHR DANGER
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies!
Observe the following safety notices to avoid dangers due to electrical power:
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not put the machine, power cord or plug in water or any other liquid.
▶ Do not touch the appliance or the mains plug with wet hands.
▶ Do not leave the power cord hanging within children's reach.
▶ The power cord must never be near or in contact with the hot parts of the machine, near a source of heat or over a sharp edge.
▶ Do not let the power cord come into contact with oils.
15 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
15.1 Safety information
▲WARNUNG WARNING
Personal and property damages can occur during commissioning of the device!
Observe the following safety notices to avoid such dangers:
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
15.2 Delivery scope and transport inspection
As a rule, the Fomini Crema / Fomini Crema Inox is delivered with the following components:
- Fomini Crema / Fomini Crema Inox - Lid
- Power base with cord
- Whisk for frothing
- Whisk for heating
- Operating Instructions
HINWEIS
PLEASE NOTE
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
15.3 Unpacking
Unpack your device as follows:
• Take out the device from the box and remove the interior and exterior packaging.
- You can find the whisk for frothing in the lid and the whisk for heating on the attachment for the whisks in the jug.
- Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)
15.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.
HINWEIS
PLEASE NOTE
▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
15.5 Setup location requirements:
- In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity.
- Choose the setup location in such a way that children cannot reach the device.
- The device is not intended to be installed in a wall or a built-in cupboard.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
15.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
- The electrical outlet must be protected by a 16A safety cut-out switch.
- Do not use extension cables. The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under the milk frother or over hot or sharp surfaces.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
16 Function
In this chapter, you'll find important information on the function of the device.

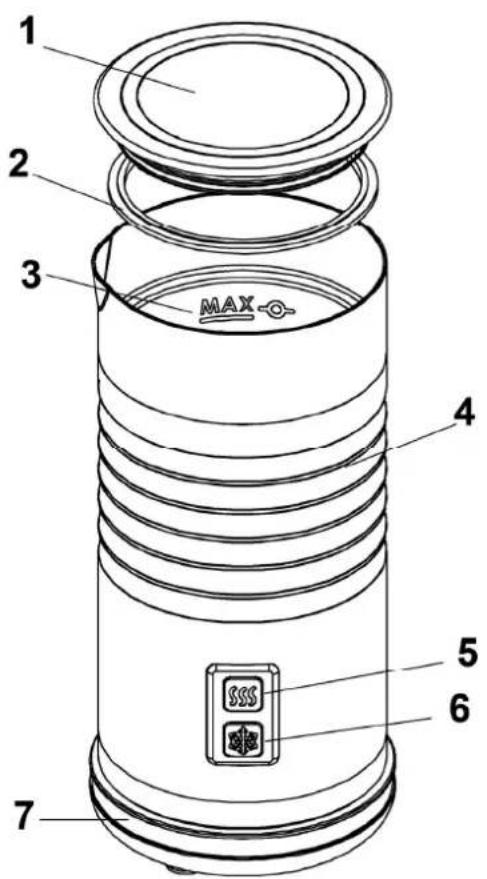

16.1 Overview:
2 silicon ring
3 marks for different functions
4 jug
5 button for warm milk froth and heating milk
6 button for cold milk froth
7 power base with cord

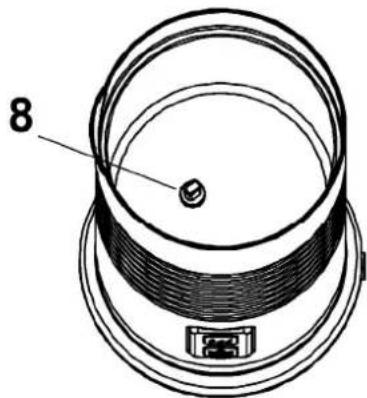

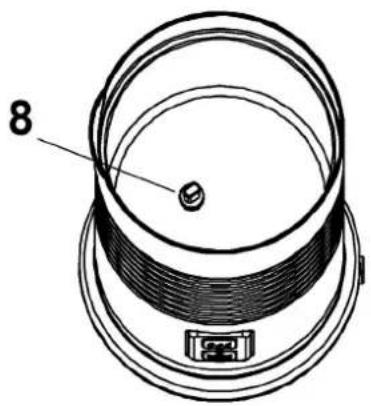

8 attachment for the whisks
9 whisk for frothing milk
10 whisk for heating milk
16.2 Rating plate
The rating plate with the connection and performance data can be founded beneath the device.
17 Operation and Handing
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:
⚠️WARNUNG
WARNING
▶ Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
17.1 Before the first use
Before using the appliance for the first time please clean the jug and the accessories, as described under the chapter cleaning and maintenance to remove dust or production residues.
17.2 Operation
With the Fomini Crema / Fomini Crema Inox you can heat cold as well as warm milk froth.
MIN: Fill milk at least up to that marking
MAX (bottom) Fill milk up to that maximum marking to make milk froth.
MAX (top): When you want to heat milk but not froth it, you can fill milk up to that maximum marking.
HINWEIS
PLEASE NOTE
▶ Please note the maximum markings. Please use for milk froth only the bottom MAX-marking. Otherwise so much foam will be made that the lid would lift and milk would overflow.
You can make warm as well as cold milk froth.
Settings:
| Whisks Functions Max capacities Completion Time | |||
9 | Frothing cold milk 100ml 60s | ||
| Frothing & Heating 100ml 65-80s | |||
10 | Heating(with a small amount of froth) | 200ml | 110s-130s |
Scheme of buttons
| Button | function |
 | Warm milkfroth and heating milk. |
 | Cold milkfroth. |
The operation can be canceled with both buttons.
Handling
- Choose the appropriate whisk and set it inside the jug on the attachment for the whisk.(See the functions above for reference.)
- Pour the milk into the jug below the mark.(See the max capacities above for reference)
- Push the appropriate button to start the machine:
a) Frothing & Heating / Heating: The indicator light will on after pushing the upper button. After finishes working, the indicator light keeps flashing for 30s.
b) Frothing the cold milk: Pour the cold milk into the jug and push the under button then the indicator light on. After 60s the machine finishes working, the indicator light off and keeps flashing for 30s.
HINWEIS PLEASE NOTE
▶ Please pour out the milk and the milk froth. By using a metal spoon or another object with sharp edges you risk damaging the coating of the pot.
▶ Only fill milk into the appliance.
18 Hints and Tips
- Always use your frother first to froth or heat your milk. While it is operating prepare your coffee or hot chocolate and serve immediately.
• Use milk with fat content ≥ 1,5 % for best results. - Cold milk can be frothed with this frother. But it doesn't mean you can cool down the milk with it. The frother works in normal temperature in this condition.
- Milk heats to approximately 65+/-5°C. This is the ideal temperature to ensure the flavor of your coffee is not impaired and so you don't have to wait too long until you can start sipping on your drink.
- Keep the whisks in a safe place. They are small and can easily be lost.
- After frothing or heating allow 2 minutes for the thermostat to reset and the frother to be ready for use again. To shorten this time, rinse with water and wipe dry after each use.
- The frother is designed to heat and froth milk. If you add flavorings, coffee granules or chocolate powder into the frother, ensure it is cleaned immediately and thoroughly after using.
19 Serving suggestions
Here is a selection of quick and easy drinks you can make using the frother.
With frothed milk
9
With hot milk
10
Cappuccino
1/3 espresso
Add 2/3 frothed milk
Top with cocoa powder.
Caffè Latte
1/3 espresso shot
Add 2/3 heated milk and stir.
Latte Macchiato
Pour frothed milk in a tall glass
Add espresso carefully along rim of the glass.
Hot Chocolate
Pour heated milk in to a large mug
Add chocolate powder and stir to mix.
Instant frothy coffee
Make instant coffee
Add frothed milk.
Instant milky coffee
Place instant coffee granules in a cup
Add hot milk and stir to mix.
20 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
20.1 Safety information
▲VORSICHT ATTENTION
Please observe the safety instructions, before cleaning your milk frother.
▶ Before cleaning switch off the unit and take the power plug out of the outlet.
▶ Clean the unit with a soft cloth.
▶ Don't clean the milk frother with inflammable detergents.
▶ Clean the milk frother again thoroughly when the machine hasn't been used for a long time.
20.2 Cleaning
Remove the jug from the power base before cleaning. Separate the lid and the silicon ring from the jug. Never immerse the jug or the base into water.
Never use sharp cleaning agents, hard nylon brush or metal brush to avoid scratches on the stainless steel surface! Never clean with metal objects and never use abrasives.
THE JUG: Clean immediately after each use. Flush and clean the inner walls with using warm soapy water and a non-abrasive cloth. Then wipe dry with a soft cloth.
HINWEIS
Please note
For better cleaning you can fill water with a splash of rinsing agent until the min-marking and use the device with the function for warm milkfroth. After that clean the jug with clear water and dry it.
THE LID: Separate the lid with the silicon ring from the jug. Wash it out with water directly.
THE WHISKS: Remove from the jug and wash with warm water. Dry and store in a safe place. Do not use the dishwasher.
Jug, lid, whisks and the basis with cable are not suitable for dish washer.
21 Troubleshooting
This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:
21.1 Security advices
▲VORSICHT ATTENTION
▶ Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer.
▶ Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.
21.2 Troubleshooting
| Error Possible cause | Problem solving | |
| The appliance doesn't work. | Mains plug is not connected correctly. | Please check that the mains plug of the appliance is connected correctly. |
| Electronic defect. Please contact customer support. | ||
▲VORSICHT ATTENTION
▶ If above mentioned steps don't solve the problem, please contact your customer service.
22 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.
If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put
your old device into the non-recyclable waste under any circumstances.
HINWEIS
PLEASE NOTE
▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.
23 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
24 Technical Data
| Device Milkfrother | |
| Name Fomini Crema / Fomini Crema Inox | |
| Model MMF-801-V2 / MMF-802-V2 | |
| Item No.: 1656 / 1662 | |
| Mains data 220-240V 50/60Hz | |
| Power consumption 400 W | |
| Capacity frothing | Min: 60 ml, Max: 100 ml |
| Capacity warming | Min. 60 ml, Max: 200 ml |
| External measurements | Diameter: 10 cm; Height: 19,8 cm |
| Net weight 0,69 kg | |
Mode d'emploi
Mousseur à lait
Fomini Crema (1656)
Fomini Crema Inox (1662)
25 Mode d'emploi
25.1 Généralités
Exterior view of a COSU Design digital water heater with black casing and metallic grille (no visible text or symbols on body)
36 Istruzione d'uso
36.1 In generale
MAX MAX MINInstant frothy coffee
2 anillo de silicona
Instant milky coffee
▲WARNUNG WAARSCHUWING
⚠️WARNUNG WAARSCHUWING
2 siliconen ring
Instantkoffie maken
