Product type	Kitchen hood
Brand	Barazza
Model	1KSTI9
Installation	Ducted (external evacuation) or recirculating (recycling with charcoal filter)
Evacuation diameter	150 mm
Number of speeds	4 (including a timed intensive speed of 7 min)
Timer	Yes, automatic shut-off after 7 min in intensive speed
Lighting	LED (long-lasting, 90% energy saving)
Grease filter	Metallic, dishwasher-safe (clean once a month)
Activated charcoal filter	Optional for recirculation version, replace every 4 months maximum
Minimum distance above the cooktop	45 cm (electric or gas)
Safety	Disconnect before maintenance; do not use without grid; fire risk if filters not maintained
Power supply	230 V ~ 50 Hz (check the rating plate)
Maintenance	Clean exterior with damp cloth and neutral detergent; do not use alcohol
Weight	Approximately 15 kg (estimate)
Material	Stainless steel (assumed)

Frequently Asked Questions - 1KSTI9 BARAZZA

What is the minimum distance between the hood and the cooktop?

The minimum distance is 45 cm for both electric and gas or mixed cooktops. If the cooking device instructions specify a greater distance, that distance must be respected.

How to clean the grease filter?

The metallic grease filter must be cleaned once a month. It can be washed by hand with a mild detergent or in the dishwasher at low temperature with a short cycle. Note that washing in the dishwasher may discolor the filter without affecting its efficiency.

When should the activated charcoal filter be replaced?

The activated charcoal filter (only in recirculation version) must be replaced every 4 months at most, or sooner if the saturation indicator signals. It cannot be cleaned or regenerated.

How to turn the hood on and off?

Use the [On/Off] button to turn the hood on or off. The [+] and [-] buttons increase or decrease the suction speed. The intensive speed (4th speed) is activated by pressing [+] until it flashes and automatically deactivates after 7 minutes.

Can the hood be used in recirculation mode?

Yes, the hood can be installed in recirculation mode. In this case, it is necessary to use a protective cover, a reduction, and an activated charcoal filter (not supplied). The filtered air is then expelled inside the room.

How to replace the LED bulbs?

The hood is equipped with LED lighting. In case of failure, contact the technical support service for replacement, as LEDs require specialized intervention.

What to do in case of breakdown or malfunction?

Before any intervention, disconnect the hood from the mains. Consult the manual for basic checks (filters, lighting). If the problem persists, contact an authorized service center.

Is an accessible electrical outlet required after installation?

Yes, the wall socket must be accessible after installation to allow disconnecting the hood. If not, a standardized circuit breaker must be installed to ensure complete disconnection.

Can the hood be used without a filter?

No, never use the hood without the grid and filters properly mounted. This could lead to fire risks and damage the appliance.

What is the warranty of the Barazza hood?

The warranty is not detailed in the manual. In general, Barazza hoods have a manufacturer's warranty of 2 years (check with the dealer). The warranty is void if installation and maintenance instructions are not followed.

USER MANUAL 1KSTI9 BARAZZA

Use and maintenance instructions

DUNSTABZUGSHAUBE

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

SAFETY INSTRUCTIONS

• WARNING! Do not connect the appliance to the mains until the installation is fully complete.
• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  Always wear work gloves for all installation and maintenance operations.
• The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
• This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.
• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
• Never use the hood without effectively

mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.
- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
- The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.
- The flaming of foods beneath the hood itself is severely prohibited.
- The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
- Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
- Accessible parts of the hood may became hot when used with cooking appliance.
- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual.
- Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.
- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
- We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the nonobservance of the instructions included in this manual.

INSTALLATION

The hood may be in filtering or in ducting version (see A-B pag.2). Decide from the outset which type is to be installed. For better efficiency, we recommend installing the hood in the ducting version (if possible).

FILTERING VERSION (A)

The hood purifies the air and recycles the clean air back into the room. For this version, the following is required: a theft-proof cover, a reducer and charcoal filter. In the version with flue, the upper flue must have the air evacuation slots positioned in the upper part and the deflector must be used in place of the anti-theft cover. The upper flue air evacuation slots must be positioned at the top.

DUCTING VERSION (B)

The hood purifies the air and evacuates it to the outside through an exhaust duct or hole (diameter 150mm ).

Roof Venting (B)

AIR VENT

(for ducting versions)

! Prepare the hole and the air vent duct (150 mm diameter - not provided with the product).
! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
! Avoid drastic changes in the duct cross-section.
! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.
! Do not connect the hood to smoke exhaust ducts for the products of combustion (boilers, fireplaces, stoves, etc).
! For the air vents comply with the provisions

laid down by the competent authorities. In addition, the air must not be evacuated through a hole in the wall unless specifically intended for this purpose.

! Fit air intakes in the room to prevent the hood from creating a negative pressure in the room (which must not exceed 0.04 mbar); if the hood is used at the same time as non-electrical equipment (gas-, oil- and charcoal-fired stoves, etc.) the exhaust gas may be sucked in by the heat source.

ASSEMBLY

!WARNING: Very heavy product; hood handling and installation must be carried out by at least two persons.
!WARNING: Wear gloves and goggles when carrying out installation and maintenance operations.
!WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
! The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 45cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
! Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone.
! In case of doubt, consult an authorised service assistance centre or similar qualified person.

For installation instructions refer to figures at pag. 2/12

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to overcurrent category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

OPERATION

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

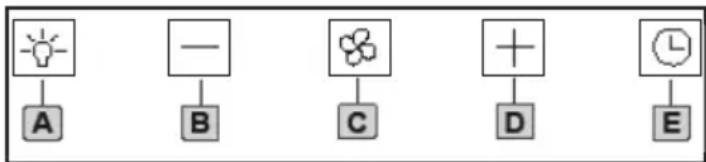

Version with ELECTRONIC CONTROL PANEL (R)

A. Light button:

On: the light is on and the button is lit up; Off: the light is off.

B. [-] Button:

By pushing this button, the fan speed will be decreased.

Speed 1, 2, 3 is shown by the number of led lit up, except the light led and the timer.

C. On/Off button:

It switches the cooker hood on and off.

D. [ + ] Button:

By pushing this button, the fan speed will be increased. Speed 1, 2, 3 is shown by the number of led lit up, except the light led and the timer. Speed 4 or maximum speed is shown by a flashing light and is time-controlled; after about 7 minutes of operation at 4 speed, the fan will automatically switch to speed 3.

E. Timer Button:

It automatically switches the fan off, after 7 minutes of operation at maximum speed (button with flashing light).

MAINTENANCE

Caution! Before any cleaning or maintenance disconnect the hood from the mains by removing the plug or disconnecting the main switch of the dwelling.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Panel

The panel for perimeter suction should always be left closed and should only be opened in case of maintenance interventions (eg cleaning or replacing filters).

Clean the perimeter aspiration panel with the same frequency as the ant-fats filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances.

For easy maintenance of the hood, the perimeter suction panel can be completely removed.

Grease filter

Traps cooking grease particles. This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking. The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Replacing lamps

The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy. For replacement, contact the technical service.

PROTECTING THE ENVIRONMENT

Suggestions for a correct use in order to reduce the environmental impact

• Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished.
• Increase the speed only in case of large

amount of smoke and vapour.

• Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency.
• Clean the grease filter(s) when necessary to maintain a good grease filter efficiency.
• Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

ed-out – dustbinsymbol on the productreminds you of your obligationregarding separated wastecollection. – Consumersshould contact their local

public service or their local dealer for more information on the correct disposal of exhausted household appliances.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS.

THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE WARNINGS.
