USER MANUAL Series 9 Pro 9410s BRAUN

Foil & cutter cassette 94M

Cassette re- lease buttons

Multi head lock to lock the shaver head for a precise shave Foil replacement Travel lock Low charge / cordless use indicator Cleaning station indicator Battery indicator

Contacts for cleaning station (10) / power case (12) usage

Release button to lift up longhair trimmer

9 sec. 94M new 3 sec 6 sec 9 sec Series 9Series 9 Type

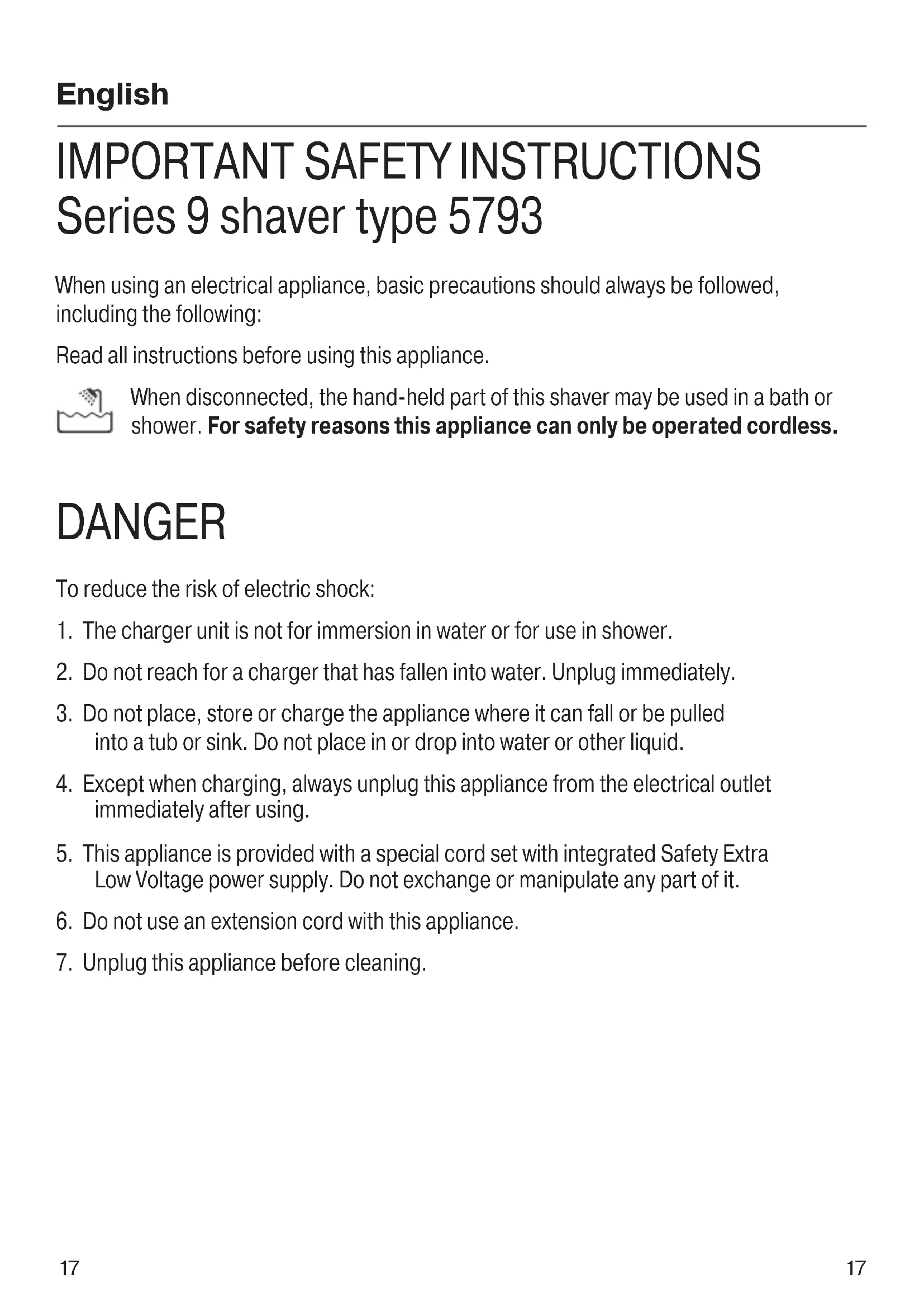

Series 9 shaver type 5793 When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. When disconnected, the hand-held part of this shaver may be used in a bath or shower. For safety reasons this appliance can only be operated cordless. DANGER To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.

2. Do not reach for a charger that has fallen into water. Unplug immediately.

3. Do not place, store or charge the appliance where it can fall or be pulled

into a tub or sink. Do not place in or drop into water or other liquid.

4. Except when charging, always unplug this appliance from the electrical outlet

immediately after using.

5. This appliance is provided with a special cord set with integrated Safety Extra

Low Voltage power supply. Do not exchange or manipulate any part of it.

6. Do not use an extension cord with this appliance.

7. Unplug this appliance before cleaning.

PowerCase type 5796 When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER To reduce the risk of electric shock:

1. Use only in dry condition.

2. Do not submerge in water.

3. Do not reach for an appliance that has fallen into water. Unplug immediately.

4. Do not place, store or charge the appliance where it can fall or be pulled into a tub or

sink. Do not place in or drop into water or other liquid.

5. Except when charging, always unplug this appliance from the electrical outlet

immediately after using.

6. Unplug this appliance before cleaning.

7. Do not use an extension cord with this appliance.

90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 1890408013_UI_94XX_SHAVER+POWERCASE_NA.indd 18 31.10.22 13:0631.10.22 13:0619 WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced phy-

sical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use

attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working pro-

perly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of this appliance.

6. Do not use outdoors or operate where aerosol (spray) products are being used or

where oxygen is being administered.

7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may

8. Always attach plug to appliance first, then to outlet.

9. When plugging to an electrical outlet outside North America, use a plug adapter to

match the outlet’s pin configuration.

10. Caution: The battery used in this device may present a fire or chemical burn hazard if

mistreated. Do not disassemble, heat above 100 °C (212 °F), or incinerate.

11. To recharge the battery, only use the detachable power supply provided with this

appliance. If the appliance is marked 492, only use Braun power supplies coded 492-XXXX.

SAVE THESE INSTRUCTIONS

90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 1990408013_UI_94XX_SHAVER+POWERCASE_NA.indd 19 31.10.22 13:0631.10.22 13:0620 This appliance is designed for household use only Important Keep power supply, charging stand, PowerCase and cleaning station dry. Do not open the appliance! The built-in rechargeable batteries of the shaver can only be replaced by an authorized Braun Service center. Only at the end of the product’s useful life, disassemble the rechargeable battery for disposal reasons: Disassemble the housing as shown in the battery removal pictures, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it. Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C, for storage and shaving it is 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time. The shaver head needs cleaning under hot running water after each foam or gel usage! Switch the shaver on and rinse until all residues have been removed. For hygienic reasons, do not share this appliance with other persons. Shaver needs to be completely dry, when stored or charged in the PowerCase. Wipe the PowerCase with a damp cloth from time to time. For storage the PowerCase should be fully charged and recharged from time to time. Product contains recyclable electric waste. For environment protection, do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. Subject to change without notice. Description Shaver 1 Foil & cutter cassette 94M 2 Cassette release buttons 3 Multi head lock to lock the shaver head for a precise shave 4 On/off button 5 Display - Foil replacement indicator - Travel lock indicator - Cleaning station indicator - Low charge / cordless use indicator - Battery indicator with status bars and minutes left (9 minutes and below) 6 Long hair trimmer 7 Contacts for cleaning station / PowerCase usage 8 Release button to lift up long hair trimmer 9 Power socket 10 Cleaning station (see separate use instructions) 11 Charging stand 12 PowerCase 13 Power supply Note: Content may vary by model Description PowerCase

12.4 Battery status LEDs of the PowerCase

12.5 Start button to charge the shaver

(max. additional 50% battery power)

12.6 Contacts of the PowerCase need to align

with the contacts of the shaver Usage A./B. Charging / Battery C. a. Low charge b. Cordless use D. Shaving E. Travel lock F. Foil replacement G. Automatic cleaning H./I. Manual cleaning J. Battery replacement K. Charging of PowerCase L. Charging of shaver in / from PowerCase 90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 2090408013_UI_94XX_SHAVER+POWERCASE_NA.indd 20 31.10.22 13:0631.10.22 13:0621 Français

PowerCase deben estar alineados con los puntos de contacto de la rasuradora Cómo usar A./B. Recarga / Batería C. a. Carga baja / b. Uso inalámbrico D. Rasurada E. Seguro de viaje F. Reemplazo de la lámina G. Limpieza automática H./I Limpieza manual J. Reemplazo de la batería K. Recarga del estuche PowerCase L. Recarga de la rasuradora en / desde el estuche PowerCase 90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 2890408013_UI_94XX_SHAVER+POWERCASE_NA.indd 28 31.10.22 13:0631.10.22 13:0629 How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611). 90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 2990408013_UI_94XX_SHAVER+POWERCASE_NA.indd 29 31.10.22 13:0631.10.22 13:0630 How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts & accessories: Contact a Braun Authorized Service Center. Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To speak to a Braun Service Representative: Please call 1-800-387-6657. 90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 3090408013_UI_94XX_SHAVER+POWERCASE_NA.indd 30 31.10.22 13:0631.10.22 13:0631 60 day money back satisfaction guarantee for men’s grooming products Braun Shavers Braun Beard Trimmers Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment. Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use. Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase. Please include the following information when you return your product: Name Street City State Zip code Telephone number Please allow 6-8 weeks for handling. 90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 3190408013_UI_94XX_SHAVER+POWERCASE_NA.indd 31 31.10.22 13:0631.10.22 13:0632

2 year limited warranty (foil and cutter block excluded) Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase. If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge. Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com. This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing perfor- med or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. 90408013_UI_94XX_SHAVER+POWERCASE_NA.indd 3290408013_UI_94XX_SHAVER+POWERCASE_NA.indd 32 31.10.22 13:0631.10.22 13:0633
