Series 9 9292CC - Shaver BRAUN - Free user manual and instructions

Type of razor	Electric razor
Cutting system	5-element cutting technology
Power supply	Rechargeable, 60 minutes autonomy
Charging time	1 hour
Cleaning	Cleaning and charging station included
Water resistance	100% waterproof, usable in the shower
Included accessories	Cleaning station, cleaning brush, protective cap
Warranty	2 years
Weight	210 g
Dimensions	16.5 x 6 x 5 cm
Safety features	Automatic shut-off in case of overheating

Frequently Asked Questions - Series 9 9292CC BRAUN

How do I clean my BRAUN Series 9 9292CC razor?

To clean your razor, remove the shaving head and rinse it under running water. Use the provided brush to remove hairs. You can also use the cleaning station for optimal maintenance.

Why won\u0027t my razor charge?

Check that the razor is properly connected to the outlet and that the charging station is plugged in. Also ensure the outlet is working by testing another device.

What is the battery life of the BRAUN Series 9 9292CC?

The battery of the BRAUN Series 9 9292CC provides up to 60 minutes of autonomy after a full 1-hour charge.

How do I know when it\u0027s time to replace the shaving head?

It is recommended to replace the shaving head every 18 months to ensure optimal performance. You may also notice a decrease in shaving quality as a sign to replace it.

My razor is making an unusual noise, what should I do?

If your razor is making an unusual noise, check that no hairs are stuck in the shaving head. If the problem persists, contact customer service for assistance.

Can I use the razor in the shower?

Yes, the BRAUN Series 9 9292CC is waterproof and can be used in the shower or with shaving foam.

How do I activate sensitivity mode?

To activate sensitivity mode, press the mode button while the razor is running. This allows you to adjust the shaving power according to your skin.

Does the razor turn off automatically?

Yes, the BRAUN Series 9 9292CC automatically turns off after 5 minutes of inactivity to save battery.

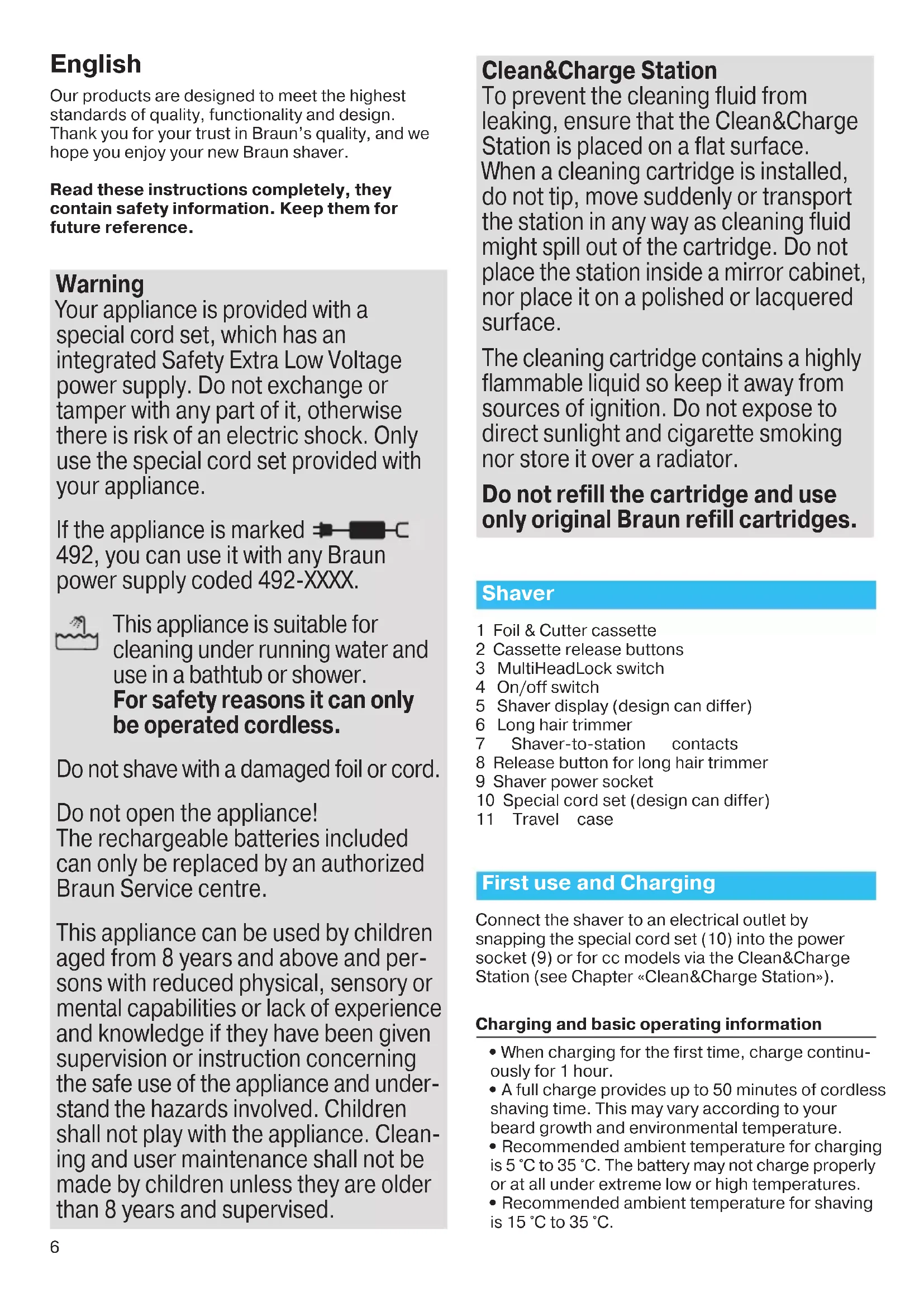

USER MANUAL Series 9 9292CC BRAUN

Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun's quality, and we hope you enjoy your new Braun shaver.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless.

Do not shave with a damaged foil or cord.

Do not open the appliance! The rechargeable batteries included can only be replaced by an authorized Braun Service centre.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Clean&Charge Station

To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface.

The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator.

Do not refill the cartridge and use only original Braun refill cartridges.

Shaver

1 Foil & Cutter cassette
2 Cassette release buttons
3 MultiHeadLock switch
4 On/off switch
5 Shaver display (design can differ)
6 Long hair trimmer
7 Shaver-to-station contacts
8 Release button for long hair trimmer
9 Shaver power socket
10 Special cord set (design can differ)
11 Travel case

First use and Charging

Connect the shaver to an electrical outlet by snapping the special cord set (10) into the power socket (9) or for cc models via the Clean&Charge Station (see Chapter «Clean&Charge Station»).

Charging and basic operating information

• When charging for the first time, charge continuously for 1 hour.
• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.
• Recommended ambient temperature for charging is 5^ to 35^ . The battery may not charge properly or at all under extreme low or high temperatures.

• Recommended ambient temperature for shaving is 15^ to 35^ .

• Do not expose the appliance to temperatures higher than 50^ for extended periods of time.

• When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates.

Shaver display

Charge status

The shaver display (5) shows the charge status of the battery when connected to an electrical outlet:

• During charging the respective battery segment will blink.
• When fully charged all battery segments will light up for a few seconds then the display turns off.

Low charge

The low-charge light flashes red when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status.

The last 9 minutes of remaining shaving time are displayed in digits (depending on your model / display).

Cleaning status

The cleaning indicator lights up when the shaver needs to be cleaned in the Clean&Charge Station.

Travel lock

The lock symbol lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing in a suitcase).

Using the shaver (see fig. A)

Press the on/off switch (4) to operate the shaver.

Tips for a perfect dry shave

1. Always shave before washing your face.
2. At all times, hold the shaver at the right angle (90^) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

MultiHeadLock switch (head lock)

To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions. To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position.

For automatic cleaning in the Clean&Charge Station the head lock should be released.

Long hair trimmer

To trim sideburns, moustache or beard press the release button (8) and slide the long hair trimmer (6) upwards.

Travel lock

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.
• Deactivation: By pressing the on/off switch for 3 seconds the shaver is unlocked again.

Manual cleaning of the shaver

(see fig. B/C)

Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.
• Next, switch off the shaver, press the release buttons (2) to remove the Foil & Cutter cassette (1) and let it dry completely.
• If you regularly clean the shaver under water, then apply once a week a drop of light machine oil on top of the Foil & Cutter cassette.

The shaver should be cleaned after each foam usage.

Cleaning with a brush

• Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it!

The Foil & Cutter cassette can be attached either way. There is no impact on the shaving performance.

Clean&Charge Station

The Clean&Charge Station has been developed for cleaning, charging, lubricating, drying and storing your Braun shaver.

12 Station power socket
13 Lift button for cartridge exchange
14 Station-to-shaver contacts
15 Clean&Charge Station display
15a Level indicator
15b Status light
15c Cleaning program indicator
16 Start button
17 Cleaning cartridge

Installing the Clean&Charge Station (see fig. D)

• Press the lift button (13) at the rear side of the Clean&Charge Station to lift up the housing.
• Hold the cleaning cartridge (17) down on a flat, stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge from the rear side into the base of the station until it snaps into place.
• Slowly close the housing by pushing it down until it locks.
• Connect the station to an electrical outlet by snapping the special cord set (10) into the power socket (12).

Charging the shaver in the Clean&Charge Station (see fig. D)

Insert the shaver head with the front showing and released head lock into the cleaning station.

Important: The shaver needs to be dry and free from any foam or soap residue!

The contacts (7) on the back of the shaver need to align with the contacts (14) in the station. Push the shaver in the correct position. A beep sound confirms that the shaver sits properly in the station. Charging will start automatically.

Cleaning the shaver (see fig. D)

When the cleaning indicator lights up in the shaver display, insert the shaver into the Clean&Charge Station, as described above and press the start button (16).

The hygiene status will be analyzed and is shown by the cleaning program indicators (15c) in the Clean&Charge Station display.

If status light (15b) does not shine (Clean&Charge Station switches to stand-by after about 10 minutes), press start button twice. Otherwise cleaning will not start. For best shaving results, we recommend cleaning after each shave.

The cleaning process consists of several cycles, in which cleaning fluid is flushed through the shaver head. Depending on the program selected, the cleaning time takes up to 3 minutes, followed by an active drying phase of about 40 minutes, during which a fan is running.

Afterwards charging will resume, which is indicated in the shaver display. When the shaver is fully charged the display turns off.

Cleaning programs

short economical cleaning
normal level of cleaning
high intensive cleaning

Removing the shaver from the Clean&Charge Station (see fig. E)

Hold the Clean&Charge Station with one hand and tilt the shaver slightly to the front to release it.

Cleaning Cartridge / Replacement (see fig. F)

When the level indicator 15a lights up permanently red, the remaining fluid in the cartridge is sufficient for about 3 more cycles. When the level indicator blinks red, the cartridge needs to be replaced (about every 3 weeks when used daily).

After having pressed the lift button (13) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution.

The hygienic cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Each cartridge, if not used daily, should be replaced after approximately 8 weeks. The cleaning cartridge also contains lubricants for the shaving system, which may leave residual marks on the outer foil frame and the cleaning chamber of the Clean&Charge Station. These marks can be removed easily by wiping gently with a damp cloth.

Accessories

Braun recommends changing your shaver's Foil & Cutter cassette every 18 months to maintain your shaver's maximum performance.

Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 92S/92B
• Cleaning cartridge Clean&Charge Station: CCR
• Braun Shaver cleaner spray

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

The cleaning cartridge can be disposed of with regular household waste.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Trouble-Shooting

Problem: Possible reason: Remedy:

SHAYER

Shaver does not start when pressing the start button.	1. Travel lock is activated. 2. This appliance can only be operated cordless.	1. Press the on/off switch for 3 seconds to unlock the shaver. 2. Unplug the shaver.
Shaver does not charge completely and keeps blinking.	Ambient temperature is out of valid range.	Recommended ambient temperature for charging is 5 °C to 35 °C.
Charging does not start when connected to power socket or put in Clean&Charge Station.	1. Shaver is not placed properly in the Clean&Charge Station. 2. Sometimes charging could start delayed (e.g. after long storage). 3. Ambient temperature is out of valid range. 4. Special cord set is not plugged in properly.	1. Contacts of shaver need to align with contacts in the Clean&Charge Station. 2. Wait a few minutes, if charging will start automatically. 3. Recommended ambient temperature for charging is 5 °C to 35 °C. 4. Special cord set needs to snap into place.
Unpleasant smell from the shaver head.	1. Shaver head is cleaned with water. 2. Cleaning cartridge is in use for more than 8 weeks.	1. When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry. 2. Change cleaning cartridge at least every 8 weeks.
Battery performance dropped significantly.	1. Shaver head is regularly cleaned with water but not lubricated. 2. Foil and cutter are worn which requires more power for each shave.	1. If the shaver is regularly cleaned with water, apply a drop of light machine oil on top of the foil once a week for lubrication. 2. Replace Foil & Cutter cassette.
Shaving performance dropped significantly.	1. Shaving system is clogged. 2. Foil and cutter are worn.	1. Soak the Foil & Cutter cassette in hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil. 2. Replace Foil & Cutter cassette.
Shaver turns off with fully charged battery.	Foil and cutter are worn which requires more power than the motor can deliver. The appliance turns off.	- Replace Foil & Cutter cassette. - Regularly oil the shaving system, especially when cleaning with water only.
Shaver head is damp.	1. Drain of the Clean&Charge Station is clogged. 2. Cleaning cartridge has been used for quite a while.	1. Clean the drain with a wooden toothpick. 2. The ethanol/isopropanol proportion has decreased while the oil proportion has increased. Remove residue with a cloth.

CLEAN&CHARGE STATION

Cleaning does not start when pressing the start button.	1. Shaver is not placed properly in the Clean&Charge Station. 2. Cleaning cartridge does not contain enough cleaning fluid (level indicator blinks red). 3. Appliance is in stand-by mode.	1. Insert shaver into the Clean&Charge Station (contacts of the shaver need to align with contacts in the station). 2. Insert new cleaning cartridge. 3. Press start button again.
Increased consumption of cleaning fluid.	Drain of the Clean&Charge Station is clogged.	- Clean the drain with a wooden toothpick. - Regularly wipe the tub clean.
