USER MANUAL Series 9 9240S BRAUN

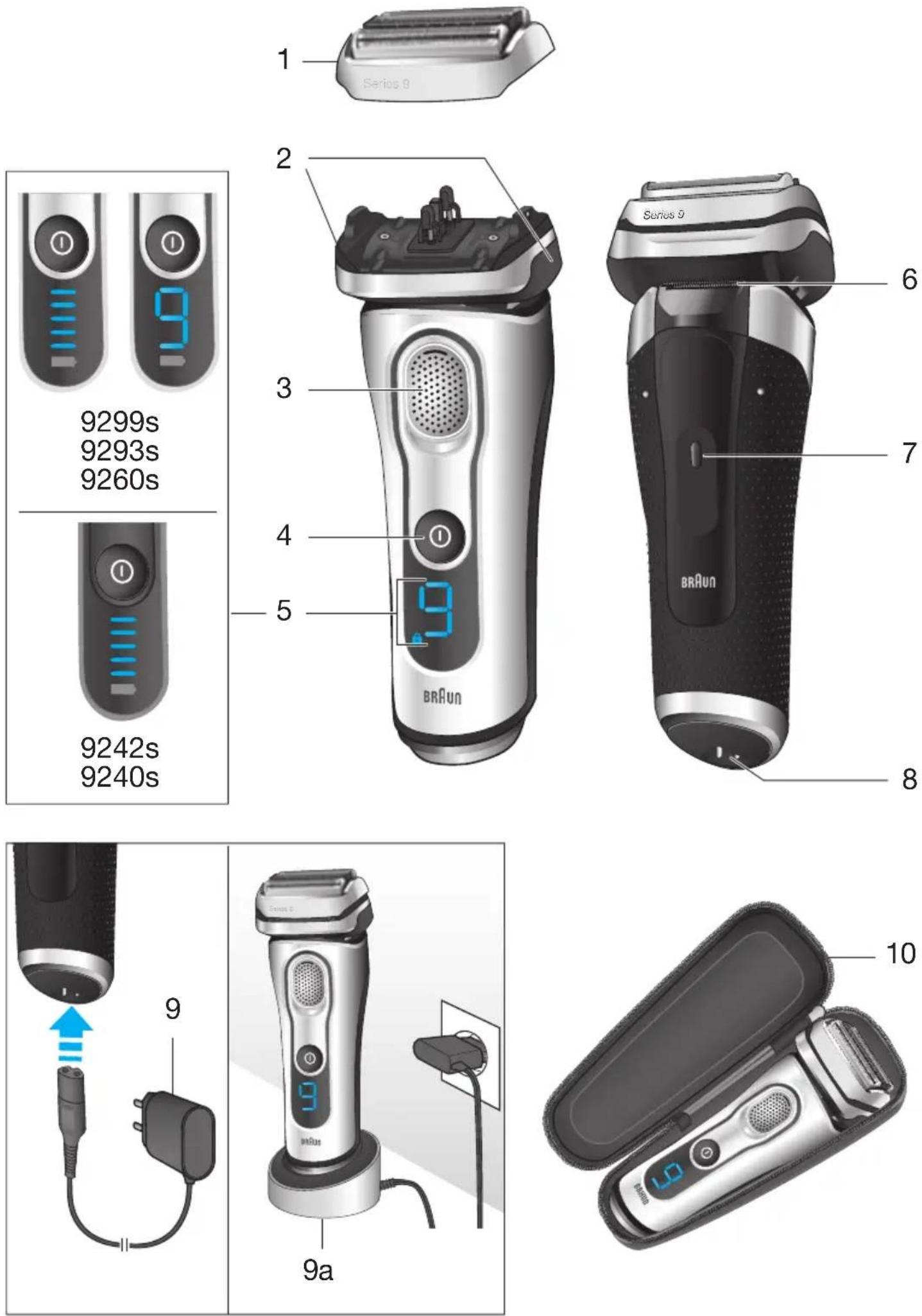

www.braun.com Type 5791 Series 9 9299s 9293s 9260s 9242s 9240s

9299s 9293s 9260s 9242s 9240s

Series 9 Series 9 Series 9Series 9

Series 9Series 9 Series 7Series 7 20° 10°

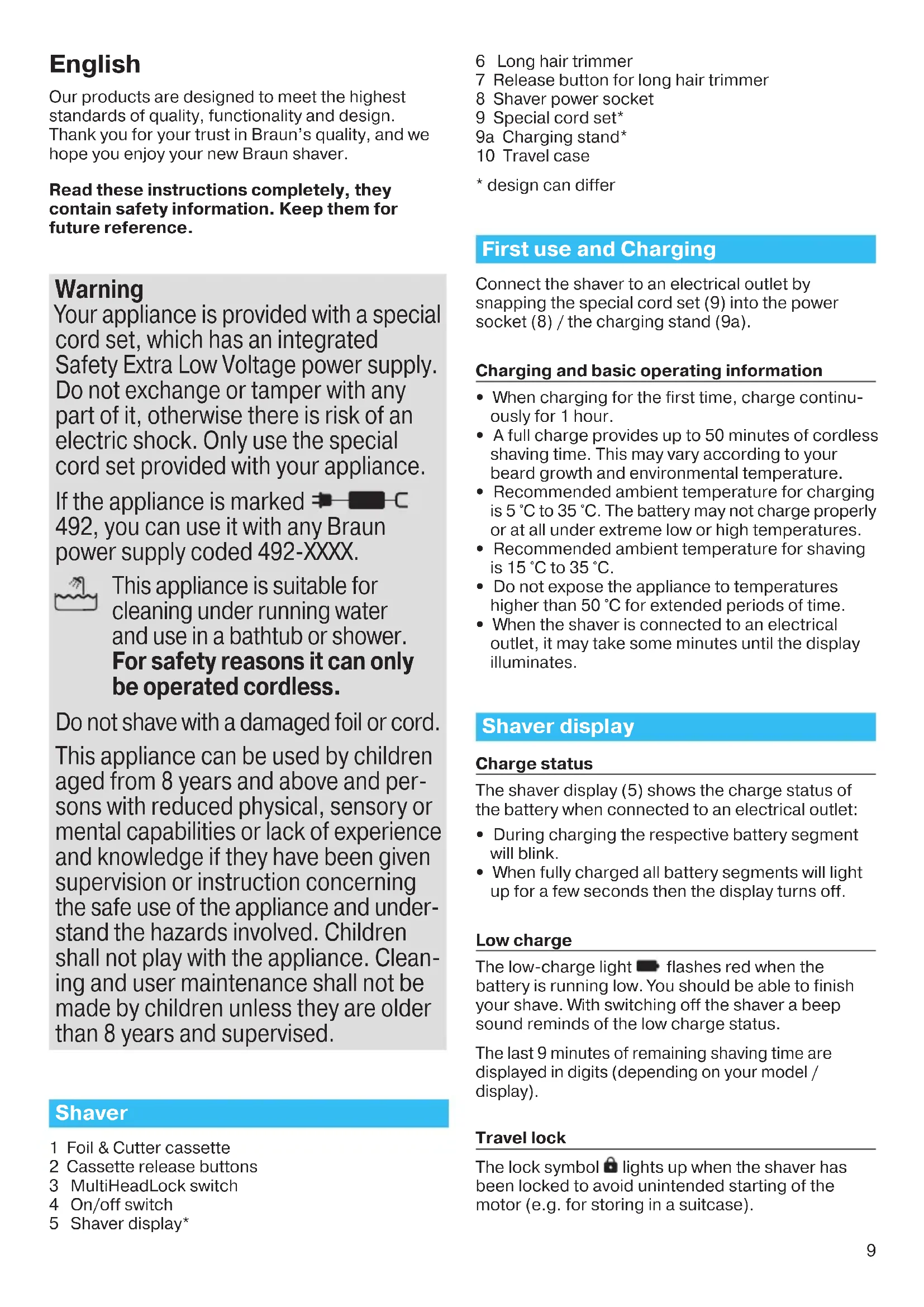

Rasierer schaltet sich aus, obwohl der Akku voll geladen ist. Das Schersystem ist verschlis- sen. Der Rasierer braucht deutlich mehr Leistung als der Motor liefern kann. Das Gerät schaltet ab. – Das Schersystem erneuern. – Das Schersystem besonders bei Nassreinigung regelmäßig ölen, um Verschleiß vorzubeugen. 91154595_Series_9-2_Solo_Euro_S6-96.indd 8 28.11.16 13:099 English Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun’s quality, and we hope you enjoy your new Braun shaver. Read these instructions completely, they contain safety information. Keep them for future reference. Warning Your appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. Only use the special cord set provided with your appliance. If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX. This appliance is suitable for cleaning under running water and use in a bathtub or shower. For safety reasons it can only be operated cordless. Do not shave with a damaged foil or cord. This appliance can be used by children aged from 8 years and above and per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and under- stand the hazards involved. Children shall not play with the appliance. Clean- ing and user maintenance shall not be made by children unless they are older than 8 years and supervised. Shaver 1 Foil & Cutter cassette 2 Cassette release buttons 3 MultiHeadLock switch 4 On/off switch 5 Shaver display* 6 Long hair trimmer 7 Release button for long hair trimmer 8 Shaver power socket 9 Special cord set* 9a Charging stand* 10 Travel case

• design can differ First use and Charging Connect the shaver to an electrical outlet by snapping the special cord set (9) into the power socket (8) / the charging stand (9a). Charging and basic operating information

• When charging for the first time, charge continu- ously for 1 hour.

• A full charge provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature.

• Recommended ambient temperature for charging is 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures.

• Recommended ambient temperature for shaving is 15 °C to 35 °C.

• Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• When the shaver is connected to an electrical outlet, it may take some minutes until the display illuminates. Shaver display Charge status The shaver display (5) shows the charge status of the battery when connected to an electrical outlet:

• During charging the respective battery segment will blink.

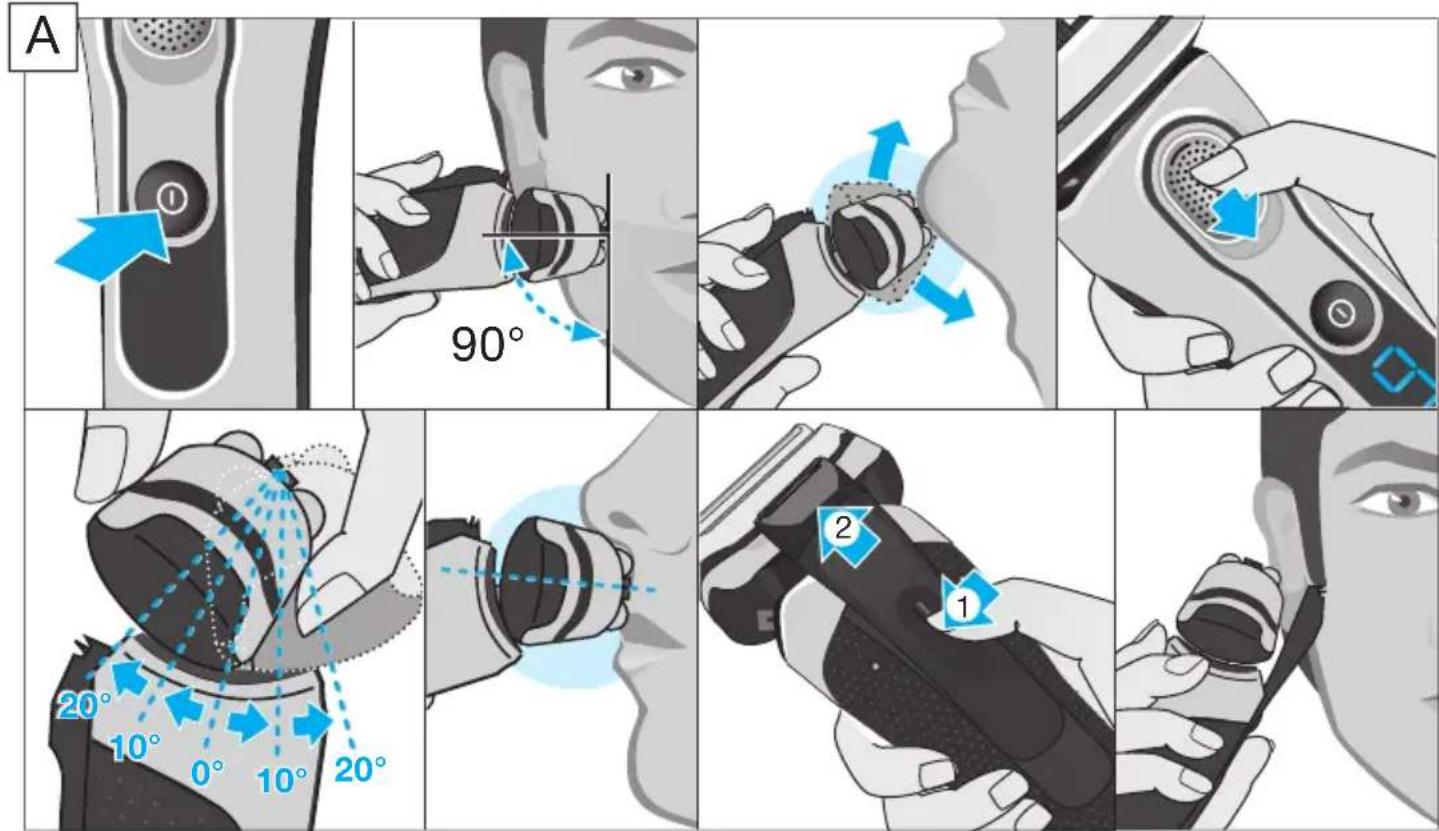

• When fully charged all battery segments will light up for a few seconds then the display turns off. Low charge The low-charge light flashes red when the battery is running low. You should be able to finish your shave. With switching off the shaver a beep sound reminds of the low charge status. The last 9 minutes of remaining shaving time are displayed in digits (depending on your model / display). Travel lock The lock symbol lights up when the shaver has been locked to avoid unintended starting of the motor (e.g. for storing in a suitcase). 91154595_Series_9-2_Solo_Euro_S6-96.indd 9 28.11.16 13:0910 Using the shaver (see fig. A) Press the on/off switch (4) to operate the shaver. Tips for a perfect dry shave

1. Always shave before washing your face.

2. At all times, hold the shaver at the right angle

3. Stretch your skin and shave against the direction

of your beard growth. MultiHeadLock switch (head lock) To shave hard-to-reach areas (e.g. under the nose) slide the MultiHeadLock switch (3) down to lock the shaver head. The shaver head can be locked in five positions. To change position, move the shaver head with your thumb and forefinger back or forth. It will automatically click into the next position. Long hair trimmer To trim sideburns, moustache or beard press the release button (7) and slide the long hair trimmer (6) upwards. Travel lock

• Activation: By pressing the on/off switch (4) for 3 seconds the shaver is locked. This is confirmed by a beep sound and the lock symbol in the display. Afterwards the display turns off.

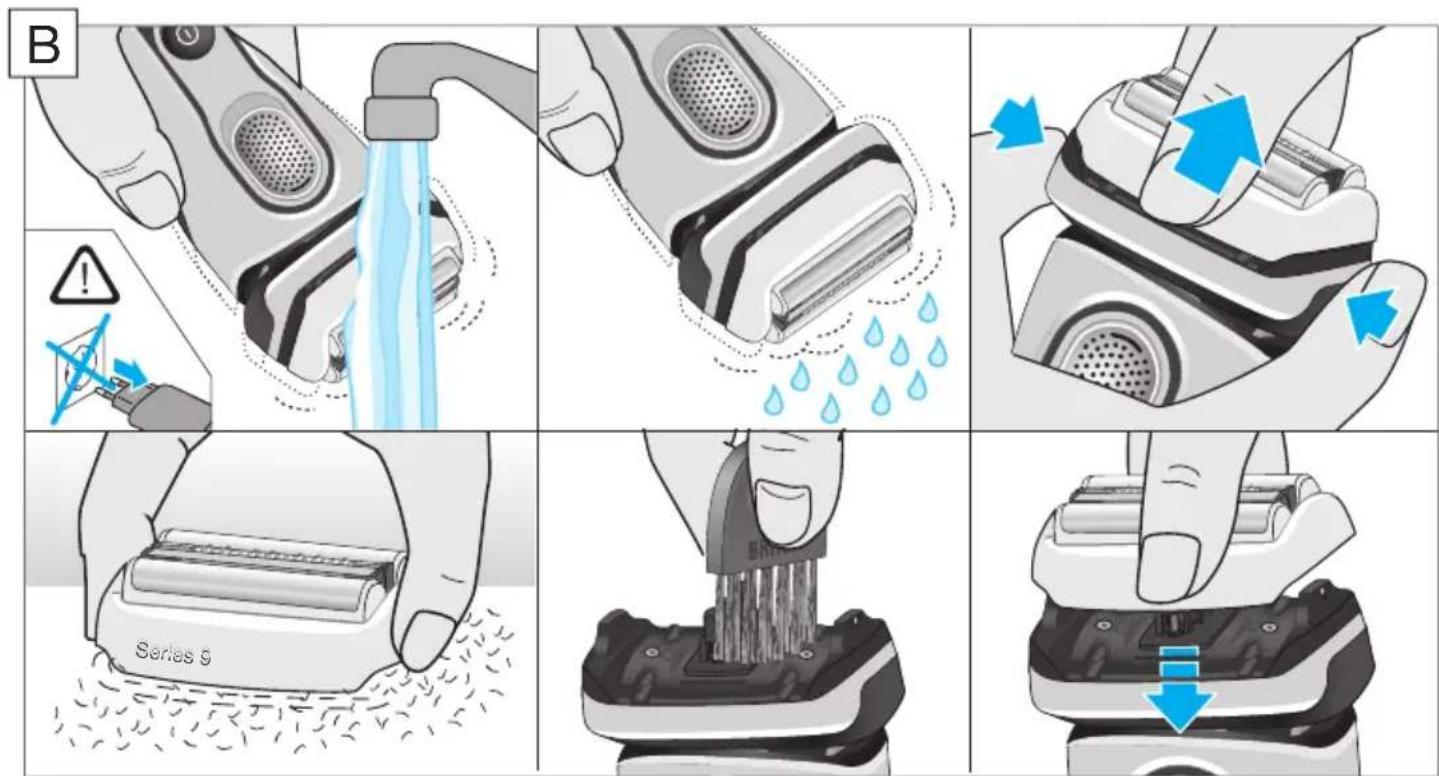

• Deactivation: By pressing the on/off switch for 3 seconds the shaver is unlocked again. Manual cleaning of the shaver (see fig. B/C) Cleaning under running water

• Switch on the shaver (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

• Next, switch off the shaver, press the release buttons (2) to remove the Foil & Cutter cassette (1) and let it dry completely.

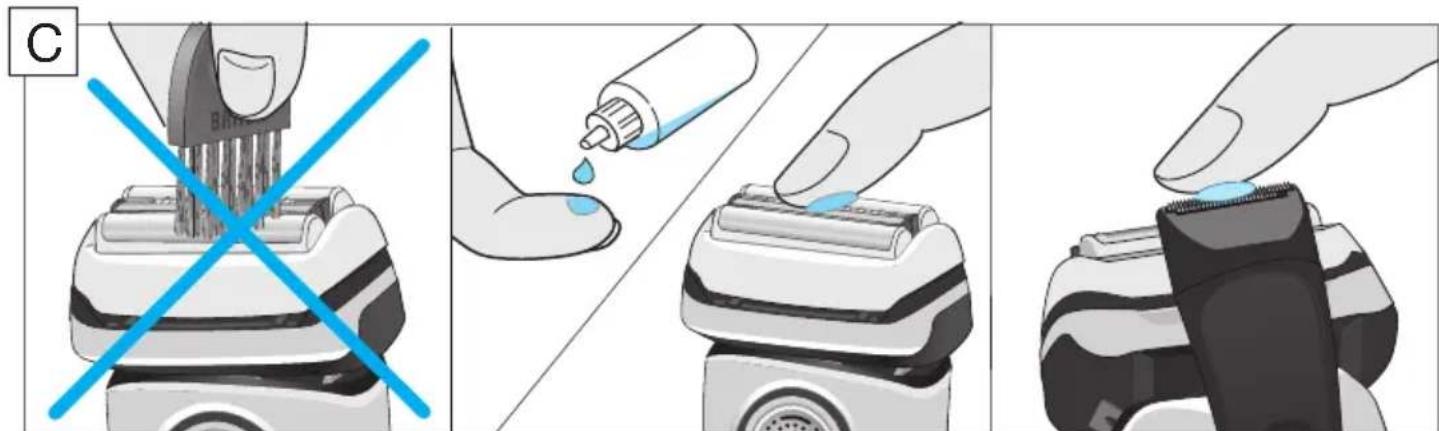

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the long hair trimmer and Foil & Cutter cassette. The shaver should be cleaned after each foam usage. Cleaning with a brush

• Switch off the shaver. Remove the Foil & Cutter cassette (1) and tap it out on a flat surface. Using the brush, clean the inner area of the pivoting head. Do not clean the cassette with the brush as this may damage it! The Foil & Cutter cassette can be attached either way. There is no impact on the shaving performance. Accessories Braun recommends changing your shaver’s Foil & Cutter cassette every 18 months to maintain your shaver’s maximum performance. Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette: 92S/92B

• Cleaning cartridge Clean&Charge Station: CCR

• Braun Shaver cleaner spray Environmental notice Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country. The cleaning cartridge can be disposed of with regular household waste. Subject to change without notice. For electric specifications, see printing on the special cord set. Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com). For UK only: This guarantee in no way affects your rights under statutory law. 91154595_Series_9-2_Solo_Euro_S6-96.indd 10 28.11.16 13:0911 Trouble-Shooting Problem: Possible reason: Remedy: Shaver does not start when pressing the start button.

1. Travel lock is activated.

2. This appliance can only be

1. Press the on/off switch for 3 seconds to unlock

Shaver does not charge completely and keeps blinking. Ambient temperature is out of valid range. Recommended ambient temperature for charging is 5 °C to 35 °C. Charging does not start when connected to power socket.

1. Sometimes charging could

start delayed (e.g. after long storage).

2. Ambient temperature is out

3. Special cord set is not

plugged in properly.

1. Wait a few minutes, if charging will start auto-

2. Recommended ambient temperature for charging

3. Special cord set needs to snap into place.

Unpleasant smell from the shaver head. Shaver head is cleaned with water. When cleaning the shaver head with water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry. Battery performance dropped significantly.

1. Shaver head is regularly

cleaned with water but not lubricated.

2. Foil and cutter are worn

which requires more power for each shave.

1. If the shaver is regularly cleaned with water, apply

a drop of light machine oil on top of the foil once a week for lubrication.

2. Replace Foil & Cutter cassette.

Shaving performance dropped significantly.

1. Shaving system is clogged.

2. Foil and cutter are worn.

1. Soak the Foil & Cutter cassette in hot water with

a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil.
