USER MANUAL GHI9100BK Glem Gas

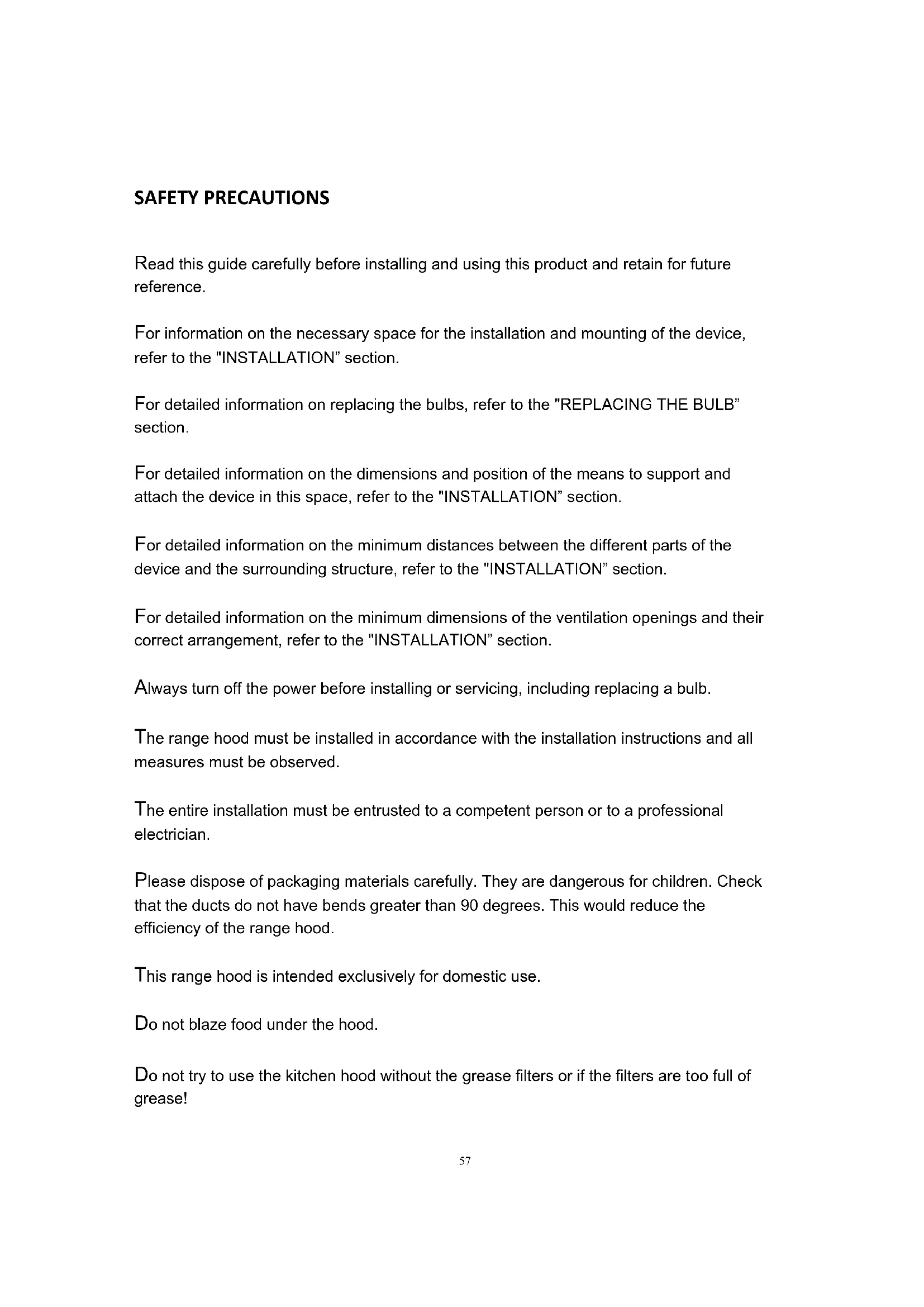

Read this guide carefully before installing and using this product and retain for future reference. For information on the necessary space for the installation and mounting of the device, refer to the "INSTALLATION” section. For detailed information on replacing the bulbs, refer to the "REPLACING THE BULB” section. For detailed information on the dimensions and position of the means to support and attach the device in this space, refer to the "INSTALLATION” section. For detailed information on the minimum distances between the different parts of the device and the surrounding structure, refer to the "INSTALLATION” section. For detailed information on the minimum dimensions of the ventilation openings and their correct arrangement, refer to the "INSTALLATION” section.

Always turn off the power before installing or servicing, including replacing a bulb.

The range hood must be installed in accordance with the installation instructions and all measures must be observed.

The entire installation must be entrusted to a competent person or to a professional electrician. Please dispose of packaging materials carefully. They are dangerous for children. Check that the ducts do not have bends greater than 90 degrees. This would reduce the efficiency of the range hood. This range hood is intended exclusively for domestic use.

Do not blaze food under the hood.

Do not try to use the kitchen hood without the grease filters or if the filters are too full of grease!58 The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Do not leave frying pans unattended during use as overheated fats or oils may catch fire. Never leave naked flames under the range hood. If the hood is damaged, do not attempt to use it. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Watch your children to make sure they do not play with the device. The plug must be easily accessible after installation. There is minimum distance between the support surface of cookware on the cook top and the lowest part of the cooker hood. (When the range hood is placed over a gas appliance, this distance must be at least 65 cm. If the installation instructions for the gas cook top specify a larger distance, this should be taken into account. Proper ventilation of the room must be provided when a kitchen hood is used simultaneously with appliances using gas or other fuel. Clean your appliance periodically using the method suggested in the MAINTENANCE chapter. There is a risk of fire if the cleaning is not done according to the instructions. Regulations regarding the discharge of air must be respected. Clean the grease filter every month to prevent fire.59 The charcoal filter traps odors and must be replaced at least once a year depending on the frequency of use of the range hood.

WARNING: Accessible parts of this appliance may become hot when used with cooking

appliances. For air extraction to be as efficient as possible, use a straight duct or with a minimum of elbows. Number of technicians recommended for installation: 2 to 3. Use appropriate wall plugs and screws on the wall where the hood is to be installed. Ask a qualified installer or technician to select the right dowels and screws. In a cold climate, it is advisable to install an additional check valve to minimize cold air return, as well as a nonmetallic thermal barrier to minimize heat transfer by conduction to the outside. The valve must be installed on the side of the thermal barrier where the air is cold. The thermal barrier must also be installed as close as possible to the point where the duct enters the heated part of the building. TO REDUCE FIRE HAZARDS, USE ONLY METALLIC DUCTS. Install this hood in accordance with all specified requirements. To reduce the risk of fire and extract air effectively, make sure the exhaust duct faces out. The extraction mouth must not be open on a space between two walls, ceilings, attics, reduced spaces or garages. -The code IT cos D for this lamp is DSR-1.5/65-S-64.60 COMPONENT LIST Presentation Thank you for choosing this range hood. This user manual is designed to provide all necessary instructions for the installation, operation and maintenance of this appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

Warning: Failure to install the screws or fixing device in accordance with these

instructions may result in electrical hazards.

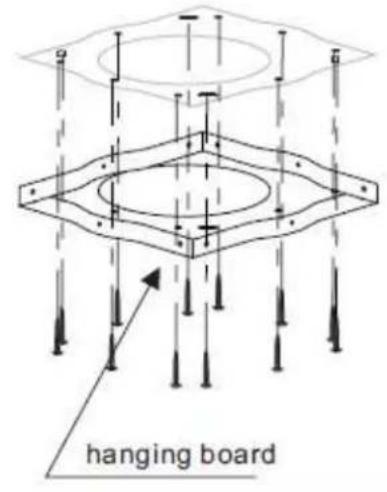

Picture of hanging board

INSTALLATION (VENT OUTSIDE)

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 120/150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

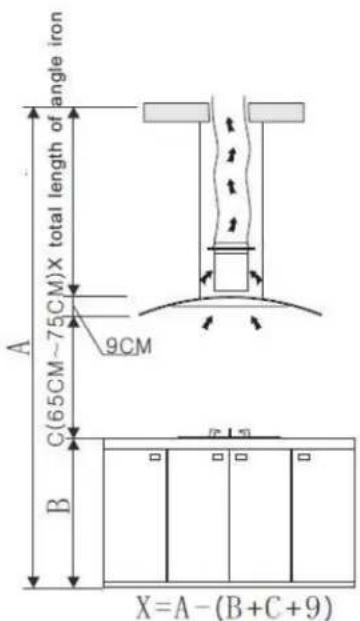

2. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for

best effect. See Pic 1.

3. The ceiling must can bear at least 120kgs weight, and the thickness of the ceiling must be

≧30MM, see pic 2, drill 1*170mm round hole in the ceiling.63

4. According to the hanging board, drill 12 holes in the ceiling, see pic 2, 12pcs of ST6*40mm

big flat screws will be used to fix the hanging board on the ceiling, and then 8pcs of M4*10 screws and M4 nut with washer will be used to connect the angle iron into the hanging board.

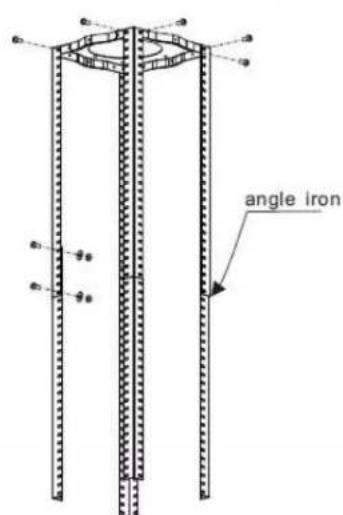

5. See pic 1, calculated the length of the angle iron, and 16pcs M4*10 big flat screws and M4

nut with washer will be used to connect the angle iron and another angle iron ( the overlap length of angle iron can not less 100MM)See pic 3.

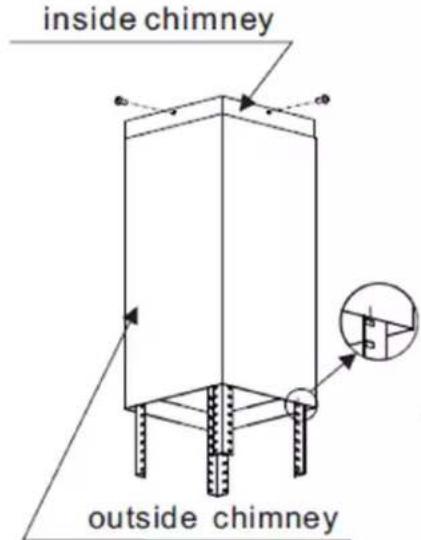

6. 4pcs ST4*8 big flat screws will be used to connect the inside chimney into the hanging

board, then put on the outside chimney, two hooks will be used to put up the outside chimney in order to the next installation, see pic 4.

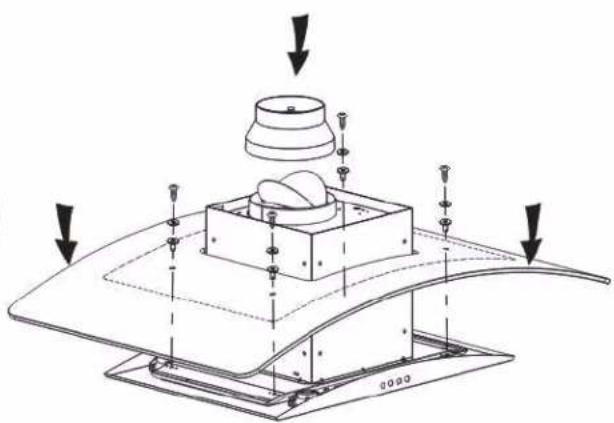

7. Equip the v-flap to the outlet,and then dress the converter onto the outlet, see pic 5.

8. Adjust the 4 glass screws to check whether the glass and the cooker hood body connected

well and fixed, see pic 5.64

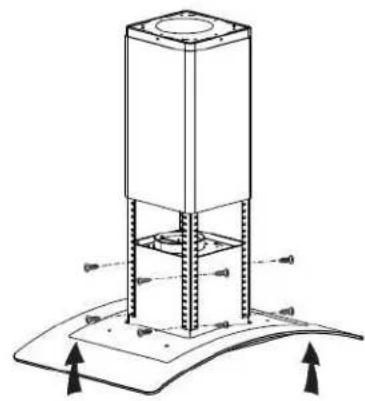

9. Hold up the hood, 16pcs M4*10 big flat screws will be used to connect the hood body into

angle iron, see pic 6.

10. After ensure all the things ok, put down the hook, take from the outside chimney, all the

installation is finished, see pic7.

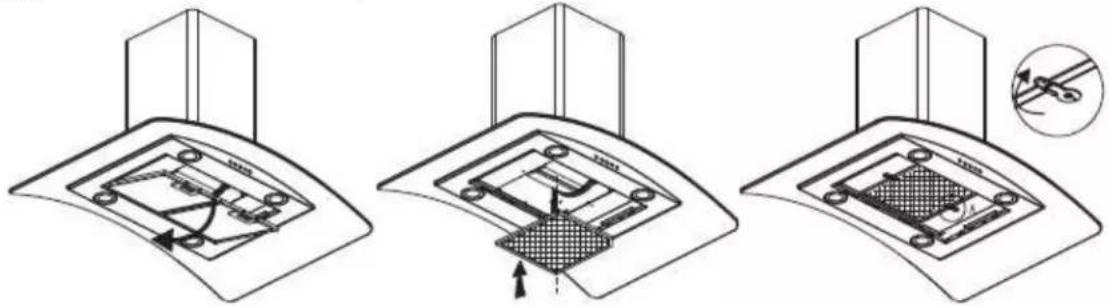

Carbon filter installation： (1) Remove the al filter. (2) Insert the carbon filter in the rectangularhole,fitting it over the motor. (3) After inserting the front edge of the carbon filter into the slot on the cooker hood. Lower the back edge of the carbon filter, until it clicks into place at the rear of the rectangular hole. Raise the two fixing locking plates, until they are perpendicular to the carbon filter. (4) Place the Al. filter back to position.

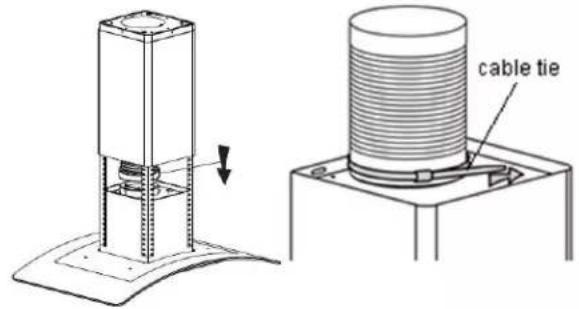

Remark: Install the expansion pipe on the cooker hood if need. Fix the expansion pipe with a cable tie.(The expansion pipe and cable tie are not supplied with the product. They are optional.)65 OPERATION

There are five buttons: (Low), (Mid), (High), (Lamp), (Power). See picture above.

1. Power on: After connecting to power, indicator light will lit on, all the output close and the

hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.

2.1 Press power button once, its indicator light will lit on, the hood works at low speed.

Indicator light of low speed will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of the hood will be closed, the hood enters into standby mode. The above steps can be operated repeatedly.

2.2 The speed buttons and lamp button can work separately and not controlled by the power

button. When a certain function button is pressed, the hood operates at that function status. Press power button under any status, the cooker hood will be switched off without any functions.

Press lamp button once; lights will be turn on. Indicator light of lamp button and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. The above steps can be operated repeatedly.

4. Speed button: (High), (Mid), (Low)

4.1 Press the (High) button once, motor runs at high speed, the indicator light of high

button and power button will beam. Press high button again and the motor will stop. Indicator light of high button and power button will be off. The above steps can be operated repeatedly.

4.2 Press the (Mid) button once, motor runs at middle speed, the indicator light of middle

button and power button will beam. Press middle button again and the motor will stop. Indicator light of middle button and power button will be off. The above steps can be operated repeatedly.

4.3 Press the (low) button once, motor runs at low speed, the indicator light of low button66

and power button will beam. Press low button again and the motor will stop. Indicator light of low button and power button will be off. The above steps can be operated repeatedly.

4.4 After the hood works at high speed for 7mins continuously, the motor will automatically

switch to middle speed.

4.5 Low speed, mid speed and high speed cannot work at the same time. When hood is on high

speed, press low speed button, it will turn to low speed at once; when it is in low speed, press middle speed button, it will turn to middle speed immediately, and so on.

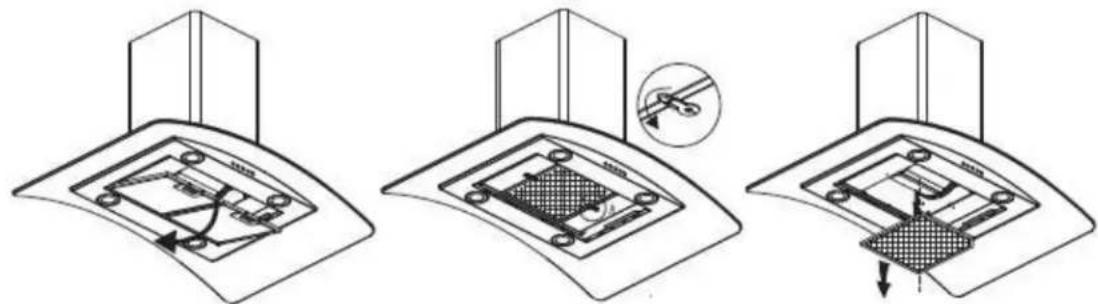

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The disassembly procedure of activated carbon filter is as below: (3) Remove the al filter. (4) According to the arrow, rotating the activated carbon lock plates on both sides to the parallel position of the carbon filter and then remove the activated carbon. -Apply reverse procedure to install the charcoal filter NOTE: Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter attached, the suction power will be lowered.

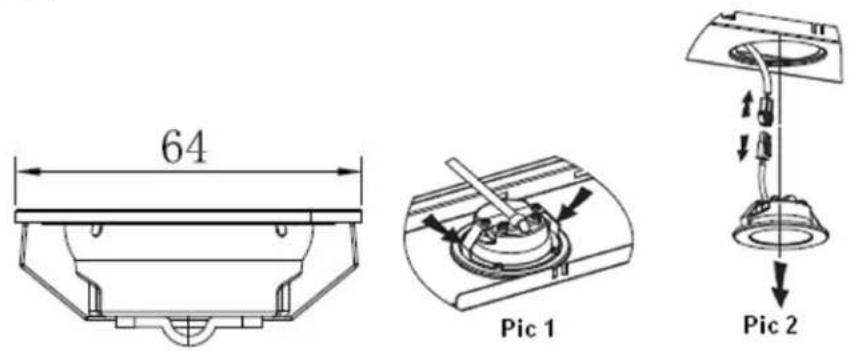

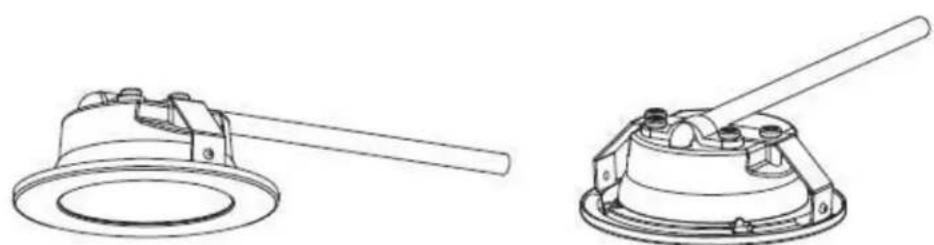

REPLACING THE BULB: Remove the grease filter. Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 1.Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. See pic 2. Apply the reverse procedure to reinstall the light.

MAINTENANCE Before cleaning, switch the unit off and unplug the appliance.

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for metallic anti-grease filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust…... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Annual Energy Consumption AEC hood 28,2 kWh/a68 Time increase factor f 0,6 Energy Efficiency class Class A++ Energy Efficiency Index EEI hood 36,7 Fluid Dynamic Efficiency FDE hood 38,2 Measured air pressure at best efficiency point

BEP 471 Pa Measured airflow rate at the best efficiency

Measured electric power input at best efficiency point

BEP 104,7 W Fluid Dynamic Efficiency class Class A Nominal power of the lighting system

Average illumination of the lighting system on the cooking surface

middle 246 lux Grease Filtering Efficiency GFE hood 78,1 Grease Filtering Efficiency(GFE hood) class Class C Air flow at working point Highest setting:686 Lowest setting: 205

Noise emission at maximum speed in normal use

74 dB Noise emission at minimum speed in normal use

59 dB Measured power consumption on off mode

0,45 W Measured power consumption on standby mode

- W The measurement and calculation method of the above table was done in accordance with commission regulation (EU) No 65/2014 & 66/2014. Note： The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process). (13) Install the cooker hood in a proper place where there is efficient ventilation. (14) Clean the cooker hood regularly so as not to block the airway. (15) Remember to switch off the cooker hood light after cooking. (16) Remember to switch off the cooker hood after cooking. Information for dismantling Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.70 ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EC. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities. Environment friendly disposal! You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.71
