Technical specifications	Electric pasta machine, 200 W power, kneading capacity of 500 g of flour.
Features	Fresh pasta preparation, multiple types of pasta (spaghetti, tagliatelle, etc.), included accessories for different shapes.
Usage	Easy to use with an intuitive control panel, included recipes, quick preparation time.
Maintenance	Easy to disassemble for cleaning, dishwasher-safe parts.
Safety	Integrated safety system to prevent overheating, non-slip feet for optimal stability.
General information	Compact dimensions for easy storage, modern design, manufacturer warranty.

Frequently Asked Questions - HR2665 PHILIPS

How do I assemble the PHILIPS HR2665 pasta machine?

To assemble the machine, start by attaching the container to the base. Then, insert the different accessories according to the instructions in the user manual.

What types of pasta can I make with the PHILIPS HR2665?

The PHILIPS HR2665 pasta machine allows you to make several types of pasta, including spaghetti, fettuccine, and lasagna.

How do I clean the pasta machine after use?

Unplug the machine and disassemble the removable parts. Wash them with warm soapy water and use a soft brush to clean hard-to-reach areas. Do not immerse the machine in water.

What should I do if the dough does not come out properly?

If the dough does not come out, check that the machine is properly assembled and that the ingredients are correctly measured. Also ensure that the motor is not blocked.

What is the capacity of the PHILIPS HR2665 pasta machine?

The PHILIPS HR2665 has a preparation capacity of up to 500 g of flour, which allows making about 4 servings of pasta.

How should I store the pasta machine?

To store the machine, place it in a dry and cool place, preferably in its original box or in protective packaging to avoid damage.

Is the pasta machine under warranty?

Yes, the PHILIPS HR2665 pasta machine is generally covered by a 2-year warranty. Check the provided documents for specific conditions.

Can I use gluten-free flour with the PHILIPS HR2665?

Yes, you can use gluten-free flour, but it is recommended to follow a specific recipe to ensure the correct dough texture.

How do I adjust the thickness of the pasta?

The thickness of the pasta can be adjusted by changing the cutting accessory or by using the thickness settings provided in the user manual.

USER MANUAL HR2665 PHILIPS

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

0 ① ② ③ ④ 08:00 12:00 15:00 18:00 21:00 24:00 27:00 30:00 33:00 36:00 39:00 42:00 45:00 48:00 51:00 54:00 57:00 60:00 63:00 66:00 69:00 72:00 75:00 78:00 81:00 84:00 87:00 90:00 93:00 96:00 99:00

Medical procedure steps showing step-by-step instructions for a device with labeled parts and control panel

Illustrated guide to a cooking or heating procedure with numbered steps and a temperature adjustment panel

<100°C / 140°F
	×	×	√
	√	√	√
	√	×	√
	√	√	√

Shaping disc overview

	Spaghetti	Fettuccine	Penne	Lasagna	Thick Spaghetti
HR2665/93	√	√	√	√	√
HR2665/96	√	√	√	√	√

	Angel hair	Tagliatelle	Pappardelle	Shell/Corshie	Paccheri
HR2665/93	√	√	√	×	×
HR2665/96	√	√	√	√	√

Recipe

The following recipe table shows the optimal water/flour ratio for different flour types.

Type Amount Flour Liquid Binder Gluten free Vegan
Pasta 250 g Lentil flour 75 ml 1 tbsp Xanthan x x
Pasta 250 g Lentil flour 75 ml / x x
Pasta 250 g Pea flour 75 ml 1 tbsp Xanthan x x
Pasta 250 g Pea flour 75 ml / x x
Pasta 250 g Chickpea flour 75 ml 1 tbsp Xanthan x x
Pasta 250 g Chickpea flour 75 ml / x x
Pasta 250 g	Buckwheat 150 g Rice flour 100 g	130 ml	1 egg	x
Pasta 250 g	Corn 50 g Rice 200 g	120 ml 1	tbsp Xanthan x x
Pasta	250 g	Rice flour	120 ml	1 tbsp Xanthan	x	x
Pasta	250 g	Wheat flour	95 ml	/		x
Pasta	250 g	Wheat flour	95 ml	1 egg
Pasta	250 g	Spelt flour	85-90 ml	/		x
Pasta 250 g Whole grain flour 115 ml /					x
Pasta 250 g	Semola 105 ml /				x
Pasta 250 g	Semola 110 ml			1 egg

Type Amount Flour Liquid Binder Gluten free Vegan
Pasta 250 g Lentil flour 75 ml 1 tbsp Xanthan x x
Pasta 250 g Lentil flour 75 ml / x x
Pasta 250 g Pea flour 75 ml 1 tbsp Xanthan x x
Pasta 250 g Pea flour 75 ml / x x
Pasta 250 g Chickpea flour 75 ml 1 tbsp Xanthan x x
Pasta 250 g Chickpea flour 75 ml / x x
Pasta 250 g	Buckwheat 150 g Rice flour 100 g	130 ml	1 egg	x
Pasta 250 g	Corn 50 g Rice 200 g	120 ml 1	tbsp Xanthan x x
Pasta	250 g	Rice flour	120 ml	1 tbsp Xanthan	x	x
Pasta	250 g	Wheat flour	95 ml	/		x
Pasta	250 g	Wheat flour	95 ml	1 egg
Pasta	250 g	Spelt flour	85-90 ml	/		x
Pasta 250 g Whole grain flour 115 ml /					x
Pasta 250 g	Semola 105 ml /				x
Pasta 250 g	Semola 110 ml			1 egg

ENGLISH

Introduction

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Product overview (Fig. 1)

1	Mixing chamber lid	10	Pasta cutter
2	Safety switch hole of the mixing chamber lid	11	Front panel knobs
3	Power cord	12	Front panel
4	Disc holder safety switch	13	Shaping disc
5	Main unit	14	Disc holder
6	Shaping disc storage	15	Disc holder safety switch lever
7	Water cup	16	Mixing paddle
8	Cleaning brush	17	Mixing chamber
9	Angel hair shaping disc cleaning brush

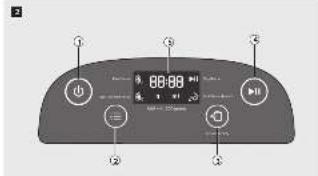

Control panel overview (Fig. 2)

1	On/off button	4	Start/pause button
2	Program selection button	5	Display
3	Extrusion only button

This appliance allows you to make the pasta you need in the way you want.

- Default pasta making function

Choose a program with the Program selection button, and then press the Start/pause button.

• Extrusion only function

Press the Extrusion only button, and then the Start/pause button.

Applies when there is leftover dough in the mixing chamber, and you want some extra extrusion.

- Skip-scaling function

Press and hold the Start/pause button for 5 seconds.

Applies when the device jumps into error mode or when you need to skip the scale function and start the mixing process directly.

Disassembling and cleaning before first use

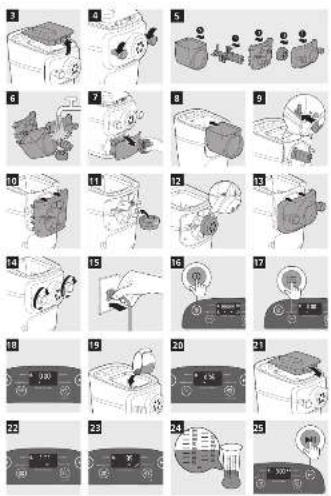

1 Remove the mixing chamber lid. (Fig. 3)
2 Loosen the front panel control knobs. (Fig. 4)
Note: The front panel is heavy. Take extra caution when removing it.
3 Disassemble the front panel, the shaping disc, the shaping disc holder, the mixing paddle, and the mixing chamber in order. (Fig. 5)
4 Clean all detachable parts, and wipe them dry. (Fig. 6)
5 Pull out the shaping disc storage drawer, and clean all discs and cleaning tools. (Fig. 7)

Assembling

1 Push the mixing chamber into the appliance. (Fig. 8)
2 Point the mixing paddle to the hole in the main unit. Insert the mixing paddle all the way into the main unit. (Fig. 9)
3 Attach the disc holder onto the appliance. (Fig. 10)
4 Put the shaping disc onto the disc holder, and make sure it is firmly fixed on the disc holder. (Fig. 11)

Note: Make sure the inner cavity of the shaping disc and disc holder is properly fitted. (Fig. 12)

5 Attach the front panel to the main unit. (Fig. 13)
Note: The front panel is heavy. Take extra caution when assembling it.

6 Fasten the front panel control knobs. (Fig. 14)

Note:

• If the front panel or the shaping disc is not properly assembled, a safety switch will prevent the appliance from working.
  • Make sure the front panel is completely fastened before using the appliance.

7 Close the mixing chamber lid. (Fig. 21)

Using the Pasta maker

Start preparation

1 Put the plug in the power socket. The pasta maker sound once, and all indicators flash once. (Fig. 15)

Note: Make sure that all the parts are well assembled before plugging in.

2 Press the On/off button to turn on the appliance. (Fig. 16)

3 Select the pasta type with the Program selection button. (Fig. 17)

Tip:

• If you prepare a recipe with egg and water, crack the egg and put it as a whole in the water cup and fill up with water to the needed amount.
  • Instead of water you can also use veggie juices (e.g. spinach juice, beetroot juice, etc.).

ENGLISH

Program Tip Optional recipe
Plain pasta/noodle • Pasta with flour and water only		• Wheat noodle• Durum noodle
Egg or flavoured pasta/ noodle	• Pasta with flour and egg liquid• All kinds of flavored pasta	• Wheat pasta• Durum pasta• Carrot pasta/noodle• Tomato pasta/noodle• Soba• Beet pasta/noodle

4 Remove the mixing chamber lid. (Fig. 3)

5 Wait until 0:00 displays on the screen. (Fig. 18)

6 Pour the flour into the chamber. (Fig. 19)

Note

• The appliance automatically weighs and displays the amount of flour. The weight measurement will blink until you are in the right range. (Fig. 20)
• Do not put less than 200g or more than 600g of flour in the chamber.
• Some recipes (for example cookies, gluten free pasta) require you to skip the weighing part. In this case, press the Start/pause button for 5 seconds, and the appliance will start mixing and extruding directly.

7 Close the chamber lid. (Fig. 21)

Note

• If you press a button without closing the lid, the chamber closing sign will appear. (Fig. 22)
• Insert the two hooks into the appliance first, and then push the lid against the main unit.
• The appliance will not start working if the chamber lid is not properly closed. During the pasta making process, if you open the chamber lid, the appliance will stop working. Assemble the lid and press the Start/pause button to start the operation again.

8 When the lid is closed, the needed amount of liquid is displayed. (Fig. 23)

9 Use the supplied water cup to measure the amount of liquid according to the indication on the display. (Fig. 24)

Note

• Make sure to measure the liquid volume at eye level on a flat surface.
- When making the egg mixture, crack the egg into the water cup. Add water up to the required amount, and then whisk the water and egg to combine.
- If preferred, 2 eggs can be used instead of 1, but make sure that the overall amount of liquid suggested is not exceeded.
- For a better accuracy please use a kitchen scale to measure the liquid.

Starting the pasta making program

1 Press the Start/pause button to start mixing, and the mixing time starts to count down. (Fig. 25)
2 After the mixing starts, slowly pour in the liquid along the entire length of the slot in the lid. (Fig. 26)

Note: During dough mixing, do not add other ingredients after you have poured in the liquid. Otherwise, it will affect the result of the pasta texture.

3 After the pasta maker finishes mixing, it will beep once and start extruding pasta after a few seconds. Use the pasta cutter to cut the pasta into the length you need.(Fig. 27)

Note: If the ratio of liquid and flour is not correct, the extrusion will not succeed. Please refer to the chapter "Recipe" for more recipes.

4 After the pasta making is complete, if you notice some leftover dough inside the chamber, you can press the Extrusion only button first, and then press the Start/pause button for extra extrusion. (Fig. 28)

Note:

• The extra extrusion lasts for three minutes.
- The cooking time of the pasta varies depending on personal preferences, pasta shapes, and number of servings.
- During the pasta making process and when the process is finished, the appliance will make a sound feedback.

Important!

The pasta recipes provided in the chapter "Recipe" have been tested for success. If you experiment with or use other pasta recipes, the flour and water/egg ratios will need to be adjusted. The pasta maker will not operate successfully if you do not adjust the new recipe accordingly.

Note

• For good results, it is essential that the dough looks crumbly in the kneading chamber. If the dough looks crumbly, the recipe will work. The recipe will not work if the dough is too wet (looks like well-known dough consistency) or too dry (when the dough looks like flour only).
• Seasonal changes and using ingredients from different regions may affect the flour/water ratio. You may adjust based on the recommended proportion.
• When making gluten free pasta or legume pasta, less liquid is needed than the recommendation. You may use about 10-20 ml less liquid for these recipes. Adjust the amount of liquid depending on the type of flour.
• "Gluten" is a binder which ensures the pasta does not break easily, Gluten free flour does not contain a binder, therefore it needs a thickener to act as a "binder" eg. eggs or Xanthan. Various kinds of gluten free flour perform differently when making pasta. Some flours are not suitable for making pasta such as coconut flour, some flour types work well, such as quinoa and buckwheat.
• When making egg pasta or vegetable pasta, make sure you whisk the egg mixture or vegetable juice evenly with the water before pouring into the chamber through the slot in the lid. When adding ingredients, make sure the ingredient is in a liquid form.

10 ENGLISH

Cleaning

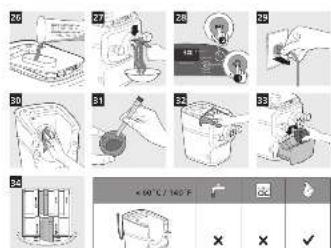

1 Disconnect the plug from the power outlet. (Fig. 29)
2 Remove the mixing chamber lid. (Fig. 3)
3 Loosen the front panel control knobs. (Fig. 4)
Note: The front panel is heavy. Take extra caution when removing it.
4 Disassemble the front panel, the shaping disc, the shaping disc holder, the mixing paddle, and the mixing chamber in order. (Fig. 5)
5 Use a dry cloth to clean flour residue on the main unit. (Fig. 30)
6 Clean the shaping disc with the supplied cleaning tool to remove the dough residues. After that, you can clean it with water. (Fig. 31)

Note: Let the discs air-dry for 2 to 4 hours, then use the corresponding cleaning tool to poke out the dough in the holes.

7 Clean all detachable parts, and wipe them dry. (Fig. 6)
8 Use a dry cloth to clean the control panel, and the exterior of the pasta maker. (Fig. 32)

Storage

1 Unplug the appliance and let it cool down. (Fig. 29)
Note: Make sure all parts are clean and dry before storing.
2 You can store the shaping discs in the storage drawer. (Fig. 33)

Note: Put the thicker shaping discs in slots with icons and and put the thinner shaping discs in the slots with icon. (Fig. 34)

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit

www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Cause Solution
The indicators do not light up.	The power plug is not connected correctly.	Check whether the power plug is plugged correctly and the outlet is working properly.
After pressing the On/off button the appliance sounds but does not work.	The mixing chamber, the shaping disc, or the front panel is assembled incorrectly.	Make sure you follow the user manual to assemble all parts correctly.
The safety switch is triggered and the appliance suddenly stopped or suddenly restarts during the processing.	The front panel knob is loose.	Make sure the front panel is securely assembled.
	Excessive ingredients in the pasta maker.	The maximum amount of flour used for each batch is 600g. If more than 600g is added, reduce the amount of flour before next batch.
During processing, the appliance stops working when you open the lid.	For safety reasons, the appliance always stops working when the lid is opened during processing.	If you need to resume the previous operation, close the lid properly, and press the Start/pause button.
During processing, the appliance stops. There is no alarm sound or flashes.	The pasta maker has overheated due to long continuous working time.	Disconnect from the power source, and allow the pasta maker to cool down. To better protect the lifetime of the appliance, the continuous working time should be less than 45 minutes. You can restart using the appliance after 15 minutes of rest.
When weighing the flour, the weight shown on the screen changes all the time.	You are touching the appliance or the power cord.	When the appliance is weighing the flour, do not touch the appliance or the power cord.
Small amount of water is leaking out from the appliance.	Water is added before the program starts.	Follow the user manual instructions to add water right after the program starts.

12 ENGLISH

Problem Cause Solution
Unable to make pasta successfully with the liquid calculation function.	The required liquid amount indicated on the display screen does not apply to some recipes (for example cookies, gluten free pasta).	These recipes require you to skip the liquid calculation part. In this case, press the Start/pause button for 5 seconds, and the appliance will start mixing and extruding directly.
E1 displays on the screen.	The shaping disc is not attached.	Attach the disc holder to the main unit, attach the shaping disc properly and fix the front panel properly to the device.
	The lid is not in place or not properly attached.	Attach the lid properly.
The appliance stops during processing, E2 displays on the screen, the indicators are flashing quickly, and the alarm sounds.	The mixing paddle may be blocked by some foreign objects.	Disconnect from the power source, clean the pasta maker, and follow the user manual again to restart the pasta making.
	The dough may be too dry.
	The wrong program is selected.
E3 displays on the screen during calibration.	The mixing chamber lid is still closed on the appliance.	1 Remove the mixing chamber lid from the appliance to start calibration.2 Switch off and unplug your Pasta Maker. Plug in and restart the device.
E4 displays on the screen.	The appliance malfunctions.	Switch off and unplug your Pasta Maker. Plug in and restart the device.
E3 or E4 displays permanently on the screen after restarting.	The appliance malfunction.	Contact the service center

Oversigt over hulskiver

	Spaghetti	Fettuccine	Penne	Lasagne	Tykke spaghetti
HR2665/93	√	√	√	√	√
HR2665/96	√	√	√	√	√

	Capellini	Tagliatelle	Pappardelle	Konkylie/corshie	Paccheri
HR2665/93	√	√	√	×	×
HR2665/96	√	√	√	√	√

Opskrift
