Product Type	Electric Pasta Machine
Model Number	HR2332
Series	Viva Collection
Dimensions (L x W x H)	Approx. 30 x 20 x 35 cm
Weight	Approx. 4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	200 W
Capacity	Up to 1 kg of fresh pasta per batch
Pasta Shapes	Spaghetti, fettuccine, penne, lasagna sheets, and more (depending on included discs)
Operation	Automatic mixing, kneading, and extrusion
Controls	Touch panel with LED display; multiple speed settings
Main Functions	Pasta making, automatic cleaning cycle
Bowl Material	Stainless steel mixing bowl
Housing Material	ABS plastic (BPA-free)
Pasta Discs Material	Stainless steel and food-grade plastic
Dishwasher Safe Parts	Yes (mixing bowl, kneading paddle, pasta discs)
Cleaning	Automatic cleaning cycle; removable parts dishwasher safe
Safety Features	Automatic shut-off, overheat protection, non-slip feet
Included Accessories	6 pasta discs, cleaning tool, measuring cup, user manual
Spare Parts Available	Yes (pasta discs, kneading paddle, mixing bowl)
Warranty	2 years manufacturer warranty
Certifications	CE, RoHS

Frequently Asked Questions - Viva Collection HR2332 PHILIPS

How do I clean the pasta machine?

After use, empty the mixing bowl and run the automatic cleaning cycle. Removable parts like the mixing bowl, kneading paddle, and pasta discs can be washed in the dishwasher or by hand with mild detergent.

Can I make gluten-free pasta?

Yes, the HR2332 can handle gluten-free flours. Use a recipe with binding agents like xanthan gum or eggs for best results. The machine's dough control system adjusts mixing and extrusion automatically.

How long does it take to make pasta?

The entire process from mixing to extrusion takes approximately 15 minutes for a batch of 1 kg of pasta. The machine handles mixing and kneading automatically.

What pasta shapes can I make?

The included discs allow you to make spaghetti, fettuccine, penne, lasagna sheets, and other shapes. Additional discs are available as accessories.

Is the machine noisy?

The machine operates at a noise level similar to a bread maker or food processor. The extrusion process creates a rhythmic sound that is not disruptive.

Can I use whole wheat flour?

Yes, whole wheat flour works well. You may need to adjust the liquid ratio slightly. The machine's dough sensor ensures optimal consistency.

What is the maximum capacity?

The machine can process up to 1 kg of flour per batch, yielding about 1.5 kg of fresh pasta. For smaller batches, you can reduce the recipe by half.

Does it have a safety feature?

Yes, the HR2332 has automatic shut-off if it overheats or if the lid is not properly closed. The non-slip feet keep it stable during operation.

How do I store the pasta discs?

The discs come with a storage case. Keep them dry in a cool place. Clean them thoroughly before storing to prevent clogging.

Can I use eggs in the pasta dough?

Absolutely! Eggs add richness and color. The machine's mixing mechanism handles egg-based doughs easily. Follow the recipe guide in the manual for egg pasta.

USER MANUAL Viva Collection HR2332 PHILIPS

Exterior view of a Philips electric kitchen brush unit (no text or symbols visible on the device body)

What's in the box 11

Overview 12

Disassembling and cleaning before first use 14

Assembling 16

Using the Pasta and noodle maker ..... 19

Cleaning 27

Storage 30

Troubleshooting 31

Product information ....34

Recycling 34

Guarantee and service ....35

Important

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Warning

• Before you connect the appliance to the power, make sure that the voltage indicated on the bottom of the appliance corresponds to the local power voltage.
  • Make sure that your hands are dry before you insert the plug into the power outlet.
• Do not immerse the main unit in water or rinse it with water or other liquid.
  • To prevent a short circuit or an electric shock, do not pour water or any liquid on the appliance.
  • Make sure that the plug is firmly inserted into the power outlet.
• Never connect this appliance to a timer switch or separate remote control system.
  • Make sure that the appliance is assembled correctly before you insert the plug into the power outlet.
• If the power cord, the plug, or other parts are damaged, do not use the appliance.

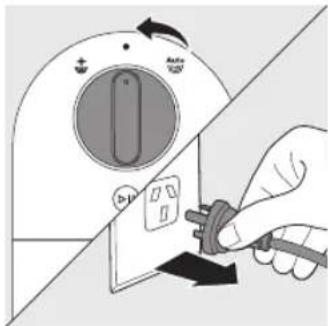

• Make sure the control knob is in the OFF position and the appliance is unplugged when not in use, left unattended, before assembling, disassembling, cleaning or storing. Always make sure the appliance is properly assembled before putting the plug into the wall outlet and operating the appliance.

6 English

Warning

The appliance will not operate unless it is properly assembled.

- Do not place hands, fingers or utensils in the mixing chamber of the appliance unless the control knob is in the OFF position, the appliance is unplugged and the motor and mixing paddle have come to a complete stop. Ensure the motor and the mixing paddle have completely stopped before disassembling, cleaning or storing.

- If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips or similarly qualified persons to avoid a hazard.

- Do not replace parts of the appliance by yourself.

- This appliance shall not be used by children. Keep the appliance and its power cord out of reach of children.

- This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• To prevent any accidents, do not use the appliance if it is damaged for any reason.

Caution

• Before using the appliance for the first time, disassemble and wash the accessories thoroughly (refer to the chapter “Disassemble and cleaning before first use”).
  • This appliance is intended for household use only.
• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Do not use this appliance on an unstable or uneven surface.
• Do not disconnect the power cord before the processing is complete. If you have to stop processing, disconnect the power cord before you perform other operations.
• Do not exceed the maximum operation cycle of 2 cycles continuously at all applications. To better protect the lifetime of the appliance, you can restart using the appliance after 30 minutes upon 2 continuous operation cycles.
• If you intend to use the appliance continuously, clean the shaping disc with the supplied cleaning tool each time after use.
• Do not bend, jerk, twist, or bundle the power cord forcibly, nor put it under heavy objects.
• Unplug the appliance when not in use.
• Do not use the appliance near flammable objects such as table cloth or drapes.

8 English

Caution

- Pull out the power plug immediately after you detect smoke.

- When unplugging the power cord, do not pull the cable but grab the plug part.

- Keep the power plug clean.

- Do not put heavy objects on the appliance.

• This appliance is designed as consumer kitchen appliance. Do not use for any other purpose.

- Do not move the appliance while it is operating.

- Disconnect the power cord if the appliance is left unattended and before assembling, disassembling or cleaning.

- Place the appliance in a dry and well ventilated place after use.

- Do not hold and move the appliance by grabbing the shaping disc holder. Hold the main unit to do so.

• Make sure the shaping disc hole is unblocked each time before using.

- Keep hands, hair, clothing, as well as spatulas and other utensils away from appliance during operation to reduce the risk of injury to persons, and/or damage to the appliance.

- Do not put your fingers or other objects into the Pasta and noodle maker opening while it is in operation. Avoid contact with moving parts.

- Do not attempt to defeat the cover interlock mechanism.

Caution

• The shaping discs and all detachable parts of the appliance are dishwasher safe. When you clean them in dishwasher, make sure to select the proper program which has a maximum temperature at no higher than 60°C (140°F).
• Use only on properly grounded outlet.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

Read this user manual carefully before you install and use the appliance. Save it for future reference.

What's in the box

User manual

Recipe book

Flat cleaning tool

Flour cup

Water cup

Spaghetti/ Thin noodle
Shaping discs:

Fettuccine/ Ban Mian noodle

Penne Lasagna

* The spaghetti/thin noodle shaping disc is assembled on the appliance upon purchase.

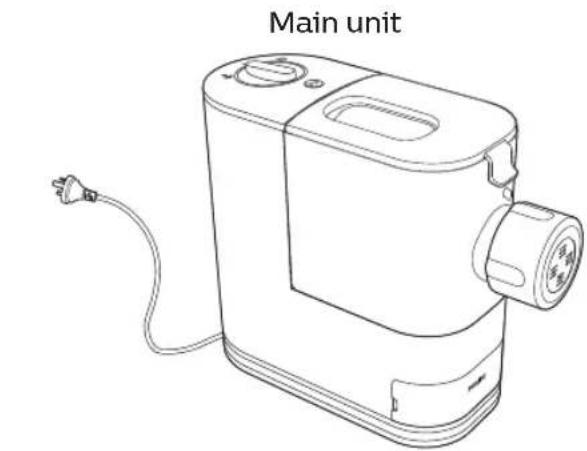

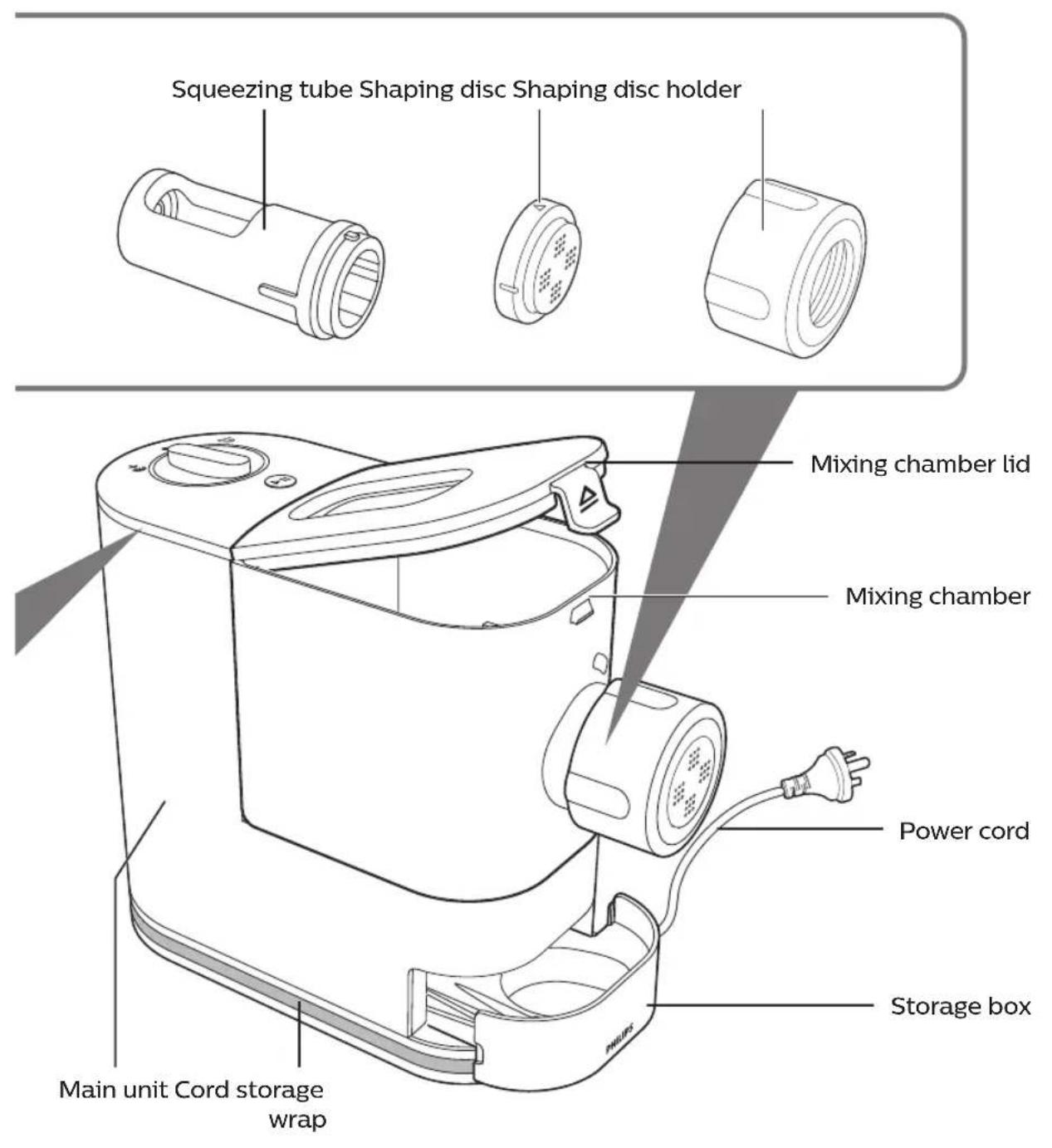

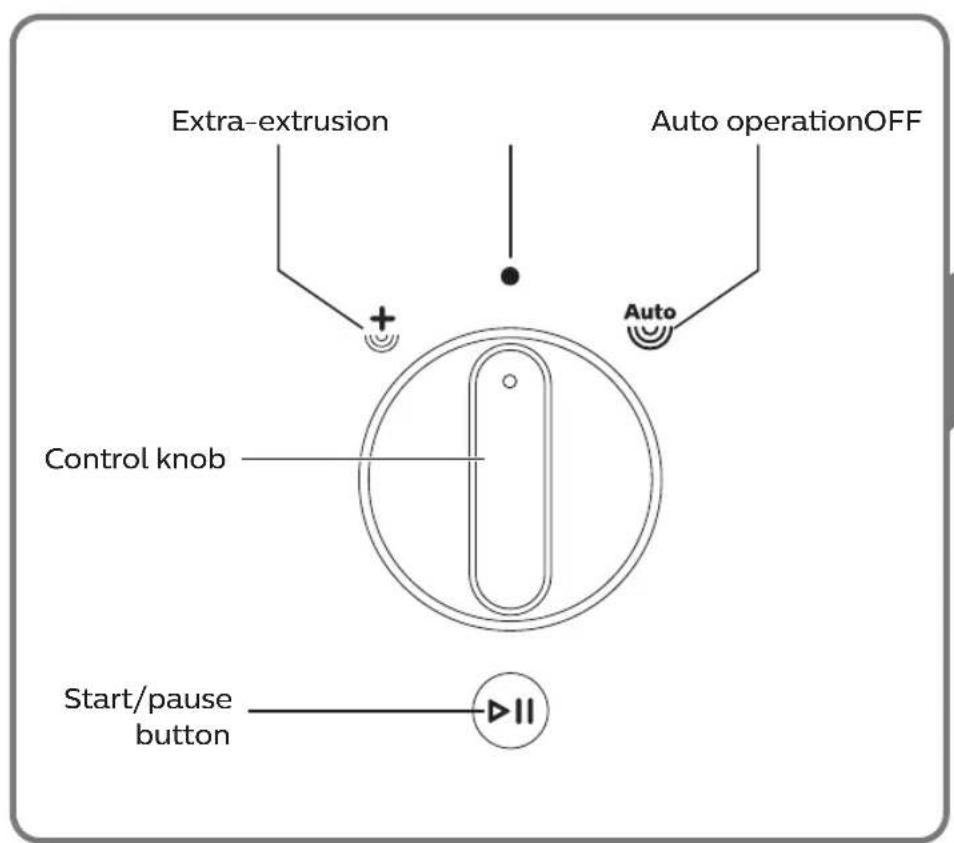

Overview

Mixing paddle Squeezing bar

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a twist drill bit with spiral end (no text or symbols)

12 English

English 13

Disassembling and cleaning before first use

Important

• Before using the appliance for the first time, remove and safely discard any packing material and/or promotional labels.
  • Take out all detachable parts and accessories, wash and thoroughly dry all parts and accessories (refer to the chapter "Cleaning").
• Do not use water to rinse or soak the main unit, the power cord, or the power plug.
• Do not use a scouring pad or similar cleaners as these will scratch the plastic surface and affect the lifetime of the Pasta and noodle maker.
• The shaping discs and all detachable parts of the appliance are dishwasher safe. When you clean them in a dishwasher, make sure to select the proper program which has a maximum temperature at no higher than 60°C (140°F).
  • This appliance is intended for household use only.

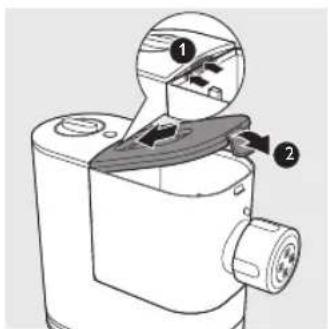

1 Pull the lid to unlock it and then remove the lid from the mixing chamber.

2 Slide the mixing chamber off the main unit.

3D technical illustration of a mechanical device with a highlighted component and arrow indicating direction (no text or symbols)

14 English

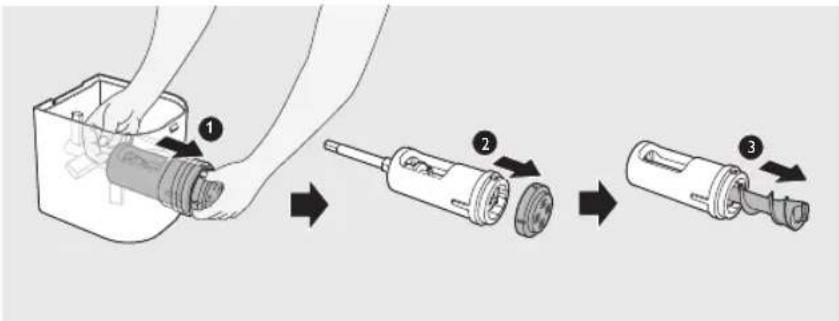

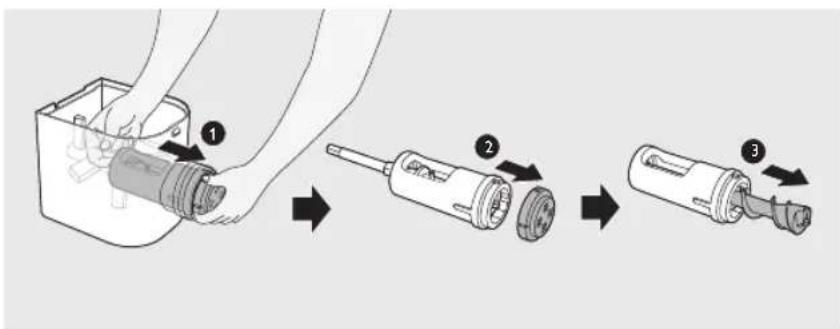

3 Turn the shaping disc holder counterclockwise to remove it from the mixing chamber outlet.

Diagram of a box with a pulley and rotating arrow, no text or symbols present

4 Put your finger in the mixing chamber and push the squeezing tube outwards to slide it out of the mixing chamber outlet. Detach the shaping disc, and then pull the squeezing bar out of the squeezing tube.

5 Take the mixing paddle out of the mixing chamber.

Diagram of a mechanical device with a plunger and directional arrow, no text or symbols present

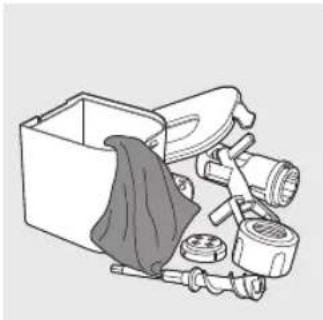

6 Clean all detachable parts and accessories, and then wipe them dry.

Diagram of a faucet pouring liquid into a container with mechanical components (no text or labels)

Illustration of a mechanical device with hoses and a cloth, no text or symbols present

Assembling

Follow below assembling steps to install the Pasta and noodle maker.

Important

• Make sure the appliance is not plugged in during assembly.

1 Slide the mixing chamber onto the main unit. Note:

- Make sure the fixing levers ① on the main unit are fitted with the openings on the bottom of the mixing chamber.

Diagram of a device with labeled parts, showing a mechanical assembly and a separate housing (no text or symbols present)

2 Put the mixing paddle in the mixing chamber as shown in the illustration.

Technical line drawing of a mechanical device with a handle and arrow indicating assembly (no text or symbols)

3 Insert the squeezing tube into the mixing chamber.

Note:

- Make sure the big opening on the squeezing tube faces up when you insert the tube into the chamber.

Technical line drawing of a mechanical component with a cylindrical connector and arrow indicating direction (no text or symbols)

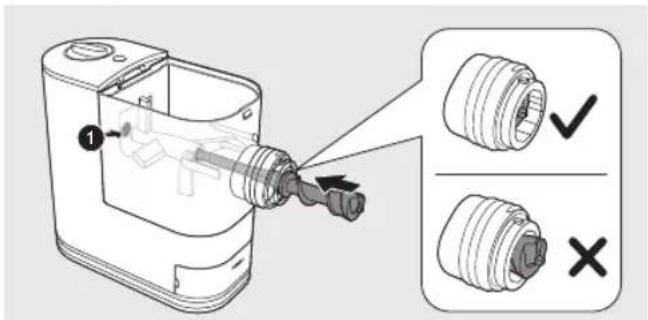

4 Insert the squeezing bar into the mixing chamber. Make sure the squeezing bar slides all the way through both the squeezing tube and the mixing paddle and into the shaft in the main unit.

Note:

- Slightly turn the mixing paddle to make sure the squeezing bar is connected correctly with the shaft 1 in the main unit.

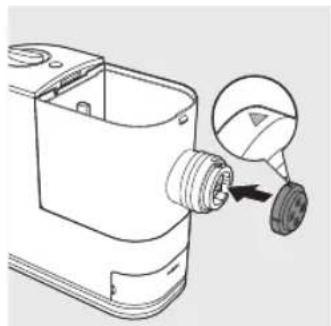

5 Attach the shaping disc on the mixing chamber outlet.

Note:

• Make sure the flat side of the shaping disc is facing out.

- Make sure the shaping disc fits into the fixing point on the squeezing bar.

• Make sure the arrow on the shaping disc face upwards when you attach it on the mixing chamber outlet.

Technical line drawing of a mechanical component with a close-up inset showing a wheel (no text or symbols)

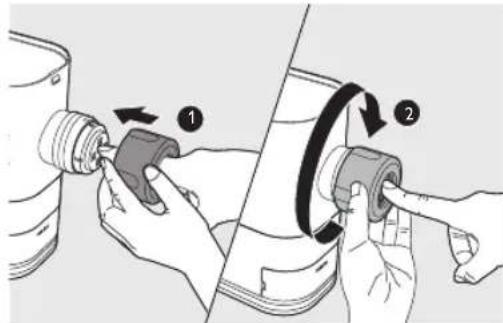

6 Press the shaping disc through the opening of the shaping disc holder, and then assemble the holder on the mixing chamber outlet. Turn the holder clockwise to firmly lock it in place.

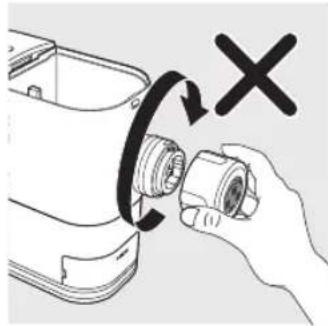

Always attach the shaping disc on the mixing chamber outlet before you assemble the shaping disc holder. Never put the shaping disc in the shaping disc holder and assemble them on the mixing chamber outlet at the same time.

Illustration of a hand holding a small mechanical component with a circular arrow indicating rotation (no text or symbols)

7 Attach the lid onto the mixing chamber.

Note:

- If the mixing chamber lid is not properly installed, the safety switch will prevent the appliance from working.

Using the Pasta and noodle maker

Important

• Place the product on a flat surface and prevent table shaking or vibration.
  • Make sure all the parts are well assembled before plugging in.
• Do not put less than 200g (1 flour cup) or more than 400g (2 flour cups) of flour in the chamber.

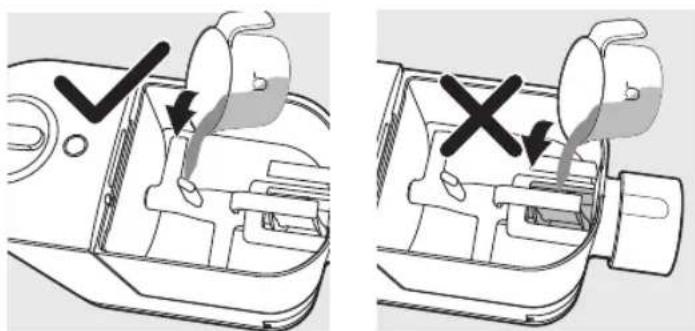

• Pour in the liquid slowly through the water slot after the appliance starts kneading.
• If you want to dispose of the weighed flour before processing with the next batch, empty the chamber and restart the appliance by unplugging and plugging in again.
• Do not put any ingredients that are 60°C / 140°F or above into the Pasta and noodle maker, or place the Pasta and noodle maker in surroundings at high temperature (60°C / 140°F), for instance in a high temperature sterilization environment. This will deform the appliance.
• Do not pour liquid into the mixing chamber before the Pasta and noodle maker starts running.
• Make sure the shaping disc and shaping disc holder are assembled properly before plugging in the appliance.

Preparing and measuring the flour

1 Scoop one full cup of flour using the flour cup. Scrape off any excessive flour from the cup edge with the supplied flat cleaning tool. 1 full cup of flour weighs around 200g, and 2 full cups of flour weigh around 400g.

Note:

• Do not shake or hit the flour cup to remove excessive flour. This will affect the flour weight.

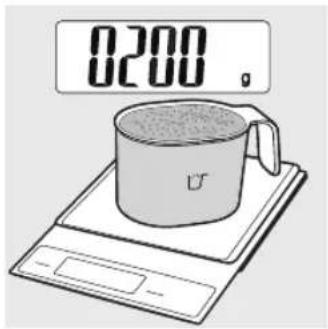

• Use a kitchen scale to measure the weight more accurately.
• 200g of flour makes about 200g fresh pasta/noodles. 400g of flour makes about 450g fresh pasta/noodles.

Illustration of a cooking pot with a lid and lid removed, showing dough inside (no text or symbols)

2 Pull the lid to unlock it and then remove the lid from the mixing chamber.

20 English

3 Pour the flour into the chamber. If you want to make 2-3 servings, add a second cup of flour as you will need 2 cups (\~400g) of flour in total.

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Note:

• Do not pour liquid into the mixing chamber at this point. Only pour liquid after the Pasta and noodle maker starts running.
• Do not put less than 200g or more than 400g of flour in the chamber. If you put too little or too much flour in the chamber, the appliance may not operate.
• Do not pour the flour into the opening of the squeezing tube, otherwise the flour in the squeezing tube will not be mixed evenly.

Diagram showing two views of a device interior with arrows indicating movement or change, no text or symbols present.

Preparing and measuring the liquid

1 Measure the liquid volume at eye level on a flat surface.

Note:

- Do not pour liquid into the mixing chamber before the Pasta and noodle maker starts running.

There are 2 sets of water markings on the supplied water cup.

When using all-purpose flour and egg mixture to make plain egg pasta, refer to side A with two liquid levels.

• Level 1 (80ml): required egg mixture amount for 1 cup of flour.
• Level 2 (160ml): required egg mixture amount for 2 cups of flour.

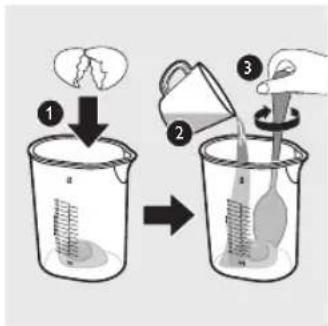

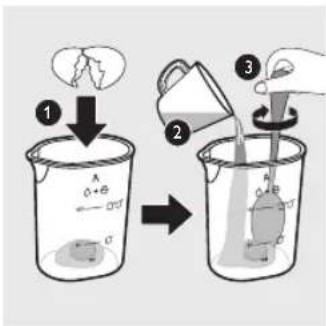

To make egg mixture for plain egg pasta, crack 1 egg into the water cup. Add water up to the required amount as shown on side A, and then whisk the water and egg to combine.

When using the following combinations of flour and liquid to make pasta, refer to side B with specific volume.

• All-purpose flour mixed with pure water/vegetable juice mixture.
• Various other flours (as shown in the following tables) mixed with egg mixture/pure water/ vegetable juice mixture.

22 English

Check the following tables for detailed water and flour ratio.

Note:

- These tables show the flour-liquid ratio base on 200g of flour. When using 400g of flour to make pasta, double the liquid volume (including egg) to get the right flour-liquid ratio.

When using egg mixture to make pasta, crack 1 egg into the water cup. Add water up to the required amount as shown below, and then whisk the water and egg to combine.

Flour Egg mixture (ml) Water cup
Durum (Semolina flour 150g + all-purpose flour 50g)*	75	Side B
Whole wheat 200g 90
Spelt 200g 90
Bread flour 200g 80
Soba (buckwheat flour 130g + all-purpose flour 70g)*	80

When using pure water to make pasta, add water to the required amount as shown below.

Flour Pure water (ml) Water cup
All-purpose flour 200g 70		Side B
Durum (Semolina flour 150g + all-purpose flour 50g)*	65
Whole wheat 200g 80
Spelt 200g 65

When using vegetable juice (including 1 egg) to make pasta, crack 1 egg into the water cup. Add vegetable juice up to the required amount as shown below, and then whisk the juice and egg to combine.

Flour	Spinach juice (including 1 egg) (ml)	Beet juice (including 1 egg) (ml)	Carrot juice (including 1 egg) (ml)	Water cup
All-purpose flour 200g	75 80 80			Side B
Durum (Semolina flour 150g + all-purpose flour 50g)*	75	75	75

* Use a kitchen scale to measure the weight more accurately.

Important

- The pasta recipes provided in the recipe book have been tested for success. If you experiment with or use other pasta recipes, the flour and water/egg ratios will need to be adjusted to the flour and water cup ratios included with the Pasta and noodle maker. The Pasta and noodle maker will not operate successfully without adjusting the new recipe accordingly.

Note:

- For best results, use all-purpose flour with the recommended liquid proportions indicated on the cup.

- Seasonal changes, using ingredients from different regions may affect the flour/water ratio.

- “Gluten” is a binder which ensures the pasta does not break easily. Gluten-free flour does not contain a binder, therefore it needs a thickener to act as a "binder" eg. Xanthan gum or Guar. Various kinds of gluten-free flour perform differently when making pasta. Some flours are not suitable for making varieties pasta such as coconut flour and white rice flour; some flour varieties work well, such as quinoa and buckwheat.

• See the recipe book provided for more delicious pasta and noodle ideas.

Starting the pasta making program

Important

- Do not select the extra extrusion program before the dough mixing is complete. Otherwise, this will damage the Pasta and noodle maker and its lifetime.

- Do not disconnect the power cord before the processing is complete. If you have to stop the pasta making process, turn the control knob to "OFF" to stop the working process and then disconnect the power cord from outlet before performing other operations.

- Do not exceed the maximum operation cycle of 2 cycles continuously at all applications. To better protect the lifetime of the appliance, you can restart using the appliance after 30 minutes upon 2 continuous operation cycles.

- If you intend to use the appliance continuously, clean each shaping disc with the supplied cleaning tool each time after the pasta making session. For easy cleaning, do not soak the shaping disc directly in water.

1 Put the plug of the appliance into the power outlet. The Pasta and noodle maker will sound once.

Note:

• Make sure all the parts are well assembled before plugging in.

Hand inserting a cable into an electrical outlet (no text or symbols visible)

2 Attach the lid onto the mixing chamber.

Note:

- The appliance will not start working if the chamber lid is not properly closed. During the pasta making process, if the chamber lid becomes loose, the appliance will automatically stop working.

3 Turn the control knob to select the automatic pasta making process, and then press the Start/Pause button.

Note:

- The whole working process (including kneading and extruding) takes around 12 minutes for 200g of flour and 18 minutes for 400g of flour.

4 After the kneading starts, slowly pour in the liquid along the entire length of the slot in the lid.

Note:

- During dough mixing, do not add other ingredients after you have poured in the liquid. Otherwise, it will affect the results of the pasta texture.

Line drawing of a kitchen appliance with a handle and central sink (no text or symbols)

5 After the Pasta and noodle maker finishes kneading, it will beep a few times and the pasta extrusion will start after a few seconds. Place a container right under the outlet. Cut the pasta into the desired length with the cleaning tool.

Note:

- If the ratio of liquid and flour is not correct, the extrusion will not succeed. In this case, prepare the ingredients again.

- Move the cleaning tool downwards to cut the pasta.

Line drawing of a food delivery machine with noodles being poured into a bowl (no text or symbols)

6 When the extrusion process is complete, the appliance will beep a few times.

Note:

- Do not turn the control knob to the "OFF" position before the whole process is over (you will hear the "beep" sound).

7 After the pasta making is complete, if you notice some leftover dough inside the chamber, you can turn the control knob to the OFF position first, and then turn the control knob to the extra-extrusion position. Press the Start/Pause button to start the extra-extrusion program.

Note:

• You may find some fine pasta threads on the pasta surface. This is normal.
• The cooking time of the pasta varies depending on personal preferences, pasta shapes, and number of servings.

Cleaning

Important

• Turn the control knob to "OFF", disconnect the power and remove the power cord before cleaning or disassembling this appliance.
• Do not immerse the main unit in water.
• Do not use a scouring pad, caustic cleaners, or abrasive cleaners (for examples, gasoline, alcohol, and propanol) to clean the appliance.
• Clean the appliance each time after use, or the appliance might not operate properly.
• Take extra caution when cleaning the appliance to avoid getting cut by any sharp edges.
• The shaping discs and all detachable parts of the appliance are dishwasher safe. When you clean them in a dishwasher, make sure to select the proper program which has a maximum temperature at no higher than 60°C (140°F).

1 Turn the control knob to "OFF" and disconnect the plug from the power outlet.

2 Pull the lid to unlock it and then remove the lid from the mixing chamber.

3 Slide the mixing chamber off the main unit.

3D rendering of a mechanical device with a housing and mounting bracket (no text or symbols visible)

4 Turn the shaping disc holder counterclockwise to remove it from the mixing chamber outlet.

Diagram of a mechanical device with a rotating wheel and directional arrows indicating motion (no text or symbols)

5 Put your finger in the mixing chamber and push the squeezing tube outwards to slide it out of the mixing chamber outlet. Detach the shaping disc, and then pull the squeezing bar out of the squeezing tube.

6 Take the mixing paddle out of the mixing chamber.

Diagram of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

7 Clean the shaping disc with the supplied cleaning tool to remove the dough residues. After that, you can clean it with water.

Illustration of hands using a tool to apply material to a circular device (no text or symbols visible)

Illustration of hands using a tool to apply liquid into a container (no text or symbols visible)

8 Clean all detachable parts with dishwashing liquid and warm water or clean in the dishwasher. After that, wipe all parts dry.

9 Use a dry cloth to clean the main unit, control knob, and the exterior of the Pasta and noodle maker.

Note:

• After cleaning, make sure all parts and the shaping disc air dry thoroughly before storing. Assemble the Pasta and noodle maker back for next use.

Line drawing of a mobile phone with a cloth cover (no text or symbols)

Storage

1 Wind the power cord around the cord storage wrap.

2 Dry the shaping discs and store them in the storage box.

The small groove in the storage box is designed for the cleaning tool of the angel hair shaping disc, which is not included in this Pasta and noodle maker. It will be launched and sold separately.

3 Store the Pasta and noodle maker in a dry, well ventilated place after use.

Line drawing of a vehicle's side profile showing front and rear panels with a plug (no text or symbols)

Line drawing of a rectangular appliance with two circular compartments and a handle (no text or symbols)

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support or refer to page 32 for the consumer care number to call for assistance.

The appliance does not sound after the plug is put in the wall outlet.

- The plug is not connected properly, or the outlet is not connected to power source. Check whether the power plug is plugged correctly and the outlet is working properly.

The appliance does not start the pasta making process after the plug is put in the wall outlet.

- You have not chosen a pasta making program or pressed the start button. Choose a pasta making program and press the start button

After pressing the start button; the appliance makes alarm sounds and does not work.

- The chamber lid is not assembled properly. Make sure you follow the user manual to assemble the chamber lid properly.

The chamber lid is pushed open from the inside.

• There's too much flour in the mixing chamber.
  The maximum amount of flour for each batch is 400g. If you have put more than 400g of flour in the mixing chamber, reduce the amount and make another batch of pasta.
• The ratio of flour and water provided in the "Flour/water ratio table" was not followed. The dough is too wet.
  Disconnect from the power source, clean the Pasta and noodle maker, and follow the user manual again to restart the pasta making.
  • The chamber lid is not assembled properly.
  Make sure you follow the user manual to assemble the chamber lid properly.

During the pasta making process, the appliance stops working, and there is no alarm sound.

• The Pasta and noodle maker has overheated due to long and continuous working time.
  Disconnect from the power source, and allow the Pasta and noodle maker to cool down. Do not exceed the maximum operation cycle of 2 cycles continuously at all applications. To better protect the lifetime of the appliance, you can restart using the appliance after 30 minutes upon 2 continuous operation cycles.

During the pasta making process, the appliance stops working, and makes alarm sounds.

• The ratio of flour and water provided in the "Flour/water ratio table" was not followed. The dough may be too dry.
• The mixing paddle may be blocked by some foreign objects.
  • The wrong program is selected.
  Disconnect from the power source, clean the Pasta and noodle maker, and follow the user manual again to restart the pasta making.

The mixing paddle is running idle, and there is no pasta coming out.

• The ratio of the flour and water is incorrect.
Disconnect the plug from the power source and discard dough. Clean the Pasta and noodle maker, measure ingredients correctly (use a kitchen scale to measure the flour weight more accurately), and follow the user manual again to restart the pasta making
- The flour becomes damp after longtime storage.
Use flour that is fresh or properly stored.

The pasta breaks easily.

• The ratio of the flour and water is incorrect.
Disconnect the plug from the power source and discard dough. Clean the Pasta and noodle maker, measure ingredients correctly (use a kitchen scale to measure the flour weight more accurately), and follow the user manual again to restart the pasta making.
- You did not use the correct type of flour.
Use all-purpose flour or flour with higher protein content (refer to the chapter 'Using the Pasta and noodle maker' in the user manual or the supplied recipe book).

32 English

The pasta sticks together.

- The ratio of the flour and water is incorrect, too much water is poured in the mixing chamber. Measure flour and water with the provided flour and water cup and according to the "flour/water ratio table". Use a kitchen scale to measure the flour weight more accurately.

Too much leftover dough inside the chamber.

• The flour is either exposed to moisture before use, or the dough is too wet.
  Keep your flour dry during storage. Follow the user manual instructions to restart the pasta making.
• The chamber, the mixing paddle, the shaping disc are not cleaned properly before use.
  Make sure all parts are clean before use.
  • The mixing paddle or the chamber is still wet.
  Make sure all parts are completely dry before use.
  • Water is not added in the right order.
  The flour type is not suitable.
  Follow the user manual instructions to make pasta.

Small amount of water is leaking out from the appliance.

• Water is added before the program starts.

Follow the user manual instructions to add water right after the program starts.

After pasta making, the squeezing tube cannot be pushed out of the mixing chamber.

- The appliance is stopped during extrusion before the pasta making process is finished completely.

1. Restore the disassembled parts back in place until the appliance is assembled properly, and turn the control knob to the OFF position.
2. Plug in, select the automatic pasta making program, and press the start button. Keep the mixing paddle rotating for around 10 seconds, and then turn the control knob to the OFF position.
3. Unplug the appliance, disassemble and clean the appliance as described in the user manual (see chapter "cleaning").

Product information

Model HR2332
Motor power 150W
Rated voltage AC220-240V (50Hz)
Dimensions (L x W x H) 350 mm x 135 mm x 287 mm
Net weight 4.7 kg

• For rated voltage and frequency information, refer to the type plate on the product. Product information is subject to change without prior notice.

Components	Mixing chamber	Lid	Mixing paddle / squeezing bar	Shaping discs
Material Tritan	Tritan POM POM	M

Recycling

Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Abbreviations

g = grams

~ = approximately

ml = milliliters

mm = millimeters

kg = kilogram

Guarantee and service

If you have a problem, need service or need information, see www.philips.com/support or contact the Philips Consumer Care Center in your country.

目录

重要信息 38

包装盒内物品 41

概览 42

首次使用前的拆卸和清洁 44

组装 46

使用意面 / 面条机 49

清洁 57

存储 60

故障排除 61

产品信息 64

回收 64

保修和服务 65

重要信息

安全

Line drawing of a portable electric shaver with attached power outlet (no text or symbols)

用户手册

食谱

扁平清洁工具

面粉杯

水杯

意大利面 / 细面 *
塑形模块：

意大利宽面 / 板面

意大利通心粉

千层面

2 将搅拌容器从主装置上滑出。

3D technical illustration of a mechanical device with a highlighted component (no text or symbols)

44 简体中文

Diagram of a box with a pulley and rotating arrow, no text or symbols present

5 将搅拌叶片从搅拌容器取出。

Diagram of a mechanical device with a clamping tool above it, showing no text or symbols.

Illustration of a water tap and a mechanical device with hoses and fittings (no text or symbols)

组装

按照以下组装步骤安装意面 / 面条机。

重要信息

- 组装时确保产品不要通电。

1 将搅拌容器滑到主装置上。

注意：

Diagram of a device with a labeled component, showing internal components and an open casing (no text or symbols present)

Line drawing of a mechanical device with a handle and arrow indicating direction (no text or symbols)

3 将挤压管插入搅拌容器中。

注意：

Technical line drawing of a mechanical component with a cylindrical connector and arrow indicating direction (no text or symbols)

5 将塑形模块固定到搅拌容器出面口上。

注意：

Technical line drawing of a mechanical component with a close-up view of a tire being inserted (no text or symbols)

Diagram of a hand holding a small mechanical component with a circular arrow indicating rotation (no text or symbols present)

7 盖好搅拌容器盖。

注意：

使用意面 / 面条机

重要信息

Illustration of a cooking pot with a lid and lid removed, showing dough inside (no text or symbols)

注意：

50 简体中文

Line drawing of a mechanical device with a lever and handle (no text or symbols)

注意：

Diagram showing two views of a car interior with arrows indicating movement or change, no text or symbols present.

准备并量取液体

随附的水杯上有 2 种水位标记。

Hand inserting a cable into an electrical outlet (no text or symbols visible)

2 盖好搅拌容器盖。

注意：

Line drawing of a small industrial machine with a handle and spout, showing internal components (no text or symbols)

Illustration of a food delivery machine pouring noodles into a bowl (no text or symbols)

3 将搅拌容器从主装置上滑出。

3D rendering of a mechanical device with a housing and mounting bracket (no text or symbols visible)

Line drawing of a mechanical device with a rotating wheel and directional arrows indicating motion (no text or symbols)

6 将搅拌叶片从搅拌容器取出。

Diagram of a mechanical device with a handle and arrow indicating upward motion (no text or symbols)

58 简体中文

Illustration of hands using a tool to apply liquid onto a device (no text or symbols visible)

Illustration of hands using a pipette to apply liquid into a container (no text or symbols visible)

Line drawing of a mobile phone with a cloth cover, showing front and side views (no text or symbols)

存储

Line drawing of a vehicle's side profile with a plug and seat (no text or symbols)

Line drawing of a tray with two circular compartments and a handle, no text or symbols present

故障排除

Specifications are subject to change without notice

技术规格如有变更恕不另行通知

All rights reserved.

保留所有权利

3000 023 35241 A

100% recycled paper

100% 循环在造纸
