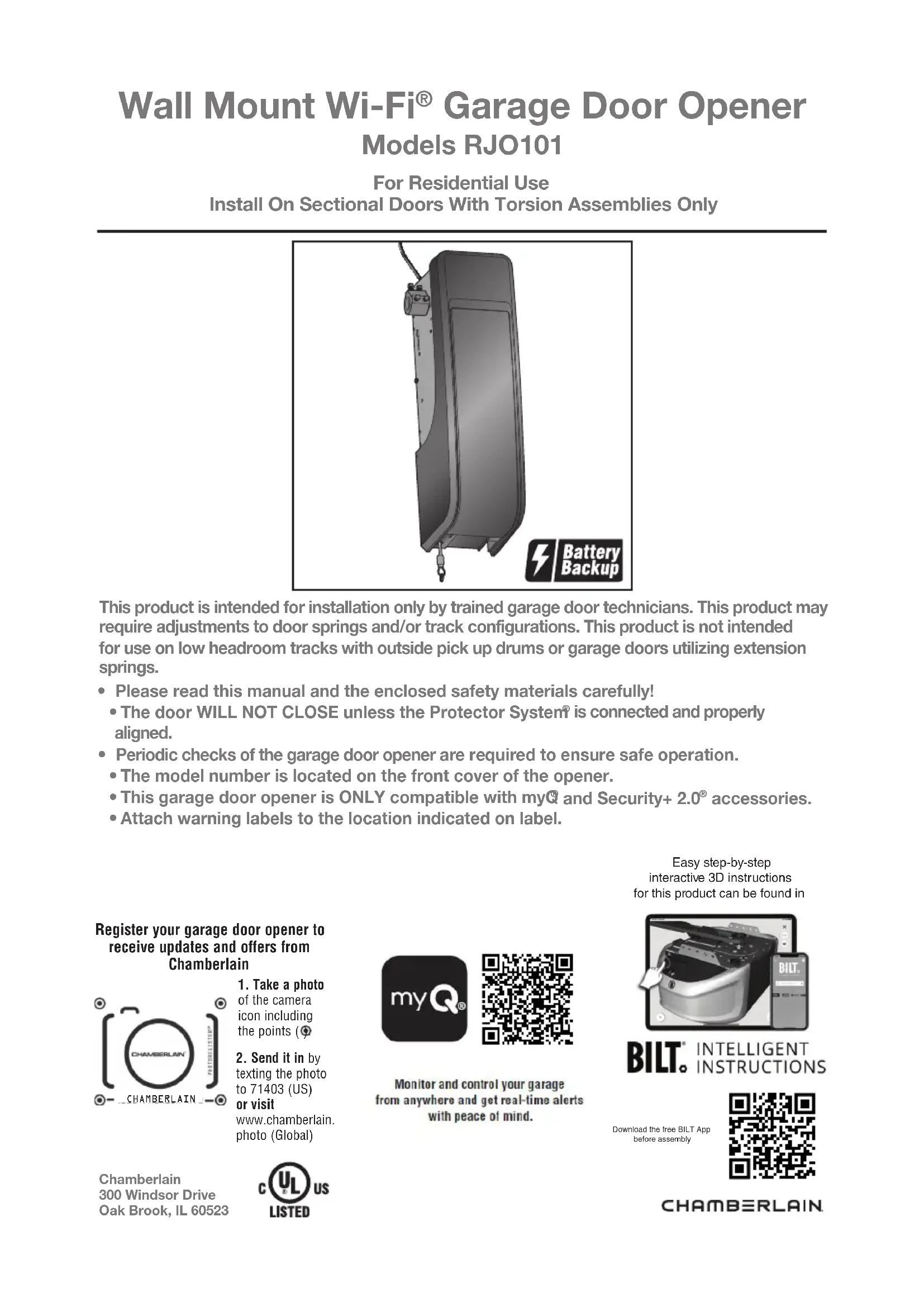

USER MANUAL RJO101 CHAMBERLAIN

• Please read this manual and the enclosed safety materials carefully!

is connected and properly aligned.

• Periodic checks of the garage door opener are required to ensure safe operation.

• The model number is located on the front cover of the opener.

• This garage door opener is ONLY compatible with myQ

• Attach warning labels to the location indicated on label. This product is intended for installation only by trained garage door technicians. This product may require adjustments to door springs and/or track configurations. This product is not intended for use on low headroom tracks with outside pick up drums or garage doors utilizing extension springs. For Residential Use Install On Sectional Doors With Torsion Assemblies Only Wall Mount Wi-Fi

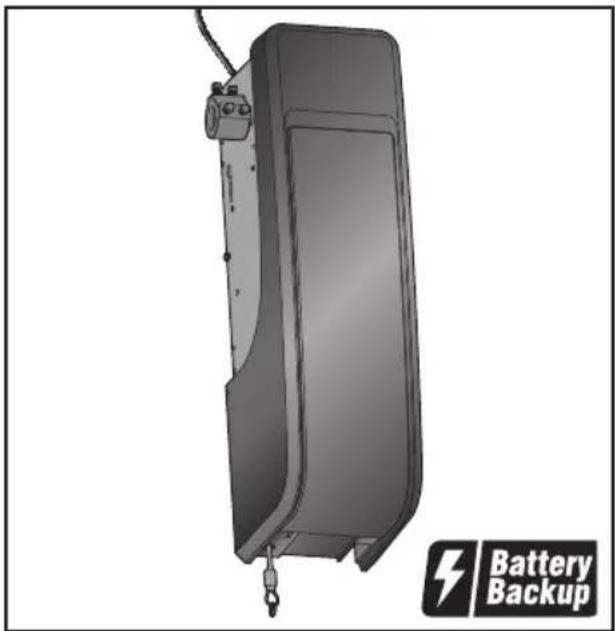

Garage Door Opener Models RJO101 Chamberlain 300 Windsor DriveOak Brook, IL 60523Register your garage door opener to receive updates and offers from Chamberlain1. Take a photo of the camera icon including the points ( ).2. Send it in by texting the photo to 71403 (US) or visit www.chamberlain.photo (Global) CHAMBERLAIN Available on most iOS and Android Devices Download the free BILT App before assembly Easy step-by-step interactive 3D instructions for this product can be found in Download the free myQ

App Monitor and control your garage from anywhere and get real-time alerts with peace of mind.2 Preparation When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully. When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully. Mechanical Electrical Safety Symbol and Signal Word Review This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual. Date of Purchase: Write down the following information for future reference: Product Serial Number: myQ Serial Number: Serial Numbers

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause

• cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. The Timer-to-Close (TTC) feature, the myQ Smartphone Control app, and myQ Garage Door and Gate Monitor are examples of unattended close and are to be used ONLY with sectional doors. Any device or feature that allows the door to close without being in the line of sight of the door is considered unattended close. The Timer-to-Close (TTC) feature, the myQ Smartphone Control, and any other myQ devices are to be used ONLY with sectional doors. Smart LED Light must be installed to enable use of Timer To Close or myQ Smartphone Control of the door. myQ Serial Number Unattended Operation Table of Contents PREPARATION 2 myQ Serial Number p. 2
• Safety Symbol and Signal Word Review p. 2
• Unattended Operation p. 2
• Planning Before You Connect with Your Smartphone p. 3

Preparation Survey your area to see if any of the conditions below apply to your installation. Take note of the drum sizes to make sure they are correct. Depending on your requirements, additional materials may be required. THIS DOOR OPENER IS COMPATIBLE WITH:

• Doors that use a torsion bar and springs. The torsion bar must be 1" (2.5 cm) diameter. NOT compatible with reverse wound drums.

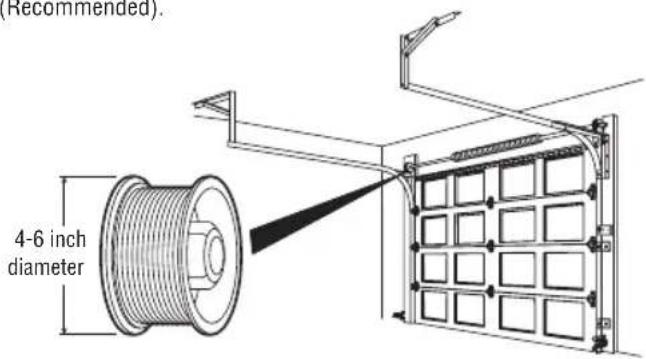

• Standard lift sectional doors using 4-6" (10-15 cm) diameter drums.

• 4-6" (10-15 cm) straight drums.

• 3 to 3.9 inch (7.6cm to 9.9cm) drums may be used on doors up to 430 lbs. (195.4Kgs)

• High lift (up to 54" (137.2 cm) high) and standard lift sectional doors up to 14 ft. (4.3 m) high.

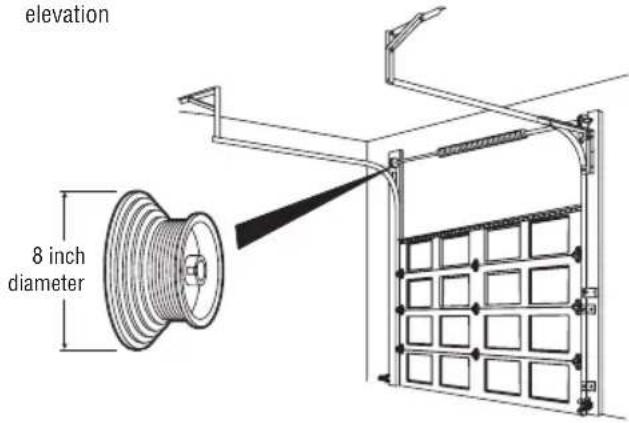

• High lift sectional doors using 8" (20 cm) diameter taper drum.

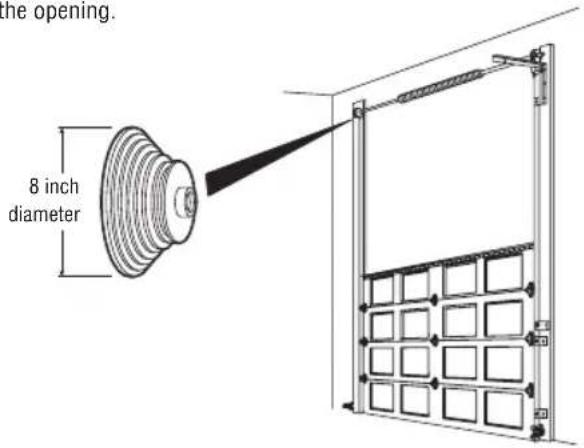

• Vertical lift sectional doors using 8" (20 cm) diameter full taper drums. NOTE: Inspect the torsion bar while the door is raised and lowered. It is important that there is no noticeable movement up and down or left and right. If the movement is not corrected, the life of the garage door opener will be greatly reduced.

• Doors up to 18 ft. (5.5 m) wide. Review or inspect proposed installation area. The door opener can be installed on the left or right side of door. Select the side that meets the requirements listed below. a. Must have minimum of 2.5" (6.4 cm) between the wall and the center of the torsion bar. b. Must have minimum of 3" (7.6 cm) between the ceiling and the center of torsion bar. c. Must have minimum of 8.5" (21.6cm) between the side wall (or obstruction) and the end of torsion bar. d. The torsion bar must extend at least 1.5" (3.81 cm) past the bearing. This may vary depending on your installation requirements. e. An electric outlet is required within 6ft. (1.83 m) of the installation area. If outlet does not exist, contact a qualified electrician. f. Depending upon building construction, extension brackets or wood blocks may be needed to install safety reversing sensors and cable tension monitor. g. Alternate floor mounting of the safety reversing sensors will require hardware (not provided). h. Check the seal on the bottom of the door. Any gap between the floor and the bottom of the door must not exceed 1/4 inch (6 mm). Otherwise, the safety reversal system may not work properly.4 Before You Connect with Your Smartphone Preparation Monitor and control your garage door from anywhere using the myQ app. BEFORE YOU BEGIN: You will need:

• Wi-Fi signal in the garage (2.4 Ghz, 802.11b/g/n required)

• Password for your home network (router's main account, not guest network)

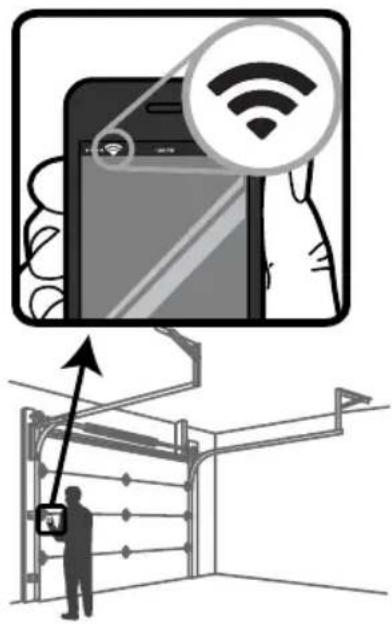

TEST THE WI-FI SIGNAL STRENGTH

Make sure your mobile device is connected to your Wi-Fi network. Hold your mobile device in the place where your garage door opener will be installed and check the Wi-Fi signal strength. For compatible router specifications and help, visit support.chamberlaingroup.com. See page 13 to connect the garage door opener to a mobile device. Check Signal Strength. If you see: Wi-Fi signal is strong. The garage door opener will connect to your Wi-Fi network. Wi-Fi signal is weak. The garage door opener may connect to your Wi-Fi network. If not, try one of the options below to improve the Wi-Fi signal: No Wi-Fi signal. The garage door opener will not be able to connect to your Wi-Fi network. Try one of the options below to improve the Wi-Fi signal:

• Move your router closer to the garage door opener to minimize interference from walls and other objects

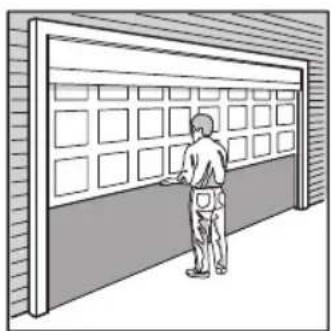

• Remove any ropes connected to the garage door. Complete the following test to make sure the garage door is balanced and is not sticking or binding:

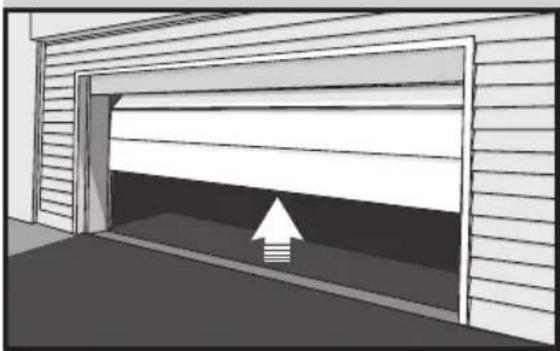

1. Lift the door halfway up. Release

the door. If balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to check for

binding or sticking.

3. A properly balanced door should NOT

open or fall rapidly. If your door binds, sticks, or is out of balance, call a trained door systems technician. To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at 120V, 60Hz to avoid malfunction and damage. To prevent possible SERIOUS INJURY or DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may NOT reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

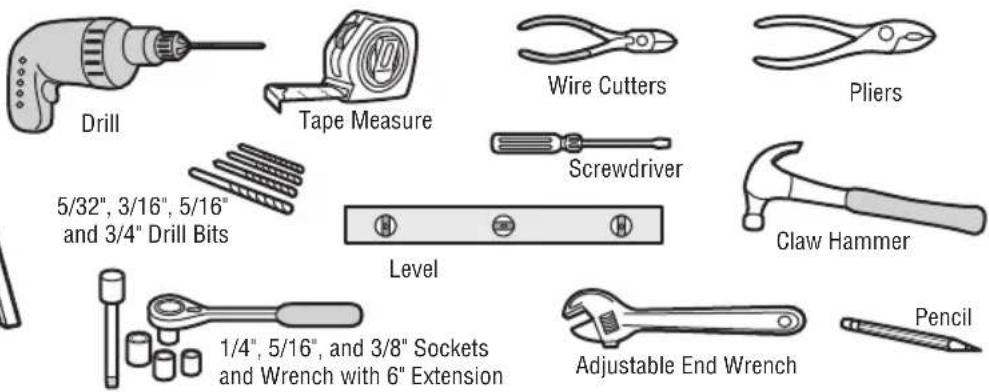

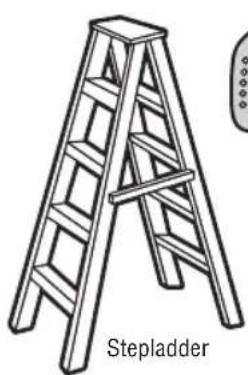

• This opener system is equipped with an unattended operation feature. The door could move unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR. Tools Needed During assembly, installation and adjustment of the garage door opener, instructions will call for hand tools as illustrated below. Pliers Wire Cutters Claw Hammer Screwdriver Adjustable End Wrench 1/4", 5/16", and 3/8" Sockets and Wrench with 6" Extension Drill Tape Measure Stepladder Pencil Needle Nose Pliers 5/32", 3/16", 5/16" and 3/4" Drill Bits Torque Meter (not shown) Level Sectional Door SPECIFICATIONS Volts ............................................120 Vac - 60 Hz, ONLY Current .....................................................1.5 AMP LED Light Current (independently powered)........................0.2 AMPS6 Carton Inventory If anything is missing, carefully check the packing material. Preparation Remote Control Visor Clip Single Button Premium Remote Control Model 950ESTD (1) Smart LED Light myQLED1 (Garage Door Opener Light) with Hardware Bag Automatic Garage Door Lock with 2-Conductor White and White/Black Bell Wire with Connector NOTE: Older model 24V door locks are incompatible 2 Conductor Bell Wire White and White/Red Garage Door Opener Mounting Bracket Collar with Set Screws Safety Reversing Sensor Bracket (2) The Protector System (2) Safety Reversing Sensors (1 Sending Sensor and 1 Receiving Sensor) with 2-Conductor White and White/Black Bell Wire attached Safety Labels and Literature Motion-Detecting Control Panel Battery Screw #10-32 (2) Screw 14-10x2" (2) Handle Rope Screw 1/4"-20x1/2" (2) Screw 6ABx1-1/4" (2) Drywall Anchor (2) Screw 6-32x1" (2) Carriage Bolt 1/4"-20x1/2" (2) Wing Nut 1/4"-20 (2) SMART LED LIGHT: Drywall Anchor (Screw-In) (2) Screw #6x1" (2) HARDWARE INCLUDED ACCESSORIES7 Identify Door Profile To identify the door profile number, measure the full drum diameter based on the images below. NOTE: This step is important to ensure the proper operation of the unit. To view a video demonstration of how to identify and set the door profile, scan the QR code.

• Door Profile 5 = Tapered drum with rails that raise to a higher elevation Standard Lift Sectional Door

• Door Profile 1 = Standard to Heavy Weight Door* with a 4" drum (Recommended).

• Door Profile 2 = Light Weight Door with a 4" drum.

• Door Profile 3 = Heavy Weight Door* with a 6" drum.

• Door Profile 4 = Light Weight Door with a 6" drum. *NOTE: Drum sizes may vary by manufacturer. For Standard Lift Sectional Doors:

• Drums less than or equal to 5", use 4" drum.

• Drums more than 5", use 6" drum. If unsure about door weight, choose: Door Profile 1 for a 4" drum. Door Profile 3 for a 6" drum. Vertical Lift Sectional Door

• Door Profile 5 = Tapered Drum with rails raising vertically above the opening. Adjustment To prevent possible SERIOUS INJURY or DEATH, follow instructions to select and set door profile for safe and proper operation. 4-6 inchdiameter 8 inchdiameter8 inchdiameter 4-6 inchdiameter 8 inchdiameter 8 inchdiameter 4-6 inchdiameter8 inchdiameter 8 inchdiameter

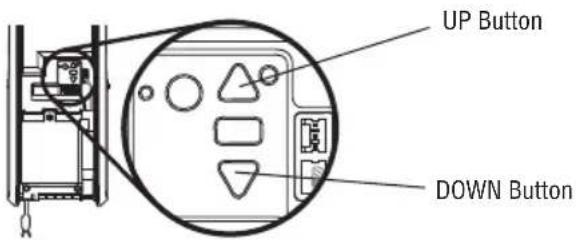

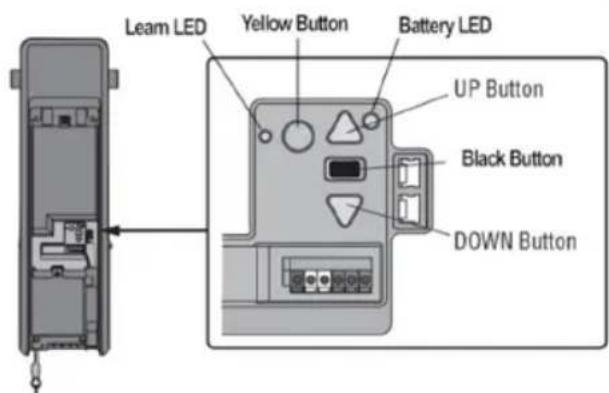

1. To enter Set Door Profile mode, press and hold the black

button for one second. The UP and DOWN buttons turn a solid color.

2. To set Door Profile, press the UP and DOWN buttons. The

Learn LED button blinks and beeps as you change the setting.

3. The number of Learn LED button blinks indicates which

profile you have selected. There is no preset door profile setting.

4. Press and release the Black button to set the Door Profile.

This process is now complete. Proceed to the Travel Learn mode.

EXITING DOOR PROFILE NUMBER SETTING

If there is no selection within 4.5 minutes, the Door Profile selection mode will be cancelled with a long beep. Set Door Profile

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor. Adjustment Once both the up and down positions have been manually set, the Safety Reversing Sensors will reconnect and become operational. Then, the opener will enter a force-sensing operation by automatically moving the door open and close. The garage door opener will sound an audible and visual alert before automatically opening and closing the door. The garage door opener will beep three times, confirming that the Automatic Force Setup completed successfully. Adjustment is complete.If you hear one long beep after the door attempts to move, then the Automatic Force Set Up has not completed successfully. Please start over at step 1 of Program the Travel. NOTE: While programming the travel, the UP and DOWN buttons can be used to move the door as needed. During the Automatic Force Setup, the door will automatically open and close. Automatic Force Set Up

1 Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep is heard. The Safety Reversing Sensors will be disconnected during the Program the Travel process. 5 Once the door is in the desired DOWN position press and release the Adjustment Button. The garage door opener lights will flash twice. Program the Travel is now complete. If the garage door opener lights flash 5 times, then programming has timed out and the Travel Limits have not been set. Please restart the Program the Travel process. 2 Press and hold the UP Button until the door is in the desired UP position. 4 Press and hold the DOWN Button until the door is in the desired DOWN position. 3 Once the door is in the desired UP position press and release the Adjustment Button. The garage door opener lights will flash twice and the DOWN Button will begin to flash.9 1 With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door. Test the Safety Reversal System 2 Press the remote control push button to close the door. The door MUST reverse when it makes contact with the board. If the door stops but does not reverse:1. Repeat Program the Travel (see Adjustment Step 1);2. Repeat the Safety Reversal test.If the test continues to fail, call a trained door systems technician.Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door. • Safety reversal system MUST be tested every month.• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) high object (or 2x4 laid flat) on the floor.

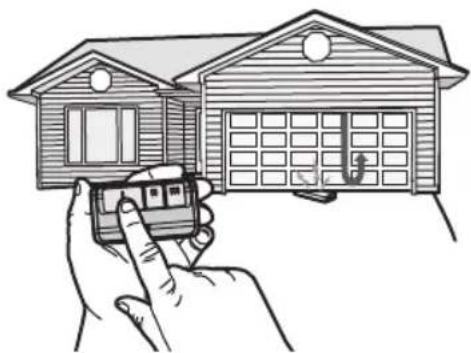

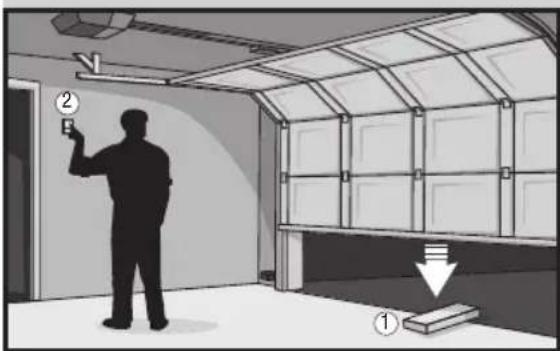

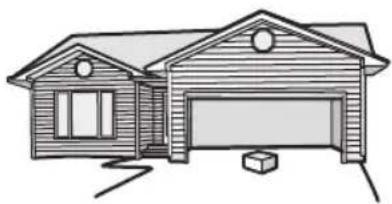

1 Open the door. Place an obstruction in the path of the door. The garage door opener will not close from a remote control if the LED in either safety reversing sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).If the garage door opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6 inches [15 cm] above the floor), call for a trained door systems technician.Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door. 2 Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm).

1. With the door fully closed, check to ensure that the power lock

bolt is visible protruding through the track.

2. Press the button on the remote control to open the garage

door. The power door lock should retract before the door begins to move.

3. Press the button on the remote control to close the garage

door. When the door reaches the fully closed position, the power door lock should automatically activate to secure the door. NOTE: The power door lock can be manually released by sliding the manual release handle to the open position. However, if the power door lock does not function, contact Chamberlain for a replacement.

OPEN THE DOOR MANUALLY:

1. Close the garage door. Slide the manual release handle

on power door lock to open before proceeding.

2. Pull down on the emergency release handle until you

3. Lift the door manually.

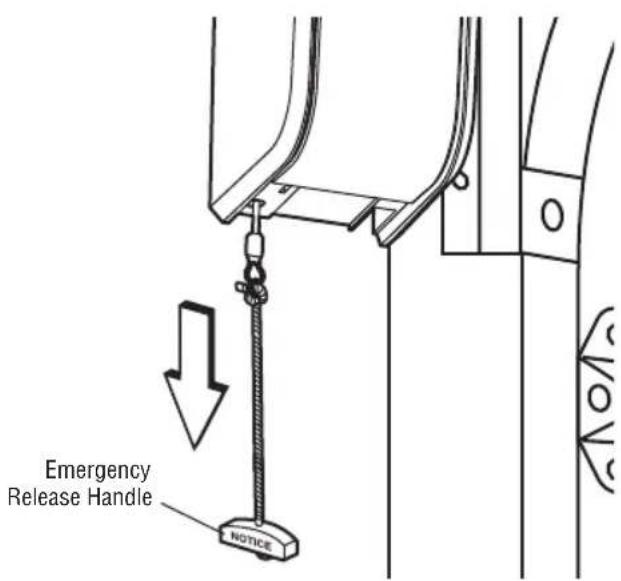

RECONNECT THE DOOR TO THE GARAGE DOOR OPENER:

1. Pull down on the emergency release handle until you hear

a click. The door will reconnect on the next UP or DOWN operation. To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage door ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions. Emergency Release Handle Adjustment Power Door LockManual ReleaseLock Bolt“Locked” Power Door Lock Manual Release Lock Bolt "Locked" Test the Power Door Lock Test the Emergency Release11 Operation

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. Read and follow all warnings and instructions.

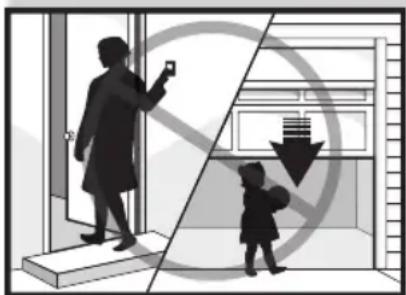

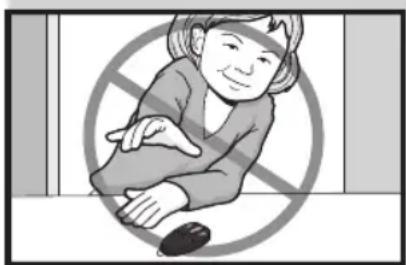

2. ALWAYS keep remote controls out of reach of children.

NEVER permit children to operate or play with garage door control push buttons or remote controls.

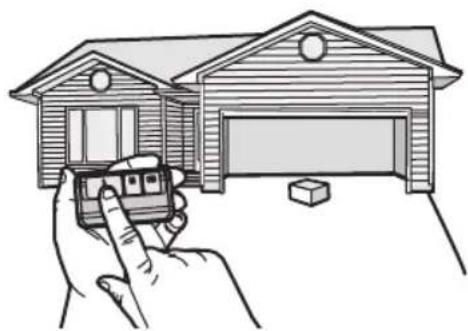

3. ONLY activate garage door when it can be seen clearly,

it is properly adjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door in sight and away from

people and objects until completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

6. If possible, use emergency release handle to disengage

trolley ONLY when garage door is CLOSED. Use caution when using this release with the door open. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly and increasing the risk of SEVERE INJURY or DEATH.

7. NEVER use emergency release handle unless garage

doorway is clear of persons and obstructions.

8. NEVER use emergency release handle to pull garage

door open or closed. If rope knot becomes untied, you could fall.

9. After ANY adjustments are made, the safety reversal

system MUST be tested.

10. Safety reversal system MUST be tested every month.

Garage door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or a 2x4 laid flat) on the floor. Failure to adjust the garage door opener properly increases the risk of SEVERE INJURY or DEATH.

11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED.

An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.

12. ALL repairs to cables, spring assemblies and other

hardware, ALL of which are under EXTREME tension, MUST be made by a trained door systems technician.

13. ALWAYS disconnect electric power to garage door

opener BEFORE making ANY repairs or removing covers.

14. This garage door opener system is equipped with an

unattended operation feature. The door could move unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

INSTRUCTIONS.12 FEATURES Your garage door opener is equipped with features to provide you with greater control over your garage door operation. Alert2Close The Alert2Close feature provides a visual and an audible alert that an unattended door is closing. TIMER-TO-CLOSE (TTC) The TTC feature automatically closes the door after a specified time period that can be adjusted using a TTC enabled door control (Multi-Function Wall Control). Prior to and during the door closing the garage door opener lights will blink and the garage door opener will beep. Smart LED Light must be installed to use TTC or myQ to control the door. myQ myQ allows you to control your garage door opener from your mobile device or computer from anywhere. myQ technology uses a 900Mhz signal to provide two way communication between the garage door opener and myQ enabled accessories. The garage door opener has an internal gateway that allows the garage door opener to communicate directly with a home Wi-Fi network and access your myQ account. Using Your Garage Door Opener

THE PROTECTOR SYSTEM (SAFETY

REVERSING SENSORS) When properly connected and aligned, the safety reversing sensors will detect an obstruction in the path of the infrared beam. If an obstruction breaks the infrared beam while the door is closing, the door will stop and reverse to full open position. If the door is fully open, and the safety reversing sensors are not installed, or are misaligned, the door will not close from a remote control. However, you can close the door if you hold the button on the door control or keyless entry until the door is fully closed. The safety reversing sensors do not affect the opening cycle. For more information see page 9. LIGHTS The garage door opener light will turn on when the opener is initially plugged in; power is restored after interruption, or when the garage door opener is activated. The light will turn off automatically after 4-1/2 minutes.

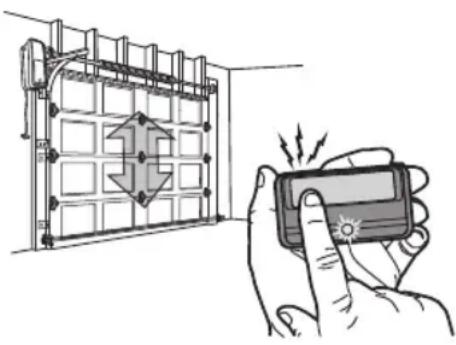

USING YOUR GARAGE DOOR

OPENER The garage door opener can be activated through a wall-mounted door control, remote control, wireless keyless entry or myQ accessory. When the door is closed and the garage door opener is activated the door will open. If the door makes contact with an obstruction or is interrupted while opening the door will stop, opener beeps and lights blink 5 times. When the door is in any position other than closed and the garage door opener is activated, the door will close. If the garage door opener makes contact with an obstruction while closing, the door will reverse. However, you can close the door if you hold the button on the door control or wireless keypad until the door is fully closed. The safety reversing sensors do not affect the opening cycle. The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. BATTERY BACKUP The battery backup system allows access in and out of your garage, even when the power is out. When the garage door opener is operating on battery power, the garage door opener will run slower, the light will not function, the Battery Status LED will glow solid orange, and a beep will sound approximately every 2 seconds. Operation MEMORY CAPACITY

SECURITY+ 2.0 ACCESSORIES MEMORY CAPACITY

Remote Controls Up to 40 Door Controls Up to 2 Smart Control Panels or 4 of any other Security+ 2.0 door controls Keyless Entries Up to 4 myQ Accessories Up to 1613 Operation Connect With Your Smartphone This WiFi

Garage Door Opener is compatible with up to 16 myQ

enabled accessories that can be controlled using the myQ

• Wi-Fi signal in the garage (2.4 Ghz, 802.11b/g/n required), see page 3

• Password for your home network (router's main account, not guest network)

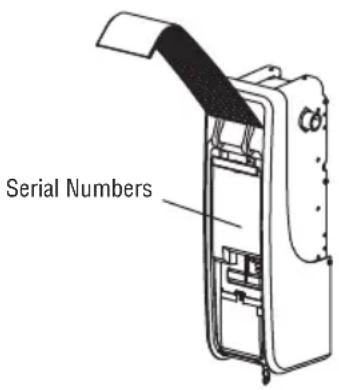

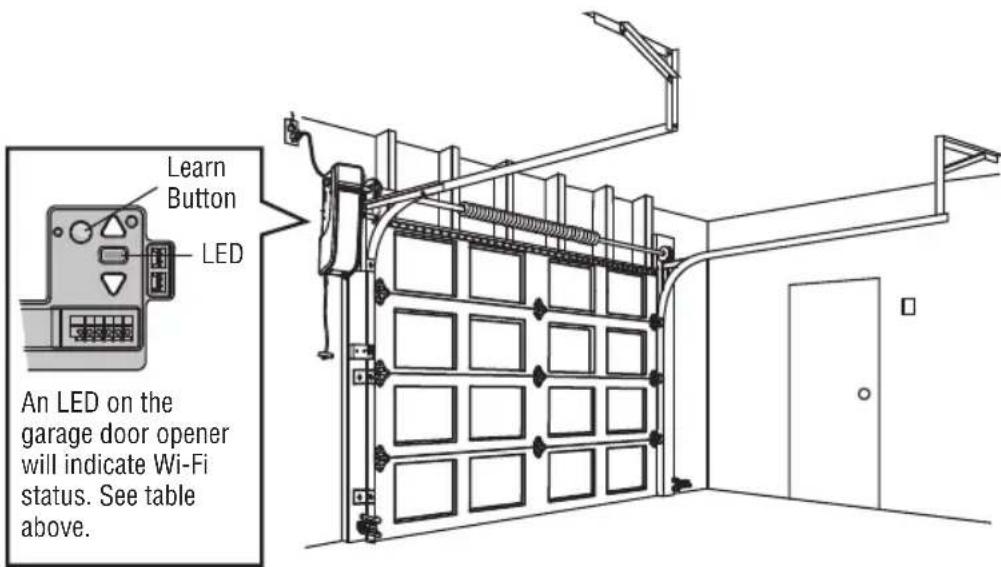

• myQ serial number located on the garage door opener DOWNLOAD THE myQ APP TO SET UP AN

Open and close your door, get alerts and set schedules from anywhere. Connected smart garage door openers also receive software updates to ensure the opener has the latest operational features.

1. Download the myQ App.

2. Set up an account and connect.

For more information on connecting your garage door opener, visit support.chamberlaingroup.com. Wi-Fi Status LED Definition Blue Off - Wi-Fi is not turned on. Blinking - Garage door opener is in Wi-Fi learn mode. Solid - Mobile device connected to the garage door opener. Blue and Green Blinking - Attempting to connect to router. Green Blinking - Attempting to connect to the Internet server. Solid - Wi-Fi has been set up and garage door opener is connected to the Internet.

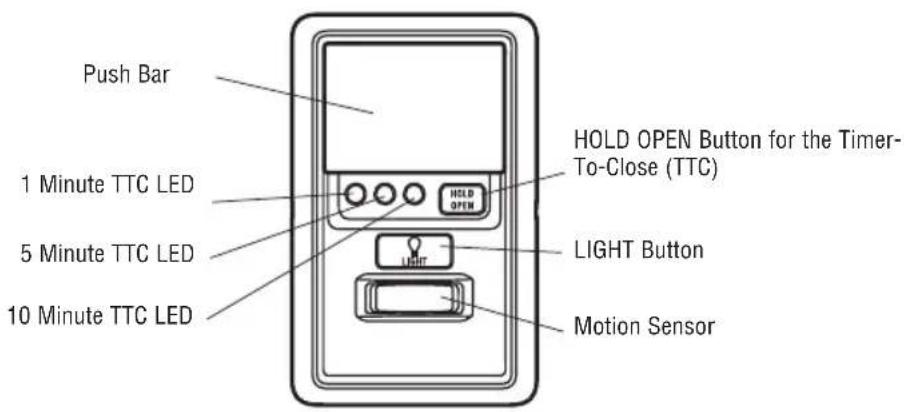

SYNCHRONIZE THE DOOR CONTROL

To synchronize the door control to the garage door opener, press the push bar until the garage door opener activates (it may take up to 3 presses). The garage door opener must run through a complete cycle before it will activate Wi-Fi programming. An LED on the garage door opener will indicate Wi-Fi status. See table above. LED Learn Button NOTES: The myQ Smartphone Control WILL NOT work if the garage door opener is operating on battery power. To erase the Wi-Fi settings, see page 17. If you need help adding devices to your myQ account, or to learn more go to support.chamberlaingroup.com.14 Operation Using the Door Control

SYNCHRONIZE THE DOOR CONTROL

To synchronize the door control to the garage door opener, press the push bar until the garage door opener activates (it may take up to 3 presses). Test the door control by pressing the push bar, each press of the push bar will activate the garage door opener. FEATURE HOW TO: PUSH BAR Press the push bar to open/close the door. LOCK Designed to prevent operation of the door from hand-held remote controls. However, the door will open and close from the Door Control, keypad, and myQ

App. Activate: Press and hold the LOCK button for 2 seconds. The command LED will flash as long as the lock feature is activated and your handheld remote control will not operate your door at this time. Deactivate: Press and hold the LOCK button again for 2 seconds. The command LED will stop flashing and normal operation will resume. MOTION SENSOR This feature will automatically turn on the garage door opener lights when motion is sensed. The lights will come on for 4-1/2 minutes, then shut off. Activate/Deactivate: Slide the motion sensor switch ON or OFF. TIMER-TO-CLOSE (TTC) The TTC feature automatically closes the door after a specified time period (1, 5, or 10 minutes). Once the TTC has been set and the door is open, the LED for the selected close interval will blink and begin to count down to close the door. The control panel will beep and the garage door opener lights will flash before closing the door. The TTC feature will deactivate if the garage door encounters an obstruction twice; or the safety reversing sensors are incorrectly installed. The garage door will reverse open and WILL NOT close until the obstructions are clear or the safety reversing sensors are correctly installed. When the obstruction has been cleared or the safety reversing sensors have been aligned, the door will close when the garage door opener is activated. NOTE: The light must be programmed to the operator for the Timer To Close or myQ

App to be able to close the door unattended. Activate: Press and hold the ON button until one of the TTC LEDs light up. Then press the ON button again to cycle through the time interval options (the corresponding TTC LED will light for each time interval). The garage door opener light bulbs will blink as confirmation. Deactivate: Press and hold the OFF button until all TTC LEDs turn off and a beep is heard from the control panel. To suspend the TTC: To suspend the TTC and temporarily hold the door open, press and release the HOLD OPEN button (the HOLD OPEN LED will turn solid). The TTC will remain suspended until the HOLD OPEN button is pressed again or the garage door opener is activated from another device (door control, remote control, keypad, etc.). LIGHT Button HOLD OPEN Button for the Timer- To-Close (TTC) Motion Sensor Push Bar 1 Minute TTC LED 5 Minute TTC LED 10 Minute TTC LED15 Operation Using the Door Control (continued) FEATURE HOW TO: LIGHTS: Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned on they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated. Once the garage door opener is activated the lights will turn off after the specified period of time (the factory setting is 4-1/2 minutes). The LIGHT button will not control the lights when the door is in motion. TO CHANGE THE AMOUNT OF TIME THE REMOTE LIGHTS WILL STAY ON: Press and hold the LOCK button until the garage door opener lights flash. The time interval is indicated by the number of flashes.

STAYS ON 1 1 ½ Minutes 2 2 ½ Minutes 3 3 ½ Minutes 4 4 ½ Minutes Using the Remote Control Press and hold the button down until the door or gate starts to move. The remote control will operate from up to 3 car lengths away on typical installations. Installations and conditions vary, contact an installing dealer for more information. NOTICE: This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders and device. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules and Industry Canada ICES standard. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.16 Programming Your hand-held remote control (model 950ESTD) has already been programmed to the door control (Motion-Detecting Control Panel) at the factory. Below are instructions for programming additional remote controls, keypads, and myQ

enabled accessories to the door control. PIN

1. Press the control panel LEARN button twice, and

the red learn LED will turn on.

2. Press the button on the remote control that you

wish to operate your garage door.

3. The garage door opener lights will flash (or two

clicks will be heard) when the code has been programmed.

1. Press the control panel LEARN button twice, the red

learn LED will turn on.

3. The garage door opener lights will flash (or two clicks

will be heard) when the code has been programmed.

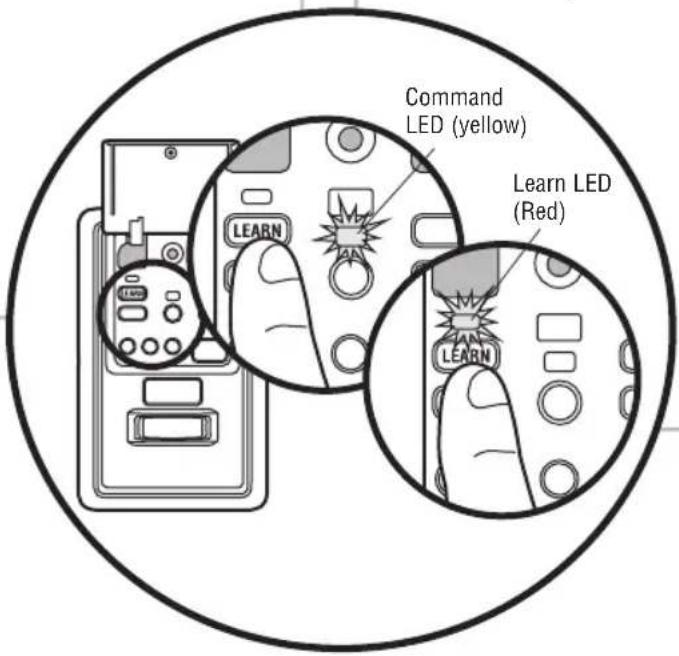

MODEL 940ESTD KEYPAD

Command LED (yellow) Learn LED (Red)17 Programming Program the Smart LED Light Your garage door opener remote light has already been programmed at the factory to operate with your opener. Any additional or replacement remote lights will need to be programmed. PROGRAM A DOOR OPENER TO THE SMART LED LIGHT

1. Press the LEARN button on the light until the green LED

2. Press the LEARN button on the door opener. OR

go to Menu > Program> myQAccessory.

3. The code has been programmed when the remote light blinks

once. ADD THE SMART LED LIGHT TO myQ ACCOUNT

1. Press the LEARN button on the light until the green LED

2. Login to the myQ app and add the Smart LED Light.

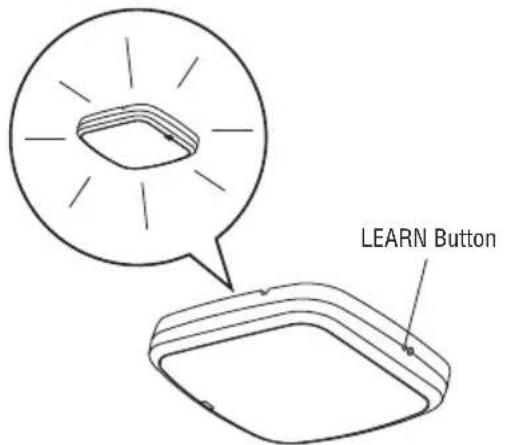

TO ERASE ALL PROGRAMMING FROM THE SMART LED LIGHT

1. Press and hold the LEARN button until the LED turns off

(6-10 seconds). All programming is now erased. LEARN Button Black Adjustment Button To Erase the Memory ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES

1. Press and hold the LEARN button on garage door opener

until the learn LED goes out (approximately 6 seconds). All remote control and keyless entry codes are now erased. Reprogram any accessory you wish to use. ERASE ALL DEVICES (Including myQ enabled accessories)

1. Press and hold the LEARN button on garage door opener

until the learn LED goes out (approximately 6 seconds).

2. Immediately press and hold the LEARN button again until the

learn LED goes out. All codes are now erased. Reprogram any accessory you wish to use. ERASE THE WI-FI NETWORK FROM THE GARAGE DOOR OPENER

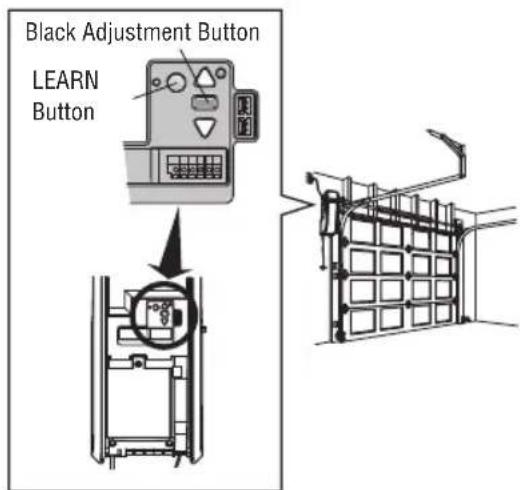

1. Press and hold the black adjustment button on the garage

door opener until 3 beeps are heard (Approximately 6 seconds). ERASE A myQ ACCOUNT Go to support.chamberlaingroup.com to delete your myQ account. Door Opener LEARN Button LEARN Button Motion-Detecting Control Panel18 HomeLink

In the rare case the HomeLink system does not program with the Security+ 2.0 Garage door opener, install a repeater kit. Refer to HomeLink instructions below. HomeLink is the in-vehicle system. The image used is for reference only and your product may look different. WHEN TO INSTALL A HOMELINK REPEATER KIT All 2006 and Older vehicles – A repeater kit is required and must be purchased by the homeowner. All 2007 and Newer vehicles – Program the HomeLink according to the vehicle instructions. If after ONE attempt to program the HomeLink to the garage door opener and you are unsuccessful, install a repeater.

Order the HomeLink repeater kit from an installer or call 1-800-355-3515. To program the HomeLink repeater kit, refer to the instructions provided in the kit or visit: http://www.homelink.com/program.

ADJUSTMENT QUICK FACTS

• Only one repeater kit is required per home.

• Use different HomeLink buttons in vehicle if programming multiple cars, button 1 first car, button 2 second car… etc.

• HomeLink remote is NOT a garage door opener.

• If you are using the HomeLink repeater with a garage door opener that has a battery backup system, ensure your original garage door opener remote control is programmed to the garage door opener and place it in your glove box for use in the event of a power outage.

• The remote included in this repeater kit MUST be kept for future programming (new vehicle, new garage door opener etc). IIIIII HomeLink Repeater Kit Programming19 Maintenance MAINTENANCE SCHEDULE EVERY MONTH

• Manually operate door. If it is unbalanced or binding, call a trained door systems technician.

• Check to be sure door opens and closes fully. Adjust limits if necessary (see Adjustment Step 1).

• Repeat the safety reversal test. Make any necessary adjustments (see Adjustment Step 2). EVERY YEAR

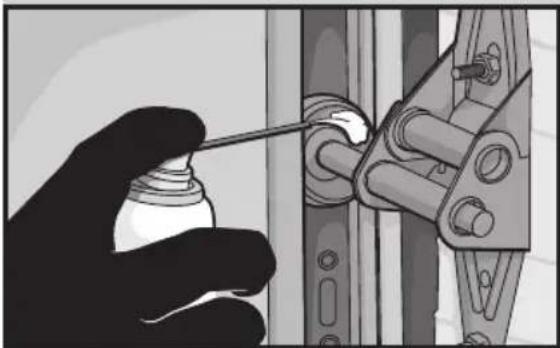

• Oil door rollers, bearings and hinges. The garage door opener does not require additional lubrication. Do not grease the door tracks. Smart LED Light

• Unplug the light before cleaning.

• Use a lightly dampened cloth for cleaning.

• DO NOT use liquid cleaners on the light lens. Care of Your Garage Door Opener To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor. To reduce risk of fire, explosion or chemical burn:

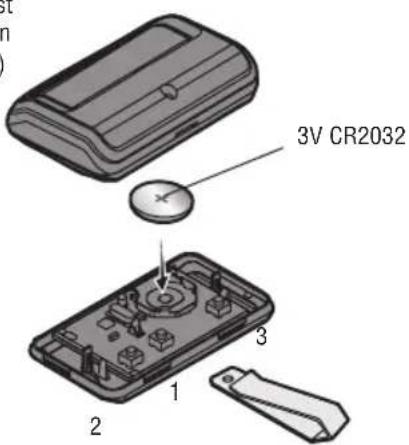

The LED(s) on your remote control will stop blinking when the battery is low and needs to be replaced. To replace battery, open the case as shown. Insert battery positive side up (+). Replace the battery with only 3V CR2032 coin cell batteries. Dispose of old battery properly. 3V CR2032 Pry open the case first in the middle (1), then at each side (2 and 3) with the visor clip.

Troubleshooting Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener blink the diagnostic codes. Diagnostic Chart Garage Door Opener Diagnostic LED UP Button DOWN Button

DIAGNOSTIC CODE SYMPTOM SOLUTION

Up Arrow Blink(s) Down Arrow Blink(s) 1 1 The garage door opener will not close. Safety sensors are not installed, connected or wires may be cut. Inspect sensor wires for a disconnected or cut wire. 1 2 The garage door opener will not close. There is a short or reversed wire for the safety sensors. Inspect safety sensor wire at all staple points and connection points and replace wire or correct as needed. 1 3 The door control will not function. The wires for the door control are shorted or the door control is faulty. Inspect door control wires at all staple points and connection points and replace wire or correct as needed. 1 4 The garage door opener will not close, and the lights blink. Safety sensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the door that would interrupt the sensors path while closing. 1 5 Door moves 6-8" (15-20cm) stops or reverses. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Check wiring connections at travel module and at the logic board. Replace travel module if necessary. No movement, only a single click. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Replace logic board if necessary. Opener hums for 1-2 seconds no movement. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Replace motor if necessary. 1 6 Door coast after it has come to a complete stop. Program travel to coasting position or have door balanced by a trained technician. 2 1-5 No movement or sound. Replace logic board. 3 1 The garage door opener moves slightly, then stops Activate the garage door opener again. If problem persists, replace logic board. 3 3 The battery status LED is constantly blinking green. Battery backup charging circuit error, replace logic board. 3 5 The garage door will not close. Door reverses during close travel direction only.

• Check that the CTM Learn is appropriate to the installation.

• Check for possible door obstructions and remove.

• Replace defective CTMs with good CTMs to clear the error code (see optional CTM accessory). 4 1-4 Door is moving, stops or reverses. Opener beeps and lights blink. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. If the door is binding or sticking contact a trained door systems technician. If door is not binding or sticking attempt to reprogram travel. 4 5 Opener runs approximately 6-8" (15-20 cm), stops and reverses. Communication error to travel module. Check travel module connections, replace module if necessary. 4 6 The garage door opener will not close, and the lights blink. Safety sensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the door that would interrupt the sensor's path while closing. 5 5 The door will not close when using Timer-to- Close or myQ Smartphone Control Smart LED Light must be installed to use TTC or myQ to control the door. Plug in the Smart LED Light and make sure it is programmed to the garage door opener.21 Troubleshooting The garage door opener doesn't operate from either the door control or the remote control:

• Does the garage door opener have electric power? Plug a lamp into the outlet. If it doesn't light, check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

• Have you disabled all door locks? Review installation instruction warnings on page 8.

• Are the wiring connections correct? Review Installation Step 5.

• Is there a build-up of ice or snow under the door? The door may be frozen to the ground. Remove any restriction.

• The garage door spring may be broken. Have it replaced (see page 3 for reference). The door opener operates from the single button control station, but not from a remote control:

• Reprogram the remote control and replace the battery if necessary. Repeat with all remote controls. The door opens and closes byitself:

• Be sure that all remote control push buttons are off.

• Remove the bell wire from the single button control station terminals and operate from the remote only. If this solves the problem, the single button control station is faulty, or there is an intermittent short in the wire. Replace the control station.

• Erase the memory and reprogram all remote controls (refer to the instructions provided with the remote control or visit support.chamberlaingroup.com). My remote control will not activate the garage door:

• Verify the lock feature is not activated on the door control.

• Reprogram the remote control.

• If the remote control will still not activate the door check the diagnostic codes to ensure the garage door opener is working properly. The remote control has short range:

• Change the location of the remote control in your car.

• Some installations may have shorter range due to a metal door, foil backed insulation, or metal garage siding. The door stops or reverses to open limit and the opener beeps and lights flash 5 times:

• Is something obstructing the door? Is it out of balance, or are the springs broken? Remove the obstruction or call a trained door system technician to repair the door. The door doesn't open completely:

• Check power door lock. The door opens but won't close:

• The safety reversing sensor must be connected and aligned correctly before the door opener will move in the down direction. If you are able to close the door using constant pressure, verify the safety reversing sensors are properly installed, aligned and free of any obstructions (see page 13). The door reverses for no apparent reason:

• Clear any ice or snow from the garage floor area where the door closes.

• Review Adjustment Step 1. Repeat safety reverse test after adjustments. My door will not close:

• The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction. - Verify the safety reversing sensors are properly installed, aligned and free of any obstructions. The garage door opener strains to operate door:

• The door may be out of balance or the springs may be broken. Close the door and use the emergency release handle to disconnect the door. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely by its springs. If it does not, disconnect the garage door opener and call a trained door systems technician. The garage door opener motor hums briefly, then won't work:

• The garage door springs may be broken. See above.

• If the problem occurs on the first operation of the garage door opener, door may be locked. Disable the power door lock. The garage door opener won't operate due to power failure:

• Manually open the power door lock. Additional Troubleshooting22 Troubleshooting Additional Troubleshooting (Continued)

• Use the emergency release handle to disconnect the door. The door can be opened and closed manually. When power is restored, pull manual release a second time.

• When in Battery Backup mode, the opener should be able to operate up to 20 times.

• Disable any door locks. Use the emergency release handle to disconnect the door. The door can be opened and closed manually. When power is restored, pull manual release a second time.

• When in battery backup mode, battery power will last for 30 hours or up to 20 cycles over a 24 hour period. Door loses limits:

• Collar not tightened securely. Tighten collar and reprogram limits (see Adjustment Step 3). The garage door opener moves when the door is in operation:

• Some minor movement is normal for this product. If it is excessive the collar will wear prematurely.

• Check to make sure the torsion bar is not moving left/right excessively.

• Check to make sure the torsion bar is not visibly moving up and down as it rotates.

• Check that the opener is mounted at a right angle to the jackshaft. If not, move the position of the mounting bracket. Automatic door lock connector will not fit the door opener plug: Older model 24V door locks are incompatible. Use automatic door lock model 841LM, see Accessories page. Automatic garage door lock does not activate when garage door opens or closes: In battery backup mode, the automatic garage door lock will unlock when the garage door is opened, and will remain disabled until power is restored. The door opener is beeping:

• Indicates unattended closure. The opener has been activated by the myQ App or the Garage and Gate Monitor.

• A solid orange LED with beep, sounding approximately every 2 seconds, indicates the door opener is operating on battery power.

• A blinking orange LED with beep, sounding every 30 seconds, indicates the battery is low.

• A solid red LED with beep, sounding every 30 seconds, indicates the 12V battery will no longer hold a charge and needs to be replaced. The garage door is beeping and the red LED is blinking: The battery charge is low or the battery is dead.

• Replace the battery. myQ Smartphone Control, wireless myQ devices, and Timer-To-Close will not work:

• When in Battery Backup mode, myQ Smartphone Control, wireless myQ devices and Timer-To-Close will be disabled.

• Smart LED Light must be installed to enable use of Timer-to-Close or myQ Smartphone Control of the door. Plug in the Smart LED Light and make sure it is programmed to the garage door opener. It may take up to 5 minutes to enable Timer-to-Close and myQ Smartphone Control. Door travels faster or slower than expected:

• Verify your drum setting is appropriate via the steps shown on page 7 in the manual. Door speed varies over travel:

• Verify your drum setting is appropriate via the steps shown on page 7 in the manual. Cable unspooling upon obstruction near top limit

• If cable unspools, please contact a Professional Door Dealer for service. NOTICE: This device complies with part 15 of the FCC rules and Innovation, Science and Economic Development Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, includ- ing interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders and device. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules and Industry Canada ICES standard. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.23 Repair Parts Installation Parts

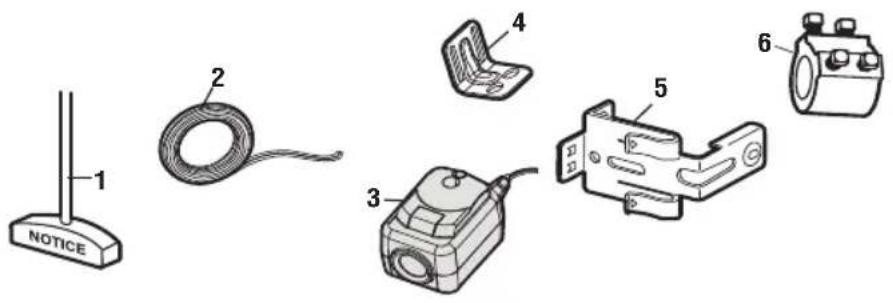

1 041A4582 Emergency release rope and handle assembly 2 041B4494-1 2-Conductor bell wire - white and white/red 3 041-0136 Safety Reversing Sensor kit (receiving and sending sensors) with 2-conductor bell wire attached 4 041C0902 Mounting bracket 5 041-0155-000 Safety reversing sensor brackets (2) 6 041D8615 Collar with set screws24 Repair Parts Garage Door Opener Assembly Parts

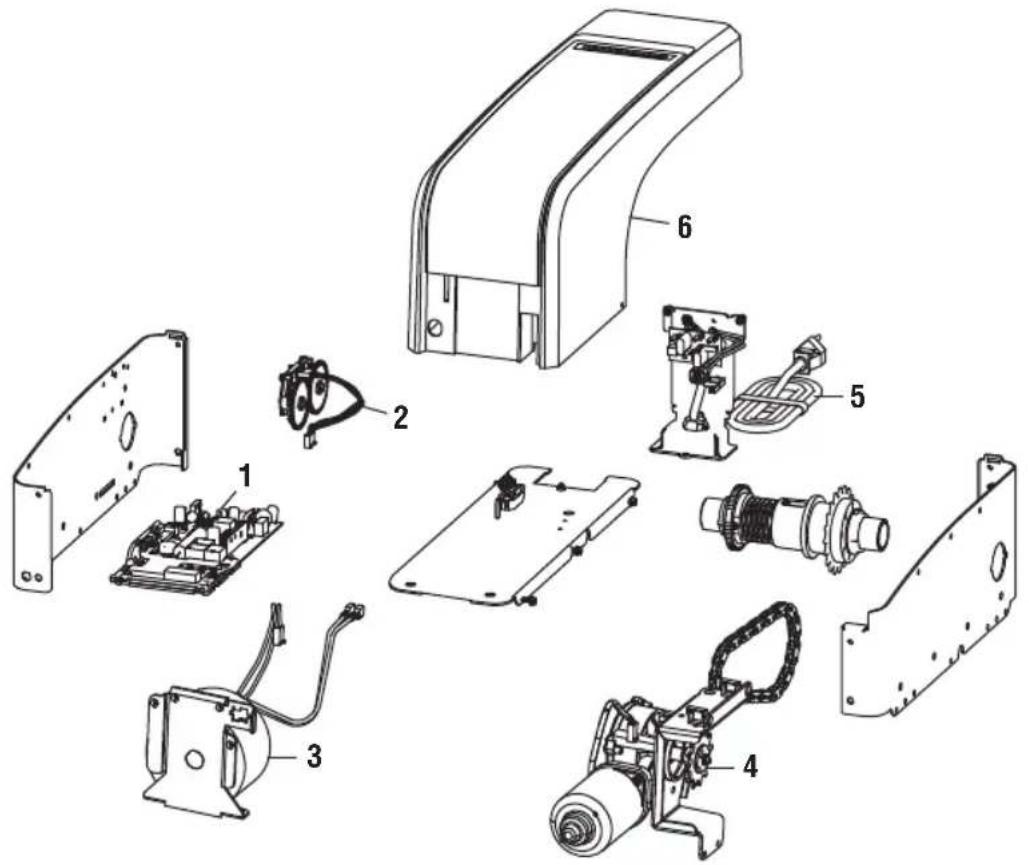

1 041DJ003MC Logic board2 041B8861 Travel module with wire harness3 041C0296 Transformer4 041D1624-2 Motor5 041D0190 Power cord6 041-0407-000 Cover NOT SHOWN 041-0408-000 Battery door and logic board door Address repair parts order to: The Chamberlain Group, Inc. 6020 S. Country Club Rd. Tucson, AZ 85706 For installation and service information, visit us online at: support.chamberlaingroup.com Before calling, please have the model number of the garage door opener. If you are calling about a troubleshooting issue, it is recommended that you have access to your garage door opener while calling. If you are ordering a repair part please have the following information: part number, part name, and model number. Contact Information STOP! This garage door opener WILL NOT work until the safety reversing sensors are properly installed and aligned.25 Smart LED Light Enables homeowner to turn on a work light from their car with their garage door opener remote or from anywhere in their home with an additional Chamberlain

compatible. With key ring. Accessories Explore accessories and replacement parts at www.Chamberlain.com.26 Warranty

CHAMBERLAIN LIMITED WARRANTY

Chamberlain Group (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defects in materials and/or workmanship for a specific period of time as defined below (the “Warranty Period”). The warranty period commences from the date of purchase. WARRANTY PERIOD Parts Motor Accessories Battery Backup 5 years Lifetime 1 year 1 year The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety. If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. You will be advised of disassembly and shipping instructions when you call. Then send the product or component, pre-paid and insured, as directed to our service center for warranty repair. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory rebuilt parts at Seller’s sole option. [You are responsible for any costs incurred in removing and/or reinstalling the product or any component.] ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States and Provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G., BATTERIES IN REMOTE CONTROL TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED FOR NON- RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT. Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state and province to province.27 Automatic Garage Door Opener Safety & Maintenance Guide Garage Door Openers are Not Toys Discuss garage door and opener safety with your children. Explain the danger of being trapped under the door. Garage Door Opener Safety – An Automatic Decision Stay away from a moving door. Keep transmitters and remote controls out of reach of children. Do not let children play with or use transmitters or other remote control devices. The wall-mounted push button should be out of reach of children, at least 5 feet from the nearest standing surface and away from all moving parts. Mount and use the button where you can clearly see the closing garage door. Keep the door in sight until it completely closes when using the wall-mounted push button or transmitter. A garage door is the largest moving object in the home. An improperly adjusted garage door and opener can exert deadly force when the door closes – which could lead to entrapment of children or adults and subsequent injury or death. Proper installation, operation, maintenance, and testing of the garage door and automatic opener are necessary to provide a safe, trouble-free system. Careless operation or allowing children to play with or use garage door opener controls are also dangerous situations that can lead to tragic results. A few simple precautions can protect your family and friends from potential harm. Please review the safety and maintenance tips in this brochure carefully and keep it for reference. Check the operation of your garage door and opener to ensure they function in a safe and trouble-free manner. Be sure to read all Important Safety Information found in your garage door opener’s manual as it provides more details and safety considerations than can be supplied with this brochure.28 Routine Maintenance Can Prevent Tragedies

• Starting with the door in the closed position, use the manual disconnect on the opener to disconnect the door.

• Look for signs of wear or damage on hinges, rollers, springs, and door panels.

• These parts may require periodic lubrication. Check the owner’s manual for suggested maintenance.

• If any signs of damage are evident, contact a trained door systems technician for assistance.

• Verify the photoeye height is no higher than 6" from the garage floor.

• Open and close the door manually using handles or suitable gripping points.

• The door should move freely and without difficulty.

• The door should balance and stay partially open 3–4 feet above the floor.

• If you detect any signs of improper operation, contact a trained door systems technician for assistance.

• Reconnect the opener to the door using the manual disconnect and open the door.

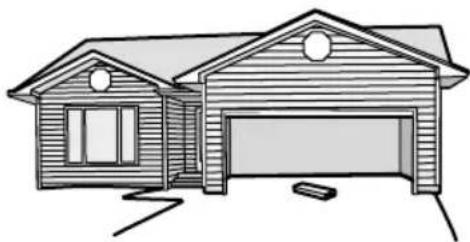

• Place a 2x4 board flat in the path of the door (1) and try to close it (2). The door should stop when it comes in contact with the 2x4 and then reverse direction.

• Block the photoelectric sensor by waving an object in front of the sensor and attempt to close the door. The door should not close unless the wall-mounted push button is manually held during operation.

• If the opener does not perform as described, contact a trained door systems technician for assistance. Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s manuals, contact the manufacturer(s) and request a copy for your specific model(s). Look for the opener model number on the back of the power unit. Test the opener safety features: Test the door for proper operation: Visually check the door and installation: WARNING – Springs are under high tension. Only qualified individuals should adjust them. Wi-Fi

App Monitor and control your garage from anywhere and get real-time alerts with peace of mind. INSTRUCCIONES INTELIGENTES
