Street Kids KM0656 - Earphones Krüger&Matz - Free user manual and instructions

Product type	Bluetooth wireless headphones
Brand	Krüger&Matz
Model	Street Kids KM0656
Speakers	30 mm
Frequency response	20 Hz - 20 kHz
Impedance	32 Ohm
Sensitivity	93 dB +/-5 dB (at 1 kHz)
SPL	89 dB
Audio codecs	SBC, MP3, AAC
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP, HFP
Bluetooth range	Up to 8 m
Talk time	Up to 13 h
Music playback time	Up to 15 h
Standby time	Up to 200 h
Power	Micro USB port (cable included)
Auxiliary input	3.5 mm jack
Included accessories	AUX 3.5 mm cable, USB cable, user manual
Safety	Adjust volume before use; do not use in traffic
Maintenance	Clean with a damp cloth; no chemicals

Frequently Asked Questions - Street Kids KM0656 Krüger&Matz

How to turn on and off the Street Kids KM0656 headphones?

Press and hold the ⊙M button for about 4 seconds to turn the headphones on or off.

How to pair the headphones with a smartphone?

While off, press and hold ⊙M for 6 seconds until the indicator flashes blue and red. Enable Bluetooth on your device, search for KM Street Kids and connect.

What to do if the headphones do not automatically connect to the last device?

Make sure the last device is on and Bluetooth is enabled. If the problem persists, clear the pairing list by pressing <<- and +>> simultaneously for 12 seconds, then turn off and on again.

How to charge the headphones and how long does charging take?

Connect the USB cable to the micro USB port of the headphones and to a computer. The red indicator lights up during charging and turns off when complete. Charging time is not specified, but battery life is about 15 hours of playback.

Can I use the headphones in wired mode?

Yes, connect the included 3.5 mm jack cable to the AUX input of the headphones and to the audio source. In AUX mode, playback is controlled by the external device.

How to adjust volume and change tracks?

Press +>> to increase volume and <<- to decrease. Hold these buttons down for 3 seconds to skip to the next or previous track.

How to answer or reject a call?

Press the /> button to answer or end a call. Hold it down to reject a call. To redial the last number, press ◆ twice.

What safety precautions should I take?

Set a moderate volume before use to protect your hearing. Do not use headphones in dangerous situations (driving, crossing the street). Avoid exposure to moisture and extreme temperatures.

How to clean the headphones?

Use a soft, slightly damp cloth. Never use chemicals or detergents.

What to do in case of pairing issues or malfunction?

Clear the pairing list as described in the manual. If the problem persists, contact authorized service. Do not attempt to repair the device yourself.

USER MANUAL Street Kids KM0656 Krüger&Matz

STREET KIDS Wireless headphones KM0656 / KM0657

Connect one plug of the 3,5mm jack cable to the AUX input of headphones, then connect the other plug to the AUX output of external device.

In AUX mode, music is controlled by the external device.

CHARGING

1. Connect one plug of the USB cable to the micro USB port of the headphones.
2. Connect the other plug to the compatible PC USB port.
3. During charging, red LED is on.
4. When the battery is fully charged, the red LED goes off.

TECHNISCHE DATEN

Bluetooth Profile: A2DP, AVRCP, HFP

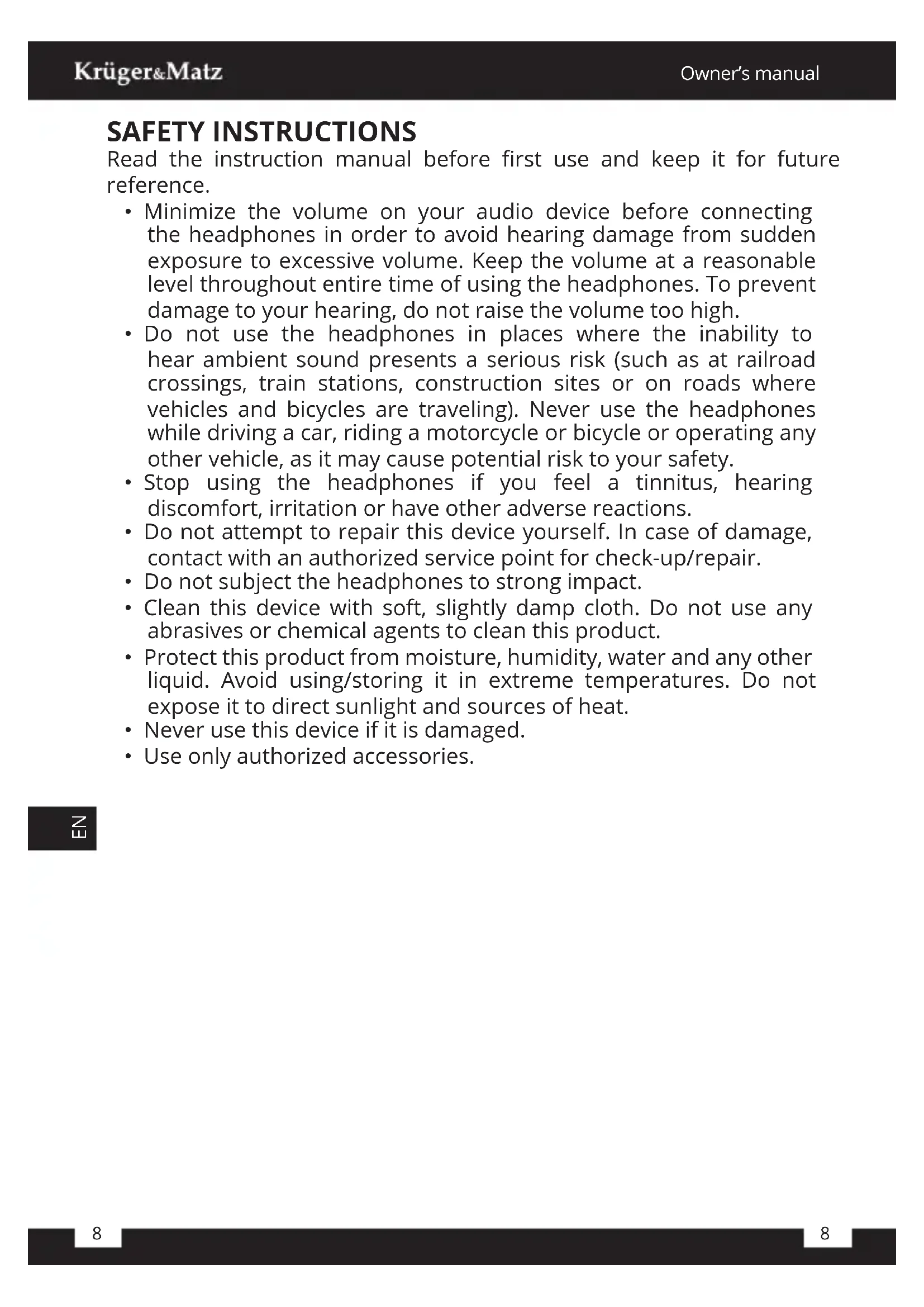

Read the instruction manual before first use and keep it for future reference.

• Minimize the volume on your audio device before connecting the headphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the headphones. To prevent damage to your hearing, do not raise the volume too high.
• Do not use the headphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the headphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.
• Stop using the headphones if you feel a tinnitus, hearing discomfort, irritation or have other adverse reactions.
• Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for check-up/repair.
• Do not subject the headphones to strong impact.
• Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.
• Protect this product from moisture, humidity, water and any other liquid. Avoid using/storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
• Never use this device if it is damaged.
• Use only authorized accessories.

PRODUCT DESCRIPTION

1. 公M button (turn on/off/ pairing)
2. <<- button (decrease volume/ previous track)
3. + > > button (increase volume/ next track)
4. Microphone
5. button (call management/ play/pause)
6. AUX input/output
7. LED indicator
8. micro USB charging port

OPERATION

Function Operation
Turn on/ off	Press and hold the ⓄM button for about 4 seconds
Enter Bluetooth pairing mode When the headphones are turned off, press and hold the ⓄM button for about 6 seconds
Play/ pause music	Press the ⓄM button
Increase/ decrease volume Press the + >> / <<- button
Go to next/ previous track Press and hold the + >> / <<- button for about 3 seconds
Answer/ end a call	Press the ⓄM button
Reject a call	Press and hold the ⓄM button for about 2 seconds

Redial last number

Press the button twice

PAIRING

1. With the headphones turned off, press and hold the M button for about 6 seconds. The headphones will turn on and enter Bluetooth pairing mode. Blue and red LED flash.
2. Enable Bluetooth function on an external device and search for new Bluetooth devices.
3. Select and connect with this device (KM Street Kids).
4. After successful pairing, LED flashes blue every 10 seconds.

Notes:

• Every time the headphones are switched on, they will connect to last connected device automatically. Please note, your device must be on with Bluetooth function turned on. To disable automatic pairing, clear pairing list. Switch on the headphones, then press and hold the - and + > > buttons simultaneously for about 12 seconds. Then press and hold the M button to turn off the headphones. When you turn on the headphones again, they will not pair automatically with external device.
• If pairing is not completed within 5 minutes, the headphones will automatically turn off. In that case, repeat the pairing process to pair the headphones with external device.
• In case of problems with pairing, you may have to clear pairing list (see point one).
• When the headphones are paired with external device, it is possible to stream music to another pair of headphones by connecting them with the included 3,5 ~mm jack cable. Music is controlled by the headphones paired with the external device.

AUX MODE

Connect one plug of the 3,5 mm jack cable to the AUX input of headphones, then connect the other plug to the AUX output of external device.

In AUX mode, music is controlled by the external device.

CHARGING

1. Connect one plug of the USB cable to the micro USB port of the headphones.
2. Connect the other plug to the compatible PC USB port.
3. During charging, red LED is on.
4. When the battery is fully charged, the red LED goes off.

SPECIFICATION

Speaker size: 30mm

Frequency response: 20 Hz - 20kHz

Impedance: 32 Ohm

Sensitivity: 93 dB+/-5 dB (at 1 kHz)

SPL: 89 dB

Supported formats: SBC, MP3, AAC

Bluetooth: 4.2

Bluetooth profiles: A2DP, AVRCP, HFP

Bluetooth range: up to 8 m

Talk time: up to 13 h

Playback time: up to 15 h

Standby time: up to 200 h

Ports: AUX-in (3,5 mm), micro USB (charging)

Built in microphone

Battery capacity: 400 mAh

Power supply: 5V, 500mA

In set: 3,5 mm jack cable, charging cable, user's manual

LEARN MORE

For more information on this product, go to www.krugermatz.com.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently Asked Questions section.

Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that wireless headphones KM0656/ KM0657 is consistent with directive 2014/53/UE.

Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.eu.

乙

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolinska 1, 08-400 Mietne.

CONSIGNES DE SECURITE

Ports: AUX-in (3,5 mm), micro USB (chargement)

Microphone intégré

Batterie: 400 mAh

Alimentation: 5 V, 500 mA

Profile Bluetooth: A2DP AVRCP HFP

Zasieg Bluetooth: do 8 m

Sensibilitate: 93 dB+/-5 dB (at 1 kHz)

SPL: 89 dB

Suporta: SBC, MP3, AAC

Bluetooth: 4.2

Profile Bluetooth: A2DP, AVRCP, HFP

Raza de actiune: pana la 8 m

Timp de convorbire: pana la 13 ore

Timp de redare: pana la 15 ore

Timp de stand-by: pana la 200 ore

Port-uri: AUX-in (3,5 mm), micro USB (incárcare)

Microfon incorpurat

Capacitatea bateriei: 400 mAh

Alimentare: 5 V, 500 mA

Krüger&Matz is a registered trademark
