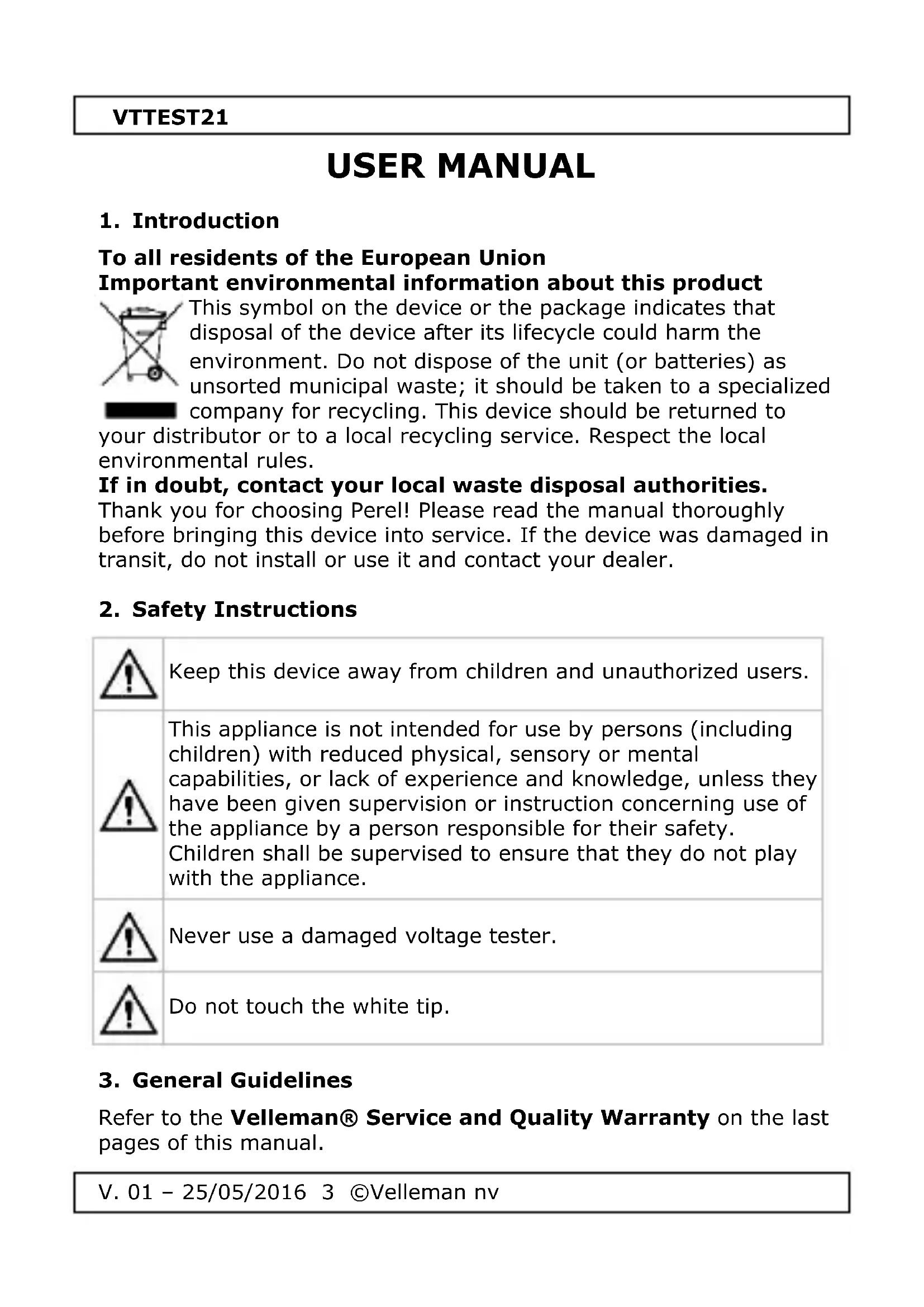

USER MANUAL VTTEST21 Perel

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Keep this device away from children and unauthorized users.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall be supervised to ensure that they do not play with the appliance.

Never use a damaged voltage tester.

Do not touch the white tip.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.VTTEST21

non-contact detection of AC voltage LED indicator and buzzer practical design, easy to carry around for use on 50/60 Hz circuits

Refer to the illustrations on page 2 of this manual.

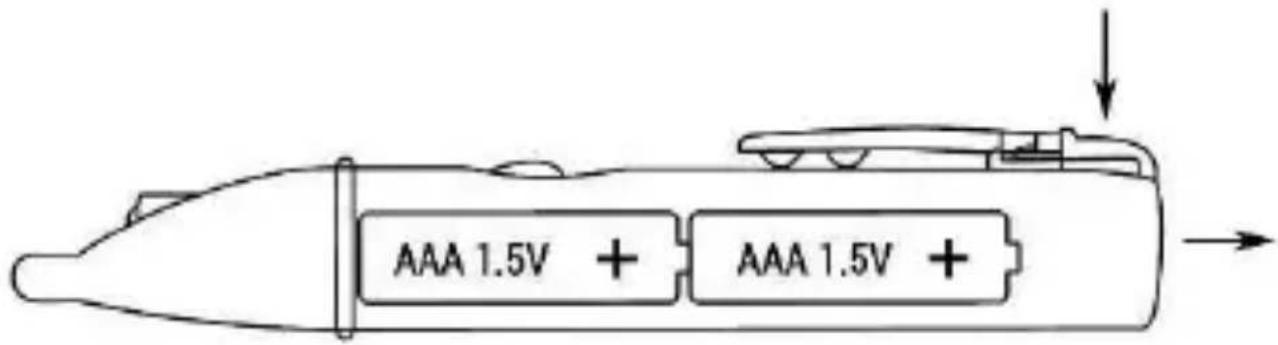

1. Open the battery compartment of the tester pen. To do so,

slightly press the back of the clip and pull to open the compartment.

2. Insert two AAA batteries according to the polarity markings.

3. Close the battery compartment.

Warning: Do not puncture batteries or throw them in

fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

Hold the white tip near the wire to test. The white tip will light and buzz if the wire is live.VTTEST21

V. 01 – 25/05/2016 5 ©Velleman nv

8. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

9. Technical Specifications

voltage range ..............................................90-1000 V~ safety rating.......................................... CAT IV / 1000 V operating temperature .......................... -10 °C to +50 °C power supply ...................... 2 x AAA batteries LR03 (incl.) dimensions ........................................ 118 x 39 x 20 mm weight ............................................ 37 g (with batteries) Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.VTTEST21
