CFB 6437 WHA - Basket BEKO - Free user manual and instructions

USER MANUAL CFB 6437 WHA BEKO

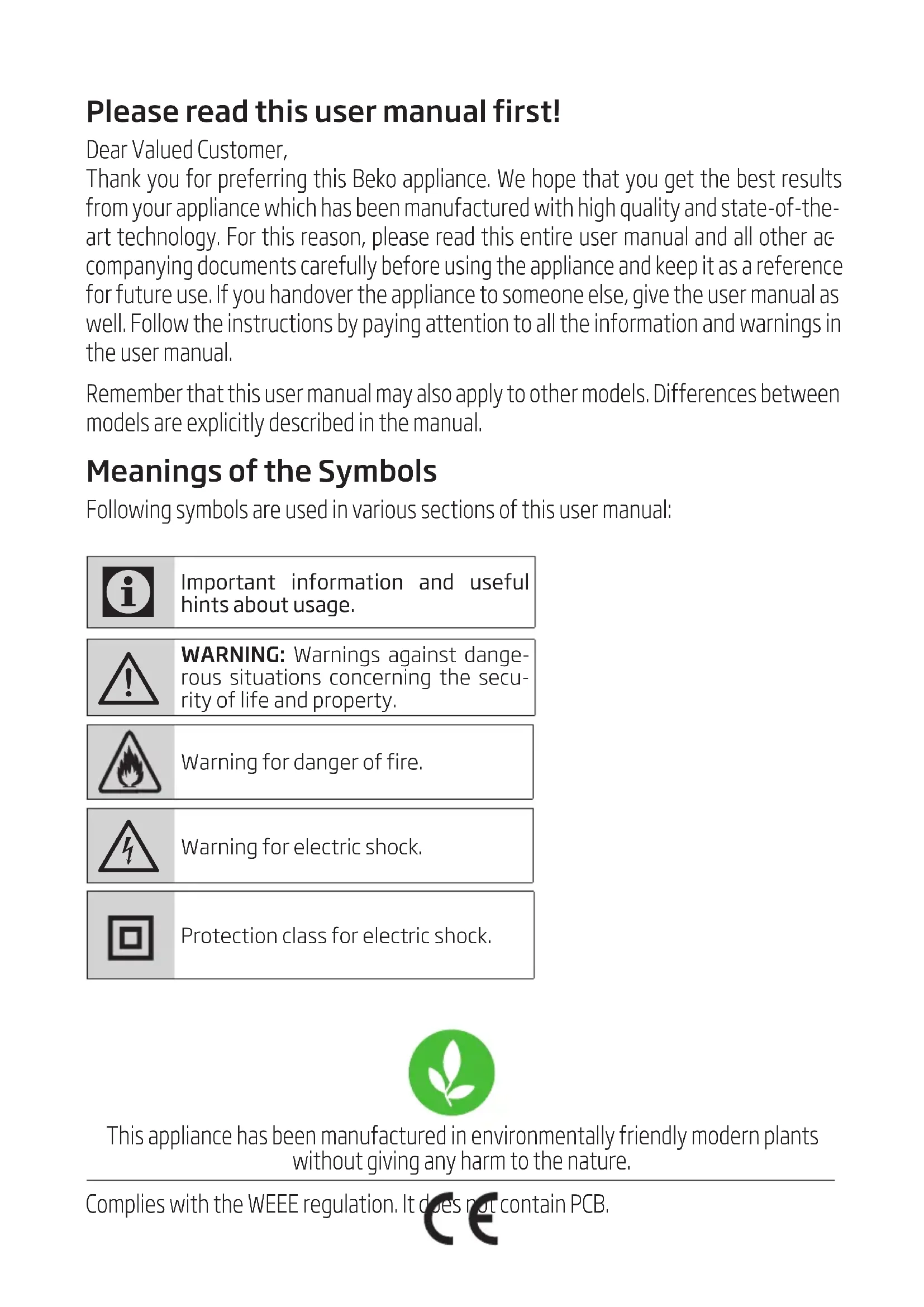

14 -25 26 -36 FRANÇAIS ﺍﻝﻝﻍﺓ ﺍﻝﻉﺭﺏﻱﺓ CONTENTSENGLISH 04 -13 14 -25 26 -36 FRANÇAIS ﺍﻝﻝﻍﺓ ﺍﻝﻉﺭﺏﻱﺓ CONTENTS Please read this user manual first! Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the- art technology. For this reason, please read this entire user manual and all other ac

companying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual. Meanings of the Symbols Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

rous stuatons concernng the secu- rty of lfe and property. Warning for danger of fire.

Warning for electric shock. Protection class for electric shock. Complies with the WEEE regulation. It does not contain PCB. This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.4 / EN Hood / User Manual

Important Safety Instructions Read Carefully And Keep For Future Ref

erence This section contains safety instructions that will help protect from risk of fire, electric shock, ex

posure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

• Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

• This appliance is intended to be used in household and similar ap

plications such as: – Staff kitchen areas in shops, of

fices and other working environ- ments; – Farm houses – By clients in hotels, and other residential type environments; – Bed and Breakfast type environ

• Operate the appliance for its in- tended purpose only as described in this manual.

• The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca

pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without super

• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

• If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account.

• Make sure that your mains power

Important Safety and Environmental InstructionsHood / User Manual 5 / EN supply complies with the informa- tion supplied on the rating plate of the appliance.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Use the appliance with a grounded outlet only.

WARNING: Do not connect the

appliance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.

• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

• Follow the regulations set out by competent authorities on dis

charge of the exhaust air (this warning is not applicable for use without flue).

• Operate your appliance after put- ting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.

• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

• Grease filter must be replaced at least monthly. Carbon filter must be replaced at least every 3 months.

• Product shall be cleaned accord- ance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

• Do not use non-fire-resistant fil- tering materials instead of the current filter.

• Only use the original parts or parts recommended by the man

• Do not operate the product with- out the filter and do not remove the filters while the product is running.

• In the event of be started any flame, de-energize your product and cooking appliances.

• In the event of be started any flame, cover the flame and never

Important Safety and Environmental Instructions6 / EN Hood / User Manual use water to extinguish.

• Unplug the appliance before each cleaning and when the appliance is not in use.

• The negative pressure in the en- vironment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances run

ning on another type of energy but electricity operate simultane

• In the environment where the ap- pliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.

• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible. Danger of choking! Keep all the packaging materials away from children. CAUTION: Accessible parts may become hot when used with cooking appliances.

• The product outlet must not be connected to air channels that in

• The ventilation in the room may be insufficient when the hood for electric hob is used simultane

ously with the devices operating on gas or other fuels (this may not apply to appliances that only dis

charge the air back into the room).

• Objects placed on the product may fall. Do not place any objects on the product.

• Do not flambe under the your product.

WARNING: Before installing

the Hood, remove the protective films.

• Never leave high naked flames under the hood when it is in op

• Deep fat fryers must be continu- ously monitored during use: over- heated oil can burst into flames.

Important Safety and Environmental InstructionsHood / User Manual 7 / EN

Important Safety and Envronmental Instructons

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other house

hold wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and elec

tronic devices. To find these collec- tion systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent po

tential negative consequences for the environment and human health.

1.3 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designat

ed by the local authorities .8 / EN Hood / User Manual

Insulation Class CLASS II Motor Insulation Class CLF

• The extractor hood has been desgned exclusvely for domestc use to elmnate ktchen smells.

• Never use the hood for purposes other than for whch t has been desgned.

• Never leave hgh naked flames under the hood when t s n operaton.

• Adjust the flame ntensty to drect t onto the bottom of the pan only, makng sure that t does not engulf the sdes.

• Deep fat fryers must be contnuously montored durng use: overheated ol can burst nto flames.

3 Using the Appliance L Light Switches the lighting system on and o V Speed Sets the operating speed of the extractor:

0. Switches the extractor motor on and o

1. Low speed, used for a continuous and silent

air change in the presence of light cooking vapour.

2. Medium speed, suitable for most operating

conditions given the optimum treated air ow/noise level ratio.

3. Maximum speed, used for eliminating the

highest cooking vapour emission, including long periods.10 / EN Hood / User Manual 3 Using the Appliance

3.2 Lamp Replacement

• Candle type LED lamp s used n ths product

• Max 4 W lamp must be used when the change of lamp

Before replacng the lght bulbs, dsconnect the power supply of the hood.

Do not touch the lght bulbs when they are hot.

Be careful not to touch the replaced lght bulb drectly wth hands.

1xø 100 mmø 120 mm Hood / User Manual11 / EN 4 Cleaning and maintenance Prior to cleaning and maintenance, unplug the appliance or turn the main swich off or loosen the fuse that supplies the hood. Failure to comply with the provi-sions relating to cleaning of the device and replacement of filters may cause fire risks. It is therefore recommended to comply with the guidelines given herein. The manu-facturer is not liable for any damage to the engine or fires caused by im-proper use.Clean using only a cloth dampened with neutral liquid detergent. Do not clean with tools or instru-ments. Do not use abrasive products. Do not use alcohol4.1 Cleaning of Aluminium Grease FilterThis filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Alumin-ium grease filters may get discolered as they are washed; this is normal and you don’t need to change your filter. 4.2 Changing of Carbon Filter (Air Circulation Mode) The hood can be fitted with an active carbon filter. The carbon filter is applied only in case the hood is not connected to the vent duct. In any case it is necessary to replace the carbon filter at least every three months. You can wash the Alumi-nium filter in the dishwas- her

WARNING: The carbon fil-ter is never washed.

WARNING: Carbon filter is available from Authorized Services.12 / ENHood / User Manual

5 Setting Up the Device

WARNINGPlease read saffety instruc-tions before setting up.

NOTE Please refer to page 37 for the installation guide

WARNINGFailure to install the screws or fixing device in accor-dance with these instructi-ons may result in electrical hazards.Hood / User Manual 13 / EN 6 Troubleshooting Troubleshoo- ting Reason Help The product does not work. Check your fuse. Your fuse might be closed, make it work. The product does not work. Check the electrical connec- tion. The mains voltage should be between 220-240 V. The product does not work. Check the electrical connec- tion. Check if the other pro- ducts in your kitchen are working or not. The lighting lamp does not work. Check the electrical connec- tion. The mains voltage should be between 220-240 V. The lighting lamp does not work. Check the lamp switch. The lamp switch should be in the “on” position. The lighting lamp does not work. Check the lamps. The lamps of the product should not be faulty. The air intake of the product is poor. Check the aluminum filter. The aluminum oil filter should be cleaned at least once a month un- der normal conditions. The air intake of the product is poor. Check the air vent flue. The air vent flue should be in the ''on'' position. The air intake of the product is poor. Check the carbon filter. For products with carbon filters, the filter should normally be changed every 3 months.Avant toute chose, veuillez lire ce manuel d’utilisa- tion ! Chère cliente, cher client, Merci d’avoir choisi cet appareil Beko. Nous espérons que cet appareil, fabriqué dans des installations modernes et soumis à un processus de contrôle qualité rigoureux, vous offre les meilleures performances possible. C’est pourquoi nous vous recomman
