USER MANUAL CWB 6441 XNHA BEKO

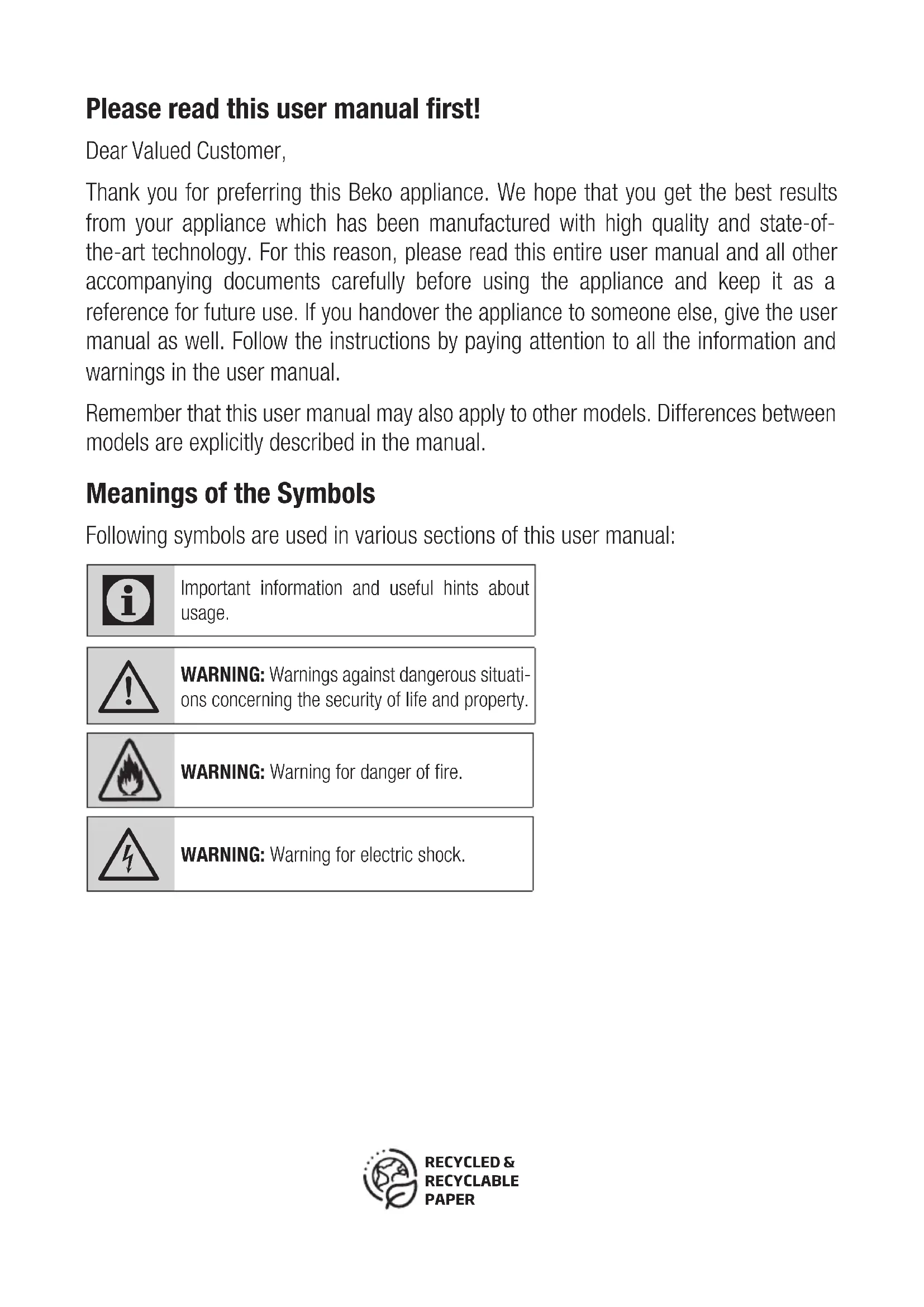

CONTENTSPlease read this user manual first! Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of- the-art technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual. Meanings of the Symbols Following symbols are used in various sections of this user manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situati-

ons concerning the security of life and property.

WARNING: Warning for danger of fire.

WARNING: Warning for electric shock.

Important Safety Instructions Read Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal in- jury or property damage. Failure to follow these instructions shall void any warranty.

• Beko products comply with the applicable safety standards; the- refore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working en- vironments; – Farm houses – By clients in hotels, and other residential type environ- ments; – Bed and Breakfast type envi- ronments.

• Operate the appliance for its in- tended purpose only as descri- bed in this manual.

• The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without su- pervision.

• The minimum distance between the supporting surface for the

Important safety and environmental instructionsCooker Hood / User Manual 5 / EN cooking vessels on the hob and the lowest part of your product must be at least 65 cm.

• If the instructions for installation for the gas hob specify a grea- ter distance, this has to be taken into account.

• Make sure that your mains power supply complies with the information supplied on the ra- ting plate of the appliance.

• Never use the appliance if the power cable or the appliance it- self is damaged.

• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.

• Use the appliance with a groun- ded outlet only.

WARNING: Do not connect the

appliance to the mains until the installation is fully complete.

• Place the appliance in a way so that the plug is always accessible.

• Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot.

• Follow the regulations set out by competent authorities on disc- harge of the exhaust air (this warning is not applicable for use without flue).

• Operate your appliance after put- ting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

• Turn off the hob before taking the pot, pan etc. from it.

• Do not leave hot oil on the hob. Pans with hot oil may cause self combustion.

• Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries.

• Grease filter must be cleaned at least monthly. Carbon filter must be replaced at least every 3 months.

• Product shall be cleaned ac- cordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk.

Important safety and environmental instructions6 / EN Cooker Hood / User Manual

• Do not use non-fire-resistant filtering materials instead of the current filter.

• Only use the original parts or parts recommended by the ma- nufacturer.

• Do not operate the product wit- hout the filter and do not remove the filters while the product is running.

• In the event of be started any flame, de-energize your product and cooking appliances.

• In the event of be started any flame, cover the flame and never use water to extinguish.

• Unplug the appliance before each cleaning and when the appliance is not in use.

• The negative pressure in the envi- ronment should not exceed 4 Pa (4x10 bar) while the hood for elect- ric hob and appliances running on another type of energy but electri- city operate simultaneously.

• In the environment where the appliance is being used, the ex- haust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type.

• When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible.

• Danger of choking! Keep all the packaging materials away from children. CAUTION: Accessible parts may become hot when used with coo- king appliances.

• The product outlet must not be connected to air channels that include other smoke.

• The ventilation in the room may be insufficient when the hood for electric hob is used simultaneo- usly with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

• Objects placed on the product may fall. Do not place any ob- jects on the product.

• Do not flambe under the your product.

WARNING: Before installing the

Hood, remove the protective films.

• Never leave high naked flames under the hood when it is in ope- ration

• Deep fat fryers must be conti- nuously monitored during use: overheated oil can burst into fla- mes.

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equip- ment (WEEE). This symbol indicates that this product shall not be disposed with other hou- sehold wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these col- lection systems please contact to your local autho- rities or retailer where the product was puchased. Each household performs important role in reco- vering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispo- se of the packaging materials together with the domestic or other wastes. Take them to the packa- ging material collection points designated by the local authorities.

The hood is equipped with a mechanical control.

Press the ‘‘L’’ - to turn on the lights. Repe- at pressing the button to turn off the lighting.

Pressing the “V1” - to turn the hood with a minimum speed.

Pressing the “V2” - turns the hood with an average speed.

Pressing the “V3” - turns the hood at maxi- mum speed. Higher speed means more air flow.

3.2 Efficient use in terms of

• When using your appliance, adjust the speed settings according to vapour and odour intensity, in order to save energy.

• Use low speeds (1-2) under normal conditions, and high speed (3) and boost mode for intense odour and vapour.

• The hood is equipped with lamps in order to illu- minate the cooking area.

• Using them for environmental lighting shall cause unnecessary energy expenditure and in- sufficient lighting.

• For your device to consume less energy, run it at a low speed level.

• Your device will reduce energy consumption as it will run more efficiently when you provide suf- ficient air intake to it.

• Set your device to the intense suction power level before the formation of steam, in cases where you know that the dense steam will occur. So, you reduce energy consumption by using your device for a shorter time as it will have a sufficient air intake.

• Keep the lids of the cookware closed to reduce the steam evolving.

3.3 Operating the Hood

• Hood is equipped with a motor having various speed settings.

• For a better performance, we advise you to use low speeds in normal conditions, and high spe- eds when smell and vapors are intensified.

• You can start the hood by pressing the desired speed level key.(V1,V2,V3 )

• You can illuminate the cooking area by pressing the light key L ( )

3.4 Lamp Replacement

Max: 4 W Lamp Bulb power 4 W Holder/Socket E14 Bulb voltage 220 - 240 V ILCOS Code DRBB/F-4-220- 240-E14-35/100 Size 35x100 mm Luminous flux 400 lm Correlated colour tem- perature 3000 K10 / ENCooker Hood / User ManualThis product contains a light source of energy ef-ficiency class “F”.Disconnect the hood from the mains supply. This appliance is equipped with 4 W spot LED lamps.

• Before replacing the light bulbs, disconnect the power supply of the hood. • Do not touch the light bulbs when they are hot. • Be careful not to touch the repla-ced light bulb directly with hands. You may procure lamps from Authorised Service Agents.

3.5 Operation with flue

• Vapour is extracted through the flue duct, which is fastened to the connection head on the hood. • The diameter of the flue duct must be the same as the connection ring. In horizontal settings, the pipe has to have a slight upward slope (around 10º) so that the air can exit the room easily.

3.6 Operation without flue

• Air is filtered through the carbon filter and recirculated in the room. Carbon filter is used when it is impossible to use a flue in the house. • In flueless use, remove the flaps inside the flue adapter. • Remove the oil filter. To install the carbon filter, fit the filter to the tabs by centring it on the plastic piece on both sides of the fan body. Tighten it by turning right or left. • Replace aluminium oil filter.

Using the applianceCooker Hood / User Manual11 / EN

Cleaning and maintenance The device should be cleaned and maintained regularly. Failure to keep the device clean will adversely affect the service life of the device. For cleaning and maintenance, follow the instructions stated in the manual. Before cleaning and maintenance, unplug the product or turn off the switch.Non-compliance with the provisions associated with the cleaning of the device and replacement of the filters may result in a risk of fire. Therefore, it is recommended to follow the gui-delines stated here. The manufactu-rer is not responsible for the engine damages or fires originating from the improper use.Clean the hood using a damp cloth and a neutral liquid detergent.4.1 Cleaning of the grease filterGrease filter retains the oil particles in the air. Grease filters may change colour after repeated cleaning. This is normal and does not require rep-lacement of filters. • Push the grease filter lock forward.

• Then pull it slightly down and pull it out. Other- wise, you can bend the filter. Wash and rinse grease filters with liquid detergent and replace grease filters to their sockets by by carrying out the steps specified above in reverse order. This filter retains the oil particles in the air. You may wash your grease filters in the dishwasher. CAUTION: In case of normal use, clean your filter once in a month.4.2 Replacement of carbon filters Odour removing filters contain charcoal (Active carbon). Grease filters must be installed in the product, regardless of whether or not carbon fil-ters are used.

• Remove the grease filter. • To remove the carbon filter, remove the carbon filter from its housing by rotating it counter-clockwise from the tab. • Install the new carbon filter. • Install the grease filter.12 / ENCooker Hood / User Manual

Installation of appliance

WARNING: Before starting the ins-tallation, read the safety information on user manual.

WARNING: Failure to install with screws and stabilizers in accordance with these instructions may result in electric shock. Please refer to page 26 for the ins-tallation guideFor the installation of the hood, please contact the nearest Authorized Service.It is the customer’s responsibility to prepare the location and electrical installation of the hood.

5.1 Position of the appliance

• Distance between the cooker and the cooker hood must be considered prior to assembly. This distance should be 65 cm. • Distance must be measured from the surface of grate for gas cookers, from surface of glass for electric cookers.

• Wall must be flat, straight and have the suffici- ent bearing capacity. • Depth of drilling holes must comply with the length of bolts. • The bolts and dowels provided are suitable for brick walls. For other construction material (e.g. drywall, plate, porous concrete), suitable fixing dowels and nuts shall be used.
• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplug- ged, cooled down and totally dry. CAUTION • Carbon filter shall never be was- hed.
• Replace carbon filters once every 3 months. • You can obtain the carbon filter from the authorized services.

Troubleshooting Troubleshooting Root Cause Help Appliance is not working. Check your fuses. Fuse may be blown, inspect and res- tore it. Appliance is not working. Check the electrical connection. Mains voltage shall be between 220 and 240 V. Appliance is not working. Check the electrical connection. Check if other appliance in your kitc- hen operate. Illumination light does not opera- te. Check the electrical connection. Mains voltage shall be between 220 and 240 V. Illumination light does not opera- te. Inspect the lamp switch. Lamp switch shall be at "on" position. Illumination light does not opera- te. Inspect the lamps. The lamps of the appliance shall il- luminate. Air inlet of the appliance is inade- quate. Inspect the grease filter. Under normal operating conditions, grease filter shall be cleaned at least once in a month. Air inlet of the appliance is inade- quate. Check the air discharge flue. The air discharge flue shall be at “on” position. Air inlet of the appliance is inade- quate. Inspect the carbon filter. The filters of the appliances with car- bon filters shall be replaced once in every 3 months under normal condi- tions.

• Store the appliance in a cool and dry place.

• Keep the appliance out of the reach of children

5.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packa- ging of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.

• Dropping the appliance will render it non- operational or cause permanent damage.

N = 4x L = 8x I = 8x

N = 4x L = 4x(4,2x44,4)
