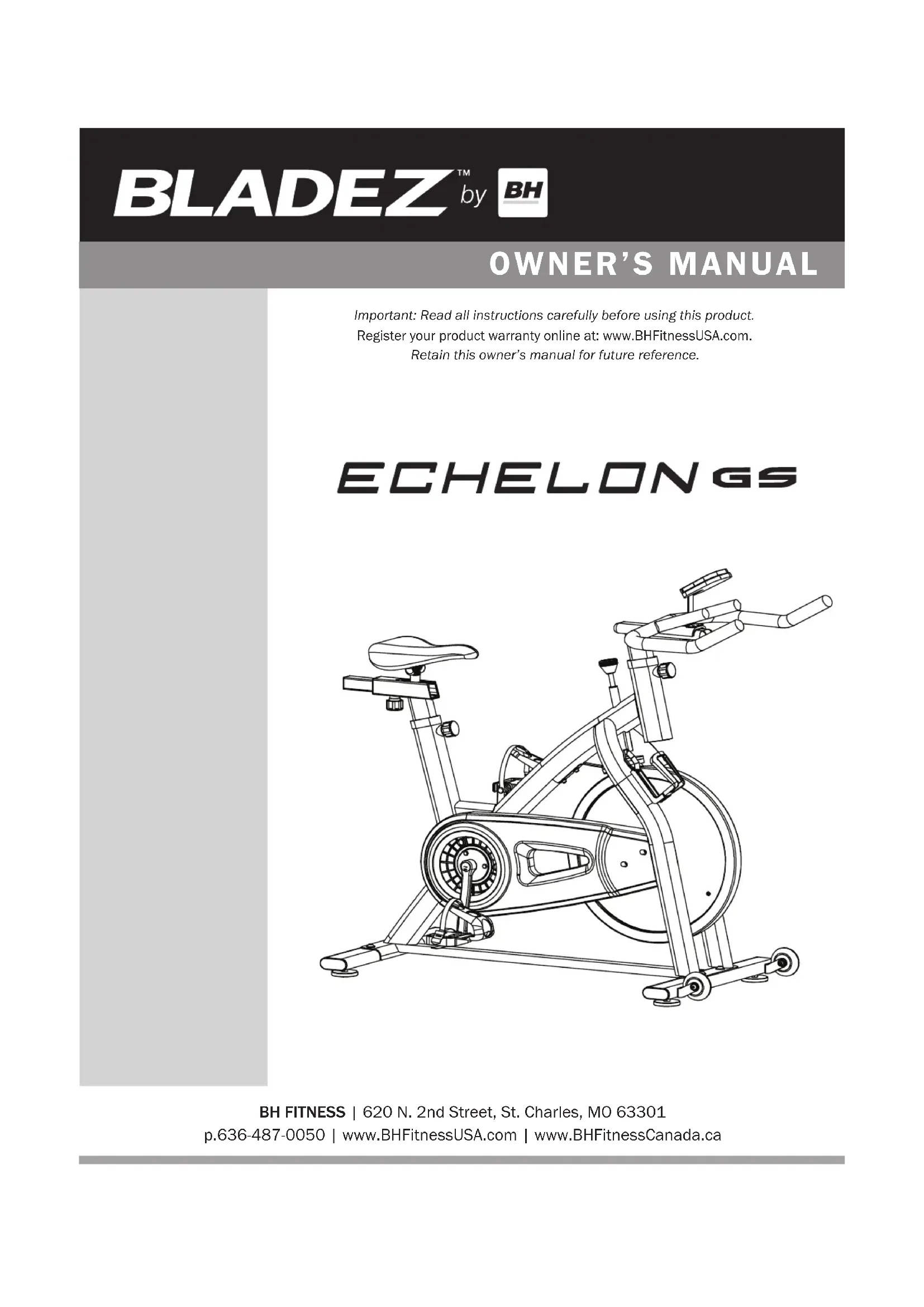

USER MANUAL Echelon GS Bladez
BH FITNESS | 620 N. 2nd Street, St. Charles, MO 63301 p.636-487-0050 | www.BHFitnessUSA.com | www.BHFitnessCanada.ca Important: Read all instructions carefully before using this product. Register your product warranty online at: www.BHFitnessUSA.com. Retain this owner’s manual for future reference.Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
Title .........................Page Congratulations ................02 Warnings and Labels ............03 Safety Information ..............04 Exercise Instruction .............05 Training Guidelines .............06 Suggested Stretches ............10 Assembly Instructions ...........12 Notice and Inspection ...........15 Exploded View Drawing ..........16 Parts List ......................17 Console Operations .............18 Maintenance And Cleaning .......20 French / Français ...............21 CONGRATULATIONS Congratulations on your purchase of BH Fitness equipment. We hope you appreciate the style, quality, and value that exercisers around the world have come to expect from BH Fitness. If you have any questions, concerns or product issues please call our Customer Service Team at 1-866-325-2339 or email us at CustomerSupport@BHNorthAmerica.com. Carefully read through the instructions contained in this manual. They provide you with important information about assembly, safety, tness and use of the machine. Please read ALL the safety information contained on the following page. TM3 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
WARNING LABELSRegister your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
SAFETY INFORMATION PRECAUTIONS The machine has been designed and constructed to provide maximum safety. Nevertheless, certain precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the machine. Please observe the following safety precautions:
1. Keep children and pets away from this equipment at all times. DO NOT leave them
unsupervised in the room where the the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this
machine STOP the exercise. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the stabilizer for stability.
4. Keep your hands away from any of the moving parts.
5. Wear clothing suitable for doing exercise. Do not wear loose clothing that might get caught in
the machine. Always wear athletic shoes when using the machine.
6. This machine must only be used for the purposes described in this manual. DO NOT use
accessories that are not recommended by Bladez Fitness.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without the
assistance of a qualied person or doctor.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Keep a perimeter of 3 feet (1 meter) around the machine before operating the equipment.
13. This machine is not suitable for therapeutic use.
14. Use only authorized and trained technicians if a repair is needed.
15. Please follow the advice for correct training, as detailed in the Training Guidelines.
16. This machine has been designed for home use, not for commercial use.
17. Use only the tools provided to assemble this machine.
18. The moving pedals can cause injury.
19. This machine was designed for a maximum user weight of 275 Lbs (125kg).
20. The machine can only be used by one person at a time.
21. Don’t exceed the MAX mark when adjusting the handlebar post or seat post. Be sure the
adjustment knob is fully tightened and seat and handlebars are secure.
22. This bike does not free-wheel. You can stop the bike quickly by applying pressure to the
emergency hand brake, located on the handlebars.
23. Inspect the exercise bicycle for worn or loose components prior to use. Tighten/replace any
loose or worn components prior to using.
24. Care should be taken in mounting or dismounting the exercise bicycle.
CAUTION: Consult your doctor before beginning to use the machine or any exercise program. Read all of the instructions before using any exercise equipment. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.5 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
Use of the machine offers various benets; it will improve tness, muscle tone and when used in conjunction with a calorie controlled diet, it will help you lose weight.
1. Consult your doctor before starting any exercise program. It is advisable to undergo a
complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose clothing; do not
wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Step on to the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.
EXERCISE INSTRUCTIONRegister your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
TRAINING GUIDELINES Exercise is one of the most important factors in the overall health of an individual. Listed among its benets are:
- Increased capacity for physical work (strength endurance)
- Increased cardiovascular (heart and arteries/veins) and respiratory efciency
- Decreased risk of coronary heart disease
- Changes in body metabolism, e.g. losing weight
- Delaying the physiological effects of age
- Reduction in stress, increase in self-condence, etc. There are several components of physical tness and each is dened below. STRENGTH The capacity of a muscle to exert a force against resistance. Strength contributes to power and speed. MUSCULAR ENDURANCE The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of your legs to carry you 10 km without stopping. FLEXIBILITY The range of motion of your joints. Improving exibility involves the stretching of muscles and tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or soreness. CARDIO-RESPIRATORY ENDURANCE The most essential component of physical tness. It is the efcient functioning of the heart and lungs. AEROBIC FITNESS Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic or energy-generating process. Many types of exercise are aerobic, and by denition are performed at moderate levels of intensity for extended periods of time. ANAEROBIC TRAINING Is an exercise intense enough to trigger anaerobic metabolism. This means “without oxygen” and is the output of energy when the oxygen supply is insufcient to meet the body’s long term energy demands. (For example, a 100 meter sprint.)7 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
TRAINING GUIDELINES OXYGEN UPTAKE The effort that you can exert over a prolonged period of time is limited by your ability to deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.
THE TRAINING THRESHOLD
This is the minimum level of exercise which is required to produce signicant improvements in any physical tness parameter. OVERLOAD This is where you exercise above your comfort level. The intensity, duration and frequency of exercise should be above the training threshold and should be gradually increased as the body adapts to the increasing demands. As your tness level improves, the training threshold should rise. Working through your program and gradually increasing the overload factor is important. PROGRESSION As you become more t, a higher intensity of exercise is required to create an overload and therefore provide continued improvement. SPECIFICS Different forms of exercise produce different results. The type of exercise that is carried out is specic to the muscle groups being used and to the energy source involved. There is little transfer of the effects of exercise, i.e. from strength training to cardiovascular tness. That is why it is important to have an exercise program tailored to your specic needs. REVERSIBILITY If you stop exercising or do not do your program often enough, you will lose the benets you have gained. Regular workouts are the key to success. WARM-UP Every exercise program should start with a warm-up where the body is prepared for the effort to come. It should be gentle and preferably use the muscles group to be involved later. Stretching should be included in both your warm-up and cool down, and should be performed after 3-5 minutes of low intensity aerobic activity or calisthenic type exercise.
WARM DOWN OR COOL DOWN
This involves a gradual decrease in the intensity of the exercise session. Following exercise, a large supply of blood remains in the working muscles. If it is not returned promptly to the central circulation, pooling of blood may occur in the muscles.Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
TRAINING GUIDELINES HEART RATE As you exercise, your heart rate increases. This is often used as a measure of the required intensity of an exercise. You need to exercise hard enough to condition your circulatory system, and increase your pulse rate, but not enough to strain your heart. Your initial level of tness is important when developing an exercise program. Depending on the individual, when starting an exercise program, you can achieve good training results with a heart rate of 110-120 beats per minute (BPM). If you are more t, you will need a higher threshold of stimulation. To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your maximum heart rate. If you nd this is too easy, you may want to increase it, but it is better to lean on the conservative side. As a rule of thumb, your maximum heart rate is calculated by subtracting your age from 220. As you increase in age, your heart, like other muscles, loses some of its efciency. Some of this loss can be won back as tness improves.
HOW TO CALCULATE YOUR HEART RATE
Immediately after exercising, take your heart rate by applying two ngers to your wrist or carotid artery in the neck. Count the beats for ten seconds. Multiply the number of beats times 6 to calculate your current heart rate in BPM (beats per minute). Ten seconds is long enough for accuracy. Since heart rate slows as you recover, a count longer than ten seconds isn’t as accurate. The following tables are guides for target heart rate per beginning tness and above average tness levels based on your age.
AGE GROUP 25 30 35 40 45 50 55 60 65 10 Second Count 26 26 25 24 23 22 22 21 20 Heart Rate In Beats Per Minute 156 156 150 144 138 132 132 126 120 Don’t push yourself too hard to reach the gures on this table. It can be very uncomfortable if you over exercise. Let it happen naturally as you work through your program. Remember, the target is a guide, not a rule, a little above or below is just ne. Don’t be concerned with day to day variations in your pulse rate. Being under pressure or not enough sleep can affect it. Your pulse rate is a guide, don’t become obsessed with it.9 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
TRAINING GUIDELINES MUSCLE SORENESS For the rst week or so, muscle soreness may be the only indication you have that you are on an exercise program. This, of course, does depend on your overall tness level. A conrmation that you are on the correct program is a very slight soreness in most major muscle groups. This is quite normal and will disappear in a matter of days. If you experience major discomfort, you may be on a program that is too advanced, or you have increased your program too rapidly. If you experience pain during or after exercise, your body is telling you something. Stop exercising and consult your doctor.
Wear clothing that will not restrict your movement in any way while exercising. Clothes should be light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you normally would gives you no advantage. The extra weight you lose is body uid and will be replaced with the next glass of water you drink. Always wear a pair of athletic shoes.
BREATHING DURING EXERCISE
Do not hold your breath while exercising. Breathe normally as much as possible. Remember, breathing involves the intake and distribution of oxygen, which feeds the working muscles. REST PERIODS Once you start your exercise program, you should continue through to the end. Do not break off halfway through and then restart at the same place later on without going through the warm-up stage again. The rest period required between exercises may vary from person to person.Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
SUGGESTED STRETCHES HEAD ROLLS Rotate your head to the right for one count while feeling the stretch up the left side of your neck. Next, rotate your head back for one count, stretching your chin to the ceiling. Rotate your head to the left for one count, and nally, drop your head to your chest for one count. SHOULDER LIFTS Lift your left shoulder up toward your ear for one count. Then lift your right shoulder up for one count as you lower your left shoulder. SIDE STRETCHES Open your arms to the side and continue lifting them until they are over your head. Reach your left arm as far upward as you can for one count. Feel the stretch up your left side. Repeat this action with your right arm. QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your left foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with right foot up.11 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees towards the oor. Hold for 15 counts. TOE TOUCHES Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach down as far as you can and hold for 15 counts. HAMSTRING STRETCHES Sit with your right leg extended. Rest the soles of your left foot against your right inner thigh. Stretch toward your toes as far as possible. Hold for 15 counts. Relax and then repeat with left leg extended.
CALF/ACHILLES STRETCHES
Lean against a wall with your right leg in front of the left and your arms forward. Keep your left leg straight and the right foot on the oor; then bend the right leg and lean forward by moving your hip toward the wall. Hold, then repeat on the other side for 15 counts.Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
Attach Front Stabilizer (65) to main frame (1) and secure it with 2 Hex Bolts (71) and washers (70). Attach Back Stabilizer (66) to main frame (1) and secure with 2 Hex Bolts (71) and washers (70).
STEP 2: INSTALL LEFT/RIGHT PEDALS
Thread the Left Pedal (50) onto the left crank arm and tighten counter clockwise. Thread the Right Pedal (51) onto the right crank arm and tighten clockwise.
Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
Loosen the Pop Pin (4), and slide the Handlebar Post (3) into the Handlebar Post Housing on the Main Frame (1), Secure by tightening Pop Pin (4).
STEP 4: ATTACH THE HANDLEBAR

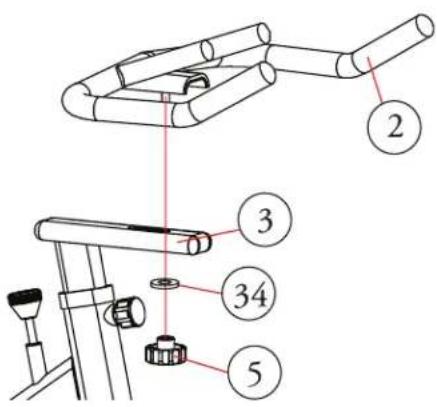

Attach the Handlebar (2) to the Handlebar Post (3) to desired adjustable position. Tighten using Adjustment Knob (5) and Large Washer (34).
STEP 5: INSTALLING THE SEAT POST

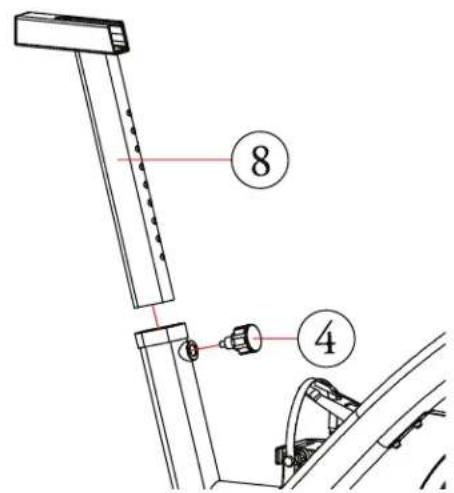

Loosen the Pop Pin (4) and slide the Seat Post (8) into the Seat Post Housing on the Main Frame (1), then tighten the Pop Pin (4).Register your product warranty online at: www.BHFitnessUSA.comQuestions regarding warranty and parts call: 636.634.2217
STEP 6: SEAT ASSEMBLY
Loosen the Pop Pin (4) and slide the Seat Slider (9) into the Seat Post (8) at desired height. Tighten the Pop Pin (4) Secure the Seat (12) to the Seat Slider (9).
STEP 7: WATER BOTTLE HOLDER
INSTALLATION Attach the Water Bottle Holder (78) onto the right fork of the frame - there are two holes in the fork to align the water bottle holder. Align the Water Bottle Holder to the holes and secure with 2 washers (80) and 2 Umbrella Screws (79).
STEP 8: ATTACH THE MOUNT
There are two screws (77) located on the Handlebar (2). Take these screws out and attach the Computer Bracket (76) to the Handlebar (2).
STEP 9: ATTACH THE COMPUTER
The Computer (75) comes with two batteries. Pull off the back cover and install the batteries. Replace Cover. Align back of computer (75) with Computer Mount (76) and slide the computer onto the computer mount. Connect computer cable with speed sensor cable from the bike. Connect the Sensor Cable (83) to the back of the Computer (75).
ASSEMBLY INSTRUCTIONS15 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
1. Inspect the equipment periodically including
the Nuts, Nut Caps and Pedals regularly. If you nd any defective parts, replace them immediately. Don’t exercise until they have been replaced.
2. Pay extra attention to areas that can

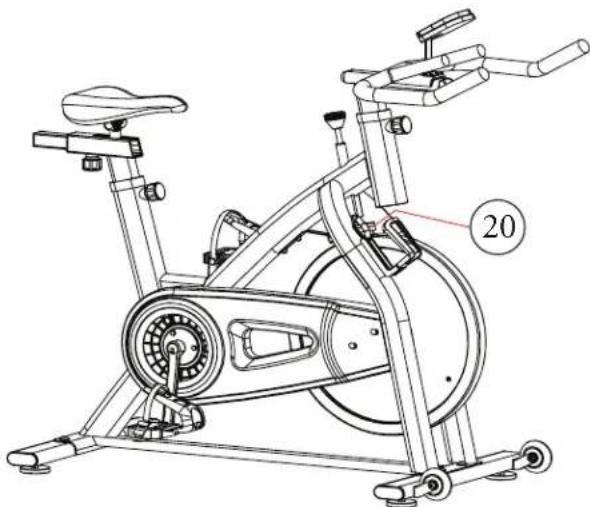

wear over time. The gure to the right show the brake pad (20), please inspect before exercising, if it has fallen off please replace it before you begin exercising.
3. Please inspect the Pedals before exercising,
if they are loose or missing, please tighten or replace before exercising.
4. If the seat (12) is loose, tighten the hex nut
with the appropriate wrench.
5. If you need to move the bike, please grasp
the Handlebar (2) at their very ends and pull down, this will make the wheels (72) of the Front Base touch the oor more easily. NOTICE AND INSPECTIONRegister your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
- The system will turn on when any button is pressed or when it receives an input from the speed sensor.
- The processor turns off automatically when the speed sensor has no signal input or no button has been pressed for more than 4 minutes.
2. HOW TO CHANGE THE SPEED/DISTANCE FUNCTION FROM MILES TO KILOMETERS
- After installing the batteries in the console the default distance/speed measurement is in Miles and is noted by an M on the display in the speed (SPD) and distance (DIST) functions.
- To change the distance/speed to Kilometers press the mode button for 3 seconds. The display will blink and the distance/speed is now Kilometers.
- Kilometers are noted by a K on the display. To change back to Miles repeat the same procedure.
- The unit can be reset by changing the batteries or pressing the RESET button for 3 seconds.
4. HOW TO PRESET TIME, DISTANCE, ODOMETER, PULSE & CALORIES:
- Press the MODE button until the function to be preset is ashing.
- Press the MODE button once the function stops ashing .
- Next, choose the value you want to exercise by pressing the SET button.
- When the speed sensor receives a signal, the monitor will begin to count down.
- It will beep for 10 seconds to indicate the completion of preset workout, press any button to stop the beeping.
- If data is not preset, functions will count up.19 Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
- TIME: The time of exercise will be displayed by pressing MODE until TMR appears on the console.
- SPEED: Current speed will be shown by pressing MODE until DST appears on the console.
- DISTANCE: The distance of each workout will be displayed by pressing MODE until DST appears on the console.
- ODOMETER: Press the MODE button until the pointer advance to ODO, the total accumulated distance will be shown.
- PULSE: The current heart rate is displayed in beats per minute (BPM) by pressing MODE until PULSE appears on the console.
- CALORIES: The calories burned will be displayed by pressing the MODE button until CAL appears on the console.
BATTERY This monitor uses one AAA battery. If the monitor is not displaying correctly - install a new battery.Register your product warranty online at: www.BHFitnessUSA.com Questions regarding warranty and parts call: 636.634.2217
1. Care has been taken to assure that your bike has been properly adjusted and lubricated at the
factory. It is not recommended that the user attempt service on the internal components; instead seek service from an authorized service center.
2. From time-to-time the outer surfaces may appear dull or dirty. Following the instructions listed below
will restore and preserve the original nish.
3. Clean the handlebars and seat after each workout with a disinfectant spray, and remove any sweat
from the bike frame.
4. Apply anti-rust to the ywheel every time you clean the machine or at least once a month. Apply a
very light coat of oil in the contact surface of the ywheel with brake to avoid rattling noises.
5. Cleaning metal surfaces may be accomplished by using a soft cotton or terry cloth rag with a light
application of car wax. Do not use aerosol sprays or pump bottles as they may deposit wax on the console surface.
6. From time-to-time the computer surface may collect dust or nger prints. The use of harsh chemicals
will destroy the protective coating and cause a static build up that will damage the components. This surface may be cleaned with cleaning products found in most computer supply stores, specially made for antistatic surfaces. It is strongly recommended that you purchase such a cleaning compound.
