| Product type | Turntable (record player) |
| Brand | Esoteric |
| Model | Grandioso T1 |
| Rotation speed | 33⅓ rpm and 45 rpm, adjustable ±12% in 0.1% steps |
| Wow and flutter | 0.06% or less (W.R.M.S) |
| Clock input | BNC 1, impedance 50Ω, frequency 10MHz, level 0.5 to 1.0Vrms |
| Dimensions main unit | 497×215×436mm |
| Dimensions platter | Diameter 315.4×103mm |
| Dimensions motor unit | 180×137×450mm |
| Dimensions power supply unit | 445×162×447mm |
| Weight main unit | 17kg |
| Weight platter | 19kg |
| Weight motor unit | 9kg |
| Weight power supply unit | 18kg |
| Power supply (European model) | AC 230V, 50Hz |
| Power supply (USA/Canada model) | AC 120V, 60Hz |
| Power consumption | 9W |
| Standby power consumption | 0.5W or less |
| Operating temperature | +5°C to +35°C |
| Operating humidity | 5% to 85% (non-condensing) |
| Supplied tonearm | TA-9D (except armless models) |
| Included accessories | Installation tools, spacer, gauge, rails, covers, mat, DC cord, power cord, pads, handles, manual, warranty card |
| Maintenance | Dry soft cloth; do not use chemicals |
| Safety | Do not open the case, unplug before cleaning, use only specified accessories |
| Repairability | Refer all servicing to qualified personnel |
Frequently Asked Questions - Grandioso T1 Esoteric
User questions about Grandioso T1 Esoteric
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Turntable in PDF format for free! Find your manual Grandioso T1 - Esoteric and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Grandioso T1 by Esoteric.
USER MANUAL Grandioso T1 Esoteric
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.
WARNING
Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.
IN USA/CANADA, USE ONLY ON 120V SUPPLY.
CAUTION
Do not expose this apparatus to drips or splashes.
- Do not place any objects filled with liquids, such as vases, on the apparatus.
- Do not install this apparatus in a confined space such as a book case or similar unit.
The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
- CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.
Supplier's Declaration of Conformity
Model number: Grandioso T1
Trade name: ESOTERIC
Responsible party: 11 Trading Company, LLC
Address: 3502 Woodview Trace #200 Indianapolis, IN 46268 U.S.A.
URL: https://11tradingcompany.com/contact-us/
This device complies with Part.15 of FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference
2) This device must accept any interference received, including interference that may cause undesired operation.
Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the equipment and/or the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Model for Canada
Innovation, Science and Economic Development Canada's
Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-003.
Model for Europe
This product complies with the European Directives request, and the other Commission Regulations.
Model for UK
This product complies with the applicable UK regulations.
For European Customers
Disposal of electrical and electronic equipment and batteries and/or accumulators
a) All electrical/electronic equipment and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.
If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC, 2013/56/EU), then the chemical symbols for those elements will be indicated beneath the WEEE
Pb, Hg, Cd
e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.
ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.
Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.
Contents
Thank you for purchasing this ESOTERIC product.
Read this manual carefully to get the best performance from this product. After reading it, keep it in a safe place with the warranty card for future reference.
IMPORTANT SAFETY INSTRUCTIONS 3
Before use. 6
Precautions for use. 6
Maintenance. 7
Handling records. 7
Connections. 8
Main unit parts and functions. 10
Power supply unit parts and functions 12
Installation 13
Basic operation 21
Setting mode. 22
Settings 22
Troubleshooting 24
Specifications. 26
Dimensional drawings. 27
Included accessories
Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this product if any of these accessories are missing or have been damaged during transportation.
Installation tools
Spacer block × 1

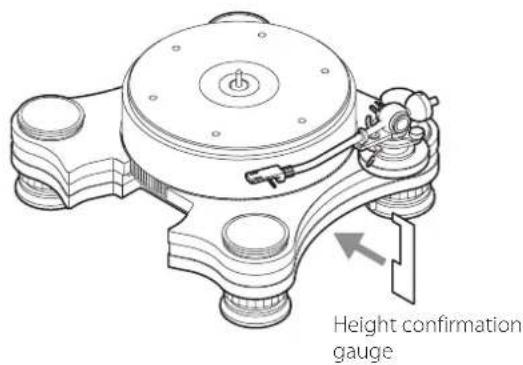

Height confirmation gauge × 1
Installation rail (L)× 1
Installation rail (R) × 1
Unit protective covers × 2
Turntable mat × 1
DC Power cord × 1
Power cord × 1
Felt pads (for power supply unit) × 4
Handles×2
Owner's manual (this document) × 1
Warranty card × 1
Tonearm TA-9D × 1^*
Tonearm TA-9D Owner's Manual × 1^*
Arm base × 1^*
*Not included with armless models
If an armless model is purchased, an arm base kit will also be necessary. We accept custom orders for arm base kits that support various types of arms.
Note about power supply unit installation

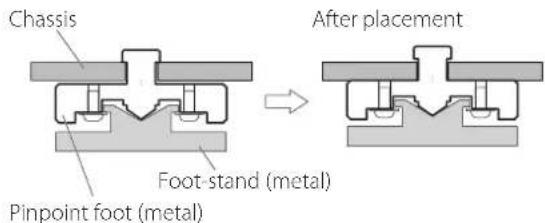

High-precision metal pinpoint feet are attached to the bottom plate of the power supply unit.
The pinpoint feet and their stands are loose, but when this unit is placed in position, it is supported by these pinpoint feet, which effectively disperse vibrations.
-
Apply the included felt pads to the bottoms of the foot-stands to avoid scratching the surface where this unit is placed.
-
This equipment is very heavy, so take care to avoid injury when opening the packaging and when moving it. The base unit weighs 17kg (37 1/2 lb), the platter weighs 19kg (42 lb), the motor unit weighs 9kg (19 7/8 lb) and the power supply unit weighs 18kg (39 3/4 lb).
- Do not place anything on top of the main or power supply units.
- Do not install these units in locations that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction.
- Place the main and power supply units in stable locations.
- In order to enable good heat dissipation, leave at least 20cm (8^n) between these units and walls and other equipment when installing them.
If you put them in a rack, for example, leave at least 5 cm (2") open above and 10 cm (4") open behind them.
Failure to provide these gaps could cause heat to build up inside and result in fire.
The voltage supplied to the power supply unit should match the voltage as printed on its back. If you are in any doubt regarding this matter, consult an electrician. - Do not open the bodies of the units as this might result in damage to the circuitry or cause electric shock. If a foreign object should get into one of the units, contact your dealer.
- When removing the power plug from an outlet, always pull directly on the plug. Never pull on the cord itself.
Use a soft dry cloth to wipe the surfaces of the units clean.
For stubborn smudges, use a damp cloth that has been thoroughly wrung out to remove excess moisture.
-
Never spray liquid directly on these units.
-
Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surfaces of the units.
- Avoid allowing rubber or plastic materials to touch the units for long periods of time because they could damage the cabinets.
For your safety, disconnect the power cord from the outlet before cleaning.
Holding records
When holding a record or removing it from its sleeve, avoid touching the grooves by holding the record by its label and edge with one hand or by holding it by its edge with both hands.
Cleaning
Fingerprints and dust on a record can cause noise and the sound to skip, as well as damage the record itself and the stylus. Use a commercially-available record cleaner to clean records. Do not use thinner or anything other than a record cleaner. Such chemicals could harm the surface of the record.
When using a record cleaner, wipe the surface of the record in a circular motion, following the grooves.
Precautions for use
Do not leave records in places that are exposed to direct sunlight or are very hot or very humid. Leaving a record in such a condition for a long time could result in warping, mold growth or other damage.
Do not stack multiple records or place heavy objects on top of them.
Do not leave records at an angle for long amounts of time, either.
Doing so could result in warping or other damage.
Do not allow hard objects to directly touch the audio grooves. Doing so could cause scratches.
After you finish playing a record, always put it back into its sleeve for storage. Leaving a record unprotected could result in warping or scratching.
Do not use cracked records.

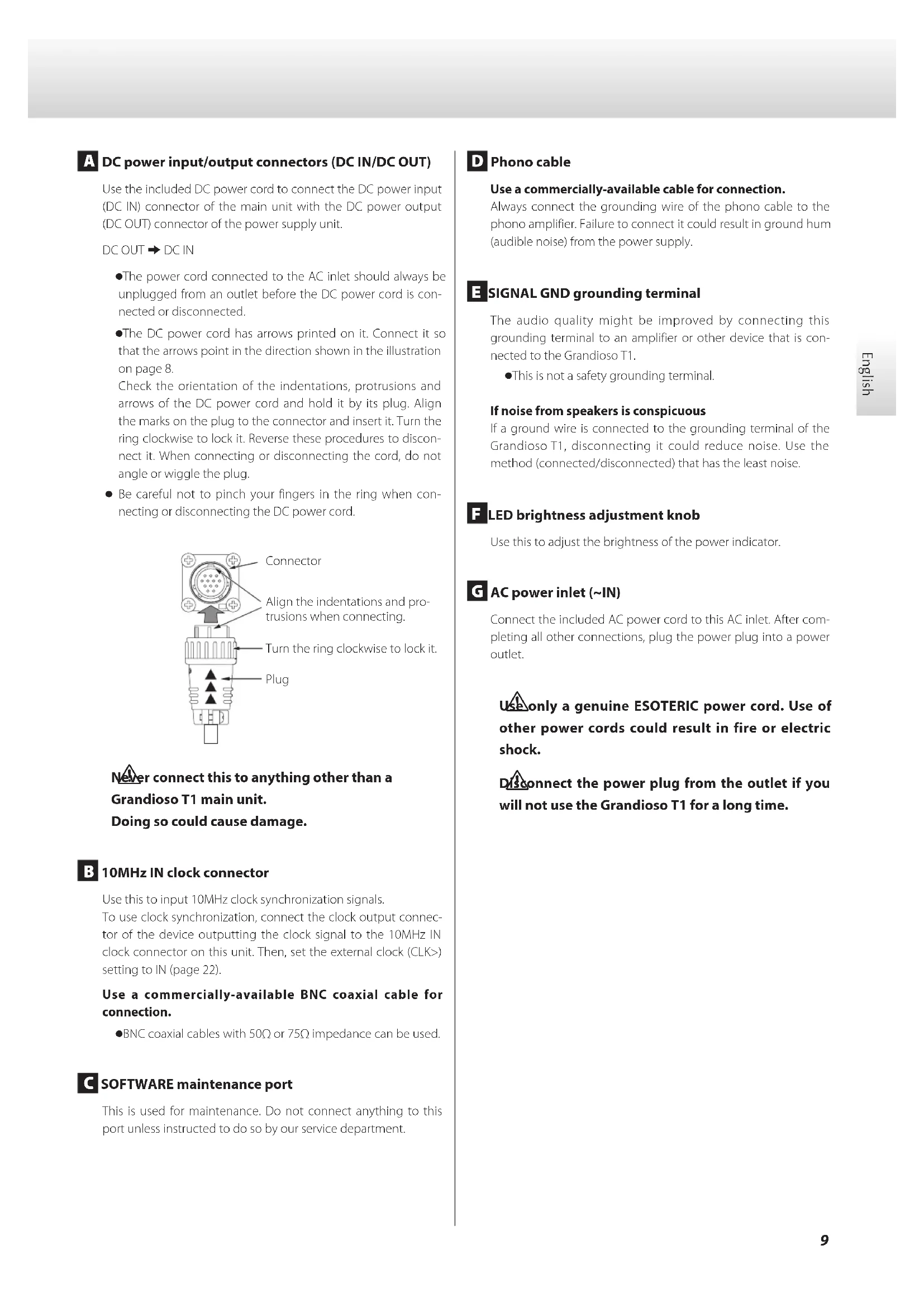

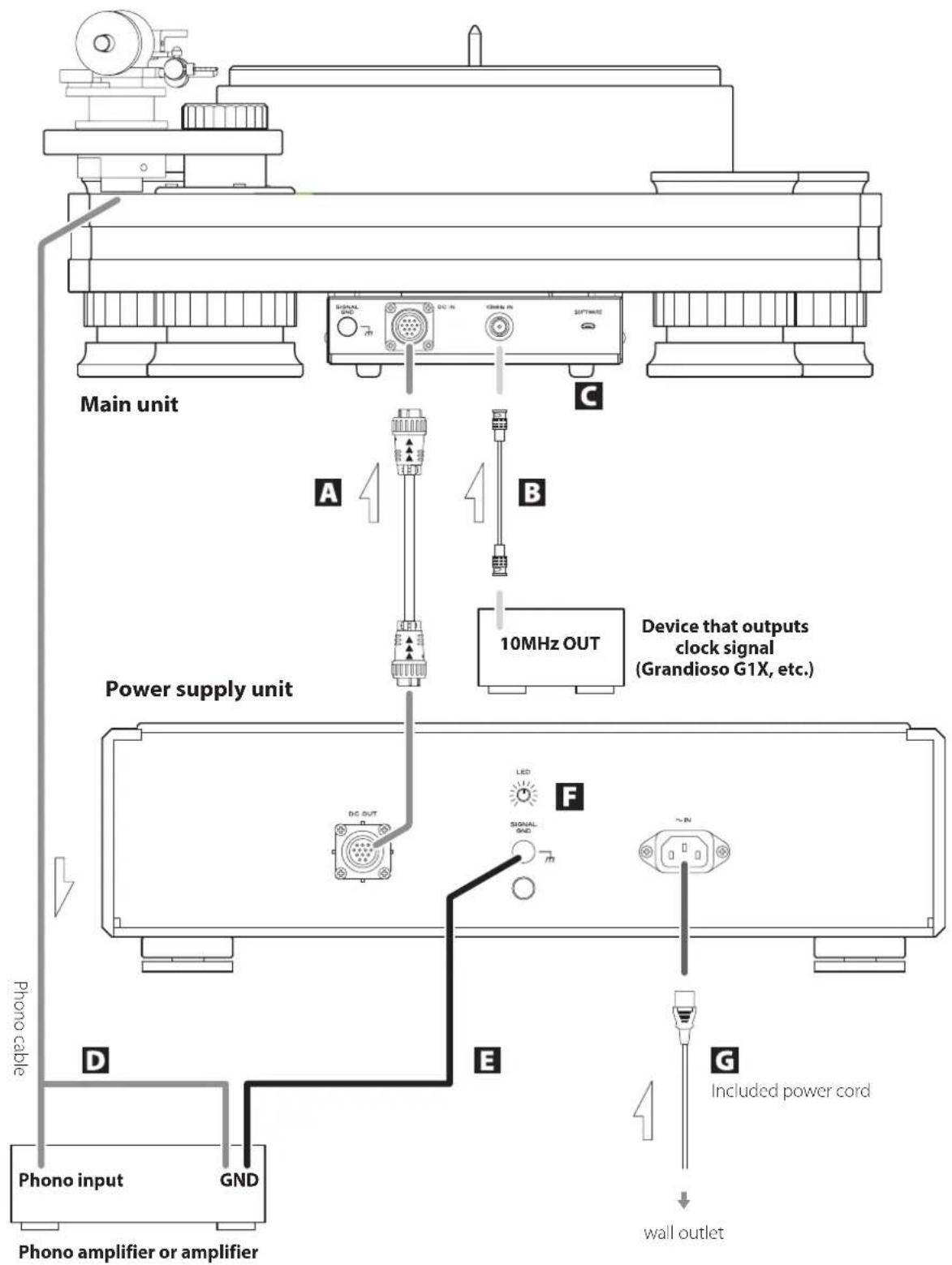

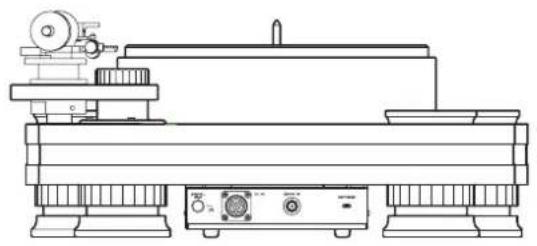

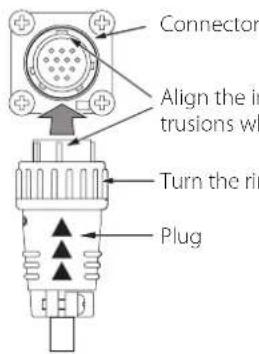

A DC power input/output connectors (DC IN/DC OUT)
Use the included DC power card to connect the DC power input (DC IN) connector of the main unit with the DC power output (DC OUT) connector of the power supply unit.
DCOUT DCIN
The power cord connected to the AC inlet should always be unplugged from an outlet before the DC power cord is connected or disconnected.
The DC power cord has arrows printed on it. Connect it so that the arrows point in the direction shown in the illustration on page 8.
Check the orientation of the indentations, protrusions and arrows of the DC power cord and hold it by its plug. Align the marks on the plug to the connector and insert it. Turn the ring clockwise to lock it. Reverse these procedures to disconnect it. When connecting or disconnecting the cord, do not angle or wiggle the plug.
- Be careful not to pinch your fingers in the ring when connecting or disconnecting the DC power cord.
Nev er connect this to anything other than a Grandioso T1 main unit. Doing so could cause damage.
B 10MHz IN clock connector
Use this to input 10MHz clock synchronization signals. To use clock synchronization, connect the clock output connector of the device outputting the clock signal to the 10MHz IN clock connector on this unit. Then, set the external clock (CLK>) setting to IN (page 22).
Use a commercially-available BNC coaxial cable for connection.
BNC coaxial cables with 50 or 75 impedance can be used.
C SOFTWARE maintenance port
This is used for maintenance. Do not connect anything to this port unless instructed to do so by our service department.
D Phono cable
Use a commercially-available cable for connection.
Always connect the grounding wire of the phono cable to the phono amplifier. Failure to connect it could result in ground hum (audible noise) from the power supply.
E SIGNAL GND grounding terminal
The audio quality might be improved by connecting this grounding terminal to an amplifier or other device that is connected to the Grandioso T1.
This is not a safety grounding terminal.
If noise from speakers is conspicuous
If a ground wire is connected to the grounding terminal of the Grandioso T1, disconnecting it could reduce noise. Use the method (connected/disconnected) that has the least noise.
F LED brightness adjustment knob
Use this to adjust the brightness of the power indicator.
AC power inlet (~IN)
Connect the included AC power cord to this AC inlet. After completing all other connections, plug the power plug into a power outlet.
Use only a genuine ESOTERIC power cord. Use of other power cords could result in fire or electric shock.
Connect the power plug from the outlet if you will not use the Grandioso T1 for a long time.

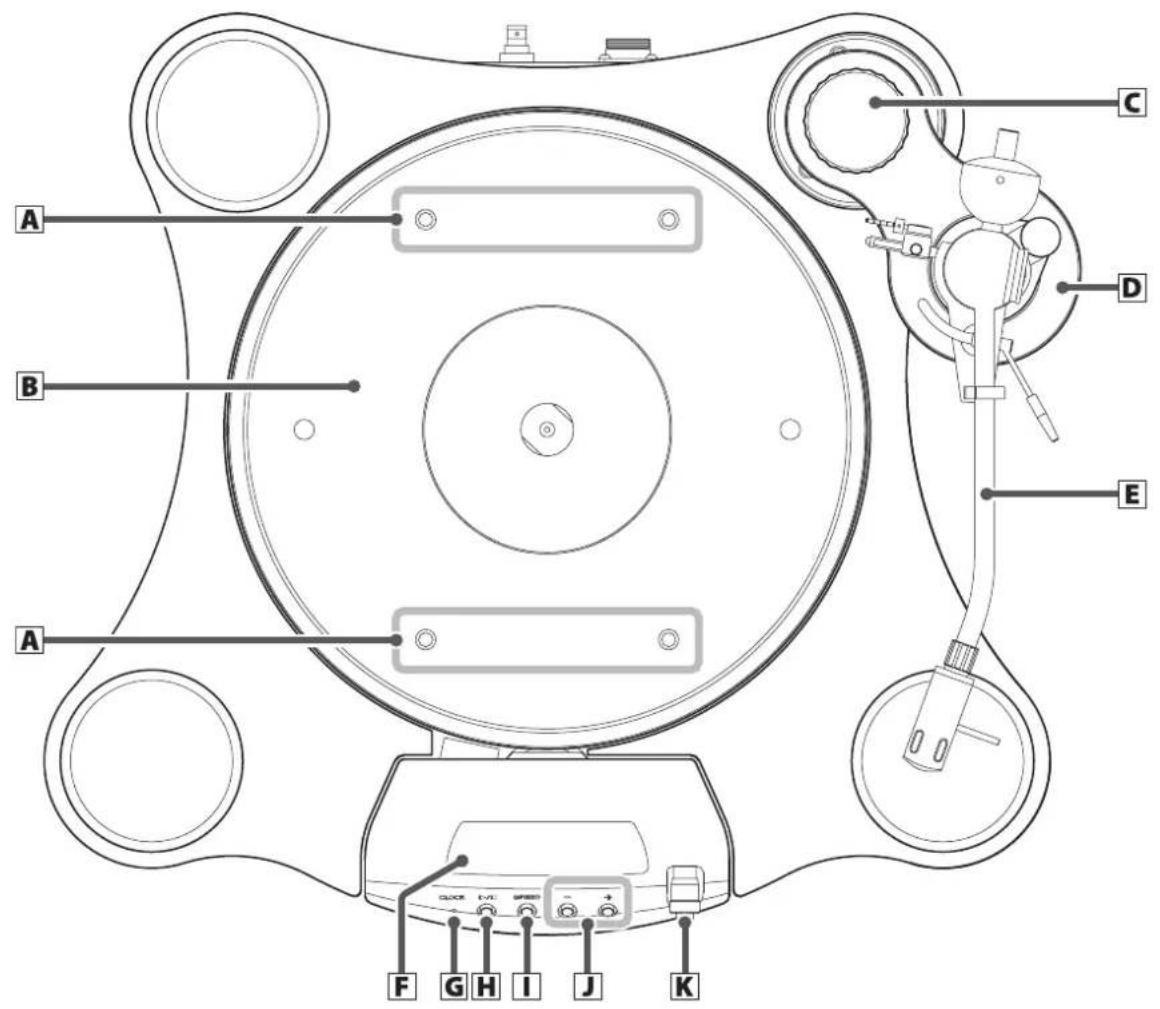

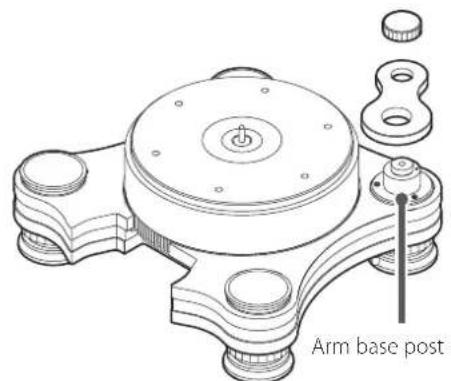

A Screw holes for handle attachment
B Platter
C Arm base attachment thumbscrew
This is not included with armless models.
D Arm base
This is not included with armless models.
If an armless model is purchased, an arm base kit will also be necessary. We accept custom orders for arm base kits that support various types of arms.
E Tonearm (TA-9D)
Prepare one for use with an armless model.
FDisplay
This shows various information.
G CLOCKindicator
This shows the clock synchronization status.
This indicator blinks during clock synchronization and lights when synchronization completes.
H Play/stop ( / button
This starts and stops platter rotation.
Press this when the unit is off to turn it on.
Press and hold this (for about 5 seconds) when the unit is on to turn it off.
Press this when in setting mode to end making settings and return the display to its usual state (page 22).
I SPEED button
Select the rotation speed indicated on the record to be played.
Press this to switch between 33 1/3 and 45 RPM.
Press and hold this to enter setting mode (page 22).
Use this to change setting items when in setting mode.
Press and hold this to end making settings.
J Rotation speed adjustment (- + ) buttons
Use these to adjust the platter rotation speed precisely.
The speed can be adjusted ± 12.0% in 0.1% increments.
Use these to change setting values when in setting mode (page 22).
K Micrometer adjustment knob
Use this to adjust the space between the motor and the platter.

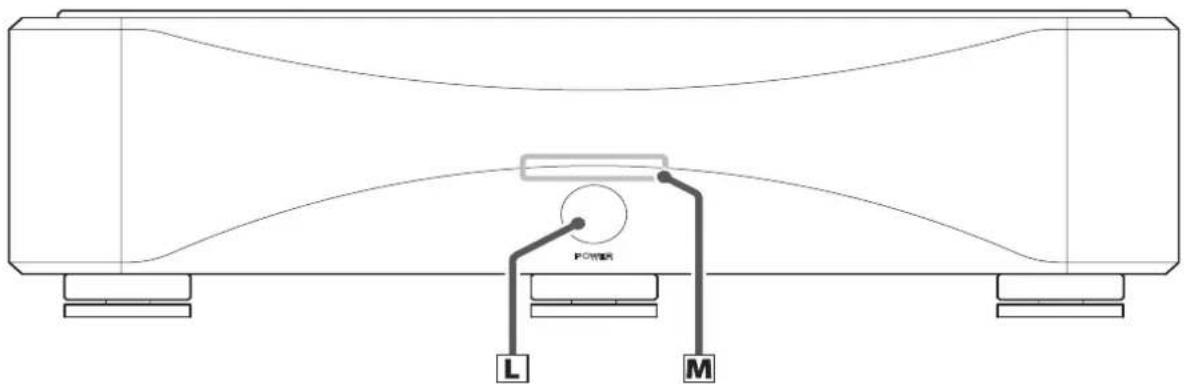

Power supply unit parts and functions
L POWER button
Press this to turn the Grandioso T1 on and off.
Turn it off when not using it.
M Power indicator
This lights when the Grandioso T1 is on.
This product is provided in one set of three packages.
Package 1
Base unit Arm base
This is not included with amless models.
Spacer block Unit protective covers (Pre-attached to base unit)
Package 2
Platter Handles
Motor unit Height confirmation gauge (in accessory box)
Installation rail (L) Installation rail (R)
Package 3
Power supply unit Tonearm (TA-9D)*
*A tonearm is not included with armless models.

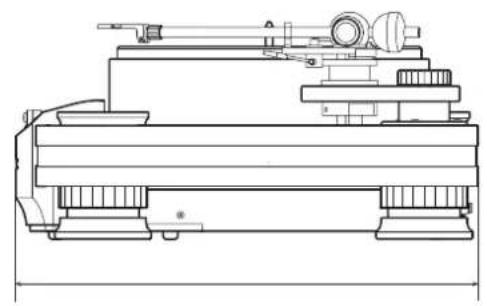

The base unit weighs 17kg (37 1/2 lb), the platter weighs 19kg (42 lb), the motor unit weighs 9kg (19 7/8 lb) and the power supply unit weighs 18kg (39 3/4 lb). This equipment is very heavy, so work with two or more people and take care to avoid injury when opening the packages and moving the parts.

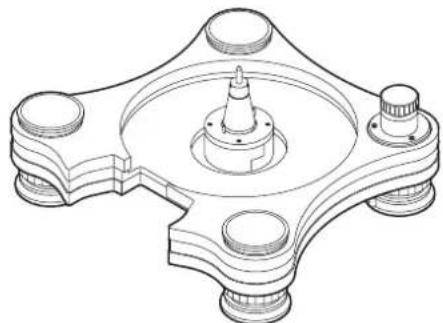

1 Install the base unit on a flat and level surface.
-
Be mindful of the weight-bearing capacity of the installation location.
-
Adjust the position of the base unit precisely at this stage. The following steps must be conducted with the base unit in a fixed position.
2 Attach the handles to the platter.
After loosely screwing the handles all the way in, unscrew them slightly so that they are in a position that is easy to lift. Do not install the handles tightly.
- Be careful when handling the heavy platter, which weighs 19 kg (42 lb).

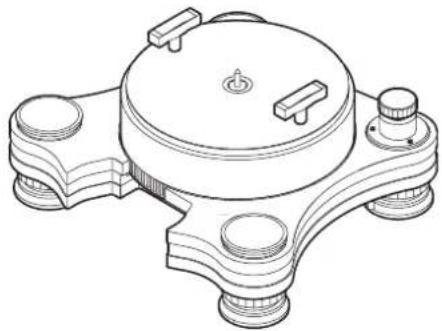

3 Attach the platter to the base unit.
Center shaft Platter
Marks have been placed in the positions that enable ideal precision for assembly of the center shaft and the platter. Adjust the orientation of the platter so that the marks align when it is installed.
The center shaft cannot be turned before the platter is installed.
- When installing the platter, put it on slowly and be careful not to catch any fingers between the platter and the base plate.

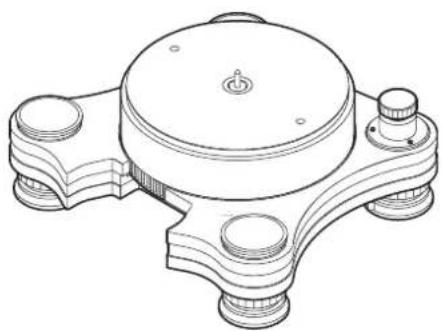

4 Remove the handles from the platter.

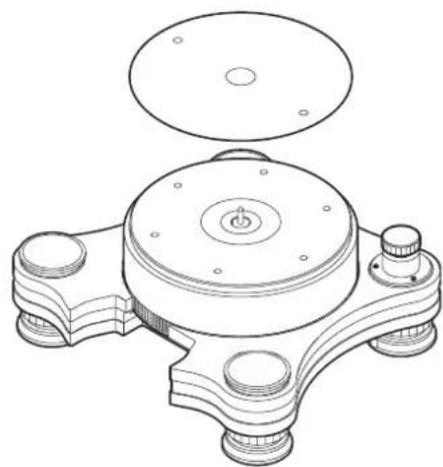

5 Remove the platter protection sheet.

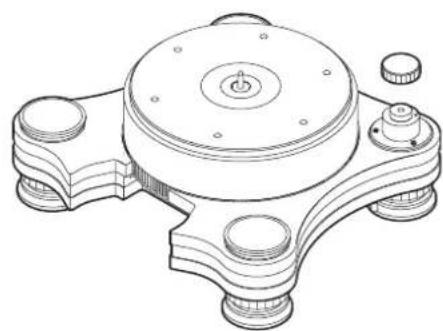

6 Remove the arm base attachment thumbscrew from the base unit.

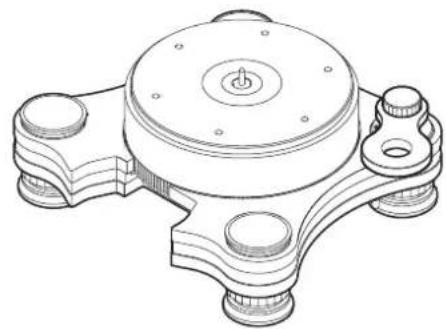

7 Attach the arm base to the base unit.
Align a positioning indentation on the underside of the arm base with the pin on the arm base post when installing it.
ATTENTION
To ensure level installation, be sure to install the arm before adjusting the height of the base unit.

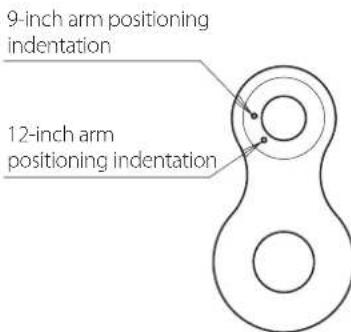

The arm base has 2 positioning indentations. Choose the indentation according to the length of the arm.
The TA-9D tonearm is a 9-inch arm.
- When placed correctly, the tops of the arm base and the arm base post should be almost the same height. If there is a large height difference between the arm base and the arm base post, the positioning indentation and the pin might not be aligned. Try installing the arm base again.
8 Attach the tonearm to the arm base.
Refer to the owner's manual included with the tonearm and install it.
Tonearm installed in the arm base
9 Attach the headshell to the tonearm.

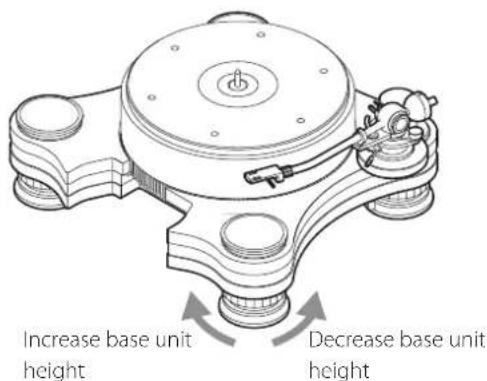

10 Adjust the heights of the base unit feet so that the platter is level.
In order to confirm the level placement of the turntable, we recommend using, for example, a commercially-available turntable leveling device.
ATTENTION
- Press down on the four corners of the base unit to confirm that the weight is distributed evenly on the four feet. If one of the feet is wobbly, adjust its height.
- To avoid lowering the feet too much, adjust the height within a range that allows the included height confirmation gauge to fit all four sides of the base unit. This will enable the motor unit to be placed under the base unit in a later step.

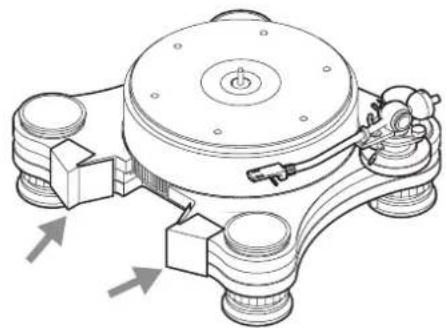

11 Confirm that the protective covers are attached to the base unit at the locations shown by the arrows.
Reattach them if they were removed during installation.

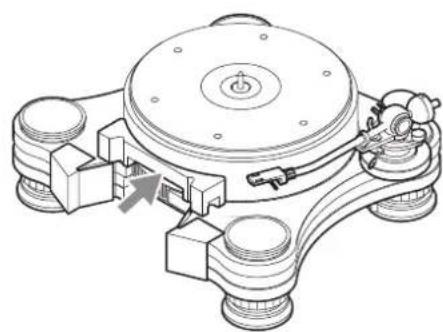

12 Place the spacer block on the base unit so that it touches the platter as shown in the illustration.
- Attach the spacer block with the proper up-down orientation.

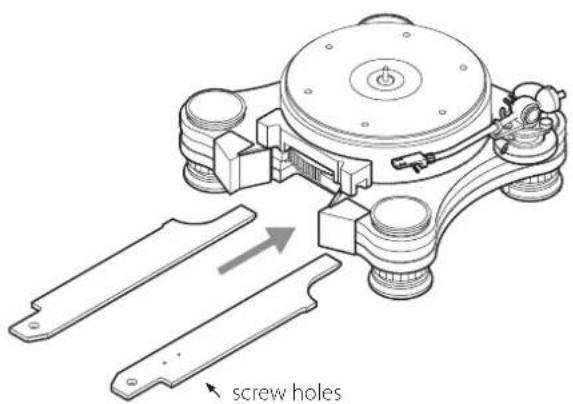

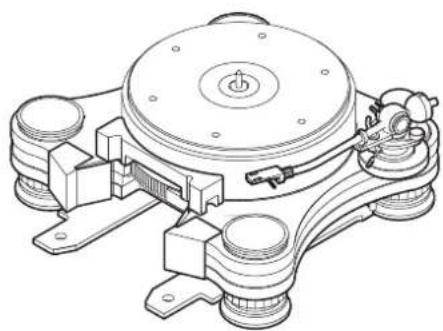

13 Place the installation rails between the base unit feet.
The installation rail that has 2 screw holes is for the right side.

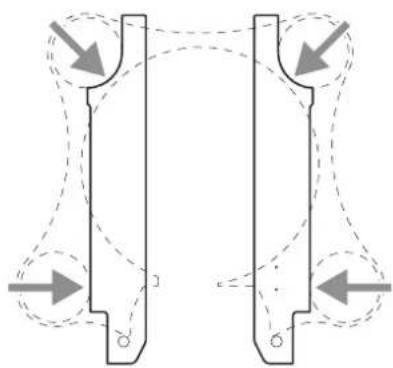

Place the installation rails so that they touch the base unit feet at the places shown by the arrows. (The base unit is shown by dashed lines for this explanation.)

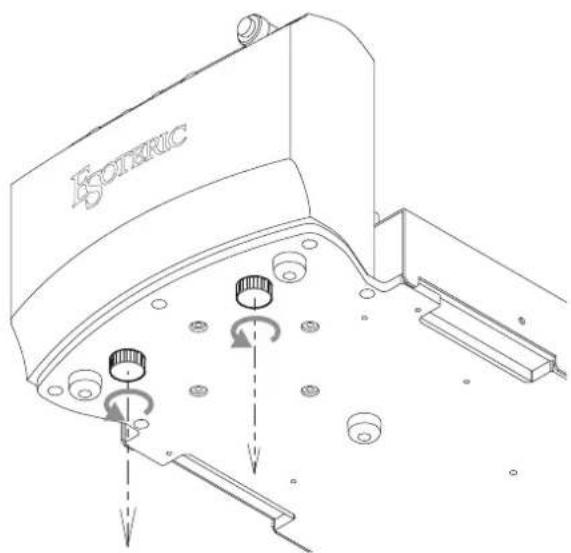

14 Remove the transportation screws from the bottom of the motor unit.
The removed screws will be necessary for transportation, so save them so they will not be lost. After installation is complete, attach the transportation screws to the screw holes in the installation rail (R).
15 Set the micrometer value for the motor unit to 3.

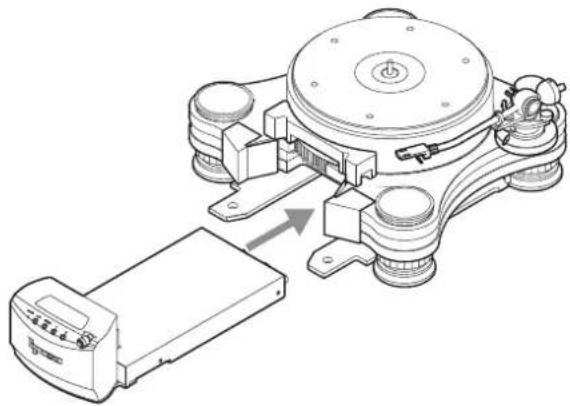

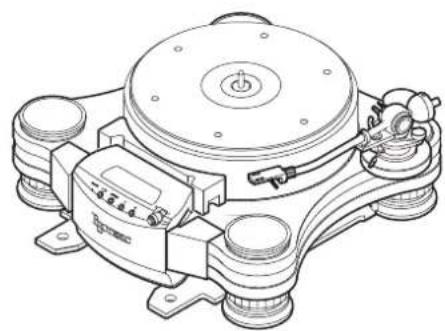

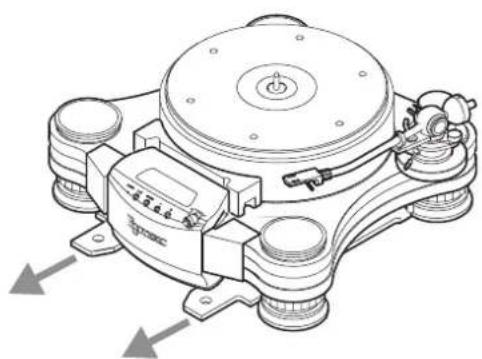

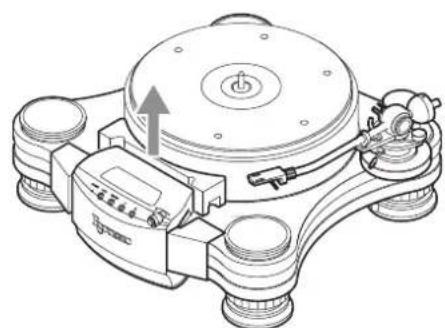

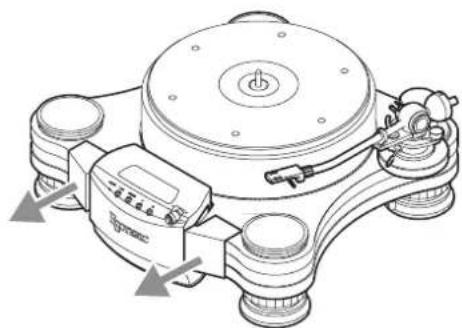

16 Following the installation rails, insert the motor unit.
Insert the motor unit until there are no spaces between it, the platter and the spacer block.
- When inserting the motor unit, be careful not to let it touch the base unit.
- If the motor unit and the base unit touch, use the height confirmation gauge and adjust the base unit height.
17 Place the power supply unit near the base unit and connect it to the motor unit with the DC power cord (page 8).
When using a clock generator, connect it to the 10MHz IN connector.
18 Use a phono cable (sold separately) to connect the tonearm with a phono amp or the phono input of an amp.
Use a commercially-available phono cable for connection.
Always connect the grounding wire of the phono cable, too.
19 While preventing the motor unit from moving by, for example, holding it down by hand, pull out the installation rails.
If the motor unit is moved while pulling out the installation rails, put the rails back into their original positions. Insert the motor unit until there are no spaces between it, the platter and the spacer block. Then, pull out the installation rails.
20 Remove the spacer block from the platter.
21 Remove the protective covers attached to the base unit at the locations shown by the arrows.
22 Place the turntable mat on the platter.
Adjust the tonearm.
Refer to the owner's manual for the tonearm being used and adjust it.
- After completing all connections, plug the power plug into a power outlet.
ATTENTION
Save the tools used for installation because they will be needed when relocating the equipment.
Adjusting the distance between the platter and the magnetic driver
Adjusting the distance between the platter and the magnetic driver will change the sound when a record is playing.
The default position is 3.
The adjustment range is 2-3.
Set the micrometer adjustment knob to the desired position.
Removing the motor unit

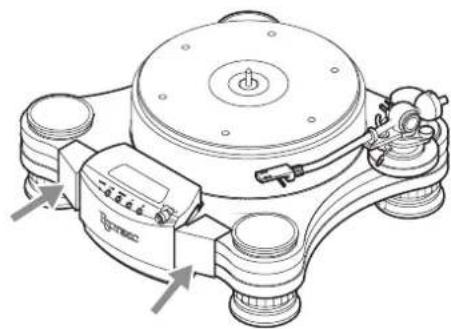

1 Attach the protective covers to the base unit at the locations shown by the arrows.

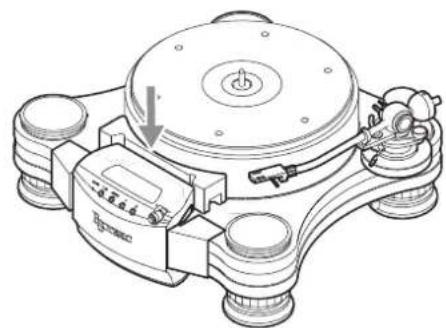

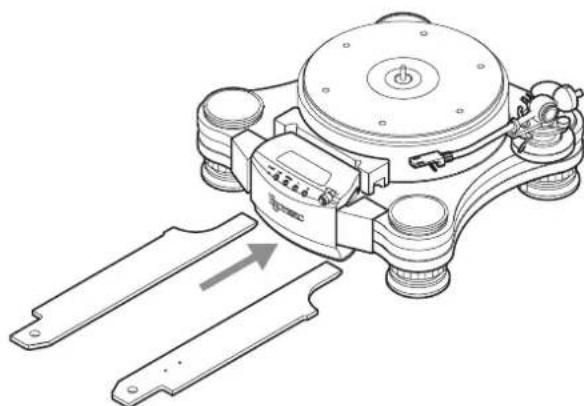

Place the spacer block between the motor unit and the platter as shown in the illustration.
3 Place the installation rails between the base unit feet.
- Remove the transportation screws from the installation rails if they have been attached.

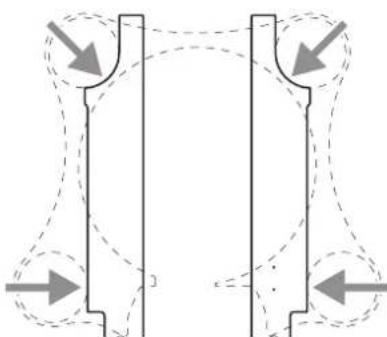

Place the installation rails so that they touch the base unit feet at the places shown by the arrows. (The base unit is shown by dashed lines for this explanation.)
4 Remove the cables connected to the motor unit and tonearm.

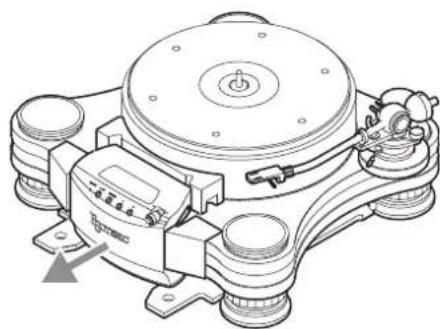

5 Pull out the motor unit.
6 Remove the installation rails, spacer block and protective covers.
Resetting the motor unit to its default position
If the motor unit has moved because of an earthquake, for example, follow the procedures below to fix its position.
1 Set the micrometer value for the motor unit to 3.
Conduct steps 1-3 in "Removing the motor unit" on page 19.
3 Adjust the motor unit position.
Push in the motor unit until there are no spaces between it, the platter and the spacer block.
4 Follow the installation procedures from step 19 (on page 18) to remove the tools.
Set the micrometer value for the motor unit as desired.
Playing records
Press the POWER button to turn the Grandioso T1 on.
2 Place a record on the platter.
When playing a record with a wide hole, use a record adapter.
Press the SPEED button to select the rotation speed indicated on the record.
The rotation speed can be set to 33 1/3 or 45 RPM.
4 Press the play/stop ( / ) button to start platter rotation.
Wait until the rotation speed stabilizes.
Use the arm lifter lever to raise the arm lifter.
- You can also move the tonearm to above the record without raising the arm ladder and then slowly lower the tonearm to start playback.
6 Move the tonearm to the track where you want to start playback.
7 Use the arm lifter lever to lower the arm lifter.
The tonearm lowers slowly until the stylus touches the record and it starts playing.
ATTENTION
- During playback, do not touch the tonearm or the record. Doing so could damage the stylus tip and cause scratches on the record.
- Do not forcibly stop platter rotation during playback. Since this product is not a turntable designed for DJs (direct drive), doing something like this could cause malfunction.
When a record is playing, feedback could occur if the volume is too loud. If this happens, lower the volume of the amplifier.
When playback finishes
1 Use the arm lifter lever to raise the arm lifter.
2 Return the tonearm to its original position.
3 Use the arm lifter lever to lower the arm lifter.
4 Press the play/stop ( / ) button to stop platter rotation.
Changing settings
Press and hold the SPEED button.
Press the SPEED button repeatedly to select the item to change.
3 Press the rotation speed adjustment (- / + ) buttons to change the setting value.
4 Press the play/stop ( / ) button to end making settings.
Setting mode will also end and the ordinary display will reappear if nothing is done for ten or more seconds.
- Settings are retained even if the power plug is disconnected.
Settings
Clock setting
CLK>***
Use this to set synchronization with an external clock.
-By default, the setting is OFF.
OFF
Clock synchronization is not used.
IN
In this mode, this unit is synchronized with the 10MHz clock signal input through its 10MHz IN clock connector from a clock generator.
The CLOCK indicator lights. The CLOCK indicator blinks when in the process of synchronizing or unable to synchronize.
The clock frequency that can be input is 10 MHz.
- When a record is playing, do not stop the clock signal by turning off the clock generator power or disconnecting the BNC coaxial cable that is supplying the 10MHz clock signal.
TE
When set to CLK>IN and synchronized with 10MHz clock, "CLK 10M" will be shown on the display.
Display setting
DISP>***
Use this to change the display appearance.
- By default, the setting is NORM.
NORM
This shows when playing/stopped and the RPM.
RPM
This shows only the RPM.
AUTO
This shows when playing/stopped and the RPM. When rotation is stable, the display will become unlit.
Automatic display darkening setting
DPaOFF>***
Use this to set the display to darken automatically.
By default, the setting is ON.
- If the OEL display is left on with the same indication for a long time, brightness irregularities can occur. For this reason, we recommend that you set the automatic display darkening function to ON.
ON
If no operation is conducted for ten minutes, the display automatically turns off.
OFF
The display will not turn off automatically.
- If no operation is conducted for ten minutes, the display will dim to DIMMER>1 brightness to protect it from excessive wear.
Automatic power saving setting
APS>***
The unit will automatically turn off if the platter has not rotated for the set amount of time.
- By default, the setting is OFF.
OFF
The automatic power saving function is disabled.
30m
30 minutes
60m
60 minutes
90m
90 minutes
120m
120 minutes
Dimmer setting
DIMMER>***
Use this to adjust the brightness of the main unit's display.
By default, the setting is 2.
- Even when set to DIMMER>1 or DIMMER>0, settings and error messages will be shown with normal brightness (DIMMER>2).
Showing firmware versions
F/W ver.
Press the rotation speed adjustment (+) button when "F/W ver." is shown to check the firmware versions.
I/F***
I/F firmware
MTR***
Motor driver firmware
If you experience a problem with this product, please take a moment to review the following information before requesting service. Moreover, the problem might be caused by something other than this product. Please also check the operation of the connected units. If this product still does not operate correctly, contact the retailer where you purchased it.
General
The Grandioso T1 does not turn on.
Confirm that the power cord is securely connected to both the inlet on the back of the power supply unit and a power outlet.
Confirm that power is being supplied to the outlet to which the power cord is connected by, for example, connecting another device to it. Confirm that the DC power cord between the main and power supply units is properly connected.
The Grandioso T1 automatically turns off.
This is because the automatic power saving function turned the Grandioso T1 off.
Press the POWER button to turn it on. Change the automatic power saving setting if necessary.
The main unit does not respond when buttons are pressed.
Multiple button presses without pause can cause the main unit to not respond. After pressing a button, wait momentarily for the main unit to respond.
There is noise.
Place the units as far away as possible from TVs and other devices that have strong magnetism.
Clock sync
The CLOCK indicator does not stop blinking.
Set the clock (CLK) to OFF when not using clock sync.
A clock signal to which the main unit cannot synchronize might be being input. Check the connection of the clock connector and the settings of connected devices. The Grandioso T1 only supports 10MHz clock.
Playing records
The arm does not go down even when the arm lifter lever is lowered.
Balance the tonearm and readjust the tracking force.
The pitch is wrong.
Select the rotation speed indicated on the record.
Playback is not possible; there is noise.
Reconnect the phone cable.
Fingerprints and dust on a record can cause noise and the sound to skip. Use a commercially-available record cleaner to clean records.
Clean the stylus.
If the stylus is worn-out, replace it.
Place the units as far away as possible from TVs, microwave ovens and other devices that emit electromagnetic waves.
Plug the power cord into a different outlet.
Noise occurs when a record is playing.
Noise could occur if the tracking force is higher than cartridge's specified value. Readjust the tracking force so that it is the specified value.
The sound is skipping.
Vibrations will cause skipping. Place the units in stable locations.
Clean the record.
Do not use scratched records.
Balance the tonearm and readjust the tracking force.
The stylus and sound might skip if the tracking force is lower than the cartridge's specified value.
If the stylus is bent, replace it.
The motor unit or base unit has been displaced by an earthquake or other shock, for example.
Follow the procedures in "Resetting the motor unit to its default position" on page 20 to readjust the position.
Since the Grandioso T1 uses a microcontroller, external noise and other interference can cause it to malfunction. If this occurs, turn the product off once, and then restart it after waiting for about one minute.
Error message list
CLOCK!
The unit cannot synchronize with a clock signal.
See "Clock sync" on page 24.
MOTOR ERR!
The motor driver detected a problem and stopped the motor.
Press the play/stop ( / ) button to restart the platter.
If this appears frequently, contact the store where you purchased the unit.
OverCRNT!
The motor driver detected excessive current and forced the motor to stop.
Press the play/stop ( /) button to restart the platter.
If this appears frequently, contact the store where you purchased the unit.
PLATERR!
The platter is not rotating.
The motor stopped for this reason.
Press the play/stop ( / ） button to restart the platter.
If this appears frequently, follow the procedures in "Installation" on page 13 to reinstall the product.
STARTERR!
A start-up error has occurred. The platter is taking a long time to reach the set RPM speed.
The message will disappear when the platter reaches the set RPM speed.
If this appears frequently, follow the procedures in "Installation" on page 13 to reinstall the product.
ADJERR!
The platter is not rotating at the set RPM speed.
The message will disappear when the platter reaches the set RPM speed.
If this appears frequently, follow the procedures in "Installation" on page 13 to reinstall the product.
Restoring factory settings
Settings are retained even if the power plug is disconnected.
Follow these procedures to restore the factory default settings and erase all changes in memory.
1 Turn the Grandioso T1 off.
If the power is on, press the POWER button on the power supply unit to turn it off and wait for more than 30 seconds.
Press the POWER button while holding down the SPEED button.
When "Setup CLR" (settings cleared) appears on the display, stop pressing the SPEED button.
Note about condensation
If this product is brought from a cold outdoor environment into a warm room, or the heater has just been turned on in the room where it is located, for example, condensation might occur on operating parts, resulting in improper operation. If this occurs, leave the product on and wait one to two hours. This should enable normal playback.
Turntable
Rotation speed 33 1/3 rpm,45 rpm
Rotation speed adjustment range. ± 12% (in 0.1% increments)
Wow and flutter. 0.06% or less (W.R.M.S)
Clock input
BNC 1
Input impedance 50Ω
Frequencies that can be input (± 10~ppm) 10 MHz
Input level. 0.5 to 1.0Vrms (sine wave)
Base unit
Arm base post. 1*
(This is not included with armless models.)
*Up to 3 tonearms can be mounted on this product.
To install an additional tonearm, an arm base kit will also be necessary. We accept custom orders for arm base kits that support various types of arms.
General
Power supply Model for Europe.. AC 230V,50 Hz Model for USA/Canada. AC 120V,60 Hz
Power consumption. 9 W In standby. .0.5W or less Operating temperature range +5^ to +35^ Operating humidity range. 5% to 85% (no condensation) Storage temperature range -20^ to +55^

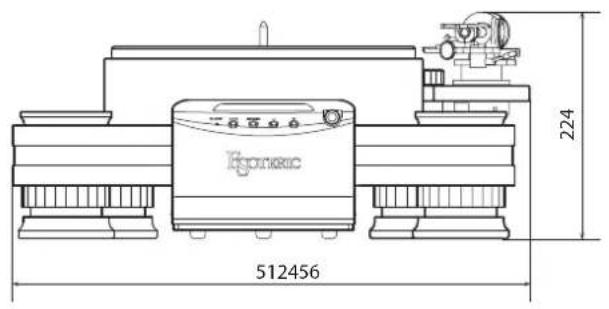

Base unit
External dimensions (W× H× D including protrusions) 497× 215× 436mm 195/8"x81/2"x171/4
Weight. 17 kg (37 1/2 lb)
Platter
External dimensions (diameter × height) 0315.4 × 103 mm (12 1/2" × 4 1/8") Weight . 19 kg (42 lb)
Motor unit
External dimensions (W× H× D including protrusions) 180× 137× 450mm(71 / 8^ × 51 / 2^ × 173 / 4^ ) Weight. 9 kg (197/8 lb)

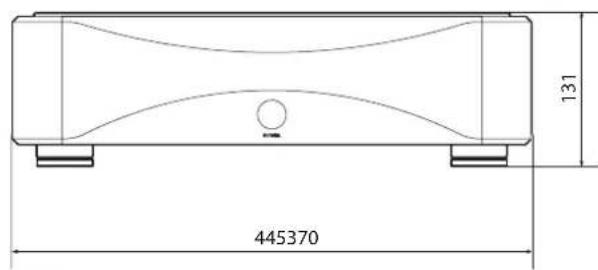

Power supply unit
External dimensions (W× H× D including protrusions) 445× 162× 447mm (175 / 8^ × 61 / 2^ × 175 / 8^ ) Weight. 18 kg (39 3/4 lb)
Included accessories
Installation tools
Spacer block × 1 Height confirmation gauge × 1 Installation rail ()× 1 Installation rail ()× 1 Unit protective covers × 2
Turntable mat × 1 DC Power cord × 1 Power cord × 1 Felt pads (for power supply unit) × 4 Handles × 2 Owner's manual (this document) × 1 Warranty card × 1 Tonearm TA-9D × 1^ Tonearm TA-9D Owner's Manual × 1^ Arm base × 1^*
*Not included with armless models
- Specifications and appearance are subject to change without notice.
- Weight and dimensions are approximate.
- Illustrations in this manual might differ slightly from production models.
Main unit

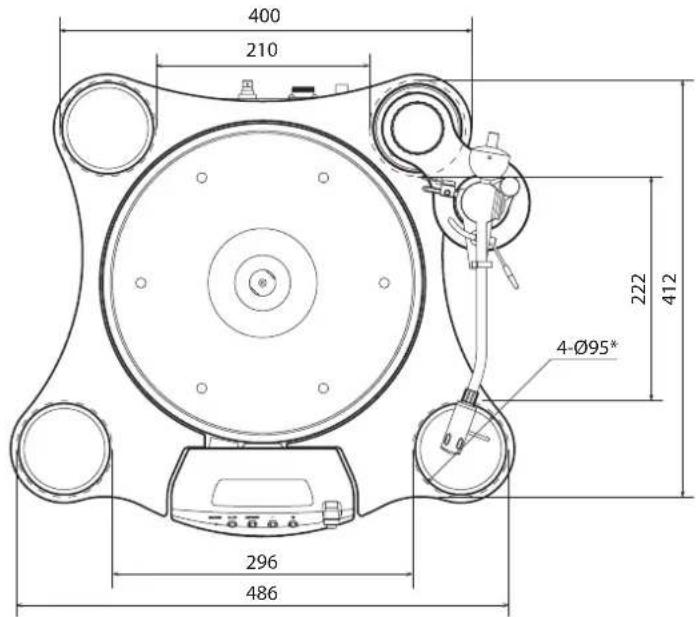

Foot placement diagram
Dimensions in millimeters (mm)
*95 mm diameter feet × 4
Power supply unit

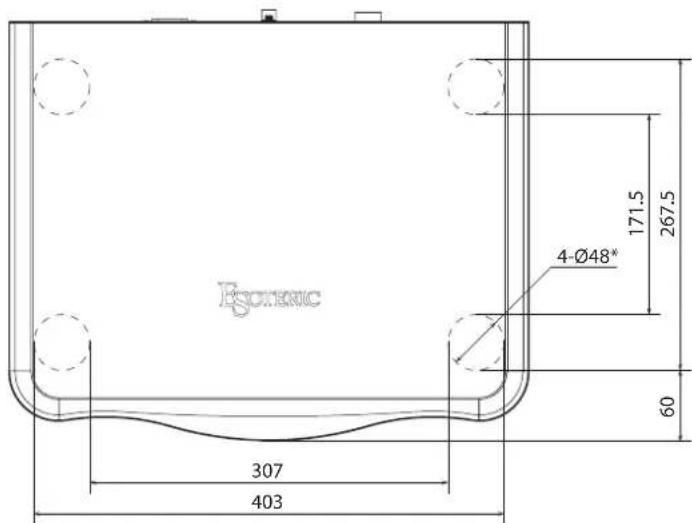

Foot placement diagram
Dimensions in millimeters (mm)
*48mm diameter feet × 4
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION:POUR REDUIRE LE RISQUE D' ELECTROCUTION,NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE).AUCUNE PIECE INTERNE N'EST REPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE REPARATION A UN SERVICE APRES-VENTE QUALIFIÉ.
ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.
H Touche Lecture/Pause (▶/■)
Note concerning la condensation
Parte responsible: 11 Trading Company, LLC
URL: https://11tradingcompany.com/contact-us/
ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.
This product has a serial number located on the rear panel. Please write it here and retain this for your records.
Model name: Grandioso T1 Serial number
