USER MANUAL Grandioso PS1 Esoteric

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

●DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
- IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.

- The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.

- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

WARNING

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

IN USA/CANADA, USE ONLY ON 120V SUPPLY.

CAUTION

• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
  ●The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

Supplier's Declaration of Conformity

Model number: Grandioso PS1

Trade name: ESOTERIC

Responsible party: 11 Trading Company, LLC

Address: 3502 Woodview Trace #200 Indianapolis, IN 46268 U.S.A.

URL: https://11tradingcompany.com/contact-us/

This device complies with Part.15 of FCC Rules.

Operation is subject to the following two conditions:

1) This device may not cause harmful interference

2) This device must accept any interference received, including interference that may cause undesired operation.

Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Model for Canada

Innovation, Science and Economic Development Canada's

Compliance Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Model for Europe

This product complies with the European Directives request, and the other Commission Regulations.

Model for UK

This product complies with the applicable UK regulations.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC, 2013/56/EU), then the chemical symbols for those elements will be indicated beneath the WEEE

e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.

Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

Contents

Thank you for purchasing this ESOTERIC product.

Read this manual carefully to get the best performance from this product. After reading it, keep it in a safe place with the warranty card for future reference.

IMPORTANT SAFETY INSTRUCTIONS 3

Before use....6

Included accessories 6

Note about pinpoint feet....6

Maintenance....7

Precautions for use....7

Connections....8

Main unit parts and functions....10

Basic operation....10

Turning the power on and off 10

Troubleshooting....11

Specifications....11

Dimensional drawings....12

Foot placement diagram 12

Included accessories

Check to be sure the box includes all the supplied accessories shown below. Please contact the store where you purchased this product if any of these accessories are missing or have been damaged during transportation.

Power cord × 1

DC power connection cords × 2

Felt pads × 4

Warranty card × 1

Owner's manual (this document) × 1

Note about pinpoint feet

High-precision metal pinpoint feet are attached to the bottom plate of this unit.

The pinpoint feet and their stands are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

Chassis Pinpoint foot (metal)

Pure mechanical assembly diagram without any text, numbers, or symbols

Foot-stand (metal) Screws that attach foot-stand

- Apply the included felt pads to the bottoms of the foot-stands to avoid scratching the surface where the unit is placed.

Precautions for use

Maintenance

Use a soft dry cloth to wipe the surface of the unit clean.

For stubborn smudges, use a damp cloth that has been thoroughly wrung out to remove excess moisture.

● Never spray liquid directly on this unit.
- Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.
- Avoid allowing rubber or plastic materials to touch the unit for long periods of time because they could damage the cabinet.

For your safety, disconnect the power cord from the outlet before cleaning.

● This unit is very heavy, so take care to avoid injury during installation.
- Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration or deformation.
- In order to enable good heat dissipation, leave at least 20 cm (8") between this unit and walls and other equipment when installing it. If you put it in a rack, take precautions to prevent overheating by leaving at least 5 cm (2") open above the top of the unit and at least 10 cm (4") open behind the unit.

Failure to provide these gaps could cause heat to build up inside and result in fire.

• Place the unit in a stable location.
• Do not place anything on top of the unit.
• The voltage supplied to the unit should match the voltage as printed on its back. If you are in any doubt regarding this matter, consult an electrician.
• Do not open the body of the unit as this might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
• When removing the power plug from an outlet, always pull directly on the plug. Never pull on the cord itself.

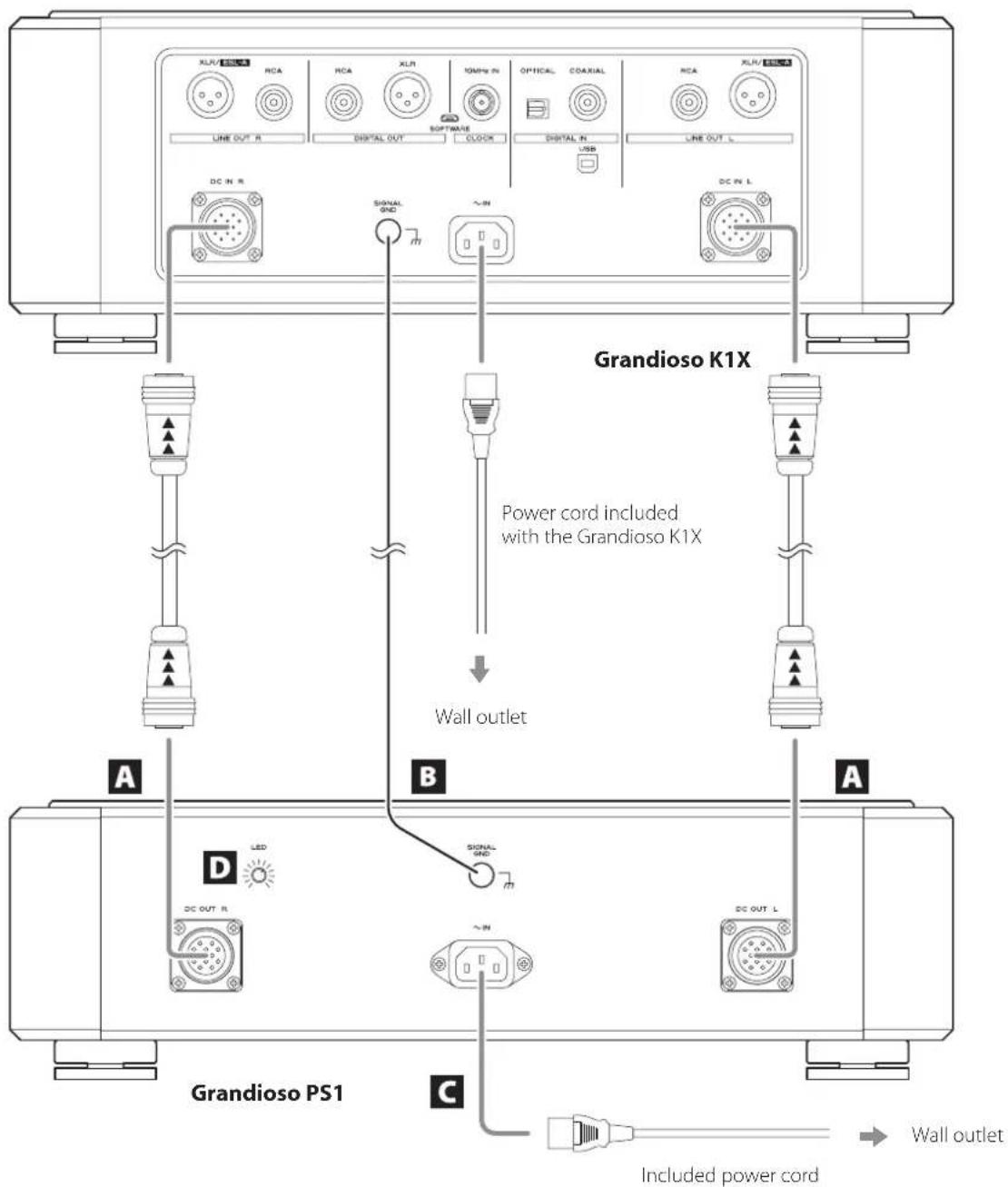

Precautions when making connections

• Plug the power cords into both this unit and the Grandioso K1X.
  ● After completing all other connections, plug the power plugs into power outlets.
  Always disconnect the power plug before connecting other cords to this unit. When this unit is connected to a power outlet, if the tip of a cord or other metal part touches a DC OUT connector pin, the pin could short, causing damage.
• Read the Owner's Manual of the device that will be connected, and follow its instructions.
• Be sure to connect the DC power connection cords with the correct orientation as shown by the arrowhead marks.
  ● The DC power connection cords included with this unit are specifically for connection to a Grandioso K1X.

XLUV RCA RCA XLV LINE OUT R SINIAL GND SINIAL GND 50MHz IN SOFTWARE OPTICAL COAXIAL USB DIGITAL IN LINE OUT L DC IN R DC IN L Signal GND ~IN Grandioso K1X Power cord included with the Grandioso K1X Wall outlet A B C Grandioso PS1 A D LED DC OUT R SIGNAL GND ~IN DC OUT L Wall outlet Included power cord

A DC power output connectors (DC OUT)

Use 2 DC power connection cords to connect the DC IN connectors of the Grandioso K1X with the DC power output connectors of this unit.

DC OUT R → DC IN R

DC OUT L → DC IN L

• Use the DC power connection cords included with this unit for connections.
• The DC power cords have arrows printed on them. Connect them so that the arrows point in the direction shown in the illustration on page 8.

Check the orientation of the pins and the arrows of each DC power cord and hold it by its plug. Align the marks on the plug and the connector and push it in completely until it clicks into place. When disconnecting, hold the ring and pull it directly out. When connecting or disconnecting power cords, do not angle or wiggle the plugs.

● Always disconnect the power plug before connecting or disconnecting a DC power connection cord.
- Be careful not to pinch your fingers in the ring when connecting or disconnecting a DC power cord.

Diagram of a plug with labeled components and wiring, showing internal structure and connection points

Connector

Align the marks when connecting.

When disconnecting, hold the ring and pull it directly out.

Plug

Never connect this to a P-0, P-01, Grandioso P1 or Grandioso P1X unit. Doing so could cause damage.

B SIGNAL GND grounding terminal

Connecting this grounding terminal to the grounding terminal of a D/A converter, amplifier or other device might improve the audio quality.

● This is not a safety grounding terminal.

C AC power inlet (\~IN)

Connect the included AC power cord to this AC inlet. After completing all other connections, plug the power plug into a power outlet.

Use only a genuine ESOTERIC power cord. Use of other power cords could result in fire or electric shock.

⚠️ Disconnect the power plug from the outlet if you will not use the unit for a long time.

D LED brightness adjustment knob

Turn to adjust the brightness of the power indicator.

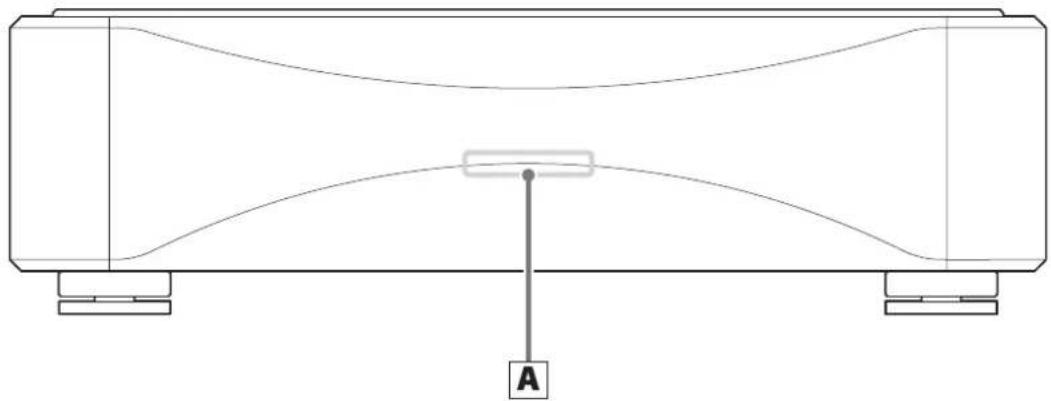

Main unit parts and functions

Pure technical diagram of a mechanical or electrical component with curved and straight lines, no text or symbols present.

A Power indicator

This lights when the power is on.

- If it blinks, confirm that this unit's AC inlet (\~IN) is connected to a power outlet with the power cord.

Basic operation

Turning the power on and off

Line drawing of a portable electronic device with buttons and indicator lights (no text or symbols)

Use the POWER button for the Grandioso K1X to turn this unit on and off.

Troubleshooting Specifications

If you experience a problem with this product, please take a moment to review the following information before requesting service. Moreover, the problem might be caused by something other than this unit. Please also check the operation of the connected unit. If this product still does not operate correctly, contact the retailer where you purchased it.

The unit does not turn on.

→ Confirm that the power cord is securely connected to both the inlet on the back of this unit and a power outlet.
→ Confirm that power is being supplied to the outlet to which the power cord is connected by, for example, connecting another device to it.
→ Confirm that the DC power connection cords are properly connected.

Note about condensation

If this unit is brought from a cold outdoor environment into a warm room, or the heater has just been turned on in the room where it is located, for example, condensation might occur on operating parts, resulting in improper operation. If this occurs, leave the unit on and wait one to two hours. This should enable normal playback.

General

Power supply

Model for Europe....AC 220-240 V, 50/60 Hz

Model for USA/Canada AC 120 V, 60 Hz

Model for Korea....AC 220 V, 60 Hz

Power consumption.... 17 W

External dimensions (W × H × D, including protrusions)

445×132×452(mm)(17 5/8"×5 1/4"×17 7/8")

Weight 23.7 kg (52 1/4 lb)

Operating temperature....+5°C to +35°C

Operating humidity range.... 5% to 85% (no condensation)

Storage temperature -20°C to +55°C

Included accessories

Power cord × 1

DC power connection cords × 2

Felt pads × 4

Owner's manual (this document) × 1

Warranty card × 1

• Specifications and appearance are subject to change without notice.
  ● Weight and dimensions are approximate.
• Illustrations in this Owner's Manual might differ slightly from production models.

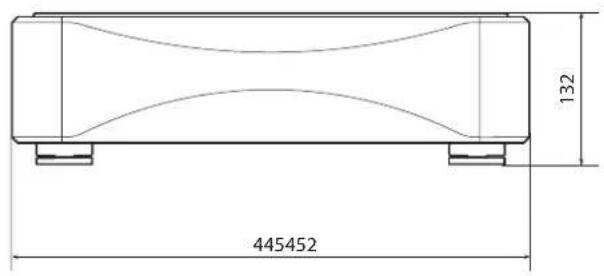

445452 132

Technical line drawing of a rectangular electronic component with mounting feet (no text or symbols)

Front view of a device chassis with three ports and indicator lights (no text or symbols visible)

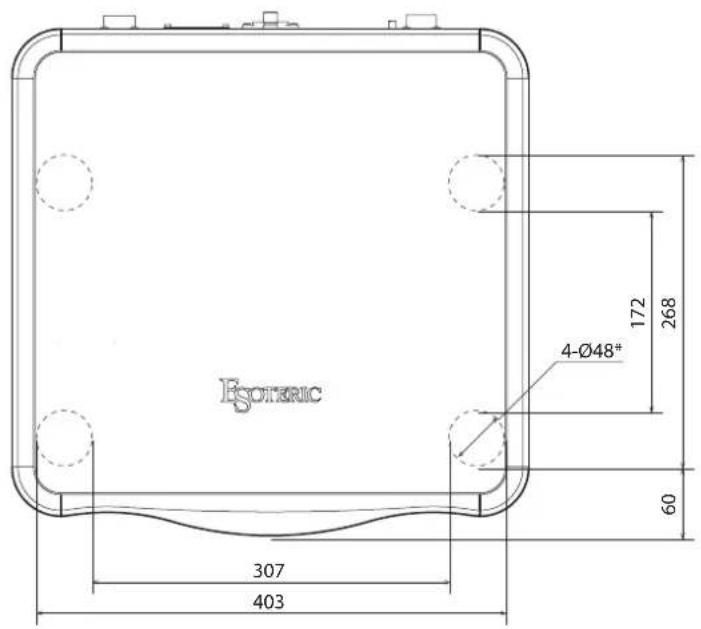

Foot placement diagram

Isotonic 307 403 172 268 4-Ø48* 60

Dimensions in millimeters (mm)

*48mm diameter feet × 4

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRIÈRE). AUCUNE PIÈCE INTERNE N'EST RÉPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRÈS-VENTE QUALIFIÉ.

Symbolic icon of a person climbing a ladder inside a circle (no text or symbols)

AVERTISSEMENT

ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.

Technical diagram of a mechanical component with labeled parts and directional arrows indicating assembly or flow.

Prise

Pure diagram of a mechanical or electrical component with curved and straight lines, no text or symbols present.

A Voyant d'alimentation POWER

Line drawing of a portable electronic device with buttons and indicator lights (no text or symbols)

Technical line drawing of a rectangular electronic component with mounting feet (no text or symbols)

Front view of a rectangular electronic device with three ports and indicator lights (no text or symbols visible)

Symbolic icon of a person lifting a large object, enclosed in a circle with no text or symbols

AVISO

Parte responsible: 11 Trading Company, LLC

URL: https://11tradingcompany.com/contact-us/

ESOTERIC is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.

Pure mechanical cross-section diagram without any text, numbers, or symbols

Technical diagram of a mechanical component with labeled parts and directional arrows indicating assembly or movement.

Terminal

Pure diagram of a mechanical or electrical component with curved and straight lines, no text or symbols present.

Line drawing of a portable electronic device with buttons and indicator lights (no text or symbols)

Technical line drawing of a rectangular electronic component with mounting feet (no text or symbols)

Front view of a device chassis with three ports and indicator lights (no text or symbols visible)

This product has a serial number located on the rear panel. Please write it here and retain this for your records.

Model name: Grandioso PS1 Serial number
