Product type	Electric instantaneous water heater
Brand	Bosch
Model	TR5000R
Category	Heating
Power supply	400 V three-phase, 50 Hz
Rated power	18/21 kW or 24/27 kW depending on variant
Hot water flow rate (ΔT 26 °C)	Up to 14.6 l/min
Recommended water pressure	0.04 - 1.0 MPa (0.4 - 10 bar)
Maximum inlet water temperature	20 °C (standard) / 55 °C (solar mode)
Adjustable outlet temperature	Up to 60 °C (limitation to 53 °C possible)
Energy efficiency class	A
Draw profile	S
Annual energy consumption	477 kWh
Dimensions (H x W x D)	480 x 300 x 150 mm (estimate)
Weight	Approximately 5 kg
Water connection	G 1/2
Electrical protection	Class I, requires grounding
Safety functions	AquaStop, safety limiter, frost protection
Maintenance	Periodic descaling, cleaning without solvents
Repairability	Spare parts available via Bosch service

Frequently Asked Questions - TR5000R BOSCH

What is the rated power of the Bosch TR5000R?

The rated power is 18/21 kW or 24/27 kW depending on the variant, under 400 V three-phase.

Can I install the TR5000R water heater myself?

No, installation must be carried out by a qualified technician in accordance with safety instructions. Improper connection can lead to electrical or leakage risks.

What water pressure is required for operation?

The water pressure must be between 0.04 MPa (0.4 bar) and 1.0 MPa (10 bar). Too low pressure may prevent startup.

How to adjust the water temperature?

The outlet temperature can be adjusted on the device. To limit to 53 °C, use the temperature limiter as indicated in the manual (Fig. 10).

What to do if the water does not heat?

Check the power supply (fuses), water pressure (minimum flow rate 2.5 l/min), and purge the device by opening the hot water tap for 1 minute.

Is the TR5000R compatible with a solar installation?

Yes, for compatible models. The inlet water temperature must not exceed 55 °C. A thermostatic mixing valve is required.

How to purge the device after installation?

Fully open the hot water tap and let the water run for at least 1 minute to purge air. The device will not heat during this phase.

What is the warranty of the Bosch TR5000R?

The warranty is provided by Bosch. Contact customer service for specific conditions. The manual mentions a data protection declaration.

What are the dimensions of the device?

Approximate dimensions are 480 mm height, 300 mm width, and 150 mm depth (see Fig. 9 of the manual).

What is the annual energy consumption?

The annual energy consumption is 477 kWh for draw profile S, with an energy efficiency of 39%.

USER MANUAL TR5000R BOSCH

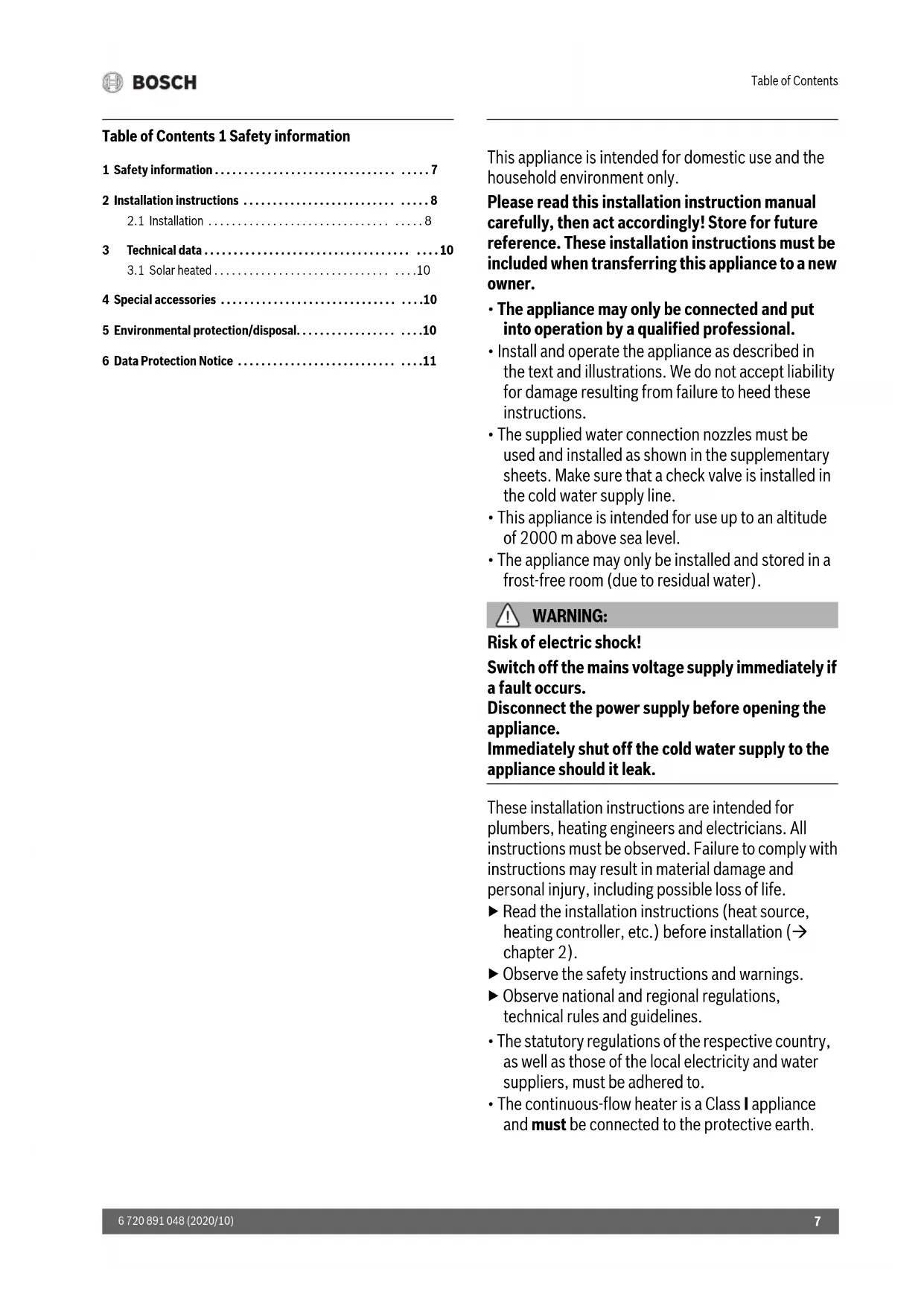

Table of Contents 1 Safety information

1 Safety information 7
2 Installation instructions 8

2.1 Installation 8

3 Technical data 10
3.1 Solar heated 10

4 Special accessories 10
5 Environmental protection/disposal. 10
6 Data Protection Notice 11

This appliance is intended for domestic use and the household environment only.

Please read this installation instruction manual carefully, then act accordingly! Store for future reference. These installation instructions must be included when transferring this appliance to a new owner.

• The appliance may only be connected and put into operation by a qualified professional.
• Install and operate the appliance as described in the text and illustrations. We do not accept liability for damage resulting from failure to heed these instructions.
• The supplied water connection nozzles must be used and installed as shown in the supplementary sheets. Make sure that a check valve is installed in the cold water supply line.
• This appliance is intended for use up to an altitude of 2000m above sea level.
• The appliance may only be installed and stored in a frost-free room (due to residual water).

WARNING:

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs.

Disconnect the power supply before opening the appliance.

Immediately shut off the cold water supply to the appliance should it leak.

These installation instructions are intended for plumbers, heating engineers and electricians. All instructions must be observed. Failure to comply with instructions may result in material damage and personal injury, including possible loss of life.

Read the installation instructions (heat source, heating controller, etc.) before installation ( chapter 2).
Observe the safety instructions and warnings.
Observe national and regional regulations, technical rules and guidelines.
- The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.
- The continuous-flow heater is a Class I appliance and must be connected to the protective earth.

• The appliance must be permanently connected to installed pipes. The conductor cross-section must comply with the installed appliance power.

CAUTION:

Earthed water pipes may give the appearance of a connected protective earth.

• To guarantee compliance to relevant safety regulations, an all-pole separator must be fitted during installation, according to chapter 3. The contact opening must be at least 3mm .
• Ensure that the inlet water pressure, maximum and minimum, is according with the value specified by the manufacturer ( chapter 3).
• For TR 5000R the water inlet shall not be connected to inlet water obtained from any water heating system.
• For TR 7000R appliances the cold water supply temperature must not be higher than 55^ .
• In accordance with EN60335-2-35, when the appliance is intended to supply water for showering, the output temperature must be limited to 55^ .
• The continuous-flow heater is only suitable for closed (pressurised) operation.
• The tap and outlet fittings must be approved for operation with closed (pressurised) continuous-flow heater systems.
• The water's specific electrical resistivity must not be less than 1300 cm . Ask the local water utility company regarding the electrical resistivity of the water.
• The continuous-flow heater is suitable for connection to DVGW-tested plastic pipes.
• Disconnect the electrical connection cable from the supply and shut off the water supply before connecting the appliance!
• Connect the water supply and then connect the electrical supply.
• Only make the openings which are required for installation on the rear of the appliance. If the appliance is reinstalled, the unused openings must be provided with watertight sealing.
• Do not touch electrically live parts after installation.
• Do not use aggressive or abrasive cleaning detergents!
• Do not use a steam cleaner.

Safety of electrical devices for domestic use and similar purposes

The following requirements apply in accordance with EN 60335-2-35 in order to prevent hazards from occurring when using electrical appliances:

"This appliance can be used by children of 3 years and older, as well as by people with reduced physical, sensory or mental capabilities or lacking in experience and knowledge, if they are supervised and have been given instruction in the safe use of the appliance and understand the resulting dangers. Children shall not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision."

"If the power cable is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person, so that risks are avoided."

2 Installation instructions

Install the appliance as shown in the illustrations. Observe the instructions in the text.

2.1 Installation

Unpacking/Removing the cover (Fig. 1)

• Unpack the appliance and check for transport damage. If any components are damaged, then do not connect the appliance.
• Check that your appliance contains all components included in the scope of delivery: appliance, installation set with supplementary sheets, installation instructions, operating instructions.
• Please dispose of the packaging and the old appliance in an environmentally-friendly manner.
• When removing the cover from the appliance, please note the following: The cover is fastened by a central closure behind the service flap.

Preparations for installation (Fig. 2)

Important: Only use the supplied installation set.

The supplied water connection nozzles must be installed!

• Shut off water supply. The electrical connection (connection cable) must be disconnected from the power supply. Unscrew the fuse or switch off the circuit breaker.
• Install the water connection nozzles according to the instructions on the supplementary sheet.
  The electrical connection cable can either be guided in at the top (X) or bottom (Y).
• The rear panel must lie against the cold water connection nozzle in the position provided for such [8].

Wall mounting (Fig. 3)

• The grommet must tightly surround the connection cable. If it is damaged during mounting, the openings must be provided with watertight sealing.
• The electrical supply terminal can be fitted at the top (X) or bottom (Y). The sheath of the connection cable must extend for at least 40mm into the appliance.
• The distance to the wall is variable. You can compensate for any unevenness of the wall's surface. With a distance to the wall of 8-16 mm, insert the spacer and install the extender [3.-5].
• The appliance must be mounted securely on the wall. If necessary, attach it at the lower adjustable screws [6].

Water connection (Fig. 4, 5)

Before connecting the water, guide the AquaStop connection pipe into the grommet (Fig. 5, [7]). The grommet must tightly surround the connection pipe.
Connect the water supply, then open the cold water supply.
- When tightening the connections, make sure that the AquaStop is positioned vertically.
Press the grip surfaces together and pull out the transport protection attachment to the right (Fig. 5, [10].)
The appliance must be vented. To do so, open the warm water tap fully and flush out the appliance thoroughly for 1 minute.

Electrical connection/Mounting (Fig. 6)

Limiting the outlet temperature to 53^ (Fig. 10).

(Only for the following appliances; TR 5000R and TR 7000R.)

WARNING:

Risk of electric shock!

How to move the temperature limiting switch,

Disconnect the power supply before opening the appliance.
Remove the cover.
Move the temperature limiting switch to the 53^ position ( Fig. 10).

Only for appliances with power selector switches:

• Set the power using the power selector switch before connecting the wires to the mains connection terminal: Nominal output power left, reduced output right [1.] and the set output marked on the ratings plate.
  Screw the wires tightly into the mains connection terminal [2].
  Switch on the safety limiter [3].
  Install the cover (4.-7.).

Installation note

• The installation of non plug-in ready appliances must be undertaken by the respective utility operator or by a qualified specialist company, who can also assist you when you are requesting the approval of the utility company for installation of the appliance.

Startup (Fig. 7)

The device is compliant to IEC 61000-3-12.

First start-up

Switch on the fuses
Setting the temperature.
- Initial rinsing: Open the warm water tap fully and allow water to flow for at least 1 minute. Only then (for safety reasons) will the appliance begin to heat.

Tip: Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.

• Explain the operation of the appliance to the user.

Additional information (Fig. 8)

• If the appliance does not have sufficient water flow due to low water line pressure in your domestic plumbing system, remove the flow-rate limiter [1.-3.].
• Priority circuit for the combination with electrical storage heaters: For operation with a priority circuit, a special load shedding relay BZ 45L21 (special accessory) is required. Other existing load shedding relays, with the exception of electronic load shedding relays, may malfunction (Wiring diagram).
• The control electronics must be coded when operated with a load shedding relay. Remove the keying nose on the electronics [4].

3 T e c h n i c a l d a t a

		TR5000R 18/21 EAB	TR5000R 24/27 EAB	TR7000R 18/21 DESOAB	TR7000R24/27 DESOAB
Rated output [kW] 18/21 24/27 18/21 24/27
Rated voltage	[V]	400	400	400	400
Fuse protection	[A]	32	40	32	40
Minimum conductor cross-section*	[mm²]	4	6	4	6
Warm water flow at rated output with temperature increase from 12 °C to 38 °C (without flow-rate limiter)	[l/min]	9.8/11.6	13.0/14.6	9.8/11.6	13.0/14.6
12 °C to 38 °C (with flow-rate limiter)	[l/min]	7.6	9.3	7.6	9.3
12 °C to 60 °C	[l/min]	5.3/6.2	7.1/7.9	5.3/6.2	7.1/7.9
Start-up flow	[l/min]	2.5	2.5	2.5	2.5
Start-up flow pressure**	[MPa (bar)]	0.04	0.04	0.04	0.04
		0.4	0.4	0.4	0.4
Application area in water specific electric resistance at 15 °C	[Ωcm]	≥1300	≥1300	≥1300	≥1300
Rated pressure	[MPa (bar)]	1.0 (10)	1.0 (10)	1.0 (10)	1.0 (10)
Maximum permissible supply temperature	[°C]	20	20	55	55
Maximum mains impedance at connection point	[Ω]	0.067/0.104	0.067/0.104	0.067/0.104	0.067/0.104
Energy efficiency class		A	A	A	A
Load profile		S	S	S	S
Annual energy consumption	[kWh]	477	479	477	479
Daily energy consumption	[kWh]	2,195	2,204	2,195	2,204
Sound power level	[dB]	15	15	15	15
Hot water heating energy efficiency	[%]	39	39	39	39

• Larger cable cross-sections may be required depending on the connection configuration.
  **The pressure loss on the mixer must also be added.

3.1 Solar heated

Only for appliances that are suitable for solar heating systems:

The appliance can only heat prewarmed water to a max. of 60^ If the cold water supply exceeds a temperature of 55^ the water will not be warmed any further.

Important: The cold water supply temperature must not be higher than 55^

If the cold water supply exceeds a temperature of 60^ , a circuit breaker will trigger and shut the appliance off. Therefore, the residential plumbing must be equipped with a thermostatic premixer that will limit the cold water supply temperature to a max. of 55^ by appropriately mixing in cold water.

Dimensions (Fig. 9)

4 Special accessories

• Priority switch (load shedding relay) BZ 45L21: for operation with a priority circuit
• Mounting kit BZ 45K23: for surface mount installation
• Only for appliances that are suitable for solar heating systems: Thermostatic premixer for installation in the domestic plumbing when using preheated water

5 Environmental protection/disposal

Environmental protection is a fundamental corporate strategy of the Bosch Group.

The quality of our products, their economy and environmental safety are all of equal importance to us and all environmental protection legislation and regulations are strictly observed.

We use the best possible technology and materials for protecting the environment taking account of economic considerations.

Packaging

Where packaging is concerned, we participate in country-specific recycling processes that ensure optimum recycling.

All of our packaging materials are environmentally compatible and can be recycled.

Used appliances

Used appliances contain valuable materials that can be recycled. The various assemblies can be easily dismantled. Synthetic materials are marked accordingly. Assemblies can therefore be sorted by composition and passed on for recycling or disposal.

Used electrical and electronic appliances

Electrical or electronic devices that are no longer serviceable must be collected separately and sent for environmentally compatible recycling (in accordance with the European Waste Electrical and Electronic Equipment Directive).

To dispose of old electrical or electronic devices, you

should use the return and collection systems put in place in the country concerned.

Batteries must not be disposed together with your household waste. Used batteries must be disposed of in local collection systems.

6 Data Protection Notice

We, Bosch Thermotechnology Ltd., Cotswold Way, Warndon, Worcester WR4 9SW, United Kingdom process product and installation information, technical and connection data, communication data, product registration and client history data to provide product functionality (art. 6 (1) sentence 1 (b)

GDPR), to fulfil our duty of product surveillance and for product safety and security reasons (art. 6 (1) sentence 1 (f) GDPR), to safeguard our rights in connection with warranty and product registration questions (art. 6 (1) sentence 1 (f) GDPR) and to analyze the distribution of our products and to provide individualized information and offers related to the product (art. 6 (1) sentence 1 (f) GDPR). To provide services such as sales and marketing services, contract management, payment handling, programming, data hosting and hotline services we can commission and transfer data to external service providers and/or Bosch affiliated enterprises. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area. Further information are provided on request. You can contact our Data Protection Officer under: Data Protection Officer, Information Security and Privacy (C/ISP), Robert Bosch GmbH, Postfach 30 02 20, 70442 Stuttgart, GERMANY.

You have the right to object, on grounds relating to your particular situation or where personal data are processed for direct marketing purposes, at any time to processing of your personal data which is based on art. 6 (1) sentence 1 (f) GDPR. To exercise your rights, please contact us via [e-mail] To find further information, please follow the QR-Code.

Vent for one minute!
